Signamax  Connectivity Systems
Gigabit Ethernet Media Converter
USER’S
GUIDE

Signamax
 Connectivity Systems
Gigabit Ethernet Media Converter
User’s Guide

Signamax  Gigabit Ethernet Media Converter
User’sManual 1
FCC Statement
The FCC (Federal Communications Commission) restricts the amount of radio frequency
emission and radiation coming from computer equipment.
The equipment introduced in this manual has been tested and found to comply with the limits for
a Class A digital device pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user is required to correct the interference at his/her own expense.
Any changes or modifications not expressly approved by the manufacture would void the user’s
authority to operate the equipment.
Trademarks
Product names mentioned in this manual may be trademarks or registered trademarks of those
products.
All trademarks or brand names mentioned are properties of their respective companies.
Preface
This manual describes how to install and use the SignamaxGigabit Ethernet Media Converter.
The Converter introduced here providesone channel media conversion solution:
1000BaseT  1000BaseSX/LX
1000BaseSX/LX  1000BaseLX
The SignamaxGigabit Ethernet Media Converter fully complies with IEEE802.3ab
1000BaseT and IEEE802.3z 1000BaseSX/LX Gigabit Ethernet standards.
In this manual, you will find:
ŸProduct overview
ŸFeatures on the media converter
ŸIllustrative LED functions
ŸInstallation instructions
ŸSpecifications

Signamax  Gigabit Ethernet Media Converter
2User’s Manual
Table of Contents
FCC STATEMENT....................................................................................................1
TRADEMARKS..........................................................................................................1
PREFACE...................................................................................................................1
TABLEOF CONTENTS..............................................................................................2
INTRODUCTION........................................................................................................3
PRODUCT OVERVIEW........................................................................................3
PRODUCT FEATURES........................................................................................3
PACKING LIST....................................................................................................4
ONE-CHANNEL MEDIA CONVERTER.....................................................................4
PHYSICAL PORTS..............................................................................................4
PORT STATUS LEDS.........................................................................................4
INSTALLATION.........................................................................................................6
SELECTING A SITE FOR THE EQUIPMENT ........................................................6
CONNECTINGTO POWER..................................................................................6
INSTALLING IN A CHASSIS.................................................................................6
SPECIFICATIONS......................................................................................................7
APPENDIX A: ORDERING INFORMATION..............................................................8
APPENDIXB: CONTACT INFORMATION................................................................9

Signamax  Gigabit Ethernet Media Converter
User’sManual 3

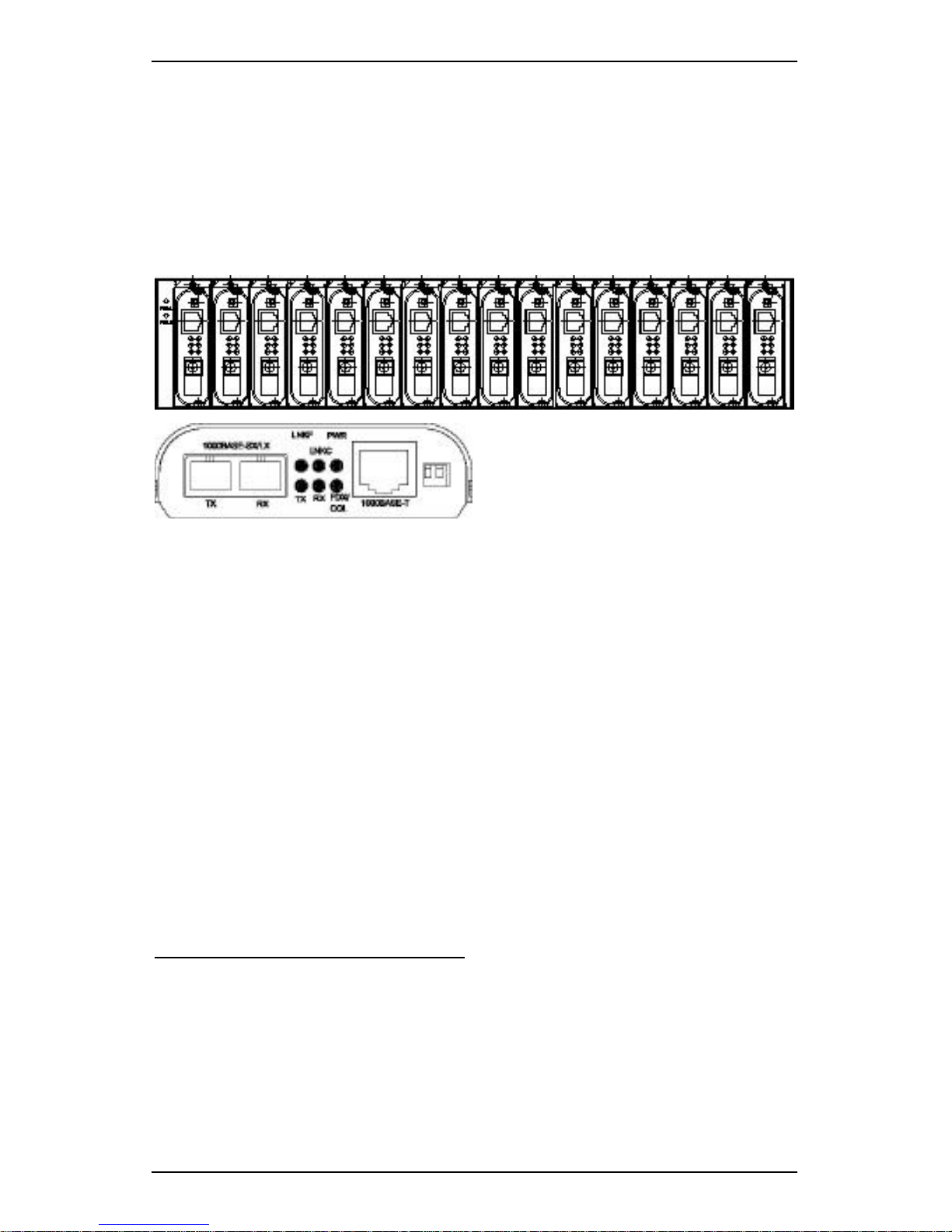

Introduction
The SignamaxGigabit Ethernet Media Converter, provides one channel for media conversion
between 1000BaseSX/LX to 1000BaseLX. It can be used as a stand-alone device or with a
standard 19” chassis as shown below.
Product Overview
Figure 1: 1000BaseT  1000BaseSX/LX Media Converter
<NOTE> The chassis is to be ordered separately.
Product Features
ŸOne-channel media conversion between
1000BaseT and 1000BaseSX/LX
1000BaseSX/LX and 1000BaseLX
ŸFiber media connection allows either:
1) multi-mode fiber that uses the SC connector, or
2) single-mode fiber that uses the SC connector
ŸFull wire-speed forwarding rate
ŸFront panel status LEDs
ŸUsed as a stand-alone device or with a chassis
ŸHot-swappable when used with a chassis
1000T1000SX/LX Media Converter
ŸThereare two pins on the DIP switch of the 1000BASE-T and 1000BASE-SX/LX one-channel
media converter:
Toggle up the pin on the left-hand side to let the fiber port auto detect full and half duplex and toggle
down the pin on the left-hand side to force the fiber port to full duplex mode. The pin on the right-hand
side should always be toggled up.
ŸThe fiber port should be forced to full duplex mode when two 1000BASE-T and 1000BASE-
SX/LX one-channel media converters are connected to each other via fiber port.
ŸThe TX port auto detects full and half duplex
ŸThe TX port supports auto MDIX for uplink purpose

Signamax  Gigabit Ethernet Media Converter
4User’s Manual
Packing List
When you unpack this product package, you will find the items listed below. Please inspect the
contents, and report any apparent damage or missing items immediately to your authorized
reseller.
—The Media Converter
—User’s Manual
—AC to DC Power Adaptor
—Warranty Card
One-Channel Media Converter
Physical Ports
1000T  1000SX/LX Media Converter
This converter provides one TX port and one FX port. For the FX port, it provides options of
either multi-mode or single-mode fiber accommodating the SC connector. For the TX port, it
uses RJ-45 connector and supports auto MDIX for uplink purposes.
1000SX/LX  1000LX Media Converter
This converter provides two FX ports. For the FX port, it provides options of either multi-mode
or single-mode fiber accommodating the SC connector.
Port Status LEDs
The LED indicators give you instant feedback on the status of the converter:
Figure 2: 1000BaseT1000BaseSX/LX, 1000BaseSX/LX1000BaseLX Media
Converter

Signamax  Gigabit Ethernet Media Converter
User’sManual 5
1000T to 1000SX/LX:
LEDs State Indication
Steady Power feed is OKPower
Off No power
Steady TX port: A valid network connection has been established
LNKC stands for LINK/Copper
LNKC
Off No connection
Steady FX port: A valid network connection has been established
LNKF stands for LINK/Fiber
LNKF
Off No connection
Steady Connection in full-duplex mode
FDX stands for FULL DUPLEX
Flashing Collision occurred
COL stands for COLLISION
FDX/COL
Off Connection in half-duplex mode
Steady Receiving dataRX
Off No reception
Steady Transmitting dataTX
Off No transmission
1000SX/LX to 1000LX:
LEDs State Indication
Steady Power onPWR
Off Power off
Steady A valid network connection has been established,
Transmitting and Receiving
SDA/ SDB
Off Neither valid network connection nor transmitting established

Signamax  Gigabit Ethernet Media Converter
6User’s Manual
Installation
This chapter gives step-by-step installation instructions for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not be subjected to
extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select
should meet the following requirements:
-The ambient temperature should be between 32 and 104 degrees Fahrenheit (0 to 40
degrees Celsius).
-The relative humidity should be less than 90 percent, non-condensing.
-Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M) field strength.
-Make sure that the equipment receives adequate ventilation. Do not block the ventilation
holes on each side of the switch or the fan exhaust port on the side or rear of the equipment.
-The power outlet should be within 1.8 meters of the media converter.
Connecting to Power
This Converter is a plug-and-play device.
Step 1: Connect the supplied AC to DC power adapter to the receptacleat the back of the
converter.
Step 2: Attach the plug into a standard AC outlet with the appropriate AC voltage.
Installing in a Chassis
The Converter is designed to fit into any of the expansion slots on a SignamaxFO-065-1185
rackmount chassis.
Step 1: Unscrew the carrier from the desired expansion slot on the chassis.
Step 2: Fit the converter onto the carrier and use those four screws to secure it.
Step 3: When the converter is completely seated onto the carrier, insert the carrier to the guide
rails of the expansion slot.
Step 4: Carefully slide in the carrier until it is fully and firmly fit the chassis.
Step 5: Fasten the carrier to the chassis by the screws.
<NOTE> Never insert any converter into the chassis directly without using the
supplied carriers. The carriers allow secure and consistent placement
of the converters into the chassis’ backplane without causing any
damage.

Signamax  Gigabit Ethernet Media Converter
User’sManual 7
Specifications
Applicable Standards IEEE 802.3ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX
1000T to 1000SX/LX:
One twisted-pair port meeting IEEE 802.3ab standard
specification; Category 5e or better cable, 100 meters
maximum distance
One fiber optic port meeting IEEE 802.3z standard
specification; 50/125 micron multi-mode fiber optic cable,
550 meters maximum distance or 10/125 micron single-
mode fiber optic cable, 20 km maximum distance
Fixed Ports
1000SX/LX to 1000LX:
Two fiber optic ports meeting IEEE 802.3z standard
specification; 50/125 micron multi-mode fiber optic cable,
550 meters maximum distance or 10/125 micron single-
mode fiber optic cable, 20 km maximum distance
Speed 1000/2000Mbps forhalf/full-duplex
Forwarding rate 1,488,000pps for 1000Mbps
LED Indicators
1000T  1000SX/LX
1000SX/LX  1000LX
Power; TX; RX; FDX/COL; LNKF; LNKC
PWR; SDA; SDB
Dimensions L110 × W81 (max.) × H23 mm
Weight 150 g
Power External power adaptor, 9 ~ 20 Volts DC, 600mA
Power Consumption 5W Max.
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -25°C ~ 70°C (-13°F ~ 158°F)
Humidity 10 ~ 90%, non-condensing
Emissions FCC part 15 Class A, CE Mark
Safety UL

Signamax  Gigabit Ethernet Media Converter
8User’s Manual
Appendix A: Ordering Information
Please include the following information when ordering:
1. Fiber type: multi-mode or single-mode
2. Fiber connector type: SC
3. Segment distance range for the fiber port
Available Models:
FO-065-1195: 1000BaseT to 1000BaseSX Multi-Mode
550m Converter -- SC
FO-065-1197: 1000BaseT to 1000BaseLX Single-Mode
10km Converter -- SC
FO-065-1197ED: 1000BaseT to 1000BaseLX Single-Mode
20km Converter -- SC
FO-065-1194: 1000BaseSX Multi-Mode 550m -- SC to
1000BaseLX Single-Mode 10km Converter -- SC
FO-065-1194ED: 1000BaseSX Multi-Mode 550m -- SC to
1000BaseLX Single-Mode 20km Converter -- SC
FO-065-1198XLD: 1000BaseLX Single-Mode 20km -- SC to
1000BaseLX Single-Mode 20km Converter –SC

Signamax  Gigabit Ethernet Media Converter
User’sManual 9
Appendix B: Contact Information
SIGNAMAX  CONNECTIVITY SYSTEMS
An AESP Company
1810 N.E. 144th Street.
North Miami, Florida 33181, U.S.A.
Phone: [phone] Fax: [phone]
Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201
Http://www.signamax.com
E-mail: [email protected]
EUROPE
AESP Ukraine. (UKRAINE)
2 Timiryazevskaya St. 47
252014 Kiev, Ukraine
Phone: [phone]
Fax: [phone]
Http://www.aesp.com.ua
E-mail: [email protected]
AESP Sweden. (SWEDEN) Grevegatan
19-21 SE-815
40 TIERP. SWEDEN
Phone: [phone]
Fax: [phone]
Phone: [phone]
Http://www.aesp.se
E-mail: [email protected]
JOTEC AESP AS. (NORWAY)
Telefon [phone] Ordrefax 23 14 17
10 Karihaugveien 102 Postboks 50
Ellingsrudasen 1006 Oslo, Norway
Phone: [phone]
Fax: [phone]
Http://www.jotec.no
E-mail: [email protected]
AESP Russia. (RUSSIA)
Kronshtadtsky Blv.
125499 Moscow, Russia
Phone: [phone]
Phone: [phone]
Fax: [phone]
Http://www.aesp.ru
E-mail: [email protected]
AESP Germany GmbH
(GERMANY)
Weisserfelderstr.2 D-85551
Kircheim b. München, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
INTELEK spol.s.r.o
(CZECH REPUBLIC)
Vlarska 22,
Brno, CZ 62700
CZE Czech Republic
Phone: [phone]
Fax: [phone]
Http://www.intelek.cz
E-mail : [email protected]
