Digital Juice Miniburst 128 User manual

PORTABLE LED VIDEO LIGHT SYSTEM
USER’S GUIDE

TABLE OF CONTENTS
About The MiniBurst 128/256 LED Lighting System 2
Package Contents 2
MiniBurst Controllers & Connectors 4
Charging the Battery 5
Operating Your MiniBurst Lighting System 6
7HFKQLFDO'DWD6SHFLÀFDWLRQV7
Cleaning Instructions 7
Troubleshooting 7
Safety Precautions & Warnings 8
Replacement Parts & Accessories 9
Limited Warranty 10

Package
Contents
About the
MiniBurst
128/256 LED
Lighting System

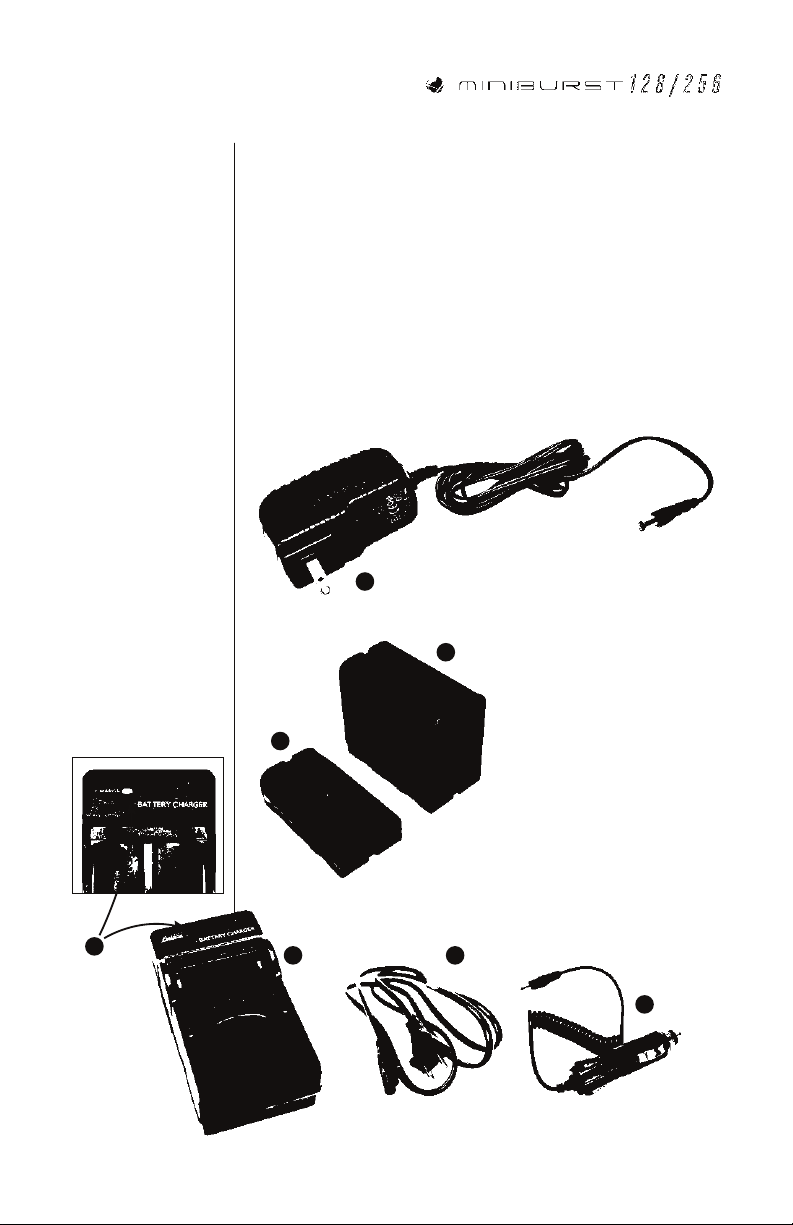

a. 12v AC Power Supply Adapter (1):
MiniBurst lights can be plugged directly into a standard AC outlet
to power the unit for longer shoots.
b. Battery Pack:
This unit contains a 7.4v
Sony NP-F type recharge-
able Lithium Ion battery
— 6000mAh pack for
the MiniBurst 256 (2) or
a 2100mAh pack for the
MiniBurst 128 (3)
c. Battery Charger Unit:
Battery Dock (4), A/C power
cord (5), 12V DC adapter (6)
When the charger is plugged
into both the electrical outlet
and the battery pack, a light
(7) located on top of the
battery dock will indicate the
charging state of the battery.
Congratulations on your purchase of this Digital Juice Gear
MiniBurst portable light-emitting diode (LED) lighting instrument.
Please read these instructions carefully before using the unit. Follow
the procedures described, in order to optimize the lifespan and
functionality of the components of this Digital Juice Gear product.
Check to see that the following components are included in the
packaging:
2
USER’S GUIDE
1
3
2
5
6
4
7

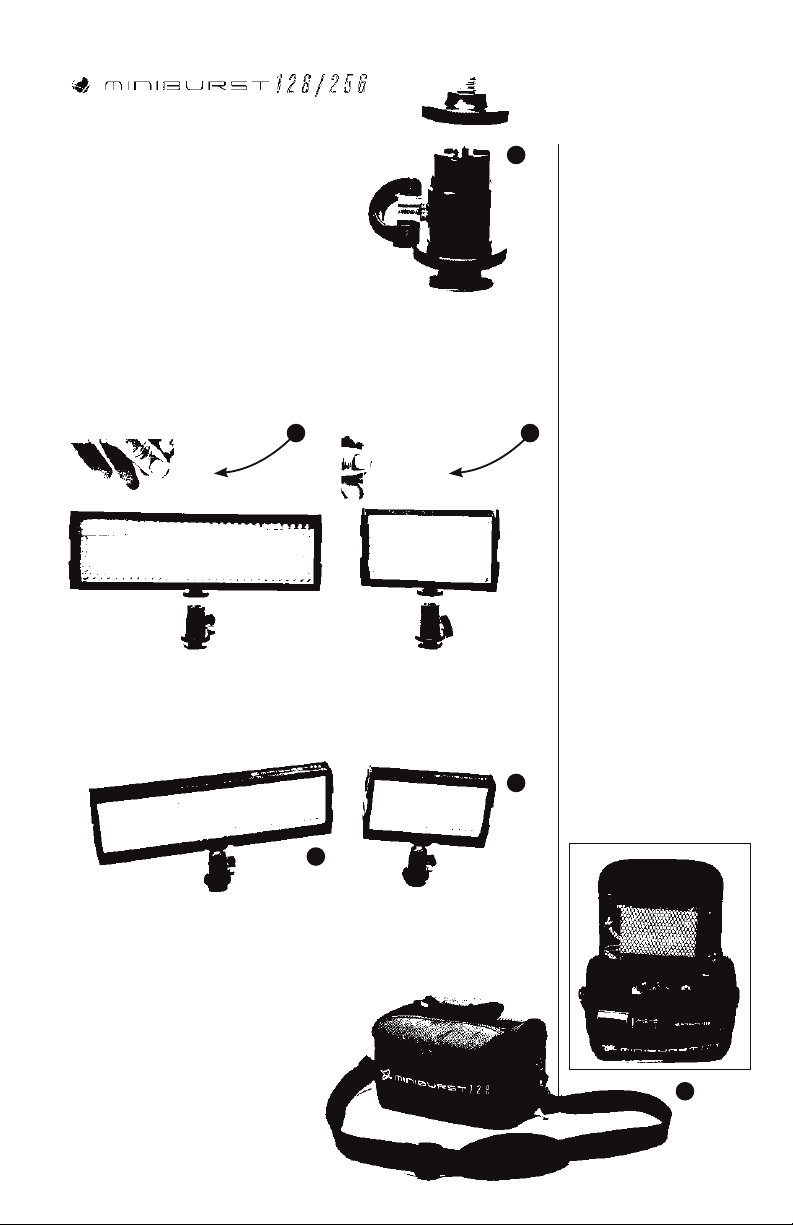

f. Digital Juice Gear MiniBurst Light Fixture:
Available in two sizes — the MiniBurst 128 (11) and the
MiniBurst 256 (12). Both MiniBurst lights have identical controls
and connectors as described on the next page.
g. Deluxe Carry Bag:
Each MiniBurst light unit comes in an attractive deluxe carry bag
(13) with integrated padded grip handle, detachable shoulder
strap, padded velcro-attached dividers and
a zippered mesh accessory pocket.
The professional styling and light-
weight protection this bag offers
your new MiniBurst light is
indispensable when shooting
on location.
Package
Contents
(continued)
3
USER’S GUIDE
d. Hotshoe Swivel Mount:
The hotshoe swivel mount (8) allows
for easy mounting of the Digital Juice
MiniBurst LED Light to the shoe mount
on most still and video cameras.
e. Diffusion/Warming Filters:
The diffusion and warming filters mount easily to the front of the
light by sliding into the provided channel built into the aluminum
frame. The warming filter (9) is used to match the daylight bal-
anced LED to warmer tungsten fixtures, while the diffusion filter
(10) helps to soften and spread the light.
8
9
12
10
11
13

MiniBurst
Controllers &
Connectors
4

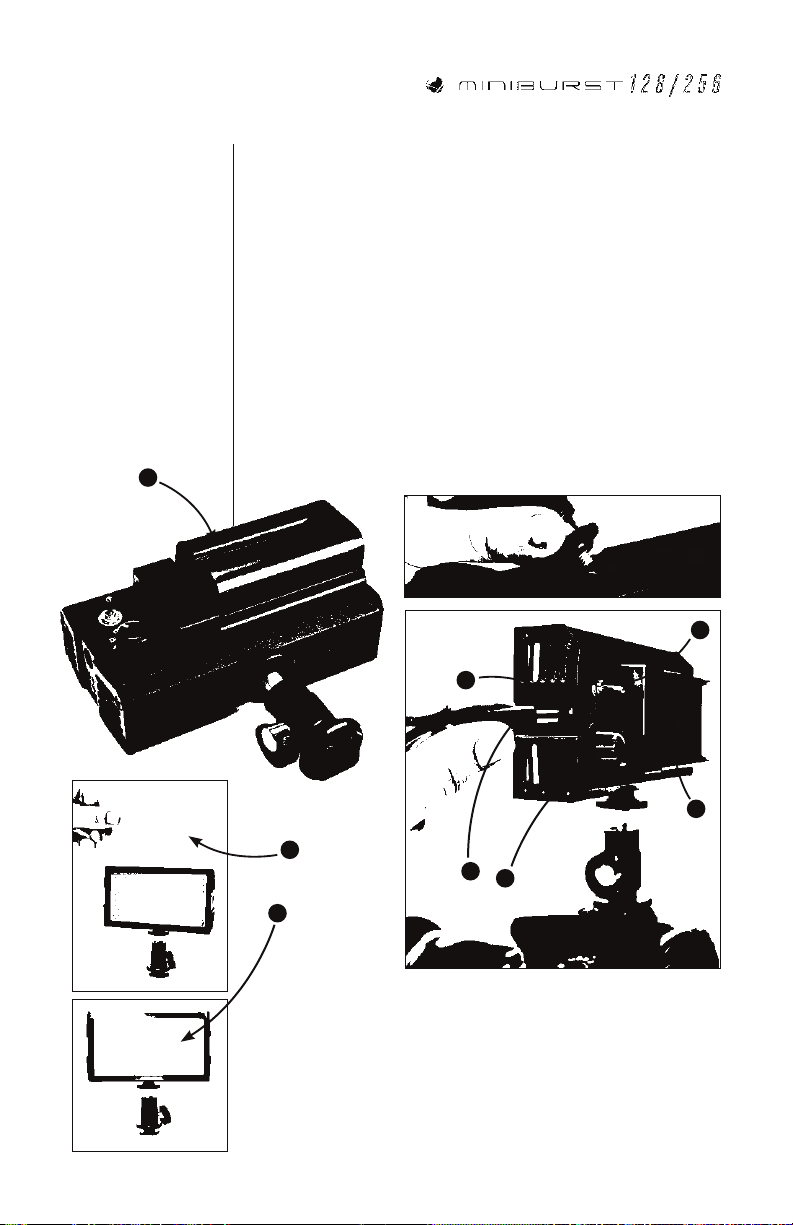

a. Power Switch (14):
Turns the LED light on and off.
b. DC Power In (15):
The 12v AC power supply adapter (1) connects to this port.
c. Dimmer Knob (16):
Adjusts light output infinitely from 10% to 100%.
d. Standard ¼”-20 Mounting & Accessory holes (17, 18):
There are two ¼”-20 mounting holes, one on the top of the light
and one on the bottom. These holes allow for the lights to be
mounted to a variety of industry-standard mounting platforms
such as articulating arms, shoe mounts, mini clamps, tripods &
more.
e. Sony NP-F Battery Plate (19): This is where the included battery
is mounted. The battery plate will also receive any number of
Sony NP-F type OEM and aftermarket batteries, besides the one
provided.
15
16
14
19
18
17
18
USER’S GUIDE

5
The battery supplied in the Digital Juice MiniBurst package is
not completely charged on delivery. Depending on which model
you have purchased, the battery must be charged for 2-4 hours
before its first use. Beyond the initial charge, no additional battery
conditioning is required.
a. Plug the battery pack into the charger unit.
b. Plug the charger into the electrical outlet using the AC power
cord (5) or use the provided 12V DC adapter (6) to connect to a
12-volt power source.

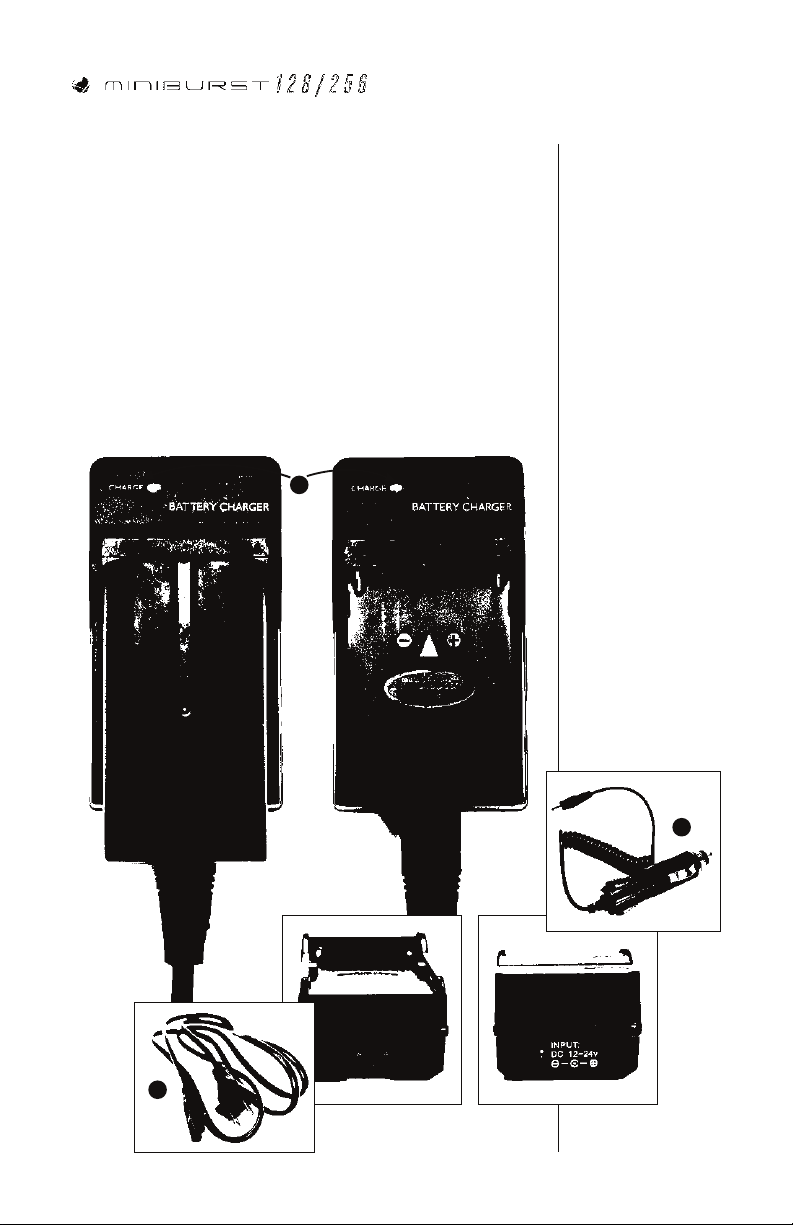

c. While charging, the light (7) on the charging unit will show red.
When the battery is fully charged, the light will be green and the
charger will switch into maintenance mode.
USER’S GUIDE
Charging
the Battery
5
6
7

6
USER’S GUIDE
Operating
Your MiniBurst
Lighting System
a. Attach the LED light fixture to the desired mounting location using the
included hotshoe swivel mount or any other ¼”-20 mounting accessory.
Caution: When attaching any ¼”-20 threaded stud to the mount-
ing and accessory holes on the MiniBurst light (17, 18), do not
use excessive force, pliers or any other tools, as there is a limited
depth available to accept the ¼”-20 threaded stud and you could
cause damage to your light which would void your warranty.
b. Attach the included battery pack (2, 3) to the battery plate (19) on
the light. The MiniBurst light also accepts most SONY DV batter-
ies: Sony NP-F Series, Sony FH-Series, and Sony FP-Series.
NOTE: (The MiniBurst 128 requires a 2100 mAh battery while the
MiniBurst 256 requires a 4000mAh battery or greater). Alterna-
tively, you could plug the included AC power supply adapter (1)
into the DC Power In (15) on the side of the light to power it.
c. Power the light ON with the power switch (14). The dimmer knob
(16) can be used to control the intensity of the light. Turning the
dimmer knob in a clockwise direction will increase the intensity and
turning it counter-clockwise will decrease the intensity of its output.
d. Install the optional Warming (9) or Diffusion (10) filter (if needed).
Slide the desired filter into the groove provided on the front of the
light frame and secure it in place with gaffer’s tape.
15
16
14
19
18
1
3
9
10

7
USER’S GUIDE
MODEL 128 256
Luminous Flux 520 LM 1050 LM
3 feet / 0.9 m 910 Lux 1800 Lux
6 feet / 1.8 m 230 Lux 450 Lux
9 feet / 2.7 m 104 Lux 220 Lux
LED Size 5 mm 5 mm
# LEDs 128 256
Life Span >20,000h >20,000h
Color Temp. 5600k 5600k
Color Rendering Index >85 >85
Beam Angle 60 ° 60°
Stackable Yes Yes
Battery Type Sony Li-ion Sony Li-ion
Operating Voltage 6-10 V DC 6-10 V DC
Construction Aluminum Aluminum
Size HxWxD 2.75” x 4.75” x 1.81” 2.75” x 8.87” x 1.81”
70 x 121 x 46mm 70 x 225 x 46mm
Weight (Battery Excluded) 6.4 oz/181g 12.8 oz/363g
Weight (Battery Included) 9.6 oz/272g 1.4 lbs/635g
Technical Data/
Specifications
PROBLEM
The unit is turned on, but the LED lights do not light up.
SOLUTIONS
 Make sure the light is properly connected to the battery or AC
adapter.
 Charge the battery.
PROBLEM
Power to the charger is interrupted before the end of the charge cycle
(such as due to a power outage).
SOLUTION
 As soon as the power has been been restored, the charge cycle will
start again.
Care should be taken when cleaning your Digital Juice Gear MiniBurst
light. Use a dry microfiber cleaning cloth to wipe dust from the hous-
ing and the LED lights. If your light becomes excessively dirty, you
can use a lightly moistened microfiber cleaning cloth to wipe the alu-
minum housing, after first ensuring that the light is disconnected from
any power source. Use of any chemical cleaning solution or detergent
on the MicroBurst lights or accessories is not recommended.
Cleaning
Instructions
Troubleshooting

8
USER’S GUIDE
Safety
Precautions &
Warnings
a. To avoid the risk of permanent eye damage, do not look directly
into the light or aim the light directly into another person’s eyes.
b. The light and the battery must be used exclusively for the purpose
described.
c. Under no circumstances should you open the housing of the
charger or the light. Never take the devices apart or undertake
modifications. Misuse of the battery can cause the battery to
become hot, explode, or ignite and may cause serious injury. Make
sure that the following safety precautions are expressly followed:
 Never open the battery charger or light units.
 Never make any changes/modifications to the battery charger or light.
 Do not expose the battery charger or light to fire or severe heat
(over 158°F or 70°C).
 Do not short circuit (do not connect via a conductor or reverse polarity).
 Protect from fluids and damp environments.
 Do not use the device if damaged.
0DLQWDLQVWRUDJHDQGRSHUDWLRQDOWHPSHUDWXUHRIÝ)Ý)&
d. Do not use the light or charger units if the housing or plugs are
damaged.
e. If you determine that the charger, light, or battery is excessively hot,
emits an odor, or changes color or shape, turn it off immediately
and disconnect from any power source. The device should not be
used again and should be immediately returned to Digital Juice.
f. Do not store within reach of children.
g. Use only the supplied AC adapter or a compatible Sony NP-F type
battery to power your light.
h. Use only a 2000mAh or greater Sony NP-F type battery with the
MiniBurst 128 and a 4000mAh or greater Sony NP-F type battery
with the MiniBurst 256.

USER’S GUIDE
The Digital Juice MiniBurst 128 and MiniBurst 256 lighting systems
are designed to be maintenance free and there are no user-service-
able parts on the light fixtures or accessories. If your light becomes
broken or damaged, please do not attempt to replace or repair the
housing or any of the internal parts.
Replacement and additional compatible batteries as well as several
mounting accessories compatible for use with the MiniBurst lights
are all available on the website at www.digitaljuice.com

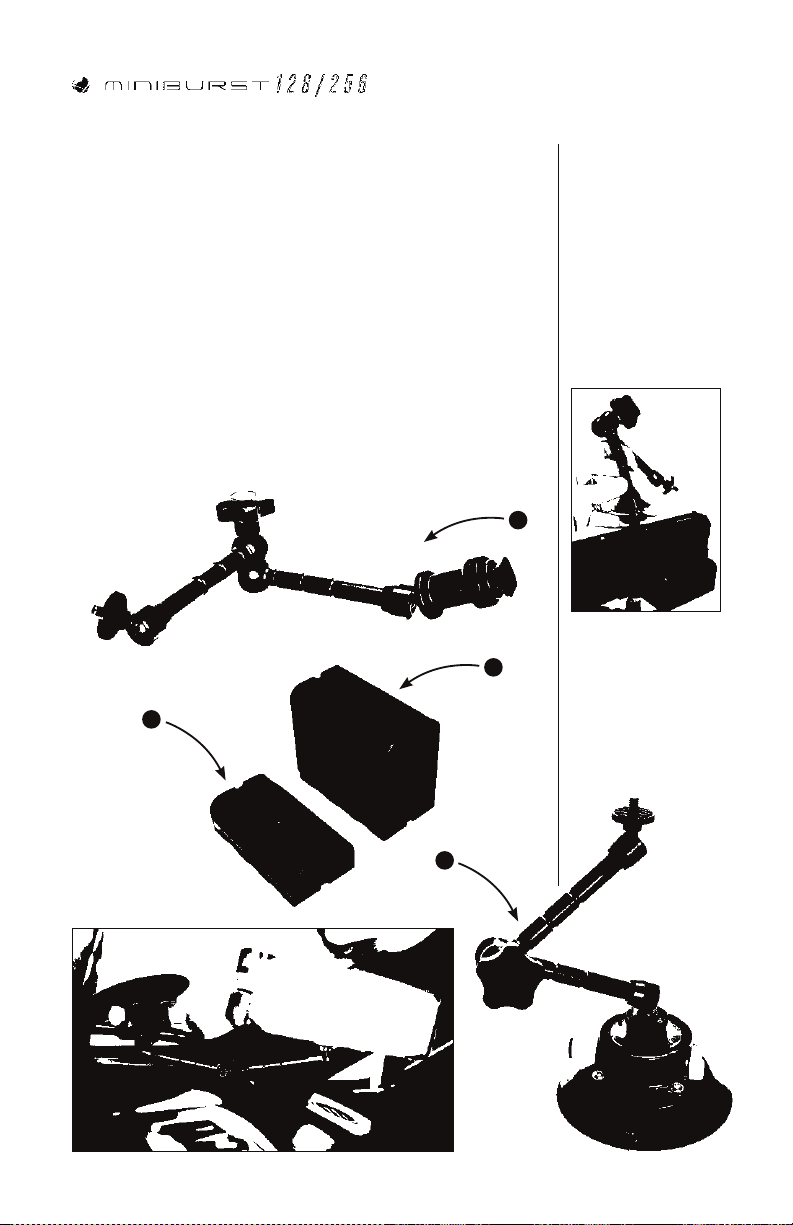

 The 11” DJ Gear Articulating Arm with Shoe Adapter (20)
 7.4v Sony NP-F type rechargeable Lithium Ion battery packs —
6000mAh pack for the MiniBurst 256 (21) or a 2100mAh pack
for the MiniBurst 128 (22)
 The DJ Gear Suction Mount Series Articulating Arm (23)
Replacement
Parts &
Accessories
20
21
22
23
9

10
Digital Juice, Inc. warrants all Digital Juice Gear MiniBurst 128
& MiniBurst 256 LED Lights and accessories purchased new by
original owner to be free from defects in the material and workman-
ship under normal use for a period of 12 months from the date of
purchase. Warranty is void when misuse or neglect is the cause.
No other express warranty or guaranty, except as mentioned above,
given by any person or entity with respect to the Digital Juice Gear
MiniBurst 128 & MiniBurst 256 LED Lights shall bind Digital Juice,
Inc. This warranty supersedes all other warranties expressed or
implied. NO IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU-
LAR PURPOSE APPLY TO THE DIGITAL JUICE GEAR MINIBURST
128 OR 256 LED LIGHTS AND ARE HEREBY DISCLAIMED.
In the event of a possible warranty claim, the defective products
must be returned to Digital Juice, Inc. If proven to be defective upon
inspection, they will be exchanged for new or comparable rebuilt
products, as determined by Digital Juice, Inc. and shipped back to
the original purchaser. All shipping costs are the responsibility of the
customer. Warranty replacement shall not extend the original war-
ranty period of the defective Digital Juice Gear MiniBurst 128 or 256
LED Lights or accessories.
The customer’s remedies with respect to defective Digital Juice
Gear MiniBurst 128 or 256 LED Lights or accessories shall be
exclusively limited to the repair or replacement remedy as above
provided and in no event shall Digital Juice, Inc. be liable for loss
of profits, revenues, savings, inconvenience, associated costs,
expense for equipment or service, use of capital, facilities, ser-
vices, storage charges, damage to property, or any other special,
incidental or consequential damages caused by the use or misuse
of, or inability to use, the Digital Juice Gear MiniBurst 128 or 256
LED Lights or accessories, regardless of the legal theory on which
the claim is based, and even if Digital Juice, Inc. has been advised
of such damages. In no event shall recovery of any kind against
Digital Juice, Inc. be greater in amount than the purchase price of
the Digital Juice product sold by Digital Juice, Inc. and causing the
alleged damage.
USER’S GUIDE
MiniBurst
Limited Warranty

11
USER’S GUIDE
MiniBurst
Limited Warranty
(continued)
Without limiting the foregoing, the purchaser assumes all risk and
liability for loss, damage or injury to persons, animals or property
arising out of use or misuse of, or inability to use the Digital Juice
Gear MiniBurst 128 or 256 LED Lights or accessories. Digital Juice,
Inc. is not liable for third party claims. This limited warranty shall
not extend to anyone other than the original purchaser of the Digital
Juice product, or the person for whom it was purchased as a gift,
and states your exclusive remedy. In no event shall Digital Juice,
Inc. be liable for incidental or consequential damages to the full
extent such may be disclaimed by law.
Unless otherwise noted this warranty agreement is the only war-
ranty agreement between the parties. This agreement states the
limits and association of risk between the two parties. By use of the
Digital Juice Gear MiniBurst 128 or 256 LED Lights or accessories
the customer acknowledges understanding of this warranty and
agreement and binding to the terms contained within.

www.digitaljuice.com
