Tong-Da INDIGO 2000 User manual

Moving head spot
Tong-Da Industry Co., Ltd
http://www.ur.url.tw/
INDIGO 2000
INDIGO 3000

T ABLE OF CONTENTS
PART 1 PRODUCT (GENERAL)...................................................................................1.
1.1—PRODUCT INTRODUCTION..................................................................................1.
1.2--PRODUCT OVERVIEW................................................................................. ..........1.
1.3--TECHNICAL SPECIFICATIONS...............................................................................2.
1.4--PHOTOMETRIC DATA..............................................................................................3.
1.5--SAFETY WARNING...................................................................................................3.
PART 2
INSTALLATION ................................................................................................................4.
2.1--MOUNTING...............................................................................................................4.
2.2--SETTING UP(MASTER/SLAVE) ..........................................................................5.
2.3--SETTING UP (DMX512 CONTROLLER)..................................................................7.
2.4--LED PCB REPLACEMENT ......................................................................................6.
2.5--GOBO REPLACEMENT............................................................................................6.
2.6--FUSE REPLACEMENT..............................................................................................7.
PART 3 DISPLAY PANEL
OPERATION.....................................................................................................................7.
3.1--BASIC........................................................................................................................7.
3.2--MENU........................................................................................................................8.
3.3--INTRO.......................................................................................................................9.
3.4--INVERT.....................................................................................................................10.
3.5--RANGE.....................................................................................................................10.
3.6--SPECIAL...................................................................................................................10.
3.7--EDIT...........................................................................................................................11.
3.8--DEFAULT ................................................................................................................. 11.
PART 4 USING A DMX512
CONTROLLER.................................................................................................................12.
4.1--BASIC ADDRESSING................................................................................................12.
4.2--CHANNELASSIGNMENT ........................................................................................12.
PART 5
APPENDIX........................................................................................................................16.
5.1--TROUBLE SHOOTING............................................................................................. 16.
5.2--MAINTENANCE.........................................................................................................17.
5.2 MAINTENANCE

5 APPENDIX
5.1 TROUBLE SHOOTING
SITUATION CAUSE ACTION
Power connection error Check all Power connectons
Fuse damaged Replace Fuse
Power supply damaged Replace Power supply
No power
Power switch damaged Replace Power switch
LED driver PCB damaged Replace LED driver PCB
LED PCB damaged Replace LED PCB
LED not lit
LED PCB connection error Check the connections
Fan # (60x60x20)
Head fan error Check the LED driver PCB
Fan #(40x40x10)
Fan do not work
Base fan error Check the power supply
Display PCB damaged Replaced Display PCB
Fixture reset normal,
But not be controlled
DMX PCB damaged or DMX signal
connection error
Check DMX signal connection
or replace DMX PCB
Motor damaged Replace motor
Prism error
Prism belt broken Replace belt
Motor damaged Replace motor
Color wheel error
Sensor PCB damaged Replace sensor
Motor damaged Replace motor
Gobo wheel blocked Check or replace the gobo wheel
Gobo wheel error
Sensor PCB damaged Replace the sensor
Motor damaged Replace Pan motor
Pan belt broken Replace pan belt
Magnetic sensor PCB
Replace the magnetic sensor
Pan movement error
Optical sensor damaged Replace the optical sensor
Motor damaged Replace Tilt motor
Tilt belt broken Replace tilt belt
Magnetic sensor PCB Replace the magnetic sensor
Tilt movement error
LED607 CONTROL PCB ERROR
Optical sensor damaged Replace the optical sensor
1 PRODUCT (GENERAL)
1.1 PRODUCT INTRODUCTION
This product is designed for indoor use only. Suitable for stage, bar or
nightclub applications. Direct input of DMX512 signal allows the fixtures to be
controlled from any DMX512 controller. The fixture is fully programmable with
one custom program available and is supplied with two automatic programs (all
accessible from DMX512 controller). This product can be operated as a single
unit or with multiple units for large applications.

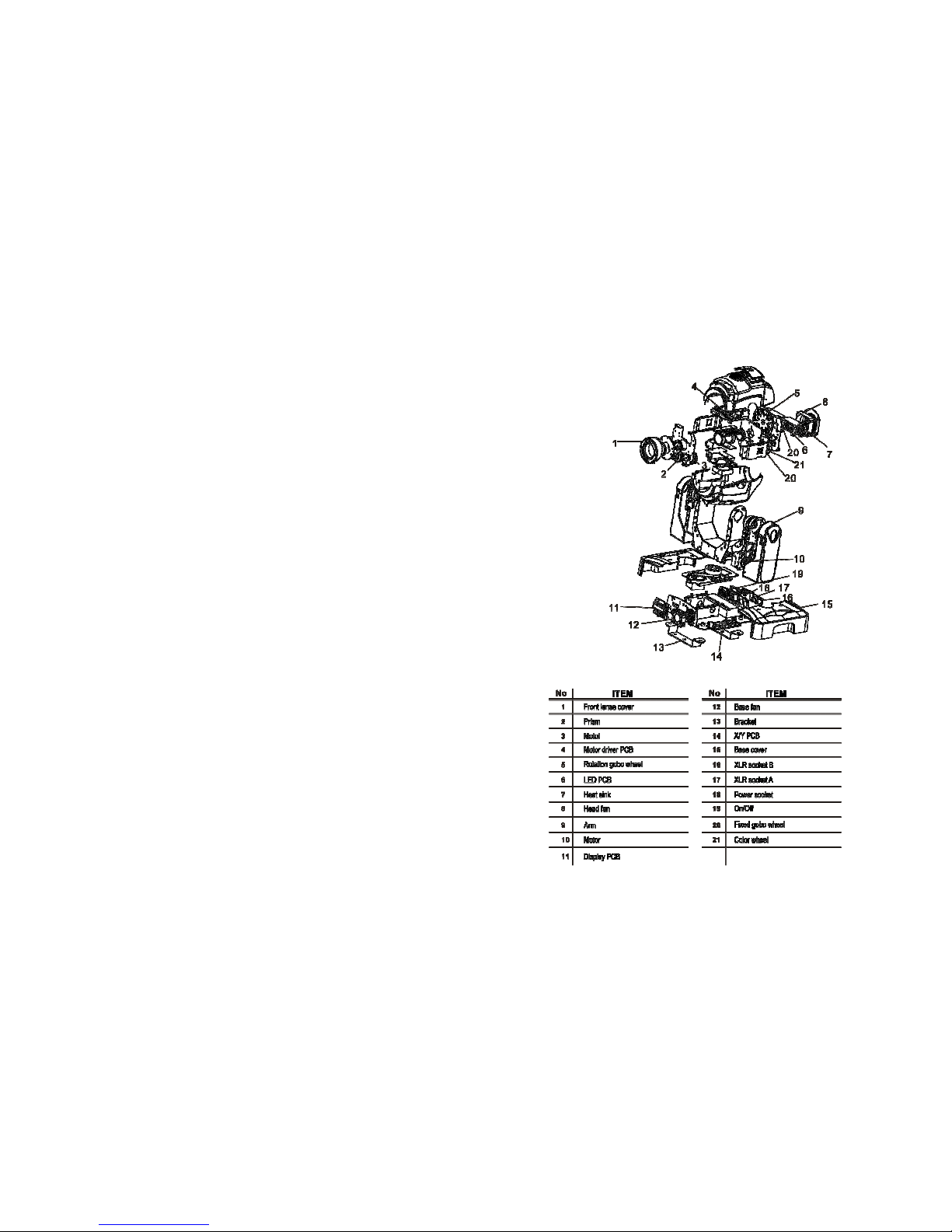

1.2 PRODUCT OVERVIEW

1.3 PRODUCT SPECIFICATIONS
Electrical
◆
◆◆
◆Voltage:AC100~240V 50/60Hz
◆Rated Power:150W
LED
◆
◆◆
◆LED:1PC(60W white)
◆Cooling:Forced air convection
Optical System
◆
◆◆
◆Focus:Electronic focus
◆Dimmer:0~100%
◆Strobe:0~20Hz
◆Rotating 3-facet Prism
Operation
◆
◆◆
◆Control mode: DMX512/Master-Slave/Auto/Custom/ Sound
◆
◆◆
◆LCD display
◆
◆◆
◆DMX512 Chs:11CHS/ 14CHS
Pan/Tilt
◆
◆◆
◆Pan 540 Tilt 270
◆
◆◆
◆Pan/Tilt speed
◆
◆◆
◆User-selectable Pan/Tilt ranges
◆
◆◆
◆Reverse Pan/Tilt movement
Rotating Gobo
◆
◆◆
◆7 Gobo (interchangeable)
◆
◆◆
◆Gobo-flow effect
◆
◆◆
◆Gobo shake
◆
◆◆
◆Bi-directional rotation
Static Gobo
◆
◆◆
◆9Gobo
◆
◆◆
◆Gobo-flow effect
◆
◆◆
◆Gobo shake
Color
◆
◆◆
◆8 dichroic - filters + white
◆
◆◆
◆Rainbow - flow effect
Other features
◆
◆◆
◆Custom program (255 steps)
◆
◆◆
◆Size:295x290x485mm
◆
◆◆
◆Weight:14kg

1.4 PHOTOMETRIC DATA
1.5 SAFETY WARNING
1.6
●This product must be installed by a qualified professional.
●Always operate the equipment as described in the user manual.
●A minimum distance of 0.5m must be maintained between the equipment
and combustible surface.
●The product must always be placed in a well ventilated area.
●Always make sure that the equipment is installed securely.
●DO NOT stand close to the equipment and stare directly into the LED light
source.
●Always disconnect the power supply before attempting and maintenance.
●Always make sure that the supporting structure is solid and can support
the combined weight of the products.
●The earth wire must always be connected to the ground.
●Do not touch the power cables if your hands are wet.
●This product left the place of manufacture in perfect condition. In order to
maintain this condition and for safe operation, the user must always follow
the instructions and safety warnings described in this user manual.
●Avoid shaking or strong impacts to any part of the equipment.
●Make sure that all parts of the equipment are kept clean and free of dust.
●Always make sure that the power connections are connected correct and
secure.
●If there is any malfunction of the equipment, contact your distributor
immediately.
●When transferring the product, it is advisable to use the original packaging
in which the product left the factory.
●Shields, lenses or ultraviolet screens shall be changed if they have
become damaged to such an extent that their ef fectiveness is impaired.
●The lamp (LED) shall be changed if it has become damaged or thermally
deformed.

2 INSTALLATION
2.1 MOUNTING
●The LED fixture can be operated in any position at any angle. When mounted
on a flat surface, the surface must be strong enough to support 10 times the
weight of the fixture and stable so that there will be no damage caused to the
fixture or surrounding people or objects because of movements of the fixture
on the surface.
●When the unit is mounted in a hanging position, the fixture is attached using the

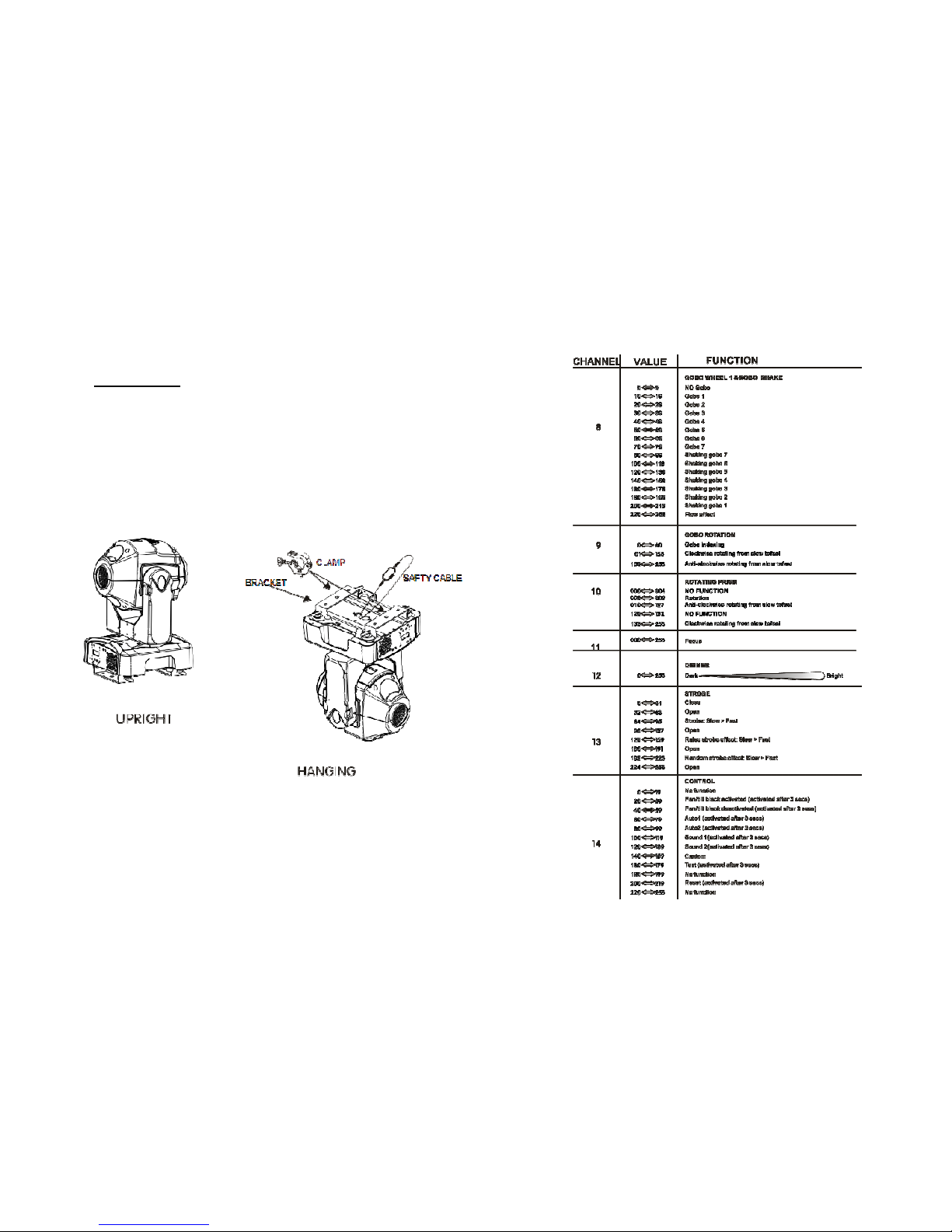

mounting brackets and a standard truss clamp or other clamping device. The
mounting brackets supplied are mounted using quick-release locks allowing
simple mounting or removal.
IMPORTANT SAFETY NOTE!!
Always use a safety cable when installing this unit!!
Be sure that the safety cable is connected to a solid load-bearing structure.

4 USING A DMX512 CONTROLLER
4.1 BASIC ADDRESSING
●Connect all of the units in series using standard DMX512 signal cable .
●Set the DMX512 address in the DMX menu.
●It is possible to have the same DMX address or independent addresses for each
fixture.
4.2 CHANNEL ASSIGNMENT
●Note: This product have two DMX512 channel configuration:
【
【【
【ADVANCED】
】】
】and【BASIC】
】】
】.
2.2 SETTING UP (MASTER/SLAVE)
When units are connected in series using DMX512 signal cable connect the units
as shown in the diagram below
●Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3
pin connector of the first (MASTER) fixture.
●Connect the end of the cable coming from the MASTER fixture which will have a
(female) 3 pin connector to the input connector of the next fixture consisting of a
(male) 3 pin connector.
●Then proceed to connect from the output as stated above to the input of the
following fixture and so on.
●Set the first unit in the series to one of the STAND ALONE modes as described in
section 2.2
●All other units in the series should be set to <SLAVE> from the <operation> menu.
2.3 SETTING UP (DMX512 CONTROLLER)
When units are connected in series to a DMX512 controller and other
DMX512 equipment, connect the equipment as shown in the diagram
below.
●Connect the (male) 3 pin connector side of the DMX cable to the output
(female) 3 pin connector of the controller.
●Connect the end of the cable coming from the controller which will
have a (female) 3 pin connector to the input connector of the next fixture
consisting of a (male) 3 pin connector.
●Then proceed to connect from the output as stated above to the input of
the following fixture and so on.
●If over 32pcs fixtures connected ,the amplifier is needed.

2.4 LED PCB REPLACEMENT
●Take off the head cover .
●Remove the fan cover, fan, fan supports, heat sink step by step.
●Replace the new LED PCB.
●Install all parts on the original position.
2.5 GOBO REPLACEMENT
●Unlock the gobo cover
●Take out the target gobo.
●Install the new gobo, lock the gobo slot door .
3.7 EDIT
【
【【
【Edit】
】】
】
●Enter the【Edit】mode to edit the custom programs by adjusting the
value of【
【【
【Step】
】】
】,【
【【
【Pan】
】】
】,【
【【
【Tilt】
】】
】,【
【【
【Speed】
】】
】,【
【【
【Color】
】】
】,【
【【
【Gobo 1】
】】
】,
【
【【
【Gobo 2】
】】
】,【
【【
【Gobo.rot】
】】
】,【
【【
【Prism】
】】
】,【
【【
【Focus】
】】
】,【
【【
【Dimmer】
】】
】,【
【【
【Strobe】
】】
】,
【
【【
【Time】
】】
】
●Enter【
【【
【use】
】】
】and select【
【【
【yes】
】】
】to run the steps user need.
Note: if user want to circulate the created steps, please set the last step's
【T ime】as 0
For example, there are 3 steps,the setting should be like belowed:
Step 1 【
【【
【Time】
】】
】= 4【
【【
【use】
】】
】= Yes
Step 2 【
【【
【Time】
】】
】= 5【
【【
【use】
】】
】= Yes
Step 3 【
【【
【Time】
】】
】= 0【
【【
【use】
】】
】= Yes
3.8 DEFAULT
【
【【
【Default】
】】
】
●This functions will reset all setting to the original factory setting

3.4 Invert
【
【【
【Invert】
】】
】
●Select【
【【
【Pan】
】】
】/【
【【
【Tilt】
】】
】to set【
【【
【Normal】
】】
】or【
【【
【Reverse】
】】
】
●Select【
【【
【Color】
】】
】to select the color wheel flow way【
【【
【Step】
】】
】or【
【【
【linear】
】】
】
●Enter【
【【
【Use】
】】
】and set【
【【
【Yes】
】】
】to run the new setting
3.5 Range
【
【【
【P/start】
】】
】
●Set pan start value 【
【【
【000~255】
】】
】
【
【【
【P/Finish】
】】
】
●Set pan finish value 【
【【
【000~255】
】】
】
【
【【
【T/start】
】】
】
●Set Tilt start value 【
【【
【000~255】
】】
】
【
【【
【T/Finish】
】】
】
●Set Tilt finish value 【
【【
【000~255】
】】
】
【
【【
【Use】
】】
】
●Enter【
【【
【Use】
】】
】and select【
【【
【Yes】
】】
】to open the operation of X/Y angle
3.6 Special
【
【【
【Black】
】】
】
●Enter【
【【
【Black】
】】
】to choose【
【【
【No】
】】
】without delay or【
【【
【Yes】
】】
】3seconds
delay
【
【【
【Reset】
】】
】
●Enter【
【【
【Reset】
】】
】to choose【
【【
【DMX】
】】
】DMX control reset or【
【【
【System】
】】
】DMX
cannot control reset

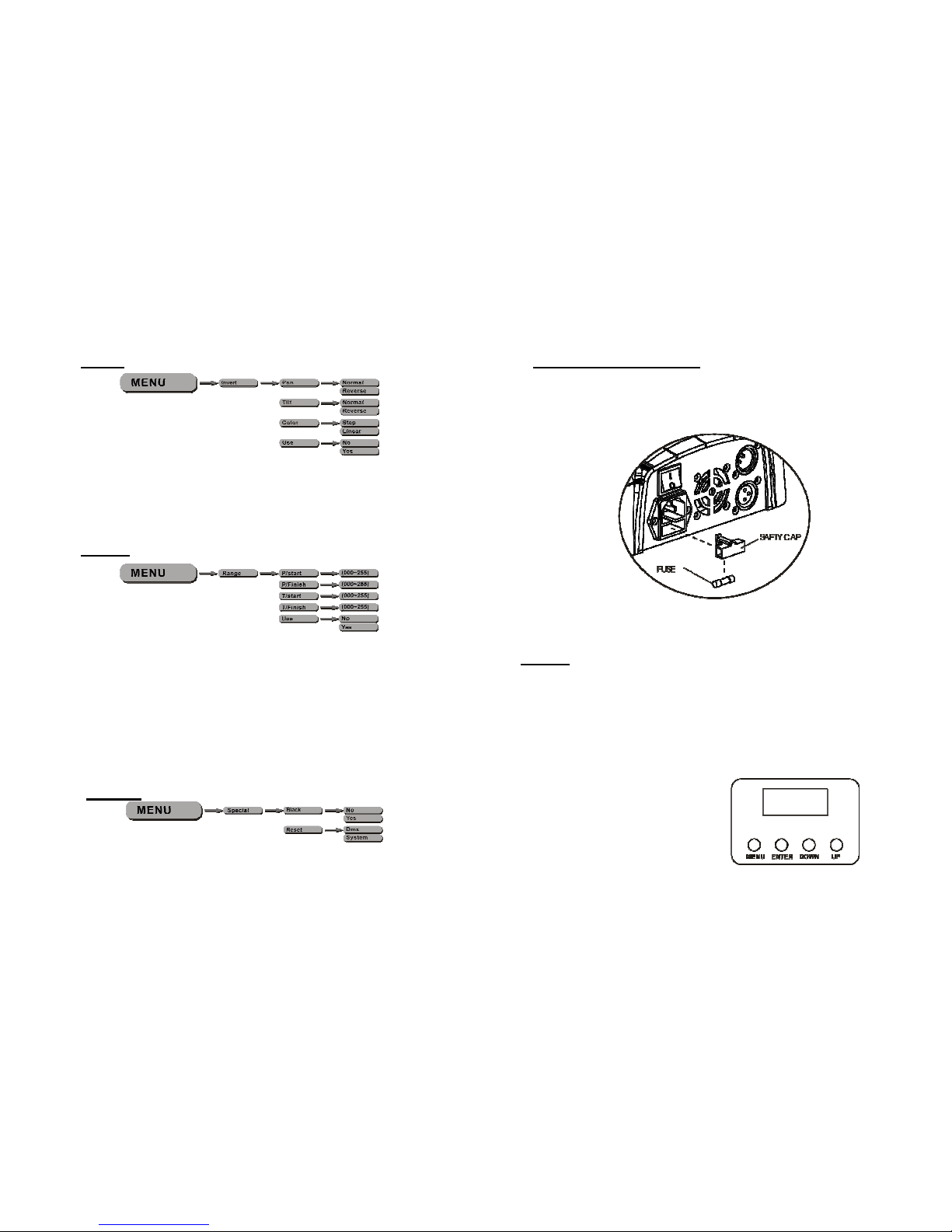

2.6 FUSE REPLACEMENT
●Remove the safety cap by a screwdriver.
●Fetch the old fuse from safety cap.
●Install a new fuse.
●Install the safety cap.
3 DISPLAY PANEL OPERATION
3.1 BASIC
【
【【
【MENU】
】】
】Scroll through the main menu or exit from the current sub-menu
【
【【
【ENTER】
】】
】Enter the currently selected menu or confirm the current function
value
【
【【
【DOWN】
】】
】Scroll 'DOWN' through the menu list or decrease the value of the
current function
【
【【
【UP 】
】】
】Scroll 'UP' through the menu list or increase the value of the
Current function

3.2 MENU
3.3 INTRO
【
【【
【Address】
】】
】
●Enter【
【【
【Address】
】】
】to set the DMX Address, which is from (001-512)
【
【【
【Reset】
】】
】
●In order to rest custom modest to default, select【
【【
【Reset】
】】
】
【
【【
【Run】
】】
】
●Enter【
【【
【Run】
】】
】to select the operation mode:【
【【
【DMAX512】
】】
】;【
【【
【Auto1】
】】
】;
【
【【
【Auto2】
】】
】;【
【【
【Sound 1】
】】
】;【
【【
【Sound 2】
】】
】;【
【【
【Custom】
】】
】;【
【【
【Test】
】】
】;【
【【
【Slave】
】】
】
【
【【
【Channels】
】】
】
●Enter【
【【
【Channels】
】】
】to select the DMX channel modes:【
【【
【Basic】
】】
】;【
【【
【Advanced】
】】
】
【
【【
【Display】
】】
】
●Enter【
【【
【Display】
】】
】to select the lighting time of the LCD display panel.
【
【【
【Keylock】
】】
】
●Enter the【
【【
【Keylock】
】】
】mode to select whether the access password is on
or off.
●When the fixture is set as PASS【
【【
【ON】
】】
】, after 30 seconds or turn on the
fixture next time, the fixture will need an access password to enter the
display menu control.
Note: The factory access password is【
【【
【UP】
】】
】+【
【【
【DOWN】
】】
】+【
【【
【UP】
】】
】
+【
【【
【DOWN】
】】
】, then press【
【【
【ENTER】
】】
】to confirm the access.
【
【【
【Info】
】】
】
●Enter【
【【
【Info】
】】
】to see the version of the software.
