DIGITAL YACHT SmarterChart 500 SERIES User manual

3
Quick Start Guide
Chart Plotter Name Description SOFTWARE
CHART PLOTTER 5" Sunlight Readeable Color Display S4xgNS5vc
Internal GPS Receiver
SOUNDER COMBO 5" Sunlight Readeable Color Display S4xgNS5vc
Internal GPS Receiver & Internal Fish Finder
AIS COMBO 5" Sunlight Readeable Color Display S4xgNS5vc
Internal GPS Receiver & Internal AIS
SmarterChart 500 SERIES
Quick Start Guide
code: (c1620-290410e)
Copyright 2010 Digital Yacht LTD - United Kingdom - Printed in Italy
All rights reserved. No part of this publication may be reproduced or distributed in any form or by any means, or stored in
a database or retrieval system, without prior written permission of the publisher.

4
Quick Start Guide
STEP 1 - Mounting the Chart Plotter
SmarterChart500 can be bracket or flush mounted
45mm
[1.08”]
74mm [2.9”]
150mm
[5.9”]
156mm
[6.1”]
Bracket mounting (on the left) and Flush mounting (on the right)
M4 threaded
M4 threaded
20 mm4mm
27 mm
Mounting Screws
Available as an option is the custom SmarterChart500 waterproof Marine Pod

5
Quick Start Guide
STEP 2 - Wiring and Inserting C-Card
All three models require a power connection to the boat’s 12v or 24v DC supply.
AIS Combo needs to be connected to a VHF or AIS antenna via the BNC connector.
Sounder Combo needs to be connected to a suitable Transducer.
EXTERNAL WIRING FOR CHART PLOTTER
CABLE COLOR
BLACK
RED
WHITE
GREEN
GRAY
YELLOW
BROWN
BLUE
FUNCTION
PWR-/GND/COMMON
PWR + (10-35 Vdc)
INPUT 1+
COMMON
OUTPUT 2+
OUTPUT 1+
INPUT 2+
EXT. ALARM SIGNAL (to GND when ON)
1
2
3
4
5
6
7
8
PIN
POWER & I/O CONNECTOR/CABLE
EXTERNAL WIRING FOR SOUNDER COMBO
CABLE COLOR
BLACK
RED
WHITE
GREEN
GRAY
YELLOW
BROWN
BLUE
FUNCTION
PWR-/GND/COMMON
PWR + (10-35 Vdc)
INPUT 1+
COMMON
-
OUTPUT 1+
-
EXT. ALARM SIGNAL (to GND when ON)
1
2
3
4
5
6
7
8
PIN
POWER & I/O CONNECTOR/CABLE
PIN
1
2
3
4
5
6
7
8
FUNCTION
TRANSDUCER Connector
DEPTH +
GND
TEMP1 +
POWER SUPPLY +5Vdc, 1A max
SENSE +
DEPTH SHIELD
DEPTH -
SPEED +
EXTERNAL WIRING FOR AIS COMBO
CABLE COLOR
BLACK
RED
WHITE
GREEN
GRAY
YELLOW
BROWN
BLUE
FUNCTION
PWR-/GND/COMMON
PWR + (10-35 Vdc)
INPUT 1+
COMMON
OUTPUT 2+ (*)
OUTPUT 1+
-
EXT. ALARM SIGNAL (to GND when ON)
1
2
3
4
5
6
7
8
PIN
POWER & I/O CONNECTOR/CABLE
AIS ANTENNA
(*) AIS + GPS data at 38400 baud
REMOVING/FITTING A CHART CARTRIDGE (C-CARD)

6
Quick Start Guide
STEP 3-Turning the Chart Plotter on for the First Time
DESCRIPTION OF INITIAL SETTINGS
Language : Sets the language that all chart plotter menus and windows will be
displayed in.
Chart Language : Selects a sub-menu with two items: Language to set the language
used for all Chart Text and Chart Information and the Mode to define
how and when text is translated.
Distance+Speed Units : Selects the units for Distance and Speed (default setting is Nm+Kts).
Depth+Altitude Units : Selects the units for Depth and Altitude (default setting is Mt).
Temperature Units : Selects the units for temperature (default setting is °C).
Time Reference : Selects between UTC or local time, by entering the Local Time offset
(default setting is UTC).
Daylight Saving Time : Sets the Daylight Saving Time ON/OFF (default setting is Off).
Time Format : Selects between 12 and 24 hour time display (default setting is 24
hour).
Date Format : Selects between Day-Month-Year or Month-Day-Year date format
(default setting is DD-MM-YY).
Nav-Aids Presentation: Selects between International or US chart symbols (default setting is
INT).
Keypad Beep : Enables/disables the audible beep when the chart plotter keypad is
pressed (default setting is On).
Input/Output : Allows the setup of the external NMEA ports for connecting other
equipment.
Simulation Mode : Allows the setup of a special simulation mode useful for training
purposes.
Once the initial setting have been set, press the left hand 'OK'Soft Key to store the
values and finish powering up.

7
Quick Start Guide
STEP 4 - Getting Started
All models feature an internal high sensitivity 50 channel GPS that on power up will
immediately start searching for satellites. When the chart plotter powers up the
GPS Status window below is displayed. Pressing the 'CLEAR' key will take you to
the normal Chart display page.
Fix-Good
GPS Status page (on the left) and Chart+Databoxes page (on the right)
Using the Cursor key and Zoom keys, it is possible to pan around the area covered
by the charts, zooming in on marinas and areas or interest and zooming back out to
get more of an overview.
As you move the cursor around the charts, a cursor window will be displayed that
gives you the Lat/Lon of the cursor and the Distance and Bearing from the boat. At
any time, pressing the 'CLEAR' key will centre the chart back at the boat’s position
assuming a valid GPS fix is being received.
Placing the cursor on an object (symbol) on the chart, a Quick Info window will
appear that gives you additional information about the object – in the case below a
Special Purpose Buoy.
Example of Quick Info window on cartographic object

8
Quick Start Guide
STEP 5 - A Guide to What The Keys Do

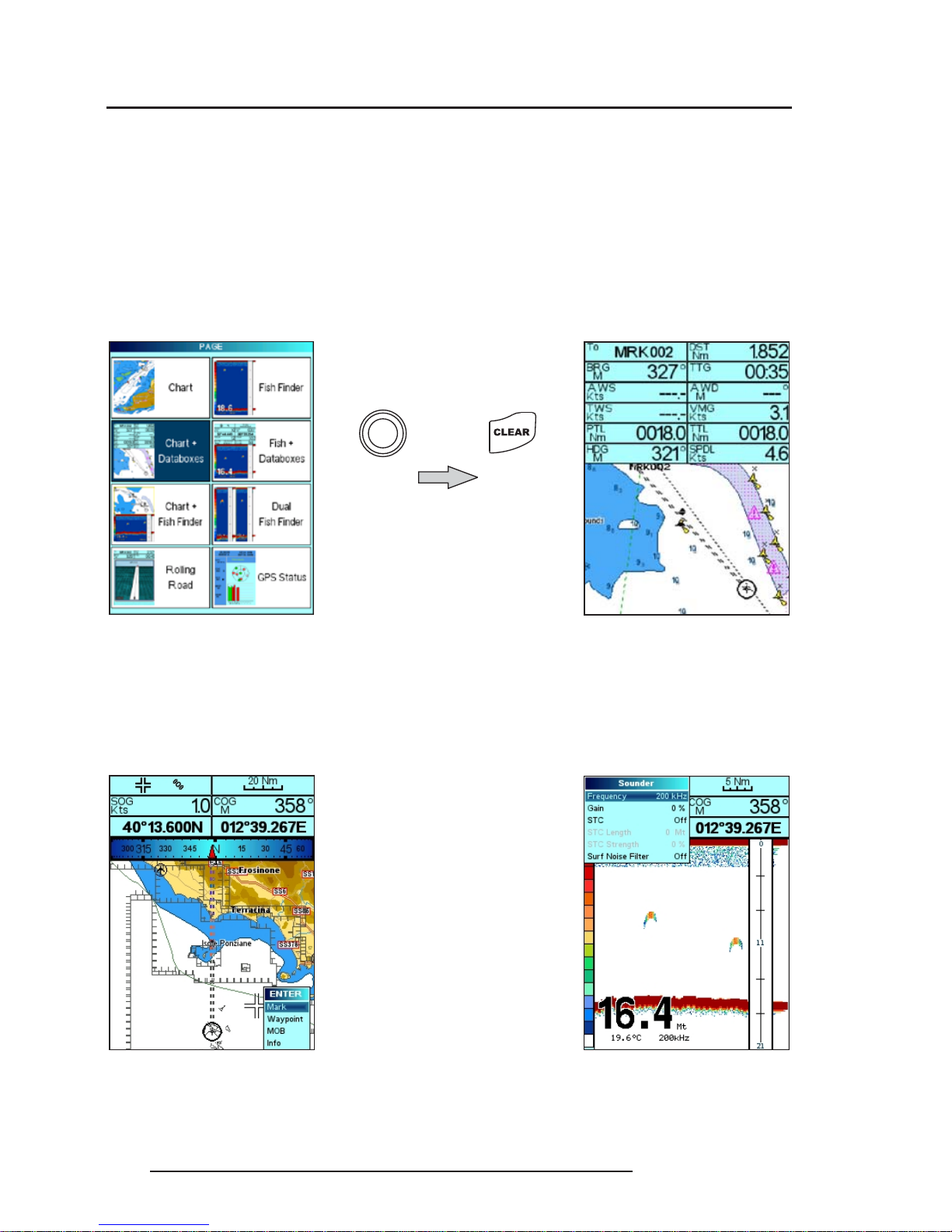

The 'PAGE' Key - the SmarterChart range of chart plotters can display lots of
useful pages of information which are accessed by pressing the 'PAGE' key. This
displays the Page Selection window, which shows all available and unavailable pages.
Unavailable pages are shown in grey and cannot be accessed due to particular data
or optional accessories not being available.
To select an available page, use the Cursor key to move the blue highlighter onto
the page you wish to display and press the 'ENTER' key.
and then
Page Selection Menu (on the left) and Chart+ Databoxes page (on the right)
The 'ENTER' Key – in addition to being the confirmation key in menus, the 'ENTER'
key causes a context sensitive pop-up menu to be displayed in the various pages.
The contents of this pop-up menu will vary depending upon what page you are on
– two examples are shown below.
ENTER pop-up menu (on the left) and Fish Finder page with Sounder pop-up menu (on the right)

9
Quick Start Guide
The 'CLEAR' Key – in addition to being the cancel/escape key in menus, the
'CLEAR' key is used to re-centre the chart screen on the boat’s position, to clear
pop-up windows and jump back to the main page when you are in sub-pages or
menus.
The 'DATA' Key – this key is used to access some of the User Data related sub-
pages. User Data is defined as data that the chart plotter user has entered (Waypoints,
Marks, Routes, etc.) or data coming in from other equipment via NMEA such as the
data displayed in the configurable Databoxes. When you press the 'DATA' key it
cycles between the following sub-pages. Pressing the 'CLEAR' key from any of
these sub-pages, returns you to the currently selected main page.
DATABOX SETUP USER POINTS LIST ROUTE DATA REPORT
User Data pages
The 'GOTO' Key – this key as the name suggests, allows you to tell the chart
plotter where you want to go. The most simple method is to place the cursor on a
point on the chart where you wish to sail to and then press the 'GOTO' key and
select "Cursor". Advancing from this, you can store a Mark on the chart or create
a Route and then press the 'GOTO' key and select "Mark" or "Route".
If you wish to stop the Go To function, simply press the 'GOTO' key and select
"Clear Go To".
select Cursor
and then
Go To pop-up window (on the left) and Go To point (on the right)

10
Quick Start Guide
The 'POWER' Key – as well as turning the chart plotter on and off, the 'POWER'
key can take you straight to the LCD Adjustment Menu, where you can adjust
Brightness, Contrast and choose a Colour Palette to best suit the lighting conditions.
At any time whilst the chart plotter is turned on, a short press of the 'POWER' key
will display the LCD Adjustment Menu shown below.
Pressing and holding the 'POWER' key for three seconds turns the chart plotter off.
LCD Adjustment Menu
The Soft Keys – along the bottom of the LCD are four Soft Keys whose function
changes depending upon what you are doing. Whenever you need to use these
keys, a function label above the key will be displayed on the LCD to tell you what
pressing the key will do. An example is shown above in the LCD Adjustment Menu
where the four Soft Keys change the Brightness and Contrast of the display when
this menu is shown.

11
Quick Start Guide
STEP 6 - Accessing the Main Settings Menu
and Map Settings Menu
At any time when there are no labels above the four Soft Keys, pressing any one of
the Soft Keys will cause the Main Settings Menu and Map Settings Menu options to
appear. Pressing the relevant Soft Key will take you to the Setting or Map menus.
Main Settings Menu (on the left) and Map Settings Menu (on the right)
From these menus it is possible to select a setting you want to change by moving
the Blue highlight bar up and down using the Cursor key and then pressing the
'ENTER' key to access the Settings or sub-menu. Pressing the 'CLEAR' key exits a
setting without changing it or takes you back to the previous menu level.
