DirectConnect DCIO35W User manual


H
He el lp pi in ng g y yo ou u a ac ch hi ie ev ve e y yo ou ur r i in ns st ta al ll la at ti io on n n ne ee ed ds s! !

D
Di ir re ec ct t C Co on nn ne ec ct t ®
is one of the largest manufacturers of products specifically for the custom installation
of audio, video, security, telecom and data networking industry.
O
Ou ur r e ex xt te en ns si iv ve e p pr ro od du uc ct t l li in ne e
offers items in the categories of bulk wire and cable, connectors, installations
hardware, interconnect cables, distribution panels, a/v transceivers, cameras, baluns,
HDMI™matrix switchers, switchers, splitters, tools and wall plates—virtually
everything a custom installer needs!
S
Si in nc ce e 1 19 99 96 6, , D Di ir re ec ct tC Co on nn ne ec ct t®
has offered unique products that provide solutions to everyday installation headaches.
How do we come up with these ideas? By listening to you, the professional, who battles
in the field and is looking for someone on the front line that he can rely on.
DirectConnect®
Houston, Texas 77027
Phone 800 – 531 - 3224
Would it make your day to know that someone is waiting to hear from you?
We are. Your DirectConnect
®
representative is ready to take your call.
Or if you prefer, contact us online at …
http://www.directconnecthome.com
T
Th ha an nk k y yo ou u f fo or r c ch ho oo os si in ng g D Di ir re ec ct tC Co on nn ne ec ct t®
®
P Pr ro od du uc ct ts s

2
2
-
W
Wa ay y I In nd do oo or r a an nd d
O
Ou ut td do oo or r S Sp pe ea ak ke er r
D
DC CI IO O3 35 5 W W/ /B B .18140/18141
D
DC CI IO O5 52 25 5W W/ /B B.18142/18143
D
DC CI IO O6 65 5W W/ /B B.18144/18145
D
DC CI IO O8 8W W/ /B B .18146/18147
DCIO35W/B /DCIO525W/B /DCIO65W/B /DCIO8W/B
Indoor/Outdoor Speaker Specs and Installation Instructions
The DirectConnect®high-performance indoor/outdoor
speakers are available in your choice of color, both
white and black.
A great value at any size. Two-way speaker system
available with a 3 ½”, 5 ¼”, 6 ½”, and 8” polypropylene
woofer and a ½” tweeter.
zAvailable in both black or white finish
zHorizontal or vertical installation with bar mountingsystem included
zTemperature range: 14°F-149°F
z DCIO35W/B (White .18141 ) (Black .18141 ) - ½” tweeter with 3½” woofer
Power Handling: 30 - 60 watts @ 8 ohms
Frequency Response: 125Hz – 20 KHz / 125 +/- 20%Hz without baffle
Magnet: 2.75" x 1.26" x 0.59" / 8 ounces
Size: W x H x D (inch): 5.78" x 8.4" x 5.3"
DCIO525W/B (White .18141 )(Black .18143 )  - ½” Tweeter with 5 ¼”, woofer
Power Handling: 40 - 80 watts @ 8 ohms
Frequency Response:
116Hz – 20 KHz / 116 +/- 20%Hz without baffle
Magnet:: 3.15" x 1.57" x 0.59" / 10 ounces
Size: W x H x D (inch): 5.78" x 8.42" x 5.31"
DCIO65W/B (White .18141 )(Black .18145 )  - ½” Tweeter with 6 ½” woofer
Power Handling: 50 - 100 watts @ 8 ohms
Frequency Response:
115Hz – 20 KHz / 115 +/- 20%Hz without baffle
Magnet: 3.9" x 2.36" x0.66" / 15.1 ounces
Size: W x H x D (inch): 8.46" x11.2" x 6.97"
DCIO8W/B (White .18141 )(Black .18147 )  - ½” Tweeter with 6 ½” woofer
Power Handling: 70 - 140 watts @ 8 ohms
Frequency Response: 96 Hz - 20 KHz
/ 96 +/- 20%Hz without baffle
Magnet: 4.33" x 2.36" x 0.78"/ 23.5 ounces
Size: W x H x D (inch): 10.86" x 14.3" x 8.38"
Note: Specifications are subject to change without notice.
I MPORTANT : If you don't understand installationinstructions,
please consult your regular installation specialist.
4 / 4

T
Th ha an nk k y yo ou u f fo or r c ch ho oo os si in ng g D Di ir re ec ct tC Co on nn ne ec ct t®
®
P Pr ro od du uc ct ts s
D
De ea ar r C Cu us st to om me er r
Thank you for purchasing this DirectConnect®product. For optimum performance
and safety, please read these instructions carefully before connecting, operating, or
adjusting this product. Please keep this manual for future reference.
Liability Statement
1. Every effort has been made to ensure that this product is free of defects.
DirectConnect®cannot be held liable for the use of this hardware or any
direct or indirect consequential damages arising from its use. It is the
responsibility of the user of the hardware to check that it is suitable for
his/her requirements and that it is installed correctly. All rights reserved. No
part of this manual may be reproduced or transmitted by any form or means
electronic or mechanical, including photocopying, recording or by any
information storage or retrieval system without the written consent of the
publisher.
2. DirectConnect®reserves the right to revise any of its hardware and software
following its policy to modify and/or improve its products where necessary or
desirable. This statement does not affect the legal rights of the user in any
way.
3. All third-party trademarks and copyrights are recognized. The
DirectConnect® logo is the registered trademark of DirectConnect®.
INSTALLATION INSTRUCTIONS
(1) Recommendedwiring:
weatherproof16‐gauge
copperwire(orheavier)
(2) Ensurethatthespeakersare
installedonasurfacesturdy
enoughtosupporttheir
weight.Fastenproperlyand
securely.
(3) Takeintoaccountthetargetedlisteningareaandpotentialsafety
hazardswhenchoosingspeakerinstallationandlocation.

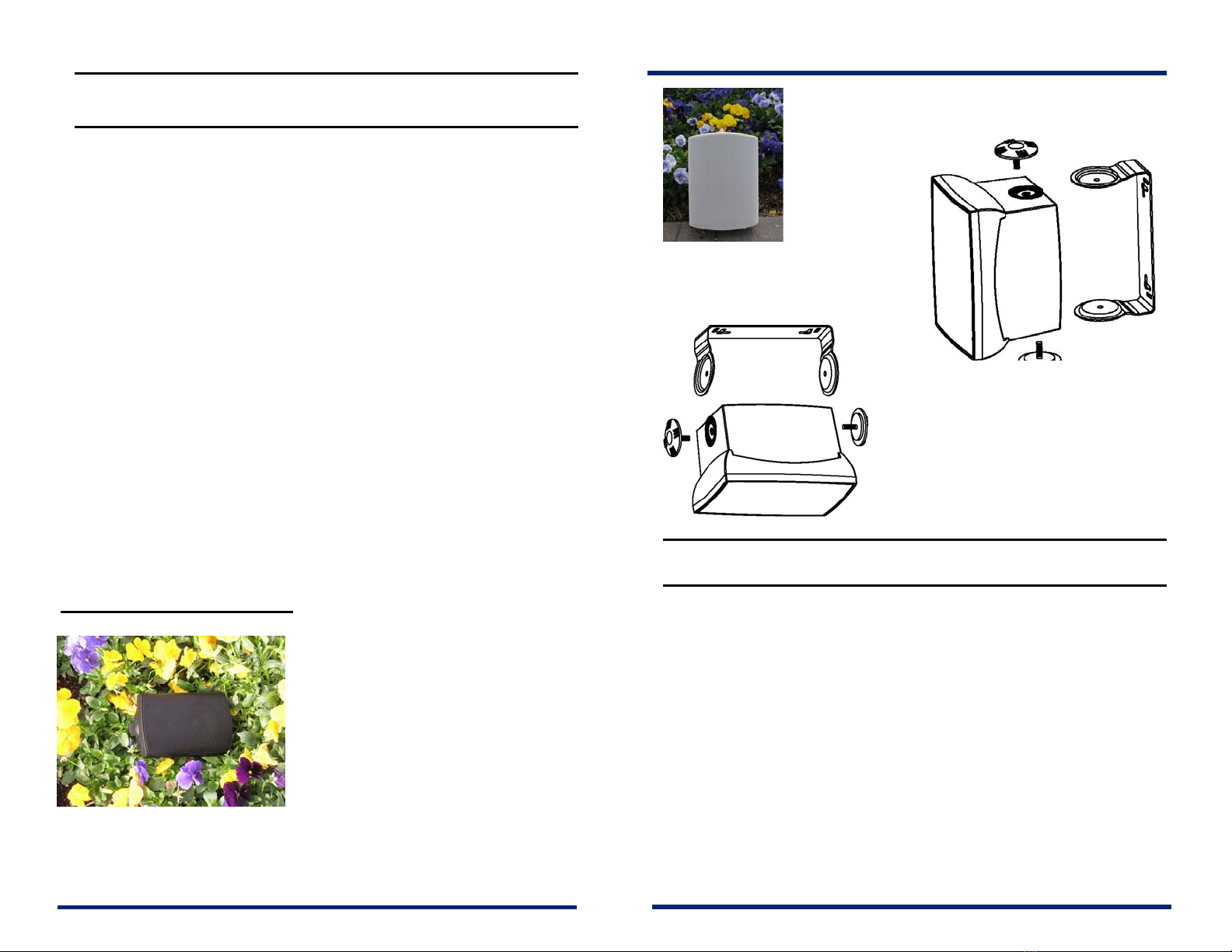

(4) Pleaserefertobelowillustrationsforassembly
andinstallationinstruction.



 VerticalInstallation 



 HorizontalInstallation 


If you don't understand installation instructions,
please consult your regular installation specialist
Limited Warranty
Should any consumer product from DirectConnect®fail due to defects in materials or
workmanship within one year from the date of the original sale to the end-user, DirectConnect®
guarantees that we will replace the defective product at no cost. Freight charges for the
replacement unit will be paid by the customer. A copy of the invoice showing the item number
and date of purchase (proof-of-purchase) must be submitted with the defective unit to constitute
a valid in-warranty claim.
Units that fail after the warranty period has expired may be returned to the factory for repair at
a nominal charge, if not damaged beyond the point of repair. All freight charges for out-of-
warranty returns for repair are the responsibility of the customer. Units returned for repair
must have a Return Authorization Number assigned by DirectConnect®.
This is a limited warranty and is not applicable for products which, in our opinion, have been
damaged, altered, abused, misused, or improperly installed. DirectConnect®makes no other
warranties either expressed or implied, including limitation warranties as to merchantability or
fitness for a particular purpose. Additionally, there are no allowances or credits available for
service work or installation performed in the field by the end user.
3 / 4
