TABLE OF CONTENTS
CONGRATULATIONS
Congratulations for choosing an Xtreme
Series power amplifier, by Directed
Audio. This high performance product
has been designed and engineered by
Directed Electronics, the industry leader
in high quality automotive security and
audio equipment since 1990. With the
Xtreme Series power amplifiers,
Directed Audio continues to set new
standards of performance, reliability,
and affordability in the mobile elec-
tronics industry.
Featuring high-efficiency MOSFET power
supplies and flexible built-in crossovers
housed in a rugged, extruded aluminum
extrusion with carbon fiber style trim
panels, Xtreme power amplifiers will
excite and delight car audio enthusiasts
with years of high performance audio
reproduction.
Xtreme Series amplifiers come with a
two-year limited warranty if sold and
installed by an authorized Directed
dealer. If not installed by an authorized
dealer, Xtreme Series amplifiers are
covered by a one-year, parts-and-labor
limited warranty. Be sure to retain your
original purchase receipt, and refer to
the warranty section of this guide for full
details about your coverage.
Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Limited Two-Year Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . .3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Front Panel Connections/Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Input Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Crossover Settings and Gain Adjustment . . . . . . . . . . . . . . . . . . . . . . .9
Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Speaker connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Bridge Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
CEA Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

LIMITED TWO-YEAR CONSUMER WARRANTY
33
© 2005 Directed Electronics—all rights reserved
Directed Electronics (Directed) promises to
the original purchaser, to replace this
product should it prove to be defective in
workmanship or material under normal use,
for a period of two years from the date of
purchase by the dealer as indicated by the
date code marking of the product
PROVIDED the product was installed by an
authorized Directed dealer. During this two-
year period, there will be no charge for this
replacement PROVIDED the unit is returned
to Directed, shipping pre-paid. If the unit is
installed by anyone other than an autho-
rized Directed dealer, the warranty period
will be 1 year from the date of purchase by
the dealer as indicated by the date code
marking of the product. During this 1-year
period there will be no charge for this
replacement PROVIDED the unit is returned
to Directed, shipping pre-paid. This warranty
is non-transferable and does not apply to
any unit that has been modified or used in a
manner contrary to its intended purpose,
and does not cover damage to the unit
caused by installation or removal of the unit.
This warranty is void if the product has been
damaged by accident or unreasonable use,
neglect, improper service or other causes
not arising out of defects in materials or
construction. ALL WARRANTIES INCLUDING
BUT NOT LIMITED TO EXPRESS
WARRANTY, IMPLIED WARRANTY,
WARRANTY OF MERCHANTABILITY,
FITNESS FOR PARTICULAR PURPOSE, AND
WARRANTY OF NON-INFRINGEMENT OF
INTELLECTUAL PROPERTY ARE EXPRESSLY
EXCLUDED TO THE MAXIMUM EXTENT
ALLOWED BY LAW, AND DIRECTED
NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON TO ASSUME FOR IT ANY
LIABILITY IN CONNECTION WITH THE
SALE OF THE PRODUCT. DIRECTED HAS
ABSOLUTELY NO LIABILITY FOR ANY AND
ALL ACTS OF THIRD PARTIES INCLUDING
ITS AUTHORIZED DEALERS OR
INSTALLERS. Unit must be returned to
Directed, postage pre-paid, with: consumer’s
name, telephone number, and address,
authorized dealer’s name and address, and
product description. IN ORDER FOR THIS
WARRANTY TO BE VALID, YOUR UNIT
MUST BE SHIPPED WITH PROOF OF
INSTALLATION BY AN AUTHORIZED
DIRECTED DEALER. ALL UNITS RECEIVED
BY DIRECTED FOR WARRANTY REPAIR
WITHOUT PROOF OF DIRECTED DEALER
INSTALLATION WILL BE COVERED BY THE
LIMITED 1-YEAR PARTS AND LABOR
WARRANTY. Note: This warranty does not
cover labor costs for the removal and rein-
stallation of the unit. BY PURCHASING THIS
PRODUCT, THE CONSUMER AGREES AND
CONSENTS THAT ALL DISPUTES BETWEEN
THE CONSUMER AND Directed SHALL BE
RESOLVED IN ACCORDANCE WITH CALI-
FORNIA LAWS IN SAN DIEGO COUNTY,
CALIFORNIA.

44
© 2005 Directed Electronics—all rights reserved
INSTALLATION GUIDELINES
High-powered car audio
systems may produce sound
pressure levels that exceed the
threshold at which hearing loss may
result.
They may also impair a driver’s ability to
hear traffic sounds or emergency vehi-
cles. Use common sense and practice
safe listening habits when listening to or
adjusting your audio system.
WARNING
FEATURES
High-speed MOSFET power supplies
Complimentary bipolar transistor
outputs
Either mono only (XA-8001, XA-
5001) or stereo/mono (XA6002).
The XA-6004 can have rear bridged
and front stereo or variations
thereof.
2 ohm stereo stable/4 ohm mono
stable
Built-in 2-way variable crossovers
+6 or +12 dB switchable bass
boost (+8dB on XA-6004)
Adjustable input gain
Power/status LEDs
Thermal, short-circuit, over-current,
and reverse polarity protection
Chrome-plated RCA inputs
Heavy duty screw terminals
1. Please read this owner’s manual
carefully before installing this ampli-
fier.
2. Disconnect the battery ground
terminal prior to making any elec-
trical connections.
3. Check for any hazards or obstruc-
tions such as gas tanks, fuel or
brake lines, and wiring harnesses
before mounting the amplifier.
4. Pick a mounting location that will
provide adequate access and venti-
lation and protect the amplifier
from heat, moisture, and dirt.
5. Avoid sharp metal areas when
routing cables to the amplifier, and
run RCA cables away from the
power cables and other potentially
noisy car harnesses.

55
© 2005 Directed Electronics—all rights reserved
6. The amplifier should be grounded
with a short, heavy gauge wire
connected directly to the car at a
bare metal surface, preferably
scraped body sheet metal. Do not
use factory ground locations, seat
bolts, or brackets that are
spotwelded.
7. Always fuse your power connection
within 8 to 10 inches of the battery
terminal. Use a fuse or circuit
breaker rated slightly more than the
on-board fuse(s) of the
amplifier(s). The gauge of power
wire used should take into account
the total current draw of the
system, and the length of wire
used. IASCA and other auto sound
competition organizations have
charts available for this; you can
also find a chart in the MECP study
guide. Minimum wire gauge recom-
mendations for the individual ampli-
fiers are listed on the specification
page. Always use the same gauge
wire for the amplifier ground that
you use for the power wire. Be sure
to examine the battery ground
cable of the vehicle, and if neces-
sary, upgrade it by adding an addi-
tional ground wire that is the same
gauge as the amplifier power wire.
Remember, the amplifier can only
deliver its rated output when it is
not current limited by the power
and ground supply wires.
8. This amplifier is designed to drive a
speaker load that measures from 2
to 4 ohms. Keep in mind that heat
is the long-term enemy of automo-
tive electronics and the lower your
speaker load, the more heat is
generated. For low impedance
speaker applications or restricted
ventilation installations, an external
cooling fan may be advisable.
9. Battery and ground connections to
the vehicle should be made with
crimped ring terminals of the appro-
priate size (surface area is what
counts); soldering the terminals
after crimping is also recom-
mended.
10. Due to the high-frequency MOSFET
switching power supply, filtering the
power cable is not generally
required (remember that the amp
can’t deliver full output if the power
supply is restricted). Proper
grounding of the signal source is
mandatory for the amplifier to
reach its performance peak. If the
RCA inputs are not grounded
adequately via the signal source,
electrical noise from the vehicle
may be picked up in the system.

66
© 2005 Directed Electronics—all rights reserved
1. PPWWRR(LED blue) - when illuminated
indicates that the amplifier is on.
2. HHIIIInnppuutt(high level input) - Accepts
1v to 10v input from the headunit’s
speaker output. The amplifier will
automatically wake-up when the
input is greater than 1V.
3. RRCCAAIInnppuuttss- accepts RCA input from a
source unit, preamplifier, or equalizer.
4. LLeevveellCCoonnttrrooll- continuously adjusts
from 150mV to 5V for full power
output.
5. CCrroossssoovveerrSSwwiittcchh- activates low
pass crossover, full (all pass), or
high pass crossover.
6. LLooww--PPaassssFFrreeqquueennccyyCCoonnttrrooll- adjusts
the frequency (50Hz–500Hz) of
the lowpass crossover.
7. HHiigghh--PPaassssFFrreeqquueennccyyCCoonnttrrooll- adjusts
the frequency (50Hz–500Hz) of
the highpass crossover.
8. BBaassss- sets the bass boost of the
high-pass crossover to 0, 5 or 12dB
of boost.
9. PPRRTT(LED red) - illuminates when
the PRT (Protection) function is
active. Activates to protect the
amplifier when the temperature is
too high, the output has a DC
offset, a short was detected on the
output, or the amplifier power
cables have been improperly
connected (reverse power). If the
temperature, DC offset, or short
condition has cleared after approxi-
mately 10-seconds the amplifier
will automatically recover.
FRONT PANEL CONNECTIONS/CONTROLS—
XA-3002/XA-6002
NNOOTTEE::The numbers listed below are referenced on the Input Wiring Diagram.

77
© 2005 Directed Electronics—all rights reserved
2-CHANNEL XA-3002/XA-6002
HI-INPUT
R
L
INPUT
FULL
HPF
LPF
X-OVER
LEVEL BASS
HI PASS
12dB
0dB
6dB
LOW PASS
500Hz
50Hz 500Hz
50Hz
90 90
0.83
1.5
0.15V
5V
PRT
PWR
123 4 5 6 7 8 9

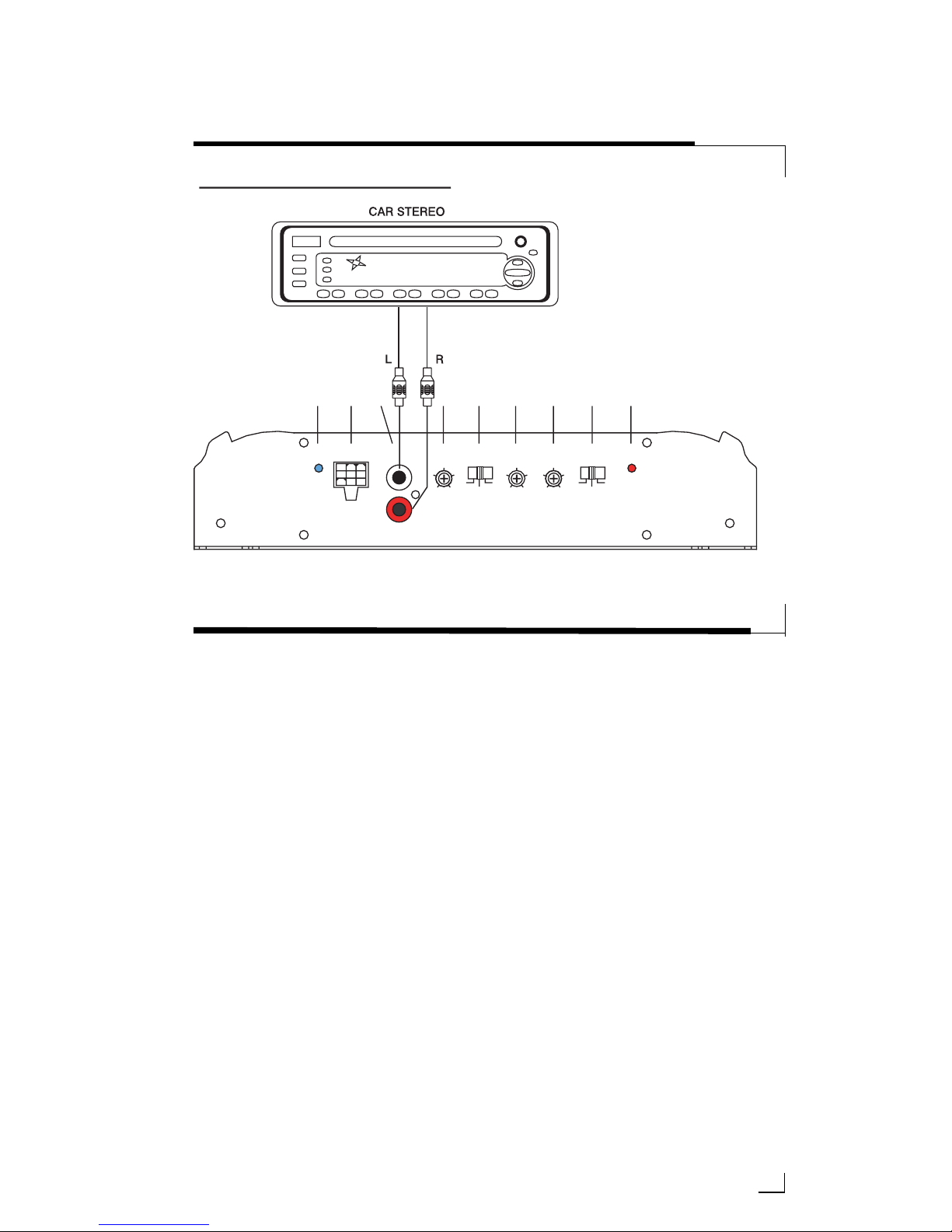

INPUT WIRING DIAGRAM—XA-3002/XA-6002
1. PPWWRR(LED blue) - when illuminated
indicates that the amplifier is on.
2. RRCCAAIInnppuuttss(front) - accepts RCA input
from a source unit, preamplifier, or
equalizer.
3. LLeevveellCCoonnttrrooll(front) - continuously
adjusts from 250mV to 5V for full
power output.
LLooww--PPaassssFFrreeqquueennccyyCCoonnttrrooll(front) -
adjusts the frequency
(50Hz–500Hz) of the low-pass
crossover.
HHiigghh--PPaassssFFrreeqquueennccyyCCoonnttrrooll(front) -
adjusts the frequency
(50Hz–500Hz) of the high-pass
crossover.
4. HHIIIInnppuutt(high level input) - Accepts
1v to 10v input from the headunit’s
speaker output. The amplifier will
automatically wake-up when the
input is greater than 1V.
5. LLeevveellCCoonnttrrooll(rear) - continuously
adjusts from 250mV to 5V for full
power output.
NNOOTTEE::The numbers listed below are referenced on the Input Wiring Diagram.
FRONT PANEL CONNECTIONS/CONTROLS—XA-6004

88
© 2005 Directed Electronics—all rights reserved
LLooww--PPaassssFFrreeqquueennccyyCCoonnttrrooll(rear) -
adjusts the frequency
(50Hz–500Hz) of the low-pass
crossover.
HHiigghh--PPaassssFFrreeqquueennccyyCCoonnttrrooll(rear) -
adjusts the frequency
(50Hz–500Hz) of the high-pass
crossover.
6. RRCCAAIInnppuuttss(rear) - accepts RCA
input from a source unit, preampli-
fier, or equalizer.
7. PPRRTT(LED red) - illuminates when
the PRT (Protection) function is
active. Activates to protect the
amplifier when the temperature is
too high, the output has a DC
offset, a short was detected on the
output, or the amplifier power
cables have been improperly
connected (reverse power). If the
temperature, DC offset, or short
condition has cleared after approxi-
mately 10-seconds the amplifier
will automatically recover.
8. CCrroossssoovveerrSSwwiittcchh(front) - activates
low pass crossover, full (all pass),
or high pass crossover.
9. BBaassss(front) - sets the bass boost of
the high-pass crossover to 0, or 8dB
of boost.
10. BBaassss(rear) - sets the bass boost of
the high-pass crossover to 0, or 8dB
of boost.
11. CCrroossssoovveerrSSwwiittcchh(rear) - activates
low pass crossover, full (all pass),
or high pass crossover.

99
© 2005 Directed Electronics—all rights reserved
4-CHANNEL XA-6004
LR
INPUT
RR
0.5
4
1.4
LEVELHI PASS LOW PASS
REAR
0.5
4
1.4
FRONT
HI PASSLOW PASSLEVEL
HI-INPUT
X-OVER
X-OVER
HPFLPF
FULL
HPFLPF
FULL
500Hz50Hz
500Hz50Hz 500Hz50Hz 500Hz50Hz
0.25V
5V 0.25V
5V
90 90 90 90
8dB
0dB
8dB
0dB
BASSBASS
LF
RF
INPUT
PRT
PWR
12
8 9 10 11
43567
FRONT REAR

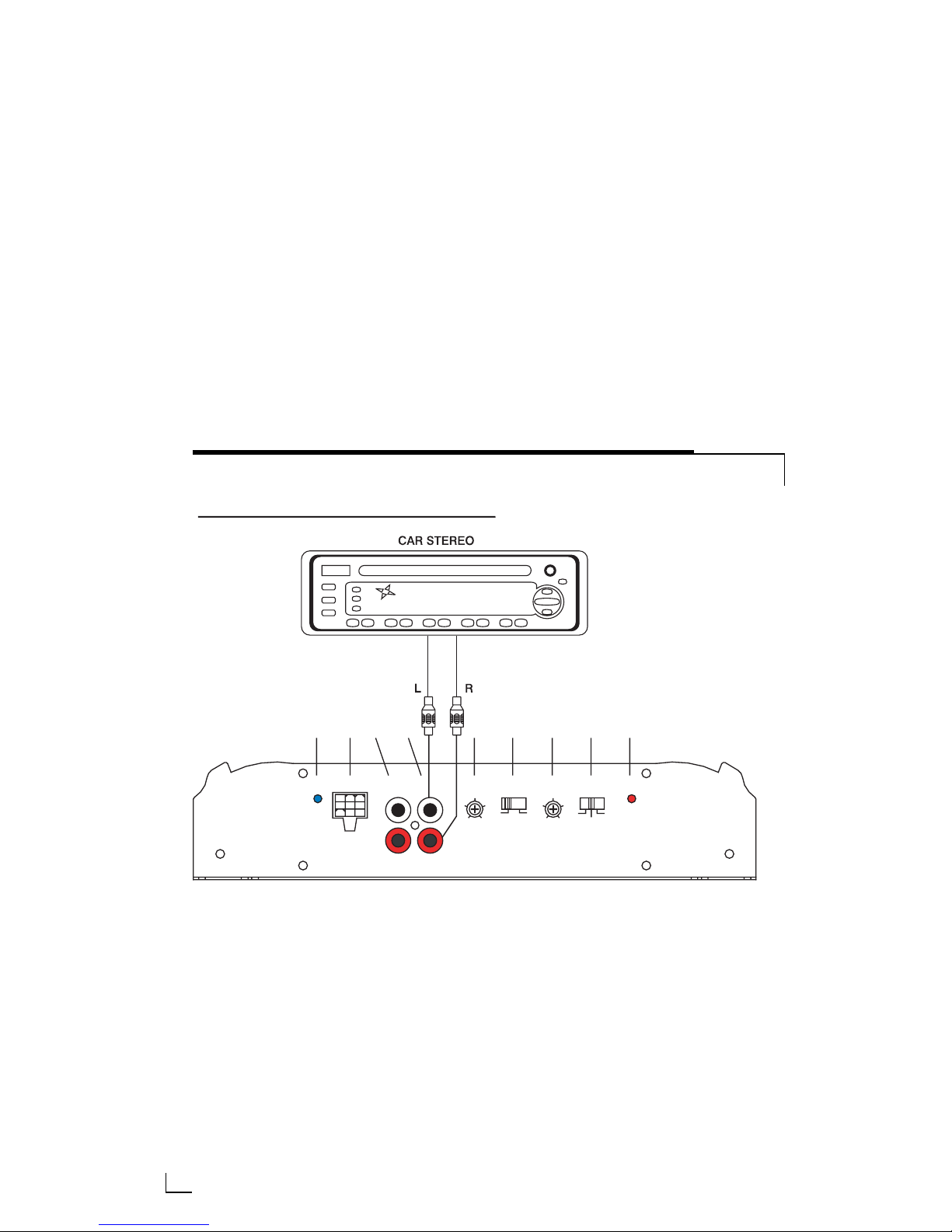

INPUT WIRING DIAGRAM—XA-6004
NNOOTTEE::The numbers listed below are referenced on the Input Wiring Diagram.
FRONT PANEL CONNECTIONS/CONTROLS—
XA-5001/XA-8001
1. PPWWRR(LED blue) - when illuminated
indicates that the amplifier is on.
2. HHIIIInnppuutt(high level input) - Accepts
1v to 10v input from the headunit’s
speaker output. The amplifier will
automatically wake-up when the
input is greater than 1V.
3. RRCCAAOOuuttppuutt- RCA output to another
amplifier.
4. RRCCAAIInnppuuttss- accepts RCA input from a
source unit, preamplifier, or equalizer.
5. LLeevveellCCoonnttrrooll- continuously adjusts
from 150mV to 5V for full power
output.
6. CCrroossssoovveerrSSwwiittcchh- activates low
pass crossover, or full (all pass).
7. LLooww--PPaassssFFrreeq
quueennccyyCCoonnttrrooll- adjusts
the frequency (30Hz–250Hz) of the
lowpass crossover

1100
© 2005 Directed Electronics—all rights reserved
MONO CHANNEL XA-5001/XA-8001
0.8
0.15V
3
5V
BASS
1.5
LEVEL
HI-INPUT OUTPUT
L
INPUT
R
250Hz
30Hz
LOW PASS
50
12dB0dB 6dB
X-OVER
LPF FULL
PRT
PWR
1234 5 6 7 8 9
INPUT WIRING DIAGRAM—XA-5001/XA-8001
8. BBaassss- sets the bass boost of the
high-pass crossover to 0, 6 or 12dB
of boost.
9. PPRRTT(LED red) - illuminates when
the PRT (Protection) function is
active. Activates to protect the
amplifier when the temperature is
too high, the output has a DC
offset, a short was detected on the
output, or the amplifier power
cables have been improperly
connected (reverse power). If the
temperature, DC offset, or short
condition has cleared after approxi-
mately 10-seconds the amplifier
will automatically recover.

1111
© 2005 Directed Electronics—all rights reserved
10. SSppeeaakkeerrCCoonnnneeccttiioonnss- Note that the
two speakers & four speakers have
been connected to the four terminal
following the (+) and (-) graphic.
Your speaker terminal may be
marked (+) and (-) or there may
be red dot by one terminal which
means the same as (+).
Connecting the speakers in this
manner assures that the two
speaker cones will move in and out
together according to the original
recording. If one of the two
speakers is reversed, stereo
imaging and bass response will be
degraded.
Refer to the specifications for the
wire size to be used with your
amplifier.
11. AATTCCFFuusseess- protects the amplifier
from over current situations. See
specification for fuse size for your
amplifier. NNoottee::The XA-3002 has
only one fuse.
12. ((++))1122VVoollttPPoowweerr- Connect this
terminal through a FUSE or CIRCUIT
BREAKER to the positive terminal of
the vehicle battery or the positive
terminal of an isolated audio
system battery. Refer to the specifi-
cations for the wire size to be used
with your amplifier.
WWAARRNNIINNGG::Always protect this power wire by installing a fuse
or circuit breaker of the appropriate size within
12 inches of the battery terminal connection.
RReemmootteeTTuurrnnOOnn- This terminal
turns on the amplifier when (+) 12
volt is applied to it. Connect it to
the remote turn on lead of the head
unit or signal source. If a (+) 12
volt remote turn lead is not avail-
able, a Remote Power Adapter
(P/N #55000) can be used to
supply a remote turn on signal. DO
NOT connect this terminal to
constant (+) 12 volt.
GGrroouunndd--Connect this terminal
directly to the sheet metal chassis
of the vehicle using the shortest
wire necessary to make this
connection. Always use wire of the
same gauge or larger than the (+)
12 volt power wire. The chassis
connection point should be scraped
free of paint and dirt. Use only
quality crimped and/or soldered
connectors at both ends of this
wire. DO NOT connect this terminal
directly to the vehicle battery
ground terminal or any other
factory ground points.
REAR PANEL CONNECTIONS—XA-3002/XA-6002
NNOOTTEE::The numbers listed below are referenced on the Speaker Wiring Diagram.

1122
© 2005 Directed Electronics—all rights reserved
For bridging into a single speaker load, the XA-3002/6002 have the ability to be
bridged, as shown in the diagram below:
GND+12V REM
FUSEFUSE
BRIDGED
(L+)(R+) (L-)
(R-)
SPEAKER
4 Ohm
SPEAKER
4 Ohm
10 11 12
2-CHANNEL XA-3002/XA-6002
Note: Model XA-3002 has one fuse.
SPEAKER WIRING DIAGRAM—XA-3002/XA-6002
GND+12V REM
FUSEFUSE
BRIDGED
(L+)(R+) (L-)
(R-)
SPEAKER
4 Ohm
2-CHANNEL XA-3002/XA-6002 BRIDGED

1133
© 2005 Directed Electronics—all rights reserved
GND+12V REM
FUSEFUSE
REAR
FRONT
BRIDGED
(L+)(R+) (L-)
(R-)
(L+)(R+) (L-)
(R-)
RIGHT
SPEAKER
RIGHT
SPEAKER
4 Ohm
LEFT
SPEAKER
4 Ohm
LEFT
SPEAKER
4 Ohm
4 Ohm
FRONT
REAR
4-CHANNEL XA-6004
10 11 12
SPEAKER WIRING DIAGRAM—XA-6004
For bridging front and rear into single speaker loads, the XA-6004 has the ability to be
bridged as shown in the diagram below:

1144
© 2005 Directed Electronics—all rights reserved
GND+12V REM
FUSEFUSE
REAR
FRONT
BRIDGED
(L+)(R+) (L-)
(R-)
(L+)(R+) (L-)
(R-)
SPEAKER
SPEAKER
4 Ohm
4 Ohm
FRONT
REAR
4-CHANNEL XA-6004 BRIDGED

1155
© 2005 Directed Electronics—all rights reserved
GND
+12V REM
FUSEFUSE
( + )( - ) ( - ) ( + )
SPEAKER
4 Ohm
SPEAKER
4 Ohm
MONO XA-6004
10 11 12

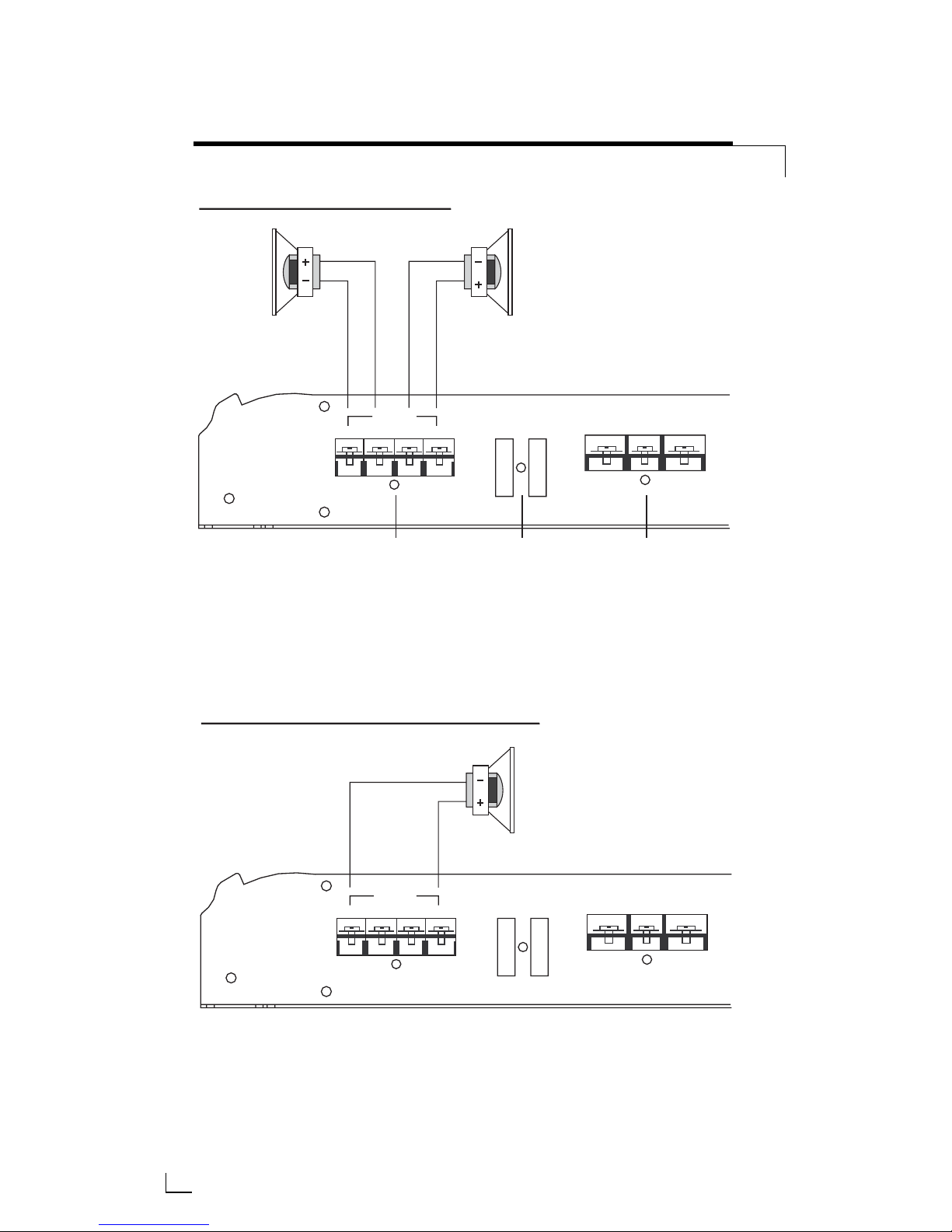

SPEAKER WIRING DIAGRAM—XA-5001/XA-8001
The XA-5001, and XA-8001 amplifiers offer two positive and two negative output termi-
nals for ease of connecting the speakers to the amplifier. Since these are mono amplifiers,
the speaker connectors are paralleled internally. Each amplifier is stable to 2 ohms.
NNOOTTEE!!The XA-5001 and XA-8001 are not designed to work in a bridged or strapped
configuration. Attempting to apply these configurations will damage the amplifier and
will not be covered under warranty.

1166
© 2005 Directed Electronics—all rights reserved
CROSSOVER SETTINGS AND GAIN ADJUSTMENT
Your Xtreme Series power amplifier by Directed Audio needs to be adjusted carefully to
achieve maximum performance. These are some guidelines to follow when fine-tuning
the amplifier.
For full-range and simultaneous stereo/mono bass applications, the crossover selec-
tion switch should be set to FLAT. If the amplifier is driving your subwoofers, set the
switch to LPF, and for mid-bass/midrange output, set to HPF.
The crossover frequency control needs to be adjusted to suit your particular system.
For subwoofer applications, try to keep the setting low enough to prevent the
image smearing (you should not be able to hear male voices from the subwoofer)
but not so low as to create a gap between the subwoofer and the mid-
bass/midrange speakers. For mid-bass/midrange settings, try to keep the setting
low enough to keep your sound stage in front of you, without overdriving the
speaker. It will be to your advantage to spend some extra time with this adjust-
ment, listening to familiar music or system set-up discs to achieve the kind of
musical reproduction that you prefer.
The gain adjustment allows you to set proper signal match for clean, quiet ampli-
fier operation. For full-range and simultaneous stereo/mono bass applications,
start by playing some music you are familiar with. With the gain adjustment on
the amplifier in the middle of its rotation, bring up the volume on your head unit
to the 3/4 volume setting or until you start to hear distortion or clipping. If you
hear distortion before you reach the 3/4 volume setting of your head unit, reduce
the gain setting on the amplifier and start to raise the head unit volume again.
When you can listen to the music at or slightly above 3/4 on your head unit
without audible distortion, slowly raise the gain of the amplifier until distortion is
heard, then back off the gain until the distortion is not audible. This setting will
allow you to reach full output with all but the quietest of source material, while
avoiding excessive noise in the system.
The same procedure should be used for adjusting the amplifier when the on-board
crossover is set to LPF or HPF, but you will also have to take into consideration the
effect that gain adjustment has on system frequency response and imaging.
Again, plan on spending some time with music that you know, getting the gain
and crossover settings the way you like. Test discs and analyzers may help with this
process, but in the end it's your ears that count - listen to the music!

1177
© 2005 Directed Electronics—all rights reserved
CEA SPECIFICATIONS
XXAA--33000022
Power Output: 55 Watts RMS x 2 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -70 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 80 Watts RMS x 2 at 2 ohms and < 1% THD+N
XXAA--66000044
Power Output: 60 Watts RMS x 4 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -75 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 75 Watts RMS x 4 at 2 ohms and < 1% THD+N
XXAA--55000011
Power Output: 150 Watts RMS x 1 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -75 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 250 Watts RMS x 1 at 2 ohms and < 1% THD+N
XXAA--88000011
Power Output: 300 Watts RMS x 1 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -75 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 400 Watts RMS x 1 at 2 ohms and < 1% THD+N
XXAA--66000022
Power Output: 100 Watts RMS x 2 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -70 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 150 Watts RMS x 2 at 2 ohms and < 1% THD+N

1188
© 2005 Directed Electronics—all rights reserved
SPECIFICATIONS
Xtreme models XA-3002 XA-6002 XA-6004 XA-5001 XA-8001
Type 2-channel 2-channel 4-channel Mono block Mono block
Maximum Power 300 watts 600watts 600 watts 500 watts 800 watts
Damping Factor >150 >150 >75 >50 >50
Frequency Response 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-250Hz 20Hz-20kHz
+0, -3dB +0,-3dB +0,-3dB +0,-3dB +/- 1dB
Crossover (12dB Slope) LP 50-500Hz LP 50-500Hz LP 50-500Hz LP 30-250Hz LP 30-250Hz
Bass Boost (@ 50Hz) Switch Switch Switch Switch Switch
0, +6, +12dB 0, +6, +12dB +0, +8dB 0, +6, +12dB 0, +6, +12dB
Input Sensitivity 150mV-5V 150mV-5V 250mV-5V 150mV-5V 150mV-5V
Protection Thermal, Overcurrent, Short Circuit, Reverse Polarity
Fuse Size 25A x 1 25A x 2 25A x 2 15A x 2 30A x 2
Min. Speaker Wire Gauge 12 12 12 12 12
Min. Power Wire Gauge 8 8 8 8 4

© 2005 Directed Electronics - All rights reserved - G43100/05/10/15/20 10-05
