JBL GTO5355 User manual
GTO5355
5 CHANNEL POWER AMPLIFIER
SERVICE MANUAL
JBL Consumer Products
250 Crossways Park Dr.
Woodbury, New York 11797 Rev11/2008
Released 2007
Discontinued XXXX
- CONTENTS -
SPECIFICATIONS ………………………………………..1
PACKING……………………………………………..…....2

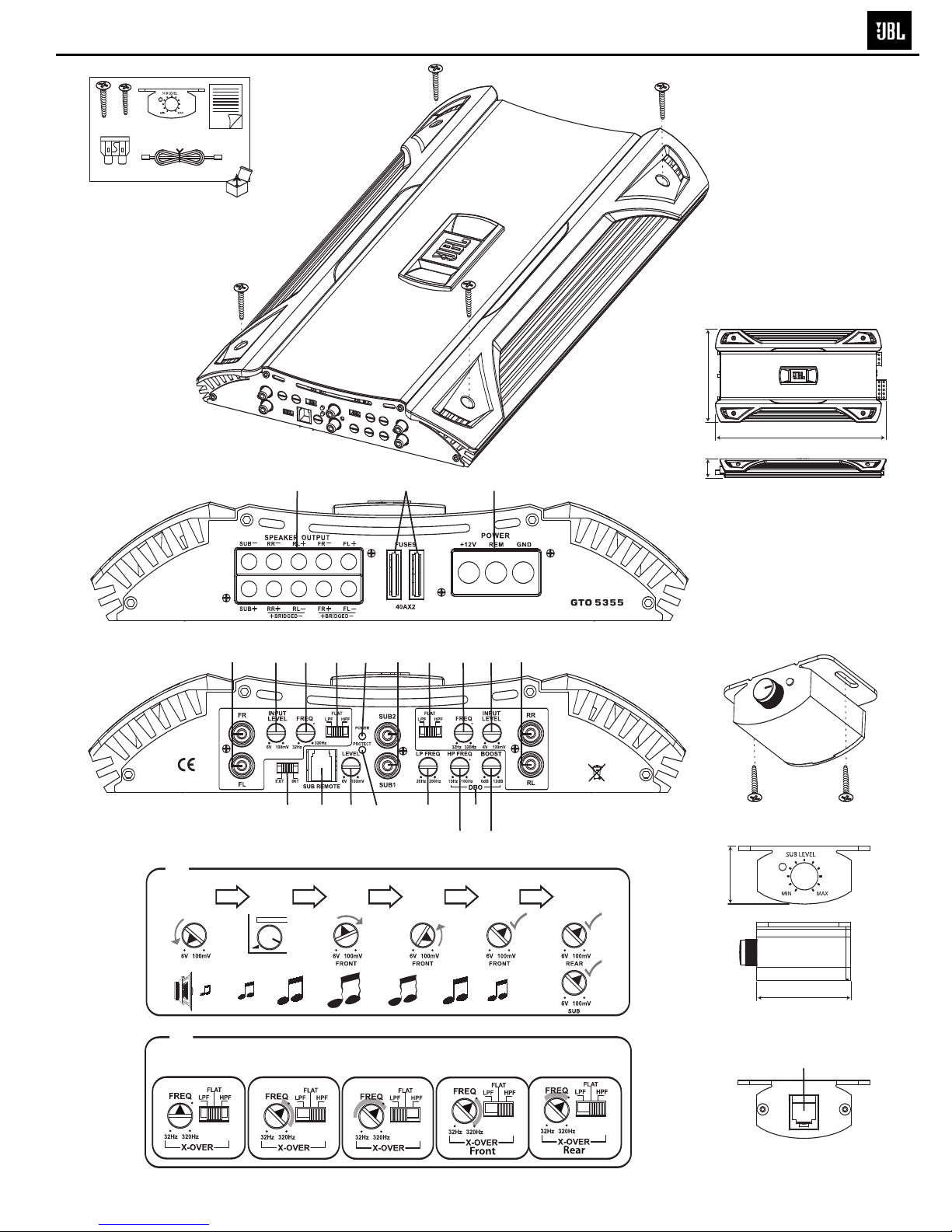

CONTROL/INSTALLATION DRAWINGS………………3
CONTROL/INSTALLATION INSTRUCTIONS………....4
BASIC TROUBLESHOOTING…………………..............5

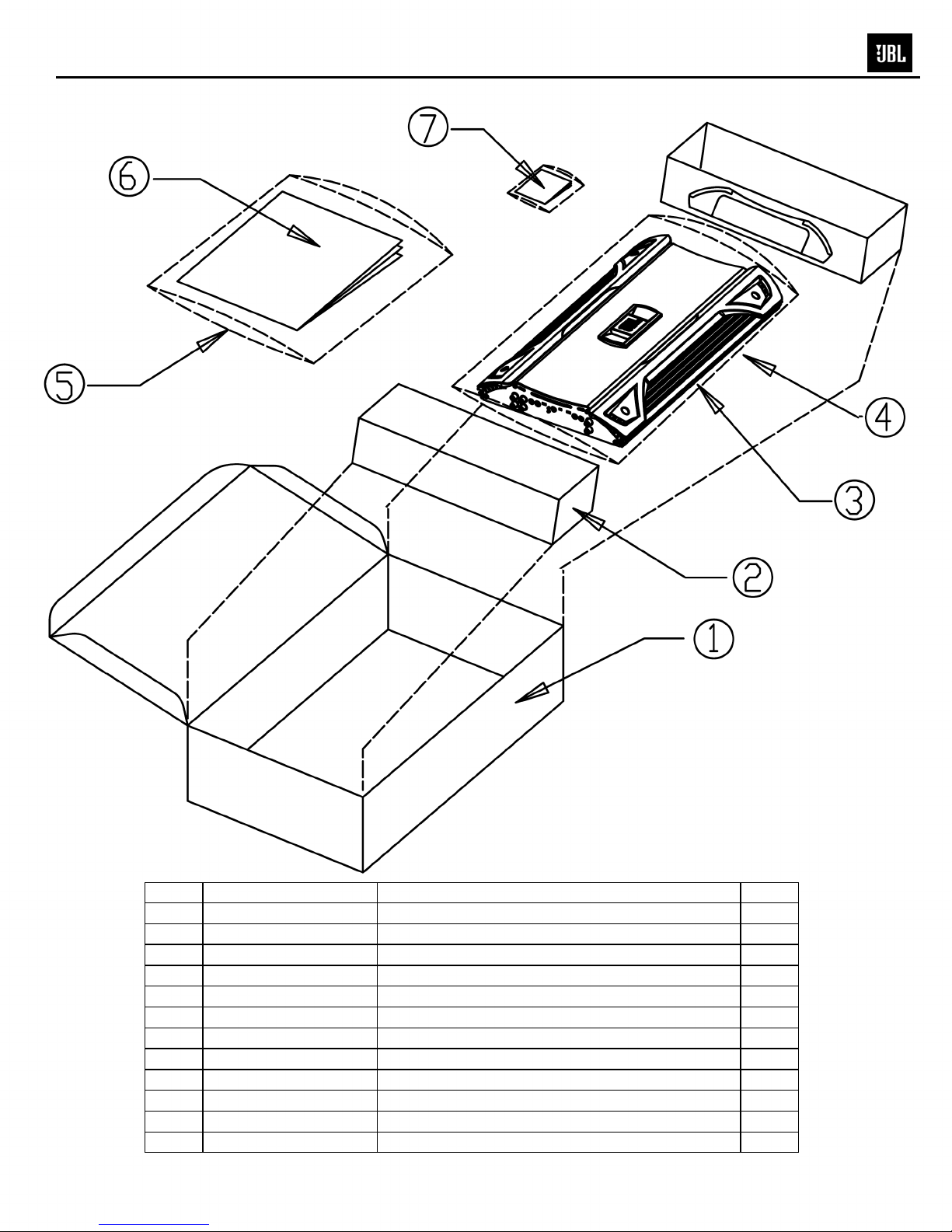

EXPLODED VIEW…….………………….….…………....6
EXPLODED VIEW PARTS LIST………….…….….…....7

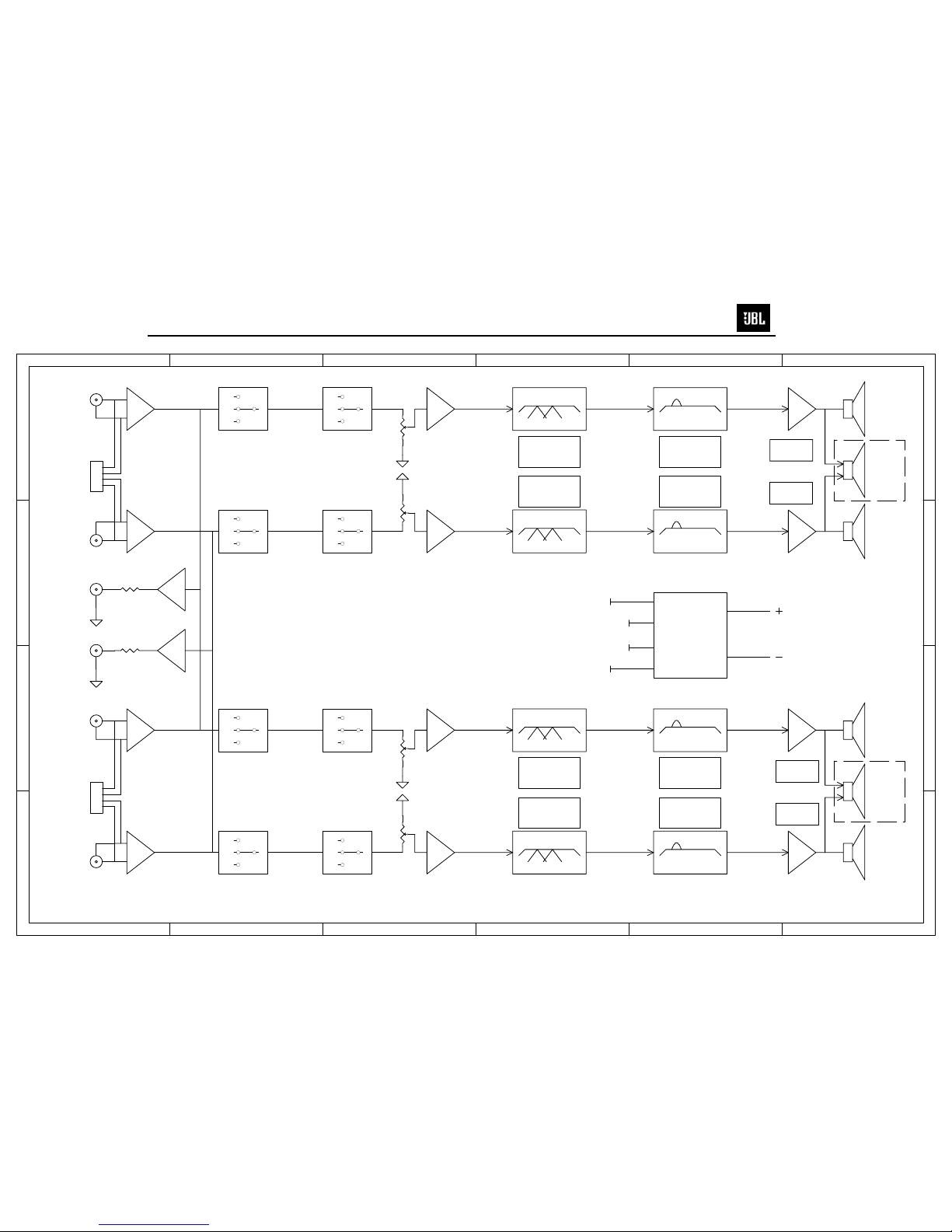

AMPLIFIER BLOCK DIAGRAM…………………….……8
ELECTRICAL PARTS LIST ..……….……….…….…….9

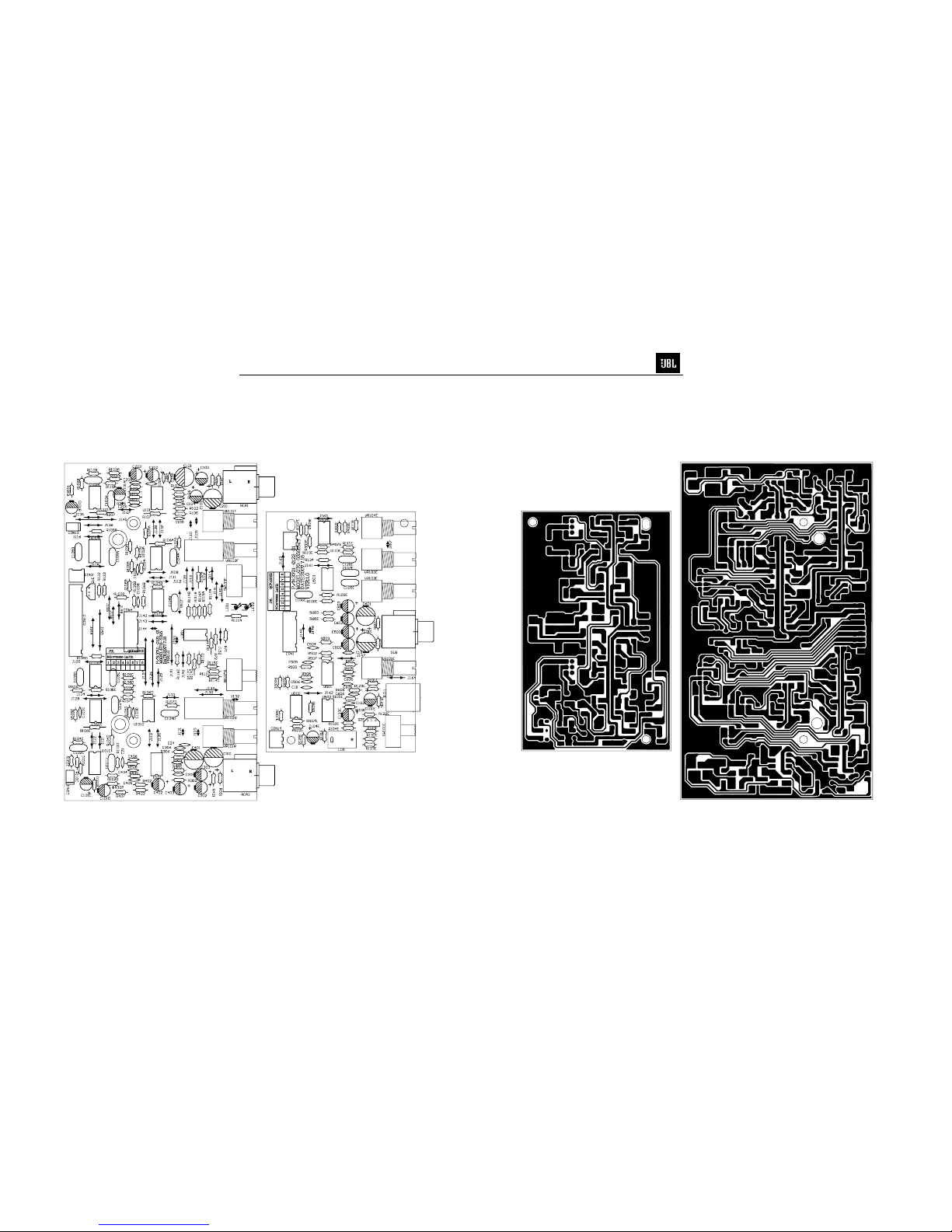

P.C.B. DRAWINGS….……………………….....….……15

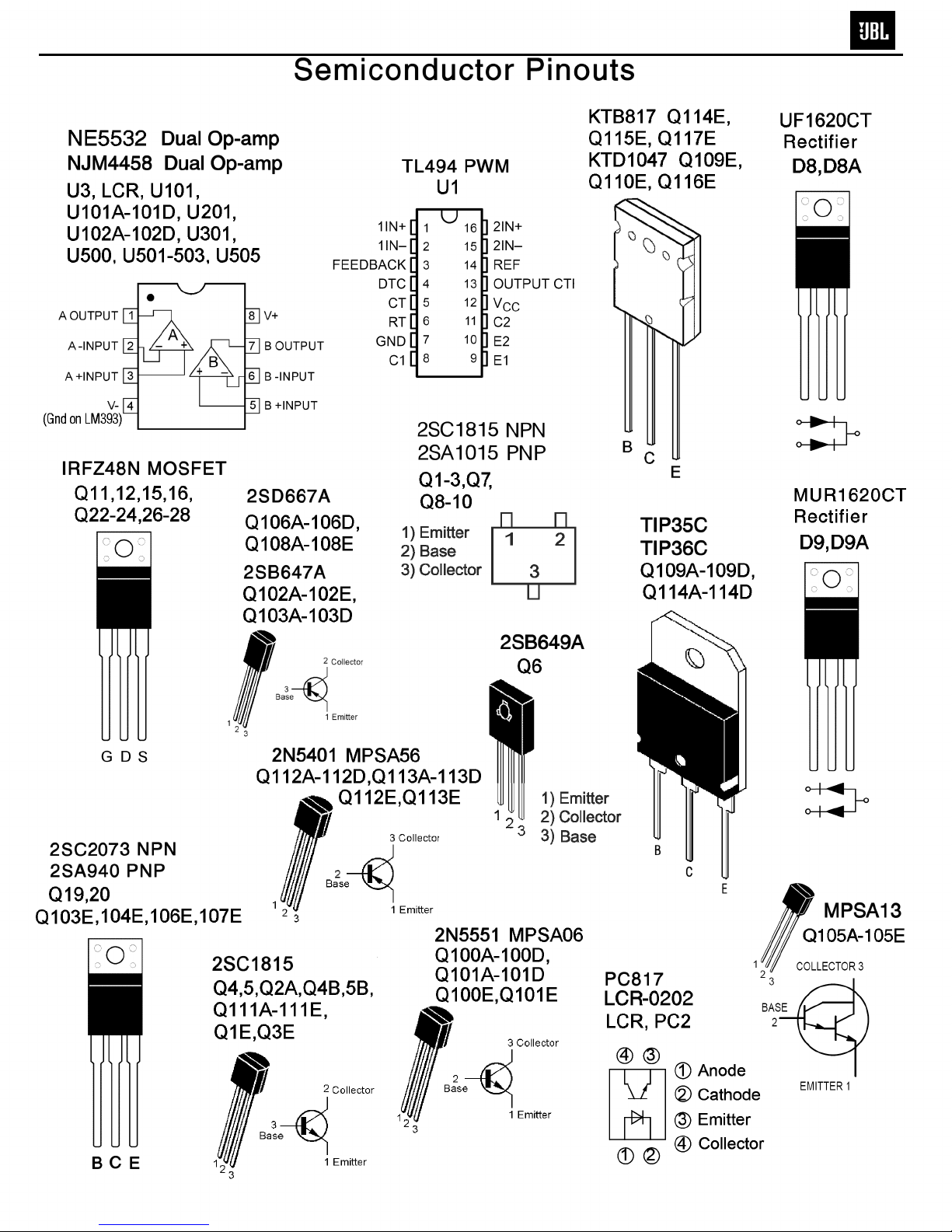

IC/TRANSISTOR PINOUTS..………………..….….…..18
SCHEMATICS……………………………………….…...19
GTO 5355 Specifications
Output Power: 55W RMS x 4 channels + 225W RMS x 1 channel @ 4 ohms; ≤1% THD+N
(14.4V supply) 75W RMS x 4 channels + 360W RMS x 1 channel @ 2 ohms; ≤1% THD+N
140W RMS x 2 channel (bridged) @ 4 ohms; ≤1% THD + N
Signal-to-noise ratio: 85dBA (reference 1W into 4 ohms)
104dBA (reference rated power into 4 ohms)
Dynamic power: 660W @ 2 ohms
Frequency response: 10Hz – 83kHz and 20Hz – 250Hz (subwoofer)
THD+N 1KHz LPF=22KHz ≤0.03% (rated power @ 4 ohms)
Channel Separation ≥45db (full rated power)
Input Impedance >20K ohms
Maximum input signal: 6.0V
Maximum sensitivity: 100mV
Hi-Pass, Low Pass X-over Limits 32Hz – 320Hz + 20Hz – 200Hz ±20%
Bass Boost @ 50Hz 0-12dB
DC Offset <30mV
Output regulation: .03dB @ 4 ohms
Idle Current @ 4 ohms 1.9A
Max Current Draw <80A @ 2 ohms both channels driven
Remote Operating Voltages ON 5V OFF 4V
Turn-on delay time 2-3 sec
Circuit Protection Temperature (85±5C), Short circuit
Operating voltage range (8-16V)
Dimensions: 18 9/16 x 10 3/8 x 2 1/8” (470 x 263 x 53mm)
Fuses: (2) x 40A
JBL continually strives to update and improve existing products, as well as create new ones. The specifications
and details in this and related JBL publications are therefore subject to change without notice.
GTO5355
1
Item Part Number Description Qty
1 CH5523221134 Outer Carton 1
2 BZL311105120 Packing Foam 2
3 GTO5355 Amplifier 1
4 Plastic bag 1
5 Plastic bag 1
6 Visit www.jbl.com Owner’s manual 1
7 Accessory kit consisting of:
LS1AA0404501 Mounting Screws 4
1601-303G-00 30A Fuse 1
REMOTE GTO AMP Remote Level control 1
2100-0009-04 Phone cable 4PIN Black L=6M, 6P4C 1
GTO5355
2
±ÈÀý
1.000
012
B
A45 67 9
ED FG
3
H I
AB
18-9/16"
470mm
10-3/8"
263mm
2-1/8"
53mm
E
1-5/8"
40mm
1"
25mm
L
C8
2x
2x
4x 1x
1x
1x
ABCDEF
J
K
ABCD
GTO5355
3
Installation Warnings and Tips
•Disconnect the negative (–) lead from your vehicle’s
battery.
•At the installation sites, locate and make a note of
all fuel lines, hydraulic brake lines, vacuum lines
and electrical wiring. Use extreme caution when
cutting or drilling in and around these areas.
•Choose a safe mounting location away from moisture.
•Make sure there is sufficient air circulation at the
mounting location for the amplifier to cool itself.
•Mount the amplifier, using the supplied hardware.
Specifications
•55W RMS x 4 channels, plus 225W RMS x 1 channel,
@4ohms and ≤1% THD + N*
•75W RMS x 4 channels, plus 360W RMS x 1 channel,
@2ohms and ≤1% THD + N*
•THD + N: 0.03% (rated power @ 4 ohms)
•Signal-to-noise ratio: 85dBA
(reference 1W into 4 ohms)*
•Signal-to-noise ratio: 104dBA
(reference rated power into 4 ohms)
•Frequency response: 10Hz – 83kHz and
20Hz – 250Hz
•Max power: 660 watts
*CEA-2006A-compliant
0Speaker Output Connectors
•Connect the speakers to these terminals,
observing proper polarity.
•Five-channel operation: Connect the front left
speaker to the Front L+ and L– terminals and
the front right speaker to the Front R+ and
R– terminals. Repeat for the rear speakers,
using the Rear L+ and L– terminals, and
the Rear R+ and R– terminals. Connect the
subwoofer to the Sub+ and Sub– terminals.
•Four-channel operation: Connect the stereo
speakers to the Front terminals, as above.
Connect the single speaker into which the
amplifier’srear channels will be bridged to the
Rear R+ and Rear L– terminals. Connect the
subwoofer to the Sub+ and Sub– terminals
•Three-channel (bridged) operation: Connect
one speaker to the Front R+ and Front L–
terminals. Connect the other speaker to the
Rear R+ and Rear L– terminals. Connect the
subwoofer to the Sub+ and Sub– terminals.
•Minimum speaker impedance for stereo
operation is 2 ohms. Minimum speaker
impedance for bridged operation is 4 ohms.
Minimum subwoofer impedance is 2 ohms.
1Fuses
•Replace only with same type and rating.
2Power Input Connectors
•+12V:Connect to the positive terminal of the
vehicle’sbattery.4AWG wire is recommended.
Install an appropriate fuse holder and fuse (80A
minimum) within 18 inches of the battery.Make
sure the wire is not damaged or pinched during
installation. Install protective grommets when
routing wires through the firewall or other sheet
metal.
•GND: Connect to the vehicle’s chassis. Refer to
the picture below.
•REM: Connect to the “Remote Out” lead from
the source unit or to a source of switched
12V+ (ACC).
3Front Input Connectors (RCA)
•Connect to the front RCA outputs from the
source unit or signal processor.
4Front Input-Level Control
•Used to match the front input level of the
amplifier to the output level of the source unit.
•See Jfor the adjustment procedure.
5Front Crossover-Frequency Control
•12dB/octave crossover, variable from
32Hz to 320Hz.
•See Kfor the adjustment procedure.
6Front Crossover-Filter Selector
•LPF: Select for subwoofer(s).
•FLAT: Select for full-range speakers when
no subwoofer will be used in the system.
•HPF: Select for midrange speakers or
full-range speakers when a subwoofer is
used in the system.
7Power On LED
•Illuminated when the amplifier is on.
8Subwoofer Input Connector (RCA)
•Connect to the subwoofer RCA outputs from
the source unit, or signal processor.
9Rear Crossover-Filter Selector
•LPF: Select for subwoofer(s).
•FLAT: Select for full-range speakers when
no subwoofer will be used in the system.
•HPF: Select for midrange speakers or
full-range speakers when a subwoofer is
used in the system.
ARear Crossover-Frequency Control
•12dB/octave crossover, variable from
32Hz to 320Hz.
•See the adjustment procedure in K.
BRear Input-Level Control
•Used to match the rear input of the amplifier to
the output of the source unit.
•See Jfor adjustment procedures.
CRear Input Connectors (RCA)
•Connect to rear RCA outputs from the source
unit, or signal processor.
DEXT/INT Switch
•If the source unit has a subwoofer output and
you have connected it to the SUB input, set this
switch to the EXT position. Otherwise, set it in
the INT position.
ESubwoofer Remote Level Control Connector
•Connect the Remote Level Control (RLC) here,
using the supplied RJ-11 cable.
FSubwoofer Level Control
•Used to match the SUB input of the amplifier to
the output of the source unit.
•See Jfor adjustment procedures.
GProtect LED
•Illuminated under any of the following fault
conditions: battery over/under voltage, short
circuit in speaker wires, amplifier is too hot,
amplifier’soutput circuit has failed (DC voltage
present in the amplifier’soutput).
HSubwoofer Low-Pass Filter Frequency Control
•12dB/octave low-pass filter, variable from 20Hz
to 200Hz.
•See the adjustment procedure in K.
IDBO (Dynamic Bass Optimization) Variable
Subsonic High-Pass Filter With Variable Boost (Q)
•For woofers in tuned (vented) enclosures, set
the Frequency control to a value 10Hz below the
enclosure’s resonance (tuned) frequency.
•For woofers in sealed boxes, set the control to
any value you prefer between 30Hz and 50Hz.
•Set the Boost control according to your
preference, being careful not to apply
enough boost to damage your woofer(s).
ADBO High-Pass Filter Frequency control,
variable between 10Hz and 100Hz. See
above for appropriate settings.
BDBO Boost control provides up to
12dB of boost, slightly above the high-
pass filter’s frequency. See above for
appropriate settings.
JSetting Input Level
ATurn all Input-Level controls counterclockwise
to 6V (minimum).
BWith a dynamic music track playing, turn the
head unit’s volume control to the 3/4 position.
CTurn Front Input-Level control clockwise until
the music is so loud that it no longer sounds
clear (distortion is present in the output).
DTurn Front-Input-Level control counterclock-
wise gradually, just until the music sounds
clear, once again.
EFront-Level input is now adjusted correctly.
FAdjust the Rear and Sub Input-Level controls
so that the level of the rear speakers and the
level of the subwoofer are proportionate to the
level of the front speakers, according to your
preference.
KSetting the Crossover
ACrossover setting for 5" or larger full-range
speakers when no subwoofer is included in
the system.
BCrossover setting for full-range speakers
when a subwoofer is included in the system.
CCrossover setting for subwoofers.
DCrossover setting for systems that include
separate mid-bass speakers driven by the rear
channels, with the BP switch set to “BP.”
Note: Acceptable frequency ranges are indicated
in gray.
LRemote Level Control
The Remote Level Control, if installed, will allow
you to adjust the level of bass while seated in the
listening position.
GTO5355 CAR AUDIO POWER AMPLIFIER OWNER’S MANUAL
Factory Bolt Ring Connector
Ground Wire
Note: Remove any paint
below ring connector.
Star Washer
This product is designed for mobile applications and is not
intended for connection to the mains.
Avalid serial number is required for warranty coverage.
Features, specifications and appearance are subject to change
without notice.
GTO5355
4
Amplifier Troubleshooting Guide
1. Status LED on Amplifier not Lit - Head Unit (Source) Turned ON
Verify: A. Remote turn-on wire from source to amplifier has proper voltage
B. Power (B+) connections at amplifier, terminal blocks, and battery are secure
C. Ground (GND) connections at amplifier and vehicle chassis are secure
D. Battery B+ fuse (if used) is OK
E. Amplifier fuse is OK
F. B+ at battery and B+ at amplifier has proper voltage
2. Status LED’s Lit, No Output from Speakers in Normal Operating Condition
Verify: A. RCA cables from amplifier to source are securely connected
B. Volume adjustment on amplifier is correctly adjusted
C. Source is ON and playing
3. Engine Noise From Speaker(s)
Turn source OFF, Disconnect RCA cables at amplifier. If noise stops, check equipment & cables leading
to amplifier.
Verify: A. RCA cables are of good quality with no breakage to internal shields
B. RCA cables from source to amplifier are not run alongside any power cables
4. Amplifier Output Distorted Music
Verify: A. Source output music to amplifier is not distorted
B. Source output sensitivity is correctly adjusted
5. Amplifier Shuts Down, Green LED’s are Lit - Amplifier is in Thermal Protection Mode
Verify: A. Amplifier is mounted with adequate air circulation around heatsinks or vents
B. Amplifier is not mounted under carpet or sealed enclosure
C. Speakers meet correct impedance for application (mono or stereo hookup)
6. Amplifier Does Not Turn ON, and Red LED is Lit Amplifier (and not Connected to a Shorted Speaker)
Verify: A. Speaker crossover (if used) is not defective
GTO5355
5
RCA CAP (Red)
RCA CAP (Wht)
Trans. Clamp
Trans. Clamp
Trans. Clamp
Standoff
Standoff
Front Plate
LARGER VERSION OF
CHART NEXT PAGE
GTO5355
6
GTO5355
7
1 2 3 4 56
A
B
C
D
6
54321
D
C
B
A
INPUT L
AUX OUT L
AUX OUT R
INPUT R
OP
OP
OP
OP
1
2
3
4
IMS INPUT
23
1
4
A
MODE:FRONT/REAR/SUB
23
1
4
A
MODE:FRONT/REAR/SUB
23
1
4
A
23
1
4
A
MODE:RIGHT/STEREO/LEFT
MODE:RIGHT/STEREO/LEFT
1 3
2
A
1 3
2
A
OP
OP
10 100K32 320
MODE HP/FLAT/LP
VARIABLE LPF/HPF
32Hz-320Hz/12dB
10 100K32 320
MODE HP/FLAT/LP
VARIABLE LPF/HPF
32Hz-320Hz/12dB
10 100K50
10 100K50
BASS BOOST
VARIABLE
0dB-6dB/50Hz
BASS BOOST
VARIABLE
0dB-6dB/50Hz
AMP
AMP
INPUT RL
INPUT RR
OP
OP
1
2
3
4
IMS INPUT
23
1
4
A
MODE:FRONT/REAR/SUB
23
1
4
A
MODE:FRONT/REAR/SUB
23
1
4
A
23
1
4
A
MODE:RIGHT/STEREO/LEFT
MODE:RIGHT/STEREO/LEFT
1 3
2
A
1 3
2
A
OP
OP
10 100K32 320
MODE HP/FLAT/LP
VARIABLE LPF/HPF
32Hz-320Hz/12dB
10 100K32 320
MODE HP/FLAT/LP
VARIABLE LPF/HPF
32Hz-320Hz/12dB
10 100K50
10 100K50
BASS BOOST
VARIABLE
0dB-6dB/50Hz
BASS BOOST
VARIABLE
0dB-6dB/50Hz
AMP
AMP
MAIN AMP
FRONT L
MAIN AMP
FRONT R
MAIN AMP
REAR RL
MAIN AMP
REAR RR
4 ohm/2 ohm
4 ohm/2 ohm
speaker
speaker
speaker
BTL-4ohm
4 ohm/2 ohm
4 ohm/2 ohm
speaker
speaker
speaker
BTL-4ohm
power supply Battery
+VCC
-VCC
+15V
-15V
GTO5355
8
GTO5355 Electrical Parts List
Part Number Qty Reference Designator
MAIN PCB
Resistors
0702-24R7-02 Resistor 1/4W 4.7Ω±5% 10MM 6 R152E R153E R154E R155E R166E R167E
0702-1220-02 Resistor 1/8W 22Ω±5% 7.5MM 20
R135A R135B R135C R135D R135E R136A
R136B R136C R136D R136E R137A R137B
R137C R137D R137E R138A R138B R138C
R138D R138E
0702-1510-02 Resistor 1/8W 51Ω±5% 7.5MM 8 R152A R152B R152C R152D R154A R154B
R154C R154D
0702-1680-02 Resistor 1/8W 68Ω±5% 7.5MM 10 R150A R150B R150C R150D R150E R151A
R151B R151C R151D R151E
0702-1101-02 Resistor 1/8W 100Ω±5% 7.5MM 11 R44 R58A R52 R52A R53A R53B R54A R56
R57 R56A R57A
0702-2101-02 Resistor 1/4W 100Ω±5% 10MM 2 R169E R170E
0702-2271-02 Resistor 1/4W 270Ω±5% 10MM 2 R161E R162E
0702-1471-02 Resistor 1/8W 470Ω±5% 7.5MM 4 R161A R161B R161C R161D
0702-1511-02 Resistor 1/8W 510Ω±5% 7.5MM 2 R146E R149E
0702-1102-02 Resistor 1/8W 1KΩ±5% 7.5MM 28
R133A R133B R133C R133D R133E R139A
R139B R139C R139D R139E R140A R140B
R140C R140D R140E R143A R143B R143C
R143D R143E R146A R146B R146C R146D
R149A R149B R149C R149D
0702-1222-02 Resistor 1/8W 2.2KΩ±5% 7.5MM 1 R15A
0702-1302-02 Resistor 1/8W 3KΩ±5% 距7.5MM 1 R148E
0702-1332-02 Resistor 1/8W 3.3KΩ±5% 7.5MM 8 R19 R20 R145 R145A R145C R145D R145E
R145B
0702-1392-02 Resistor 1/8W 3.9KΩ±5% 距7.5MM 10 R141A R141B R141C R141D R141E R142A
R142B R142C R14D R142E
0702-1622-02 Resistor 1/8W 6.2KΩ±5% 7.5MM 4 R148A R148C R148B R148D
0702-1472-02 Resistor 1/8W 4.7KΩ±5% 7.5MM 1 R47
0702-1512-02 Resistor 1/8W 5.1KΩ±5% 7.5MM 3 R48 R49 R50
0702-1682-02 Resistor 1/8W 6.8KΩ±5% 7.5MM 1 R21
0702-1822-02 Resistor 1/8W 8.2KΩ±5% 7.5MM 5 R160A R160B R160C R160D R160E
0702-1103-02 Resistor 1/8W 10KΩ±5% 7.5MM 9 R18A R37 R134A R134B R134C R134D
R134E R21B R101
0702-1153-02 Resistor 1/8W 15KΩ±5% 7.5MM 11 R30A R163A R163B R163C R163D R163E
R164A R164B R164C R164D R164E
0702-1473-02 Resistor 1/8W 47KΩ±5% 7.5MM 1 R17A
0702-1563-02 Resistor 1/8W 56KΩ±5% 7.5MM 10 R23A R24A R25A R26A R36A R23B R24B
R25B R26B R36B
07051515X102 Resistor 5W 0.15Ω*2 ±5% (立式) 三脚 26*5*18MM 7 R156A R156B R156C R156D R156E R157E
R158E
0704-7101-02 Resistor 3W 100Ω±5% 2 R63 R64
0702-3220-02 Resistor 1/2W 22Ω±5% 12.5MM 6 R60 R60A R61 R61A R62 R62A
0702-34R7-02 Resistor 1/2W 4.7Ω±5% 距12.5MM 5 R165A R165B R165C R165D R165E
0712-6472-02 Resistor 2W 4.7KΩ±5% 10MM 2 R64A R63A
Capacitors
06D211076001 Cap electro 100UF/50V ±20% 8*12 105℃5mm 5 C114A C114B C114C C114D C114E
06D211063000 Cap electro 10UF/16V ±20% 5*7 105℃5MM 1 C31
06D211074100 Cap electro 100uF/25V ±20% 6.3*11 105℃black5MM 1 C32
06D211056001 Cap electro 1UF/50V ±20% 5*11 105℃5.0mm 5 C113A C113B C113C C113D C113E
06D212285101 Cap electro 2200UF/35V Φ16*26MM ±20% 105℃7.5MM 4 C5 C5A C6 C6A
06D212264103 Cap electro 220uF/25V ±20% 8*12 105℃black 5MM 4 C39 C42 C29 C29B
Description
GTO5355
9
Part Number Qty Reference Designator
Description
MAIN PCB
06D212264102 Cap electro 22uF/25V ±20% 5*11 105℃black 5MM 5 C108A C108B C108C C108D C108E
06D213389001 Cap electro 3300UF/63V ±20% 30*25 105℃2 C37A C38A
06D213385001 Cap electro 3300UF/35V ±20% 22*25 105℃2 C37 C38
06D231017000 porcelin Cap 100pF/100V ±20% 5MM 10 C110A C110B C110C C110D C110E C111A
C111B C111C C111D C111E
06D231027000 porcelin Cap 1000pF/100V ±20% 5MM 2 C35 C35A
06D231037000 porcelin Cap 0.01uF/100V ±20% 5MM 4 C33 C33A C34 C34A
06D231047000 porcelin Cap 0.1uF/100V ±20% 5MM 16
C7 C8 C9 C15 C15A C23 C23A C28 C109E
C112A C112B C112C C112D C112E C21A
C25A
06D232207000 porcelin Cap 22pF/100V ±20% 5MM 5 C115A C115B C115C C115D C115E
06D236817000 porcelin Cap 680pF/100V ±20% 5MM 4 C109A C109B C109C C109D
06D321047200 Capacitor 104/100V ±5% green 5MM 5 C116A C116B C116C C116D C116E
Semiconductors
04WY-15BV104 diode schotty 15V 0.5W 20MA 52MM DO-35 0.5W 2 ZD4 ZD5
04WY-10BV104 diode schotty ASC SPA 20MA 10V 52MM DO-35 0.5W 1 ZD3
04PT-4148-04 diode 1N4148 GSS 200MA 75V DO-35 18
D2A D3A D100A D100B D100C D100D D100E
D101A D101B D101C D101D D101E D102A
D102B D102C D102D D102E D2B
04ZL-6A10-00 diode 6A10 1000V 1 D1A
03P1-A940-02 Transistor 2SA940 PNP TO-220 3 Q20 Q103E Q104E
03P1-B647-01 Transistor 2SB647 1A 120V 0.9W PNP TO-92 9 Q102A Q102B Q102C Q102D Q102E Q103A
Q103B Q103C Q103D
03N1-1815-01 Transistor 2SC1815GR 150MA 60V 400MW NPN TO-92 10 Q2A Q4 Q5 Q111A Q111B Q111C Q111D
Q111E Q4B Q5B
03N1-2073-02 Transistor 2SC2073 NPN TO-220 3 Q19 Q106E Q107E
03N1-667A-01 Transistor 2SD667AC 1A 120V 0.9W NPN TO-92 9 Q106A Q106B Q106C Q106D Q108A Q108B
Q108C Q108D Q108E
03P1-5401-01 Transistor 2N5401 PNP TO-92 2 Q112E Q113E
03N1-5551-01 Transistor 2N5551 NPN TO-92 2 Q100E Q101E
03N1-SA06-01 Transistor MPSA06 NPN TO-92 8 Q100A Q100B Q100C Q100D Q101A Q101B
Q101C Q101D
03N1-SA13-01 Transistor MPSA13 0.5A 30V NPN TO-92 5 Q105A Q105B Q105C Q105D Q105E
03P1-B817-13 Transistor KTB817 PNP TO-3P 3 Q114E Q115E Q117E
03P1-SA56-01 Transistor MPSA56 PNP TO-92 8 Q112A Q112B Q112C Q112D Q113A Q113B
Q113C Q113D
03N1-1047-13 Transistor KTD1047 NPN TO-3P 3 Q109E Q110E Q116E
03N1-35CW-26 Transistor TIP35CW NPN T0-247 4 Q109A Q109B Q109C Q109D
03P1-36CW-26 Transistor TIP36CW PNP T0-247 4 Q114A Q114B Q114C Q114D
03T1-Z48N-02 MOS Transistor IRFZ48N TO-220 10 Q12 Q15 Q16 Q22 Q23 Q24 Q26 Q27 Q28
Q11
01TI-5532-01 Dual Op-amp NE5532 TI 1 U3
2601-P817-00 photocoupler PC817 4 1 PC2
2202-1620-05 Rectifier MUR1620CTA KAD 16A/200V TO-220 2 D9 D9A
2202-1602-05 Rectifier UF1602CT AKA 16/200V TO-220 2 D8 D8A
Miscellaneous
1004-3000-10 inductor 30UH φ12 内径φ5 11.5mm 2 L5 L5A
1005-5R01-10 toroidal inducto
r
5uH Φ10*24MM Φ2.0 2 L1 L2
3000-5355-01 Transformer ф40 4:15 L1=L2=0.8*12 4TS S1=S2=1.0*515TS 1 T2
1601-403E-00 fuse 40A 2 F1
1401-0008-00 fuse holder 2PIN BXS2-09 1 for F1
1501-1209-00 socket Pitch 2.54MM 12PIN 1 CON9
1501-0209-00 socket Pitch 2.54MM 2PIN 4 CON5 CON6 CON7 CON8
1505-1000-01 terminal BTS10-26 1 CON2
GTO5355
10
Part Number Qty Reference Designator
Description
MAIN PCB
1501-0300-02 terminal BTS3-24 1 CON3
1380-0211-00 temp switch 95℃KSD-301 1
PL-L0002-000 terminal GND-3 1
3000-LGTO-01 Transformer φ37 6:12 L1=L2=0.8*10*6TS L3=L4=0.8*5*12TS 1 T1
2100-0074-02 cable 2PIN P=2.54MM 1007#26AWG L=100MM
(A2501TOP-2) 1
2100-0073-02 cable 2PIN P=2.54MM 1007#26AWG L=85MM
(A2501TOP-2) 1
PL-A0056-000 14.0x7.0x64.0 Alum. Bar with Insulated paper 2
PL-A0054-000 14.0x7.0x64.0 Alum. Bar with Insulated paper 4
PL-A0053-000 14.0x7.0x88.0 Alum. Bar with Insulated paper 2
PREAMP/INPUT PCB
Resistors
0702-1361-02 Resistor 1/8W 360Ω±5% 7.5MM 4 R110D R110C R110B R110A
0702-1102-02 Resistor 1/8W 1KΩ±5% 7.5MM 14
R407 R307 R117C R117A R116C R116A
R115C R115A R114C R114B R207 R114D
R114A R107
0702-1202-02 Resistor 1/8W 2KΩ±5% 7.5MM 1 R132
0702-1472-02 Resistor 1/8W 4.7KΩ±5% 7.5MM 6 R107D R107C R107A R107B R71 R72
0702-1562-02 Resistor 1/8W 5.6KΩ±5% 7.5MM 4 R109D R109C R109B R109A
0702-1682-02 Resistor 1/8W 6.8KΩ±5% 7.5MM 4 R106D R106B R106C R106A
0702-1103-02 Resistor 1/8W 10KΩ±5% 7.5MM 33
R406 R405 R403 R402 R306 R305 R303 R302
R206 R205 R203 R202 R133 R108D R108C
R108B R108A R106 R105D R105C R105B
R105A R105 R104C R104B R103 R102D
R102C R102B R102A R102 R104D R104A
0702-1223-02 Resistor 1/8W 22KΩ±5% 7.5MM 16
R101B R401 R301 R201 R111C R111B R101
R103A R103B R101C R101D R103C R103D
R101A R111D R111A
1204-5031-18 potentiometer A50K R0971G2B W=5 KQ L=15MM T=7.5MM
M=1MM FREQ 2 VR102R VR102F
1204-2030-01 potentiometer B20K KQ L=15 ±10% ±3dB LEVEL 2 VR101R VR101F
Capacitors
06D212274001 Capacitor 220UF/25V ±20% 8*16 105℃5mm 4 C401 C301 C101 C201
06D212264102 Cap electro 22uF/25V ±20% 5*11 105℃black 5MM 12 C403 C402 C303 C302 C203 C202 C103 C102
C101C C101A C101D C101B
06D431046000 porcelin Cap 0.1uF/50V ＋80%/-20% 5MM 4 C27A C26A C24 C21
06D232206000 porcelin Cap 22pF/50V ±20% 5MM 8 C406 C405 C306 C305 C206 C205 C106 C105
06D234707000 porcelin Cap 47pF/100V ±20% 5MM 4 C103D C103C C103B C103A
06D231006000 porcelin Cap 10pF/50V ±20% 5MM 8 C404 C304 C204 C104 C102D C102C C102A
C102B
06D328236200 Capacitor 823/50V ±5% 5MM 8 C105D C105C C105B C105A C104D C104C
C104B C104A
Semiconductors
03N1-1815-01 Transistor 2SC1815GR 150MA 60V 400MW NPN TO-92 1 Q1E
01JR-4558-01 Dual Op-amp NJM4558 11 U301 U201 U102D U102C U102B U102A
U101D U101C U101B U101A U101
2004-0014-00 LED Φ3.0MM blue with blue light 1 LED2
2000-0017-00 LED red with red light Φ3MM 2P 1 LED1
GTO5355
11
Part Number Qty Reference Designator
Description
PREAMP/INPUT PCB
Miscellaneous
1404-0027-02 RCA AV2-8.4-38 2 RCA1 RCA2
2100-0009-12 wire 12PIN UL1007 AWG26 L=45mm 2.54 2.54 1 CON10
1501-0205-00 socket Pitch 2.5MM 2PIN 1 CON2A
1501-0609-03 pin socket 6PIN highness 8MM thickness2.55MM
PITCH:2.54MM 3.2MM 1 CON4
1333-0204-00 slide switch SSH-23D04-2P3T 9MM LPF/FLAT/HPF 2 SW103R SW103F
1380-0004-00 temp switch 65℃KSD-301 1
2100-0073-02 cable 2PIN P=2.54MM 1007#26AWG L=85MM
(A2501TOP-2) 2 CN12 CN11
2100-0075-02 cable 2PIN P=2.54MM 1007#26AWG L=150MM
(A2501TOP-2)5MM 1
PHONE/SUB INPUT PCB
Resistors
0702-1181-02 Resistor 1/8W 180Ω±5% 7.5MM 1 R129E
0702-1391-02 Resistor 1/8W 390Ω±5% 7.5MM 1 R101E
0702-1561-02 Resistor 1/8W 560Ω±5% 7.5MM 1 R110E
0702-1102-02 Resistor 1/8W 1KΩ±5% 7.5MM 9 R607 R507 R134 R124E R102E R307E R407E
R507E R607E
0702-1112-02 Resistor 1/8W 1.1KΩ±5% 7.5MM 1 R105E
0702-1182-02 Resistor 1/8W 1.8KΩ±5% 7.5MM 1 R112E
0702-1472-02 Resistor 1/8W 4.7KΩ±5% 7.5MM 1 R123E
0702-1562-02 Resistor 1/8W 5.6KΩ±5% 7.5MM 2 R109E R108E
0702-1103-02 Resistor 1/8W 10KΩ±5% 7.5MM 2 R104E R122E
0702-1153-02 Resistor 1/8W 15KΩ±5% 7.5MM 1 R132E
0702-1223-02 Resistor 1/8W 22KΩ±5% 7.5MM 3 R601 R501 R119E
0702-1393-02 Resistor 1/8W 39KΩ±5% 7.5MM 8 R305E R405E R505E R605E R302E R402E
R502E R602E
0702-1433-02 Resistor 1/8W 43KΩ±5% 7.5MM 1 R103E
0702-1473-02 Resistor 1/8W 47KΩ±5% 7.5MM 9 R606 R605 R603 R602 R506 R505 R503 R502
R121E
0702-1563-02 Resistor 1/8W 56KΩ±5% 7.5MM 1 R111E
0702-1104-02 Resistor 1/8W 100KΩ±5% 7.5MM 1 R128E
0702-1205-02 Resistor 1/8W 2MΩ±5% 7.5MM 1 R131E
1204-2041-03 potentiometer A2K/A200K KQ L=15 ±10% A2K,A200K HP FREQ 1 VR103E
1204-5031-34 potentiometer C50K KQ L=15 ±10% LP FREQ 1 VR102E
1204-2030-01 potentiometer B20K KQ L=15 ±10% 同步±1.5dB LEVEL 1 VR101E
1204-5011-01 potentiometer B500 KQ L=15 ±10% BASS BOOST 1 VR104E
Capacitors
06D231006000 porcelin Cap 10pF/50V ±20% 5MM 3 C604 C504 C102E
06D431046000 porcelin Cap 0.1uF/50V ＋80%/-20% 5MM 2 C19 C18
06D232206000 porcelin Cap 22pF/50V ±20% 5MM 4 C606 C605 506 C505
06D341849400 MET Capacitor 184/63V ±5% 5MM 1 C128E
06D344749400 MET Capacitor 474/63V ±5% 5MM 1 C107E
06D328236200 Capacitor 823/50V ±5% 5MM 1 C106E
06D326837200 Capacitor 683/100V ±5% green 5MM 1 C105E
06D212264102 Cap electro 22uF/25V ±20% 5*11 105℃black 5MM 7 C133E C101E C104E C603 C602 C503 C502
06D212274001 Capacitor 220UF/25V ±20% 8*16 105℃5mm 2 C601 C501
GTO5355
12
Part Number Qty Reference Designator
Description
PHONE/SUB INPUT PCB
Semiconductors
03N1-1815-01 Transistor 2SC1815GR 150MA 60V 400MW NPN TO-92 1 Q3E
01JR-4558-01 Dual Op-amp NJM4558 5 U503 U502 U501 U500 U505
2601-0202-00 photocoupler LCR-0202 1 LCR
Miscellaneous
1501-0209-00 socket Pitch 2.54MM 2PIN 2 CON14 CON13
1505-0609-00 pin socket 2.54spacing 6PIN 0.65*0.6516mm 1 CON1
1333-0203-00 slide switch SSH-22H04-G9 2P2T 9MM EXT/INT 1 SW101E
1404-0024-02 dual RCA AV2-8.4-38 2PIN 1 SUB
1413-0001-00 phone socket 6P4C RJ11 HPCB-3021-6P4C black 1 RJ11
PWM PCB
Resistors
0701-2221-03 SMD Resistor SMD 220Ω1/8W ±1% 0805 1 R17
0701-2101-03 SMD Resistor SMD 100Ω1/8W ±1% 0805 1 R10
0701-2102-03 SMD Resistor SMD 1KΩ1/8W ±1% 0805 6 R31 R30 R29 R28 R26 R15
0701-2302-03 SMD Resistor SMD 3KΩ1/8W ±1% 0805 1 R13
0701-2472-03 SMD Resistor SMD 4.7KΩ1/8W ±1% 0805 1 R11
0701-2682-03 SMD Resistor SMD 6.8KΩ1/8W ±1% 0805 2 R5 R51
0701-2562-03 SMD Resistor SMD 5.6KΩ1/8W ±1% 0805 1 R14
0701-2103-03 SMD Resistor SMD 10K 1/8W ±1% 0805 2 R1 R23
0701-2113-03 SMD Resistor SMD 11KΩ1/8W ±1% 0805 1 R27
0701-2123-03 SMD Resistor SMD 12KΩ1/8W ±1% 0805 1 R24
0701-2153-03 SMD Resistor SMD 15KΩ1/8W ±1% 0805 1 R53
0701-2183-03 SMD Resistor SMD 18KΩ1/8W ±1% 0805 1 R7
0701-2223-03 SMD Resistor SMD 22KΩ1/8W ±1% 0805 2 R18 R9
0701-2333-03 SMD Resistor SMD 33KΩ1/8W ±1% 0805 1 R65
0701-2334-03 SMD Resistor SMD 330KΩ1/8W ±1% 0805 1 R3
0701-2104-03 SMD Resistor SMD 100KΩ1/8W ±1% 0805 3 R25 R12 R4
Capacitors
06D211054104 Cap,Electro 1uF/25V ±20% 4*7 105℃1C3
06D211074101 Cap,Electro 100UF/25V 6.3*7mm 5mm ±20% 105℃black 1 C27
06D212273001 Cap,Electro 220UF/16V ±20% 8*7 105℃5MM 1 C22
06D214764103 Cap,Electro 47UF/25V ±20% 6*7 105℃Black belt pin 5mm 2 C1 C20
06S321026000 SMD Capacitor SMD 1000pF/50V 0805 NPO ±5% 1 C26
06S121046000 SMD Capacitor SMD 0.1uF/50V 0805 X7R ±10% 2 C4 C25
Semiconductors
04WY-39AV101 diode schottky SMD 3.9V DO-213AA 0.5W 1 ZD2
04WY-15BV-01 diode schottky SMD 15V 1/2W ±2% DO-213AA 1 ZD1
04PT-4148-01 diode SMD 1N4148 DO-213AA 6 D4 D1 D20 D3 D2 D13
03P1-1015-04 Transistor SMD 2SA1015 SOT-23 PNP 1 Q10
03P1-B649-07 Transistor 2SB649A 1.5A 180V 20W PNP TO-126 1 Q6
03N1-1815-04 Transistor SMD 2SC1815 SOT-23 NPN 4 Q3 Q2 Q7 Q1
01TI-L494-09 PWM IC SMD TL494C SO-16 1 U1
03P1-1015-01 Transistor 2SA1015 150MA 60V 400MW PNP TO-92 2 Q9 Q8
GTO5355
13
Part Number Qty Reference Designator
Description
PWM PCB
Miscellaneous
1501-0409-02 pin socket PITCH 2.54mm 4PIN 90° 1 CN1
1501-0509-04 pin socket PITCH 2.54mm 5PIN 90° 1 CN2
LED PCB
0701-3102-02 Resistor SMD 1KΩ1/4W ±5% 1206 8 R1 R2 R3 R4 R5 R6 R7 R8
2100-0067-02 wire 2PIN UL1007 AWG26 L=70mm 5mm high
temperature105℃wire 2
2100-0068-02 wire 2PIN UL1007 AWG26 L=210mm 2.54 5mm,high
temperature 105℃wire 1
2005-0009-00 LED LED 2*3*4mm 8 LED1 LED2 LED3 LED4 LED5 LED6 LED7
LED8
06S121046000 SMD Capacitor SMD 0.1uF/50V 0805 X7R ±10% 1 C1
GTO5355
14
GTO5355
15
GTO5355
16
GTO5355
17
GTO5355
18
12345678
A
B
C
D
8
7654321
D
C
B
A
C102
22U/16V R102
10K
C106
22P
R106
10K
C101
220U/25V NP
3
21
U101A
4558
R101
22K C104
10P
C103
22U/16V R103
10K
C105 22P
R105 10K
C202
22U/16V R202
10K
C206
22P
R206
10K
C201
220U/25V NP
5
67
U101B
4558
R201
22K C204
10P
C203
22U/16V R203
10K
C205 22P
R205 10K
R107
1K
R207
1K
CH1 CH2
1
2
RCA1A
CH2
3
4
RCA1B
CH1
84
U101C
4558
84
U101AC
4558
84
U101BC
4558
84
U102AC
4558
+VOP
-VOP
DW GNO:
PART NO:
PART NAME:
PRODUCT MODE:
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
DRAWN BY:
CHECKED BY:
APPROVED BY:
DATA:
DATA:
DATA:
FRONT PRE
GTO5355
84
U102BC
4558
84
U301C
4558
C101B
22U/25V
C102B 102
R104B
10K
C103B 47P
R108B
10K
R105B
10K
R107B
4.7k
C104B 823
R109B
5.6k
C105B 823
R106B
6.8K
5
67
U101BB
4558
3
21
U102BA
4558
5
67
U102BB
4558
3
21
U101BA
4558 7 9
8
VR102FC
A50K
10 12
11
VR102FD
C50K
67
5
8
SW103FB
4 6
5
VR101FB
B20K
CHB
R110B
360
R102B
10K HPF
FLAT
LPF
CH2
R111B
22K
R114B
1K
C101A
22U/25V
C102A 102
R102A
10K
R104A
10K
C103A 47P
R108A
10K
R105A
10K
R107A
4.7K
C104A 823
R109A
5.6K
C105A 823
R106A
6.8K
5
67
U101AB
4558
3
21
U102AA
4558
5
67
U102AB
4558
3
21
U101AA
4558
1 3
2
VR102FA
A50K
4 6
5
VR102FB
C50K
23
1
4
SW103FA
1 3
2
VR101FA
B20K
CHA
HPF
FLAT
LPF
CH1
R111A
22K
R115A
1K 3
21
U301A
4558
R117A
1K
R116A
1K
R114A
1K
R110A
360
R101A
22K
R103A
22K
R101B
22K
R103B
22K
R71
4.7K +VOP
PRO LED
R72
4.7K
LED2
BLUE
LED1
RED
+VOP
1
2
3
4
5
6
7
8
9
10
11
12
CON10
CON12
PRO LED
CHD
CHC
CHB
CHA
CH SUB
-VOP
1
2
3
4
5
6
CON4
CON6-1
CH SUB
+VOP
-VOP
1 2
TH2
65 0C +VOPTEM
1
2
CON2A
CON2
+VOP
sheet of 1/7
GTO5355
19
Other manuals for GTO5355
4
Table of contents
Other JBL Car Amplifier manuals
