Directed Video PMP3520 Quick start guide

33..55””PPoorrttaabblleeMMeeddiiaaPPllaayyeerr
2200GGBBHHaarrddDDrriivvee
MMOODDEELLPPMMPP33552200
OOWWNNEERR’’SSGGUUIIDDEE
IINNSSTTAALLLLAATTIIOONNGGUUIIDDEE
© 2005 Directed Electronics, Inc. all rights reserved N93520 09-05

22© 2005 Directed Electronics—all rights reserved
NON-TRANSFERABLE LIMITED ONE YEAR CONSUMER WARRANTY
Directed Electronics, Inc. (Directed) promises to the original purchaser that the new automotive video
monitor and/or source unit(s) (the Product) that is purchased and installed from a Directed authorized
dealer more than ninety (90) days after the purchase of a new vehicle are warranted for a period of one
(1) year from date of purchase of the Product.
Directed promises to the original purchaser that all video accessories will be free from defects in materi-
als and workmanship under normal use and condition for a period of ninety (90) days after the date of
purchase. A sales receipt and/or warranty registration card is required to provide proof of date of purchase
of the Product or accessories.
Should the Product be determined defective during the applicable warranty period, the defect(s) will be
repaired or replaced with a new or reconditioned part(s), at Directed’s option. To obtain warranty service, the
Product must be returned to a Directed authorized dealer along with proof of purchase and installation.
Note: This warranty does not cover labor costs for the removal and reinstallation of the Product. IN
ORDER FOR THIS WARRANTY TO BE VALID, YOUR PRODUCT MUST BE SHIPPED WITH PROOF OF
PURCHASE AND INSTALLATION BY AN AUTHORIZED DIRECTED DEALER. ALL PRODUCTS
RECEIVED BY DIRECTED FOR WARRANTY REPAIR WITHOUT PROOF OF DIRECTED DEALER
INSTALLATION WILL BE DENIED.
This warranty is non-transferable and does not apply to any Product that has been modified or used in a
manner contrary to its intended purpose, and does not cover damage to the Product caused by installa-
tion or removal of the Product. This warranty is VOID if the product has not been purchase from an author-
ized Directed dealer or has been damaged by accident or unreasonable use, negligence, acts of God,
neglect, improper service or other causes not arising out of defect in materials or construction. This war-
ranty does not cover the elimination of externally generated static or noise, or the correction of antenna
problems or weak television reception, damage to tapes, video games, software, camcorders, discs,
speakers, accessories or vehicle electrical systems, cosmetic damage or damage due to negligence, mis-
use, abuse, failure to follow operating instructions, accidental spills or customer applied cleaners, damage
due to environmental causes such as floods, airborne fallout, chemicals, salt, hail, windstorms, lightning
or extreme temperatures, damage due to accidents, road hazards, fire, theft, loss or vandalism, damage
due to improper connection to equipment of another manufacturer, modification of existing equipment, use
of a faulty tape cartridge or cleaning of the VCR head, or Product which has been opened or tampered
with for any reason or which has been damaged due to alteration or service performed by anyone other
than Directed Electronics, Inc.
ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRAN-
TY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY
OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE
MAXIMUM EXTENT ALLOWED BY LAW, AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE
PRODUCT. DIRECTED HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PAR-
TIES INCLUDING ITS LICENSED DEALERS OR INSTALLERS. IN NO EVENT WILL DIRECTED ELEC-
TRONICS, INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES
(INCLUDING LOSS OF PROFITS), BY PURCHASING THIS PRODUCT, THE CONSUMER AGREES
AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DIRECTED SHALL BE
RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA.
Some states do not allow limitation on how long an implied warranty lasts. In such states, the limitations
or exclusions of this Limited Warranty may not apply. Some states do not allow the exclusion or limitation
of incidental or consequential damages. In such states, the exclusion or limitation of this Limited Warranty
may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights
which vary from state to state.
Some states do not allow the exclusion or limitation of incidental or consequential damages. In such
states, the exclusion or limitations of this Limited Warranty may not apply to you. This Limited Warranty
gives you specific legal rights and you may have other rights which vary from state to state.

d© 2005 Directed Electronics—all rights reserved 33
TTaabblleeooffCCoonntteennttss
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
How to Use this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Overview .........................................................................................9
Operating Menu Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Main Menu .....................................................................................11
Video /Music /Photo Menu ...............................................................11
FM Radio .......................................................................................12

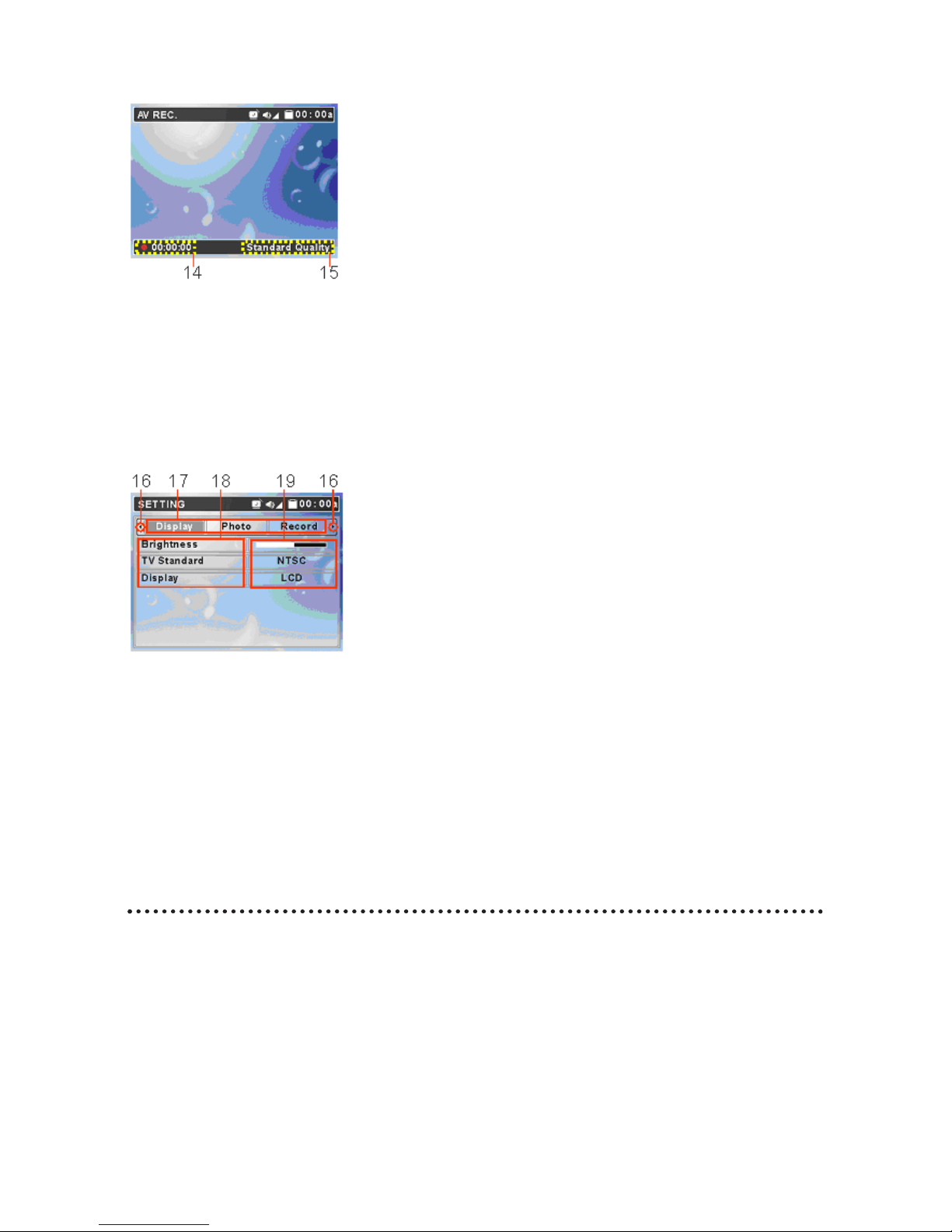

Voice/AV Recording .........................................................................12
Set Up Menu ..................................................................................13
USB Hard Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

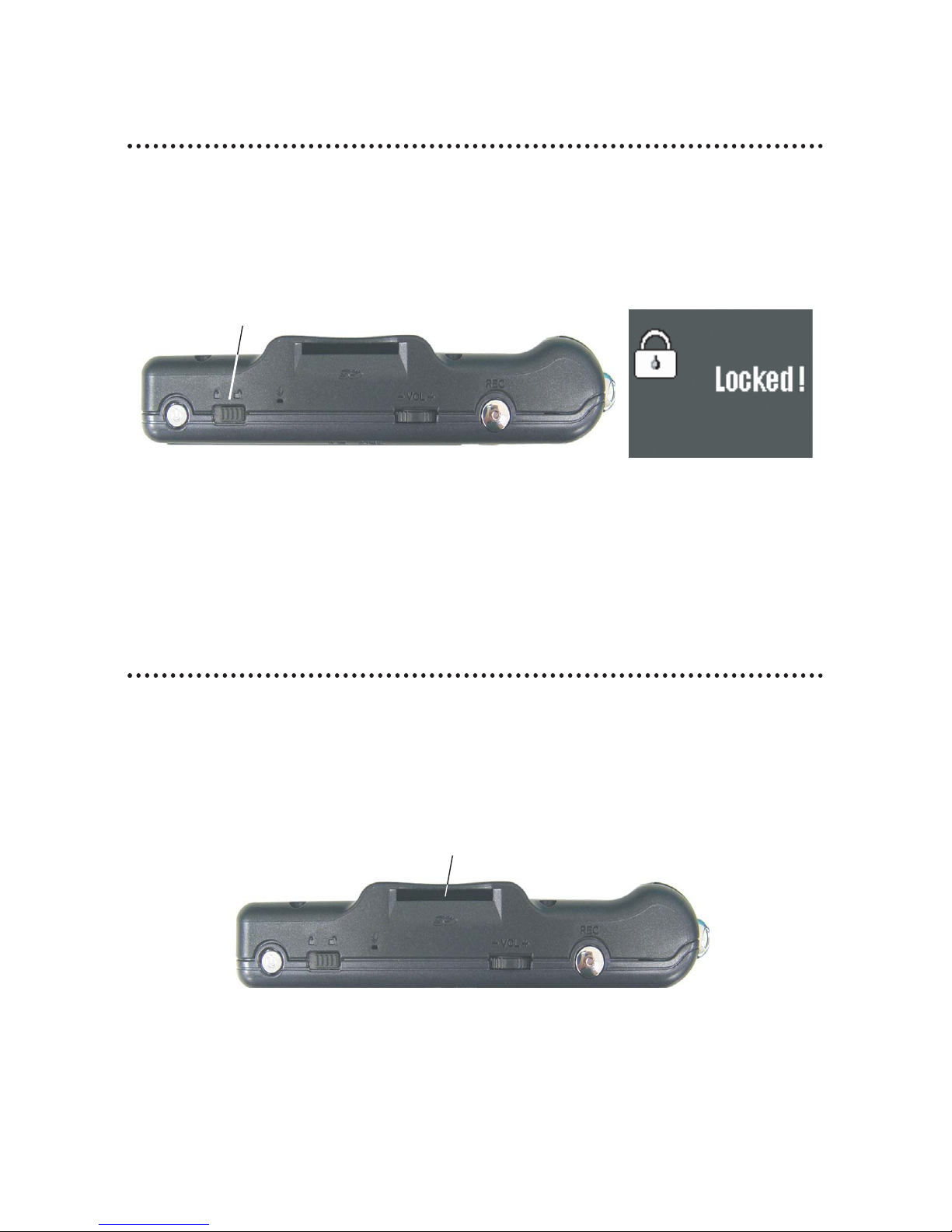

Lock Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SD/MMC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

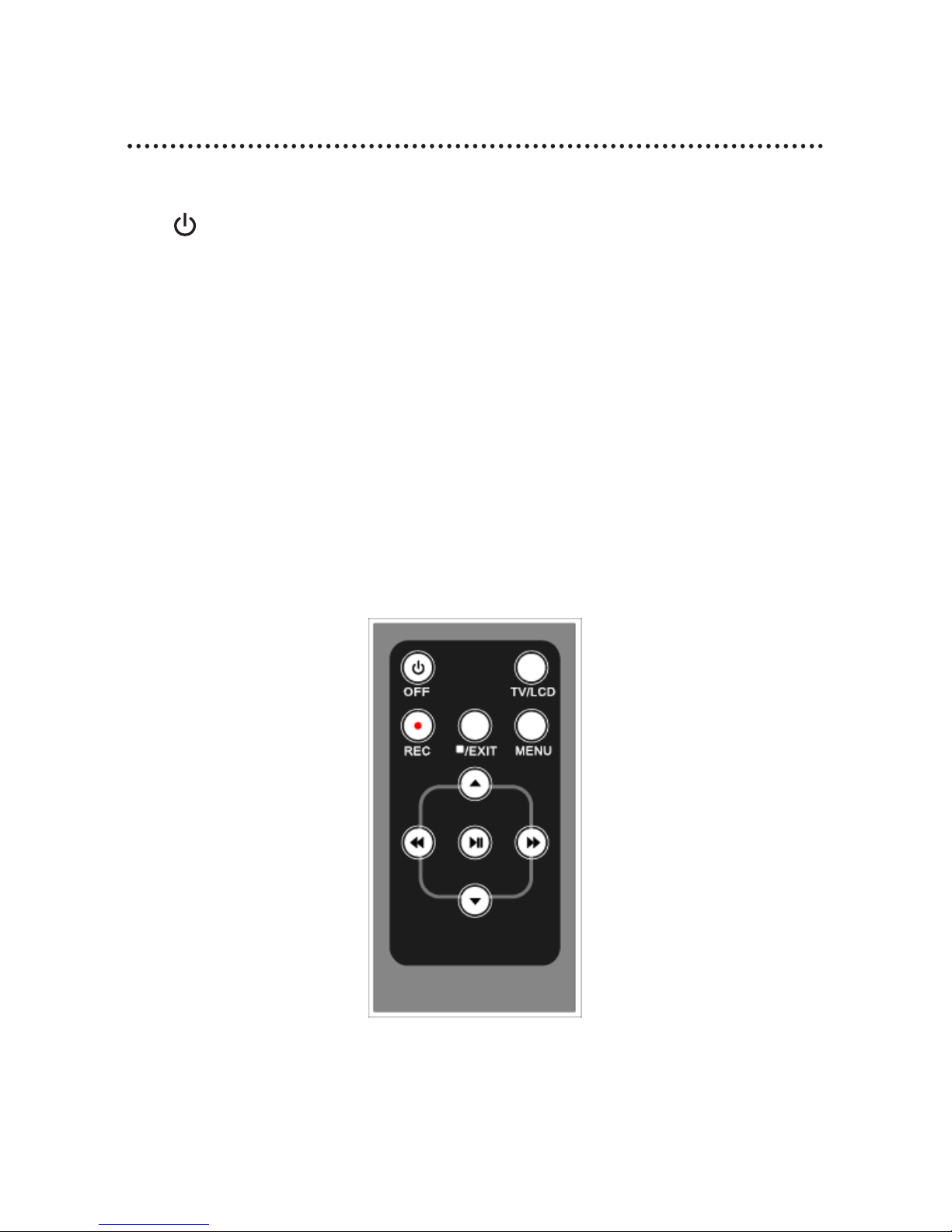

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Li-Ion Battery Recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Battery Consumption Reference.........................................................16
Battery Replacement .......................................................................17
Utility CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

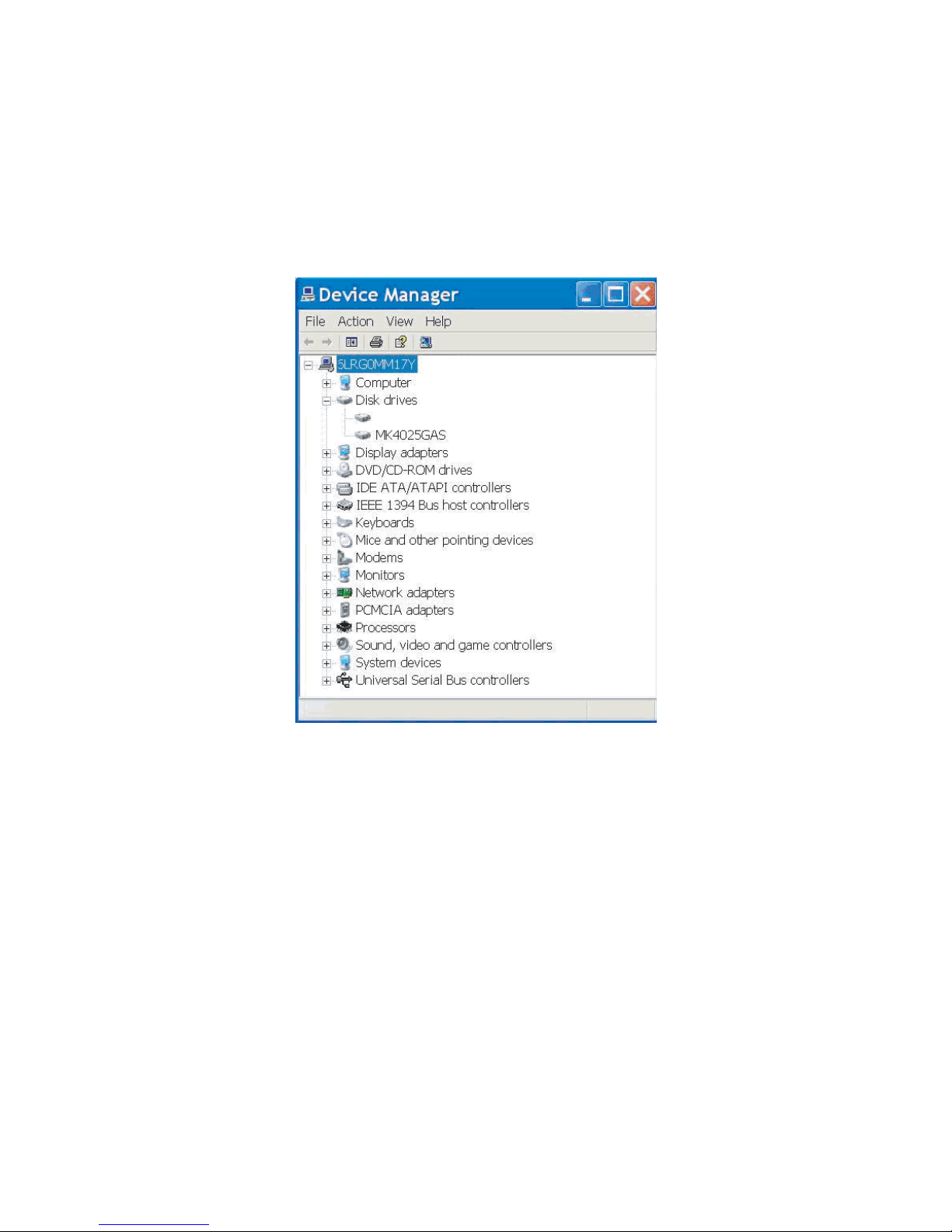

Connect & Disconnect from PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Connect PMP3520 to Computer .........................................................19
For Systems with Windows 98SE ........................................................20
Format PMP3520 and disk maintenance ..............................................20
Safely Disconnect PMP3520 from Computer . . . . . . . . . . . . . . . . . . . . . . .21
Basic Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Power On and Off............................................................................22
Volume Adjustment .........................................................................23
PMPSync ........................................................................................23
Install & Execute ............................................................................24
Buttons .........................................................................................24
Edit Tags for Files in PC: ..................................................................27
Video ............................................................................................33
Music ............................................................................................38
Photo............................................................................................41
FM Radio .......................................................................................44

44© 2005 Directed Electronics—all rights reserved
Voice Recording ..............................................................................46
AV Recording ..................................................................................47
SD/MMC card ..................................................................................50
Signal Input and Output ..................................................................51
On The Go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Display Tab ....................................................................................54
Photo Tab ......................................................................................54
Record Tab .....................................................................................55
System Tab.....................................................................................56
Info Tab ........................................................................................57
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Upgrade Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Upgrade Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

d© 2005 Directed Electronics—all rights reserved 55
SSaaffeettyyIInnssttrruuccttiioonnss
Completely read the safety instructions carefully. Please retain this guide in a
convenient location for future reference.
1. Keep the PMP3520 away from humidity.
2. Keep the PMP3520 away from long exposure to the sunlight.
3. Never pour any liquid into the PMP3520 to avoid damages or electrical
shock.
4. If any of the following situations occurs, get the PMP3520 checked by serv-
ice personnel:
❍Liquid has penetrated into the PMP3520.
❍The PMP3520 has been exposed to moisture.
❍The PMP3520 is not functioning or you can not get functions to work
correctly according to this guide.
❍The PMP3520 has dropped and damaged.
5. DO NOT use the PMP3520 in the following situations (death or injury could
result):
❍While driving a vehicle.
❍While operating machinery.
❍Viewing videos/photos while walking.
❍In any situations or environments requiring concentration.
6. If you need to format the PMP3520’s hard disk, please select FAT32 format.
DO NOT PARTITION the PMP3520’s HARD DISK.
7. DO NOT use any liquids or aerosol sprays to clean this device. Use a clean-
soft dampened cloth instead.
8. Adjust to proper volume while listening with earphone to avoid damage to
your hearing.
9. Caution: Use of an incorrect battery may cause explosion! Follow the
instruction on the battery section to use battery properly!
10. A battery that can no longer be recharged should be disposed of properly in
accordance with local regulations.

66© 2005 Directed Electronics—all rights reserved
IInnttrroodduuccttiioonn
Congratulations for choosing the PMP3520, by Directed Video. This high per-
formance product has been designed and engineered by Directed Electronics, the
industry leader in high quality automotive security, audio, and video equipment
since 1990.
The PMP3520 is a high performance portable multimedia player and recorder
which comes with a Li-Ion rechargeable-removable battery. With the PMP3520,
you can play audio or video files in various formats, and record audio/video. It
also provides convenient portable storage, utilizing a USB port, to allow you to
store and manage personal data.
Following are the main features of the PMP3520:
❍VViiddeeooPPllaayyeerr—supports MPEG-4 SP, DivX 3.11/4.x/5.x, Motion JPEG, and
WMV-9 SP@ML format video playback.
❍AAuuddiiooPPllaayyeerr—supports MP3 (MPEG1 Layer2, Layer3), WAV (LPCM, ADPCM),
and WMA (WMA-9 Layer 2a) format audio files playback.
❍PPhhoottooVViieewweerr—supports JPEG, GIF, BMP, and TIFF photos. You can download
photos to the PMP3520 and browse them.
❍RReeccoorrddiinngg—supports recording function for audio and video. You can use
this function to record voice, music, and video.
❍UUSSBBSSttoorraaggee—supports data storage through a USB port. You can use the
built-in 20GB hard disk to store any data and view that data on a comput-
er with Windows Explorer. Also supported is USB OTG.
❍SSDD//MMMMCCCCaarrddSSlloott—supports SD/ MMC cards. You can insert and play video,
photo, and music files in SD-MMC folder of the PMP3520.

d© 2005 Directed Electronics—all rights reserved 77
HHoowwttooUUsseetthhiissGGuuiiddee
This guide provides instructions and illustrations on how to install and operate
the PMP3520. With step-by-step instructions, we will guide you through the
PMP3520 driver installation process. If you are not familiar with computer oper-
ating systems, we suggest you learn more from this manual and help documents
on the Driver and Recovery CD before installing the PMP3520 driver.
WWhhaatt''ssIInncclluuddeedd—shows you all PMP3520 accessories in the package. Please ver-
ify that all of them are included when you open the box. If any item is damaged
or missing, please contact your dealer directly.
GGeettSSttaarrtteedd—introduces the function keys of the PMP3520, the LCD Display sta-
tus in different modes, and how to recharge the Li-Ion battery.
CCoonnnneeccttaannddRReemmoovveeffrroommCCoommppuutteerr—describes how to connect and remove the
PMP3520 from your computer.
BBaassiiccUUssaaggee—describes how to operate all functions of the PMP3520. We sug-
gest you to read this chapter carefully before using the PMP3520.
SSppeecciiffiiccaattiioonnss—PMP3520 specifications.
DDrriivveerraannddRReeccoovveerryyCCDD—describes how to use the Driver and Recovery CD, and
how to upgrade the firmware and software.

88© 2005 Directed Electronics—all rights reserved
WWhhaatt’’ssIInncclluuddeedd
NNOOTTEE::The PMP3520 battery should be charged OONNLLYYwith the pro-
vided adapter!
❍PMP3520 ❍USB Cable
❍Strap ❍USB Cable (OTG)
❍Stereo Earphones ❍Handy Bag
❍AC Adapter ❍Driver and Recovery CD
❍AV-in/out Cable ❍Battery (qty 2)
❍Remote Control ❍Audio Line In Cable

d© 2005 Directed Electronics—all rights reserved 99
GGeettttiinnggSSttaarrtteedd
OOVVEERRVVIIEEWW

1100© 2005 Directed Electronics—all rights reserved
1. Strap Hole Attach the hand-strap here.
2. Navigation key The 4-way Navigation key for menu selections.
3. /2Press to stop or go-back from action.
4. Press to stop and display menu, or go to the previous menu.
5. LCD Display Show menus and selection playing.
6. Hold Handle The hold handle of the PMP3520.
7. Power LED This LED is illuminated when the PMP3520 is powered
on, and flashes when charging the battery.
8. Record LED This LED is illuminated when recording.
9. Power On/Off Press to power On/Off.
10. Lock Switch When this Switch is locked, all key press commands are
disabled. Including power On/Off switch.
11. MIC Built-in microphone for voice recording.
12. Volume Control Push it to the right to increase volume, to the left to
decrease volume. Press it down to mute.
13. REC[●]Press to start or stop recording.
14. SD/MMC slot Insert SD/MMC card to retrieve data.
15. Speaker Built-in speaker.
16. AV Line-In Jack Plug AV cable here to enable AV Line-In recording.
17. Earphone Jack Plug the earphones here.
18. AV Line-Out Jack Plug the AV cable here to connect the PMP3520 to an
external display (TV).
19. USB Connector Connect the mini USB connector of the supplied USB
cable here, and the other end to PC host/OTG equipment.
20. DC-In Jack Plug in the supplied AC Adapter here to recharge the
battery.
21. Battery cap Press the latch and push the cap forward to replace the
rechargeable battery.
22. Tripod Screw Hole Secure a tripod here to hold the PMP3520.
23. IR Receiver Implements commands from remote control.

© 2005 Directed Electronics—all rights reserved 1111
d
OOppeerraattiinnggMMeennuuDDiissppllaayyss
Power on the PMP3520, the main menu on LCD will display after the boot-up
animation. Following are the instructions for each menu option.
MMAAIINNMMEENNUU
1. Function Icon: Visually indicates selected function.
2. Menu List: List function options, such as Video, Music, Photo, etc.
3. Alarm: Indicates alarm clock is set.
4. Voice: Indicates voice On or Off.
5. Volume: Shows volume status.
6. Battery: Shows battery status.
7. Time: Shows current time (setup required).
VVIIDDEEOO//MMUUSSIICC//PPHHOOTTOOMMEENNUU

1122© 2005 Directed Electronics—all rights reserved
8. Menu Title: Show the selected menu title.
9. List: All files in a selected menu.
10. Scroll bar: Indicates additional files available.
FFMMRRAADDIIOO
11. Memorized Stations: 8 FM stations can be set into memory.
12. Channel Frequency: Current FM frequency.
13. Select Scan or Fine Tuning.
VVOOIICCEE//AAVVRREECCOORRDDIINNGG

© 2005 Directed Electronics—all rights reserved 1133
d
14. Recording Time: Recording elapse time (hh:mm:ss).
15. Recording Quality: Indicate selected and operating recording quality.
SSEETTUUPPMMEENNUU
16. Scroll bar: Mean more tabs are available.
17. Tabs: Include Display, Photo, Record, System, and Info Tabs.
18. Setting Items: List tab item for adjusting.
19. Setting Options: Show setting options
UUSSBBHHaarrddDDiisskk
The PMP3520 contains a 20GB mini-hard disk. You can operate the PMP3520 as
an USB hard disk and copy personal data to it. Simply connect the PMP3520 to
your computer, and use Windows Explorer to copy and manage your data.

1144© 2005 Directed Electronics—all rights reserved
LLoocckkSSwwiittcchh
The PMP3520 has a Lock Switch to avoid accidental operation. Slide the Lock
Switch to lock position while power is on. If any control button is pressed the
“Locked!” message displays to indicate all function keys are disabled.
If the PMP3520’s power is Off, and the lock-switch is in the lock position, the
unit will not turn on.
SSDD//MMMMCCCCaarrddSSlloott
The PMP3520 has an SD/MMC slot. You can insert a Secure Digital Card or
MultiMedia Card into the slot to allow your photos, videos, or music to be played
or displayed on the PMP3520.
SD/MMC slot
Lock Switch

© 2005 Directed Electronics—all rights reserved 1155
d
RReemmootteeCCoonnttrrooll
The PMP3520 remote control provides the following functions:
❍OFF: press to power off the PMP3520.
❍TV/LCD: press to switch the output device between TV and the PMP3520.
❍zREC: press to start to record of each function.
❍Exit: press to stop playback or go back to previous menu.
❍MENU: press to go back to Main Menu.
❍S/T: press to select previous/next item on menu list. These two buttons
function the same as pushing the Navigator button up/down.
❍WW /XX : press to rewind/fast-forward the playback. These two buttons
function the same as pushing Navigator button left/right.
❍X❙❙: press to play or pause the playback. This button functions the same as
pressing down with the Navigator button.
NNoottee::The Power button on the remote control can only power off
the PMP3520, not power it on.

1166© 2005 Directed Electronics—all rights reserved
LLii--IIoonnBBaatttteerryyRReecchhaarrggiinngg
The PMP3520 comes with two Li-Ion rechargeable and removable batteries.
Charge the battery completely before using the PMP3520 for the first time by
following the steps below:
1. Connect the supplied AC Adapter to AC outlet, and plug in the other end of
the AC Adapter to the DC in-jack of the PMP3520.
2. While recharging, the power LED above the LCD screen will flash. If you turn
on the PMP3520 while recharging, you will see the power charging indica-
tion at the top of the LCD display.
3. When the battery is fully charged, the Power LED will stop flashing.
Disconnect the AC Adapter from the PMP3520.
NNOOTTEE11::Charge the PMP3520 oonnllyywith the supplied AC Adapter.
NNOOTTEE22::Do NNOOTTopen the battery cap while power is on.
NNOOTTEE33::You can still operate PMP3520 while it is being recharged;
but the recharging time will be longer.

© 2005 Directed Electronics—all rights reserved 1177
d
BBAATTTTEERRYYCCOONNSSUUMMPPTTIIOONNRREEFFEERREENNCCEE
The PMP3520 uses a 2200mAhr, 3.7V, 1 Cell rechargeable removable Li-Ion bat-
tery. The battery consuming reference will vary in different depending on the
operating mode. A fully recharged battery has the following useful
playback/recording time:
❍Video Playback/Video Record: can be used for about 5 hours.
❍Music Playback/Music Record: can be used for about 7.5 hours.
BBAATTTTEERRYYRREEPPLLAACCEEMMEENNTT
Ensure you charge your second battery and keep it on hand. To remove the bat-
tery, open the battery cap, hold down the power cap button and push it forward
to open. Pull out the battery inside and insert the fully charged battery. When
convenient, remember to charge the discharged battery.
3
2
1

1188© 2005 Directed Electronics—all rights reserved
UUttiilliittyyCCDD
The PMP3520 package includes a Utility CD (to be used on a PC). Insert the sup-
plied CD into your CD-ROM, and the CD will auto-run the Setup program. On your
computer screen, you will see the following display.
❍PMPSync Utility: for PMP3520 file management and synchronizing.
❍Video Format Converter: Video converter utility for converting the format
of video files.
❍User Manual: User manual in PDF format.
❍Adobe Reader: Adobe Reader for opening PDF files.
❍USB Driver for Windows 98SE: USB Driver for Windows 98 operating
system.
❍System Recovery: Format and restore PMP3520 system back to
manufacture default settings.
❍Exit: Exit and close the Setup program

© 2005 Directed Electronics—all rights reserved 1199
d
CCoonnnneecctt&&DDiissccoonnnneeccttffrroommPPCC
CCOONNNNEECCTTPPMMPP33552200TTOOCCOOMMPPUUTTEERR
1. Press the button to power on the PMP3520.
2. Plug the mini-end of the supplied USB cable to the PMP3520, and the other
end to your computer’s USB port.
3. Once the PMP3520 is connected to your computer, it should be detected by
your computer operating system automatically. You will see the following
message showing on the PMP3520.
NNOOTTEE::For Windows 98SE users, a driver is required to activate the
PMP3520 on your computer. Refer to Upgrading
Software/Firmware section of this manual for installation
instructions for this driver.
USB Port
Power On/Off

2200© 2005 Directed Electronics—all rights reserved
4. After connection is initialized, your computer operating system will rec-
ognize the PMP3520 as a hard disk. Go to [Device Manager] by clicking
"Start""Setting""Control Panel""System""Hardware", and look for
[PMP3520 USB Device] under [Disk Drive] to check connection status. If
the connection is failed, you will not find [PMP3520 USB Device]. Repeat
step 2 to reconnect the PMP3520 to your computer.
5. After your computer operating system recognizes the PMP3520 as a hard
disk, you can move, copy, or delete files with Windows Explorer.
FFOORRSSYYSSTTEEMMSSWWIITTHHWWIINNDDOOWWSS9988SSEE
After connecting the PMP3520 to a Windows 98SE operating system computer,
the Windows system will detect the PMP3520 and ask to install driver. Place the
supplied driver CD in the CD-ROM drive, and refer to the Utility CD section to
complete the driver installation.
FFOORRMMAATTPPMMPP33552200AANNDDDDIISSKKMMAAIINNTTEENNAANNCCEE
We strongly suggest that you do not format the PMP3520 hard disk! The
PMP3520 display interfaces will not function correctly if the hard disk is for-
PMP3520 USB Device
