Diskless Workstation DLW Term 1526 User manual

DLW Term 1526
Microsoft Windows XPe (sp2)
User’s Manual

1
TABLE OF CONTENTS
CHAPTER 1 License Agreement...................................................................................................3
CHAPTER 2 DLW Term 1526 Overview........................................................................................7
2.1 Microsoft Windows XPe..............................................................................................7
2.2 Thin Client Features....................................................................................................8
2.3 Thin Client Overview...................................................................................................8
2.3.1 Connecting the Thin Client...............................................................................8
2.3.2 Connector Descriptions....................................................................................9
CHAPTER 3 Control Panel.............................................................................................................11
3.1 Display Configuration..................................................................................................12

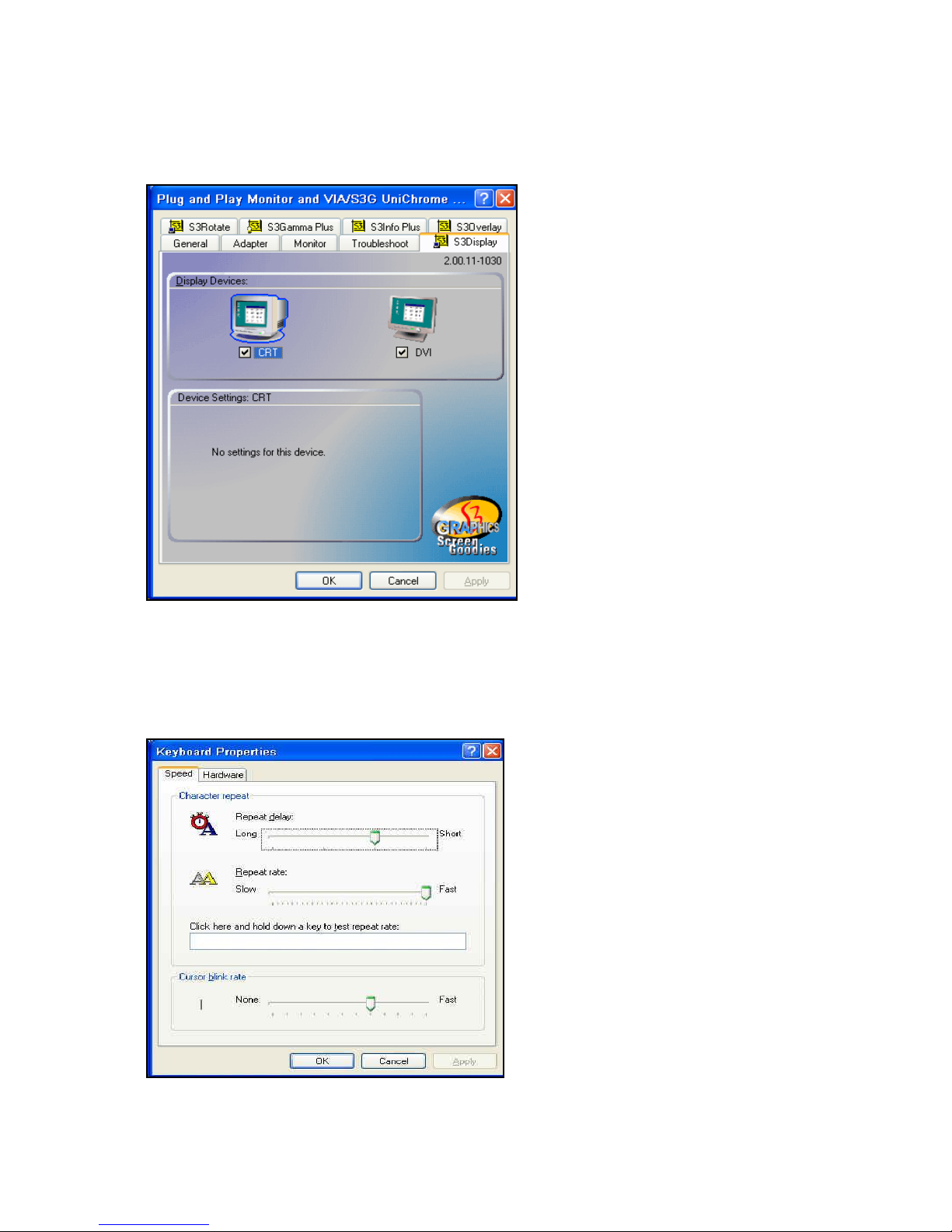

3.1.1 DVI function ........................................................................................................12
3.2 Keyboard Properties ...................................................................................................13

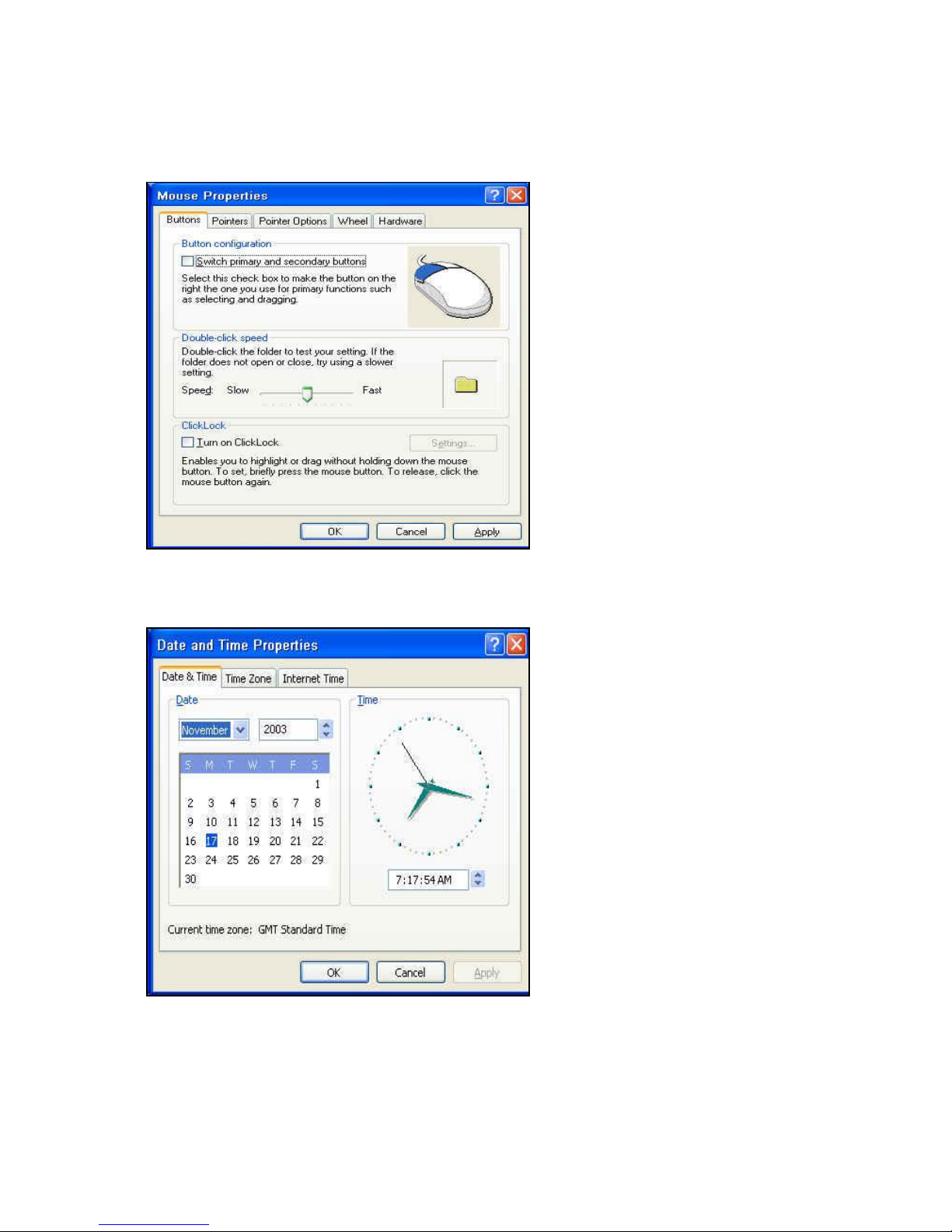

3.3 Mouse Properties........................................................................................................14
3.4 Date and Time Properties...........................................................................................14
3.5 Regional and Language Options.................................................................................15
3.5.1 Regional Options ................................................................................................15
3.5.2 Languages Setting..............................................................................................15
3.6 User Accounts.............................................................................................................16
3.7 Sounds, Speech, and Audio Devices..........................................................................17
3.7.1 Volume................................................................................................................17
3.7.2 Sounds................................................................................................................17
3.8 Network and Internet Connections..............................................................................18
3.8.1 Use the IP information supplied by DHCP..........................................................18
3.8.2 Specify a static IP address .................................................................................19
3.9 Local Printer Setup......................................................................................................20
3.9.1 Add Printer..........................................................................................................20
3.9.2 Select the Printer Port.........................................................................................20
3.10 Security Center............................................................................................................22
3.11 Windows Firewall ........................................................................................................23
CHAPTER 4 Connections Management .......................................................................................26
4.1 RDP Connection .........................................................................................................26
4.2 ICA Connection...........................................................................................................29
4.2.1 Add a new ICA connection .................................................................................29
4.3 Wireless LAN Settings ................................................................................................31
4.4 Microsoft Internet Explorer Connection.......................................................................33
4.5 Adobe Acrobat.............................................................................................................33
4.6 Microsoft Windows Media Player................................................................................34
4.7 MSJVM or Sun Java and Flash Player .......................................................................34
4.8 Real VNC Server.........................................................................................................34
CHAPTER 5 Advanced Function...................................................................................................35
5.1 Enhance Write Filter....................................................................................................35
5.2 System Info .................................................................................................................36
5.2.1 General ...............................................................................................................36
5.2.2 Network Information............................................................................................37
5.2.3 Component Information ......................................................................................38
5.3 Device Update Agent ..................................................................................................38
5.4 Image Update for XP Embedded................................................................................39

2
Trademarks
ICA is a registered trademark and MetaFrame is a trademark of Citrix Systems Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other products are trademarks and/or registered trademarks of their respective companies.
The Energy Star emblem does not represent endorsement of any product or service.
Specifications subject to change without notice.
FCC Statement
This equipment has been tested and found to comply with the limits for either Class A or Class B digital
devices, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
§ Reorient or relocate the receiving antenna.
§ Increase the separation between the equipment and the receiver.
§ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
§ Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according
to the manufacturer’s instructions.

3
License Agreement
YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS EQUIPMENT
WHICH CONTAINS SOFTWARE IN A NON-VOLATILE FORMAT AND CERTAIN OTHER INTELLECTUAL PROPERTY
(HEREAFTER “FIRMWARE”). USING THIS EQUIPMENT INDICATES YOUR ACCEPTANCE OF THE FOLLOWING TERMS
AND CONDITIONS.
Grant
You may use the Firmware in or in conjunction with the Equipment as provided to You. You may transfer ownership of the
Equipment, including the right to use the Firmware to another party so long as that party agrees to accept these terms and
conditions.
YOU MAY NOT USE, COPY, MODIFY, TRANSLATE OR TRANSFER THE FIRMWARE, OR MODIFICATION THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED FOR IN THIS LICENSE. YOU MAY NOT DECOMPILE,
REVERSE ENGINEER OR OTHERWISE DECODE OR ALTER THE SOFTWARE CONTAINED IN THE FIRMWARE.
Limited Software Warranty and Disclaimer
We warrant that, for a period of ninety (90) days from the date of shipment, the Firmware will, under normal use, be free from
defects in materials and workmanship in the EPROM (or similar storage device). The foregoing warranty shall not apply to any
Firmware that has been used in violation of this Agreement. During this limited warranty period We will provide support by phone
on a best-efforts basis. We may, in addition to the above, replace any defective Firmware with a functionally equivalent product.
The foregoing shall be Your exclusive remedy for any breach of warranty hereunder. You assume responsibility for choosing the
Equipment containing the Firmware to achieve your intended results, and for the installation, use and results obtained from the
Equipment and Firmware.
EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTIES, WE MAKE AND YOU RECEIVE NO WARRANTIES ON THE
FIRMWARE, EXPRESS, IMPLIED, OR STATUTORY, OR IN ANY OTHER PROVISION OF THIS AGREEMENT OR
COMMUNICATION WITH YOU, AND WE DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY,
NON-INFRINGEMENT AND FITNESS FOR ANY PARTICULAR PURPOSE. WE DO NOT WARRANT THAT THE FUNCTIONS
CONTAINED IN THE PRODUCT WILL MEET YOUR REQUIREMENTS OR THAT THE OPERATION WILL BE
UNINTERRUPTED OR ERROR FREE.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Limit of Liability
UNDER NO CIRCUMSTANCES SHALL WE BE LIABLE FOR LOSS OF DATA, COST OF COVER, OR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY. THESE LIMITATIONS SHALL
APPLY EVEN IF WE OR OUR RESELLERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND
NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY LIMITED REMEDY PROVIDED HEREIN.
YOU AGREE THAT THESE ARE THE ONLY APPLICABLE TERMS OF AGREEMENT BETWEEN US COVERING FIRMWARE
AND THAT THEY SUPERSEDE ANY OTHER COMMUNICATIONS (ORAL OR WRITTEN) BETWEEN US RELATING TO THE
FIRMWARE.
U.S. Government Restricted Rights
The Firmware is provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technological Data and computer software clause at DFARS
252.227-7013 or in subparagraphs (c)(1) and (2) of the Commercial Computer Software-Restricted Rights at 8 C.F.R. 52-227-19
as applicable.

4
EULA for Microsoft® Windows® XPe Operating System for
Windows-based Terminal Devices
IMPORTANT—READ CAREFULLY
This End User License Agreement (EULA) is a legal agreement between you (either an individual or a single entity) and
the manufacturer (MANUFACTURER) of the special purpose computing device (SYSTEM) you acquired which includes
certain Microsoft software product(s) installed on the SYSTEM and/or included in the SYSTEM package (SOFTWARE).
The SOFTWARE includes computer software, the associated media, any printed materials, and any online or electronic
documentation. By installing, copying or otherwise using the SOFTWARE, you agree to be bound by the terms of this
EULA. If you do not agree to the terms of this EULA, MANUFACTURER and Microsoft Licensing, Inc. (MS) are unwilling
to license the SOFTWARE to you. In such event, you may not use or copy the SOFTWARE, and you should promptly
contact MANUFACTURER for instructions on return of the unused product(s) for a refund.
Software License
The SOFTWARE is protected by copyright laws and international copyright treaties, as well as other intellectual property laws
and treaties. The SOFTWARE is licensed, not sold.

5
1.Grant of License
SOFTWARE includes software already installed on the
SYSTEM (SYSTEM SOFTWARE) and, if included in the
SYSTEM package, software contained on the CD-ROM disk
and/or floppy disk(s) labeled "Desktop Software for Microsoft
Windows XPe" (DESKTOP SOFTWARE). This EULA grants
you the following rights to the SOFTWARE:
SYSTEM SOFTWARE
You may use the SYSTEM SOFTWARE only as installed in
the SYSTEM.
DESKTOP SOFTWARE
DESKTOP SOFTWARE might not be included with your
SYSTEM. If DESKTOP SOFTWARE is included with your
SYSTEM, you may install and use the component(s) of the
DESKTOP SOFTWARE in accordance with the terms of the
end user license agreement provided with such
component(s). In the absence of a separate end user license
agreement for particular component(s) of the DESKTOP
SOFTWARE, you may install and use only one (1) copy of
such component(s) on a single computer with which you use
the SYSTEM.
Use of Windows XP Operating System for
Windows-Based Terminal Devices with Microsoft
Windows NT Server, Terminal Server Edition
If the SOFTWARE is Windows XPe operating system for
Windows-Based Terminal devices, the following special
provisions apply. In order to use the SYSTEM in connection
with Windows NT Terminal Server Edition, you must possess
(1) a Client Access License for Windows NT Server, Terminal
Server Edition and (2) an end user license for Windows NT
Workstation or an end user license agreement for Windows
NT Workstation for Windows-Based Terminal Devices
(please refer to the end user license agreement for Windows
NT Server, Terminal Server Edition for additional information).
MANUFACTURER may have included a Certificate of
Authenticity for Windows NT Workstation for Windows-Based
Terminal Devices with the SYSTEM. In that case, this EULA
constitutes an end user license for the version of Windows
NT Workstation for Windows-Based Terminal Devices
indicated on such Certificate of Authenticity.
Back-up Copy
If MANUFACTURER has not included a back-up copy of the
SYSTEM SOFTWARE with the SYSTEM, you may make a
single back-up copy of the SYSTEM SOFTWARE. You may
use the back-up copy solely for archival purposes.
2.Description of Other Rights and Limitations
Speech/Handwriting Recognition
If the SYSTEM SOFTWARE includes speech and/or
handwriting recognition component(s), you should
understand that speech and handwriting recognition are
inherently statistical processes; that recognition errors are
inherent in the processes; that it is your responsibility to
provide for handling such errors and to monitor the
recognition processes and correct any errors. Neither
MANUFACTURER nor its suppliers shall be liable for any
damages arising out of errors in the speech and handwriting
recognition processes.
Limitations on Reverse Engineering, Decompilation and
Disassembly
You may not reverse engineer, de-compile, or disassemble
the SYSTEM SOFTWARE, except and only to the extent that
such activity is expressly permitted by applicable law
notwithstanding this limitation.
Single SYSTEM
The SYSTEM SOFTWARE is licensed with the SYSTEM as
a single integrated product. The SYSTEM SOFTWARE
installed in Read Only Memory (ROM) of the SYSTEM may
only be used as part of the SYSTEM.
Single EULA
The package for the SYSTEM SOFTWARE may contain
multiple versions of this EULA, such as multiple translations
and/or multiple media versions (e.g., in the user
documentation and in the software). Even if you receive
multiple versions of the EULA, you are licensed to use only
one (1) copy of the SYSTEM SOFTWARE.
Rental
You may not rent or lease the SOFTWARE.
Software Transfer
You may permanently transfer all of your rights under this
EULA only as part of a sale or transfer of the SYSTEM,
provided you retain no copies, you transfer all of the
SOFTWARE (including all component parts, the media, any
upgrades or backup copies, this EULA and, if applicable, the
Certificate(s) of Authenticity), and the recipient agrees to the
terms of this EULA. If the SOFTWARE is an upgrade, any
transfer must include all prior versions of the SOFTWARE.
Termination
Without prejudice to any other rights, MANUFACTURER or
MS may terminate this EULA if you fail to comply with the
terms and conditions of this EULA. In such event, you must
destroy all copies of the SOFTWARE and all of its
component parts.
3.Upgrades
If the SYSTEM SOFTWARE and this EULA are provided
separate from the SYSTEM by MANUFACTURER and the
SYSTEM SOFTWARE is on a ROM chip, CD ROM disk(s) or
floppy disk(s), and labeled "For ROM Upgrade Purposes
Only" ("ROM Upgrade"), you may install one copy of the
ROM Upgrade onto the SYSTEM as a replacement copy for
the SYSTEM SOFTWARE originally installed on the
SYSTEM and use it in accordance with Section 1 of this
EULA.
4.Copyright
All title and copyrights in and to the SOFTWARE (including
but not limited to any images, photographs, animations, video,
audio, music, text and "applets," incorporated into the
SOFTWARE), the accompanying printed materials, and any
copy of the SOFTWARE, are owned by MS or its suppliers
(including Microsoft Corporation). You may not copy the
printed materials accompanying the SOFTWARE. All rights
not specifically granted under this EULA are reserved by MS
and its suppliers (including Microsoft Corporation).
5.Product Support
Product support for the SOFTWARE is not provided by MS,
its parent corporation, Microsoft Corporation, or their
affiliates or subsidiaries. For product support, please refer to
MANUFACTURER’s support number provided in the
documentation for the SYSTEM. Should you have any
questions concerning this EULA, or if you desire to contact
MANUFACTURER for any other reason, please refer to the
address provided in the documentation for the SYSTEM.
6.Export Restrictions
You agree that you will not export or re-export the
SOFTWARE to any country, person, or entity subject to U.S.
export restrictions. You specifically agree not to export or
re-export the SOFTWARE: (i) to any country to which the
U.S. has embargoed or restricted the export of goods or
services, which as of March 1998 include, but are not
necessarily limited to Cuba, Iran, Iraq, Libya, North Korea,
Sudan and Syria, or to any national of any such country,
wherever located, who intends to transmit or transport the
products back to such country; (ii) to any person or entity

6
who you know or have reason to know will utilize the
SOFTWARE or portion thereof in the design, development or
production of nuclear, chemical or biological weapons; or (iii)
to any person or entity who has been prohibited from
participating in U.S. export transactions by any federal
agency of the U.S. government.
If the SOFTWARE is labeled "North America Only Version"
above, on the Product Identification Card, or on the
SOFTWARE packaging or other written materials, then the
following applies: The SOFTWARE is intended for
distribution only in the United States, its territories and
possessions (including Puerto Rico, Guam, and U.S. Virgin
Islands) and Canada. Export of the SOFTWARE from the
United States is regulated under "EI controls" of the Export
Administration Regulations (EAR, 15 CFR 730-744) of the
U.S. Commerce Department, Bureau of Export
Administration (BXA). A license is required to export the
SOFTWARE outside the United States or Canada. You
agree that you will not directly or indirectly, export or
re-export the SOFTWARE (or portions thereof) to any
country, other than Canada, or to any person or entity
subject to U.S. export restrictions without first obtaining a
Commerce Department export license. You warrant and
represent that neither the BXA nor any other U.S. federal
agency has suspended, revoked or denied your export
privileges.
7.Note on Java Support
The SYSTEM SOFTWARE may contain support for
programs written in Java. Java technology is not fault tolerant
and is not designed, manufactured, or intended for use or
resale as on-line control equipment in hazardous
environments requiring fail-safe performance, such as in the
operation of nuclear facilities, aircraft navigation or
communication systems, air traffic control, direct life support
machines, or weapons systems, in which the failure of Java
technology could lead directly to death, personal injury, or
severe physical or environmental damage.
8.Limited Warranty
Limited Warranty
MANUFACTURER warrants that the SOFTWARE will
perform substantially in accordance with the accompanying
written materials for a period of ninety (90) days from the date
of receipt. Any implied warranties on the SOFTWARE are
limited to ninety (90) days. Some states/jurisdictions do not
allow limitations on duration of an implied warranty, so the
above limitation may not apply to you.
Customer Remedies
MANUFACTURER’S and its suppliers’ entire liability and
your exclusive remedy shall be, at MANUFACTURER’S
option, either (a) return of the price paid, or (b) repair or
replacement of the SOFTWARE that does not meet the
above Limited Warranty and which is returned to
MANUFACTURER with a copy of your receipt. This Limited
Warranty is void if failure of the SOFTWARE has resulted
from accident, abuse, or misapplication. Any replacement
SOFTWARE will be warranted for the remainder of the
original warranty period or thirty (30) days, whichever is
longer.
No Other Warranties
EXCEPT AS EXPRESSLY PROVIDED IN THE LIMITED
WARRANTY SECTION ABOVE, THE SOFTWARE IS
PROVIDED TO THE END USER "AS IS" WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO,
WARRANTIES OF NON- INFRINGEMENT,
MERCHANTABILITY, AND/OR FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK OF THE
QUALITY AND THE PERFORMANCEOF THE SOFTWARE
IS WITH YOU.
PERFORMANCE OF THE SOFTWARE IS WITH YOU.
No Liability for Consequential Damages
MANUFACTURER OR MANUFACTURER’S SUPPLIERS,
INCLUDING MS AND ITS SUPPLIERS, SHALL NOT BE
HELD TO ANY LIABILITY FOR ANY DAMAGES
SUFFERED OR INCURRED BY THE END USER
(INCLUDING, BUT NOT LIMITED TO, GENERAL, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES
INCLUDING DAMAGES FOR LOSS OF BUSINESS
PROFITS, BUSINESS INTERRUPTION, LOSS OF
BUSINESS INFORMATION AND THE LIKE), ARISING
FROM OR IN CONNECTION WITH THE DELIVERY, USE
OR PERFORMANCE OF THE SOFTWARE.
If you acquired this EULA in the United States, this EULA is
governed by the laws of the State of Washington.
If you acquired this EULA in Canada, this EULA is governed
by the laws of the Province of Ontario, Canada. Each of the
parties hereto irrevocably attorns to the jurisdiction of the
courts of the Province of Ontario and further agrees to
commence any litigation which may arise hereunder in the
courts located in the Judicial District of York, Province of
Ontario.
If this EULA was acquired outside the United States, then
local law may apply.
Should you have any questions concerning this EULA,
please contact the MANUFACTURER of your SYSTEM.
U.S. GOVERNMENT RESTRICTED RIGHTS
The SOFTWARE and documentation are provided with
RESTRICTED RIGHTS. Use, duplication, or disclosure by
the Government is subject to restrictions as set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and
Computer Software clause at DFARS 252.227-7013 or
subparagraphs (c)(1) and (2) of the Commercial Computer
Software—Restricted Rights at 48 CFR 52.227- 19, as
applicable. MANUFACTURER is Microsoft
Corporation/One Microsoft Way/Redmond, WA
98052-6399

7
2 DLW Term 1526 Overview
2.1 Microsoft Windows XPe
The DLW Term 1526 is designed to connect to WTS (Windows Terminal Server) servers via RDP (Remote
Desktop Protocol), or Windows NT applications server via ICA (Independent Computing Architecture). RDP is the
Windows XP-based protocol for connecting to Windows terminal servers. ICA is a distributed presentation
services protocol for Windows NT server, allowing an application's user interface to execute on a Windows-based
terminal while the application's logic executes on the server. The DLW Term 1526 ships with a 2GB Compact
Flash Card, providing available disk space for installation of custom applications, plug-ins, etc …
Thin Client Specifications
CPU
VIA Eden V4 1.2GHZ
RAM
DDR2 240 pins support DDR2 533/667 Up to 1GB
Flash Memory
2GB CF card standard, expandable to 8GB
Device Update Agent utility via Ethernet
Resolution
Resolution up to 1600x1200 / 85 Hz 32 bit to High color.
16 million palette supports all VESA monitors
Refresh Rate
Flicker-free, up to 85Hz
Video Memory
Graphics utilizes system RAM
Audio Support
Full 16 bit stereo FM synthesis, 8 bit mini Microphone in
Networking Protocols
10/100/1000 Base T Fast Ethernet, Twisted Pair (RJ45)
TCP/IP with DNS, DHCP and PPP
Load balancing supported by Citrix ICA
Remote modem dial up with Citrix ICA
Communications Protocols
MS RDP / Citrix ICA
One Parallel Port
Bi-directional centronics compatible, DB-25
One Serial Port
DB-9 pin male connector with RS-232C, up to 115.2K bps
One Display Port
Analogue VGA type video output (DB-15)
One DVI Port
Digital Visual Interface output (DVI-D)
USB Port
Six USB ports
SATA Port
Two SATA Port (1 Internal, 1 External)
Audio Port
Audio out, Microphone In, Line In
KB & Mouse Interface
Enhanced PS/2 keyboard and mouse interface
Extensible Slot
One PCI slot
One Smart Card Reader
Operation System
Microsoft Windows CE.NET
Set-up & Configuration
Local power-on boot, simple start-up wizard for set-up configurable automatic
Login, Multi-languages M/B support, Multiple auto-startup support.
Server Operating System
Support
RDP：
Microsoft Windows NT4.0 + TSE.
Microsoft Windows 2000 Server Family.
Microsoft Windows 2003 Server Family.
Microsoft Windows XP with RDP protocol
ICA：
Citrix Winframe
Microsoft Windows NT4.0 + TSE+ Citrix Metaframe
Microsoft Windows 2000 + Citrix Metaframe.
Microsoft Windows 2000/ Windows 2003 + Citrix MetaframeXP.

8
2.2 Thin Client Features
Physical Characteristics
Height
251 mm (9.88 in)
Width
54.6 mm (2.15 in)
Depth
214 mm (8.43 in)
Net Weight
1.60 kgs (3.53 lbs)
Power Cord
6 ft (1.83m)
Environmental
Operating Temperature
5 to 40℃(41 to 104℉)
Non-operating Temperature
-20to 60℃(-40 to 150℉)
Operating Humidity
10% to 90%, non-condensing
Operating Altitude
0 to 2,000 ft ASL
Nonoperating Altitude
0 to 40,000 ft ASL
Regulatory
EMC Terminal/Power Brick
FCC B, CE, CB, CUL, C-TICK, BSMI,
Safety Power Brick
UL1950, CB IEC60950.
Installation
2.3 Thin Client Overview
2.3.1 Connecting the Thin Client
Follow these instructions to connect the terminal to its peripheral devices:
A. Connect the keyboard to the keyboard connector.
B. Connect the mouse to the mouse connector.
C. Connect the 10/100/1000-T network cable to the RJ-45 network connector.
D. Connect the power cord and the adapter to the power connector with DC Adapter.
E. Connect the power cord to the power connector with DC Adapter.

9
2.3.2 Connector Descriptions
Power Switch
The Power Switch key to turn ON/OFF the WBT.
Smart Card Slot
This slot is an optional slot only for Smart Card-related applications.
USB Port
These connectors can be used for the USB devices.
Power Switch & LED
Smart Card LED
Smart Card Slot
USB 2.0

10
RJ-45 Network Connector
This connector can be used to connect the built-in 32-bit 10/10/1000-T Ethernet network LAN Controller to a host or Hub.
SATA Port
These connectors can be used for Serial ATA device.
DVI Connector
This connector can be used for DVI Monitor
VGA Connector
This connector is for displaying on a standard VGA compatible device.
Serial Port Connectors
These connectors can be used for the serial device such as a modem device.
PCI Slot
Expandable PCI slot for wireless card, video card, or other PCI card.
Parallel Port Connector
This connector can be used for a printer connection.
Audio Connector
This connector is used to connect speakers.
Micro phone input connector.
This Line In jack connector for other audio sources.
PS/2 Keyboard Connector
This connector is for a standard keyboard using a PS/2 plug (mini DIN).
PS/2 Mouse Connector
This connector is for a mouse using a PS/2 plug (mini DIN).
Power Connector
LAN
PCI SLOT
VGA
CON PORT
SPEAKER
MIC
PARALLEL
DC
DVI
USB 2.0
Keyboard
Mouse
SATA(Serial ATA)
Line In

11
This connector is for connecting the power cord with the terminal and the DC Adapter.
3. Control Panel
The Control Panel provides options for you to customize the appearance and functionality of your thin
client, add or remove programs, set up network connections, user accounts and other features.
You can also click Switch to Classic View to see another display mode.

12
3.1 Display Configuration
The Settings properties let you configure the thin client's display screen. Invoke this properties
sheet by clicking on the Settings tab in the Display Properties dialog box. The following figure shows
the properties sheet. You can also Apply your display after selecting screen resolution and color
quality, the new testing mode will appear. The graphics adapter will be set to the new mode temporarily
(5 seconds) so you can determine whether your display works properly.
3.1.1 DVI function
Click “Advanced” and you will see the figure as below by clicking “S3Display” tab.
And you will find the two display devices “CRT” and “DVI”. If you don’t connect to a LCD panel with DVI
cable, the check box with DVI is grayed.

13
If you have connected to LCD panel with DVI cable, the check box with DVI will be available.
As shown below, you can enable or disable DVI function by clicking the check box.
3.2 Keyboard Properties
The Keyboard properties sheet lets you configure your terminal's keyboard.
The following figure shows the properties dialog box.

14
3.3 Mouse Properties
Click Mouse Properties if you want to configure your mouse setting to Right-Handed or Left-Handed,
or the Pointer Speed.
3.4 Date and Time Properties
User can configure local time for this device.

15
3.5 Regional and Language Options
3.5.1 Regional Options
This option affects how some programs format number, currencies, dates, and time.
You can select an item to match its preferences, or click Customize to choose your own formats.
3.5.2 Languages Setting
Set up the keyboard locale for the local device.
If you want to view or change the languages, click Details.

16
3.6 User Accounts
User Accounts is the mechanism used to give people access to resources on the computer or network.
These resources can include things such as files and folders, printers, applications, and so on. When
logging on, a user is authenticated (proves their identity) to the computer or network, by providing the
correct combination of User Account Name and a Password.
Click Start
Click Control Panel
Click User Accounts
You should see this screen below
Note：When logging on use the “Administrator account” (password: 9999), you will see the screen
above. When logged in as a user (not Administrator) the user can only change his/her
password, not any passwords for other accounts.

17
3.7 Sounds, Speech, and Audio Devices
3.7.1 Volume
You can use these settings to adjust the Volume.
You can also click the icon that likes speaker on the desktop to adjust the volume.
3.7.2 Sounds
A sound scheme is a set of sounds applied to events in Windows and programs. You can select an
existing scheme or save one you have modified. Test it before you save the settings.

18
3.8 Network and Internet Connections
Network attached device must contain a unique network identifier. If the network is using TCP/IP as a
communication protocol, these identifiers are called IP addresses. The following series of screens will
allow you to choose from two different methods of assigning the IP addresses.
3.8.1 Use the IP information supplied by DHCP
If your network provides DHCP (Dynamic Host Configuration Protocol) service and you want it to
provide the thin client’s IP information, leave the first option selected.
The thin client can get its IP address through a DHCP service by default. The DHCP will automatically
assign an IP address that is drawn from a pool of available IP addresses, when a thin client unit is
powered on and a request is broadcast over the network.
Use the IP information supplied by DHCP. You can click StartControl PanelNetwork and Internet
ConnectionNetwork Connection and select the picture that called “Local Area Connection”. You will
see the figure as follow.
Select the Properties then you will see the “Internet Protocol (TCP/IP)” option. As follows:

19
Click the “Internet Protocol (TCP/IP)” you will see the option that called:
“Obtain an IP address automatically “.
3.8.2 Specify a static IP address
If your network does not provide a DHCP service, or if the unit is not properly connected to the network.
In these cases, leave the second option selected.
IP address
Required for identifying this thin client to the network.
The format will follow the standard addressing format.
Subnet Mask
Required for designating which network the IP address is a part of.
Gateway
Optional address which identifies the machine through which a subnet communicates with another
network.
