Dell™Vostro™410ServiceManual

Notes, Notices, and Cautions
IfyoupurchasedaDELL™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.
Information in this document is subject to change without notice.
©2008DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Vostro are trademarks of Dell Inc.; Microsoft, Windows,Windows Vista, and the Windows start button logo are either trademarks
or registered trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model DCGAF
August2008Rev.A00
Troubleshooting
Working on Your Computer
Computer Cover
Bezel
PCI and PCI Express Cards
Drives
I/O Panel
Fans
Memory
Battery
Processor
Power Supply
System Board
System Setup
Contacting Dell
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates potential for property damage, personal injury, or death.

Back to Contents Page
Bezel
Dell™Vostro™410ServiceManual
Removing the Bezel
Replacing the Bezel

Removing the Bezel

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover (see Removing the Computer Cover).

3. With the computer set upright, find the four cover bezel grips inside the chassis along the left edge of the cover. Gently bend the bezel grips outward to
release the left side of the cover from the chassis.

4. Rotate the left edge of the cover outward until the bezel clamps on the right side of the cover are free of the clamp slots.

5. Set aside the bezel in a secure location.
Replacing the Bezel

1. With the computer set upright, align and insert the bezel clamps into the bezel clamp slots along the right edge of the front panel.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
1
bezel clamp (3)
2
bezel
3
bezel grip (4)




2. Rotate the front cover toward the computer until it bezel grips on the left edge of the cover snap into place.

3. Perform the steps in the procedure After Working on Your Computer.
Back to Contents Page

1
bezel clamp (3)
2
bezel
3
bezel grip (4)
4
bezel clamp slots (3)

Back to Contents Page
PCI and PCI Express Cards
Dell™Vostro™410ServiceManual
Removing a PCI or PCI Express Card
Installing a PCI or PCI Express Card
Configuring Your Computer After Removing or Installing a PCI or PCI Express Card


YourcomputerprovidesthefollowingslotsforPCIandPCIExpresscards:
lOne PCI Express x16 card slot (SLOT1)
lTwo PCI Express x1 card slots (SLOT2, SLOT3)
lThree PCI card slots (SLOT4, SLOT5, SLOT6)
See System Board Components for card slot location.
Removing a PCI or PCI Express Card

1. Follow the procedures in Before Working on Your Computer.

2. Uninstall the card's driver and software from the operating system. For more information, see your Setup and Quick Reference Guide.

3. Remove the computer cover. See Removing the Computer Cover.

4. Remove the bracket screw securing the card to the chassis.

5. If necessary, disconnect any cables connected to the card.

6. Remove the card:
lFor a PCI card, grasp the card by its top corners, and ease it out of its connector.
lFor a PCI Express card, pull the securing tab, grasp the card by its top corners, and then ease it out of its connector.

7. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
1
alignment bar
2
fully-seated card
3
not fully-seated card
4
bracket screw
5
bracket within slot
6
bracket caught outside of slot
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep
dust and dirt out of your computer.

8. Perform the steps in the procedure After Working on Your Computer.

9. To complete the removal procedure, see Configuring Your Computer After Removing or Installing a PCI or PCI Express Card.
Installing a PCI or PCI Express Card

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover. See Removing the Computer Cover.

3. If you are installing a new card, remove the screw holding the expansion card filler bracket.

4. If you are replacing a card that is already installed in the computer, remove the card (see Removing a PCI or PCI Express Card).

5. Prepare the card for installation.
See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your
computer.


6. If you are installing the PCI Express card into the x16 card connector, position the card so the securing slot is aligned with the securing tab.

7. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.

8. Replace and tighten the screw to secure the card in the slot.

NOTE: The position of the card shown in the illustration is indicative and may vary from the original.
CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be
sure to unplug your computer from its electrical outlet before installing any cards.
1
alignment bar
2
fully-seated card
3
not fully-seated card
4
bracket screw
5
bracket within slot
6
bracket caught outside of slot
1
PCI Express x16 card
2
PCI Express x16 card slot
3
securing tab
4
PCI Express x1 card slot
5
PCI Express x1 card
6
securing slot


9. Connect any cables that should be attached to the card.

10. See the documentation for the card for information about the card's cable connections.

11. Perform the steps in the procedure After Working on Your Computer.

12. Install any drivers required for the card as described in the card documentation.
Configuring Your Computer After Removing or Installing a PCI or PCI Express Card
Back to Contents Page

NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or
cause damage to the equipment.
NOTE: For information on location of connectors, see the Setup and Quick Reference Guide. For information on installing drivers and software for your
card, see the documentation that shipped with the card.

Installed
Removed
Sound
Card
1. Enter system setup (see
Entering System Setup)
2. Go to Integrated
Peripherals and select
Onboard Audio Controller,
and then change the
setting to Disabled.
3. Connect the external audio
devices to the sound card's
connectors.
1. Enter system setup
(see Entering System
Setup)
2. Go to Integrated
Peripherals and select
Onboard Audio
Controller, and then
change the setting to
Enabled.
3. Connect the external
audio devices to the
computer's back panel
connectors.
Network
Card
1. Enter system setup (see
Entering System Setup)
2. Go to Integrated
Peripherals and select
Onboard LAN Controller,
and then change the
setting to Disabled, if you
prefer not to use both
interfaces.
3. Connect the network cable
to the network card's
connector.
1. Enter system setup
(see Entering System
Setup)
2. Go to Integrated
Peripherals and select
Onboard LAN
Controller, and then
change the setting to
Enabled.
3. Connect the network
cable to the integrated
network connector.

Back to Contents Page
Battery
Dell™Vostro™410ServiceManual
Removing the Battery
Replacing the Battery


A coin-cell battery maintains computer configuration, date, and time information. The battery can last several years. If you have to repeatedly reset time and
date information after turning on the computer, replace the battery.
Removing the Battery

1. Recordallthescreensinsystemsetupsothatyoucanrestorethecorrectsettingsinstep9(seeSystem Setup).

2. Follow the procedures in Before Working on Your Computer.

3. Remove the computer cover (see Removing the Computer Cover).

4. Locate the battery socket (see System Board Components).

5. Carefully press two of the battery retention tabs away from the battery to release the battery from the socket.

6. Remove the battery from the system and properly dispose of the battery.
Replacing the Battery

1. Insert the new battery into the socket with the side labeled "+" facing up, then snap the battery into place. Ensure that it is secured by each of the
retention tabs.

2. Perform the steps in the procedure After Working on Your Computer.

3. Enter system setup (see Entering System Setup)andrestorethesettingsyourecordedinstep1.Also,enterthecorrectdateandtime.
Back to Contents Page

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer's instructions.
NOTICE: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the object is
inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by prying off
the socket or by breaking circuit traces on the system board.
1
battery (positive side)
2
battery retention tabs (4)

Back to Contents Page
Contacting Dell
Dell™Vostro™410ServiceManual
To contact Dell for sales, technical support, or customer service issues:

1. Visit support.dell.com.

2. Verify your country or region in the Choose a Country/Region drop-down menu at the bottom of the page.

3. Click Contact Us on the left side of the page.

4. Select the appropriate service or support link based on your need.

5. Choose the method of contacting Dell that is convenient for you.
Back to Contents Page


Back to Contents Page
Computer Cover
Dell™Vostro™410ServiceManual
Removing the Computer Cover
Replacing the Computer Cover



Removing the Computer Cover

1. Follow the procedures in Before Working on Your Computer.

2. Lay your computer on its right side with the computer cover facing up.

3. Remove the two screws securing the cover.

4. Release the computer cover by pulling it away from the front of the computer and lifting it up.

5. Set the cover aside in a secure location.
Replacing the Computer Cover

1. Ensure that all cables are connected and folded out of the way.

2. Ensure that no tools or extra parts are left inside the computer.

3. Align the tabs at the bottom of the computer cover with the slots located along the edge of the computer.

4. Press the computer cover down and slide it towards the front of the computer until you feel a click or feel the computer cover securely installed.

5. Ensure that the cover is seated correctly.

6. Replace and tighten the two screws that secure the computer cover.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
CAUTION: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
NOTICE: Ensure that sufficient space exists to support the system with the cover removed—at least 1 ft. (30 cm) of desktop space.

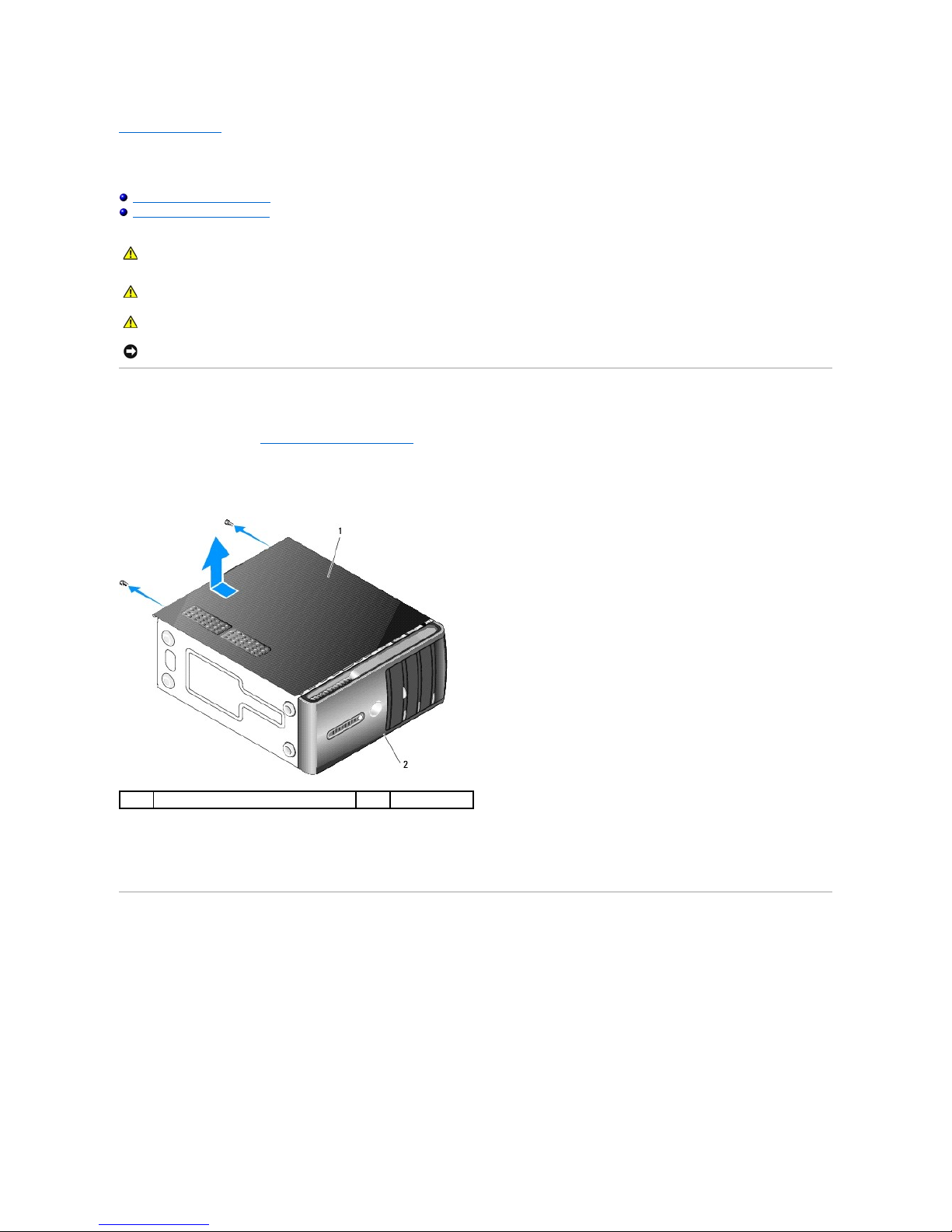

1
computer cover
2
bezel


7. Follow the procedures in After Working on Your Computer.
Back to Contents Page


Back to Contents Page
Processor
Dell™Vostro™410ServiceManual
Removing the Processor
Replacing the Processor

Removing the Processor

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover (see Removing the Computer Cover).


3. Disconnect the power cables from the ATX_POWER and ATX_CPU connectors (see System Board Components) on the system board.

4. Remove the processor fan and heat sink assembly from the computer (see Remove the Processor Heat Sink Assembly).

5. Press and push the release lever down and out to release it from the tab that secures it.

6. Open the processor cover, if applicable.

7. Lift up the processor to remove it from the socket and place it into static-protective packaging.
Leave the release lever extended in the release position so that the socket is ready for the new processor.
Replacing the Processor
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: Do not perform the following steps unless you are familiar with hardware removal and replacement. Performing these steps incorrectly could
damage your system board. For technical service, see the Setup and Quick Reference Guide.
CAUTION: Despite having a plastic shield, the heat sink assembly may be very hot during normal operation. Be sure that it has had sufficient time
to cool before you touch it.
NOTE: Unless a new heat sink is required for the new processor, reuse the original heat sink assembly when you replace the processor.

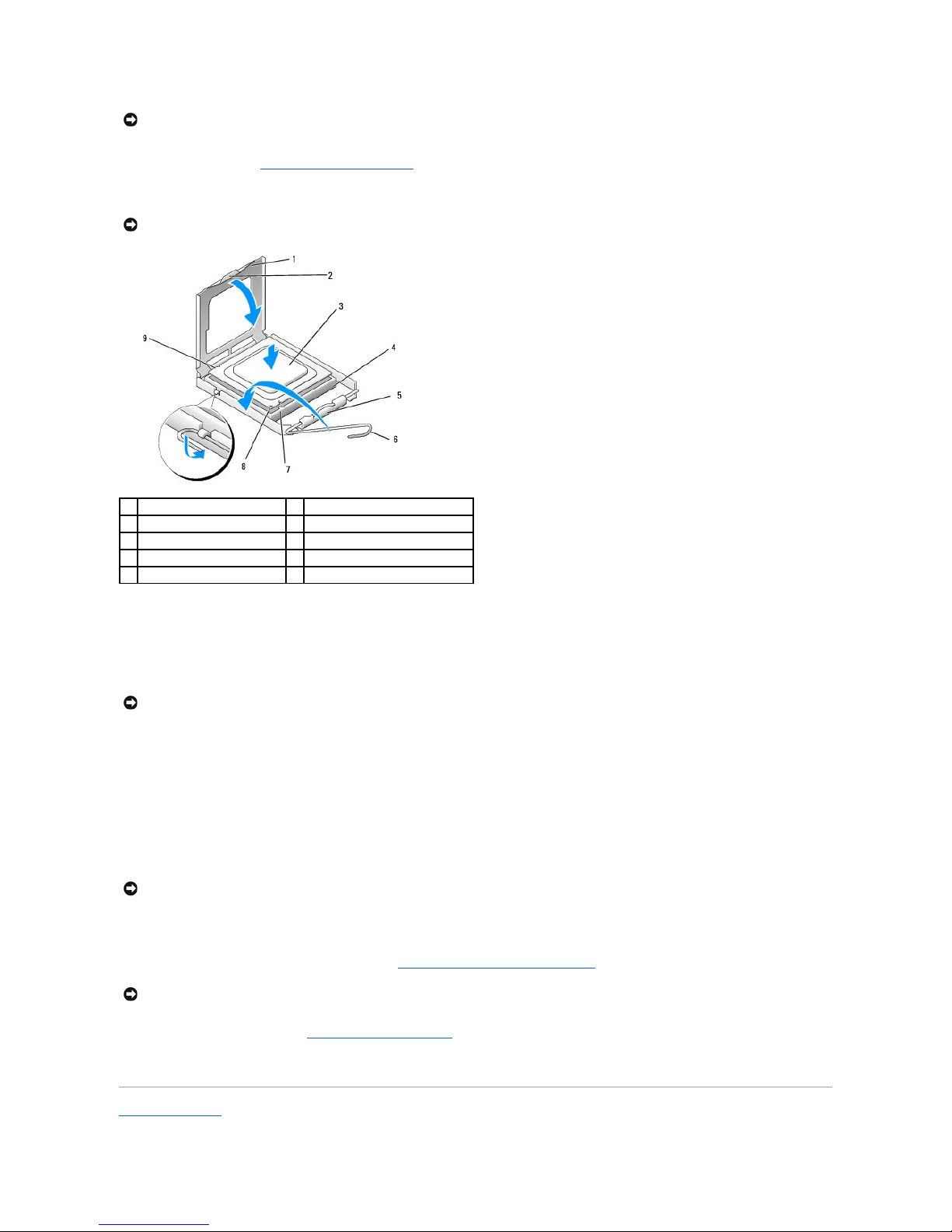

1
processor cover
2
processor
3
socket
4
release lever
NOTICE: When replacing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.
NOTICE: Ground yourself by touching an unpainted metal surface on the back of the computer.


1. Follow the procedures in Before Working on Your Computer.

2. Unpackthenewprocessor,beingcarefulnottotouchtheundersideoftheprocessor.

3. Pivot the release lever until the processor cover can be opened.

4. Orient the front and rear alignment-notches on the processor with the front and rear alignment-notches on the socket.

5. Align the pin-1 corners of the processor and socket.

6. Set the processor lightly in the socket and ensure that the processor is positioned correctly.

7. When the processor is fully seated in the socket, close the processor cover.
Ensure that the tab on the processor cover is positioned underneath the center cover latch on the socket.

8. Pivot the socket release lever back towards the socket, and snap it into place to secure the processor.

9. Clean the thermal grease from the bottom of the heat sink.

10. Apply new thermal solution to the top of the processor.

11. Replace the processor fan and heat sink assembly (see Replacing the Processor Heat Sink Assembly).

12. Perform the steps in the procedure After Working on Your Computer.

13. Verify that your computer works correctly by running the Dell Diagnostics. See your Setup and Quick Reference Guide for help with Dell Diagnostics.
Back to Contents Page
NOTICE: You must position the processor correctly in the socket to avoid permanent damage to the processor and the computer when you turn on the
computer.
NOTICE: Socket pins are delicate. To avoid damage, ensure that the processor is aligned properly with the socket, and do not use excessive force
when you install the processor. Be careful not to touch or bend the pins on the system board.
1
processor cover
2
tab
3
processor
4
processor socket
5
center cover latch
6
release lever
7
front alignment-notch
8
processor pin-1 indicator
9
rear alignment notch


NOTICE: To avoid damage, ensure that the processor aligns properly with the socket, and do not use excessive force when you install the processor.
NOTICE: Ensure that you apply new thermal grease. New thermal grease is critical for ensuring adequate thermal bonding, which is a requirement for
optimal processor operation.
NOTICE: Ensure that the processor fan and heat sink assembly is correctly seated and secure.



Back to Contents Page
Drives
Dell™Vostro™410ServiceManual
About the Drives in Your Computer
Hard Drives
Floppy Drive
Media Card Reader
Optical Drive


About the Drives in Your Computer
Your computer supports a combination of these devices:
lUp to four 3.5-inch SATA hard drives
lUp to three SATA 5.25-inch optical drives (with a maximum of two
3.5-inch SATA hard drives installed at the same time)
lOne optional Floppy Drive or optional Media Card Reader (FlexBay)

Recommended Drive Cable Connections
lConnect serial ATA hard drives to connectors labeled "SATA0," "SATA1," "SATA2," or "SATA3" on the system board.
lConnect serial ATA CD or DVD drives to connectors labeled "SATA4" or "SATA5" on the system board.

Connecting Drive Cables
When you install a drive, you connect two cables—a DC power cable and a data cable—to the back of the drive.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

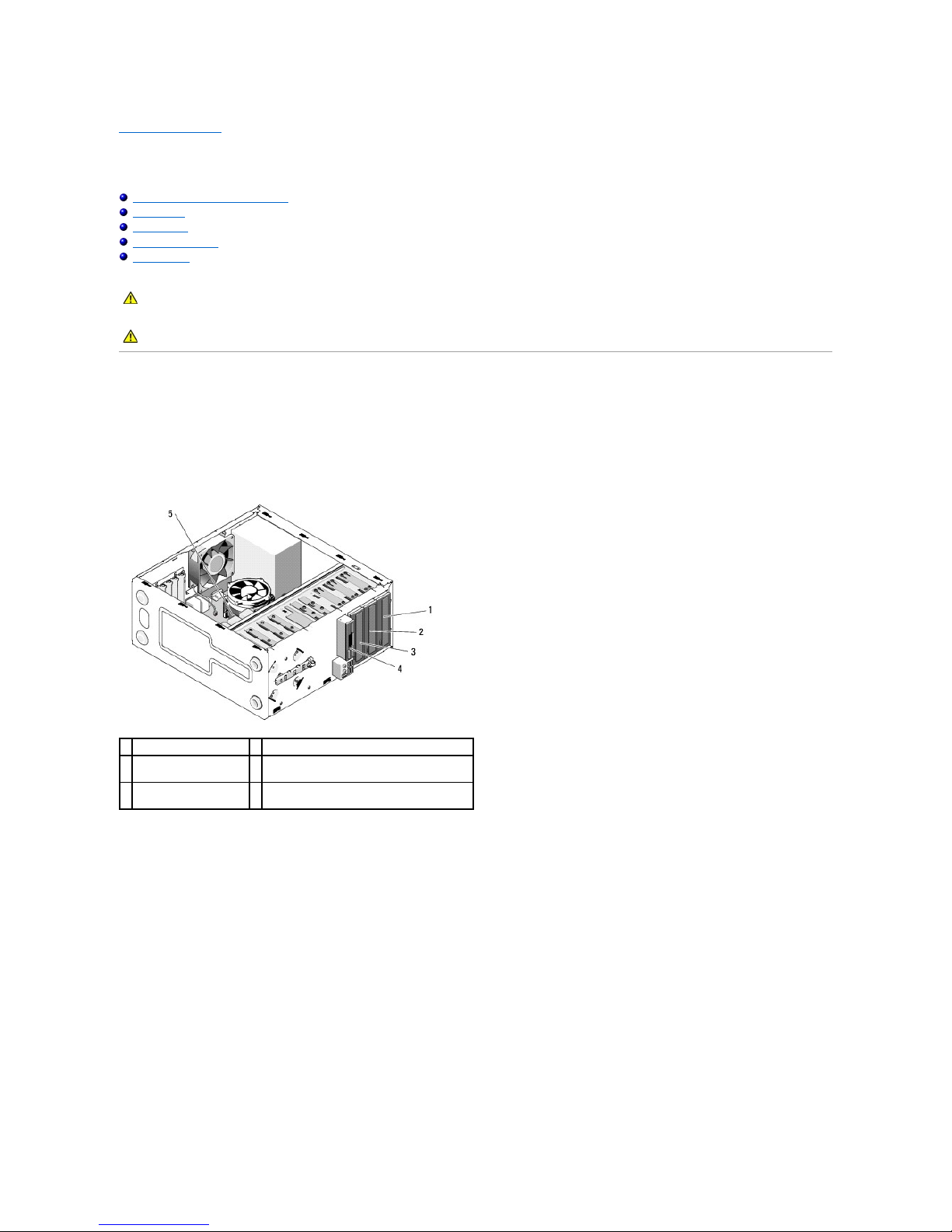

1
drive bay
2
optional optical drive
3
optional drive
4
optional FlexBay (Floppy Drive or Media Card
Reader)
5
3.5-inch SATA drive bays
(4)





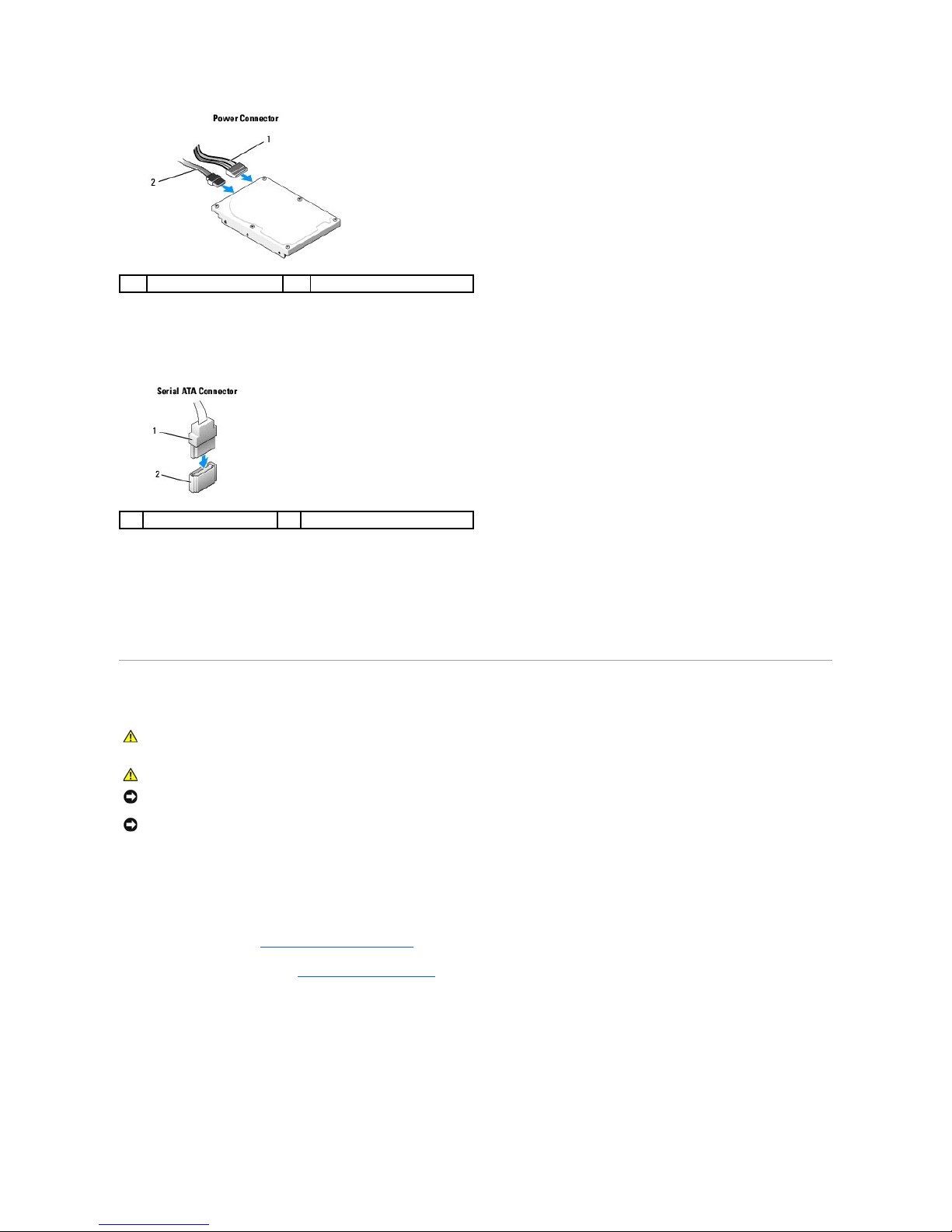

Drive Interface Connectors
The drive cable connectors are keyed for correct insertion. Properly align the cable connector key on the cable and the drive before connecting.

Connecting and Disconnecting Drive Cables
When connecting and disconnecting a serial ATA data cable, disconnect the cable using the pull-tab.
The serial ATA interface connectors are keyed for correct insertion; that is, a notch or a missing pin on one connector matches a tab or a filled-in hole on the
other connector.
Hard Drives


Check the documentation for the drive to verify that it is configured for your computer.

Removing a Hard Drive

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover (see Removing the Computer Cover).

3. Disconnect the power and data cables from the drive.

4. Disconnect the data cable from the system board.
1
power cable
2
data connector
1
interface cable
2
interface connector
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
NOTICE: To avoid damage to the drive, do not set it on a hard surface. Instead, set the drive on a surface, such as a foam pad, that will sufficiently
cushion it.
NOTICE: If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.


5. Remove the two screws securing the hard drive to the left side of the drive cage.

6. Slide the drive out of the slot away from the front of the computer.

7. If removing this drive changes the drive configuration, then make changes to the system setup accordingly. When you restart your computer, enter
system setup (see Entering System Setup), then go to the "Drives" section of the system setup and under Drive 0 through 3, set the Drive to the
correct configuration.

8. Perform the steps in the procedure After Working on Your Computer.

Replacing or Adding a Hard Drive

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover (see Removing the Computer Cover).

3. Check the documentation for the drive to verify that it is configured for your computer.

4. Install and tighten two screws into the front-most and middle screw holes on the right side of the hard drive.

5. Slide the hard drive into the hard drive bay, aligning the screws in the right side of the hard drive with the slot in the bay.

6. Align the holes on the left side of the hard drive with the holes in the drive bay cage and install two screws to secure the hard drive in the bay.
1
screws (2)
2
hard drive
3
slot
4
screws (2)
5
power cable
6
serial ATA data cable


7. Connect the power and data cables to the drive.

8. Connect the data cable to the system board.

9. Check all cables to be certain that they are properly connected and firmly seated.

10. Replace the computer cover (see Replacing the Computer Cover).

11. Connect your computer and devices to electrical outlets, and then turn them on.

12. See the documentation that came with the drive for instructions on installing any software required for drive operation.

13. Check the system setup for drive configuration changes (see Entering System Setup).
Floppy Drive



Removing a Floppy Drive

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the bezel (see Replacing the Bezel).
1
screws (2)
2
hard drive
3
slot
4
screws (2), partially inserted
5
power cable
6
data cable
NOTICE: To connect a network cable, first plug the cable into the network port or device and then plug it into the computer.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.


4. Disconnect the power and data cables from the back of the floppy drive.

5. Disconnect the data cable from the system board.

6. Remove the two screws securing the floppy drive.

7. Slide the floppy drive out through the front of the computer.

8. Ifyouarenotreplacingthedrive,reinstallthedrivepanelinsert(seeMedia Card Reader).

9. Replace the bezel (see Replacing the Computer Cover).

10. Perform the steps in the procedure After Working on Your Computer.

11. Check the system setup for the appropriate diskette Drive Option changes (see Entering System Setup).

Replacing or Adding a Floppy Drive

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the bezel (see Removing the Bezel).

4. If you are installing a new floppy drive rather than replacing a drive, remove the break-away metal plate from the FlexBay (see Removing the FlexBay
Break-Away Metal Plate).

5. Gently slide the floppy drive into place in the FlexBay from the front of the computer.

6. Align the screw holes in the floppy drive with the screw slots on the left side of the FlexBay slot.

7. Tighten the two screws to secure the floppy drive.

8. Attach the power and data cables to the floppy drive.

9. Connect the other end of the data cable to the connector labeled "FLOPPY" on the system board (see System Board Components).
1
screws (2)
2
floppy drive
3
data cable
4
power cable


10. Check all cable connections, and fold cables out of the way to avoid blocking airflow between the fan and cooling vents.

11. Replace the bezel (see Replacing the Bezel).

12. Perform the steps in the procedure After Working on Your Computer.

13. See the documentation that came with the drive for instructions on installing any software required for drive operation.

14. Enter system setup and select the appropriate Diskette Drive option (see Entering System Setup).

15. Verify that your computer works correctly by running the Dell Diagnostics. See your Setup and Quick Reference Guide for help with Dell Diagnostics.

Removing the FlexBay Break-Away Metal Plate
Align the tip of a Phillips screwdriver with the slot on the break-away metal plate and rotate the screwdriver outwards to break and remove the metal plate.

Removing the Drive Panel Insert
Release the drive panel insert by pushing out the left side of the insert from the chassis.
1
screws (2)
2
optional floppy drive
3
power cable
4
data cable
1
break-away metal plate




Replacing the Drive Panel Insert

1. Align the drive panel insert along the edges drive bay slot.

2. Push in on the drive panel insert until it locks into place.
Media Card Reader



Removing a Media Card Reader

1. Follow the procedures in Before Working on Your Computer.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the bezel (see Removing the Bezel).

1
drive panel insert (optional)


NOTE: To comply with FCC regulations, it is recommended that you replace the drive panel insert whenever the floppy drive is removed from the
computer.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
1
screws (2)
2
Media Card Reader
3
USB interface cable


