DIVAR AH-101CAT User manual

INSTALLATION & SPECIFICATIONS
AH-101CAT
4K HDMI 2.0 Audio Extractor and E bedder
I port, Manufacturing and Distribution by
vuetec.tv UG (haftungsbeschränkt)
Hasselbusch 124a | Henstedt-Ulzburg | Ger any
04193 - 880 3405 | www.vuetec.tv

HDMI Audio Extractor and Embedder
The next generation AH-101CAT HDMI Audio De-embedder and Embedder is a high performance
processor to support the HDMI 2 0 specification
What separates the AH-101CAT from the many one-way devices on the market is its dual functionality
as both an audio extractor/de-embedder and an audio embedder/inserter Audio can be extracted to
both L/R analog stereo audio (3 5mm) and S/PDIF digital audio (Toslink) These same outputs are
offered on the input side for embedding audio into the HDMI 2 0 stream making it ideal for presenters
Video support includes HDR 4K2K@60Hz (4:4:4) in addition to audio support for PCM and Dolby 5 1
The AH-101CAT is a very practical equipment and easy to install It can be used in different
applications like broadcast, surveillance, conference room, meeting halls and other places
Industrial controlled and precision design, the small size, the power consumption is less than 10 W,
offers an easy and energy efficient installation
Features
•2-in-1 unit can either extracts audio fro a HDMI source or e beds the external audio to the
outgoing HDMI video signal.
•Supports HDMI input & output up to 4Kx2K@60Hz (4:4:4)
•HDMI 2.0a/1.4 & HDCP 2.2/1.4 co pliant
•Support audio de-e bedding or e bedding via analog 3.5 or digital optical
•Extracts audio fro HDMI source and output to analog stereo or digital optical. At audio extract
ode, the digital Toslink port can support up to192Khz sa pling rate
•E beds the external analog stereo audio or digital optical audio to the outgoing HDMI video signal
•Support ARC extraction. The ARC audio can output by the analog stereo and optical (analog audio
can only output when the ARC audio source is LPCM 2.0 audio for at)
•Control through DIP switch configuration
•Support EDID anage ent
•Support CEC and HDR
•Plug and play, easy installation
Includes
•1 HDMI Audio Extractor and Embedder
•1 universal Power Supply, 12 V DC / 2 A
AH-101CAT HDMI Audio Extractor and Embedder Page 2

The Hardware
The HDMI Audio Extractor and Embedder hardware features;
•Support resolution 4K2K@60 (4:4:4 8bit / 4:2:0 12bit)
•HDCP1 4 / HDCP2 2 compliant
•Supports HDR
•Audio de-embedder (extractor) supports analog stereo and digital (optical)
•Audio embedder supports analog stereo and digital (optical)
•Supports ARC extraction to stereo and optical output
•Supports EDID management
Hardware I/Os
Inputs
All Inputs are placed on the front panel for easy installation
Port 1 DC Power In (12 V DC)
Port 2 Power Indicator, lit green when OK
Port 3 Reset key
Port 4 DIP-Switch Mode #1
Port 5 HDMI Input
Port 6 Digital Audio Input (Toslink)
Port 7 Analog Audio Input (3,5 mm TRS)
Mode Switch #1
Pin 1 Pin 2 Mode Pin 3 Mode Pin 4 Mode
OFF N/A EDID Copy TV OFF HDMI Mute Off OFF N/A
ON OFF Audio Analog In ON HDMI Mute On ON N/A
ON ON Audio Digital In
AH-101CAT HDMI Audio Extractor and Embedder Page 3

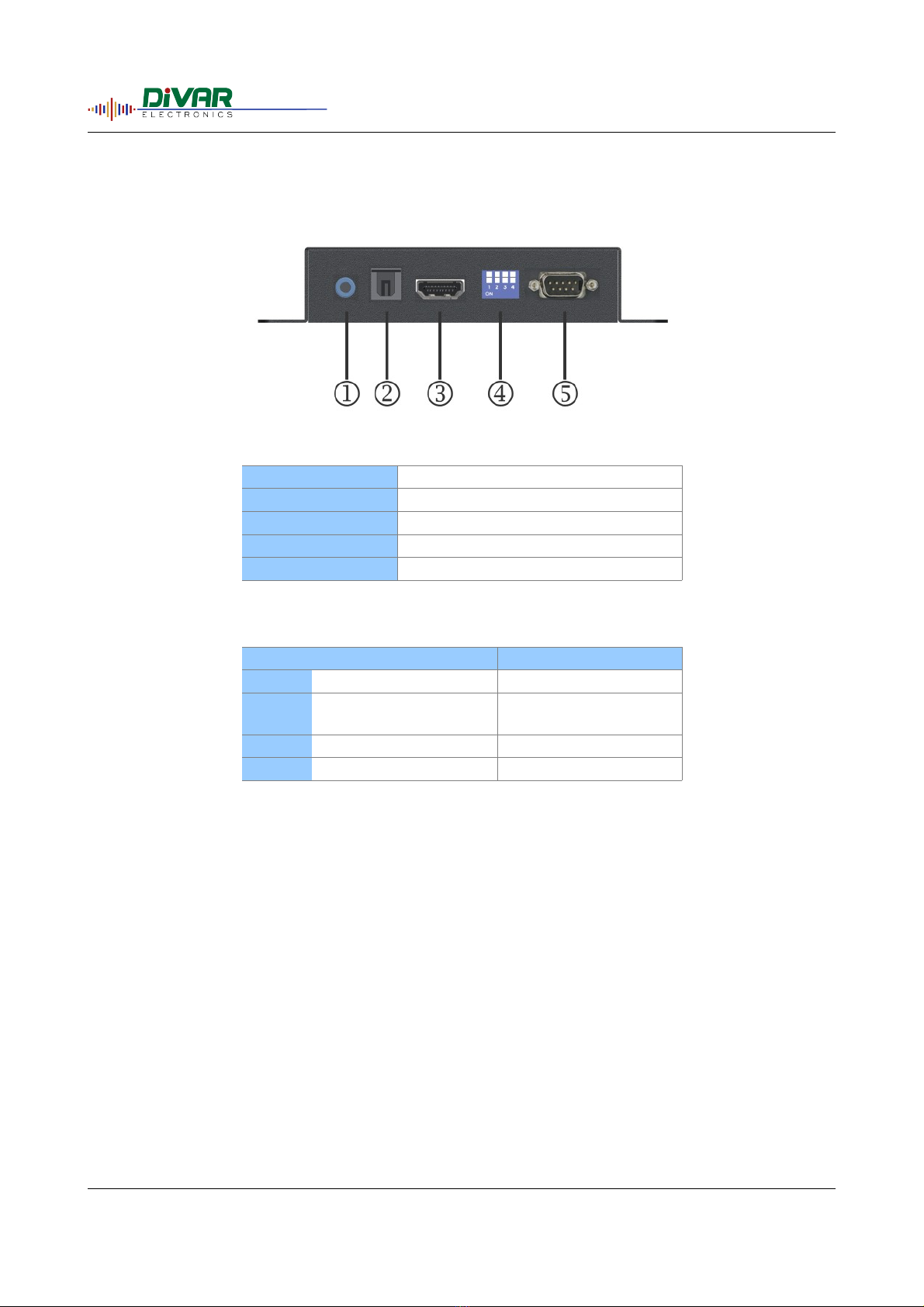

Outputs
All Outputs are placed on the rear panel for easy installation
Port 1 Analog Audio Output (3,5 mm TRS)
Port 2 Digital Audio Output (Toslink)
Port 3 HDMI Output
Port 4 DIP-Switch Mode #2
Port 5 RS232 (F/W Upgrade)
Mode Switch #2
OFF ON
Pin 1 Disable Embedder Enable Embedder
Pin 2 Embed from Digital
Audio Input
Embed from Analog
Audio Input
Pin 3 Disable Extractor Enable Extractor
Pin 4 ARC Off ARC On
AH-101CAT HDMI Audio Extractor and Embedder Page 4

Specifications
Video:
HDMI Compliance HDMI 1 4 / 2 0a
HDCP Compliance HDCP 1 4 / 2 2 conform
Resolution 4Kp / 2Kp / 1080p / 1080i / 720p
Frame rate 60 Hz max
Coding 4 4:4 8 bit / 4:2:0 12 bit
HDR Support Yes
CEC Support Yes
Video Input / Output HDMI-A 1 3
Audio:
Audio Input Digital: HDMI embedded / Optical Toslink
Analog: 3,5 mm TRS
Audio Output Digital: HDMI embedded / Optical Toslink
Analog: 3,5 mm TRS
Sampling rate self-adaption
Network & Control:
Controls 2x DIP switch
Network port RS232 com port
Firmware Upgrade through interface
Electrical & Mechanical:
Input Power Requirements: DC 12 V @ 1 A
Power Adapter: AC 90 V~240 V
Power Consumption: < 5 W
Dimensions: 126 mm × 83 mm × 25 mm
Weight: 310 g
Environmental:
Operating Temperature: 0°C ~ +40°C
Storage Temperature: -20°C ~ +60°C
Relative Humidity: 20% ~ 90% (non-condensing)
MTBF: >50,000 hours
AH-101CAT HDMI Audio Extractor and Embedder Page 5

Connecting Diagram
The AH-101CAT can be used as Embedder and Extractor See connecting diagrams below
Embedder
Using the AH-101CAT as HDMI Embedder follow the instructions
Connect the HDMI Video source and the Audio source at the front panel ports Select using Mode
Switch #1 the type of the Audio source
Enable the Embedder mode setting the Pin 1 at Mode Switch #2 ON
Connect a HDMI Monitor device (or similar) to the HDMI Output The HDMI Output will feed a Video
signal having Audio embed
AH-101CAT HDMI Audio Extractor and Embedder Page 6

Extractor (De-Embedder)
Using the AH-101CAT as HDMI De-Embedder follow the instructions
Connect the HDMI Video source at the front panel ports
Enable the De-Embedder mode setting the Pin 3 at Mode Switch #2 ON
Connect a HDMI Monitor device (or similar) to the HDMI Output and a Audio System to the analog
and or digital Audio Outputs The HDMI Output will feed a Video signal having Audio embed
When using the ARC function (Mode Switch #2 Pin 4 ON) the Audio is extract to the analog Audio
port (TRS 3,5 mm)
AH-101CAT HDMI Audio Extractor and Embedder Page 7

Power Supply
The unit is powered by the 12 V DC 1 Amp universal voltage [100 V - 240 V AC 50/60 Hz input range]
AC power adapters, similar to the shown power supply below
Note:
The AH-101CAT features environmentally conscious packaging material to protect the AH-101CAT
system during transportation and can be used for temporary storage when better forms of storage are
not available
AH-101CAT HDMI Audio Extractor and Embedder Page 8

SAFETY PRECAUTIONS
•To prevent fire or shock hazard, do not expose this equipment to an environment of high humidity
and/or dust Do not use in an unprotected outdoor installation or any area classified as overly damp
or wet
•The temperature for installation should be kept between 0°C - 60°C Avoid direct sunlight exposure
or extreme changes of temperature over a short period of time
•Do not disassemble the unit or put it on an unstable base
•Do not drop it and avoid heavy impact
•Ventilation: Any openings in the enclosure are provided for ventilation and to ensure reliable
operation of the unit and to protect it from overheating These openings, if any, must not be blocked
or covered This unit should not be placed in a built-in installation unless proper ventilation is
provided
•Cleaning: Unplug the unit from the mains outlet before cleaning Do not use liquid cleaners or
aerosol cleaners, only use a damp cloth
•Do not overload outlets and extension cords as this may result in a risk of fire or electric
shock.
•Enclosure Entry of any kind is dangerous Never push objects of any kind, including liquids, into
this unit through openings as they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock
•Service: Do not attempt to open or service this unit yourself as opening or removing covers may
expose you to dangerous voltage of other hazards
•There are no user-serviceable parts inside the unit If the unit requires service please contact your
authorized dealer, or an authorized repair service company
AH-101CAT HDMI Audio Extractor and Embedder Page 9

Conformity Declaration
to EMV guideline (89/336/EC) and to low-voltage guideline (73/23/EC chapter 10)
The importer/manufacturer: vuetec tv UG, Hasselbusch 124a, 24558 Henstedt-Ulzburg
declares hereby, that the product:
•Product name: HDMI Embedder / De-Embedder
•Model number: AH-101CAT
•Year of construction: 2018
corresponds to the regulations of the guidelines described above:
The following harmonized norms were used:
•EN 55011 ISM Equipment, Group 1, Class A
•EN 55022 Conducted Emissions, Class B
•EN 50081-2 Generic standard interference transmission, industry area
•EN 50082-2 Generic standard interference immunity, industry area
•prEN5510 -1 EMV product family norm for Audio-, Video and audio-visual facilities as well as for
studio light control facilities for the professional usage, -Part 1: Limiting values and measurement
procedure for disturbing emissions
•prEN5510 -2 EMV product family norm for Audio-, Video and audio-visual facilities as well as for
studio light control facilities for the professional usage, -Part 2: Requirements on the interference
immunity
•EN 61000- -2 Power Factor Harmonic Correction
•EN 61000- - Flicker & Voltage Fluctuation Limits
•EN 61000-4-2 Electrostatic Discharge Immunity
•EN 61000-4- Radiated Electromagnetic Fields
•EN 61000-4-4 Fast Transients-Burst Immunity
•EN 61000-4-5 Input Surge Immunity
•EM 61000-4-6 Conducted RFI
•EN 61000-4-11 Voltage Dips
The following national or international norms (or parts/clauses from this) and specifications were used:
•DIN EN 6099 Verbindungsmaterial für Niederspannungsstromkreise für Haushalt und ähnliche
Zwecke; Teil 1: Allgemeine Anforderungen
•IEC 127-6 Geräteschutzsicherungen
Henstedt-Ulzburg, 29 09 2019 Dipl Ing Erwin W Lissy
AH-101CAT HDMI Audio Extractor and Embedder Page 10

Limited Warranty
Your DIVAR unit was hand built, inspected and tested to ensure a high quality of workmanship and
reliability.
The MANUFACTURER warrants the AH-101CAT HDMI 2 0a Audio Extractor & Embedder to be free
from defects in the material and workmanship for 24 month from the date of purchase from the
SELLER or an authorized dealer Should this product fail to be in good working order within 1 year
warranty period,
The MANUFACTURER, at its option, repair or replace the unit, provided that the unit has not been
subjected to accident, disaster, abuse or any unauthorized modifications including static discharge
and power surge This warranty is offered by the manufacturer for its BUYER with direct transaction
only This warranty is void if the warranty seal on the metal housing is broken
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair Such repairs are warranted for 90 days from the day of
reshipment to the BUYER If the unit is delivered by mail, customers agree to insure the unit or assume
the risk of loss or damage in transit Under no circumstances will a unit be accepted without a return
authorization number
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed
Proof of sale may be required in order to claim warranty Customers outside the US are responsible
for shipping charges to and from the SELLER Cables are limited to a 30 day warranty and cable must
be free from any markings, scratches, and neatly coiled
The content of this manual has been carefully checked and is believed to be accurate However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages Also,
the technical information contained herein regarding the device features and specifications is subject
to change without further notice.
General
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state
AH-101CAT HDMI Audio Extractor and Embedder Page 11
