iVisa 500 BT

PORTABLE PA FOR iPod / iPhone / iPad

USER MANUAL(ENGLISH)-------------------------------------------------------------------------------------E1-E10

IMPORTANT SAFETY INSTRUCTION

The lightning flash with arrowhead symbol

inside an equilateral triangle is intended to

alert User that the presence of uninsulatedʾ

hazardous voltageʾwithin the product’s

enclosure, which may be of sufficient

magnitude to induce a risk of electric shock to

persons.

The exclamation mark inside an equilateral

triangle is intended to alert user that the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the product.

This symbol means that this unit is

double insulated. An earth or ground

connection is not required.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit

into your outlet, consult an electrician for replacement of the obsolete outlet.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

10. Only use attachments/accessories specified by the manufacturer.

11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus.

12. When a cart is used, use caution when moving the cart/apparatus combination to

avoid injury from tip-over.

Portable Cart Warning

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

15. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

16. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

17. The MAINS plug is used as the disconnect device, which shall remain readily operable.

18. DANGER:invisible laser radiation when you open the CD enclosure. Avoid direct exposure to laser

beam

19. CAUTION: use of controls or adjustments or performance of procedures other than those specified in

this manual may result in hazardous radiation exposure.

20. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or

moisture .

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

CONTENTS

FUNCTION DESCRIPTION.............................................................................................................…..4

OPERATION.........................................................................................................…........................5-8

CD PLAYER……………………………………………………………………………………………...……5

Wireless MIC……………………………………………………………………………………….….….…..6

IPod/iPhone/iPad…………………………………………………………………………………….....….6

Bluetooth /. MP3………………………………………………………………………………………….…6

Wired Mic/Instrument……………………………………………………………………………………...7

Line-IN…………………………………………………………………………………………………….......7

Output……………………………………………………………………………………………….….…….7

Remote Control…………………………………………………………………………………….……….8

NOTES ON BATTERY..............................................................................................................……….9

CONNECTION……………………….......................…………............................................................9

SPECIFICATIONS..............................................................................................................................10

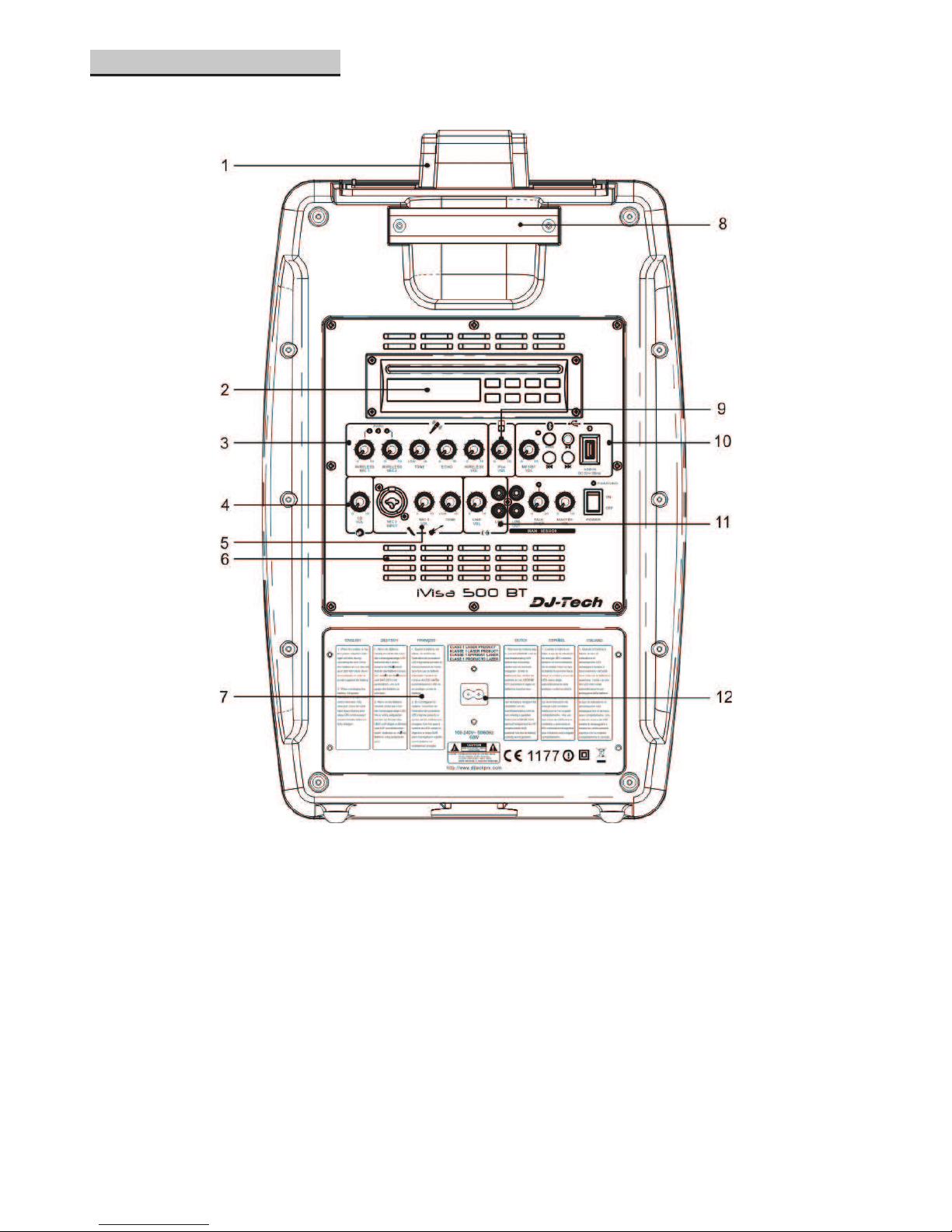

FUNCTION DESCRIPTION

1.Intelligent iPod/iPad docking

2.CD Player

3.Wireless Microphones Section

4.CD Section

5.Mic/Instrument input Section

6 Heatsink

7.Battery Compartment

8.Easy GripHandle

9.iPod/iPhone/iPad section

10.USB/Bluetooth section

11.Line-In Section

12.AC Power Input (100~240V 50/60Hz)

OPERATION

CD PLAYER

1. CD In-and-Out

Place your CD at this port and CD will be automatically accepted

2. LCD display

All the song / playback information (time/index), will be displayed here

3. Program

You can program your favor song sequence and press the “ENTER” to confirm

the sequence

4. Folder

If you are playing CD with MP3 files in different folder, you can press this button

to access different folder index

5. Stop/Eject

During playback, press this button to stop playing and press once more to eject

the CD.

6. Play/Pause

Press this button to start playback or pause the current playback

7. CD Power

Press this button to turn ON/OFF the power of CD player.

Please turn CD player to OFF when the CD player is not in use in order to save

power

(NOTE: This button is NOT main ON/OFF of iVisa 500 BT, only for the CD player)

8. Repeat/Shuffle/Enter

During Playback, you can press this button to select playback mode (repeat /

shuffle)

Repeat: repeat the whole CD or just current song

Shuffle: Music will be played randomly song by song

During Programming mode, you can press this button to “enter” and confirm a

track sequence

9. Previous Track / Fast Backward

You can press this button to select previous track or hold this button to fast

rewind the CD music

10.Next Track / Fast Forward

You can press this button to select next track or hold this button to fast forward

the CD music

OPERATION

6ˊ

7ˊ

8ˊ

1. Microphone 1 LED

This LED indicates the connection of wireless Microphone 1. When Microphone 1 is

connected, this LED and the LED in the font panel will be ON.

2. SIGNAL LED

This LED will be turned ON when there is signal on wireless MIC1 or MIC2.

3. Microphone 2 LED

This LED indicates the connection of wireless Microphone 2. When Microphone 2 is

connected, this LED and the LED in the font panel will be ON.

4. Wireless Microphone 1 Volume

Turn this knob to adjust Wireless Microphone 1 volume, clockwise for louder volume

5. Wireless Microphone 2 Volume

Turn this knob to adjust Wireless Microphone 2 volume, clockwise for louder volume

6. Wireless Microphone Tone

Turn this knob to adjust Wireless Microphone tone, clockwise for more treble, less bass and

counterclockwise for more bass, less treble

7. ECHO Level

Turn this knob to adjust the Wireless Microphone echo level, clockwise for more echo mix and

counterclockwise for less echo mix

8. Wireless Microphone Volume

Turn this know to adjust the overall Wireless Microphone volume, -clockwise for louder

volume

9. iPod/iPhone/iPad Volume

Turn this know to adjust the iPod/iPhone/iPad playback volume, clockwise for louder

volume

10. USB / Bluetooth Volume

Turn this know to adjust the USB Player / Bluetooth A2DP receiver volume,clockwise for

louder volume

11. PAIR (For A2DP Bluetooth only)

Press this button to disconnect the current Bluetooth A2DP connection and share the Bluetooth

channel for device pairing.

(Device Name: MUSICBOX Password for Bluetooth connection is: 0000 (4 zeros))

When connection is established, the LED next to this button will be turned ON

12. PLAY/PAUSE

Press this button to play or pause the mp3 stored in the USB stick

13. Previous Track

Press this button to select Previous in the USB stick

14. Next Track

Press this button to select next track in the USB stick

15. USB Slot

Connect your USB stick up to 32GB with mp3 files, music will be played automatically after insert

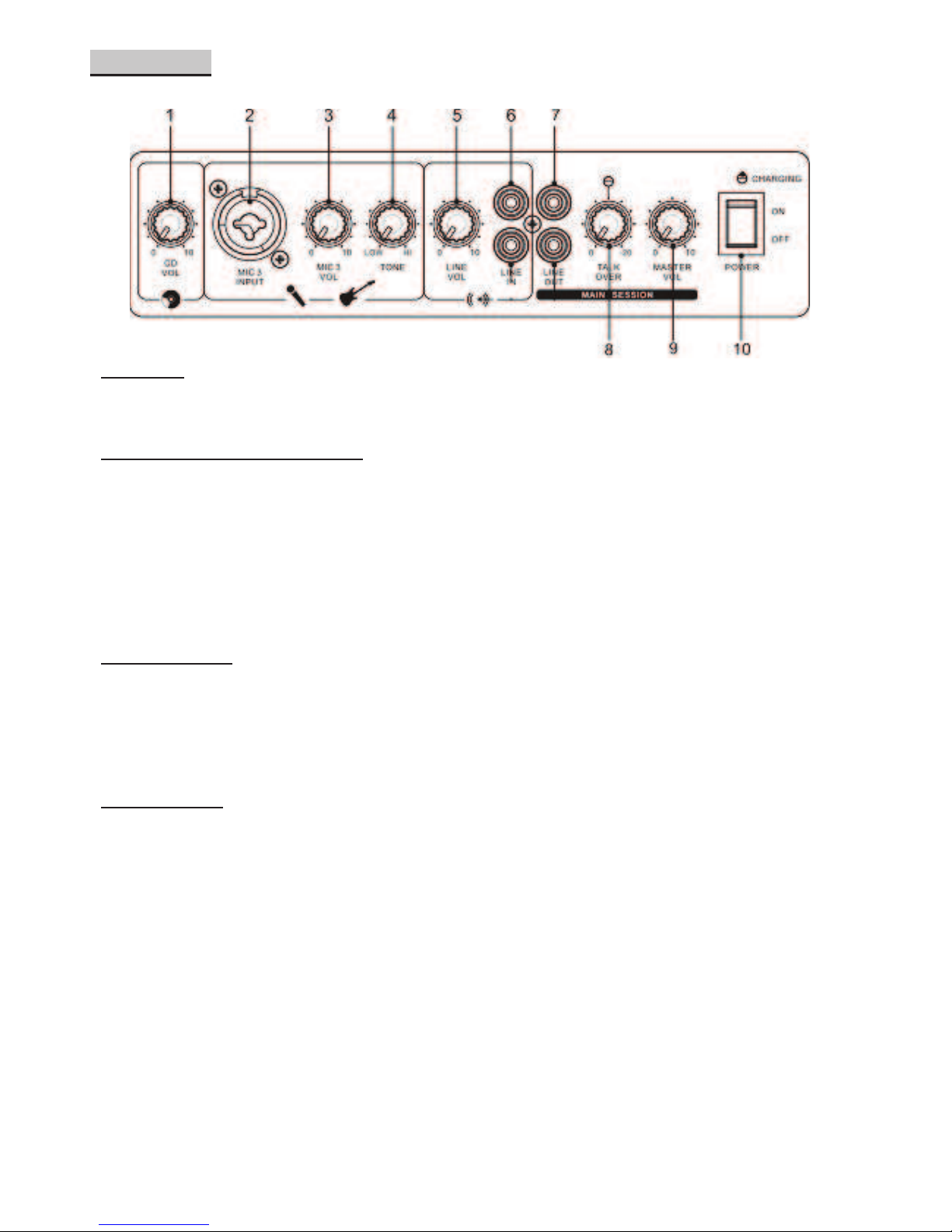

OPERATION

CD Playe

1. CD Player Volume

Turn this knob to adjust the CD Player volume, clockwise for louder volume

Wired Microphone / Instrument

2. Mic3 input (Combo Jack)

This combo jack can take either balanced XLR input or 1/4” unbalanced input for wired

microphone, guitar or line level instrument

3. Mic 3 Volume

Turn this knob to adjust the Mic 3 input volume,-clockwise for louder volume

4. Mic 3 Tone

Turn this knob to adjust Mic 3 input tone, clockwise for more treble, less bass and

counterclockwise for more bass, less treble

External Line-IN

5. Line Volume

Turn this knob to adjust the Line input volume, -clockwise for louder volume

6. Line-level input (stereo RCA)

Connect your external audio source (e.g. cellphone, Mixer) to this line-level input with a pair of

unbalanced RCA cable

Output control

7. Line-Output (stereo RCA)

This output is taken from the signal of master output but independent of master volume level.

You may connect the other iVisa 500 BT or another active PA speaker to link them up. Or you

may also connect a external recorder

8. TALKOVER

This pot adjust the talkover attenuated rate.

When talkover is on and signal on microphone (both wireless and wired) is significant, music from

AUX, iPod , CD, Bluetooth, USB will be attenuated according to the attenuation rate set.

9. Master Volume level

Turn this knob to adjust the master output volume of the iVisa 500 BT, clockwise for louder

volume

10. ON/OFF switch

Turn this switch to turn ON/OFF the iVisa 500 BT.

(Notes: For recharging the internal battery, the iVisa 500 BT needs to be turned ON)

OPERATION

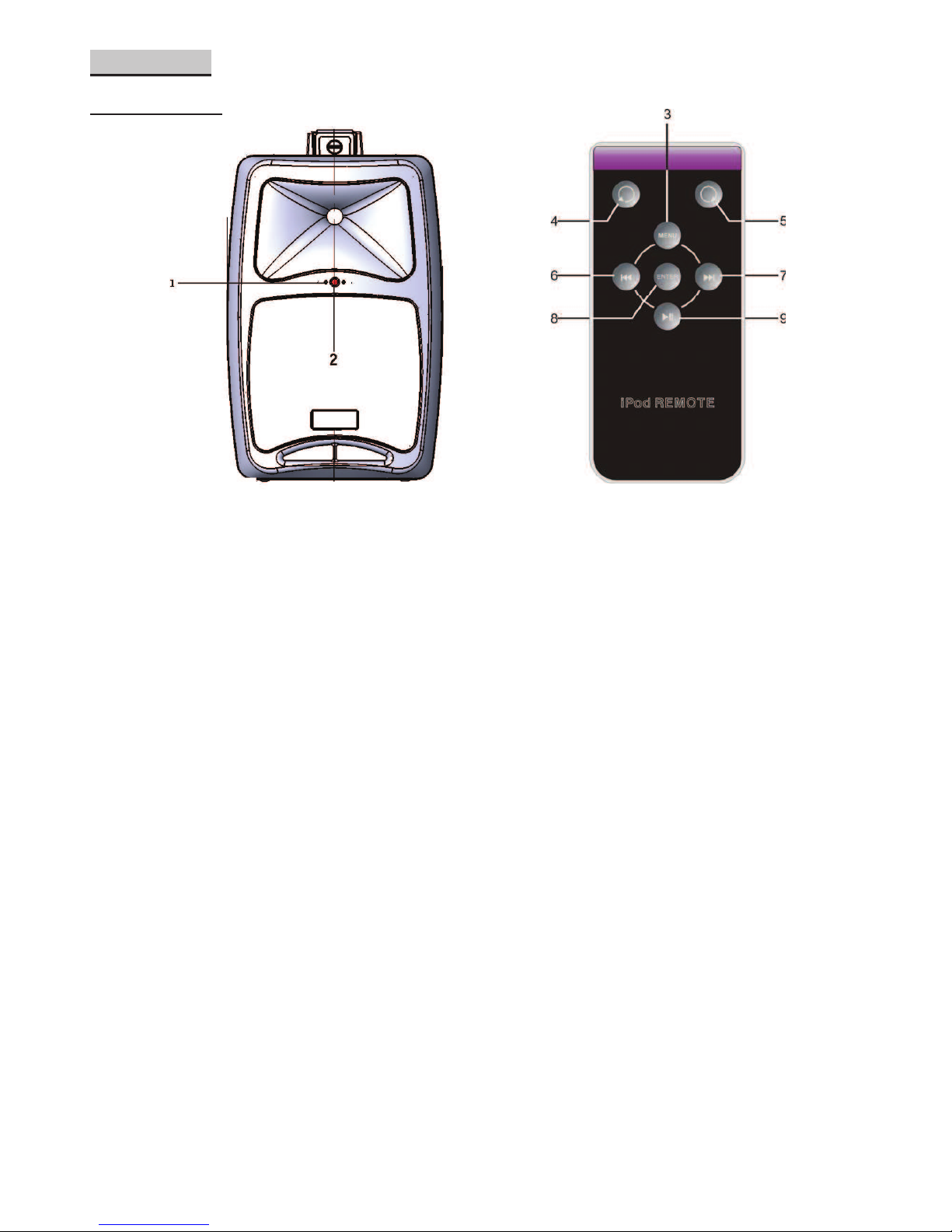

Remote Control

The iVisa 500 BT includes a wireless IR remote and you can make use of the remote

to access the docked iPod/iPhone/iPad with the easy simple remote button:

1. Wireless Microphones LED

This LEDs indicate the connection of wireless Microphone 1 or 2. When

Microphone 1 or 2 are connected, the LED will be ON to indicate good

Connection

2. Infra-Red receiver

Point the remote control to this window

3. MENU

The menu control button for iPod/iPhone/iPad

4. Counter Clockwise rotation

Counter clockwise rotation for iPod/iPhone/iPad iTune menu

5. Clockwise rotation

Clockwise rotation for iPod/iPhone/iPad iTune menu

6. Previous Track

Select previous track for iPod/iPhone/iPad iTune menu

7. Next Track

Select next track for iPod/iPhone/iPad iTune menu

8. Enter

The “ENTER” or “Confirm” button for the iPod/iPhone/iPad iTune menu

9. PLAY/PAUSE

The “PLAY” or “PAUSE” fucntion for the iPod/iPhone/iPad iTune menu

NOTES ON BATTERY

Charging Indicator

Battery is being charged when AC source is connected.

LED will flash when charging and remain ON after fully charged.

Low-Battery Protection

Power will be cut automatically when battery is too low to

operate. User has to connect iVisa 500 BT to AC source in order

to charge and operate.

Please do not leave the unit unused with a discharged battery

inside. The battery may be destroyed when it is totally

discharged.

Battery Compartment

Notes:

1. When the unit has not been used for 2 months continually, please connect it to AC and charge for 8 hours,

and charge for 48 hours at the first- time using. This protects the battery capability and extend the lifetime.

2. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

3. The unit remains operable even the AC is disconnected.

WARNING

Please do not attempt to open the back cover or power adapter as opening or removing the covers may

expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be

disabled. There are no user servicing components inside.

CONNECTION

SPECIFICATIONS

Speaker Unit....................................................................................................................................................Woofer 8ļ8ƺ

...................................................................................................................................................Tweeter 1ļ8ƺ

Maximum Power Output

Storage battery and power supplied cell.............................................................................................. 32W THD=1%

Rated Output Power ...............................................................................................................................50W THD= 1%

Distortion................................................................................................................................................................... 0.5%

S/N Ratio................................................................................................................................................................... 80dB

Frequency Response....................................................................................................................................30Hz20KHz

Input Sensitivity

LINE...............................................................................................................................................................................-3dB

MP3 Player................................................................................................................................................................... 0dB

Blue tooth..................................................................................................................................................................... 0dB

iPod, iPhone,iPad.........................................................................................................................................................0dB

CD Player......................................................................................................................................................................0dB

Talkover...........................................................................................................................................................0dB-20 dB

Power Supply......................................................................................................................................100-240V~ 50/60Hz

Dimensions˄W×D×H˅.......................................................................................................................... 341X260X561mm

Weight........................................................................................................................................................................ 13kg

Max Power Consumption...........................................................................................................................................60W
