dji RXD2 User manual

User Guide
使用说明
使用说明
ユーザーガイド사용자 가이드Handbuch
Guía de usuario
Guide d’utilisateur
Guida per l’Utente
Gebruikershandleiding
Manual do utilizador
Руководство пользователя
2022.09
v1.2

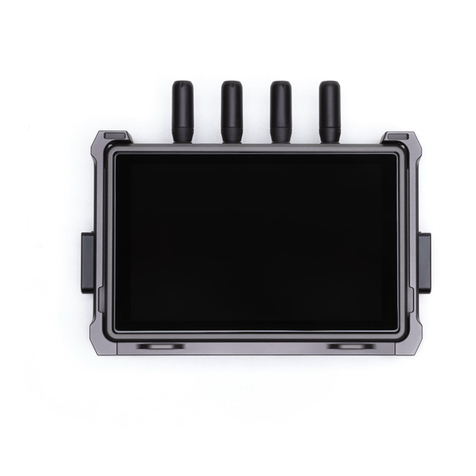

DJI High-Bright Remote Monitor

Contents
Disclaimer and Warning 1
Introduction 1
Overview 1
Mounting/Removing the Battery 2
Activation 4
Linking 4
Monitoring Interface 6
System Menu 12
Appendix 14
免责声明和警告 16
简介 16
部件名称 16
安装 /拆卸电池 17
激活 19
对频 19
监看界面 21
系统菜单 27
附录 29
免責聲明和警告 31
簡介 31
零組件名稱 31
安裝/拆卸電池 32
啟動 34
配對 34
監看介面 36
系統選單 42
附錄 44
免責事項および警告46
はじめに46
概要46
バッテリーの取り付け／取り外し47
アクティベーション49
リンク49
モニター画面51
システムメニュー57
付録59
CHS
CHT
EN
JP

고지 사항 및 경고 61
소개 61
개요 61
배터리 장착 / 분리 62
활성화 64
연동 64
모니터링 인터페이스 66
시스템 메뉴 72
부록 74
Haftungsausschluss und Warnhinweise 76
Einführung 76
Übersicht 76
Akku befestigen und entfernen 77
Aktivierung 79
Koppeln 79
Benutzeroberäche der Bildkontrolle 81
System-Menü 87
Anhang 89
Renuncia de responsabilidad y advertencia 91
Introducción 91
Descripción 91
Montaje/desmontaje de la batería 92
Activación 94
Vinculación 94
Interfaz de monitorización 96
Menú del sistema 102
Apéndice 104
Clause d’exclusion de responsabilité et mise en garde 106
Introduction 106
Vue d’ensemble 106
Montage/retrait de la batterie 107
Activation 109
Appairage 109
Interface de surveillance 111
Menu système 118
Annexe 120
KR
DE
ES
FR

Limitazioni di responsabilità e avvertenze 122
Introduzione 122
Panoramica generale 122
Montaggio/Rimozione della batteria 123
Attivazione 125
Collegamento 125
Interfaccia di monitoraggio 127
System Menu (Menu di sistema) 133
Appendice 135
Disclaimer en waarschuwing 137
Inleiding 137
Overzicht 137
De accu monteren/verwijderen 138
Activering 140
Koppelen 140
Bewakingsinterface 142
Systeemmenu 148
Bijlage 150
Declaração de exoneração de responsabilidade e aviso 152
Introdução 152
Visão geral 152
Montagem/remoção da bateria 153
Ativação 155
Ligação 155
Interface de monitorização 157
Menu do sistema 163
Apêndice 165
Отказ от ответственности и предупреждение 167
Введение 167
Общий вид 167
Установка/снятие аккумулятора 168
Активация 170
Сопряжение 170
Интерфейс мониторинга 172
Системное меню 179
Приложение 181
IT
NL
PT
RU
Compliance Information 183

1
©2022 DJI All Rights Reserved.
EN
Disclaimer and Warning
Carefully read this entire document and all safe and lawful practices provided before use.
Introduction
Boasting DJI’s O3 Pro Video Transmission technology, the DJITM High-Bright Remote Monitor can
connect wirelessly to compatible devices when used with the Ronin 4D Video Transmitter or DJI
Video Transmitter. The monitor enables users to follow the live view of the camera and to control
the camera remotely. An expansion plate can be mounted to the monitor to expand the DC and
CAN input and HDMI and SDI output. The hand grip ports on the remote monitor expansion-
protective frame can be used to mount the grips for remote control. The remote monitor supports
DJI WB37 batteries and also NP-F series batteries when used with the NP-F battery adapter.

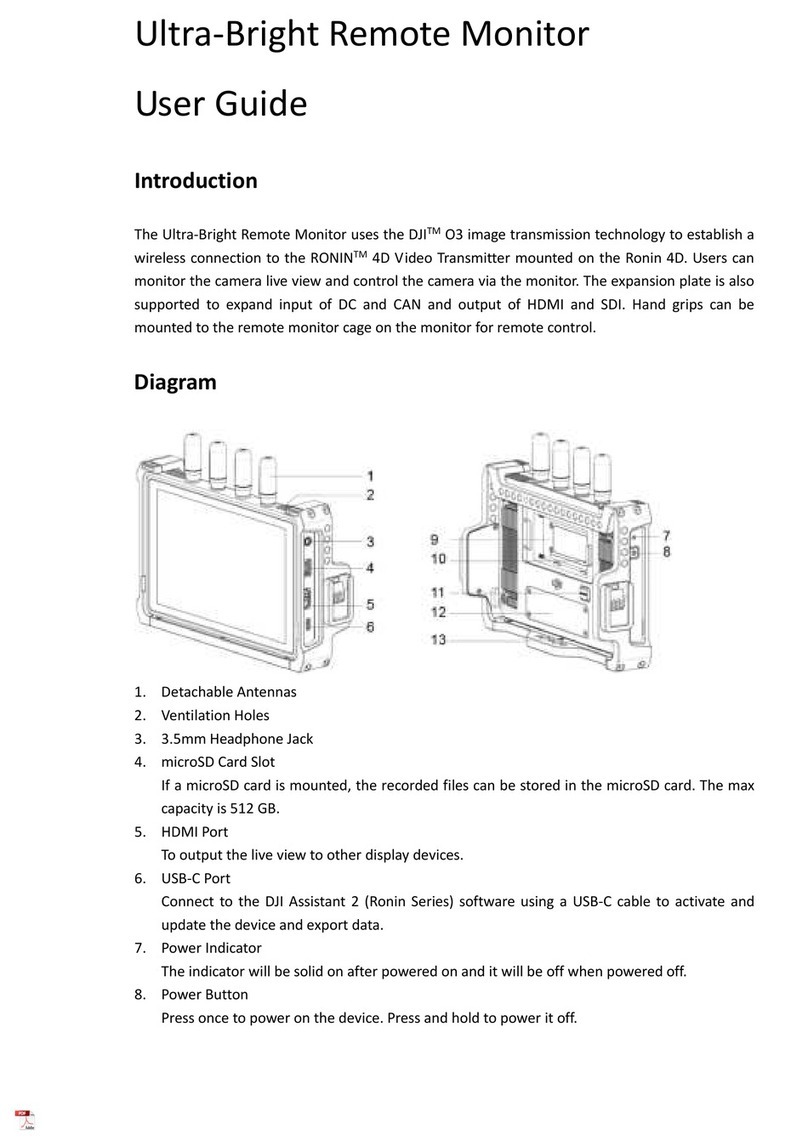

Overview
1. Detachable Antennas
2. Ventilation Holes
3. 3.5mm Audio Output Jack
Monitors the audio recorded by the transmitter device when a monitoring device is
connected.
4. microSD Card Slot
The slot supports a microSD card of up to 512 GB. The remote monitor supports local
recording and can play the recording les independently of the transmitter device. Users can
set to save the recorded les to the microSD card in the Recording Device setting.
5. HDMI Port
The remote monitor can be used as an independent monitor when not used with a video
transmitter. The video input signal can be received through the HDMI port and the frame
guide and safety zone settings, exposure assistant, and focus assistant are available.
6. USB-C Port
Connect to the DJI Assistant 2 (Ronin Series) software using a USB-C cable for device
activation and firmware update. The video stream from the monitor can be used as a
1
7
8
13
3
2
4
5
6
9
10
11
12

2
©2022 DJI All Rights Reserved.
EN
webcam input when connecting to a computer. It is required to set the usage of the USB-C
port in the Input & Output Settings on the monitor before use.
7. Power Indicator
The indicator will light up when powered on and will turn o when powered o.
8. Power Button
Press once to power on. When powered on, press the power button once to turn o the
screen display. Press again to turn it on. Press the power button twice to lock the touch
screen and all touch operations will be disabled. Press twice again to unlock the touch
screen.
9. Battery Slot
The WB37 Intelligent Battery is used for power supply by default. The NP-F series batteries
can be used for power supply when the NP-F battery adapter is mounted.
10. WB37 Battery Release Button
11. Expansion Plate Port Cover
The expansion plate port under the cover is used to mount the remote monitor expansion
plate to expand the DC and CAN input and HDMI and SDI output.
12. Expansion-Protective Frame
Accessories can be mounted to the expansion-protective frame using the 1/4″ screw holes,
1/8″ screw holes, and hand grips port (13 on overview illustration).
Mounting/Removing the Battery
Before rst use, activate the WB37 battery by charging with the WB37 Battery Charging Hub
(USB-C). Refer to the WB37 Battery Charging Hub (USB-C) User Guide for more information.
1. Insert the WB37 battery into the battery slot and push it to the end. Make sure that the WB37
battery release button pops up, indicating the battery is rmly in place.
Press and hold the WB37 battery release button and push the battery in the opposite direction
to remove it.
Make sure to use the WB37 battery within the operating temperature range. DO NOT disassemble
or pierce a battery in any way or it may leak, catch re, or explode. Refer to the WB37 Intelligent
Battery Safety Guidelines for more information.

3
©2022 DJI All Rights Reserved.
EN
2. When using the NP-F series batteries, remove the four M2×5 countersunk screws on the back
of the remote monitor, mount the NP-F battery adapter to the battery slot, and tighten the four
M2×6 socket cap screws. Insert the battery and push it to the end with the connector. Make
sure that the NP-F battery release button pops up, indicating the battery is rmly in place.
Press and hold the battery release button on the battery adapter and push the battery in the
opposite direction to remove it.
M2×5
M2×6

4
©2022 DJI All Rights Reserved.
EN
Activation
Activation is required when using the remote monitor for the rst time. Power on the monitor and
connect it to the computer. Launch DJI Assistant 2 (Ronin Series), click the corresponding device
icon, and follow the instructions onscreen to activate the device. Download the software from:
https://www.dji.com/downloads/softwares/dji-assistant-2-ronin-series
Make sure to connect the device to the DJI Assistant 2 software and log in with your DJI account to
make sure it is correctly recognized when the device is used in a country or region that is dierent
from where it was activated.
Linking
The monitor and video transmitter must be linked before use. Make sure that the video transmitter
is mounted to a compatible device before linking. The video transmission system of the remote
monitor oers Control mode and Broadcast mode, which use dierent linking methods.
Control Mode
1. Power on the remote monitor. Tap to enter System Menu and then Connection Settings.
Select Control Mode, set the monitor as Control Monitor A or Control Monitor B, and tap Link
to Control Monitor A/B to enter linking status.
Control Monitor A Control Monitor B
Link to Control Monitor A
Disconnected
Control Mode
Connection Settings
Broadcast Mode
2. Using Ronin 4D: to start linking, hold the link button on the Ronin 4D Video Transmitter or go
to menus on the Ronin 4D High-Bright Main Monitor, tap Transmission, and Link Device. The
linking status indicator on the video transmitter blinks red and green alternately, indicating the
device is linking.
Using DJI Video Transmitter: power on the DJI Video Transmitter. Press and hold the menu
dial on the video transmitter until the linking status indicator blinks red and green alternately,
indicating the device is linking.

5
©2022 DJI All Rights Reserved.
EN
Control Mode
Connection Settings
A-1000
B-1001
Broadcast Mode
C-1002
Searching...
3. Once linked, the remote monitor will show a connected status, the control monitor A/B on the
Ronin 4D main monitor will have a connected status, and the linking status indicator on the
video transmitter will glow solid green.
Broadcast Mode
1. Using Ronin 4D: enable Broadcast Mode in Transmission settings on the Ronin 4D High-Bright
Main Monitor. Make sure that at least one remote monitor is powered on and connected to
Ronin 4D before enabling Broadcast mode.
Using DJI Video Transmitter: enable Broadcast mode in the menu on the video transmitter.
2. Power on the remote monitor. Tap to enter System Menu and then Connection Settings.
Select Broadcast Mode and the monitor will automatically search for nearby devices with
Broadcast mode enabled. Tap a device to monitor and the live view from the corresponding
device will display on the remote monitor. Tap the camera number on the right side of the
screen to refresh the live view or switch between the monitored devices.

6
©2022 DJI All Rights Reserved.
EN
Monitoring Interface
Control Mode
Mirror Control Mode on Ronin 4D Enabled
CH1
CH2
08:02:16:06
A001C016
ft
12’
15‘
20’
30’
5‘6
8’
7‘
6’
5’
4‘6
4’
3‘6
3‘
2‘9
10‘
24.5M
800
EI
F2.8
IRIS
SS
1/50
5600
WB
Clear
ND
75
100
112G
ON
3
0’
60
’
5
‘6
1
5‘
2
0’
1
2’
8
’
7
‘
6’
5
’
4
‘6
4
’
3
‘6
3
‘
2
‘9
2
‘6
1
0‘
ft
35mm
1
A001C0001
3
0’
60
’
5
‘6
1
5‘
2
0’
1
2’
8
’
7
‘
6’
5
’
4
‘6
4
’
3
‘6
3
‘
2
‘9
2
‘6
1
0‘
ft
35mm
10000
+0.0
W
ND
128(2.1)
8K/16:9
AF
Track
FPV
Med
Z-Axis
Follow
1
2
193:32
100
F8
IRIS
800
EI
1/80
SS
29.97
FPS
08:02:16:06
TC
24.5M
75
100
112G
2 3 4 5 6 7
8
9
10
11 12 13 14 15 16
17 18 19 20 21

7
©2022 DJI All Rights Reserved.
EN
Broadcast Mode
CH1
CH2
08:02:16:06
A
B
C
D
E
F
G
H
CH1
CH2
08:02:16:06
24.5M
800
EI
F2.8
IRIS
SS
1/50
5600
WB
Clear
ND
75
100
112G
The interface varies for Control mode and Broadcast mode. The following describes the interface
for Control mode. In Broadcast mode, operations such as adjusting recording parameters and
switching LUT cannot be performed.
1. Battery Level and External Power Voltage
The battery level will be displayed when a battery is used as the power source, while the
voltage will be displayed when an external DC power supply is used. The battery icon will
turn red 10 when the battery level is lower than 10%. The battery icon will be when
the battery level is critically low. Charge the battery immediately.
2. TX Battery Level and External Power Voltage
Displays the battery level or external power voltage of the transmitting device according to
the device and power supply used.
3. Storage Capacity
Displays the available storage or the corresponding remaining recording time of the microSD
card in the monitor.
4. Remote Control Devices
Shows the connected remote control devices. See below for the corresponding device for
each icon.
: Three-Channel Follow Focus : Master Wheels
: Left Hand Grip : Right Hand Grip
5. HDMI Input Devices
This icon will appear when the HDMI port is connected to a video source.
6. Video Transmission Signal Strength and Bitrate
Tap to enter video transmission channel settings to switch the channel mode, check the
signal quality, and select the channel and downlink bandwidth.
Channel Mode: tap to switch between Auto and Manual.
In Auto mode, channels with strong interference will be avoided automatically and the

8
©2022 DJI All Rights Reserved.
EN
channel with the least interference and best signal quality is selected. In Manual mode,
users can manually select the channel with the best signal quality and downlink bandwidth.
If the remote monitor is near connected devices in an environment with weak interference,
it is recommended to set the bandwidth to 40M for best transmission quality. If the remote
monitor is far from connected devices in an environment with strong interference, it is
recommended to set the bandwidth to 20M for longer transmission distance and better anti-
interference.
When using with the DJI Video Transmitter, if the video transmitter is linked to the remote
monitor in Control mode and Broadcast mode is enabled, users can select the prioritized
mode.
Prioritized Mode: tap to select Control mode or Broadcast mode as the prioritized mode.
When Control mode is the prioritized mode, the transmission signal quality of the devices in
Control mode will have a priority. Users can select the channel mode. In this mode, devices in
Broadcast mode near the remote monitor may have a weak transmission signal.
When Broadcast mode is the prioritized mode, the transmission signal quality of the devices
in Broadcast mode will have a priority. Users can select the channel manually, while the
channel mode and downlink bandwidth cannot be selected.
7. Recording Parameters
Recording parameters will be displayed when used with Ronin 4D including white balance,
ND, aperture, EI, and aperture angle or shutter speed (depending on Ronin 4D settings). Tap
to adjust the corresponding parameter.
8. Gyroscope Control
Tap to enter the settings menu to enable or disable Gyroscope Control. When enabled, set
the follow speed of the pan, tilt, and roll axes, and recenter the gimbal. Enter the advanced
settings to set the deadband and smoothness of the pan, tilt, and roll axes, calibrate the
compass, and reset to default.
When Gyroscope Control is enabled, hold this icon to pause control and the gimbal will keep
the current attitude. Release to resume control. Double tap the icon to recenter the gimbal.
• The Gyroscope Control icon will not appear here if Gyroscope Control is disabled in System
Menu.
• LiDAR waveform will not appear when Gyroscope Control is enabled.
9. Safety Zone
The safety zone can be used to assist in composition and also to reserve space for overlaid
information in advance such as TV station logos and program icons that need to be added
to the video. Users can enable or disable the safety zone and set the safety zone ratio in
General Settings. Note that the safety zone ratio is only a reference for monitoring and will not
aect the actual recording.
10. Frame Guide
Shows the pre-set frame guide. Users can select the frame guide ratio and transparency in
General Settings. Frame guide ratio customization is not supported at the moment. Note that
the frame guide ratio is only a reference for monitoring and will not aect the actual recording.

9
©2022 DJI All Rights Reserved.
EN
11. System Menu
Includes connection settings, general settings, local playback, about, and help. Refer to the
System Menu section for details.
12. Volume Level
Shows the current volume level. Green means the volume is safe, yellow means it is
approaching being overloaded, and red means it is overloaded.
13. Monitor Volume
Move the slider to adjust the volume from the 3.5mm audio output jack. The remote monitor
does not have a built-in speaker. Users can only monitor the volume using the 3.5mm audio
output jack.
14. Recording Button and Timecode
Tap to start or stop recording locally or remotely. The icon to the right of the timecode shows
the recording device in control currently. Users can select the device in the recording device
setting.
15. LUT (for Ronin 4D only)
Tap to switch the LUT effect of the SDI and HDMI video output from the remote monitor
or remote monitor expansion plate to Rec.709, D-log, HLG, and LOOK. To customize LUT
for monitoring, set the function for LOOK in the Ronin 4D High-Bright Main Monitor to the
imported custom LUT. Refer to the Ronin 4D User Manual for more information.
16. Exposure Assist/Focus Assist Settings
Focus Meter: when enabled, the focus meter will be displayed on the right of the screen. It
can be used to assist focus when the Ronin 4D Hand Grips or DJI Three-Channel Follow
Focus is used. The focus plane distance (the yellow arrow pointed to) and depth of eld (area
within yellow dotted lines) can be displayed in the focus meter and LiDAR waveform when
the focus point information and aperture value are read. (for Ronin 4D only)
LiDAR Waveform: when enabled, the ranging points within the focus area of the LiDAR range
nder will be displayed on the right of the screen in a simplied top-down view. (for Ronin 4D
only)
CH1
CH2
08:02:16:06
A001C016
ft
12’
15‘
20’
30’
5‘6
8’
7‘
6’
5’
4‘6
4’
3‘6
3‘
2‘9
10‘
24.5M
800
EI
F2.8
IRIS
SS
1/50
5600
WB
Clear
ND
75
100
112G
ON
3
0’
60
’
5
‘6
1
5‘
2
0’
1
2’
8
’
7
‘
6’
5
’
4
‘6
4
’
3
‘6
3
‘
2
‘9
2
‘6
1
0‘
ft
35mm
LiDAR Waveform Eect Image

10
©2022 DJI All Rights Reserved.
EN
CH1
CH2
08:02:16:06
CH1
CH2
08:02:16:06
24.5M
800
EI
F2.8
IRIS
SS
1/50
5600
WB
Clear
ND
75
100
A001C0018
Zebra Stripes Eect Image
Zebra Stripes: when enabled, the overexposed areas in the image will be displayed in zebra
stripes. Adjust the percentage of the zebra level using the slider under the option.
Waveform: when enabled, the bottom of the screen will show the relationship and degree of
the light and shadow in the current screen with a waveform.
CH1
CH2
08:02:16:06
CH1
CH2
08:02:16:06
24.5M
800
EI
F2.8
IRIS
SS
1/50
5600
WB
Clear
ND
75
100
A001C0018
Waveform Eect Image

11
©2022 DJI All Rights Reserved.
EN
Focus Peaking: when enabled, users can set the display color and percentage for color
peaking or the percentage for aperture peaking.
When Mirror Control mode is enabled in the Ronin 4D main monitor, users can access the
complete live view of the Ronin 4D main monitor on the remote monitor and adjust the
parameters. The touch operations on the live view are the same as those on the Ronin 4D main
monitor. The icons below correspond to the physical buttons on the Ronin 4D main monitor. Tap
the icons on the screen to perform the same functions of the buttons.
17. Home Button
Tap to enter the menu screen.
18. Focus Peak Button
Tap to enable or disable the focus assist display. The function is set to Focus Peaking by
default. Go to the menu, select Display, then Focus Assistant, and set the PEAK Button
Function to LiDAR Waveform and Focus Mag. The function of the icon on the screen of the
remote monitor will be updated accordingly.
19. LUT Button
Tap to enable or disable LUT display. LUTs are customizable. Go to the menu and select
Display then LOOK to set LOOK as an imported custom LUT. Refer to the LOOK section in
the Ronin 4D User Manual for more information.
20. EXP Button
Tap to enable or disable the exposure display. The feature supports Zebra Stripes, Waveform,
and False Color. Go to the menu and select Display then Exposure Assistant to apply
settings.
21. Playback Button
Tap to access playback and play the last recorded video.
False Color: when enabled, colors representing exposure values of dierent objects will be
added to the image. Enable false color reference to display the false color chart at the bottom
of the screen.
CH1
CH2
08:02:16:06
A001C0018
CH1
CH2
08:02:16:06
24.5M
800
EI
F2.8
IRIS
SS
1/50
5600
WB
Clear
ND
75
100
False Color Eect Image

12
©2022 DJI All Rights Reserved.
EN
System Menu
Tap on the bottom left to enter the system menu for multiple settings.
Connection Settings
Link devices and switch between Control mode and Broadcast mode.
General Settings
Input & Output Settings
HDMI/SDI OSD: enable or disable on-screen display on the HDMI/SDI output device.
HDMI/SDI Aspect Ratio: Normal or CenterCrop (16:9).
HDMI/SDI Frame Rate: Auto or 24/25/30/50/60. When an HDMI/SDI output device is connected,
the monitor will also prompt a window for frame rate selection. Low latency is selected by default,
corresponding to the option 60 in this setting. Auto corresponds to the option Auto in this setting.
The DJI Remote Monitor Expansion Plate is required when using HDMI/SDI output functions.
Input Signal: select OcuSync when using the transmitter as the input source. Select HDMI when
using the HDMI port on the monitor as the input source.
Rec Trigger: when a camera with the rec trigger function is used for the transmitter device,
enable or disable the function in this setting.
USB-C Function: select Update when using the USB-C port for rmware update. If Webcam is
selected, the video stream from the monitor can be used as a webcam input and uploaded to the
computer connected to the USB-C port.
Recording Device
Select the device for video recording.
TX+SD: when using with Ronin 4D, control both the monitor and Ronin 4D to record videos
simultaneously by the record button on the monitoring interface of the monitor or on Ronin 4D.
The recorded les will be stored to both the storage device on Ronin 4D and the microSD card in
the monitor.
TX: when using with Ronin 4D, control Ronin 4D to record videos by the record button on the
monitoring interface of the monitor or on Ronin 4D. The monitor will not perform local recording.
The recorded les will be stored to the storage device on Ronin 4D.
SD: control local recording by the record button on the monitoring interface of the monitor. The
transmitter device will not perform recording. The recorded les will be stored to the microSD
card in the monitor.
Storage
Tap to view the free storage of the microSD card in the monitor and format the microSD card.

13
©2022 DJI All Rights Reserved.
EN
Gyroscope Control
Enable or disable Gyroscope Control. The Gyroscope Control icon will not appear on the
monitoring interface when Gyroscope Control is disabled.
Hand Grip Dial
This setting will appear only when using with DJI Video Transmitter. Set the function of the dial on
the right hand grip if the Ronin 4D Hand Grip is mounted to the monitor.
Screen Settings
Set the frame guide ratio and transparency, enable or disable the safety zone and center marker,
and set the safety zone ratio and brightness.
When an anamorphic widescreen lens is in use, set the appropriate anamorphic desqueeze
display ratio to restore the monitoring liveview to the normal eect.
When specic cameras are in use with the transmitter device, enable the virtual widget to set the
camera parameters using the virtual buttons on the monitor screen.
Language
Select the system language in the language list.
Local Playback
View and play the locally recorded videos on the microSD card in the playback view.
The monitor will play the last recorded video automatically after entering the playback view. Tap
to view the video list. Tap to return to the monitoring interface.
About and Help
View information such as the rmware version and serial number under About and scan the QR
code to view the video tutorials under Help.

14
©2022 DJI All Rights Reserved.
EN
Appendix
Firmware Update
Update the monitor using the DJI Assistant 2 (Ronin Series) software.
1. Power on the device and connect it to a computer with a USB-C cable.
2. Launch DJI Assistant 2 (Ronin Series) and log in with a DJI account.
3. Select the device and click Firmware Update on the left side of the screen.
4. Select the rmware version.
5. The rmware will be downloaded and updated automatically.
6. The device will restart automatically after the rmware update is complete.
Specications
Model RXD2
Weight Remote monitor expansion-protective frame included: 768 g
Remote monitor expansion-protective frame excluded: 496 g
Dimensions
Remote monitor expansion-protective frame included:
214×52×166 mm (L×W×H)
Remote monitor expansion-protective frame excluded:
184×26×158 mm (L×W×H)
Touchscreen Resolution 1920×1200
Touchscreen Brightness 1500 cd/m2
Image Transmission System O3 Pro
Live View Quality 1080p 60fps
Max Communication Bandwidth 40 MHz
Max Transmission Distance
(Unobstructed, free of interference) 6 km (FCC), 4 km (CE/SRRC/MIC)
Video Coding Format H.264
Max Bitrate 40 Mbps
Latency 68 ms (1080p 60fps), 100 ms (1080p 24fps)
Operating Frequency* 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.250-5.350 GHz,
5.470-5.725 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC)
Supported Batteries WB37 Intelligent Battery, NP-F series battery
Operating Temperature -10° to 40° C (14° to 104° F)
* Due to local regulations, the 5.1/5.2/5.8GHz frequencies are prohibited in some countries and the 5.1/5.2GHz
frequencies are only allowed for use in indoor in some countries. 5.600-5.650 GHz is not used.

15
©2022 DJI All Rights Reserved.
EN
Mounting the Remote Monitor Hood
Unfold the remote monitor hood, pass the Velcro on the hood through the mounting holes on the
remote monitor expansion-protective frame as shown, and attach the Velcro rmly.
Using Other Control Devices
Connect the DJI Master Wheels or Force Pro to the monitor to control the transmitter device
remotely.
Connection: mount the DJI Remote Monitor Expansion Plate to the monitor. Connect the DC-
OUT port on the DJI Master Wheels or Force Pro to the DC-IN port on the expansion plate using
the DJI High-Bright Remote Monitor Controller Cable.

CHS
16
©2022 大疆创新 版权所有
免责声明和警告
使用本产品之前，请仔细阅读并遵循本文及与本产品相关的所有安全与合规操作指引。
简介
DJITM 图传高亮监视器采用 DJI O3 Pro 图传技术，通过 Ronin 4D 图传发射器或 DJI 图传发射器
与相应设备无线连接，可远程观看相机拍摄画面及控制相机。监视器可安装拓展板拓展 DC、
CAN 输入及 HDMI、SDI 输出，拓展保护框配备控制手柄接口用于安装控制手柄方便远程控制。
监视器可通过 DJI WB37 智能电池进行供电；若配合 NP-F 电池转接板，可支持 NP-F 系列电池
供电。
部件名称
1. 可拆卸天线
2. 散热孔
3. 3.5 mm 音频输出接口
插入监听设备，可监听发射端录制的音频。
4. microSD 卡槽
最大支持 512 GB 的microSD 卡。图传高亮监视器支持本地录制及独立回放功能，可在录制
控制设置中选择将录制素材保存至 microSD 卡。
5. HDMI 接口
图传高亮监视器在不搭配图传发射器使用时，可作为单独的监视器使用。通过此 HDMI 接口
接收视频源输入信号，此时遮幅及安全框设置、曝光辅助及对焦辅助均可正常使用。
6. USB-C 接口
使用 USB-C 线连接至 DJI Assistant 2 (Ronin Series) 调参软件以激活设备、升级固件。亦可
接入计算机将监视器的视频源作为网络摄像头的输入使用。使用前需在监视器的输入输出设
置中切换 USB-C 接口的用途。
1
7
8
13
3
2
4
5
6
9
10
11
12
