djive FLOWMATE Classic 120 User manual

Metal fan with
smart functions
For keeping your
home cooled in
a smart way. English
Deutsch
Français
Español
Italiano
Classic 120

2
Contents
Notice before use 4
Product overview 10
Assembly 11
Operating instructions 13
Care & Maintenance 15
Storage 16
Troubleshooting 16
Technical specifications 17
Smartphone and Alexa operation 17

3
Dear Customer,
Your new Flowmate Classic is
about to be used for the first time
for cooling the air in your home.
Please take a moment to read this
manual to familiarise yourself with
your new Flowmate Classic Fan.
If you have any questions, please
contact our customer service.
Enjoy every day with cooled air
with your Flowmate.
Customer care
Phone [phone]
suppor[email protected]
www.djive.eu flowmate
Robovox Distributions GmbH | Hamburger Straße 11, D-45889 Gelsenkirchen

4
NOTICE BEFORE USE \\\
ATTENTION
To avoid fire, electric shock and personal injury, please be sure to
observe the following requirements. Please follow the relevant
national and local electrical regulations:
1. The appliance is not intended for use by children, elderly or disabled
people, or any individual lacking experience and knowledge concerning
the use of the fan, unless they have been given supervision or instruction
by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
2. Please use a separate outlet in accordance with the appliance current.
Do not use the socket with other appliances at the same time.
3. If the fan does not work, the power must be turned off and repaired by
qualified personnel.
4. Do not move the fan when it is plugged in.
5. When plugging or unplugging the power plug, hold the plug with hand
and do not pull the power cord.
6. If the power cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
7. Do not stretch or strain the power cord and keep it away from overheated
surfaces.
8. Do not run the fan on the carpet, and do not cover carpets, other devices
or similar materials. The power cord should be kept away from passing
areas and placed in areas that it will not be tripped over.

5
English
9. Turn off all functions before unplugging the fan. When it is not in use for a
long time, unplug it from the socket. To avoid the risk of tripping, securely
store the wires.
10. Do not put any object on the rotors to make sure the tey are free from
dust, lint, hair, and any obstacle that may reduce airflow.
11. The fan should be placed on a non-inclined dry surface with good ventila
tion, where is away from heat sources and has no surrounding corrosive
gas. There should be 30cm space around the fan to ensure air flow.
12. It is only intended to be used in a dry place only. It cannot be used out
doors or on a wet surface.
13. Do not immerse the fan, power cord, or power plug in water or other
liquids to avoid danger. For non-professionals, do not use other extension
power cords.
14. Do not use air purifier or similar products directly next to the fan. Do not
use any detergent or lubricant on the fan. The plug must be unplugged
before cleaning and maintenance.
15. This appliance uses natural untreated wood. Do not allow the wood to
get wet as this can cause it to deteriorate, stain, or develop mould or
fungus. Keep the wood away from any heat source as it is a flammable
material.
16. Avoid contact with moving fan parts. Do not insert any body parts
(e.g. finger) or objects through the grill when the fan is operating.

6
NOTICE BEFORE USE \\\
ATTENTION
To ensure proper usage and maintenance of the fan, please read
the instruction manual carefully before use and take good care
of this manual for future reference.
DANGER
ATTENTION
If the dangerous situation is
not avoided, this can lead to
death or serious injuries.
If the dangerous situation is
not avoided, this can lead to
serious injuries.
Symbol indicates “force” (please act carefully)
Symbol indicates “prohibited”
General safety information:
1. Examine the device for any visible external damages prior to using it.
Never put a damaged device into operation. Contact the dealer if needed.
2. Persons, who are not able to operate the device because of any decrea-
sed physical, mental abilities may only use the device under the super-
vision or under the instructions of a responsible person.
3. Do not permit children to use the device, unless they are supervised.
4. Only qualified electricians, who have been trained by the manufacturer,
may carry out any repairs that may be needed. Improperly performed
repairs can cause considerable dangers for the user.

7
English
DANGER
Only qualified electricians, who have been trained by the manufacturer,
may carry out any repairs that may be needed.
This appliance is used in the household only. Please use a separate outlet
in accordance with the appliance current/voltage. Don’t use more than
one electrical appliance at the same time on the same outlet.
Do not pull the power cord to remove the plug from the mains socket.
Do not use the appliance if the power cord or mains plug is damaged.
Do not open the housing of the appliance.
Danger from electric current if live connections are touched and/or the
electrical and mechanical configuration is changed.
Never immerse the appliance or the power cord into water or other liquids.
Do not touch the power cord with wet hands when disconnecting the
appliance from the mains supply.
This appliance may be used by children under the age 8 years and by
persons with decreased physical, sensory or mental abilities or lack of
experience and/or knowledge only if they are supervised or were instructed
on using the appliance and have understood the resulting dangers.
Cleaning or maintenance may not be performed by children who are not
under supervision. Children must be supervised to ensure that they do not
play with the appliance.
Store the appliance and accessory parts out of the reach of children.

8
NOTICE BEFORE USE \\\
DANGER– RISK OF FIRE
Never cover the appliance when it is in operation.
Do not put the appliance in the vicinity of easily inflammable materials
such as paint, varnish or gas.
Allow a gap of at least 1m between the fan and all flammable and
heatsensitive materials (furniture, curtains, paper, clothes etc.).
Immediately disconnect the power plug from the electrical outlet and stop
using it when find (abnormal noise • burnt odor etc.).
If you continue to use it while it remains abnormal, there is a risk that leads
to smoke or fire, electric shock or injury. Please consult your dealer.
During use, when the power plug or power cord becomes abnormally hot,
it is at the risk of fire. Please shut off the device.
Please clean the plug regularly with a dry cloth, otherwise dirty or dusty
plug may cause defective insulation and cause fire.
DANGER – SMALL CHILDREN
It must be ensured at all times that children and infants do not play with
the appliance.

9
English
ATTENTION
Place the appliance on a firm, dry, flat and waterproof surface.
Do not install the appliance in a hot, wet or very humid environment.
Never place the appliance or parts of the appliance in the vicinity of strong
heat sources and hot surfaces (e.g., heating, oven, and grill).
Do not place the fan in a narrow place, a corner or in narrow areas between
furnitures. Allow sufficient space around it so that the air can circulate fully.
The appliance becomes very hot during operation. Therefore, do not touch
the hot surfaces of the appliance during operation and for a short time
afterwards.
Wait until the appliance has cooled down before transporting it.
Do not spray air freshener into the airflow.
Do not place the appliance in front of an automatic air freshener system.
Always turn off the power button at the control panel and wait for it
to stop running before unplugging it from the power socket.
Do not put objects into the openings or ventilation grilles.
Keep the appliance free from dust, hair and above all, anything that
could restrict the airflow.
The fan must be fully and properly assembled before use.
Do not hang or mount the fan on a wall or ceiling.

10
PRODUCT OVERVIEW \\\
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
ON/OFF
TIMER
SWING
SPEED

11
English
ASSEMBLY \\\
Remove all small parts from the box.

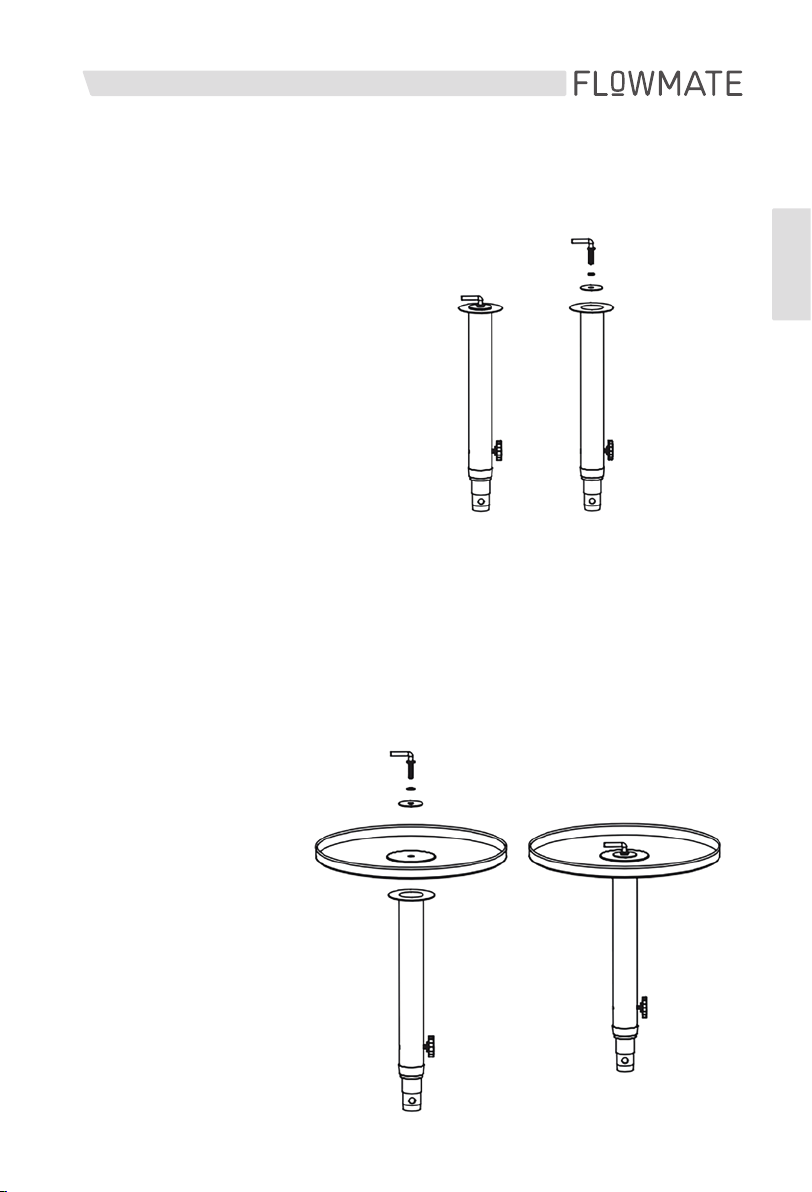

Base assembly
1. Loosen and remove the base
locking screw and washers
from the bottom of the pipe.
2. Fit the pipe into the recess in the top side of the base; and while
holding it, turn it over to access the underneath.
3. Align the big washer, small washer and the base locking screw against
the hole. Rotate the base locking screw to finish attaching the base to
the fan body.
4. Now turn it theright way up
and place on a flat stable
surface.

12
ASSEMBLY \\\
Fan assembly
1. Loosen the locking screw on the bottom of the fan head and align the fan
head to the top of the inner pole. Tighten the locking screw to
attach the fan head to the fan body.
Tilt adjustment
To adjust the air flow, the tilt angle can be adjusted. To do this, loosen the tilt
adjustment screw and adjust the fan head to the desired angle. Tighten the
tilt adjustment screw to fix the position.
Height adjustment
To adjust the height of the fan, loosen the height adjustment screw on the
outer pipe and push the inner pipe up/down to the desired height. Tighten
the height adjustment screw to fix the fan in place. The fan height can be
adjusted from 90cm to 120cm.
The fan should be switched off before making any adjustments.

13
English
OPERATING INSTRUCTIONS \\\
Remote control
All available functions can be operated with the remote control.
SWING
Start/Stop the panning function
TIMER
Set a shutdown timer (2 / 5 / 7 h)
SPEED
Change the air speed to 3 levels
in total ( Low / Medium / High)
ON / OFF
Turn the power on/off
ON/OFF
TIMER
SWING
SPEED

14
OPERATING INSTRUCTIONS \\\
Fan control
SWING
Start/Stop the panning function
TIMER
Set a shutdown timer (2 / 5 / 7 h)
SPEED
Change the air speed to 3 levels
in total ( Low / Medium / High)
ON / OFF
Turn the power on/off
ON/OFF SPEED TIMER SWING
5H2HSWINGWIFI
LOW MID
LED indicators
HI

15
English
CARE&MAINTENANCE \\\
ATTENTION
Always switch off and unplug the fan before performing any cleaning.
Don’t splash water on the fan. It may damage the fan. Please don’t use
banana oil, gasoline, alcohol, bleach or metal object to clean the surface
of the fan. Otherwise it may discolor or deteriorate the surface of the fan.
Cleaning the appliance
1. Use a vacuum cleaner with a brush attachment to clean the grills.
2. Use a soft duster or a cloth rag to dust off all the surfaces.
3. To clean the blade, first remove the front grill and cover by unscrewing
the small screws around the edge of the rear grill.
4. Wipe all the parts with a soft damp (not wet) cloth dipped in mild soapy
water. ATTENTION: Ensure that water doesn’t get into the motor unit.
5. Use a dry cloth to thoroughly dry the blades and the grills before
reassembling. Make sure that the fan is completely assembled before
switching on again.

16
STORAGE \\\
ATTENTION– Storage
1. Place the fan in a large plastic bag for dust protection after
care and maintenance.
2. Please avoid unstable places and electrical appliances with
refrigeration/heating functions.
3. Avoid placing it in direct sunlight, hot and wet places.
4. Please store the fan in the clean and dry place.
5. Please place it where children can’t touch it.
TROUBLESHOOTING \\\
Problem Possible cause and solution
The device is plugged in
but won't function.
• Is the power plug properly connected?
Is the power indicator on?
If not, check if there is a power outage.
The remote control
does not work.
• Is the battery empty?
Please replace it with a new one.
• Is the battery installed properly?
Please check if it's facing the right side.
• Is the remote control aimed at the fan?

17
English
TECHNICAL
SPECIFICATIONS \\\
Specifications are subject to change without prior notice
Model DJ50004 (FD-40ME2)
Voltage 220V~50HZ
Power 35W
Fan Diameter 45 cm
Timer range 2 / 5 / 7 hours
Body material Brushed steel
Dimensions H 120cm x W 47cm x D 41cm
Net weight 6,4 kg
FLOWMATE Classic 120
Support service
If the device should ever completely fail to operate, please contact
us via mail first. (refer to page 3)
We will try our hardest to either fix your appliance or to provide a new
Flowmate Tower one to you.
App and Alexa
This device can be operated via Smartphone and Amazon Alexa.
For instructions how to download and operate the app, please visit
www.djive.eu

18
Inhalt
Wichtige Warnhinweise 20
Bestandteile 26
Montage 27
Bedienung 29
Pflege & Wartung 31
Aufbewahrung 32
Problembehandlung 32
Technische Spezifikationen 33
Smartphone und Alexa-Bedienung 33

19
Deutsch
Sehr geehrte Kundin, sehr geehrter Kunde,
Ihr neuer Flowmate Classic 120 steht für
seinen ersten Einsatz zur Kühlung in Ihrem
zuhause bereit.
Bitte nehmen Sie sich einen Moment Zeit,
dieses Handbuch zu lesen und sich mit
Ihrem neuen Flowmate Classic Ventilator
vertraut zu machen.
Sollten Sie Fragen haben, dann kontak-
tieren Sie bitte unseren Kundenservice.
Genießen Sie mit Ihrem Flowmate jeden
Tag gekühlte Raumluft.
Kundendienst
Telefon [phone]
suppor[email protected]
www.djive.eu flowmate
Robovox Distributions GmbH | Hamburger Straße 11, D-45889 Gelsenkirchen

20
WICHTIGE WARNHINWEISE \\\
ACHTUNG
Um Brandgefahr, Stromschläge und körperliche Verletzungen zu
vermeiden, beachten Sie bitte folgende Sicherheitshinweise und
internationale Regulierungen:
1. Dieses Gerät sollte nicht von Kindern, älteren Personen mit fehlender
Erfahrung im Umgang mit ähnlicher Elektronik, sowie beeinträchtigten
Personen ohne die Aufsicht eines Schutzbeauftragten bedient werden.
Bei diesem Gerät handelt es sich nicht um Spielzeug!
2. Bitte nutzen Sie für das Gerät eine seperate Steckdose, die den techni-
schen Anforderungen des Gerätes entspricht und verzichten Sie auf eine
gleichzeitige Benutzung der Steckdose mit anderen Geräten.
3. Sollte das Gerät nicht funktionieren, schalten Sie es bitte aus, trennen Sie
es vom Stromnetz und lassen Sie es bitte von einer qualifizierten Person
reparieren.
4. Stellen Sie bitte das Gerät nicht an einen neuen Ort während es
in Betrieb ist.
5. Halten Sie das Stromkabel beim einstecken bzw. herausziehen immer
am Stecker, nicht am Kabel an sich.
6. Sollte das Stromkabel beschädigt sein, muss es dringend vom Hersteller,
dem Service-Partner oder einer anderen qualifizierten Person repariert
werden um schwere Unfälle zu vermeiden.
7. Bitte ziehen Sie nicht übermäßig am Stromkabel oder belasten es auf
eine andere Weise. Vermeiden Sie ebenfalls heiße Oberflächen.
8. Bitte stellen Sie das Gerät so auf, dass keine Kinder, Haustiere oder
andere Personen über das Gerät bzw. das Stromkabel stolpern.
