DJO GALAXY Series User manual

INSTALLATION AND OPERATION MANUAL
GALAXY
Massage table
Manufactured for DJO
For service & repair:
For US product support please call 1-800-494-3395,
or visit djoglobal.com.
For international product support please contact your
local dealer, or your corresponding DJO Global site.
You may also contact us internationally at the below
email address:
[e-mail]
MEDEN - INMED Sp. z o.o.
2 WENEDÓW STREET
KOSZALIN 75-847
POLAND

2019-08-30 Galaxy massage - User Manual.doc
Page 2 z 25
CONTENT
1. INTRODUCTION 3
2. FEATURES OF GALAXY MASSAGE TABLES 4
2.1. INTENDED USE 4
2.2. TECHNICAL DATA 4
2.3. GALAXY MERCURY CLASSIC 5
2.4. GALAXY MERCURY S2.FX / S2.FX-H 5
2.5. GALAXY MERCURY E-S2.FX / E-S2.FX-H 5
2.6. GALAXY JUPITER S3.FX / S3.FX-H 6
2.7. GALAXY MERCURY S4.FX / S4.FX-H 6
2.8. GALAXY JUPITER S5.FX / S5.FX-H 6
2.9. GALAXY SATURN P3.FX / P3.FX-H 7
2.10. GALAXY SATURN P5.FX / P5.FX-H 7
3. DESIGN AND FUNCTIONS 8
3.1. TABLE COMPONENTS 8
3.2. EQUIPMENT AND ADDITIONAL ACCESSORIES 9
3.3. TABLE SET 9
3.4. TRANSPORT AND STORAGE 9
4. GENERAL WARNINGS AND CAUTIONS 10
5. PREPARING THE UNIT FOR USE 11
6. OPERATING THE TABLE 13
6.1. LEVELING THE TABLE 13
6.2. HEIGHT ADJUSTMENT –RAISING (LOWERING) THE BED 13
6.3. ADJUSTMENT OF THE FRONT (REAR) SECTION INCLINATION/DECLINATION ANGLE 15
6.4. ADJUSTING POSTURAL DRAINAGE ANGLE 15
6.5. HEIGHT ADJUSTMENT OF THE SIDES IN THE HEADREST PART 16
6.6. MOVING THE TABLE 16
6.7. ACCESS LOCK (NOT APPLICABLE TO -H MODELS) 17
7. MAINTENANCE 18
7.1. CLEANING THE UPHOLSTERY 19
7.2. MAINTENANCE OF THE BASE AND MECHANICAL PARTS 19
7.3. CHECKING THE GAS SPRINGS 20
7.4. CHECKING THE ACTUATORS 20
8.0. TROUBLESHOOTING 21
9.0. ELECTROMAGNETIC COMPATIBILITY –GUIDANCE AND MANUFACTURER’S
DECLARATION 21
10. WARRANTY CARD 24

2019-08-30 Galaxy massage - User Manual.doc
Page 3 z 25
1. INTRODUCTION
Congratulations on a perfect choice of our massage table. GALAXY massage tables are stable, reliable and
easy to use. These features result from careful design, manufacturing methods applied in production and the
quality assurance system. Reading and following instructions provided in this manual will ensure safe and long
lasting use of our tables.
GENERAL INSTRUCTIONS:
1. This product must be operated by personnel who have thoroughly read and understood all the
precautionary and operating instructions put forth in this operation manual.
2. Using, operating or servicing of the product contrary to the rules and recommendations put forth in this
user manual is prohibited, as it may lead to damage which the manufacturer shall not be liable for.
3. If the performance or parameters of the product are not in accordance with the description in this
manual or if any damage to its performance is observed, the product must not be used. You must report
the manufacturer or supplier immediately.
4. Repair of the product must be done by the local DJO office or authorized dealer and registered on the
repair list in the warranty card. Failure to do so will void the warranty.
5. Technical description of the table with a list of spare parts and how to replace them is available from
your local DJO Service Dealer or the manufacturer on request.
This warranty will not be fulfilled if the product is used contrary to its purpose or fails to comply with the terms
set in the user manual. The manufacturer shall not be liable for the consequences of improper (i.e. against the
instructions put forth in this user manual) use of the accessories for the table.
CAUTION !
This sign denotes operations which - when performed in a way other than described in this manual –
may worsen the safety conditions or cause hazard to the user and/or the operator of the device.
Such marking has been applied to the table GALAXY massage table where it is essential to read the
contents of the Operator's Manual and follow the instructions for use of the table.
Applied part type B
Manufacturer
Compliance for both U.S. and Canadian markets.
All electric and electronic devices marked with the symbol of crossed-out dustbin must be disposed-of
properly at recycling facilities according to the European Union’s WEEE directive or equivalent
regulations. It is absolutely necessary that all devices which contain substances harmful to the
environment or humans are recycled properly in relevant facilities and must not be disposed of with
general or household waste. Such regulations ensure that the quantity of electronic waste is reduced
and a required amount of electronic devices is recycled properly. Proper recycling of electronic waste is
important as it may contain substances harmful to the environment and humans.

2019-08-30 Galaxy massage - User Manual.doc
Page 4 z 25
2. FEATURES OF GALAXY MASSAGE TABLES
This manual describes the different execution of the GALAXY table, so not all of the information and
drawings contained in it are related to your copy. The manufacturer reserves the right to make
changes, not depicted in the current version of the manual, which will not cause degradation of
functional and safety conditions of the product.
2.1. Intended Use
The GALAXY massage table is designed for performing manual massage treatments to treat and
alleviate traumas or disabilities by restoring or improving the function of massaged tissues, organs,
and systems.
2.2. Technical data
Technical data
GALAXY
MERCURY
JUPITER
SATURN
MERCURY
CLASSIC
S2.Fx
S4.Fx
S3.Fx
S5.Fx
P3.Fx
P5.Fx
E-S2.Fx
S2.Fx-H
S4.Fx-H
S3.Fx-H
S5.Fx-H
P3.Fx-H
P5.Fx-H
E-S2.Fx-H
head section
46 cm (18,1 in)
69 cm
(27,2 in)
Table length
middle section
-
54 cm (21,3 in)
-
foot section
155 cm (61 in)
101 cm (39,8 in)
139 cm
(54,7 in)
total
202-205 cm (79,5-80,7 in)
211 cm (83 in)
Inclination/declination
angle adjustment
[degrees]
head section
40:70
00:85
Hight adjustement
minimum
50 (52) 1 cm / 51 (53) 1 cm –H
(19,7 (20,5) 0,4 in / 20,1 (20,9) 0,4 in) –H
maksimum
101 (103) 1 cm / 96 (98) 1 cm –H
(39,8 (40,5) 0,4 in / 37,8 (38,6) 0,4 in) –H
Table width
All sections
app. 64 cm (25,2 in) *
Duty cycyle
18
min.
2
min.
Continuous, short term load (10%) max. 2 minutes “on”, min. 18 minutes “off”)
Does not apply to a hydraulic actuator table
Lifting capacity
≤ 200 kg (440 lbs)
(max safe load while adjusting height)
Working capacity
≤ 275 kg (606 lbs)
(max safe load while not adjusting height)
Weight
not more than
115 kg (253 lbs)
Voltage frequency,
current consumption
100-240 V; 50/60 Hz; 3-1,5 A
Does not apply to a table with hydraulic actuator
Power and security
requirements
Protection class
I
Applied part
type B,
Protection level
Enclosure (control
box)
IPX4
environment conditions
work
+10C up to +40C, from 30% to 75% non-condensing, 700-1060 hPa
(temperature, relative
storage
+5C up to +45C, not exceeding 75% non-condensing, 700-1060 hPa
humidity, air pressure)
transport
-10C up to +45C, from 20% to 95% non-condensing, 700-1060 hPa
Table 1 - Technical specifications of the GALAXY massage table family (The symbol Fx is the type of the lower frame, the symbol -H stands for the
hydraulic height adjustment system - see section 3.1)
* On request, it is possible to make a table width of 76 cm (29.9 in).

2019-08-30 Galaxy massage - User Manual.doc
Page 5 z 25
GALAXY massage table type MERCURY model CLASSIC, S2.Fx, S4.Fx, E-S2.Fx, type
JUPITER model S3.Fx, S5.Fx and type SATURN model P3.Fx, P5.Fx together with equipment
is made in accordance With essential requirements for medical devices (class I, rule 12) and
have the CE marking, according to the declaration of the manufacturer.
GALAXY massage table type MERCURY model S2.Fx-H, S4.Fx-H, E-S2.Fx-H type JUPITER
model S3.Fx-H, S5.Fx-H and type SATURN model P3.Fx-H, P5.Fx-H with accessories is made
according to the essential requirements for medical devices (class I, rule 12) and have CE
marking according to manufacturer's declaration.
2.3. GALAXY MERCURY CLASSIC
Head section inclination angle adjustment from: 0 to +40 degrees
Length of the head section: 46 cm (18,1 in)
Head section declination angle adjustment from: 0 to -70 degrees
Length of the leg section: 155 cm (64 in)

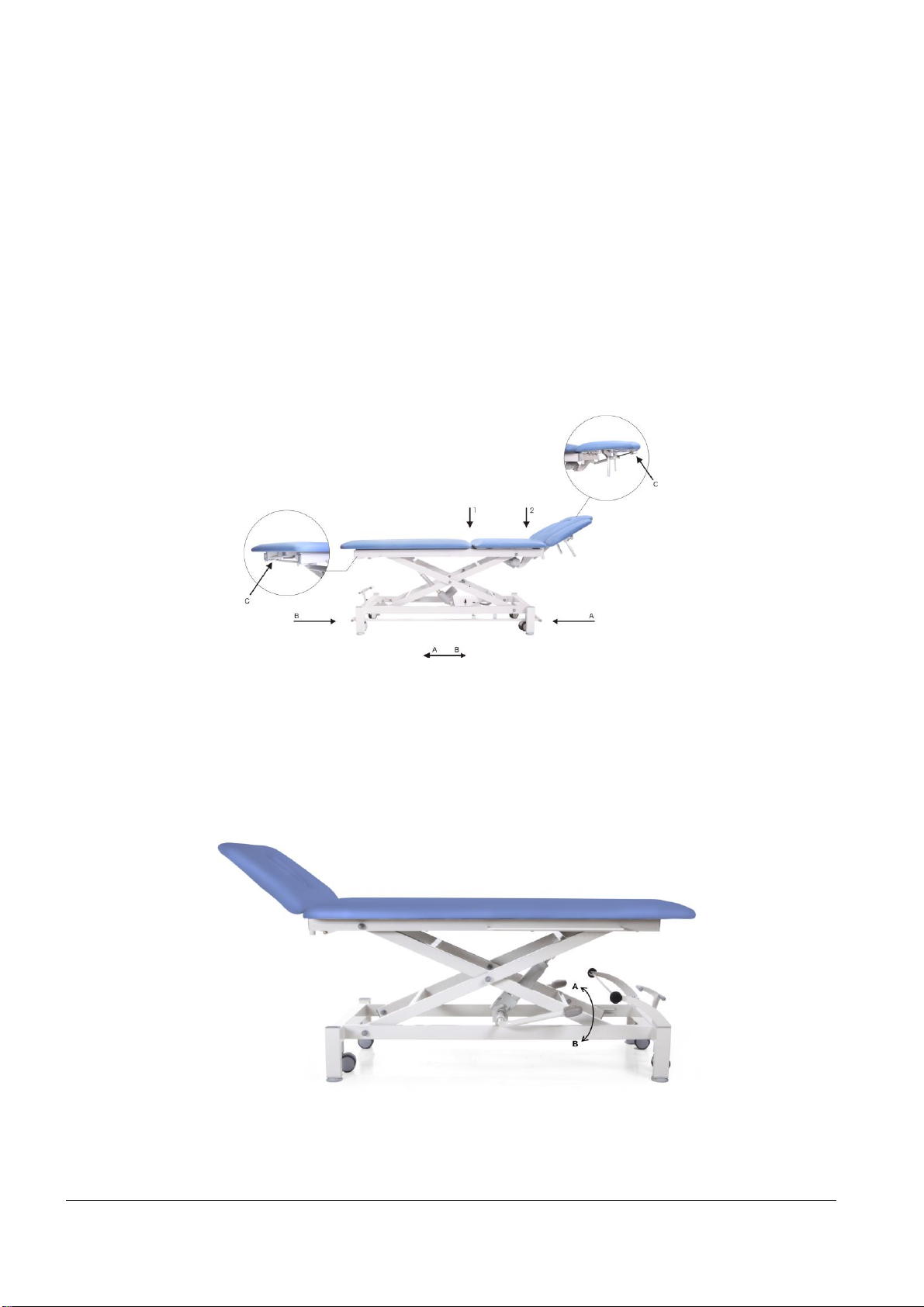

Picture 1 –Inclination/declination angle adjustment section, length of the sections in GALAXY MERCURY CLASSIC tables
2.4. GALAXY MERCURY S2.Fx / S2.Fx-H
Head section inclination angle adjustment from: 0 to +40 degrees
Length of the head section: 46 cm (18,1 in)
Head section declination angle adjustment from: 0 to -70 degrees
Length of the leg section: 155 cm (64 in)
Picture 2 –Inclination/declination angle adjustment section, length of the sections in GALAXY MERCURY S2.Fx /S2.Fx-H
2.5. GALAXY MERCURY E-S2.Fx / E-S2.Fx-H
Head section inclination angle adjustment from: 0 to +85 degrees
Length of the head section: 69 cm (27,2 in)
Length of the leg section: 139 cm (54,7 in)
Picture 3 –Inclination angle adjustment section, length of the sections in GALAXY MERCURY E-S2.Fx/E-S2.Fx-H tables

2019-08-30 Galaxy massage - User Manual.doc
Page 6 z 25
2.6. GALAXY JUPITER S3.Fx / S3.Fx-H
Head section inclination angle adjustment from: 0 to +40 degrees
Length of the head section: 46 cm (18,1 in)
Head section declination angle adjustment from: 0 to -70 degrees
Length of the middle section: 54 cm (21,3 in)
Leg section inclination angle adjustment from: 0 to +90 degrees
Length of the leg section: 101 cm (39,8 in)
Picture 4 –Angle adjustment of head, leg section in GALAXY JUPITER E-S2.Fx/E-S2.Fx-H table
2.7. GALAXY MERCURY S4.Fx / S4.Fx-H
Head section inclination angle adjustment from: 0 to +40 degrees
Length of the head section: 46 cm (18,1 in)
Head section declination angle adjustment from: 0 to -70 degrees
Length of the leg section: 155 cm (61 in)
Picture 5 –Angle adjustment of head section in GALAXY MERCURY E-S4.Fx/ S4.Fx-H
2.8. GALAXY JUPITER S5.Fx / S5.Fx-H
Head section inclination angle adjustment from: 0 to +40 degrees
Length of the head section: 46 cm (18,1 in)
Head section declination angle adjustment from: 0 to -70 degrees
Length of the middle section: 54 cm (21,3 in)
Leg section inclination angle adjustment from: 0 to +90 degrees
Length of the leg section: 101 cm (39,8 in)
Picture 6 –Angle adjustment of the head, leg section in GALAXY JUPITER S5.Fx/ S5.Fx-H table

2019-08-30 Galaxy massage - User Manual.doc
Page 7 z 25
2.9. GALAXY SATURN P3.Fx / P3.Fx-H
Head section inclination angle adjustment from: 0 to +40 degrees
Length of the head section: 46 cm (18,1 in)
Head section declination angle adjustment from: 0 to -70 degrees
Length of the middle section: 54 cm (21,3 in)
Leg section inclination angle adjustment from: 0 to +90 degrees
Length of the leg section: 101 cm (39,8 in)
Postural Drainage angle adjustment from 0 to +24 degrees
Picture 7 –Angle adjustment of the head, postural drainage, leg section, sizes of sections in GALAXY SATURN P3.Fx/ P3.Fx-H table
2.10. GALAXY SATURN P5.Fx / P5.Fx-H
Head section inclination angle adjustment from: 0 to +40 degrees
Length of the head section: 46 cm (18,1 in)
Head section declination angle adjustment from: 0 to -70 degrees
Length of the middle section: 54 cm (21,3 in)
Leg section inclination angle adjustment from: 0 to +90 degrees
Length of the leg section: 101 cm (39,8 in)
Postural Drainage angle adjustment from 0 to +24 degrees
Picture 8 –Angle adjustment of the head, postural drainage, leg section, sizes of sections in GALAXY SATURN P5.Fx/ P5.Fx-H table

2019-08-30 Galaxy massage - User Manual.doc
Page 8 z 25
3. DESIGN AND FUNCTIONS
3.1. Table components
CAUTION !
It is forbidden to modify tables without written authorization from the manufacturer.
The frame of the table is made of welded steel sections coated with powder paint. It includes the following
components:
Picture 9 - Elements of the GALAXY massage table
①
bottom frame
MERCURY CLASSIC - table support, equipped with two small wheels and two feet, without foot
switch (height adjustment by hand);
MERCURY Sx.Fx, E-S2.Fx, JUPITER Sx.Fx and Saturn Px.Fx - table carrier, equipped with foot
height adjuster;
MERCURY Sx.Fx-H, E-S2.Fx-H, JUPITER Sx.Fx-H and Saturn Px.Fx-H - table support, equipped
with hydraulic height adjustment system.
F0
- with two small wheels and two feet;
F4
- made on four feet, with foot lever mechanism of four retractable wheels for easy transport.
②
upper frame
bed mounting surface with height adjustment electric actuator (Sx.Fx i Px.Fx);
bed mounting surface with height adjustment gas spring (Sx.Fx-H i Px.Fx-H).
③
patient bed
which is the application part of the Galaxy Massage Table, which allows for a convenient massage
position and adjustment of the inclination and declination angles of the front, middle or rear sections
(depending on the version of the table).
④
head section
with angle adjustment and breathing hole;
⑤
access lock
blocks the hi-lo and postural drainage adjustment of the table (table version with electric actuator).

2019-08-30 Galaxy massage - User Manual.doc
Page 9 z 25

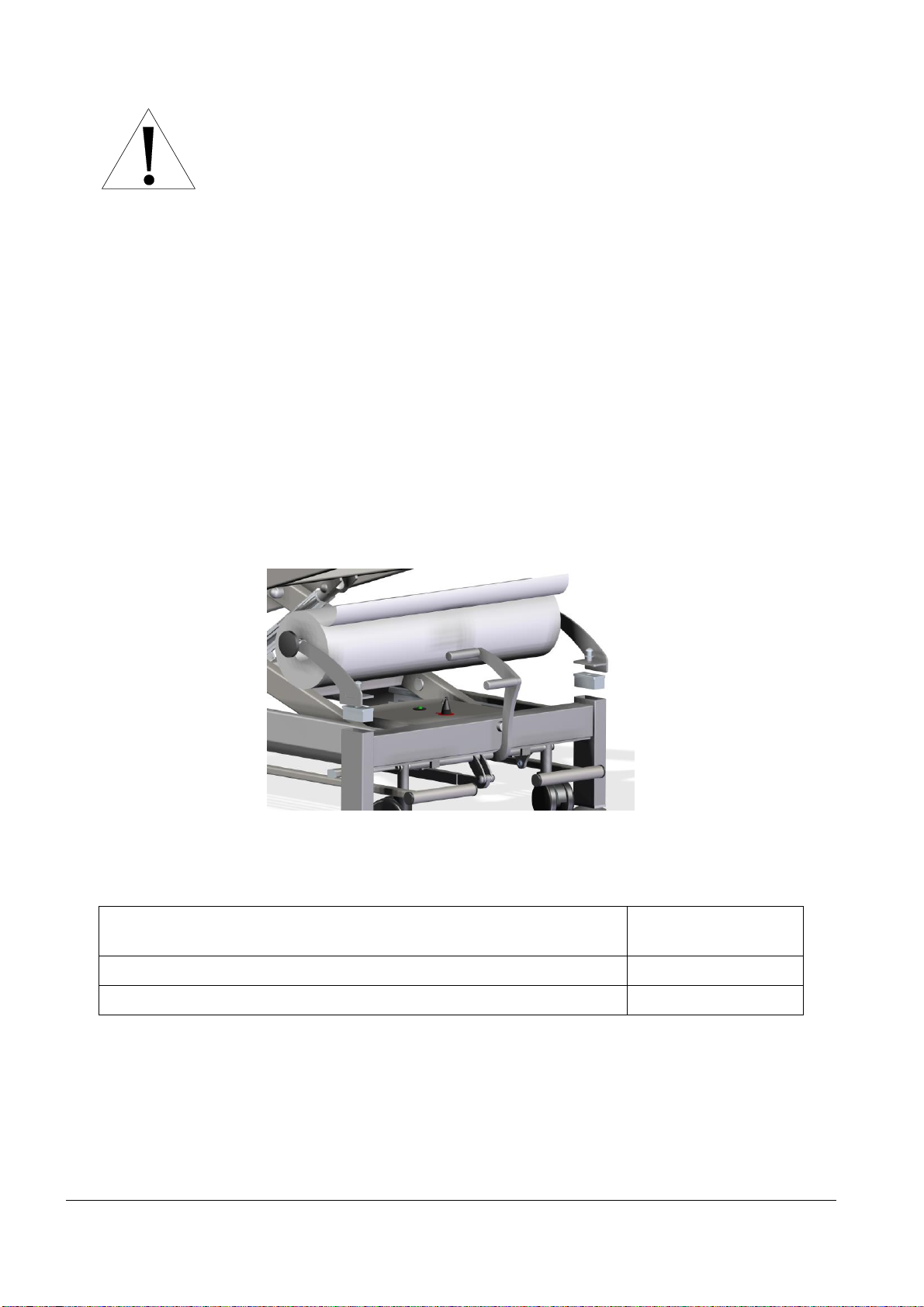

3.2. Equipment and additional accessories
CAUTION !
Use only accessories indicated or provided by the manufacturer.
Every GALAXY massage table is provided with a breathing slot in the front section and has rails for
fastening the stabilization belts in the rear section (except for MERCURY CLASSIC).
Additionally, the tables may be equipped with the following accessories:
- paper towel hanger (roll size 60 x 14 ) - see. pic.2;
- stabilization bolsters and belts;
- wedges: 30x40x12 cm and 50x35x20 cm;
- rolls and semi-rolls 60x15 cm and 60x15x10 cm;
- ergonomic chair/stool for therapists (LUX, STANDARD, FLEXI);
- foot support for the therapist;
- remote control for the height adjustment of the bed (only MERCURY CLASSIC);
- cap for the face opening (option MERCURY CLASSIC).
Picture 10 –Installation of a paper towel roll and recommended unroll direction
3.3. Table set
GALAXY massage table
model as per order
specs
Installation and operation manual
1 pc.
Additional accessories
as per order specs
3.4. Transport and storage
Transport and storage conditions are described in table 1. The GALAXY tables are transported to the
customer in a cardboard box on a wooden pallet. Stacking is permitted up to 3 layers using special
stackable pallets. External edges of the upholstered parts are lined with foam, bubble wrap and
stretch foil. Protect the outer edges of GALAXY tables against damage while moving or transporting
them.

2019-08-30 Galaxy massage - User Manual.doc
Page 10 z 25

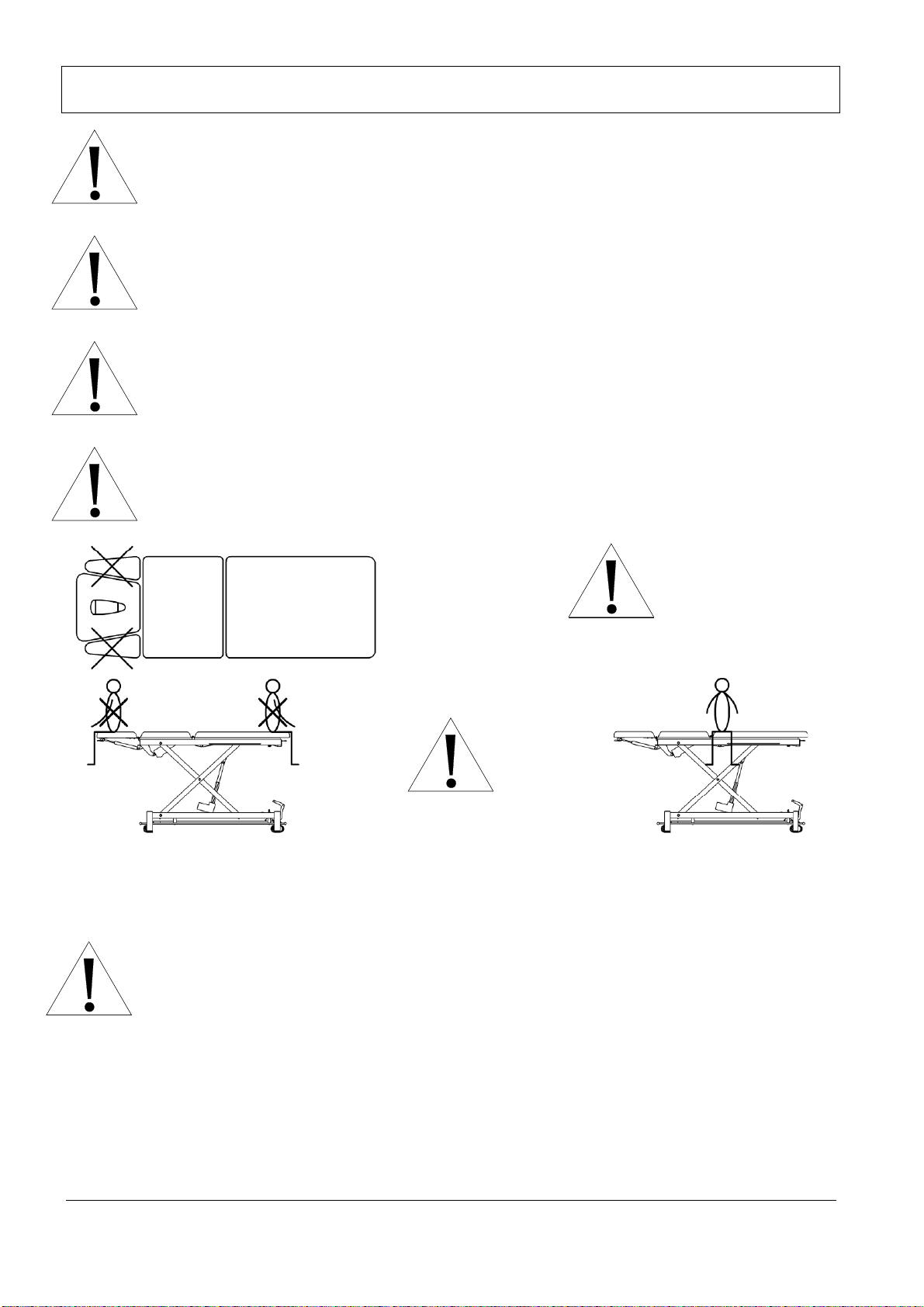

4. GENERAL WARNINGS AND CAUTIONS
CAUTION !
To avoid the risk of electric shock, the table must be connected to a grounded electrical service. Do not
use any extension cords and/or multiple outlet extension cords.
CAUTION !
Do not use a table with a power cord other than provided by the manufacturer.
CAUTION !
Galaxy massage table have a limited load capacity! The safe working load should not exceed 200 kg
(440 lbs) when lifting and the total load should not exceed 275 kg (606 lbs).
CAUTION !
If the patient is placed in the wrong position relative to the moving parts of the bed, there is a risk of
injury to the body or table structure.
Do not sit on the movable upholstery of the front section
INCORRECT
CORRECT
Picture 11 –Correct and Incorrect loading of the table
CAUTION !
Do not allow liquids (coffee, tea, water, detergents and disinfectants) to contact the actuator electrical
wiring and other components of the table. In the case of water damage to electrical wiring or actuator
conduit the table should be immediately disconnected from the power supply by removing the plug from
the outlet. It is recommended to have the table examined by a qualified technician
Help the patient to maintain proper position before doing treatment procedures by lowering the bed
top to the lowest position. Likewise, lower the bed top after the treatment to help the patient to get out
of the bed. The manufacturer is not liable for the consequences of improper (not in accordance with
the conditions set out in this manual) use of the GALAXY tables.

2019-08-30 Galaxy massage - User Manual.doc
Page 11 z 25
5. PREPARING THE UNIT FOR USE
CAUTION !
When setting or changing the place of use of the GALAXY massage table, ensure that
there are no objects in the space below the bottom frame of the table. Avoid
uncontrolled access to the children's use area, as well as pets (cat, dog, etc.). Do not
place objects in the space under the table to avoid damaging during the movement.
CAUTION !
In order to reliably disconnect the power supply system of the table, unplug the power
cord of the table from the socket.
CAUTION !
Unplug the table from the mains socket while performing maintenance, servicing or
similar actions under the table.
CAUTION !
When connecting the electrical power supply cable, make sure to protect it from
accidental clamping of objects between moving parts of the table. The electrical power
supply cable should be laid in such a manner so as to prevent the patient or the user
from tripping over it.
CAUTION !
Do not use the table in rooms with high relative air humidity (especially in rooms meant
for hydro-therapeutic treatment).
Select the place for the use of the table with a minimum of 80 cm (31,5 in) clearance on each side
of the unit.
Picture 12 - Recommended positioning of the GALAXY table

2019-08-30 Galaxy massage - User Manual.doc
Page 12 z 25
After initial setting of the table, unpack it from the transport foil and plug the power cord into
the mains socket, which is freely accessible when using the table.
If the power cord is disconnected from the controller, re-connect it as follows:
Insert the power cord into the power supply socket of the controller ①until the lock②is
activated.

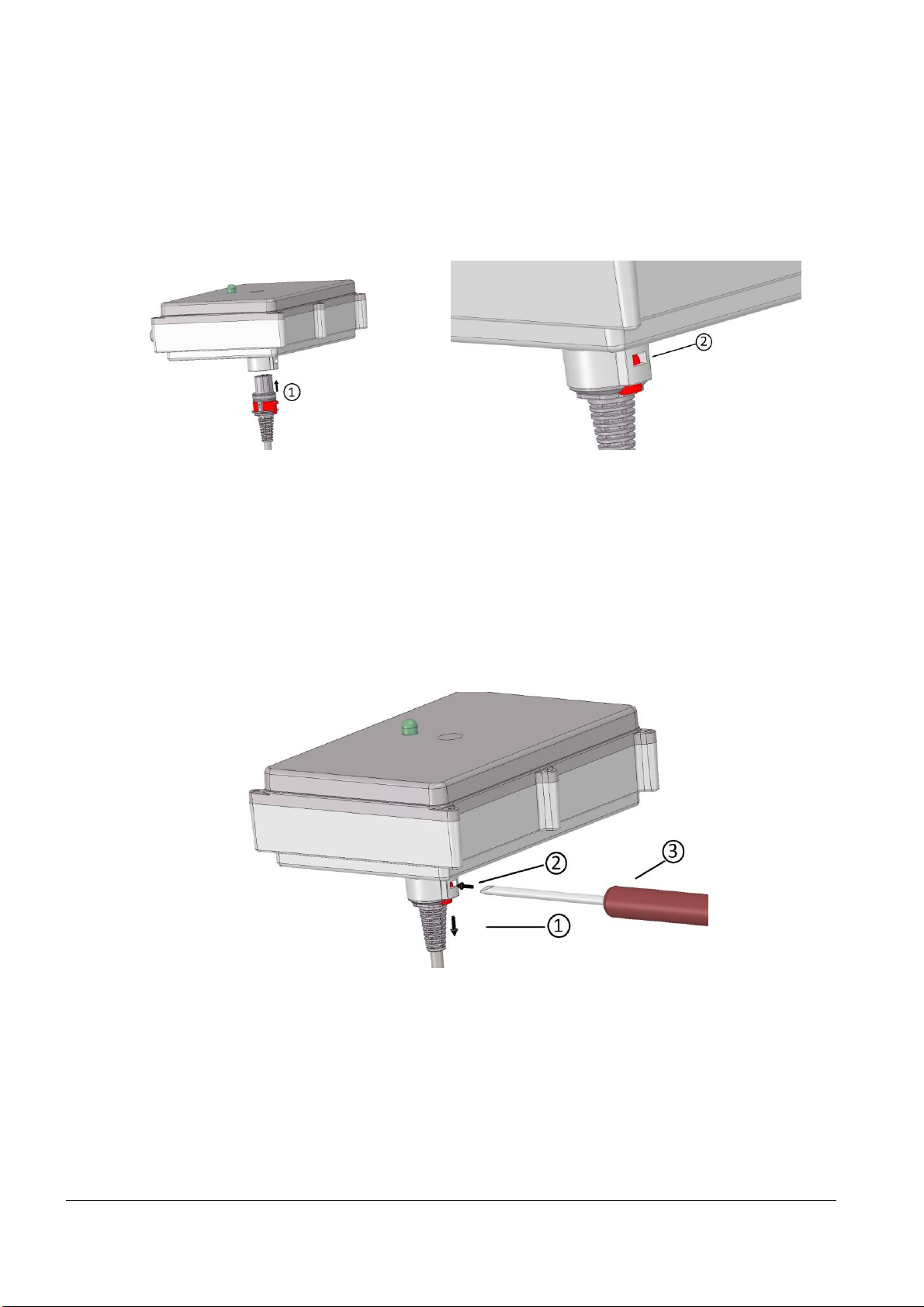

Picture 13 –Connecting the power cord
Before disconnecting the power cord from the controller, make sure that the mains plug is
removed from the mains power outlet, then press the lock ②with the screwdriver ③and
pull the power cord out of the power socket ①.
Picture 14 –Disconnecting the power cord

2019-08-30 Galaxy massage - User Manual.doc
Page 13 z 25
6. OPERATING THE TABLE
CAUTION !
Always maintain a safe distance from the table mechanisms operating at the time of
adjusting the height and position of the section table. Moving parts pose a risk
mechanisms crease.
CAUTION !
When using other electrical appliances near the table, make sure that their power cables
are not clamped or damaged by moving parts of the table.
CAUTION !
Before starting work on the table, make sure that the table rests on the feet - the WORK
position (see p. 6.6).
CAUTION !
Before starting work, user should make sure that the patient is in a safe position.
CAUTION !
Avoid contact of upholstered surfaces with: oils, lotions, facial and make-up cosmetics.
Contact with such agents can cause stiffening and cracking of the cover material, as
well as a change in gloss of the upholstery surface. This is not covered by the warranty.
Prepare a disposable bed cover (such as paper towels, disposable sheets etc.) for each patient
before attempting to use the GALAXY table for treatment procedures. The patient should wear
comfortable underwear and have their body covered for the whole time. Following this procedure
helps to relax during treatment and to improve its efficiency.
6.1. Leveling the table
After the table has been located in its destination place, it should be leveled. This operation is
necessary to ensure proper working conditions of the unit.–see 6.6
6.2. Height adjustment –raising (lowering) the bed
CAUTION !
Before starting work the user should make sure that the patient is in a safe position.
CAUTION !
Do not use the table in bare feet since there is a risk of injury.

2019-08-30 Galaxy massage - User Manual.doc
Page 14 z 25
Height adjustment in the MERCURY, JUPITER and SATURN tables is done by means of a foot
controlled frame located at the bottom of the table. To lift the table, push the frame in the direction of
the head rest (B). To lower it, push the frame in the direction of the leg rest (A). The table will be lifted
or lowered as long as the foot controller frame is kept in its leftmost or rightmost position. The actuator
switches off automatically when it reaches its minimum or maximum position.
In the MERCURY, JUPITER and SATURN tables with hydraulic actuator the height adjuster can be
installed in the lower frame and the foot pedal is connected to the actuator.
In order to raise the bed to the desired height, the control pedal should be pressed cyclically in
direction (B) until the desired height is reached. Leaving the lever is done by lifting the control lever
towards (A). Leaving the bed is done as long as the lever of the control pedal is held.
In the MERCURY CLASSIC table, the height adjustment is made by using the remote control.
Picture 15 - Regulation elements of GALAXY massage table
A - down
B –up C - lock handle
1 -
hole for the middle section traction supporter
2 -
two holes for head section traction support (except for the CLASSIC model)
Picture 16- Regulation elements of GALAXY massage table
A –down B - up

2019-08-30 Galaxy massage - User Manual.doc
Page 15 z 25
6.3. Adjustment of the front (rear) section inclination/declination angle
CAUTION !
Before adjusting the table, the user should make sure that the patient is in a safe position.
CAUTION !
Do not insert your fingers into the gaps between the segments of the table, as this could
trap them when lifting or regulating and the position of the table.
In order to change the inclination/declination angle of the front (rear) section of the table, pull the lock
handle of the gas spring to disengage it (see pic. 15 –item C), set the required position of the section
and release the handle to lock the spring again.
6.4. Adjusting Postural Drainage angle
CAUTION !
Before adjusting the table, make sure the patient is in a safe position.
CAUTION !
It is absolutely necessary to remove from the mounting holes in the front and middle
sections of the table, before Using Postural Drainage, traction support.
In GALAXY SATURN model P3.Fx and P5.Fx there is a possibility of adjustment the Postural
Drainage. It is done by means of an electric actuator (see pic. 17). This function is activated by using
the DPA control panels located at the bottom of the middle section. Hold the left button on the DPA
panel to raise the middle section of the bed. Lowering the middle part of the bed and returning to the
starting position is done by holding down the right button on the DPA panel.
In GALAXY SATURN model P3.Fx-H and P5.Fx-H with the hydraulic system of height adjustment, it
is possible to Postural Drainage adjustment, and this operation is carried out by means of gas
springs. In order to adjust the middle section of the GALAXY table, release the gas spring lock by
holding down the handle (see pic. 18 - position A), set the desired middle section position and lock the
spring again by releasing the handle.

2019-08-30 Galaxy massage - User Manual.doc
Page 16 z 25
Picture17- Postural Drainage adjustment in GALAXY massage table (version with height adjustment system)
Picture 18- GALAXY Postural Drainage adjustment in GALAXY massage table (version with hydraulic height adjustment system)
6.5. Height adjustment of the sides in the headrest part
In the Galaxy type MERCURY model S4.Fx, S4.Fx-H, JUPITER S5.Fx, S5.Fx-H and SATURN model
P5.Fx, P5.Fx-H there is a possibility of adjusting the height of the sides in the headrest part. To
change the position of the sides, release the lock knob, set the desired height, and retighten the lock
knob.
6.6. Moving the table
CAUTION !
Before changing the location of the table, make sure that the mains plug of the power cord is
removed from the AC outlet and protected against accidental damage during relocation.
CAUTION !
It is forbidden to move the GALAXY table on the wheels with the patient.
CAUTION !
Any manipulation of the position change lever WORK-TRANSPORT should be performed
with the table without the patient.
GALAXY massage table (with the F4 bottom frame) has a foot lever (see C in pic. 19) which can be

2019-08-30 Galaxy massage - User Manual.doc
Page 17 z 25
set in two positions:
- WORK (A) - with the table resting on its feet, which can be adjusted for leveling (by screwing the foot
in and out –see section 6.1;
- TRANSPORT (B) - with the table resting on 4 castors enabling it to be transported.
Bottom frame type F0 has two feet at the headrest side and two wheels at the opposite side. The
table can be moved about by lifting it by the headrest (be careful not to press the gas spring lever)
and transporting the table using the two wheels.
.
A –WORK
B –TRANSPORT
C - LEVER FOR POSITION CHANGE
Picture19 - Moving the GALAXY table with F4 frame type
6.7. Access lock (Not applicable to -H models)
GALAXY tables are equipped with a locking mechanism for access to the height adjustment function
(see pic. 20). The adjustment function is locked when key ①is removed from slot ②and LED ③
flashes every0.7 seconds. Height adjustment is possible when key ①is in slot ②and the LED ③
continuously lit.
In the MERCURY CLASSIC table (pic. 21) the lock is held by means of a key placed on the remote
control. No key locks the height adjustment function of the table’s bed.
CAUTION !
Always remove the key from the lock before leaving the workstation, preventing
unauthorized persons from starting the table control function. Then check it is locked, by
testing the height movement of the table.
CAUTION !
The Galaxy table with hydraulic height adjustment has only a push function, limiting the
possibility of accidental compression.

2019-08-30 Galaxy massage - User Manual.doc
Page 18 z 25
Locked
Active
Picture 20 –Operation of access lock mechanism
Blockade
Work
Picture 21 –Operation of access lock mechanism in CLASSIC model
7. MAINTENANCE
CAUTION !
We recommend cleaning and/or disinfecting the upholstered surfaces and other
parts of the tables after each use to ensure proper hygiene level.
CAUTION !
Before starting the cleaning of the table make sure that the electrical power supply
cable has been disconnected from the supply in the room to prevent accidental
movement of the table.
CAUTION !
Estimated useful life of the device is 7 years. After 7 years starting from the device
production (and its equipment), the manufacturer is not held accountable for any
flaws of the device (and its equipment), as well as their consequences.

2019-08-30 Galaxy massage - User Manual.doc
Page 19 z 25
7.1. Cleaning the upholstery
Clean and maintain the upholstered surfaces in the following way:
- clean regularly with warm water and mild detergent (e.g. soap) solution; use soft cloth or sponge;
- rub the more heavily stained areas with a soft, damp brush;
- after cleaning, wipe dry with a soft cloth;
- in case the surface has been stained with ball pen ink, lipstick, printing ink etc., remove the stain
immediately by rubbing it with a soft cloth.
Avoid extensive wetting of the surface of the table.
Disinfect the upholstery and other surfaces using the mild antibacterial detergent. A list of
recommended disinfectants is available in the DJO on request.
Never use:
- cleaning paste, wax, sprays;
- strong detergents, solvents and cleaning agents containing solvents, cleaning preparations for
natural leather.
Use of such preparations may cause stiffening and breakages of the cover material as well as
adverse change of the glossy finish of the upholstery surface which is not covered by the warranty.
Disinfection with the use of the UV rays does not affect the surface of the upholstery.
7.2. Maintenance of the base and mechanical parts
Clean the metal parts with a soft, damp sponge. Wipe the parts dry immediately after cleaning. Do
not use cleaning agents containing alcohol.
All movable joints must be lubricated every six months or when experiencing squeaks or other noise.
These joints include in particular:
- axles of transport wheels,
- actuator mounting shafts,
- boom arm sleeve bearing.
We recommend using any available aftermarket lubricants. Protect the upholstered parts from contact
with the lubricants and remove any excess amounts or leaks of these with a dry cloth. Check the
threaded joints periodically every six months and remove loose connections with a screwdriver, hex
keys (no 4, 5, 6) and flat (10, 13 and 19 mm). Such connections are in particular:
- bolts attaching the boom arms with the lower and upper frame;
- mounting bolts that lift the wheel mechanism (F4);
- gas springs piston road press bolts.
Report all loose connections that cannot be removed to the manufacturer’s authorized service and
stop using the table until the cause of the problem is removed.

2019-08-30 Galaxy massage - User Manual.doc
Page 20 z 25
7.3. Checking the gas springs
GALAXY tabels are equiped with gas springs that adjust the front section angle (CLASSIC, -S2/S2-H,
-S3/S3-H, -S4/S4-H, -S5/S5-H, -P3/P3-H, -P5/P5-H and E-S2/E-S2-H), middle section (P3-H and -P5-
H) and rare section (-S3/S3-H, -S5/S5-H, -P3/P3-H and -P5/P5-H). To ensure proper performance of
the gas springs check the springs visually for leaks every 3 months. Any perceived performance
deficiency or leak must be reported to Meden-Inmed technical service immediately.
7.4. Checking the actuators
GALAXY tables are equipped with electric actuators with push function (spline) (does not apply to a
table with a hydraulic height adjustment system), for height adjustment of the bed (CLASSIC, -S2, -
S3, -S5, -P3, -P5 and E-S2) and for adjustment of the middle section angle (-P3, -P5). The electric
actuators there should be inspected once every quarter for proper action and for sounds other than
during normal operation, such as strokes,, squeaks, scuffs.. Any defects in the operation of the
actuator should be reported immediately to DJO for technical service and operation of the table
stopped until the cause of the fault has been removed.
7.5. Periodic check of electrical safety (not applicable to -H models)
The electrical safety check should be performed or ordered not less than once every 2 years, and
each time after the breakdown/repair of the table/ table automation, the user’s technical service must
perform or commission a table review for electrical safety. The minimal scope of the review should
include:
- checking if there was no mechanical damage of wiring system of the table;
- checking if there was no mechanical damage of actuators and control case;
- an examination of the height adjustment and pivot function switches;
- electrical safety tests should be performed according to PN-EN 62353.
Protective earth resistance should be performed at the point ①, shown in Fig. 10.

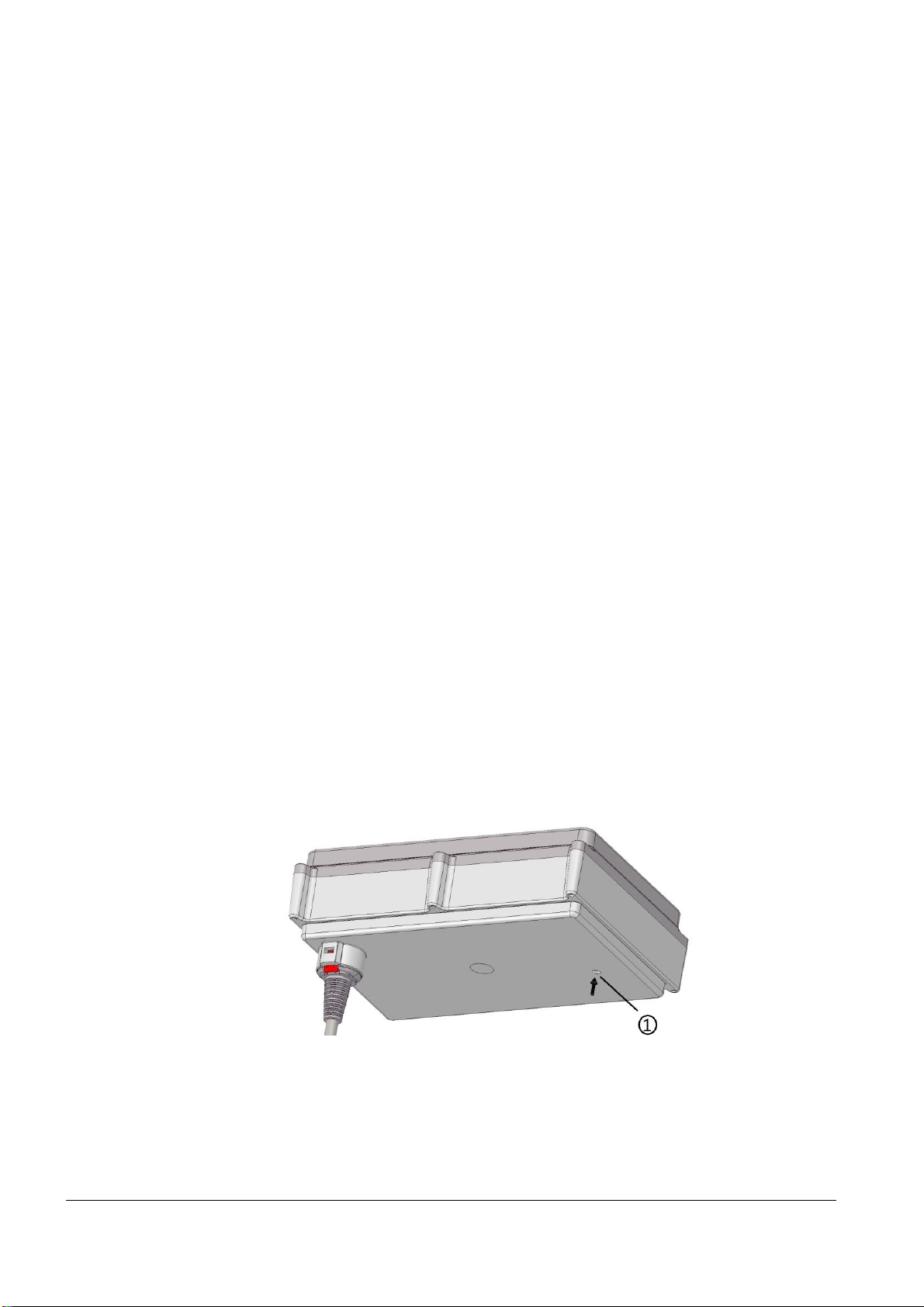

Picture 22 –Measuring point of the earth resistance
