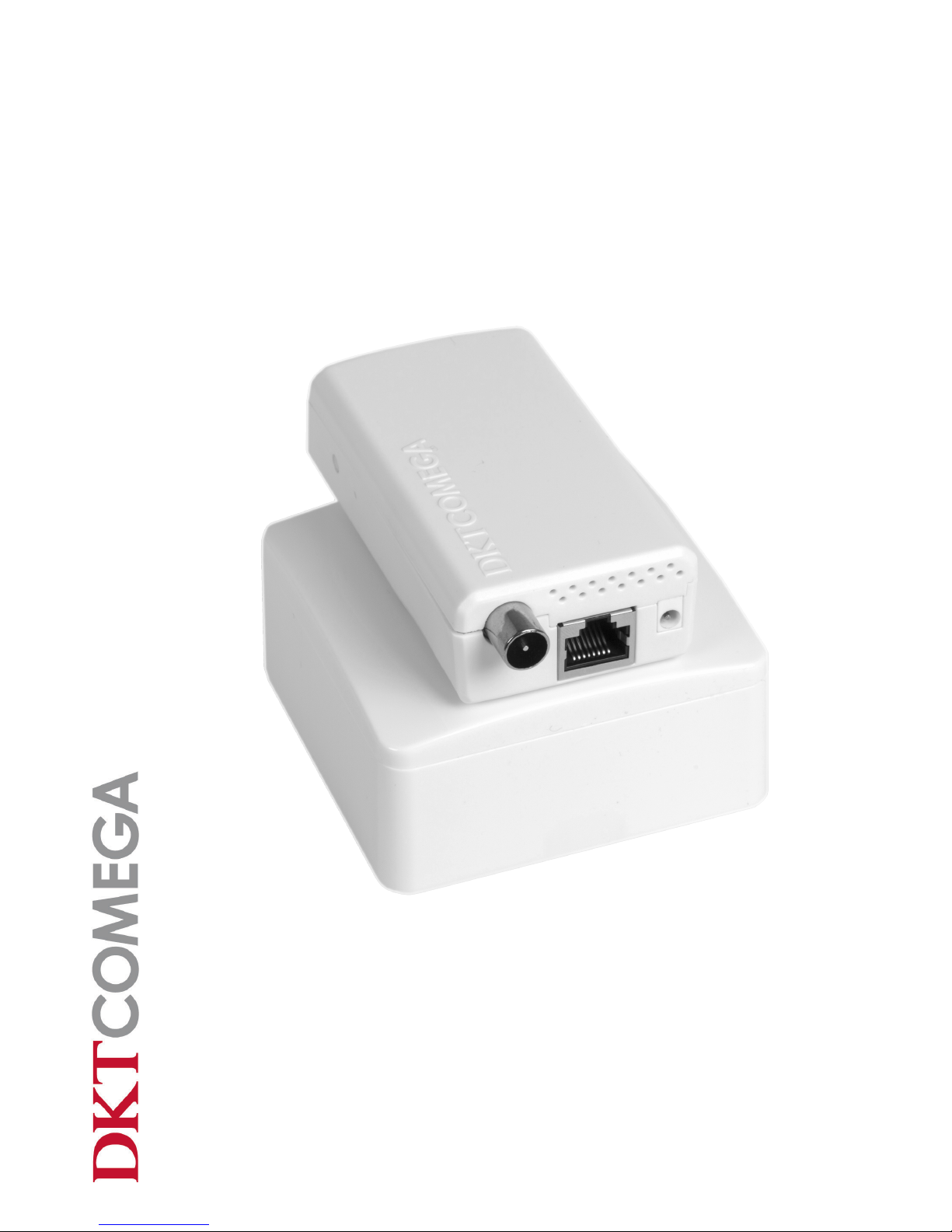

DKT Comega IPLoC D2-POM User manual

IPLoC D2-POM - User Guide

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 2
Table of Content
3 Security Note
4 Quick Start Guide
5 Introduction
5 Overview
5 MoCA Coax Network - Example
6 Interface
7 Installing IPLoC D2-POM
7 Overview
7 Minimum installation
7 Practical installation of a IPLoC unit
8 Own house with antenna
8 Own house or a apartment with Cable-TV
9 Web Interface
9 Overview
9 WindowsConguration
9 Logon to IPLoC D2-POM Webserver
10 MoCA Setup
12 Device Setup
13 Security Setup
14 Device Status
15 PHY Status
16 Upgrade
17 Reboot
18 Firmware upgrade
21 Installations examples
23 Technical Data

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 3
Security Note
To insure proper internet security with IPLoC, then
you need to install the product correct.
As the IPLoC signal use the coaxial cable to trans-
port the IP-signal in all directions, you need to
insure that the signal stay inside your network.
To do that you need to install a lter or use IPLoC
behind an amplier.
Example 1: Filter1. Own house with own antenna
3. Apartments
No need to do anything
If you have an amplier
on incomimg cable -No
need to do anything
You need a lter or an
amplier on the inco-
ming cable
If not, install a lter, se example 1
2. Own house with Cable-TV
See example 1 or 2
Router
Internet
SiS03
Incoming
Cable-TV signal
Install a POE lter, it will
block the Internet signal
backwards
Example 2: Amplier
Router
Internet
SiS03
Incoming
Cable-TV signal
A amplier, will block
the Internet signal
backwards

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 4
Quick Start Guide
The following items should be found in your
package:
Plug in IPLoC to the existing ADSL / Broadband
router with an Ethernet cable in LAN socket.
Install the IPLoC on the existing TV socket.
(if you have a TV cord in the socket, remove it
and put it in the IPLoC instead).
Plug the supplied mains adapter to IPLoC
To connect an additional device, open an second
unit and connect the device to the TV socket in
which you want an Internet connection.
Connect the network cable to the device.
When the second device is connected, it will be
congured automatically. Could take up to 3 min.
For the function of the device, please check the
LED indicator lights on the side of IPLoC
IPLoC push-on module has a Reset/Default func-
tion.
When pressing the reset button,
the device make a new search for
other units.
With the help of a paper clip, you
can reset the device to factory
settings.
IPLoC - example
1 pcs
IPLoC
push-on
module
1 pcs
Power supply
with DC-con-
nector
Name: Status: Indication:
Power Green Power on
Off Power off
MoCA Green Link
Off No link
LAN Green Ethernet connected
Blinking Activity
Computer TV
Gateway, delivery point Router
if you have a TV cord in the socket, remove it and
put it in the IPLoC instead
Internet
TV-signal
Smart-TV
TV
Internet
MoCA
LAN
SiS03
It may take up to 3 minutes for devices to nd
each other and establish link after a reset.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 5
Introduction
Overview
IPLoC D2-POM is a Ethernet over Coax Adapter wich bridges the Ethernet trafc present on
its Ethernet port to other IPLoC D2-POM connected to the home coaxial wiring.
It is compatible with the MoCA®2.0 standard (Multimedia over Coax Alliance).
With IPLoC D2-POM you can use your existing coax network in your home and turn it in to
an Ethernet Network for distributing Internet.
It will make a stabil link for Ethernet trafc with high demand such as 4K-TV.
IPLoC D2-POM Features
• Easily installed into existing home coaxial networks
• Web based network management
• Remote Network Monitor Tools
• Field upgradeable software
• Password protection for access control
• Operate in any valid MoCA®2.0 channel frequency in these RF Bands:
-Extended D-Band (1125 -1675 Mhz)
-D-Band Low (1125 -1225 Mhz)
• The Web GUI’s Net Status page display’s network packet counts and line PHY rates
• Status LEDs shows LAN port connectivity and Coaxial Network Link Up
MoCA Coax Network - Example
Gateway, delivery point
Router
Internet
TV-signal
Smart-TV
TV
Internet
SiS 03

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 6
Interface
IEC Female Connector:
• Input for TV signal
• Output for MoCA Link
IEC Male Connector:
• Output for TV signal
RJ 45 Connector:
• Input/Output for Ethernet signal (LAN)
DC Connector:
• Input 5V DC
MoCA
LAN
RESET/
DEFAULT
Name: Status: Indication:
Power Green Power on
Off Power off
MoCA Green Link
Off No link
LAN Green Ethernet connected
Blinking Activity
Reset Button
• When pressing the reset button, the device
make a new search for other units in the
MoCA network.
Power Supply
• Input 100-240VAC, 0,2A max
• Output 5VDC, 1A
Default Button
• With the help of a paper clip, you can reset
the device to factory settings.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 7
Installing IPLoC D2-POM
The IPLoC D2-POM can be installed into any home with coaxial cables by simply connecting
the device to a coaxial cable outlet as the IPLoC D2-POM is pre-congured with default
parameters that will allow operation without any additional conguration. Up to 16 units
is possible in a MoCA network.
Below we will go through some installations examples of IPLoC D2-POM for creating a
Ethernet network over coax.
Minimum installation
Practical installation of a IPLoC unit
Overview
Coaxial Cable, maximum length 100m
Router Computer
Using 2 pcs of IPLoC with a single coaxial cable for
distribute Ethernet signal.
This is not a normal way, only to show minimum
conguration of a MoCA coax network.
• Find the TV-Outlet that is nearest your home
router and install your rst IPLoC D2-POM
there.
You also need a 220V outlet for the power
supply.
• If you have a antenna cable in the outlet to
a TV set, remove that and push on the IPLoC
D2-POM and re-install the TV-set cable in the
IPLoC D2-POM unit
• Connect the power supply unit.
The diode for power will light up green.
• Connect a Ethernet patch cable between your
home router and IPLoC D2-POM.
• Find your second TV-Outlet and repeat the
procedure but instead of a router connect to
your other items that need an internet con-
nection, such as a Smart-TV.
• When you have powered up your second IPLoC
D2-POM there should be a green MoCA diode
and LAN diode if everything is ok.
Note! It can take up to 3 minutes before
there is a link.
Ethernet
Patch Cable
Ethernet
Patch Cable
Internet

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 8
Own house or an apartment with Cable-TV
Own house with antenna
Router
Internet
SiS03
Antenna
Antenna Amplier
Router
Internet
SiS03
Incoming
Cable-TV signal
Install a POE lter, it will
block the Internet signal
backwards
Smart-TV
Normally you can just install the IPLoC as descri-
bed in ”Practical installation of a IPLoC unit” and
the network will be up and running.
However if you not have a antenna amplier, then
it could be a good idea to install a POE lter to
prevent the MoCA signal go backwards to antenna
and ”out in the air”.
A antenna amplier will block the MoCA signal.
If you have an incoming Cable-TV signal you shall
install a POE lter to prevent the MoCA signal go
backwards to the Cable-TV provider network.
If you do not do this, other people may get access
to your network and it is possible that you interfe-
re with Cable-TV provider network.
Install your units as described in ”Practical instal-
lation of a IPLoC unit”
For more examples see ”Installations examples”
Smart-TV

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 9
Web Interface
The IPLoC D2-POM is pre-congured with default parameters that will allow operation
without any additional conguration. However, if network security is required during ope-
ration, then the default parameters need to be modied or if you need to make any other
change to the IPLoC D2-POM conguration, then you need to access the web interface on
the unit.
Prior to conguring the IPLoC D2-POM , you will need to congure your Windows PC’s
network interface in order communicate with the IPLoC D2-POM.
Please conrm that your PC has an Ethernet card or network adapter already installed
before proceeding to the “Windows Conguration” section below to congure the network
settings of a Windows PC.
WindowsConguration
Logon to IPLoC D2-POM Webserver
Overview
To be able to ”talk” to the IPLoC unit, you need to set your computer in a static IP mode.
The webserver IP address on IPLoC is preset to 192.168.100.101
So your computer needs to have a address between 192.168.100.0to 192.168.100.100 or
between 192.168.100.102 to 192.168.100.254
In our brief example we use a computer with windows 7.
After you logon the MoCA Setup screen will appear.
• Open the start menu and click Control Panel.
• Under Network and Internet, Click on ”View Network Status and Tasks”.
• Single click ”Change adapter settings” on the left side of your screen
You might have more than one Internet connection listed here and you need to
determine which adapter is your connection to the Internet if this is the case.
• Right click on your network adapter and choose properties to open up the pro-
perties window of this internet connection.
• Click ”Internet Protocol Version 4(TCP/IPv4)” and then the Properties button.
• Tick ”Use the following IP address”
• Change the IP address to a value between 192.168.100.x (1≤x≤100 or 102≤x≤254)
Do not use 192.168.100.101 which is IPLoC D2-POM webserver address.
• Save your settings.
For further information how to change an IP address, search on the Internet.
Example
• Open a web browser on the computer and
open the address 192.168.100.101
• A login window appears
• Enter User name: admin
• Enter Password: moca-ecb
• Click on Log In button

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 10
MoCA Setup
Coax Setup
Band:
This screen allows changes to basic settings. Click the Save buttons to save any changes.
Adapter name:
Network Search Enable:
You can choose between 3 band.
• D-Ext 1125-1675 MHz (default)
• D-Low 1125-1225 MHz
• D-High 1350-1675 MHz
In special cases D-Low or D-High may be used to
limit the frequency range.
Default name is Master.
The adapter name only serves as help to instal-
lers who wish to note location of the device.
I will not impact network operation and re-use
of names are not a problem.
The value is xed and cannot be changed.
Default is ticked.
The device will auto select suitable channel within the frequency range dened in band.
When network search is not ticked, the device will operate on the frequency specied in
last operating frequency.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 11
Last Operating Frequency:
Tx Power:
Beacon Power Level:
Preferred NC:
Reboot:
Restore default:
• Default for D-Ext = 1150 MHz
• Default for D-Low = 1150 MHz
• Default for D-High = 1400 MHz
Last operating frequency sets the frequency in
MHz were device will initially attempt.
Default is value 10.
In special cases were other devices are sensiti-
ve to transmit power it is possible to lower the
output power by selecting a lower value.
The ability from MoCA networks at high attenua-
tion will be best at 10.
The value is xed and cannot be changed.
• Default is value 10
In special cases were other devices are sensiti-
ve to transmit power it is possible to lower the
output power by selecting a lower value.
The ability from MoCA networks at high attenua-
tion will be best at 10.
The value is xed and cannot be changed.
• Default is not Ticked.
The nodes with ”Preferred” ticked have a preference over the other nods in the coaxial network
to become the NC (Network Coordinator) node. If there are multiple nods with ticked ”Preferred
NC”, a most suitable NC will be chosen based on certain characteristics.
Reboot the device.
After a reboot you need to logon again.
Restore to the latest rmware conguration.
After a ”Restore default” you need to logon again.
Reset

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 12
Device Setup
This screen allows changes to device settings, such as IP mode and Telnet.
Click the Save buttons to save any changes.
Local Setup
IPConguration:
MoCA Telnet:
DHCPautomaticconguration
• Select DHCPautomaticconguration if your network has a DHCP server.
Linklocalautomaticconguration
• Select Linklocalautomaticconguration if there are no DHCP server in this network
and you want make zero conguration for the IP address.
DHCP&Linklocalautomaticconguration
• vad gör dennna. deafault?
Static IP address
• If you choose static IP address, you must congure the IP address for each coax bridge
• Not that each IP address must be unique
• The new IP address will be used only after a reset
There are two options:
• Enable (Default)
• Disable
If you enable MoCA telnet, then you can access the bridge by telnet protocol.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 13
Admin Security Setup
Network Security Setup
Security Setup
This screen allows changes to security settings, such as for Admin and Network.
Click the Save buttons to save any changes.
Admin Password is the password used when you log in to IPLoC.
It is strongly recommended that you change the factory default password for Admin and
Network.
• Admin password is default: moca-ecb
In order to change the password, enter the old and new password in the elds and click on
the Save button. Click the Cancelbutton to start over.
Admin password must not exceed 20 characters in length and must not include any spaces.
Note that the ”Username” is always admin and cannot be changed.
The Network Security allows the user to enable or disable network encryption on the coaxial
network. This feature is disabled by default.
It is strongly recommended that you change the factory default password for the Network.
• Network password is deafault: 99999999988888888 (Nine 9’s, eight 8’s)
Network security password must be between 12 to 17 digits.
Note that there can be different passwords on different frequency band.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 14
Device Status
The following display shows the current status and settings.
SOC Version:
My MoCA Version:
Network MoCA Version:
IP Address:
MAC Address:
Link Status:
LOF:
Ethernet TX:
Ethernet RX:
• The version of the embedded software running in the IPLoC processor.
• The IPLoC will display 2.0 to indicate it is a MoCA ®2.0 device.
• Any one MoCA®1.x node introduced into the network will cause the network MoCA version
to be 1.1.
• The IP address of this IPLoC. The factory default is 192.168.100.101.
• The MAC address of this IPLoC. This is also used for creation of PQoS ows.
• Gives real time indication that the IPLoC is part of a MoCA network
• This is the “Last Operating Frequency” if the node has joined a network, and current
frequency if it is actively in a network
• Live count of the ethernet packets transmitted onto the MoCA network by this IPLoC
• Live count of the ethernet packets received from the MoCA network and forwarded to the
host.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 15
PHY Status
The following table shows the PHY rate in megabits per second (Mbps) between coax bridges on the
network.
This screen displays the current link status (PHY rate in Mbps) of each coax bridge relative to other nods on
the coax network.
This data rate is an average of the Tx and Rx data rates between bridges.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 16
Upgrade
This screen shows how to upgrade the IPloC rmware
For further information how to upgrade rmware on an IPLoC device, please see Firmware Upgrade.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 17
Reboot
This screen has only one function and that is to reboot the IPLoC
A Reboot may take about 10 seconds.
When rebooting this page will count down for 10 seconds, and it will try to connect to the index page auto-
matically.
Please refresh this page or input the URL address manually if it is failed to connect with the index page.

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 18
Firmware upgrade
It is possible to update the rmware on IPLoC D2-POM if there is a new rmware release.
The steps below will help you through a rmware update on an IPLoC D2-POM unit.
Hardware:
• Ethernet crossover cable
• Computer
• IPLoC D2-POM
• Power supply for IPLoC D2-POM
Ethernet crossover cable
Power supply
IPLoC D2-POM
Computer
Step 1
Step 3
Step 2
• Navigate to the following URL: http://dkt.net.dynamicweb.dk/Support/Firmware.aspx
• Look at the label on the product to be able to choose the right rmware
• Save the le to the Computer (Ex. le ”IPLoC D2-POM_FW_v1.53.02.89.bin”)
• Connect a crossover cable between
computer and IPLoC
• Connect the power supply
You need to connect IPLoC D2-POM
directly to the computer via a crossover
cable and NOT via a network.
To be able to ”talk” to the IPLoC unit, you need to set your computer in a static IP mode.
The webserver IP address on IPLoC is preset to 192.168.100.101
So your computer need to have a address between 192.168.100.0to 192.168.100.100 or
between 192.168.100.102 to 192.168.100.254
In our brief example we use a computer with windows 7.
• Open the start menu and click Control Panel.
• Under Network and Internet, Click on ”View Network Status and Tasks”.
• Single click ”Change adapter settings” on the left side of your screen
You might have more than one Internet connection listed here and you need to
determine which adapter is your connection to the Internet if this is the case.
• Right click on your network adapter and choose properties to open up the pro-
perties window of this internet connection.
• Click ”Internet Protocol Version 4(TCP/IPv4)” and then the Properties button.
• Tick ”Use the following IP address”
• Change the IP address to a value between 192.168.100.x (1≤x≤100 or 102≤x≤254)
Do not use 192.168.100.101 which is IPLoC D2-POM webserver address.
• Save your settings.
For further information how to change an IP address, search on the Internet.
DownloadtheFirmwarele
Connect the hardware
Setting static IP on a computer
Example
Software:
• New rmware for IPLoC D2-POM
• Web browser
You need to have following:

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 19
Step 4 Updatermware
• Open a web browser on the computer and
open the address 192.168.100.101
• A login window appears
• Enter User name: admin
• Enter Password: moca-ecb
• Click on Log In button
MoCA Setup window appears
• In the left menu, click the Upgrade
tab
Upgrade window appears
• Use the Browse...button to select the
new osimage.bin le
The name of the le you choose will
appear to the right of ”Browse button”
• Click the Upgrade button.
• You will be asked if you want to upgrade
the rmware, click yes.
• Wait for the Completion status screen
to appear. A typical upgrade requires 60
seconds for the ash to be updated. You
will be asked if you want to reboot.
• Click the yes button.
Site 192.168.100.101 ask:
Yes Cancel
Firmware upgrade succesfully, do you want to reboot?
Site 192.168.100.101 ask:
Yes Cancel
Do not remove power during upgrade
The unit will not work if there is a power failure
during the loading of the rmware le.
Active Image Version:1.53.2.89
Backup Image Version:1.51.9.71
A
B
C
D
E
F

IPLoC D2-POM - User Guide 2015-12-01. Ver. 1
Specications are subject to change without notice.
DKT is not responsible for any typographical errors or wrong.
Page 20
Afterarmwareupgradeitmaytakeupto3minutes
fordevicestondeachotherandestablishalink.
• You will be asked if you are sure you
want to reboot, click yes.
• After reboot the login window will
appear.
Are you sure you want to reboot device?
Site 192.168.100.101 ask:
Yes Cancel
Step 4 Updatermwarecontinue...
G
K
Update complete
MoCA Setup window appears
• In the left menu, click the Upgrade
tab
Upgrade window appears
• check that the ”Active Image
Version” now it changed to the new
one.
H
J
I
Active Image Version:1.53.2.89
Backup Image Version:1.51.9.71
