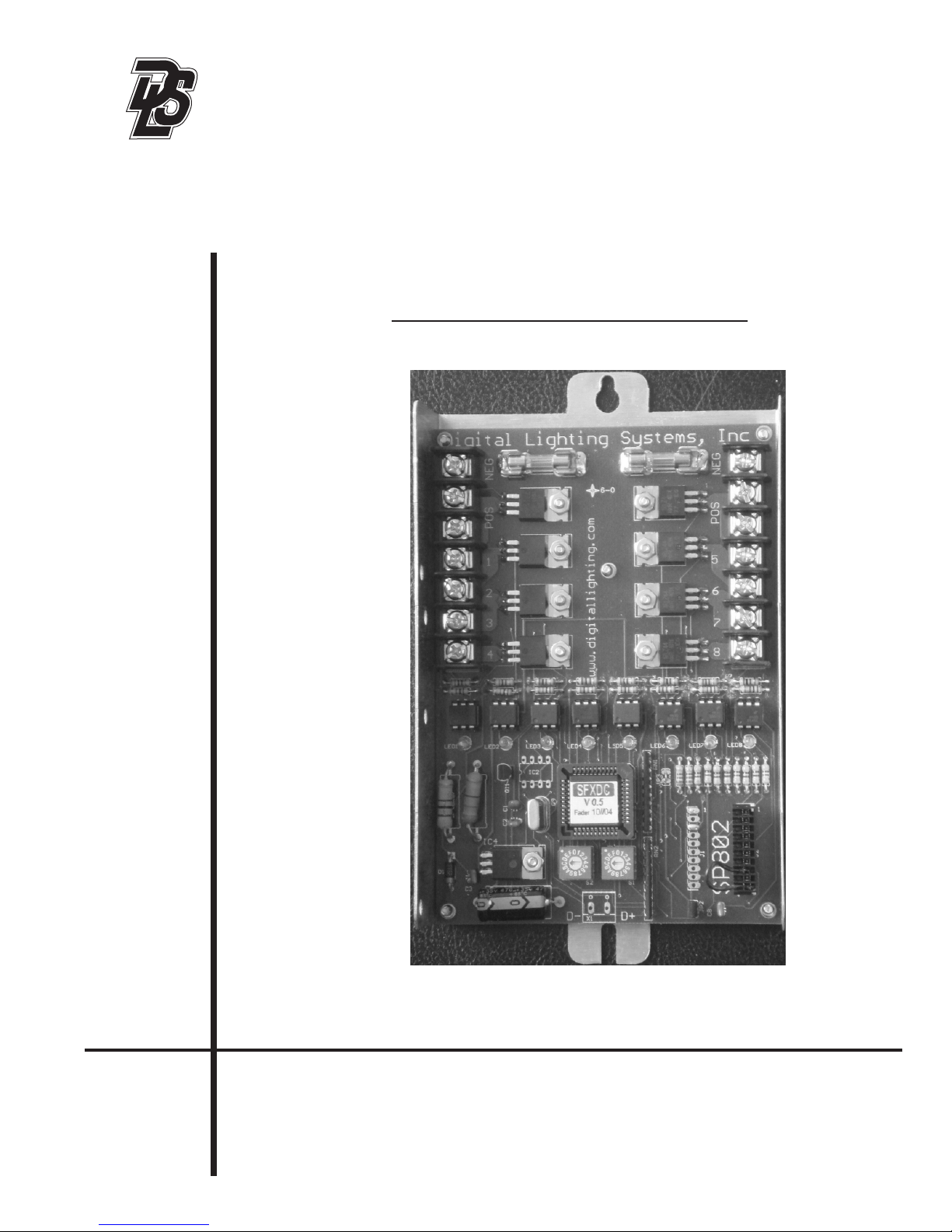

DLS SC802-12DC User manual

Digital Lighting Systems, Inc.
SC802
8 Channel “Mini-Fader/ Chaser ”
Cross Fader/ color mixing/ Animation chaser
SC802-12DC / SC802-24DC
USER'S MANUAL
SC802-UM
10/15
DMX512 & Animation controllers

User's Manual - Page 1
General Description
The SC802 is an Eight channel DC voltage only controller (Cross-Fader/Lighting
animation) capable of producing slow level changes( Color Mixing ) as well as Quick ON/
OFF ( Animation)
A functional block diagram of the SC802 is shown in Figure 1. SC802 contains the
equivalent of 2 sets of four solid-state relays (SSR) 8 dimmers, with two power line
feed. Each dimmer is rated at a maximum output current of 2.5 Amperes. The SSR
dimmers are controlled by low-voltage DC signals from the logic circuit on the board.
These signals are electrically-isolated by Optical couplers from all line voltage
elements. The SC802 logic board contains a microprocessor programmed to generate
16 user-selectable light sequences or patterns at an adjustable rate (the SC802 is also
available with a “SPELLER” pattern or custom patterns upon request). A rotary selector
is used to select the pattern and a second one is used to set the rate or speed. Patterns
and speed can be monitored by Eight LED's that represent the outputs of the SC802.
The SC802-12DC accepts two inputs from two 12 VDC power supplies 10Amps each.
The SC802-24DC accepts two inputs from two 24 VDC power supplies 10Amps each.
Please contact the factory for additional information by telephone [phone] or
email [email protected]
Figure 1 - SC802 Functional Block Diagram
Table 1 - Terminals Definition
Table 2 - Maximum Electrical Ratings
Electrical Characteristic Terminal Maximum
Relay Load Current 1 to 8 2.5 Amps.
Input Current P1,P2 10 Amps.
Input Voltage depends on model 12VDC or 24VDC
NAME DESCRIPTION
1,2,3,4 Output Of
Solid-State Relays #1,2,3,4
N1 negative Feed For
Relays 1 , 2 , 3 & 4.
P1 positive feed / Common Connections.
5,6,7,8 Output Of
Solid-State Relays #5,6,7,8
N2 negative Feed For
Relays 5 , 6 , 7 & 8.
P2 positive feed / Common Connections.
1
16 Pattern
Fader / Chaser
Digital Lighting Systems
www.digitallighting.com
SC802
8 channel
12302 SW 128th ct,UNIT 105, Miami, Fl. 33186
Tel: [phone] Fax: [phone]
Copyright 2015 Digital Lighting Systems, All rights Reserved Specifications are subject to change without notice. Printed in U.S.A.
www.digitallighting.com
SC Logic Control
section
SSR1
SSR2
N1 1 2 3 4
SSR3
SSR4
SSR's OPTICAL ISOLATORS
SSR5
SSR6
SSR7
SSR8
5678 N2
P1 P1
+
-
P2P2
-
+

1
User's Manual - Page 2
SC802-120 Detail
Figure 2 - SC802-xxDC
Table 3 - SC802-XXDC Circuit Legend
1
16 Pattern
Fader / Chaser
Digital Lighting Systems
www.digitallighting.com
1 Microprocessor.
2 Not Used
3 Quartz Crystal.
4 Voltage Regulator.
5 Power Supply Capacitor.
6 Output LED Monitors.
7 Optical Couplers # 1,2,3,4,5,6,7,8
8 output MOSFETs # 1,2,3,4,5,6,7,8
9 Fuses 5mm, 10Amps
10 3 to 8 channel jumper selection
11 Input/ Outputs connection block for ch:1,2,3,4
12 Input/ Outputs connection block for ch:5,6,7,8
J1 Jumper for crossfade and chase
S1 Speed selector 0 = Slowest ; F = fastest
S2 Pattern Selector
SC802
8 channel
12302 SW 128th ct,UNIT 105, Miami, Fl. 33186
Tel: [phone] Fax: [phone]
Copyright 2015 Digital Lighting Systems, All rights Reserved Specifications are subject to change without notice. Printed in U.S.A.
www.digitallighting.com
1
3
4S2 S1
10
9
7
11
2
5
6
8
12
J1

1
User's Manual - Page 3
1
16 Pattern
Fader / Chaser
Digital Lighting Systems
www.digitallighting.com
SC802
8 channel
12302 SW 128th ct,UNIT 105, Miami, Fl. 33186
Tel: [phone] Fax: [phone]
Copyright 2015 Digital Lighting Systems, All rights Reserved Specifications are subject to change without notice. Printed in U.S.A.
www.digitallighting.com

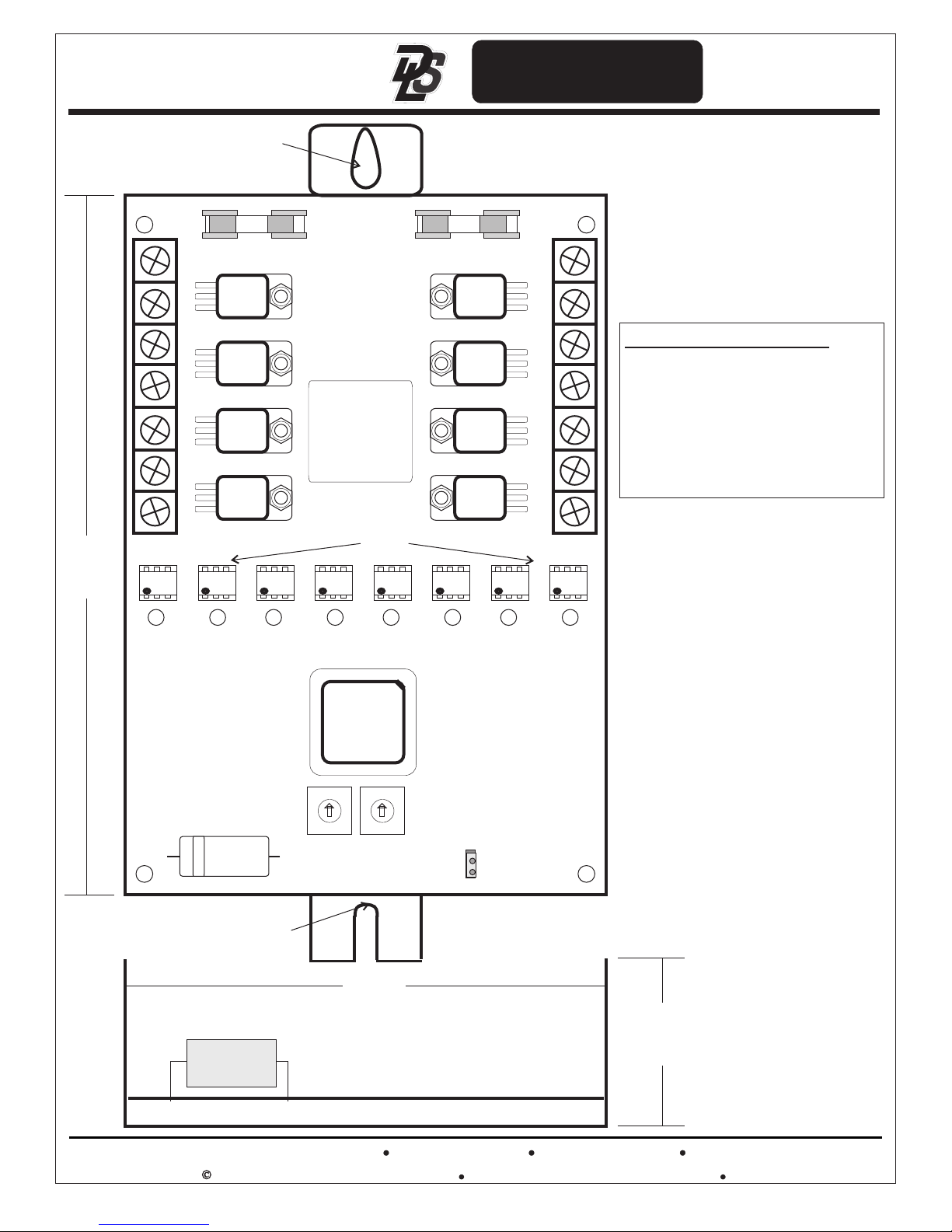

Mechanical Installation
The SC802 modules
are designed to be mounted
in NEMA enclosures
Mounting Holes : 7” O.C.
( by others).
1.50 in
4.30 in
Figure 3 -
SC802-xxDC
Dimensional Diagram
Mounting hole
For # 6 screw
Mounting hole
For # 6 screw
Jumper OFF = crossfade
Jumper ON = Chase
1 2
Optocouplers
S2
0
1
F
2
E
3
D
4
5
C
6
B
7
A
8
9
0
1
F
2
E
3
D
4
5
C
6
B
7
A
8
9
S1
Microprocessor
Channel Indicators
-
6.25 in
3 4 5 6 7 8
Ch:
4
Ch:
3
Ch:
2
Ch:
1
Ch:
8
Ch:
7
Ch:
6
Ch:
5
10 A.
Fuse
SC802
-xxDC

Common POSITIVE ( Anode )
Switched Negative (cathode)
User's Manual - Page4
1
16 Pattern
Fader / Chaser
Digital Lighting Systems
www.digitallighting.com
SC802
8 channel
12302 SW 128th ct,UNIT 105, Miami, Fl. 33186
Tel: [phone] Fax: [phone]
Copyright 2015 Digital Lighting Systems, All rights Reserved Specifications are subject to change without notice. Printed in U.S.A.
www.digitallighting.com

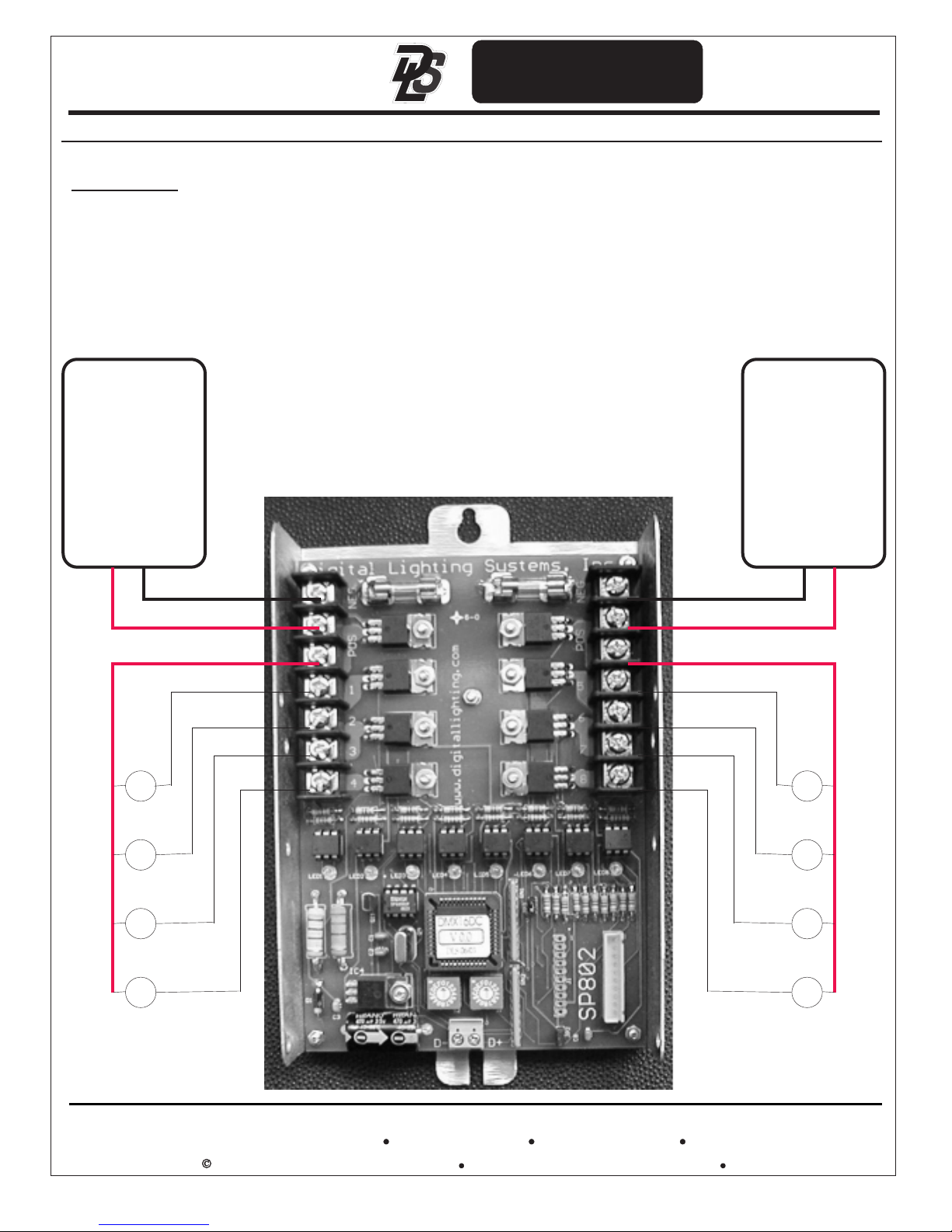

Figure 4 - SC802-12DC & SC802-24DC Typical 12 VDC or 24 VDC Wiring.
Wiring Notes
0DO NOT EXCEED 120W @ 24 VDC or 60 W @ 12 VDC (5 Amps.Max ) per switch output ;
total per each set of 4 outputs 240 W @24 VDC / 120 W @ 12 VDC ( 10 Amps)
0All wiring between the controller and other switchs (DATA bus) is low voltage (NEMA Class 2) and may be run
with One, twisted pair, shielded #22 AWG wire.
0SC802 switch Modules may be fed by 2 Class 2 Power supplies
0CAUTION: DO NOT attempt to parallel outputs to increase capacity.
+ -
2
3
4
1
2
3
4
POWER
SUPPLY
12 VDC or
24 VDC
10 A. Max
-
-
-
-
1
+ -
+ -
+ -
Common +
Negative
Positive
+
-
+ -
6
7
8
5
6
7
8
-
-
-
-
5
+ -
+ -
+ -
Common +
Negative
Positive
+
-
POWER
SUPPLY
12 VDC or
24 VDC
10 A. Max

1
User's Manual - Page 5

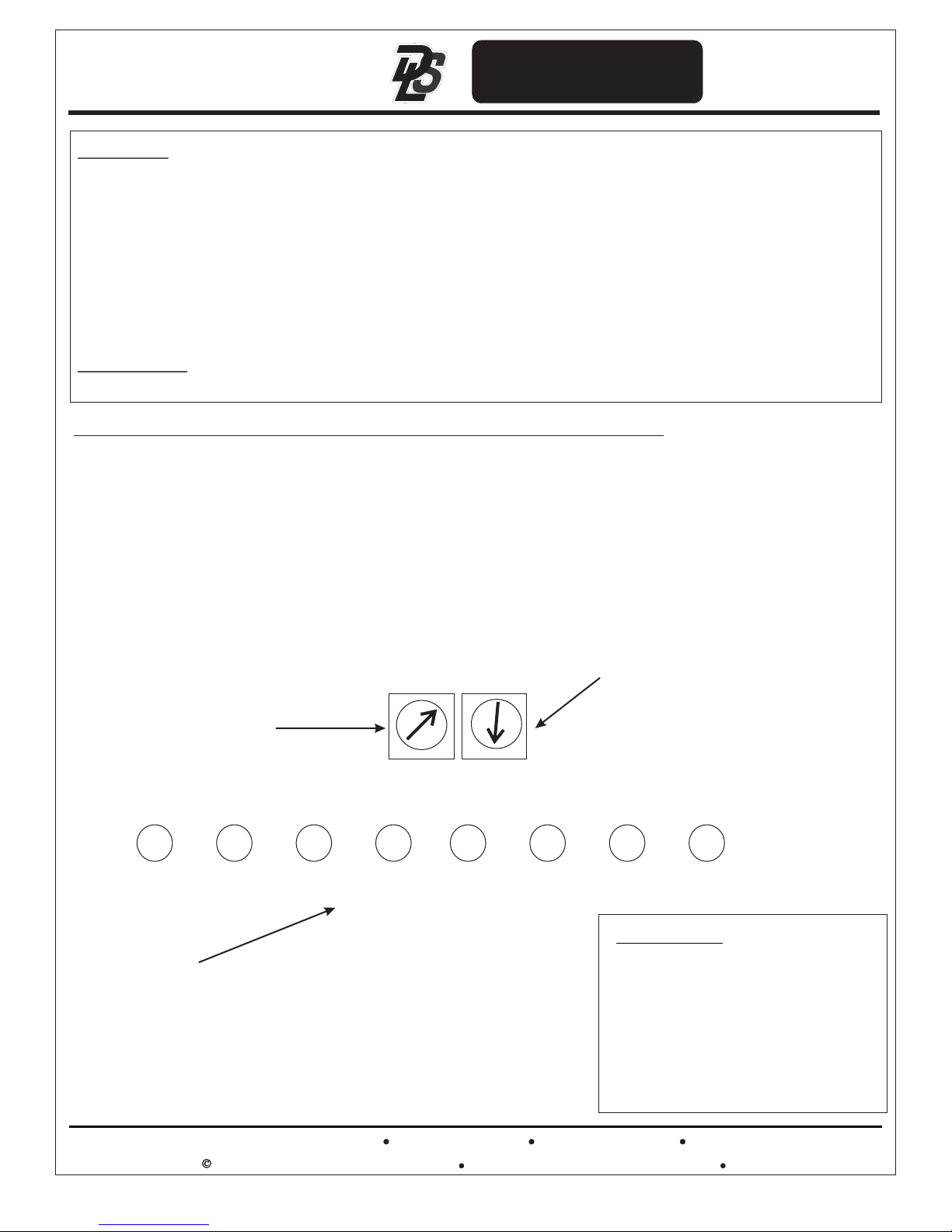

Controls
The controls consist of two rotary 16-position (0-9 and A-F) selectors. S2 (PATTERN)
is used for selecting the desired Fade pattern. Positions 0 will scroll threw the patterns
automatically to provide an ever changing light show. The SC802 outputs can be
turned to static ON by selecting F. When 0 is selected, the SC802 goes into an
automatic pattern change mode. All other positions cause the SC802 to play a single
pattern indefinitely. S1 is used to select one of 16 individual Fade rates (Rate).
Minimum speed is achieved by selecting position 0. Speed doubles with each
subsequent selector position.
Indicators
LED indicators 1 to 4 indicate the status (On-Dimmed-Off) of their corresponding
S2 S1 Rate
Mode
LEDs
Output
Indicators
Figure 5- SC802 Indicators and Control Selectors
CAUTION
Use a small Screw driver for
adjusting selector positions
in order to avoid damaging
the Selectors slots.
1 2 34
1
16 Pattern
Fader / Chaser
Digital Lighting Systems
www.digitallighting.com
SC802
8 channel
12302 SW 128th ct,UNIT 105, Miami, Fl. 33186
Tel: [phone] Fax: [phone]
Copyright 2015 Digital Lighting Systems, All rights Reserved Specifications are subject to change without notice. Printed in U.S.A.
www.digitallighting.com
5 6 78

1
User's Manual - Page6
1
16 Pattern
Fader / Chaser
Digital Lighting Systems
www.digitallighting.com
SC802
8 channel
12302 SW 128th ct,UNIT 105, Miami, Fl. 33186
Tel: [phone] Fax: [phone]
Copyright 2015 Digital Lighting Systems, All rights Reserved Specifications are subject to change without notice. Printed in U.S.A.
www.digitallighting.com

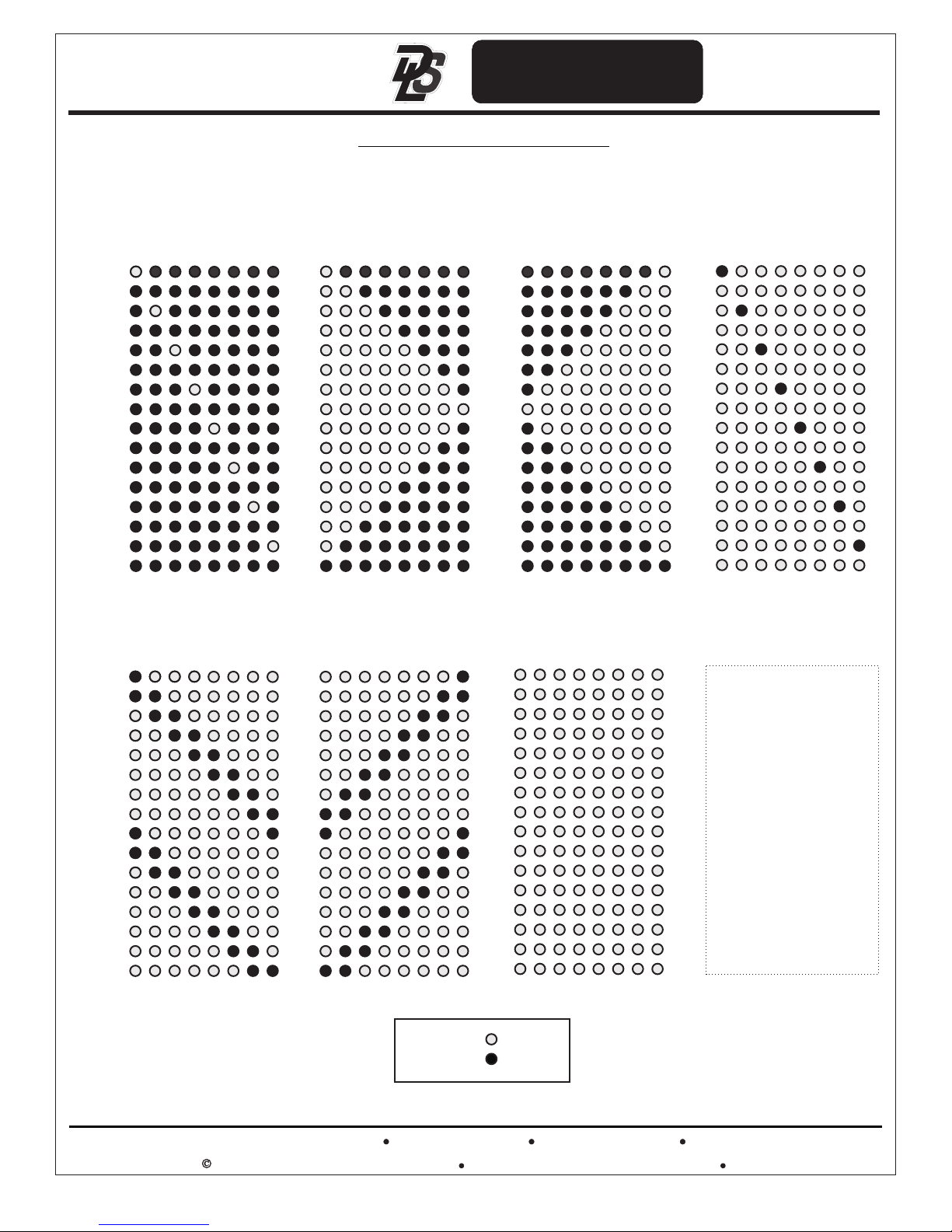

SC802 Patterns
(Continued on Page 9)
1234
678
Light Chase Fill & Swipe Forward Fill & Swipe Back Light Bounce
Dark Chase
Flip-Flop Flash All
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
1 2 3 4 5 6 7 8
Circuits
Step 9:
Step 10:
Step 11:
Step 12:
Step 13:
Step 14:
Step 15:
Step 16:
5
Dark Bounce
OFF
ON
KEY:

1
User's Manual - Page 7
Patterns for SC802
1
16 Pattern
Fader / Chaser
Digital Lighting Systems
www.digitallighting.com
SC802
8 channel
SC802
8 channel
9ABC
EF
Flash Light Fade Spring Forward Spring Back Flash Dark Fade
Crawl Back
ALL ON
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
1 2 3 4 5 6 7 8
Circuits
Step 9:
Step 10:
Step 11:
Step 12:
Step 13:
Step 14:
Step 15:
Step 16:
D
Crawl Forward
OFF
ON
KEY:
0
Automatic Cycle
of Patterns 1-F
4 x each
then repeat
AUTO
12302 SW 128th ct,UNIT 105, Miami, Fl. 33186
Tel: [phone] Fax: [phone]
Copyright 2015 Digital Lighting Systems, All rights Reserved Specifications are subject to change without notice. Printed in U.S.A.
www.digitallighting.com
