Do-it Multi-touch 42 MTT-0001 User manual

@TABLE
User manual

Strona 1 z 22
1. Table of Contents
1. Table of contents................................................................................................ 1
2. Important information....................................…………………………………….............. 3
3. Safety rules........................................................................................................... 5
4. Kit content............................................................................................................ 6
5. Naming and functional description...................................................................... 7
6. Kit dimensions..................................................................................................... 10
7. Preparation for installation..................................................................................12
8. Installation of a kit as a table....................………………………………………………………. 13
9. Installation of a kit as a wall screen.................................................................... 16
10. Connection of a device and first run................................................................. 18
11. Potential problems and solutions......................................................................19
12. Technical data…….............................................................................................. 20
13. Manufacturer data and contact…………..............................................................22

Strona 2 z 22
2. Declaration of conformity

Strona 3 z 22
3. Important information
Product designation:
@Table –multimedia touch table is an electronic device designated for presentation, information,
transmission, computer software start up, educational and entertaining broadcasts, dedicated to
applications in public utilities and the like. Product provides full functionality of the devices working under
Windows, including Internet connectivity and the ability to run applications installed.
Please read the information below before you will start working with the device and keep this manual for
future reference.
THIS SYMBOL WARNS THE USER THAT UNINSULATED VOLTAGE WITHIN THE UNIT MAY HAVE
SUFFICIENT MAGNITUDE TO CAUSE ELECTRIC SHOCK. THEREFORE, IT IS DANGEROUS TO MAKE
ANY KIND OF CONTACT WITH ANY PART INSIDE OF THIS UNIT.
THIS SYMBOL ALERTS THE USER THAT IMPORTANT LIERATURE CONCERNING THE OPERATION
AND MAINTENANCE OF THIS UNIT HAS BEEN INCLUDED. THEREFORE, IT SHOULD BE READ
CAREFULLY IN ORDER TO AVOID ANY PROBLEMS.
PRODUCTS CARRYING THIS MARK MUST BE DISPOSED OF SEPARATELY FROM NORMAL
HOUSEHOLD WASTE. THIS INCLUDES MONITORS AND ELECTRICAL ACCESSORIES, SUCH AS
SIGNAL CABLES OR POWER CORDS. WHEN YOU NEED TO DISPOSE OF YOUR PRODUCTS, PLEASE
FOLLOW THE GUIDANCE OF YOUR LOCAL AUTHORITY, OR ASK PROVIDER OF THE PRODUCT.
THE MANUFACTURER DECLARES CONFORMITY WITH LOW VOLTAGE DIRECTIVE (LVD)
2006/95/EC, ELECTROMAGNETIC COMPATIBILITY (EMC) DIRECTIVE 2004/108/EC, WASTE
ELECTRICAL AND ELECTRONIC (WEEE) 2012/19/EU, ROHS 2011/65/EU IN LIMITATION ON THE
USE OF CERTAIN HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC, DIRECTIVE
2005/32/EC ON ECO-DESIGN (EU REGULATION 617/2013 IN THIS REGARDS TO ECO-DESIGN
REQUIREMENTS COMPUTERS
PRODUCT IS MADE IN FIRST CLASS PROTECTION POWER AND CAN BE CONNECTED TO
GROUNDED MAINS.

Strona 4 z 22
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT PLACE THE DEVICE NEAR HEATERS, AIR CONDITIONERS,
WATER, CHEMICALS OR DEVICES THAT CONTAIN MAGNETS OR GENERATES A MAGNETIC FIELD.
DO NOT REMOVE THE COVER OF ELECTRONICS UNDER VOLTAGE.
ALL REPAIRS SHOULD BE CARRIED OUT BY QUALIFIED PERSONNEL
Warranty does not cover following cases:
a) Serial number of the product has been removed, altered or is illegible.
b) Damage or malfunction resulting from:
Accident, misuse, fire, electrical overload, other forces of nature, unauthorised product modification
or failure to follow instructions contained in this manual.
Repair or attempted repairs performed by anyone not authorised by DoIT.
Product damage caused by transport.
Product damage caused by its relocation or installation.
Use of parts or components that are not complying with the parameters recommended by DoIT.
c) Costs of dismantling, relocation and reinstallation.
FOR DAMAGES RESULTING FROM MISUSE MANUFACTURER TAKES NO RESPONSIBILITY, AND AS SUCH CANNOT
GIVE RISE FOR COMPLAINTS OR WARRANTY REPAIRS.

Strona 5 z 22
4. Safety rules
@Table as any other electronic device should be used properly. Please read the following instructions
carefully for safe use, to protect yourself from possible injury and to minimize the risk of product failure.
a) Ensure adequate ventilation of the unit to dissipate emitted heat.
b) The power cord must be immediately disconnected from the power outlet in any of the following cases:
If power cord is damaged.
If any liquid got into the housing of device.
If any object got into the housing of device.
If device has been exposed to rain or water.
If device has been mechanically damaged by a fall or blow.
If housing of device shows any signs of damage or cracking.
If cabinet does not provide adequate stability.
c) If the glass top was shattered handle it with care.
d) Any service and repair should be left to a qualified DoIT technician.
It is forbidden to:
a) Breach construction of device or modify it in any way, because it may lead to electrical shock or mechanical
damage.
b) Attempt to repair the equipment, since the removal of housing components can lead to electrical shock or
mechanical damage.
c) Pour liquids of any kind into the housing of device or using it in the vicinity of liquids.
d) Insert any objects into the openings of the housing, as them may touch voltage points, creating a risk of bodily
harm and damage to equipment.
e) Place any heavy objects on the power cord, its damage can cause electric shock or fire hazard.
f) Bend, twist or damage the power cord in any other manner.
g) Sit down or stand on the table.
h) Move the product alone.
i) Connect the device to the mains supply without a protective earth pin.
j) Connect the device to an extension cord without a protective earth pin.
k) Install device in environment which is not dry and free from dust.
l) Use device outdoors.
m) Use device which is damaged.
The manufacturer does not take any responsibility for a software which will be installed by a user and is not responsible
for any damage caused by computer viruses.

Strona 6 z 22
5. Kit content
Elements of a kit
Quantity
Table top
1
Leg (type A)
1
Leg (type B)
1
Power cable (EU)
1
Power cable (UK)
1
Manual
1
Board of a handle for wall assembly
1
Panel of a handle for wall assembly
2
M8 screws for legs assembly
12
M5 screws for legs assembly
4
Śruby M8 do montażu paneli uchwytu
4
Hex key 3 mm
1
Hex key 5 mm
1
Hex key 6 mm
1
Remote control
1

Strona 7 z 22

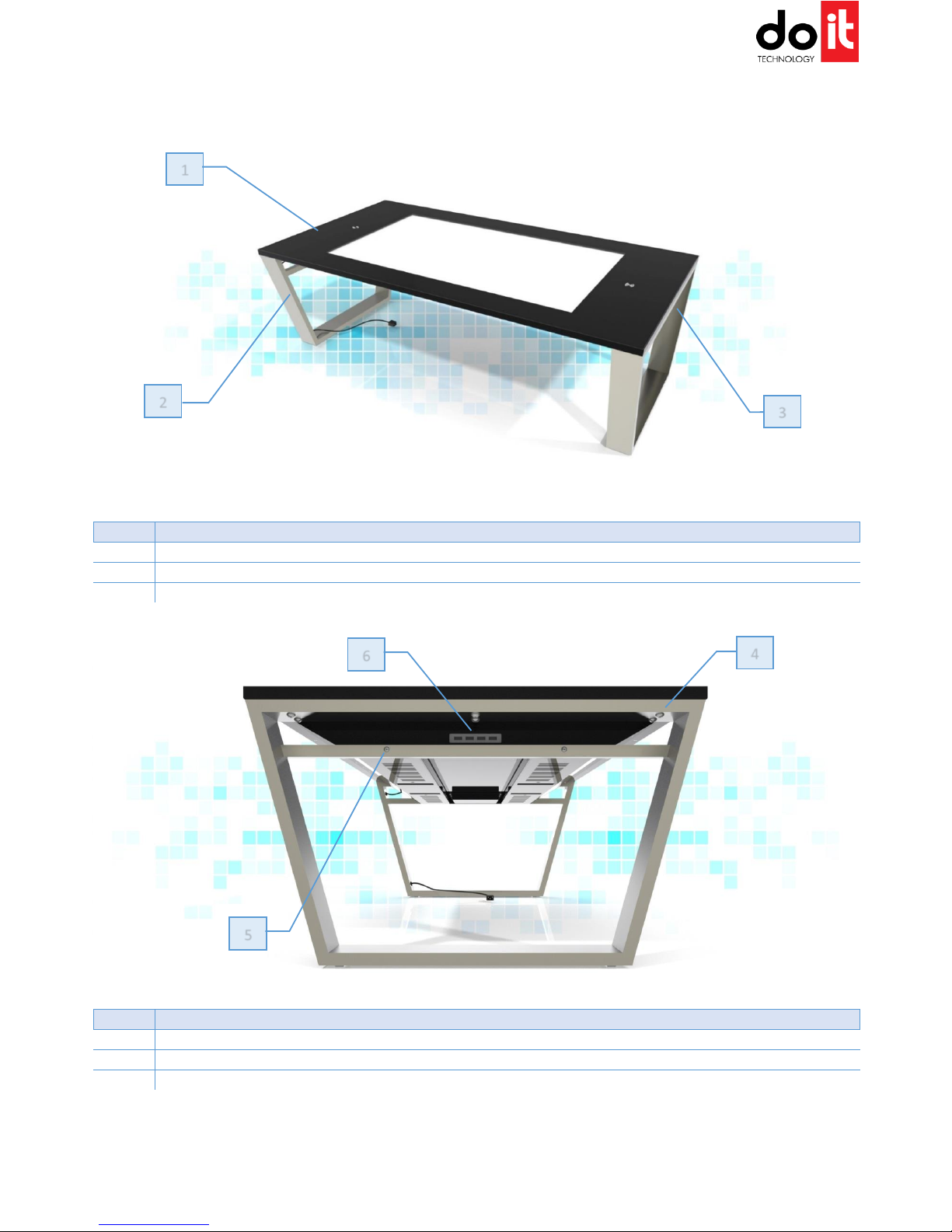

6. Naming and functional description
No.
Element description
1
Table top –the main part of a device which is composed of a touch screen and electrical parts.
2
Leg (type A) –shall be installed on the left side of a device, it contains power cable
3
Leg (type B) –shall be installed on the right side of a device, it is passive

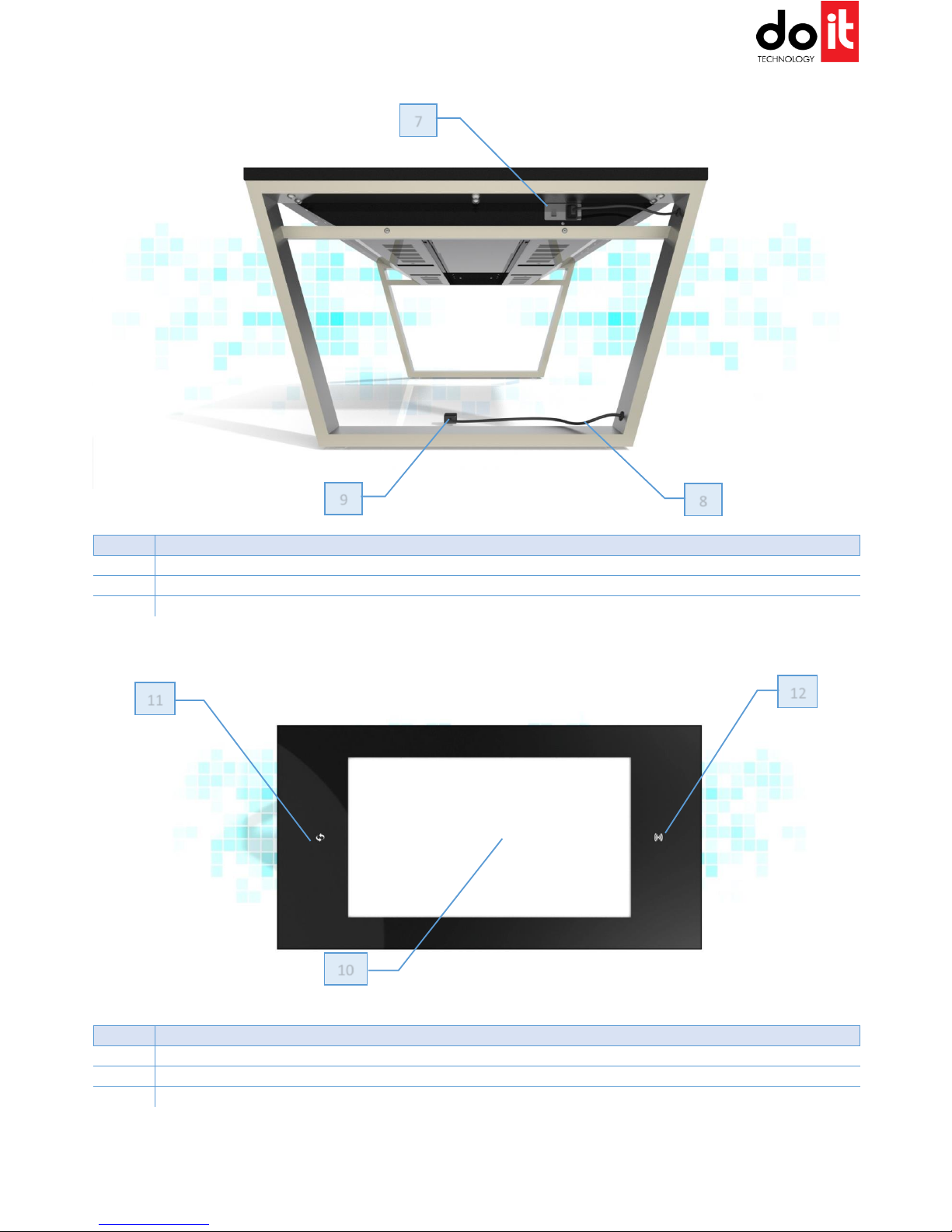

No.
element description
4
M8 screws for legs assembly
5
M5 screws for legs assembly
6
Four USB portals, they enable right communication with a built-up computer
3
1
4
2
6
5

Strona 8 z 22
No.
element description
7
ON/OFF button and a power plug
8
Power cable with an integrated leg
9
Power plug of a leg
No.
element description
10
Active area of a table top. On this surface data processing and the touch manual control take place
11
Icon which indicates a location of a touch button
12
Icon which indicates a location of NFC module
11
12
9
8
10
0
7

Strona 9 z 22
No.
element description
13
Location of M8 holes (for wall assembly)
14
Ventilation holes
Basic functions:
a) Touch screen –it enables the intuitive usage of dedicated applications without the use of a keyboard or a
computer mouse. The majority of operations can be done by a simple touch of elements shown on a screen
or multitouch gestures. The screen supports 40 touches simultaneously provided that an application also
supports 40 touches.
b) NFC Sensor (Near Filed Communication) –it enables the wireless data exchange at a distance of 20 cm. In
order to initiate the communication a user shall put a device on a table top in place of a NFC icon.
c) Screen rotation –the screen possesses the unique rotation system. The special button which is located under
the screen rotation icon is connected to the specially designed electronics which enables the 180 degree
screen rotation.
d) USB –on the right side of a table top there are 4 USB ports which enable the connection of additional
accessories such as a webcam, keyboard or a mouse. By the use of these USB ports the communication with
an in-built computer is also possible.
13
14

Strona 10 z 22
7. Dimensions of the set

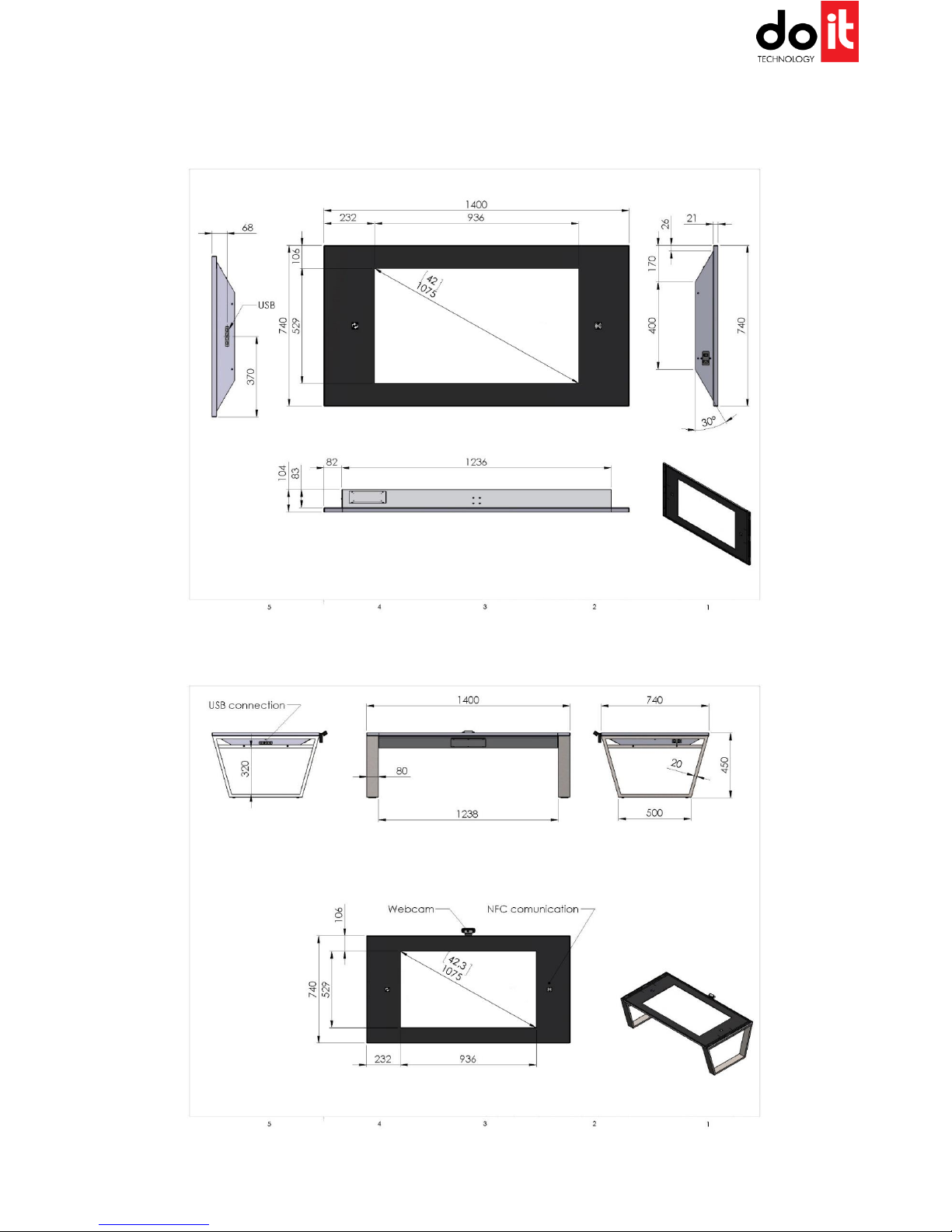

Illustration no. 1. Dimensions of a table top.
Illustration no. 2. Dimensions of a touch table- 45 cm model

Strona 11 z 22

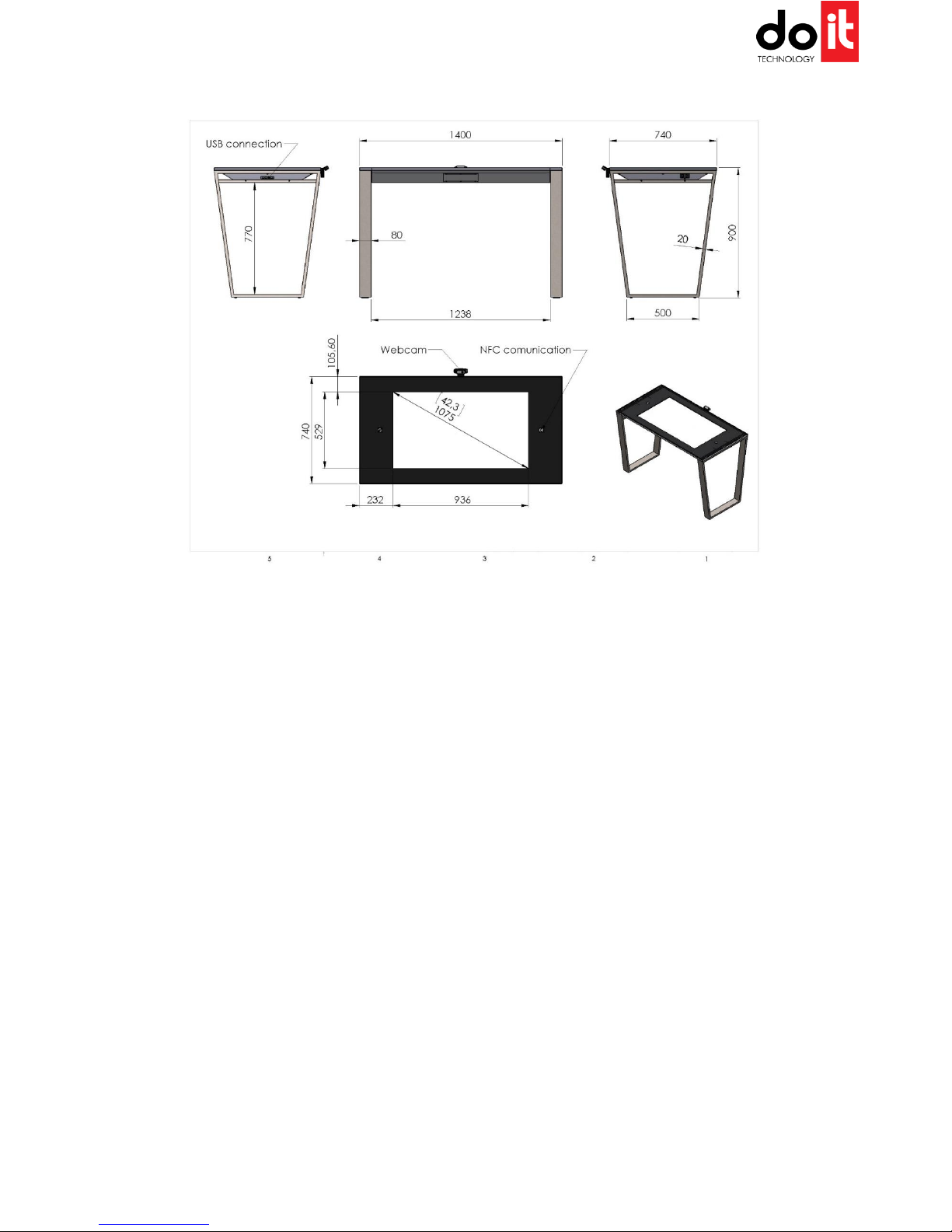

Illustration no. 3. Dimensions of a touch table- 90 cm model

Strona 12 z 22
8. Preparation for the installation
Before the installation all below conditions must be met:
a) there is enough space in a room in order to carry out safe installation.
b) in case of installation of a device on a wall it must be checked if a wall is firm enough.
c) before the opening of a package it must be checked if it is positioned correctly. The cover of a box must be on
the top.
On the cover there is a label:
d) a user has become acquainted with this manual or a copy of the manual which is also attached.
General advice:
a) Tapes belted around the box shall be cut carefully in order to avoid the damage of a box or its content.
b) After opening the box it shall be checked if all elements of a touch table has not been damaged.

Strona 13 z 22
9. Installation of a kit as a table
a) installation of a touch table shall begin with laying a table top on flat surface. The surface shall be appropriate
protected in order to avoid scratching a glass screen.
b) legs shall be assembled separately and cautiously.
Special attention shall be paid to the right choice which leg should be assembled to which side of a device:
Leg type A shall be assembled to the left part of a device where power supply is located
Leg type B shall be assembled to the right part of a device where USB ports are located

Strona 14 z 22

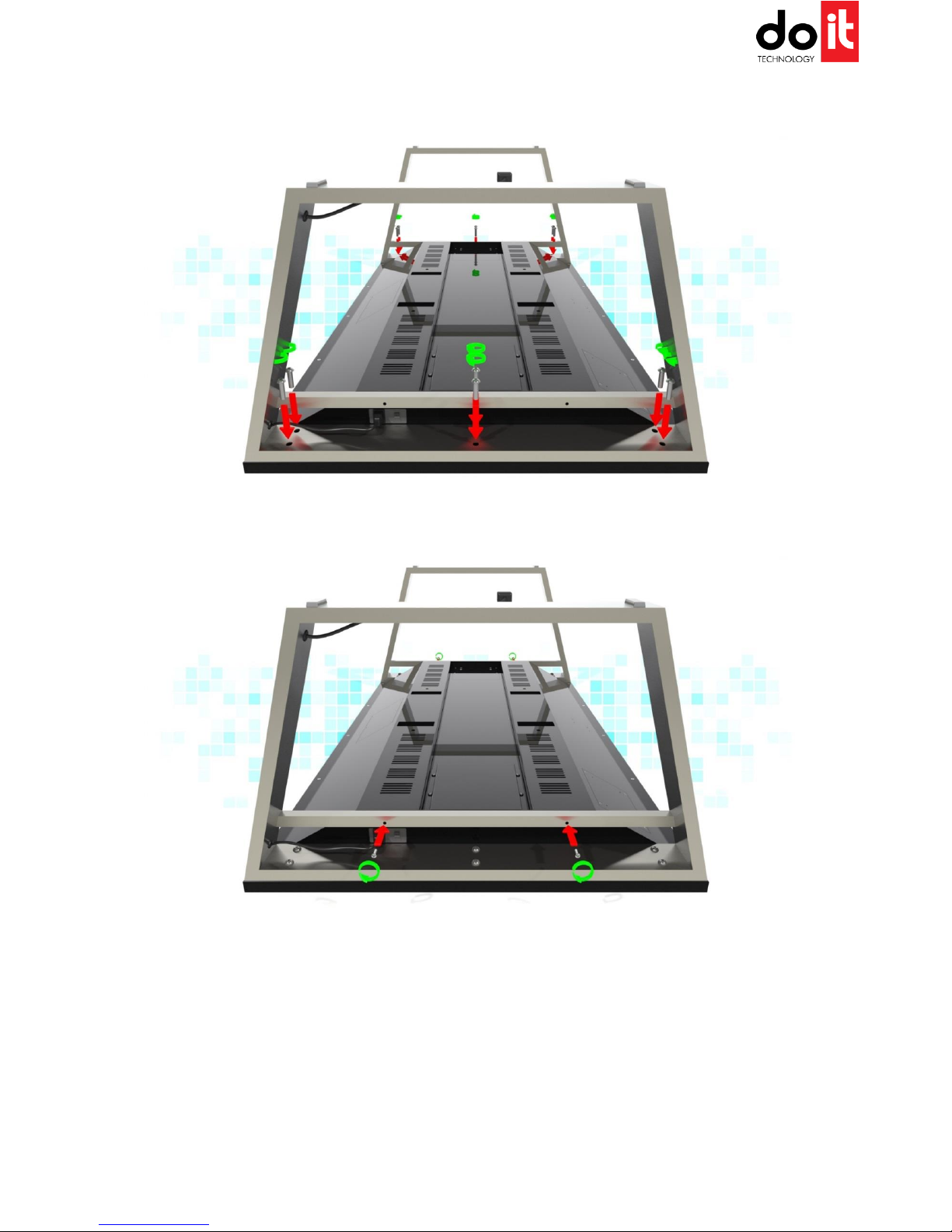

c) In the first place 6 screws M8 shall be driven in but they shall not be tightened.
d) Then 2 screws M5 shall be tightly driven in and then 6 screws M8 shall be also tightened.
e) This operation must be repeated for the second leg.

Strona 15 z 22

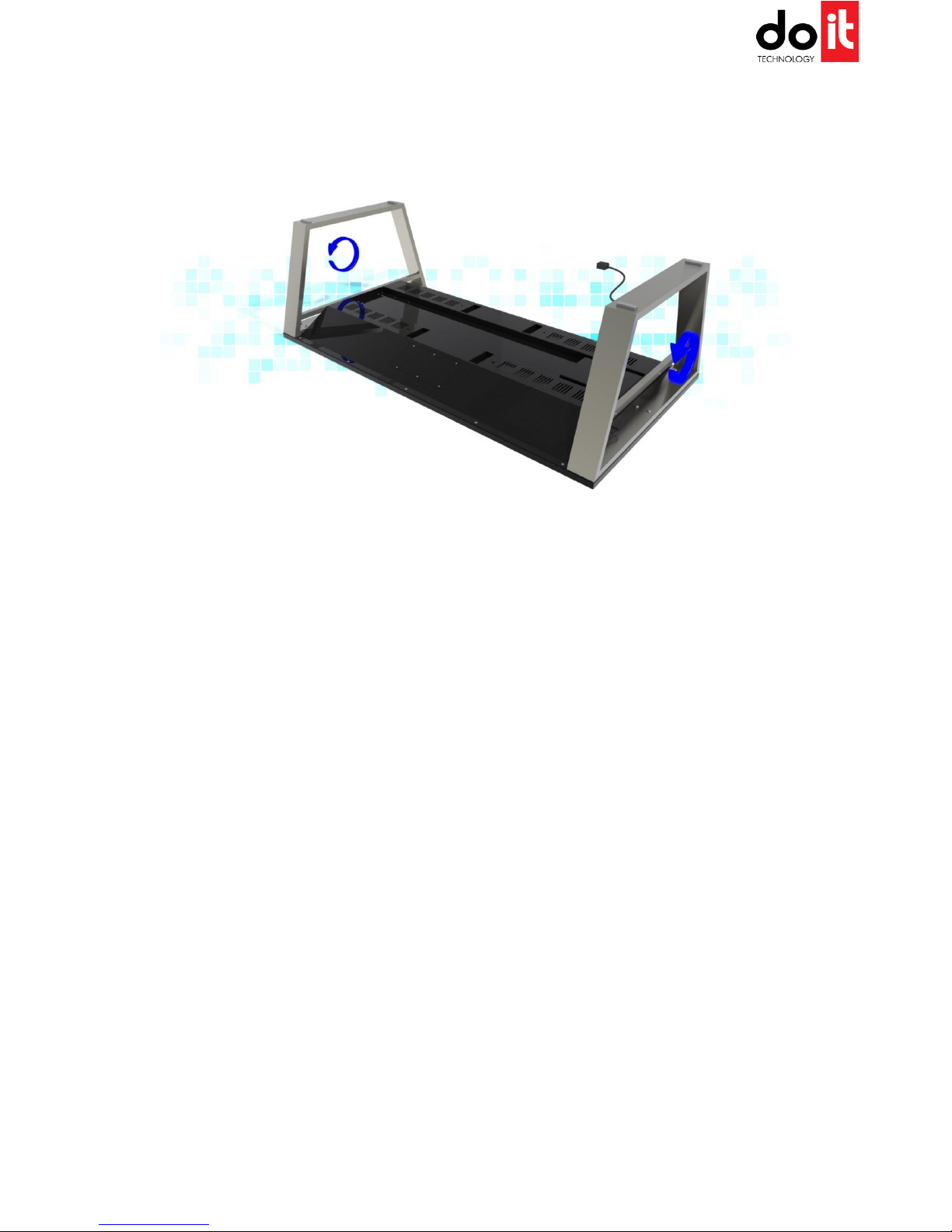

f) After checking that legs are attached properly and all screws have been tightened properly, turn the table and
put it on its legs.

Strona 16 z 22
10. Installation of a kit as a wall screen.
a) installation of a kit shall begin with laying a table top on flat surface. The surface shall be appropriate protected
in order to avoid scratching a glass screen.
b) Two handle panels shall be screwed on using the M8 screws and pads which are included in a kit. Pay attention
that the panels shall be mounted at the same height.
c) It shall be checked if screws which protect a panel has been correctly driven in.

Strona 17 z 22

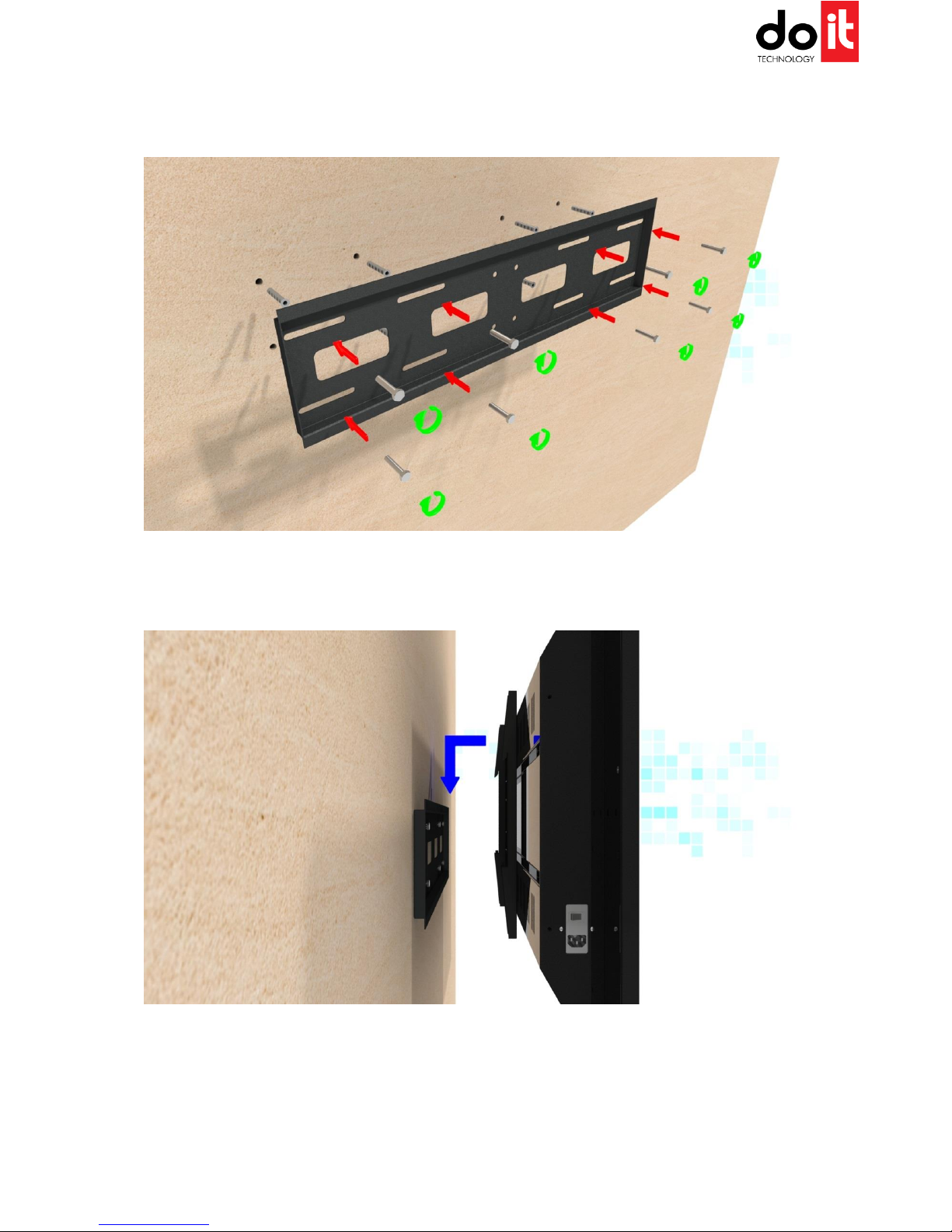

d) A handle board shall be screwed onto the wall in the best possible way. It is recommended to use at least 8
pegs Ø12.
e) After making sure that a handle board has been mounted properly, please hang a table top on it.
f) The next step is to tighten two protective screws which are located at the lower part of both handle panels.

Strona 18 z 22
11. Connection of the device and first run
Attention:
In order to connect a device to the network use appropriate power cord: British or European, depending on a
region.
A device has to be connected to the grounded network by using a special power cord.
Before connecting check condition of a cord as well as condition of cables, plugs and a socket. They cannot be
damaged.
Equipment can be connected in two ways. It depends how ones shall use it as a touch table or a wall screen.
Installation as a touch table:
a) Connection of a power cord which is situated on a top part of a leg type A to the power socket situated on a
left side of a top table.
b) Connection of a power cord which is situated on a top part of a leg type A to the cable which is attached to a
set.
c) Connection of a power cord to the electricity network 230 V / 50 Hz.
d) Set the power switch (it is situated on the surface of a top table, left side) to position 1 –ON.
Installtion as a wall screen:
a) Connection of a power cord to the power socket which is situated on a left side of table top surface.
b) Connection of a power cord to the electricity network 230 V / 50 Hz.
c) Set the power switch (it is situated on the surface of a top table, left side) to position 1 –ON.

Strona 19 z 22
12. Potenial problems and solutions.
A device does not turn on.
Check if a device has been correctly connected to the electricity network.
Check if a power switch is in the ON position.
Contact DoIT service.
A touch screen does not detect the touch.
Restart a device.
Contact DoIT service.
There is no image a screen
Use a remote control in order to wake up a device from sleep mode.
Use a remote control in order to restart a device.
Check if an image source is set on Display Port option.
Contact DoIT service.
A screen does not display the image properly.
Windows does not start properly.
Make sure that there are no extra devices connected to a touch screen via USB ports.
