Dobinsons FF80-3980 User manual

USER MANUAL
FRIDGE/FREEZER
80 Litre
DUAL ZONE
Read user manual before operating you fridge/freezer 12/24v DC&
220-240v AC Fridge Freezer. For different operating voltage you
must use a different suitable transformer - Contact dobinsons
WARNING

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
2
3
4
5
8
11
Safety
General Product usage
Operation
Cleaning & Maintenance
Trouble Shooting
Technical Data
CONTENTS
9
Product Details:
- Danfoss compressor - The most reliable and efficient cooling system in the
world
- The best electronic technology, high efficiency, low energy consumption
- Multi-voltage system (DC 12-24 Volt ) and (AC 220-240 Volt)
- Battery protection/low voltage cutout, protect your vehicle battery efficiently

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
3

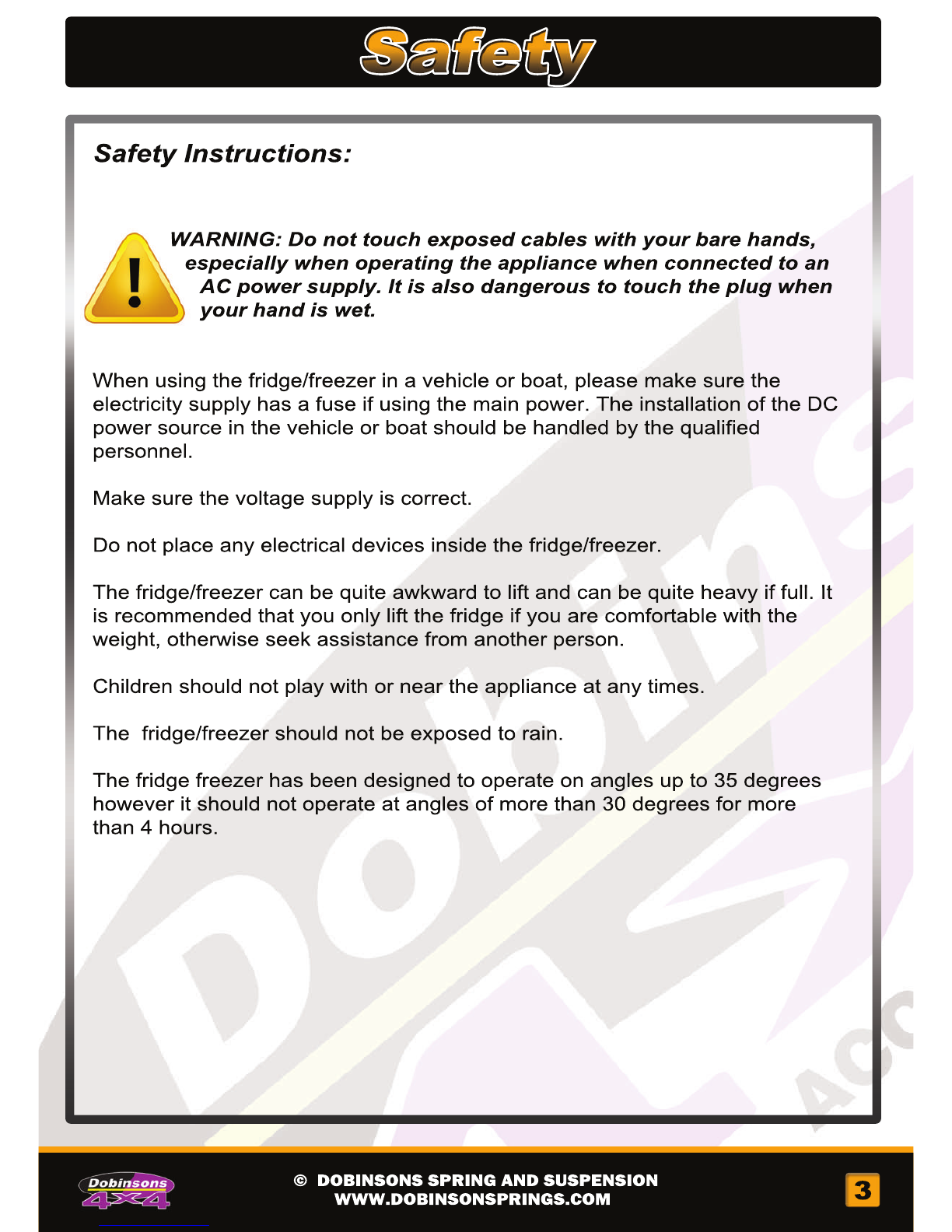

Safety
Safety Instructions:
WARNING: Do not touch exposed cables with your bare hands,
especially when operating the appliance when connected to an
AC power supply. It is also dangerous to touch the plug when
your hand is wet.
When using the fridge/freezer in a vehicle or boat, please make sure the When using the fridge/freezer in a vehicle or boat, please make sure the
electricity supply has a fuse if using the main power. The installation of the DC
power source in the vehicle or boat should be handled by the qualified
personnel.
Make sure the voltage supply is correct.
Do not place any electrical devices inside the fridge/freezer.
The fridge/freezer can be quite awkward to lift and can be quite heavy if full. It The fridge/freezer can be quite awkward to lift and can be quite heavy if full. It
is recommended that you only lift the fridge if you are comfortable with the
weight, otherwise seek assistance from another person.
Children should not play with or near the appliance at any times.
The fridge/freezer should not be exposed to rain.
The fridge freezer has been designed to operate on angles up to 35 degrees
The fridge freezer has been designed to operate on angles up to 35 degrees
however it should not operate at angles of more than 30 degrees for more
than 4 hours.

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
4
PRODUCT USAGE & REQUIRMENTS
General Product Usage and Requirements.
Ventilation:
Your fridge/freezer requires good ventilation, especially around the back of the fridge/freezer to
allow the motor to operate correctly; allow a gap of at least 200mm around the back and 100mm
around the sides. Failure to do this may damage the fridge and void warranty.
Humidity:
Where possible try to avoid high levels of humidity inside the appliance. Leaving the Where possible try to avoid high levels of humidity inside the appliance. Leaving the
fridge/freezer open for extended periods of time when operating should be avoided as this can
generate humidity which can frost on the fridge walls impairing cooling. Therefore, it is
recommended to defrost the fridge before this happens. Never clean the appliance under
running water or in dish water.
Heat Sources:
Avoid placing your fridge/freezer near heat sources, and where possible store your fridge/freezer Avoid placing your fridge/freezer near heat sources, and where possible store your fridge/freezer
in a shaded area out of the direct sunlight. This will allow the fridge/freezer to operate more
efficiently and also consume less power from the power supply.
Vehicles:
When using the fridge/freezer in vehicles the fridge/freezer should always be secured as per
When using the fridge/freezer in vehicles the fridge/freezer should always be secured as per
your country/state/territory requirements for securing objects in vehicles. The fridge should also
be secured sufficiently when it is placed inside the vehicle to prevent the fridge dislodging in the
case of an accident/emergency. The fridge can be secured using the fridges handles on each
end of the fridge; however do not over tighten the tie down straps as it may cause damage.
The fridge/freezer should also be secured on a flat surface and in a way that minimizes vibration
to prevent damage to the fridge/freezer and allow efficient operation.
It is recommended where possible that when being used on a vehicle the fridge be wired to an
It is recommended where possible that when being used on a vehicle the fridge be wired to an
auxiliary battery as to prevent the main cranking/starting battery from draining.
Note: It is recommended that a Dobinsons fridge/freezer protector bag be utilized in conjunction
with your Dobinsons fridge/freezer to maximize efficiency and life span.
Power Supply Cable Length Specification:
The DC cables must have a suitable cross-section for their length, according to this table:
* The length is from the battery to the fridge/freezer.
AC Max Cable Size
AC Max Cable Size：0.75mm2 or 18AWG

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
5
Operation
Power Supply:
The 12/24V and AC power can both be present at the same time. The fridge/freezer will always The 12/24V and AC power can both be present at the same time. The fridge/freezer will always
set itself on AC power priority feeding by 220-240V if both power supplies are connected. If
using in countries different from Australia that do not use 220-240v AC please use the suitable
AC transformer for your voltage.This electronic device can control the compressor system and
have the function of battery protection/Low voltage cutout. When the input voltage drops to the
set CUT-OUT voltage as entered by the user, it can stop the compressor; when the voltage
returns to the value, the compressor will re-start automatically. Dobinsons recommend that the
fridge/freezer be connected to an auxillary battery where possible to prevent draining the starting fridge/freezer be connected to an auxillary battery where possible to prevent draining the starting
battery.
DC Battery Protection/Low Voltage Cutout:
Note: This feature does not adjust the compressor output or cooling performance of the
fridge/freezer.
Your Dobinsons fridge/freezer is fitted with a battery protection/low voltage cutout feature that
will protect the battery/power source from losing to much voltage when the fridge is connected.
This is especially important when the fridge is being used in a vehicle or boat as it will protect the
battery from losing too much voltage especially when connected to the vehicle starting battery.
This can be set between 10v and 11.5v DC.
To adjust the voltage cut out first hold down the SET button for a few seconds until the voltage
To adjust the voltage cut out first hold down the SET button for a few seconds until the voltage
display flashes. Use the UP and DOWN arrows to adjust the cut out voltage. The voltage display
will then return to the input voltage reading after 10 seconds. Repeat this process to re adjust.
If the input/battery voltage falls below the entered value then there will be an audible BEEP and
the small battery symbol will flash. The fridge/freezer will automatically begin operating again
once the input voltage returns above the set value.
Note: It is strongly recommended that if the fridge/freezer is connected to the vehicles main
Note: It is strongly recommended that if the fridge/freezer is connected to the vehicles main
cranking/starting battery that the voltage cut out is set to 11.5v and that the battery voltage is
monitored regularly to prevent the cranking/starting draining to far and having insufficient voltage
to restart the vehicle. Check with your battery manufacturer as depending on the type of battery
being used and the condition of the batter, 0% state of charge on a 12 volt battery can be as
high as 11.8v.
Setting the Temperature:
To set the temperature in the left hand cabinet press the SET button once then use the UP and
To set the temperature in the left hand cabinet press the SET button once then use the UP and
DOWN arrows to adjust the temperature. To adjust the temperature in the right hand cabinet
press the SET buttong twice then use the UP and DOWN arrows to adjust the temperature.
OPERATION

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
6
Eco/Max Mode Setting:
Your Dobinsons fridge/freezer is equipped with an ECO and MAX running mode setting that
allows the fridge/freezer to operate more efficiently.
MAX Setting: This setting will reduce the internal temperature of the fridge/freezer faster than the MAX Setting: This setting will reduce the internal temperature of the fridge/freezer faster than the
ECO setting, however this setting will draw more power. This setting is recommended for when
the fridge/freezer is first turned on and should be avoided when the fridge/freezer is being used
in vehicles or boats.
Symbol apears when MAX Setting is turned on. To turn fridge/freezer to MAX setting press
and hold the DOWN arrow for 3 seconds and the symbol will appear.
ECO Setting: This setting will not reduce the internal temperature quite as fast as the MAX ECO Setting: This setting will not reduce the internal temperature quite as fast as the MAX
setting: however this setting will reduce the power consumption. This setting is recommend for
when the fridge/freezer is already at its desired temperature and is recommended when the
fridge/freezer is being used in vehicles or boats.
The snowflake symbol will not appear when set to ECO mode. Press and hold the UP arrow for
the 3 seconds to return the fridge/freezer to eco mode.
Control Panel Operation:Control Panel Operation:
Press the set button once then use the UP and DOWN arrows to adjust the left cabinet
temperature.
Press the set button twice then use the UP and DOWN arrows to adjust the right cabinet
temperature.
Press and hold the DOWN arrow for 3 second to enter MAX running mode. Displays
Press and hold the UP arrow for 3 second to return to ECO running mode.
Plug in the DC or AC power supply to turn the fridge on
Plug in the DC or AC power supply to turn the fridge on
Press and hold the SET button then use the UP and DOWN arrows to adjust the battery voltage
cut out.
OPERATION
24 ⁰C -04 ⁰C
23.6 v
DC Voltage input / Cut out
voltage dispay
Appears when using MAX
mode
Flashes when DC voltage
input is below set cutout
voltage
Spins when compressor is Spins when compressor is
running
Right Cabinet Temp. Display
Left Cabinet Temp. Display
UP and Down
arrow buttons
SET button

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
7
General Operating Tips
• Your Dobinsons 80 litre fridge freezer is split into 2 compartments, a 55 litre and a 25 litre
compartment. Both compartments are fully temperature adjustable. You can set both as a
freezer, both as a fridge or either as fridge and freezer. In most cases in extended trips, setting
the 25 litre cabinet to freezer and the 55 litre cabinet to fridge will work best as in most cases the
amount of frozen food is conziderably less than the food and drinks stored in the fridge.
•
• It is recommended that if you are planning on taking the fridge/freezer in your vehicle or boat
that first you connect the fridge/freezer at home or to an AC power supply a day or 2 before
leaving to cool the fridge/freezer and contents. This will avoid thawing of some contents if placed
into a fridge/freezer that has just been turned on and will also reduce the power usage on the
vehicle/boat battery.
•• The fridge/freezer is fitted with an internal basket and divider. This basket will only fit 1 way
into the fridge as the mounting legs slide over the fresh goods compartment. If fitting tall bottles
in the fridge/freezer the basket can be removed to allow the bottles to sit in the lower recess. It is
recommended however that the basket be used where possible. The internal divider can be
used to separate beverages from food.
•• It is recommended that you do not over load your fridge and that if possible you keep
ventilation room between each product. This will allow the fridge/freezer to operate most
efficiently, will allow the lid to seal properly and will help prevent hotspots.
•• If you are regularly taking beverages from the fridge/freezer and will be re-filling the
fridge/freezer with hot/room temperature beverages, it is recommended that you replace the
beverages from the fridge/freezer with your room temperature beverages as often as you
remove them or as often as possible, rather than emptying the fridge/freezer and replacing with
a large quantities of room temperature beverages. This will allow the fridge/freezer to operate
more efficiently, will reduce power consumption, will, prevent the room temperature beverages
lowering the temperature of the other contents, will help to prevent humidity build up in the
fridge and will also ensure a constant supply of cold beverages/contents.
fridge and will also ensure a constant supply of cold beverages/contents.
• Your Dobinsons fridge/freezer is equipped with an internal fresh goods compartment at the
rear at the top. This compartment generally is a few degrees warmer than the main fridge
compartment and is recommended that this compartment be used to store things like fruit and
vegetables that may not need to be as cool as the other items in the main compartment. This
compartment will also keep these items dry in case of a spillage in the main compartment.
• Where possible stand canned & bottled beverages upright.
OPERATION

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
8
Cleaning and maintenance
Clean the appliance inside and out with a damp cloth. If it is dirty, use sodium bicarbonate
dissolved in lukewarm water, and then clean it.
Never use abrasive products, detergents or soap. After washing, rinse with clean water and dry
carefully. Do not leave the fridge/freezer shut off, warm inside, with food inside or lid closed.
When in storage leave the lid ajar slightly to prevent mould build up inside the fridge/freezer.
Never clean the appliance under running water or in dish water. Do not use abrasive cleaning Never clean the appliance under running water or in dish water. Do not use abrasive cleaning
agents or hard objects during cleaning as these can damage the fridge/freezer.
Defrosting
When defrosting the fridge/freezer do not use sharp objects. Turn the fridge/freezer off and allow
the ice to melt. Drain the ice from the cabinet and then use a soft clean towel to wipe down clean
and allot to dry.
CLEANING & MAINTENANCE

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
9
Troubleshooting
Your Dobinsons Fridge/Freezer has a 5 year conditional warranty on the compressor and a 1
year warranty on all other parts.
TROUBLE SHOOTING

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
10
TROUBLE SHOOTING

© DOBINSONS SPRING AND SUSPENSION
WWW.DOBINSONSPRINGS.COM
11
TECHNICAL DATA

HEAD OFFICE
58 Hollingsworth Street
Nth Rockhampton QLD Australia 4701
Tel: [phone] Fax: [phone]
Email: [e-mail]
SYDNEY BRANCH
Unit 1/6 Waler Crescent
Unit 1/6 Waler Crescent
Smeaton Grange NSW Australia 2567
Tel: [phone] Fax: [phone]
Email: [e-mail]
BRISBANE BRANCH
Unit 118B/193 South Pine Road
Brendale QLD Australia 4500
Tel: [phone] Fax: [phone]
Email: [e-mail]
MELBOURNE BRANCH
Unit 9/171 Cheltenham Road
Unit 9/171 Cheltenham Road
Dandenong VIC Australia 3175
Tel: [phone] Fax: [phone]
Email: [e-mail]
