Dolby Laboratories A60 User manual

English

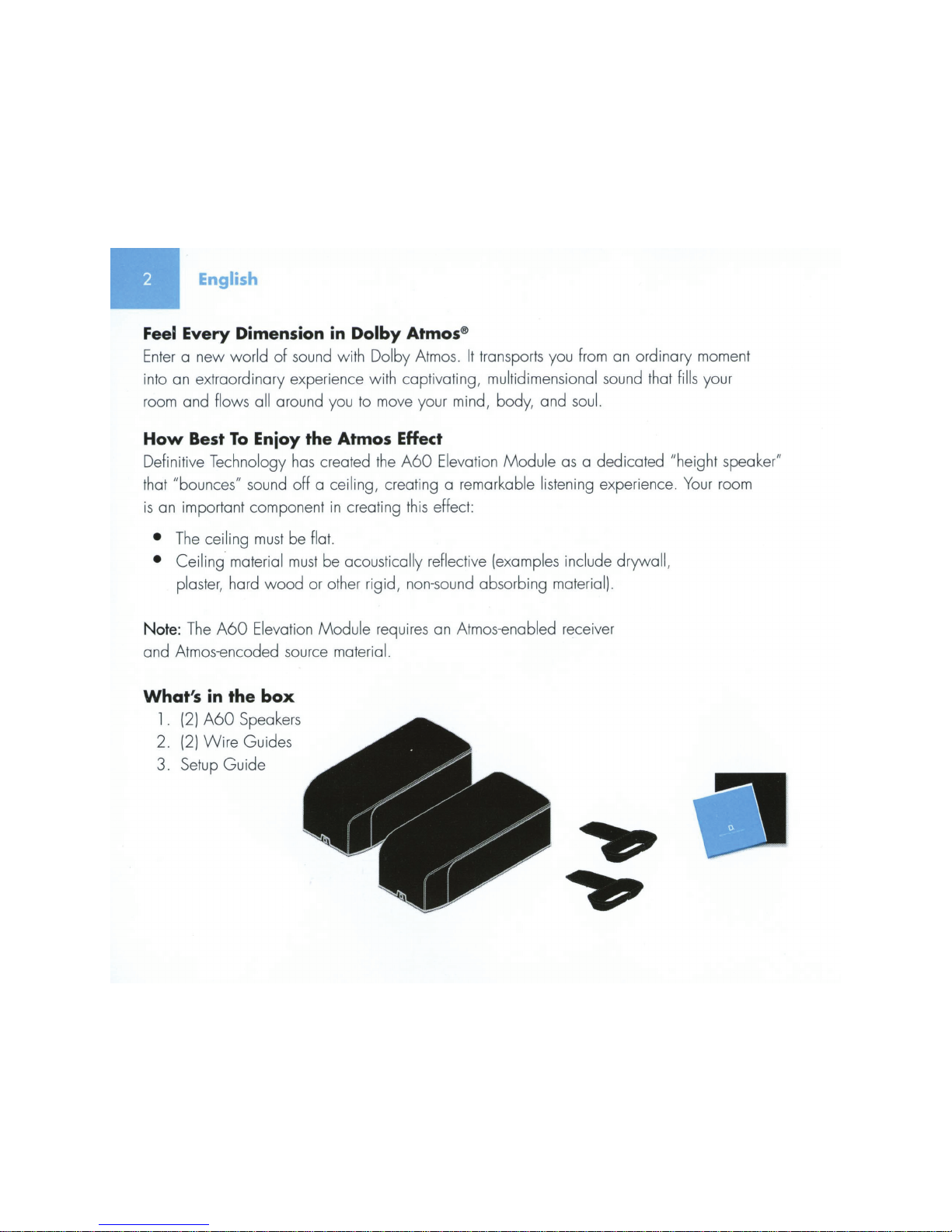

Feel Every Dimension in
Dolby Atmos®
Enter a new world of sound with Dolby Atmos. It transports you from an ordinary moment
into an extraordinary experience with captivating, multidimensional sound that fills your
room and flows all around you to move your mind,
body , and soul.
How Best To Enioy the Atmos EHect
Definitive Technology has created the A60 Elevation Module as a dedicated "height speaker"
that "bounces" sound off a ceiling, creating a remarkable listening experience.
Your room
is an important component in creating this effect:
•
The ceiling must be flat.
• Ceiling.material
must be acoustically reflective (examples include drywall,
plaster, hard
wood or other rigid, non-sound absorbing material).
Note: The A60 Elevation Module requires an Atmos-enabled receiver
and Atmos-encoded source material.
What's in the box
l . (2) A60 Speakers
2.
(2) Wire Guides
3. Setup
Guide

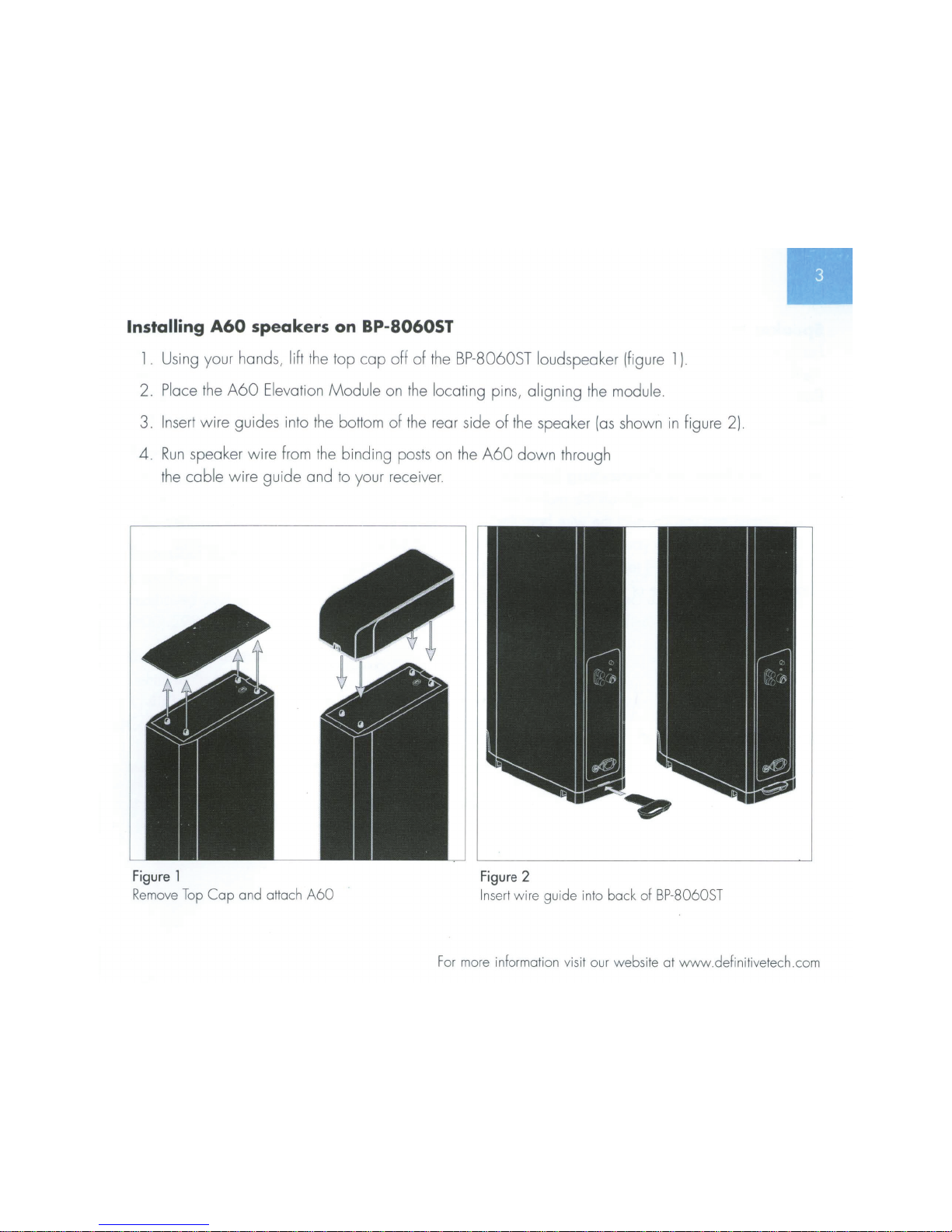

Installing
A60
speakers on BP-8060ST
1. Using your hands, lift
the
top
cap
off
of
the BP-8060ST loudspeaker (figure 1).
2. Place
the
A60
Elevation
Module
on the locating pins, aligning the module.
3.
Inse
rt wire guides into
the
bottom of
the
rear side
of
the speaker
(as
shown
in
figure 2).
4.
Run
speaker wire from the bindi
ng
posts
on
the
A60
down
through
the
cable wire guide and to your receiver.
Figure
1
Figure
2
Remove
Top
Cap
and attach
A60
Insert wi
re
guide i
nto
back
of
BP-8060ST
For
more information visit our website at
www
.definitivetech.com

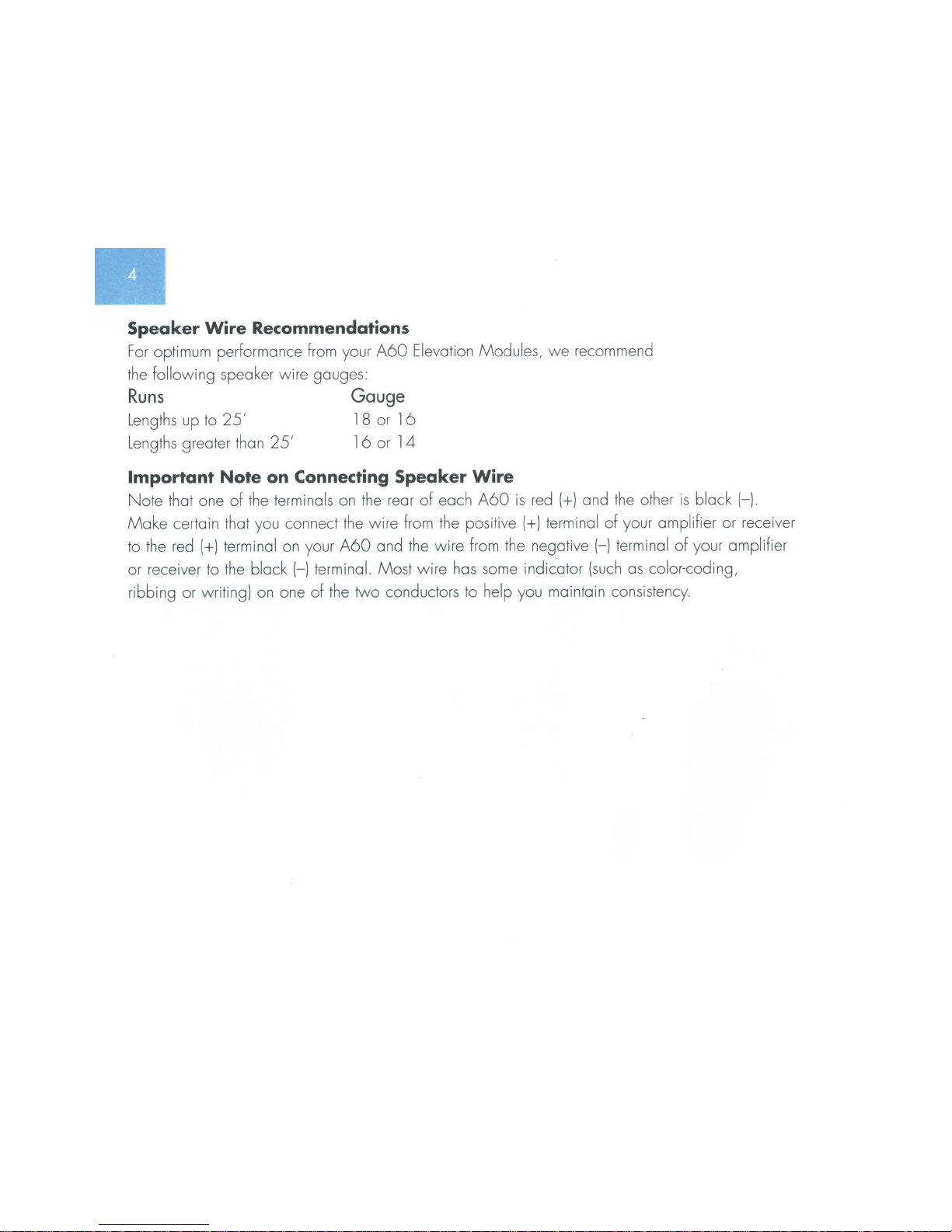

Speaker
Wire
Recommendations
For
optimum performance
from
your
A60
Elevation Modules,
we
recommend
the
following speaker wire gauges:
Run
s Gauge
Lengths
up to
25
' 18 or
16
Lengths
greater
than
25'
16
or
14
Important
Note
on
Connecting
Speaker
Wire
Note
that one
of
the
terminals on
the
rear
of
each
A60
is
red
(+)and
the
other
is
black(-).
Make
certain that you connect
the
wire from
the
positive
(+)
terminal
of
your amplifier or receiver
to
the
red
(+)
terminal on your
A60
and
the
wire from
the
negative (-) terminal
of
your amplifier
or receiver to
the
black (-) terminal.
Most
wire has some indicator
(such
as
color-coding,
ribbing or writing) on one
of
the
two
conductors to help you maintain consistency.

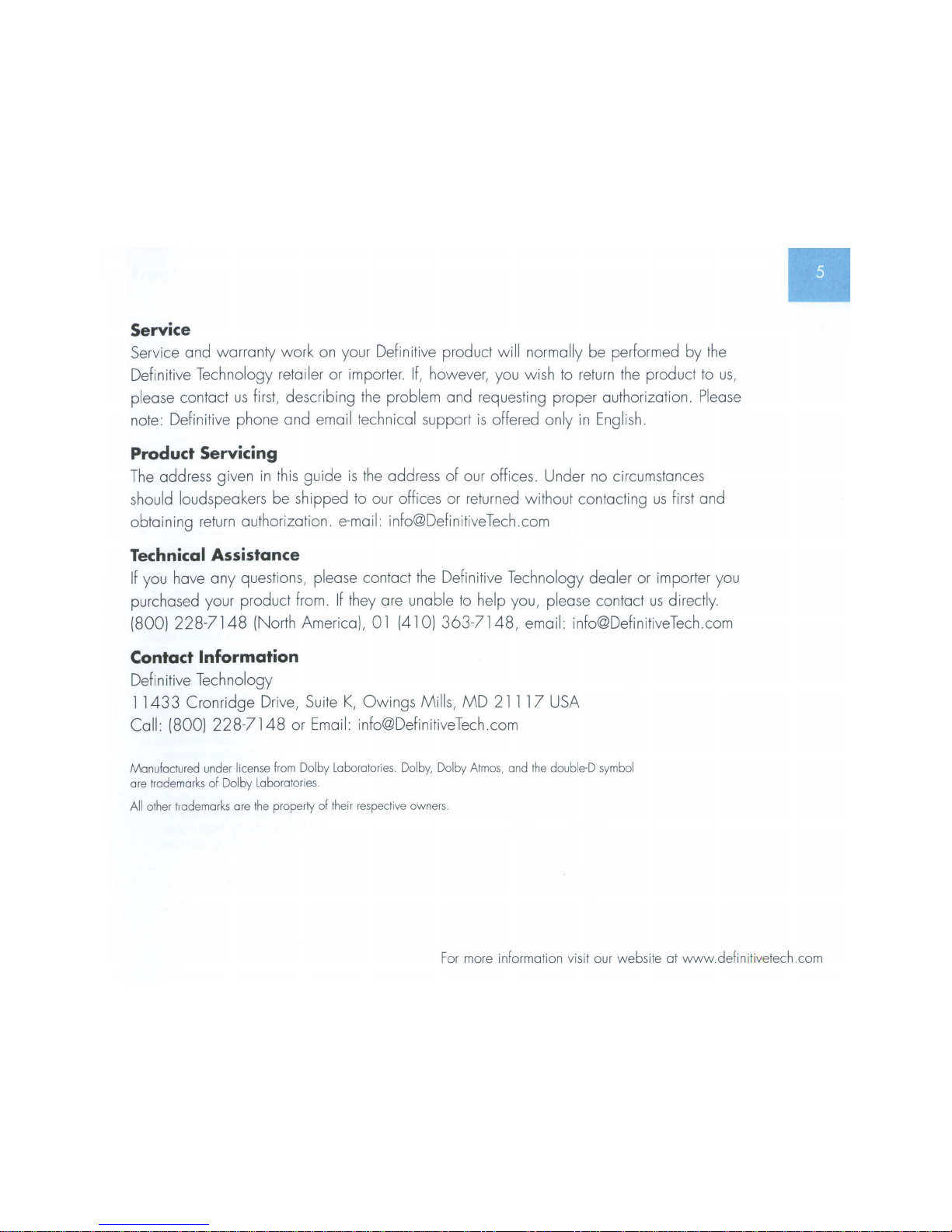

Service
Service and warranty work on your Definitive product will normally be performed by the
Definitive Tec h no l ogy retailer or importer. If, however, you wish to return the product to us,
please contact us first, describing the prob l em and requesting proper authorization. Please
note: Def
in itive phone and email technical support is offered only in English.
Product Servicing
T he address given in this guide is the address of our offices. Under no circumstances
should loudspeakers be shipped
to our offices or returned without contacting us first and
obtaining
return authorization. e-mail: [e-mail]
Technical Assistance
If you hove any questions, please contact the Definitive Technology dealer or importer you
pu rchased your product from. If they ore unable to help you, please contact us directly.
(800) 228-7 1 48 (North America), 0 1 [phone], email: info@Definitive Tech .com
Contact Information
Defi ni tive Technology
1
1433 Cronrid ge Drive, Sui te K, Owings Mills, MD 2 11 17 USA
Call: (
800) 228 -7 14 8 or Email: [e-mail]
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the double-D symbol
are trademarks
of Dolby Laboratories.
All other hademarks are the property
of their respective ow ner s.
For more information visit our website at www.def i ni tivetech.com

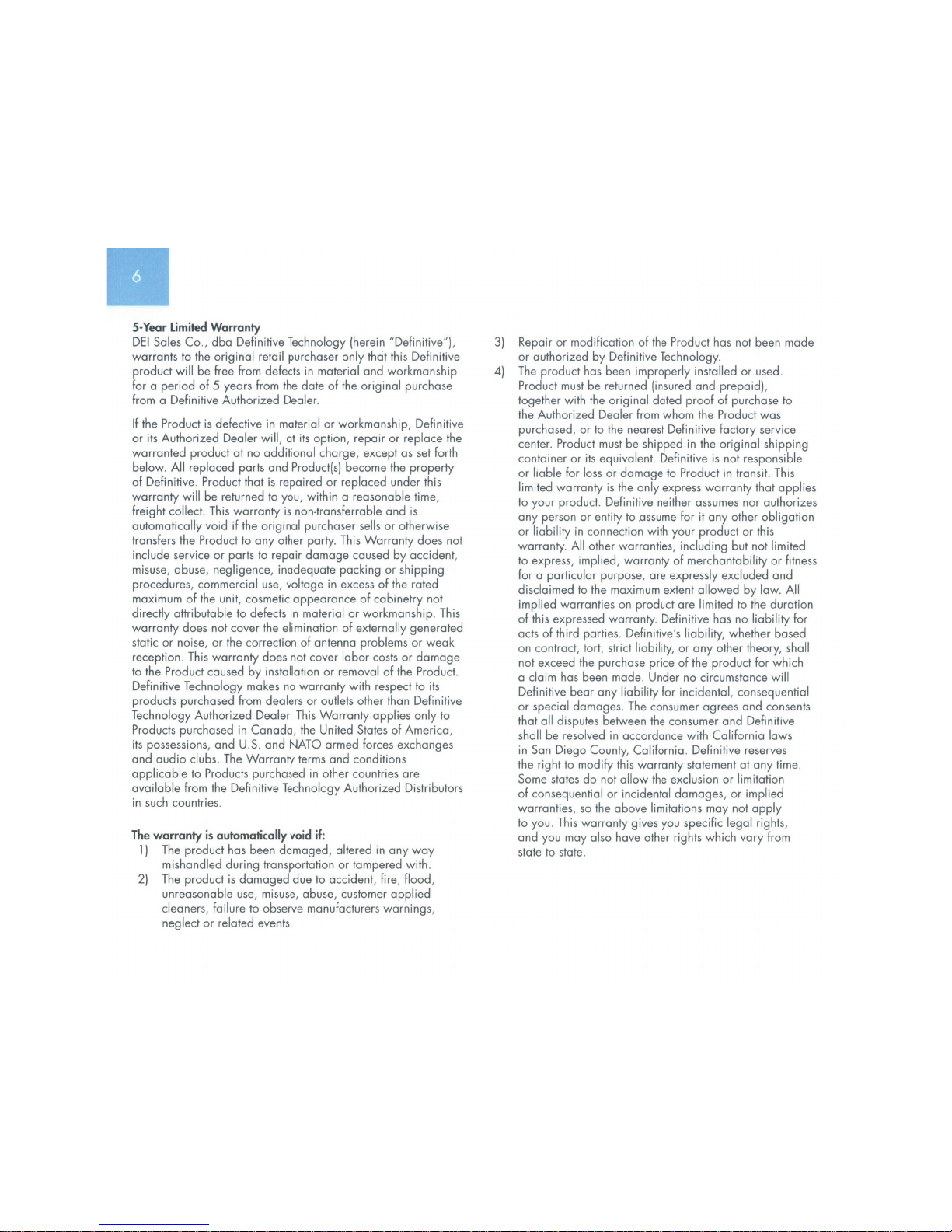

5-
