Dometic ECOLINE RH 430NTE User manual

RH430NTE, RH440NTE
Minibar
Installation and Operating Manual. . . . . . . 11
Minibar
Montage- und Bedienungsanleitung . . . . . 21
Minibar
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . . 31
Minibar
Instrucciones de montaje y de uso . . . . . . . 41
Minibar
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Minibar
Istruzioni di montaggio e d’uso . . . . . . . . . 61
Minibar
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . . 71
Minibar
Monterings- og betjeningsvejledning . . . . 81
Minibar
Monterings- och bruksanvisning . . . . . . . . 91
Minibar
Monterings- og bruksanvisning. . . . . . . . 100
Minibaari
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 110
Мини-бар
Инструкция по монтажу и эксплуатации 119
Minibar
Instrukcja montażu i obsługi. . . . . . . . . . . 130
Minibar
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 141
Minibar
Návod k montáži a obsluze . . . . . . . . . . . 151
Minibár
Szerelési és használati útmutató . . . . . . . 161
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
ECOLINE
RH430-RH440-IO-16s.book Seite 1 Dienstag, 12. Februar 2019 6:08 18

RH430-RH440-IO-16s.book Seite 2 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
3
O
F
F
MIN
MAX
1
1
2
RH430-RH440-IO-16s.book Seite 3 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
4
A
D
C
B
2
2
3
2
2
3
3
3
1
1
1
1
1
1
11
3
RH430-RH440-IO-16s.book Seite 4 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
5
1.
2.
3.
4
1.
2.
3.
5
3.
2.
1.
5 mm
5 mm
6
7
3.
2.
1.
RH430-RH440-IO-16s.book Seite 5 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
6
1.
2.
3.
8
1.
2.
3.
9
180°
0
a
1. 2.
b
c
RH430-RH440-IO-16s.book Seite 6 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
7
180°
d
3.
2.
1.
e
2.
1.
f
g
3.
2.
1.
h
RH430-RH440-IO-16s.book Seite 7 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
8
1.
2.
40 mm
10 mm
i
1 – 2 mm
6 – 8 mm
j
RH430-RH440-IO-16s.book Seite 8 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
9
k
90°
l
RH430-RH440-IO-16s.book Seite 9 Dienstag, 12. Februar 2019 6:08 18

RH430, RH440
10
1.
2.
3.
m
n
o
p
3.
2.
1.
q
RH430-RH440-IO-16s.book Seite 10 Dienstag, 12. Februar 2019 6:08 18

EN
RH430, RH440 Explanation of symbols
11
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Failure to observe this instruction can cause death
or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
RH430-RH440-IO-16s.book Seite 11 Dienstag, 12. Februar 2019 6:08 18

EN
Safety instructions RH430, RH440
12
I
2 Safety instructions
FWARNING! Fire hazard / Flammable materials
• Keep the ventilation openings on the device housing or in installations
free of obstructions.
• Do not use any mechanical objects or other media to speed up the
defrosting process, unless they have been recommended by the
manufacturer for this purpose.
• Do not damage the refrigerant circuit.
• Do not use electrical devices in the food compartments of the cooler
unless they are recommended by the manufacturer for this purpose.
2.1 General safety
!WARNING!
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
• This cooling device can be used by children aged 8 years or over, as
well as by persons with diminished physical, sensory or mental capac-
ities or a lack of experience and/or knowledge, providing they are
supervised or have been taught how to use the cooling device safely
and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children
without supervision.
• Children must not play with the cooling device.
• Children must be supervised to ensure that they do not play with the
cooling device.
• Always keep and use the cooling device out of the reach of children
under the age of 8 years.
NOTE
Supplementary information for operating the product.
RH430-RH440-IO-16s.book Seite 12 Dienstag, 12. Februar 2019 6:08 18

EN
RH430, RH440 Safety instructions
13
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
!CAUTION!
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
• Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Connect the cooling device with an AC connection cable to the AC
power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
2.2 Operating the cooling device safely
!CAUTION!
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
ANOTICE!
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
RH430-RH440-IO-16s.book Seite 13 Dienstag, 12. Februar 2019 6:08 18

EN
Intended use RH430, RH440
14
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
3 Intended use
The cooling device is suitable for cooling beverages and snacks.
The device is designed for use with a 100 – 240 V AC mains supply.
The cooling device is intended to be used in household and similar applications such
as
• staff kitchen areas in shops, offices and other working environments
•farmhouses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications
!
4Scopeofdelivery
5 Technical description
The cooling device can cool products to a maximum of 21 °C under the ambient
temperature and keep them cool. A grid divider can be used to separate foodstuffs,
e.g. bottles and sweets.
Its cooling system is a non-wearing Peltier cooling.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
Quantity Description
1 Minibar
1 Installation and operating manual
RH430-RH440-IO-16s.book Seite 14 Dienstag, 12. Februar 2019 6:08 18

EN
RH430, RH440 Installation
15
Control element
6 Installation
!
A
The cooling device is designed for free-standing installation, but can be built-in if the
following conditions are complied with to ensure satisfactory operation and maxi-
mum cooling efficiency.
• The cooling device must be levelled carefully to ensure proper function.
• For the glass door version: When ambient humidity is above 65 % in 25 °C ambi-
ent temperature, moisture will condense on the door.
• The socket outlet for the mains connection must be freely accessible.
• When the cooling device is positioned, the supply cord must not be trapped or
damaged.

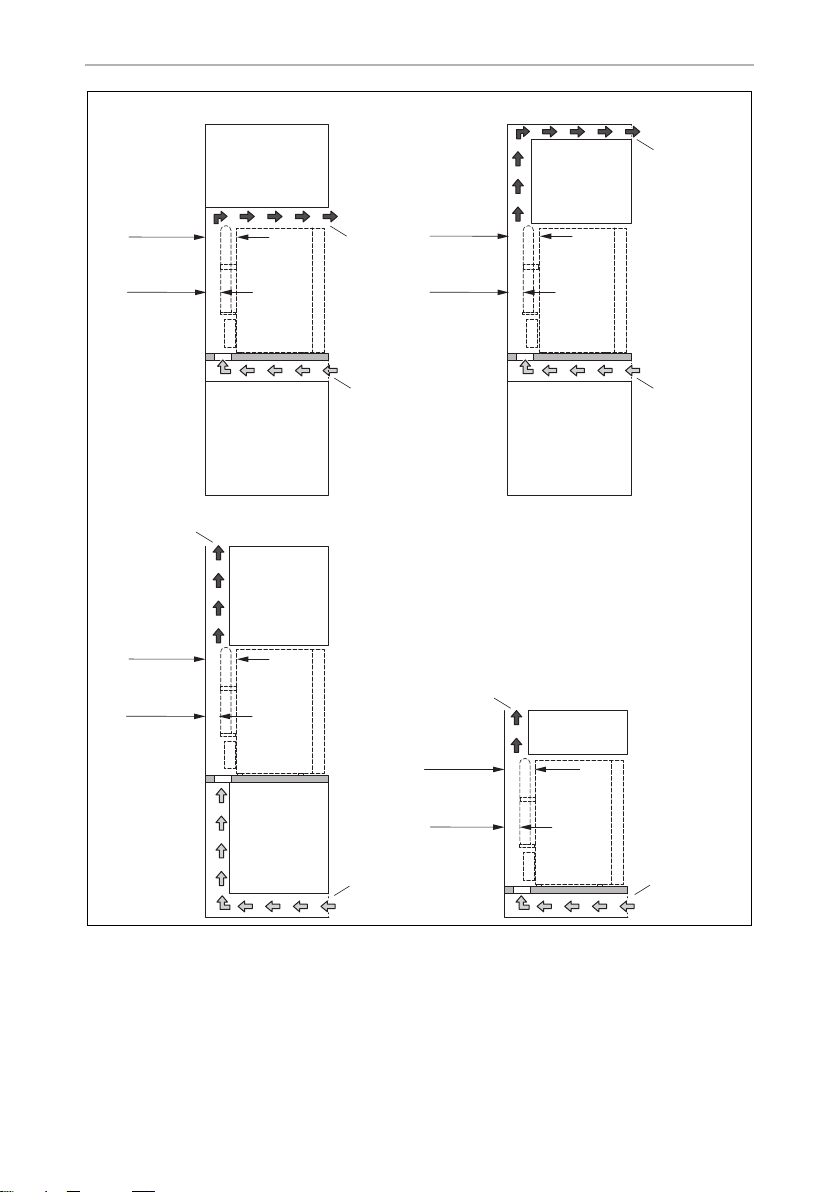

Ventilation (fig. 3, page 4)
• Ventilation must be provided as shown in alternatives A, B, C or D.
• Ventilation grills (1), if used, must have openings of at least 200 cm² each.
No. in
fig. 1, page 3 Description
1 Temperature controller
WARNING!
Damage to the refrigerant circuit at the back of the cooling device
causes a fire hazard as the cooling agent is highly flammable. To avoid a
damage to the refrigerant circuit due to instability of the cooling device,
always fix the cooling device in accordance with the instructions.
NOTICE!
When carrying the cooling device handle it with special care.
• Carry the cooling device with two people.
• Only carry the cooling device upright.
• Be careful not to damage the technical components located at the
backside.
RH430-RH440-IO-16s.book Seite 15 Dienstag, 12. Februar 2019 6:08 18

EN
Installation RH430, RH440
16
• The minimum clearance between the cooling device‘s back and the surrounding
structure should be as follows:
• The ventilation duct must at least measure 105 mm x the width of the cooling
device.
• Only the entire cooling unit must project into the ventilation duct as shown.
• Air passing through the ventilation duct must not be preheated by any source of
heat.
• The ventilation duct must be kept free from any obstacles. Especially portable
multi socket outlets or portable power supplies, which can get warm, must not
be kept at the rear of the cooling device.
6.1 Fixing the cooling device

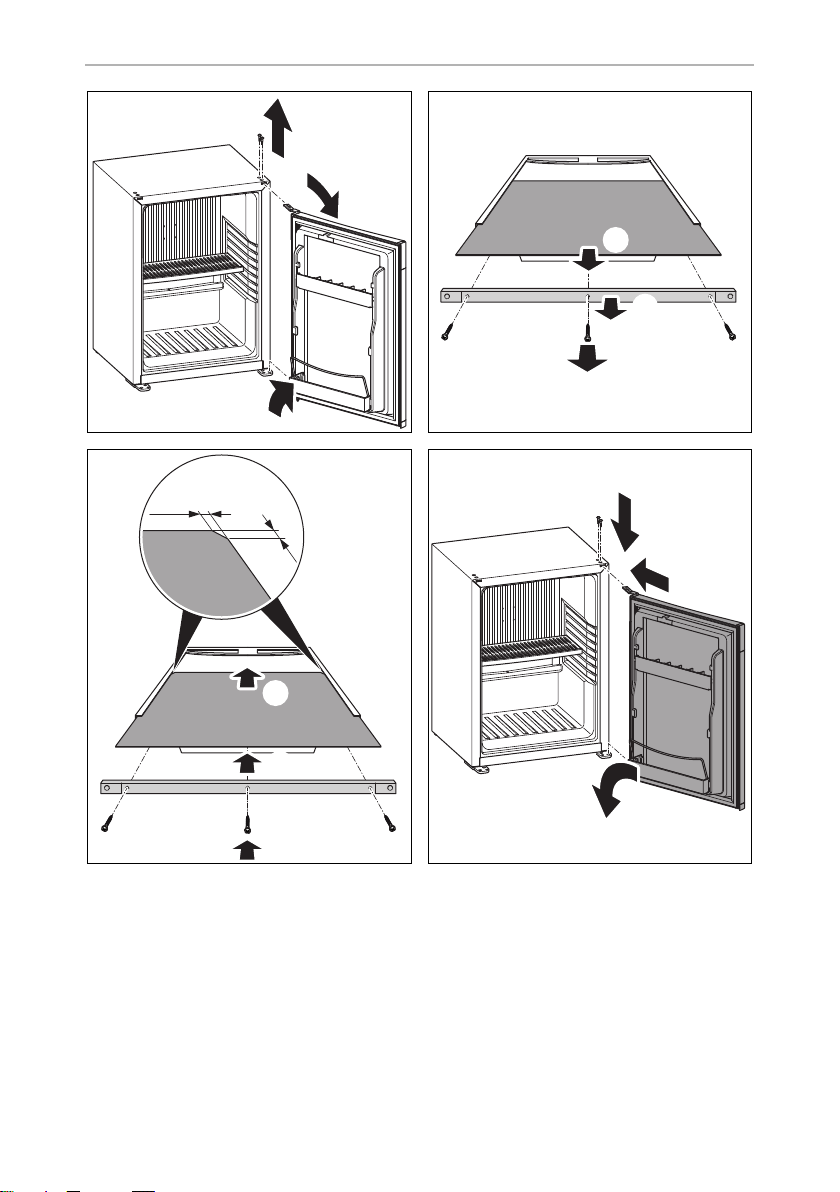

➤Fix the cooling device through its fixing feet as shown (fig. 2, page 3).
6.2 Changing the decorative plate
➤Change the decorative plate as shown (fig. 4to fig. 7, page 5).
6.3 Mounting the sliding hinge (optional)
You can mount a sliding hinge that allows the cooling device door to be opened at
the same time as the door of the built-in cabinet.
➤Mount the sliding hinge as shown (fig. 8, page 6, to fig. l, page 9).
6.4 Reversing the door
➤Reverse the door as shown (fig. mto fig. q, page 10).
or ...
➤Reverse a door with a sliding hinge as shown (fig. oand fig. p, page 10).
No. in
fig. 3, page 4 Min. distance
220mm
3105mm
RH430-RH440-IO-16s.book Seite 16 Dienstag, 12. Februar 2019 6:08 18

EN
RH430, RH440 Operation
17
7Operation
!
I
7.1 Energy saving tips
• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
7.2 Using the cooling device
A
I
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
• Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 18).
• A few water drops may form inside the cooling device if it has been
cooling for a lengthy period. This is normal because the moisture in
the air condenses to water when the temperature in the cooling
device falls. The cooling device is not defective. Wipe it out with a
dry cloth if necessary.
NOTICE! Risk of damage
• Ensure that the objects placed in the cooling device are suitable for
cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
• Ensure that your cooling device is well ventilated so that any heat
created can dissipate. Otherwise proper functioning cannot be
ensured. It is especially important not to cover the air vents.
NOTE
If you are not going to use the cooling device for a long time, leave the
door slightly ajar to prevent unpleasant odours building up.
RH430-RH440-IO-16s.book Seite 17 Dienstag, 12. Februar 2019 6:08 18

EN
Cleaning and maintenance RH430, RH440
18
➤Place the cooling device on a firm base.
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤Set the temperature controller (fig. 11, page 3) to the desired temperature
(3 – 12 °C)
➤If you wish to switch the cooling device off, pull out the connection cable
or ...
➤Rotate the temperature controller (fig. 11, page 3) anti-clockwise to the OFF
position.
8 Cleaning and maintenance
!
A
➤Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the
cooling device.
➤Wash out the cooling device using clean water and dry thoroughly.
➤At annual intervals, remove dust from the cooling aggregate at the back of the
cooling device using a brush or a soft cloth.
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
RH430-RH440-IO-16s.book Seite 18 Dienstag, 12. Februar 2019 6:08 18

EN
RH430, RH440 Troubleshooting
19
9 Troubleshooting
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
Problem Possible cause Suggested remedy
Your device is not
working (plug is
inserted).
No voltage present in the
AC voltage socket.
Try using another plug socket.
The inner fan or the cooling
element is defective.
This can only be repaired by an
authorised repair centre.
The integrated mains
adapter is defective.
This can only be repaired by an author-
ised customer services unit.
The main control board is
defective.
This can only be repaired by an
authorised repair centre.
RH430-RH440-IO-16s.book Seite 19 Dienstag, 12. Februar 2019 6:08 18

EN
Technical data RH430, RH440
20
11 Technical data
RH430NTE RH440NTE
Gross capacity: 30 l 40 l
Connection voltage: 100 – 240 Vw, 50/60 Hz
Power consumption: 55 W
12.1 W (100 – 240 Vw, ECO mode)
Temperature range: 3 °C ... 12 °C
max. 21 °C under ambient temperature
Category: 2 (Cellar)
Energy efficiency class: A+
Energy consumption: 99 kWh/annum
Usable capacity: 25 l 34 l
Climate class: N, T
Refrigerant: R600a
Refrigerant quantity: 25 g
Ambient temperature: +16 °C to +43 °C
Noise emission (sound power): 0 dB
Dimensions (W x H x D): 384 x 522 x 395 mm 401 x 554 x 425 mm
Weight: 10 kg 11 kg
Testing/certification:
1419065623
RH430-RH440-IO-16s.book Seite 20 Dienstag, 12. Februar 2019 6:08 18
