Dometic REFRIGERATION 10-Series User manual

RC10.4(S)(T).70, RC10.4(S)(T).90, RC10.4P.100
RCS10.5(X)(S)(T), RCL10.4(S)(T), RCD10.5(X)(S)(T)
Compressor refrigerator
Operating manual . . . . . . . . . . . . . . . . . . . . 17
Kompressor-Kühlschrank
Bedienungsanleitung . . . . . . . . . . . . . . . . .40
Réfrigérateur à compression
Notice d’utilisation . . . . . . . . . . . . . . . . . . .63
Nevera con extractor
Instrucciones de uso . . . . . . . . . . . . . . . . . .87
Frigorífico de absorção
Manual de instruções . . . . . . . . . . . . . . . . 111
Frigorifero ad assorbimento
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . .135
Compressorkoelkast
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . .158
Absorber-køleskab
Betjeningsvejledning . . . . . . . . . . . . . . . . 181
Absorptionskylskåp
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . 203
Absorbsjons-kjøleskap
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 225
Absorptiojääkaappi
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 247
Абсорбционный холодильник
Инструкция по эксплуатации . . . . . . . . . 269
Lodówka absorpcyjna
Instrukcja obsługi . . . . . . . . . . . . . . . . . . .294
Absorpčná chladnička
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 318
Absorpční lednička
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 340
Abszorberes hűtőszekrény
Használati utasítás. . . . . . . . . . . . . . . . . . .362
Absorpcijski hladilnik
Navodilo za uporabo . . . . . . . . . . . . . . . . 386
Ψυγείο υγραερίου/ρεύματος
Οδηγίες χειρισμού . . . . . . . . . . . . . . . . 409
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
SL
EL
REFRIGERATION
10-SERIES
RC_RCL_RCD10_OPM_18s.book Seite 1 Freitag, 17. Juli 2020 3:42 15

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
RC_RCL_RCD10_OPM_18s.book Seite 2 Freitag, 17. Juli 2020 3:42 15

RC10-Series
3

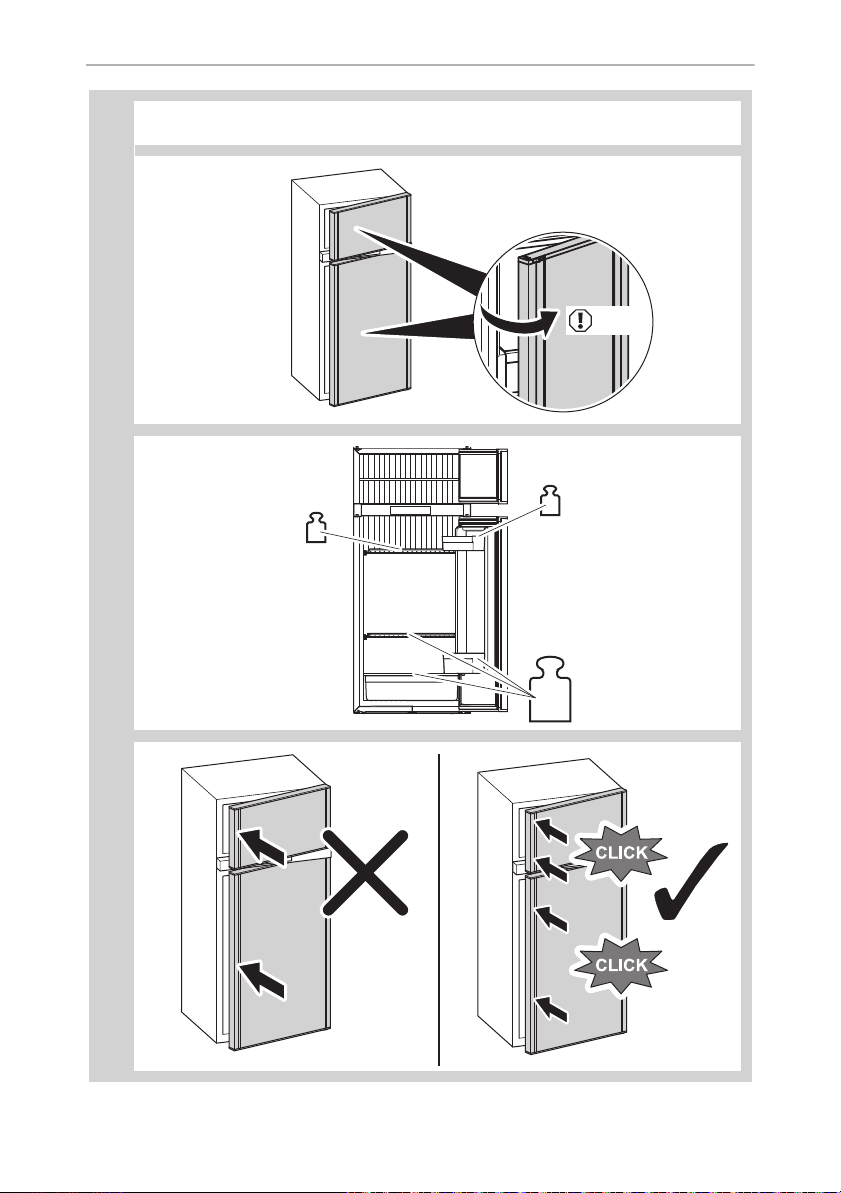

NOTICENOTICE
d90°
RC 10.4(S)(T).70 / RC 10.4(S)(T).90 / RC 10.4P.100
RCL 10.4(S)(T) / RCD 10.5(X)(S)(T) / RCS 10.5(X)(S)(T)
RC_RCL_RCD10_OPM_18s.book Seite 3 Freitag, 17. Juli 2020 3:42 15

RC10-Series
4
NOTICENOTICE
d90°
RCD 10.5(X)(S)(T)
RC_RCL_RCD10_OPM_18s.book Seite 4 Freitag, 17. Juli 2020 3:42 15

RC10-Series
5
A
B
1
11
2
22
3
334
445
55
6
66
1
RC_RCL_RCD10_OPM_18s.book Seite 5 Freitag, 17. Juli 2020 3:42 15

RC10-Series
6
User mode
Settings
Performance
User mode
Settings
RCL 10.4T / RCD 10.5(X)T / RCS 10.5(X)T
RC 10.4T.70 / RC 10.4T.90
2
RC_RCL_RCD10_OPM_18s.book Seite 6 Freitag, 17. Juli 2020 3:42 15

RC10-Series
7

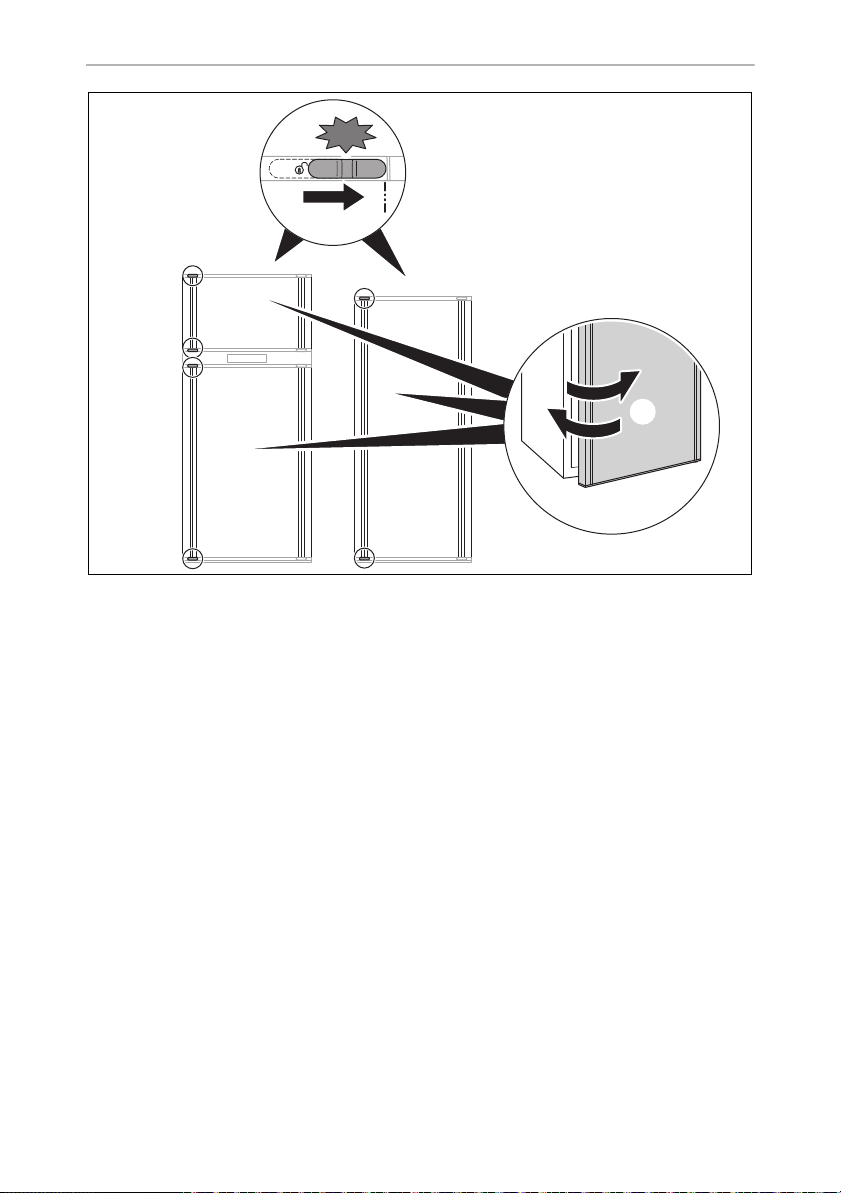

CLICK
1.
2.
2x4x
3
RC_RCL_RCD10_OPM_18s.book Seite 7 Freitag, 17. Juli 2020 3:42 15

RC10-Series
8
CLICK
1.
3.
1x2x
CLICK
2.
1x2x
a
a
b
b
bb
a
a
4
RC_RCL_RCD10_OPM_18s.book Seite 8 Freitag, 17. Juli 2020 3:42 15

RC10-Series
9
1x2x
1x2x
CLICK
a
a
b
b
bb
a
a
5
RC_RCL_RCD10_OPM_18s.book Seite 9 Freitag, 17. Juli 2020 3:42 15

RC10-Series
10
2x4x
6
RC_RCL_RCD10_OPM_18s.book Seite 10 Freitag, 17. Juli 2020 3:42 15

RC10-Series
11
2. 3.
1.
3.
1. 2.
7
5.
4.
2.
3.
1.
8
RC_RCL_RCD10_OPM_18s.book Seite 11 Freitag, 17. Juli 2020 3:42 15

RC10-Series
12

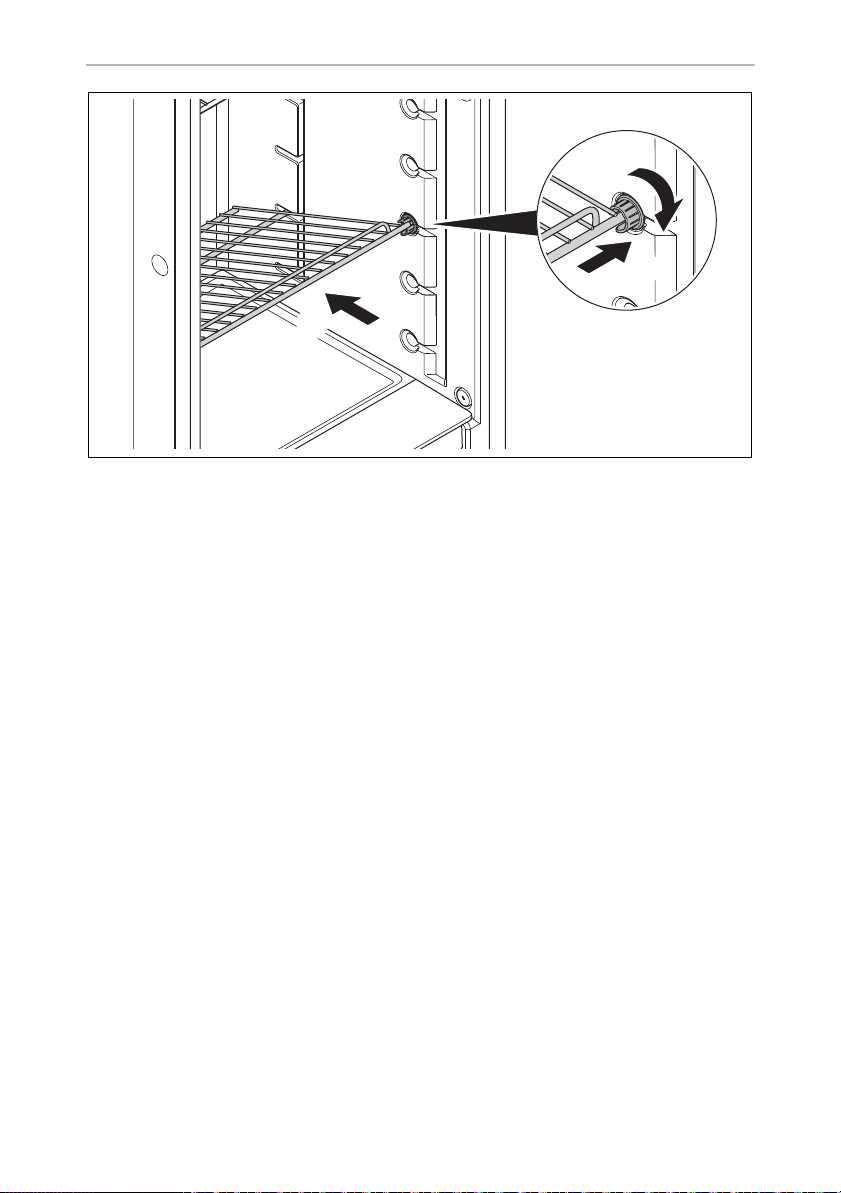

1.
2.
3.
9
RC_RCL_RCD10_OPM_18s.book Seite 12 Freitag, 17. Juli 2020 3:42 15

RC10-Series
13
RCL 10.4(S)(T)
3.
4. 5.
1. 2.
1.
2.
RC 10.4(S)(T).70 / RC 10.4(S)(T).90 / RC 10.4P.100
0
RC_RCL_RCD10_OPM_18s.book Seite 13 Freitag, 17. Juli 2020 3:42 15

RC10-Series
14
>3 mm
4 sec
4 sec
1. 2.
1.
2.

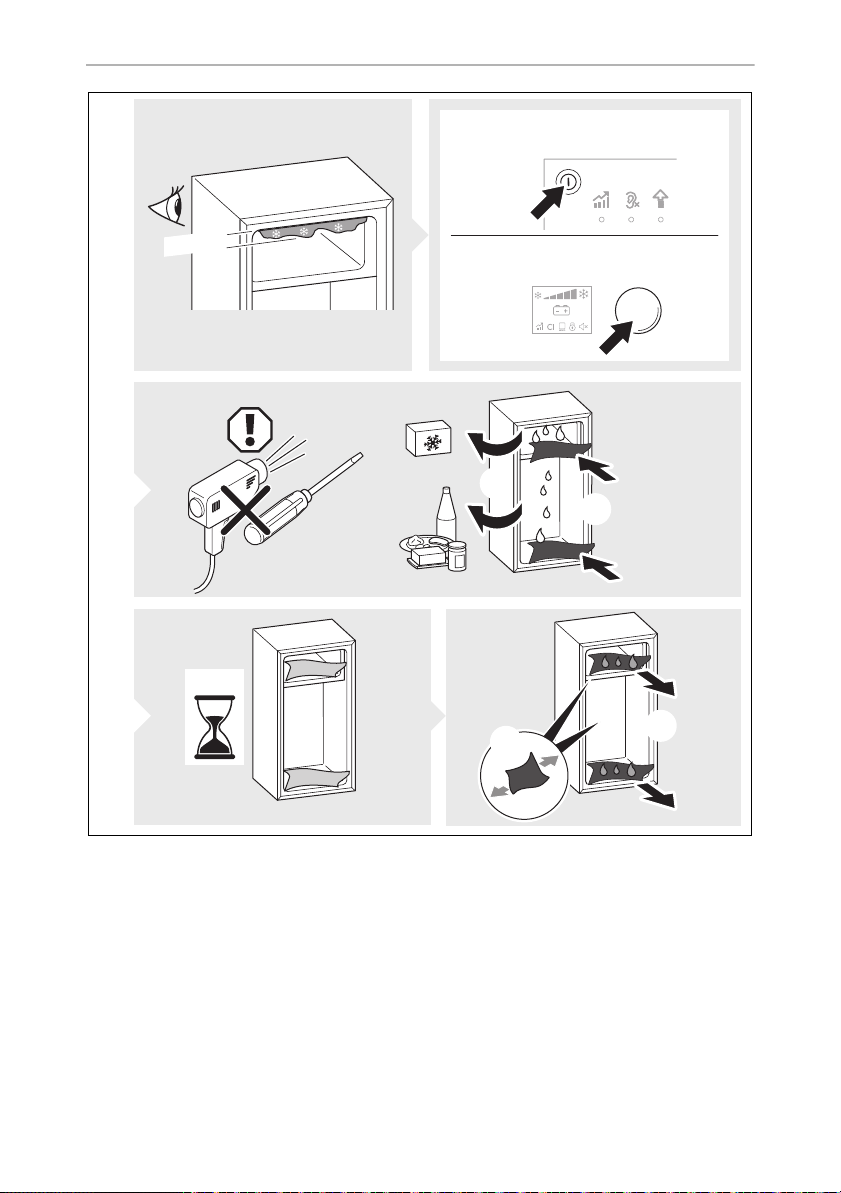

4 – 8 h
RCL 10.4T / RCD 10.5(X)T / RCS(X)T
RCL 10.4S / RCD 10.5(X)S / RCS10.5(X)S
RC 10.4T.70 / RC 10.4T.90
RC 10.4S.70 / RC 10.4S.90 / RC 10.4P.100
a
RC_RCL_RCD10_OPM_18s.book Seite 14 Freitag, 17. Juli 2020 3:42 15

RC10-Series
15
1.
3.
2.
2x
4x
b
8x/4x
8x/4x
1.
2. 3.
8x/4x
5.
4.
c
RC_RCL_RCD10_OPM_18s.book Seite 15 Freitag, 17. Juli 2020 3:42 15

RC10-Series
16
8x/4x
8x/4x
1.
2. 3.
8x/4x
6.
4.
5.
7.
d
RC_RCL_RCD10_OPM_18s.book Seite 16 Freitag, 17. Juli 2020 3:42 15

EN
RC(S)(L)(D)10-Series Explanation of symbols
17
Please read this instruction manual carefully before first use, and storeit in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
1 Explanation of symbols
D
!
!
DANGER!
Safety instruction: Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
RC_RCL_RCD10_OPM_18s.book Seite 17 Freitag, 17. Juli 2020 3:42 15

EN
Safety instructions RC(S)(L)(D)10-Series
18
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Ensure that the device has been installed by a qualified technician in
accordance with the Dometic installation manual.
• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
• This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
Explosion hazard
• Do not store any explosive substances, such as spray cans with
propellants, in the device.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
RC_RCL_RCD10_OPM_18s.book Seite 18 Freitag, 17. Juli 2020 3:42 15

EN
RC(S)(L)(D)10-Series Safety instructions
19
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating devices.
Risk of child entrapment
• Make sure that the shelves are mounted and secured so that children
cannot lock themselves in the device.
• Before disposing of your old refrigerator:
– Dismantle the drawers.
– Leave the shelves in the refrigerator so that children cannot climb
inside.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Risk of crushing
• Do not put your fingers into the hinge.
Health hazard
• Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate is the same as
that of the power supply.
• If your vehicle does not have a battery undervoltage cutout,
disconnect the device or switch it off when you turn off the engine.
Otherwise you may discharge the battery.
• The device is not suitable for storing substances which are caustic or
contain solvents.
• Keep the drainage outlet clean at all times.
• Do not open the refrigerant circuit under any circumstances.
• Do not transport the device in a horizontal position, so that no oil can
leak out of the compressor and through this damage the refrigerant
circuit.
• Make sure that the refrigerant circuit is not damaged during transpor-
tation. The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit:
– Avoid naked flames and sparks.
– Air the room well.
RC_RCL_RCD10_OPM_18s.book Seite 19 Freitag, 17. Juli 2020 3:42 15

EN
Safety instructions RC(S)(L)(D)10-Series
20
• Set up the device in a dry location where it is protected against
splashing water.
2.2 Operating the device safely
DDANGER! Failure to obey these warnings will result in death or
serious injury.
Electrocution hazard
• Do not touch exposed cables with your bare hands.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the device, ensure that the power supply line and the
plug are dry.
Health hazard
• Make sure that you only put items in the device which may be chilled
at the selected temperature.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the door for long periods can cause significant increase of
the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or can drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
• If the refrigerator is exposed to a room temperature of below +10 °C
for an extended period of time, a uniform temperature cannot be
guaranteed in the freezer compartment. This can lead to an increase of
the freezer compartment temperature and the goods stored in it may
defrost.
