Domus Vita Design MODICA User manual

MODICA
Assembly Instructions
4 of 4 © Domus Vita Design 2015

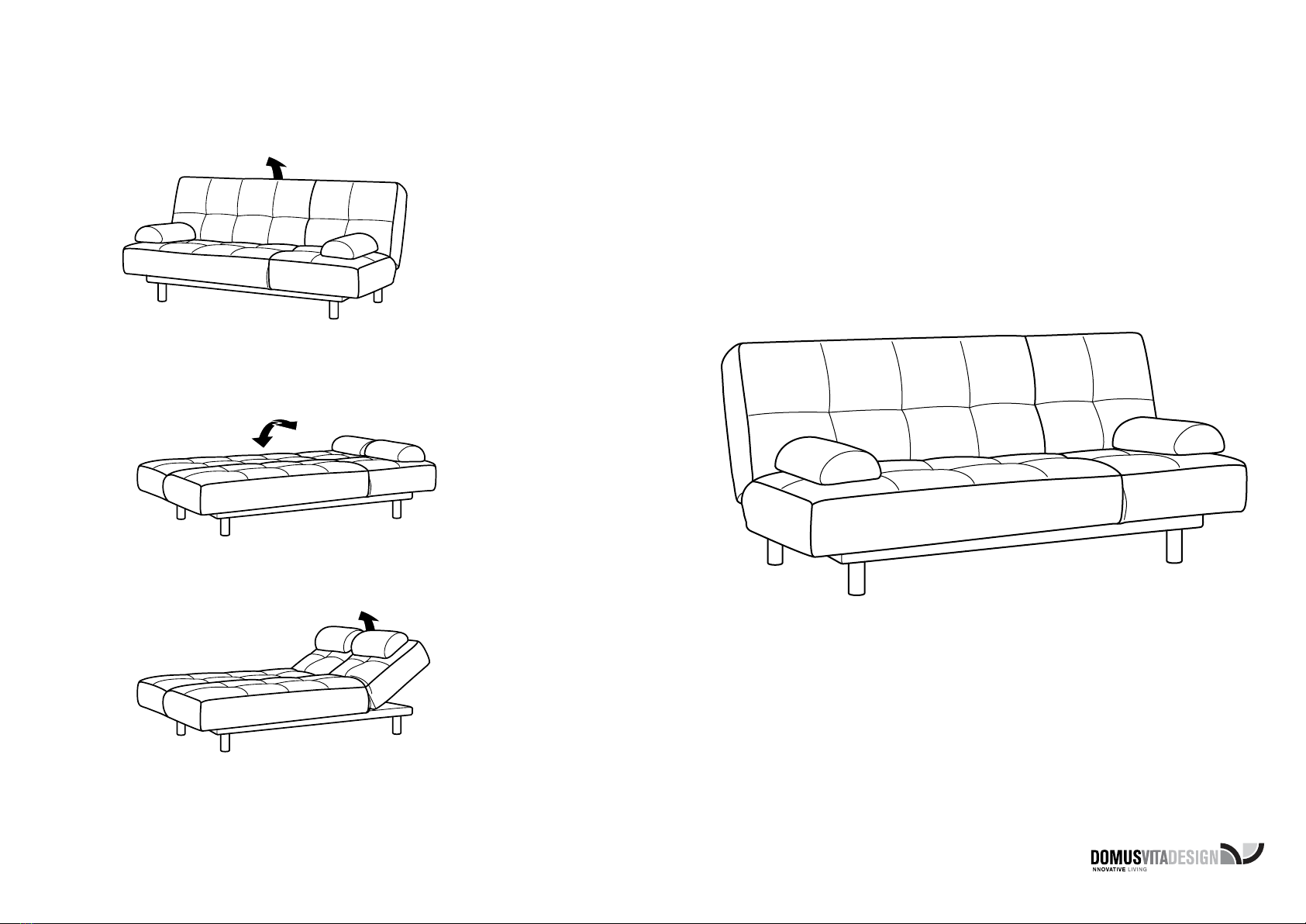

Converting to Sofa or Lounger
Standing at the side of the unit (from bed position), lift backrest to the desired position and secure in
place by releasing to the sound of a click.
OPERATING YOUR UNIT
Converting to Chaise
Ensure unit is in bed position. Facing sofa, lift right side of sofa seat (and backrest) to the desired chaise
position.
Converting to Bed
From sofa or lounge position, lift backrest all the way upwards until the last click is heard which unlocks
the mechanism and carefully return to a flat position.
During conversion, ensure lifting is done from behind the backrest.IMPORTANT:

PARTS AND HARDWARE
IMPORTANT :
Avoid using sharp objects to open packaging as you may accidentally damaging the product.
Please read complete instruction sheet prior to assembly.
Minimum 2 adults required to safely perform assembly process.
ASSEMBLY INSTRUCTIONS
PARTS AND HARDWARE
STORAGE COMPARTMENT
1
2
3
Metal Leg
4x
Allen Key
1x
Bolt
8x
Pillow
2x
Sofa Body
1x
A B
C
D
E
4x
E
D
B
A
C
C
