Dorel Living DL8715 User manual

Model Number: UPC Code:
DL8715
0-65857-19837-9
Date of Purchase: _____ / _____ / _____ Lot Number:
(located on carton)
5 PC DINING SET
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with
quality, convenience and style in mind. We trust it will provide you with many years of exceptional
comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece
by taking a few minutes to go through this booklet. It contains important information on our
warranty and care tips to keep your furniture looking as good as new.
Questions, concerns, missing parts? Customer satisfaction is important to us at Dorel Asia.
CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING PRODUCT TO
THE RETAILER.
Our agents are available Monday to Friday 8am to 5pm (EST) to take your call and answer any
questions. For faster service, always have the model number ready when contacting us.
toll free #: 1-800-295-1980
You can also reach us by email or by visiting our website and clicking on the Support tab:
[email protected]
www.dorelliving.com
and Instagram page.

*
*
*
*
*
*
*
*
1-YEAR LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy
any such defect. This warranty covers 1 year from the date of original purchase from authorized
retailers. This warranty is valid only upon presentation of proof of purchase. This is solely limited to the
repair or replacement of defective furniture components and no assembly labor is included. This
warranty does not apply to any product which has been improperly assembled, subjected to misuse or
abuse or which has been altered or repaired in any way. The warranty does not cover wearing, tearing,
fading or splitting of the fabric (where applicable). This warranty gives you specific legal rights and you
may also have other rights which vary from State to State or Province to Province.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
CARE, CLEANING AND MAINTENANCE
Dust this item regularly with a soft, lint-free cloth to prevent soil build up. Do not soak or wash in hot
water. Wipe with a soft, damp cloth if necessary. Do not use abrasives, cleansers or polish.
Check all bolts, screws and fasteners periodically and tighten them if necessary.
Phillips head screwdriver is not included.
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product model
number, color and a detailed description of your enquiry.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
NOTES AND INSTALLATION
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to the product finish.
Read all instructions before use.
DO NOT use power tools.
CAUTION: Adult assembly required.
Assembly may require two people.
Estimated assembly time is 45-60 minutes

5 PC DINING SET
DL8715

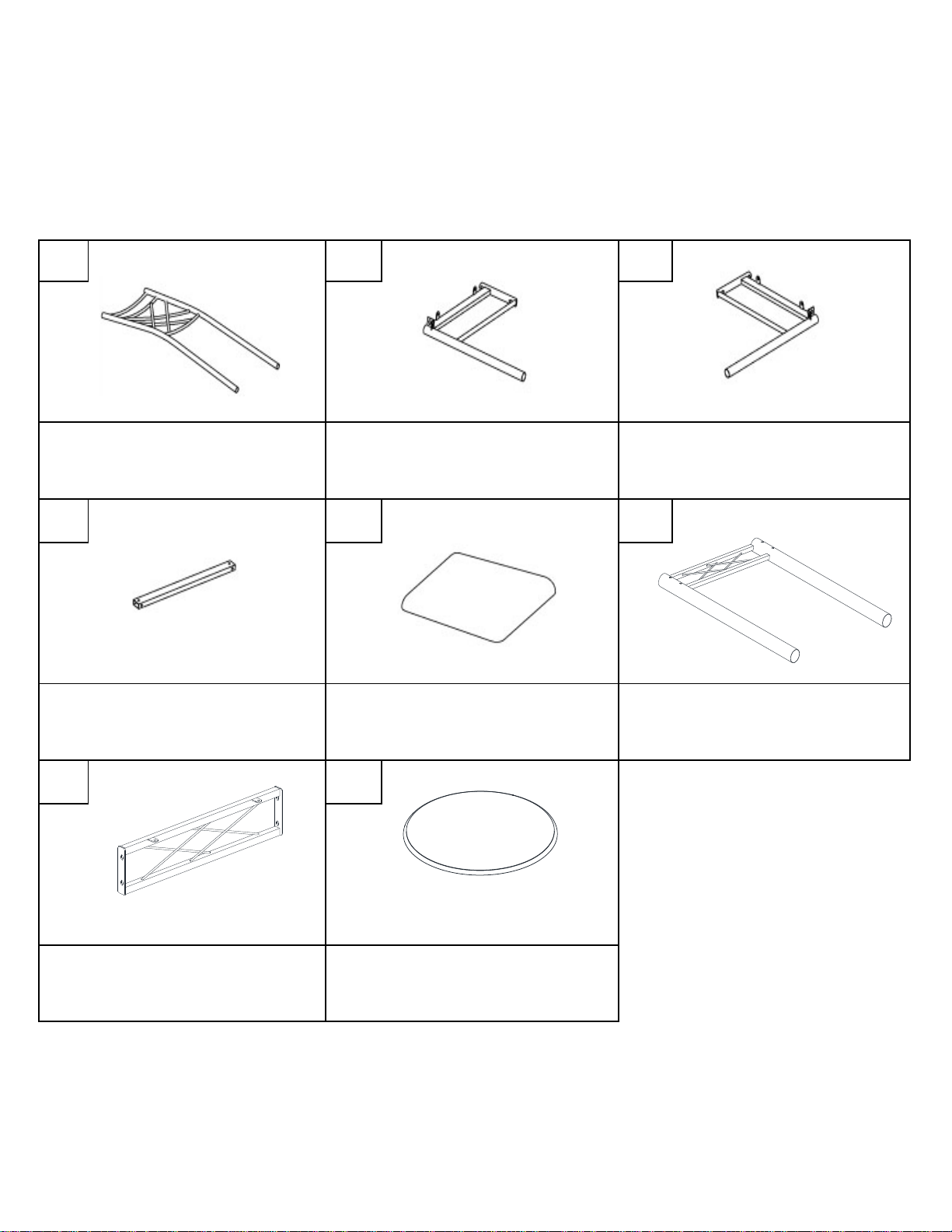

PARTS LIST
A
B
C
D
E
F
CHAIR BACK
CHAIR LEFT LEG
CHAIR RIGHT LEG
4 PCS
4 PCS
4 PCS
G
H
CHAIR STRETCHER
SEAT CUSHION
TABLE LEG
4 PCS
4 PCS
2 PCS
TABLE STRETCHER
TABLE TOP
2PCS
1PC

5 PC DINING SET
DL8715
1
2
3

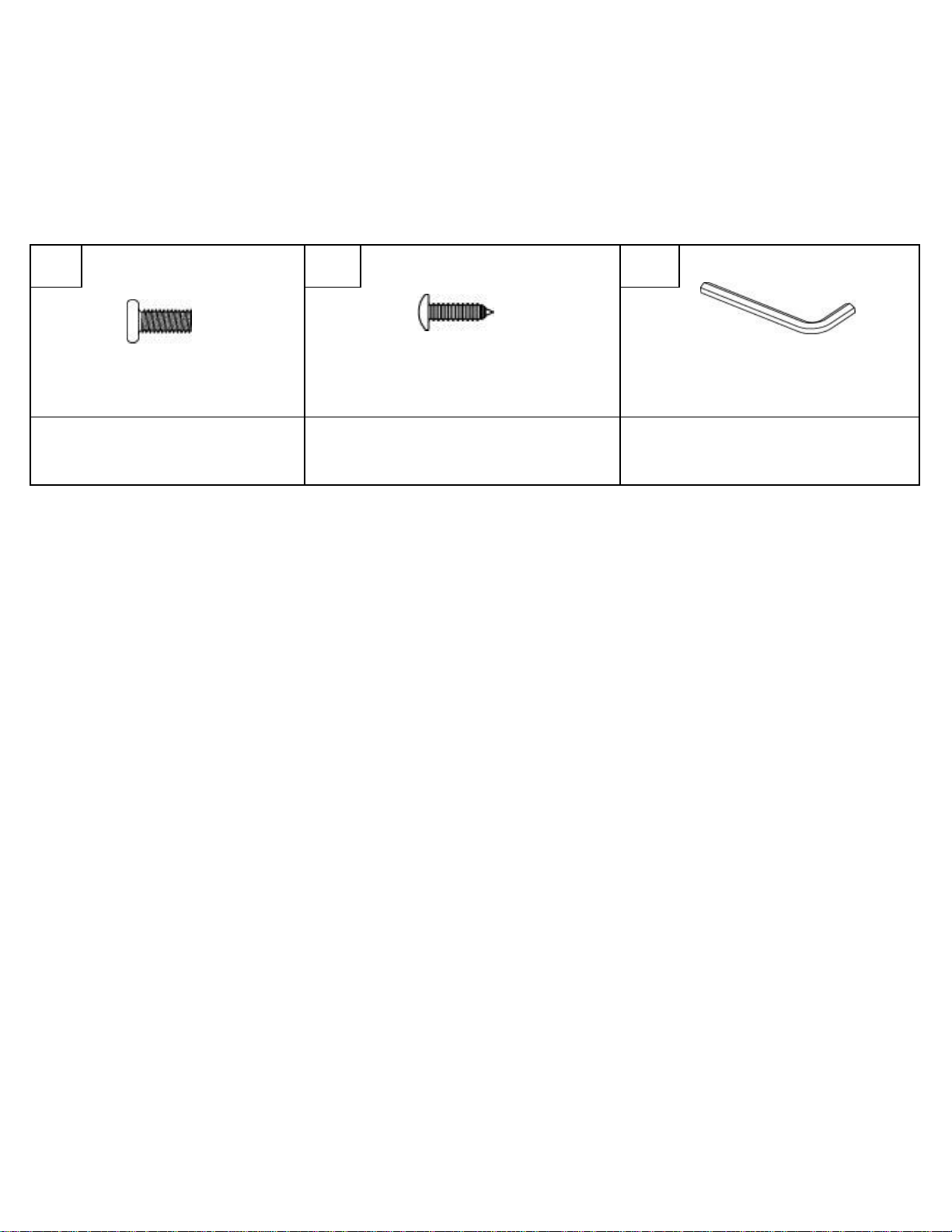

HARDWARE LIST
Ø1/4" X 1/2"
Ø5/32" X 5/8"
M4
BOLT
SCREW
ALLEN KEY
40 PCS
20 PCS
1 PC

STEP 1
5 PC DINING SET
DL8715
Attach table legs (F) to the table stretchers (G) with bolts (1) using the Allen key (3).
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.

STEP 2
5 PC DINING SET
DL8715

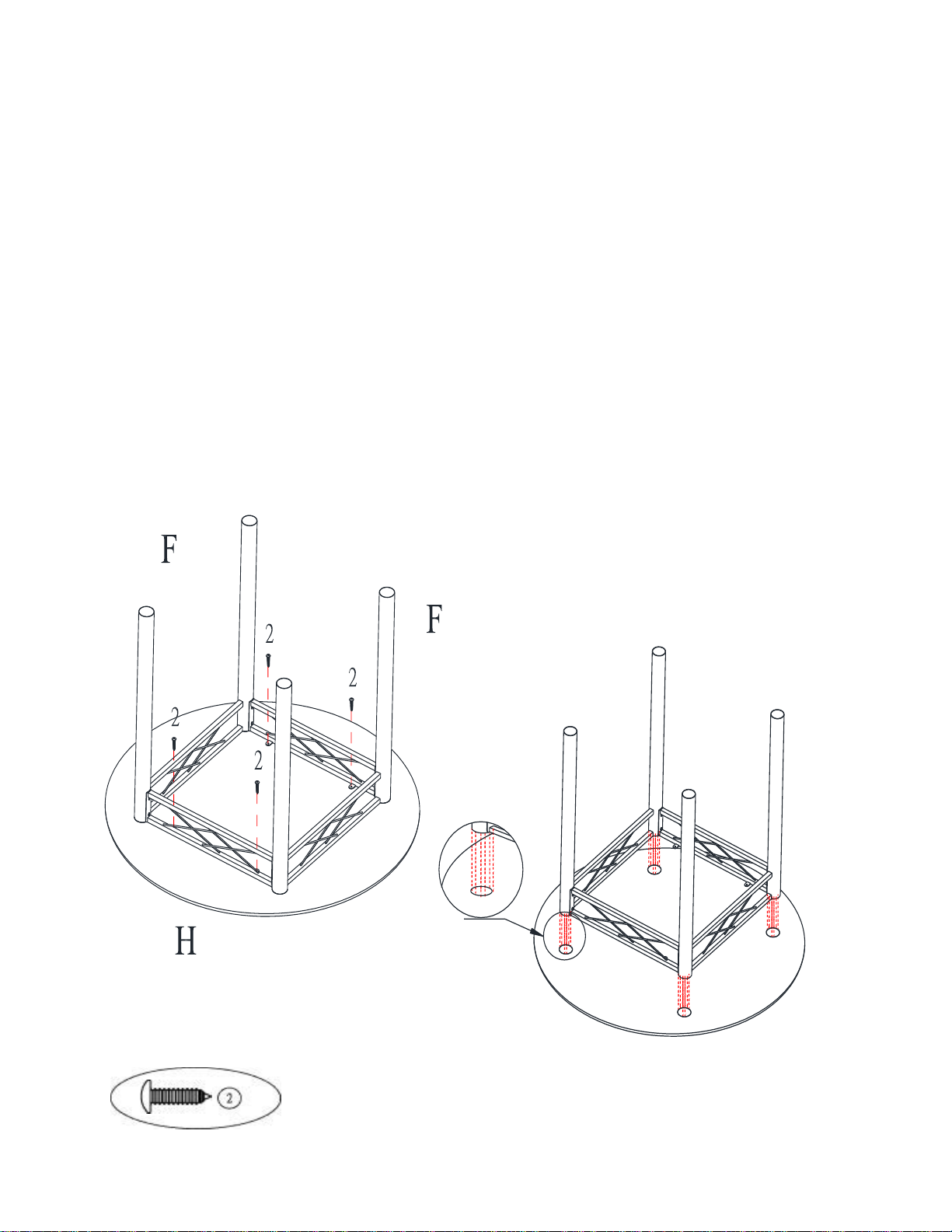

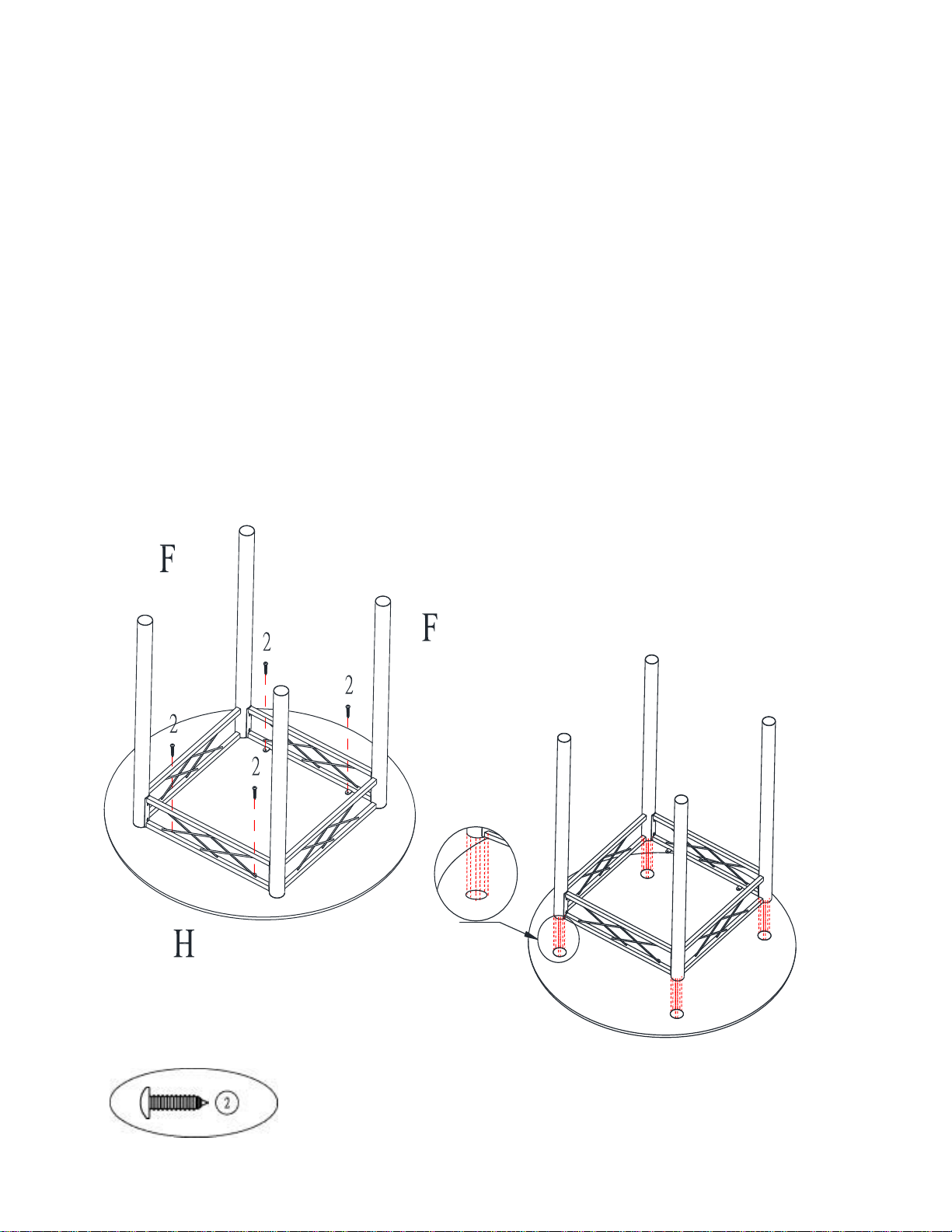

Place the table top (H) upside down on a on a soft, smooth surface.
Place the assembled frame upside down on top of the table top (H).
Center the frame on the table top by aligning the round tubing with the markings of the table
top (H) as shown below.
Secure the table top (H) to the assembled frame with screws (2) using a Phillips head
screwdriver (not included).
Adjust the assembled unit to ensure all surfaces are aligned and flush and tighten all the bolts
installed.
Turn the assembled table upright.
NOTE: Screws (2) will make their own holes. Do not use power tools and do not over tighten
screws.
Use these round
markings to align
the table frame.
The screws are
self-drilling and will
make their own
holes.

5 PC DINING SET
DL8715
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.

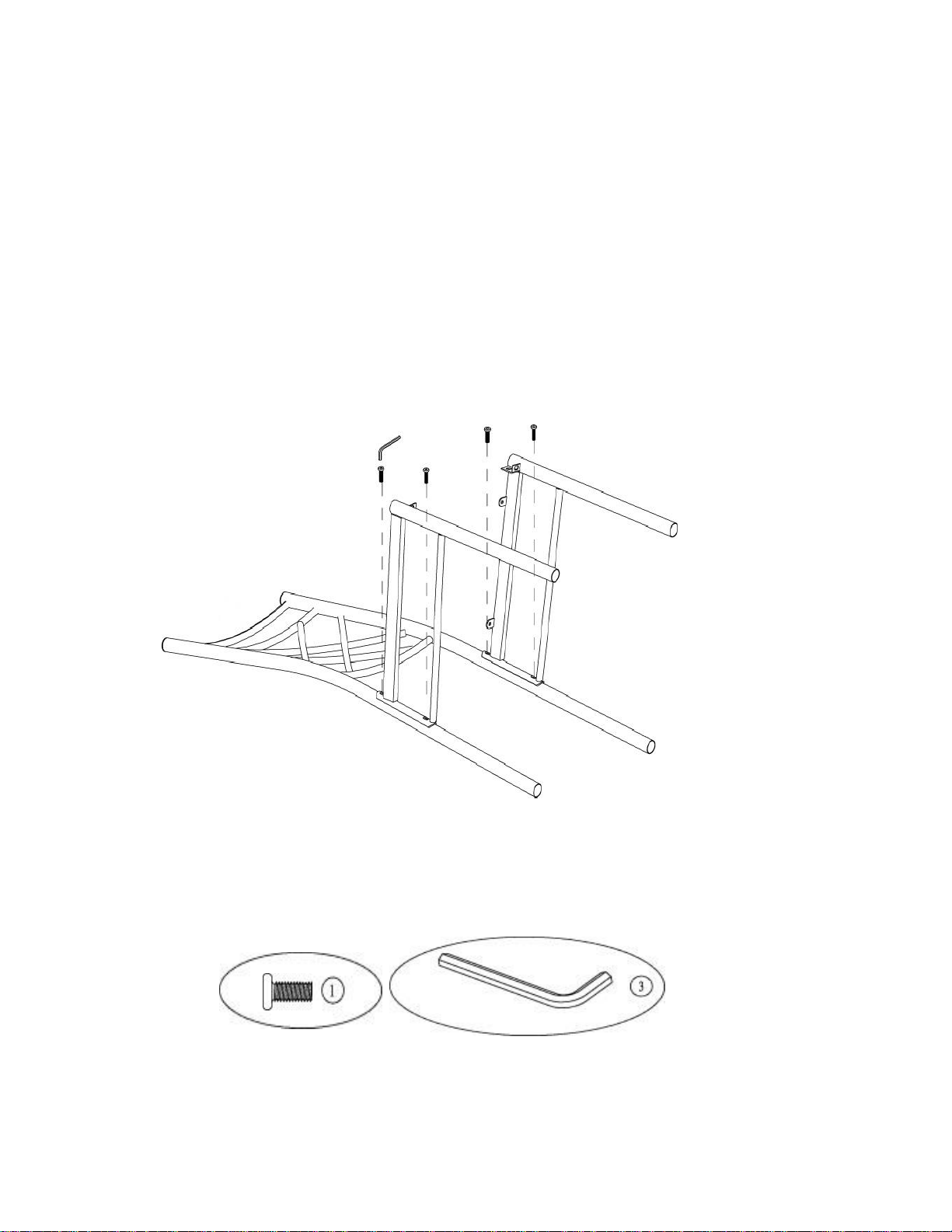

Attach chair left leg (B) and chair right leg (C) to the chair back (A) with bolts (1) using the Allen key (3) as
shown below.
STEP 3

STEP 4
5 PC DINING SET
DL8715

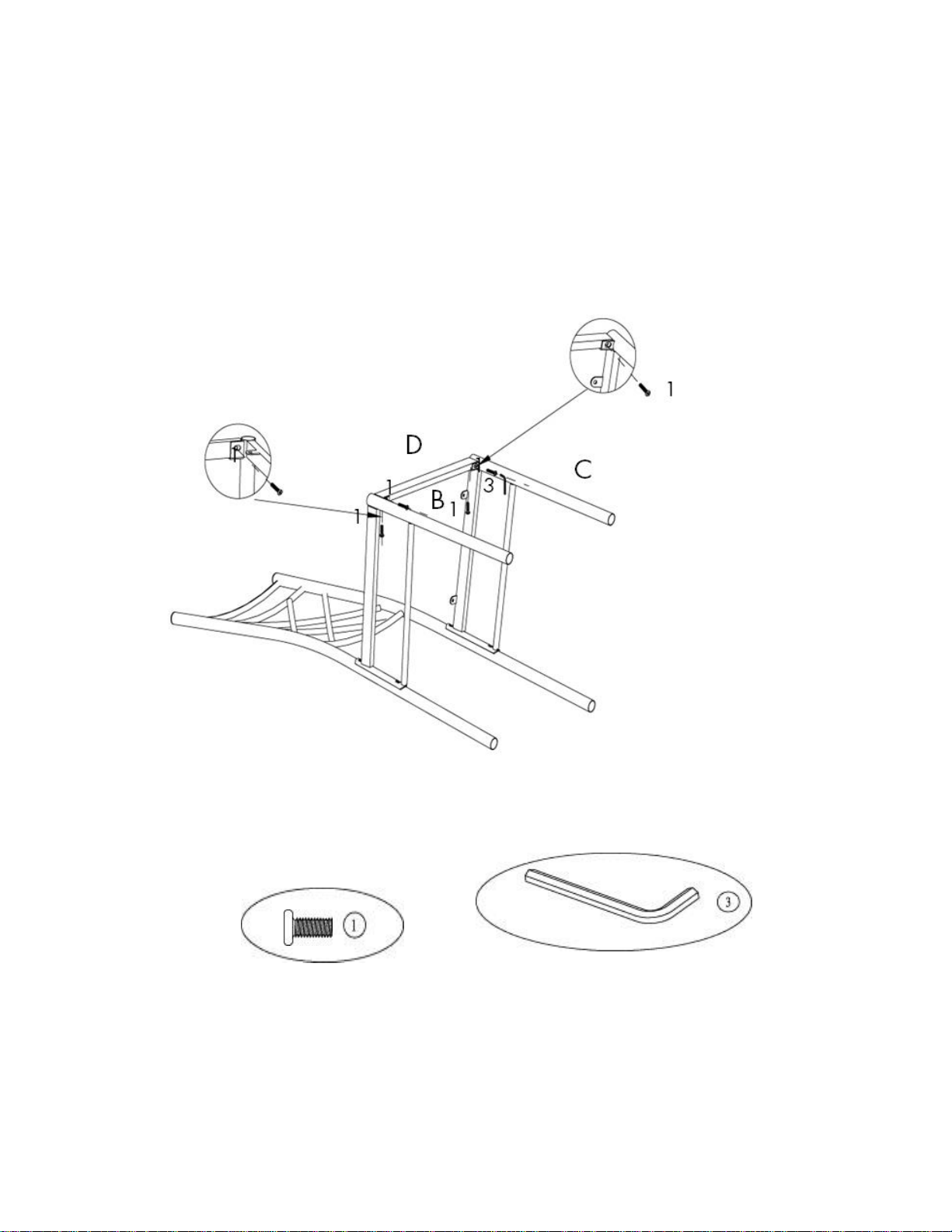

Place the chair stretcher (D) between the chair left leg (B) and the chair right leg (C).
Secure the chair stretcher (D) to the chair legs (B & C) with bolts (1).
Use the Allen key (3) to tighten all the bolts.
Turn the chair frame upright and make sure it rests evenly on the floor.

STEP 5
5 PC DINING SET
DL8715
Place the chair frame and seat cushion (E) upside down as shown below.
Attach seat cushion (E) to the assembled chair frame with screws (2) using a Phillips head screwdriver
(not included).
Turn the assembled chair upright.
Repeat steps 3-5 to assemble the remaining chairs.
NOTE: screws (2) will make their own holes. Do not use power tools and do not over tighten the
screws.

5 PC DINING SET
DL8715
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in
instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service department.
We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
MAXIMUM WEIGHT
100 Lbs
