VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 1
VME-PROF-S
Technical Manual
Drafted by: Reiner Christophersen
Date: 10.07.1997
Revision: 22.01.1999
ID of Document: 942.1316.54
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 2
All information in this handbook is as contemporary, accurate, and up to date as possible. DMS reserves the right to revise
this document and to make changes from time to time without the obligation to notify any person of such revision or changes.
DMS assumes no liability resulting from any omissions in this document, or from the use of the information obtained therein.
Registered Trademarks:
OS-9 and Microware are registered trademarks of Microware System Corp. Ltd.
UNIX is a registered trademark of Bell Laboratories
MS-DOS is a registered trademark of Microsoft inc.
Motorola is a registered trademark of Motorola inc.
The manual itself or parts thereof may be used for the documentation of devices, systems or plants that contain a DMS
product described in this manual only if proper references (including copyright references) have been made. Further use of
this manual such as taking copies of the material is prohibited without explicit consent of DMS and may incur liability suits. All
rights reserved. Technical changes may occur.
© DMS Dorsch Mikrosystem GmbH 1997 - 1999
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 3
Preface
The user requires comprehensive information in order to make full use of the technical
abilities of this product. This manual is intended for hardware developers, project
engineers, and programmers who plan on using this VMEbus device.
The present publication has been designed to provide you with a complete range of
structured information. The following pages contain information which should make it easier
for you to use this manual. You will be provided with information on how this manual is
structured.
Despite all efforts from our side some problems may not be covered by this manual. This is
mainly due to the broad range of possible VMEbus applications. Please do not hesitate to
contact DMS if you experience any problems that are not covered by the ‘Troubleshooting’
section.
Contents
•Hardware and Technical Data (Chapter 1)
This chapter contains a description of the device itself, how it fits into our range of
VMEbus products, and its principles of operation.
•How to Setup the Unit (Chapter 2)
This chapter summarizes all data necessary for setting up the device. Special care
has been taken to make clear that hardware and software influence each other.
•Primary Functions and Operating Principles (Chapter 3)
Chapter 3 contains a full description of built-in functions, i.e. information on wiring
the device and how to program it.
•Address Information (Chapter 4)
This chapter details all address ranges and register addresses.
•Software (Chapter 5)
This chapter contains a description on hardware-dependent software such as
drivers and descriptors.
•Service and Maintenance (Chapter 6)
The information contained in this chapter includes details on maintenance and
service issues as well as a troubleshooting section where common problems are
discussed that may occur during operation of the card.
•Appendix (Chapter 7)
This chapter contains wiring diagrams, dimension drawings, etc.
The last pages of this manual contain a number of forms (e.g. 'Reader Comments' or 'DMS
Return Form'). Please fill in those forms if you would like to propose any changes,
corrections or supplements. We suggest that you mail the sheet back to us. Your
suggestions will help us to improve the quality of future editions of this manual.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 4
Printing Conventions
In order to improve its readability this document is structured like a menu.
•The first pages of this document contain a chart of contents.
•Pages, illustrations, and tables are numbered consecutively.
•Abbreviations have been used for a number of terms. You will find a list of
abbreviations in the Appendix Section.
•Footnotes are indicated by text printed in superscript such as numbers (e.g. "1"), or
stars ("*"). Generally, the comments related to a footnote can be found at the
bottom of the page. Bullets (•) and dashes are used in most cases (like for
example in this list) to indicate an enumeration.
•Cross references are used as follows: "(see Chapter 3.3.2)" refers to Section 3.2 of
chapter 3.
•All dimensions given in drawings, sketches, and tables are in millimeters (mm).
•Value ranges are given in the following form: 17 .. 21 means a range from 17 to 21.
•Hexadecimals are indicated by a leading “$“.
•You will find that outlined boxes like the one below often contain very important
information:
Warning
Please take the time to read through the section ‘Information on Operational Safety’ which
is located at the end of this introduction. It contains definitions for certain terms like
‘Warning’, ‘Danger’, ’Caution’, ’Note’
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 5
Information on Operational Safety
This manual contains all information necessary for the designated use of the products
described in it. It is written for the use by qualified personnel. The term ‘qualified’ as used in
this manual or as printed on the product itself refers to persons
•that are working in the field of research and development
•or that are members of the project staff and are familiar with all safety regulations
used in automation technology.
Safety Precautions
The following safety precautions will help to prevent personal injuries as well as the protect
the product and other devices connected to it.
Safety precautions and warnings that may threaten the life or health of the operator or
maintenance personnel or that may result in damage to property will be indicated by signal
terms defined below. The terms used in this manual or on product labels have the following
meaning:
Danger
means that death, major injuries, or major damage will occur if the appropriate safety
precautions are not obeyed.
Warning
means that death, major injuries or major damage may occur if the appropriate safety
precautions are not obeyed.
Caution
means that minor injuries or damages may occur if the appropriate safety precautions
are not obeyed.
Note
this section contains useful hints about the product, product handling or the part of the
manual which it refers to explicitly.
Normal use of the product
Warning
•The device/system must not be used in cases other than those mentioned in the
catalogue or the manual and may only be used in conjunction with third party
components that are either recommended or approved by DMS.
•Professional transport, storage, erection/installation as well as careful operation and
servicing are a prerequisite for the trouble free and safe operation of the device.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 6
Declaration of Conformity
We, DMS Dorsch Microsystem GmbH, declare under our sole responsibility that the
product described in this technical documentation complies with the standards or other
normative documents quoted in this notice.
All DMS devices that features a CE symbol fulfill the requirements of the EU guideline
#89/336/EWG on electromagnetic compatibility as well those of the harmonized European
standards stated below.
As required by paragraph 5.1(3) of the ‘Electromagnetic Compatibility - Federal Office of
Postal Services and Telecommunications Act’ the declaration of conformity as well as the
appropriate documentation are kept with:
DMS Dorsch Mikrosystem GmbH
Holmlück 15
D-24972 Steinberkirche
Germany
Range of Application
The DPS device has been designed for industrial operation and complies with the following
standards and normative documents:
Electromagnetic Compatibility (EMC) - Electromagnetic Emissions : EN 50081-2:1994
Electromagnetic Compatibility (EMC) - Generic Immunity Stand.: prEN 500082-2: 1994
Installation Guidelines
The DMS device does meet all EMV requirements under the following conditions:
1. The device is operated in a DMS rack with CE certification.
All devices of a VMEbus system need to comply with the EU guidelines on electro-
magnetic compatibility (#89/336/EWG) (i.e. must feature a CE symbol).
2. The VMEbus-system frame ground must be connected to the system ground through a
low resistance cable.
3. PROFIBUS systems must employ cables and connectors that are recommended by
DMS or that are compatible with those recommended by DMS (see Chapter 3.2.1.1).
4. Shielded Cables are to be used for all additional data connections. All connectors (jacks,
sockets, and plugs) must be fitted with a metal shielding. The protective case must be
connected bidirectionally conducting with the cable shielding. In order to prevent
transient currents within the GND shielding, the potential drop needs to be compensated
for by means of bonding.
5. Data cables must not be installed near the mains lead or near cables with a high
throughput or switching high inductance loads.
6. When installed outdoors all cables that may be subjected to excessive voltages (e.g.
lightning) are to be fitted with lightning arresters or to be protected by metal tubes.
7. All slots of a system rack that are not currently in use need to be closed by an
electrically conducting front panel.
8. During operation and installation of the device - special care is required with respect to
electrostatic discharge (ESD - see also EN 10015-1 Basic Specification: Protection of
electrostatic sensitive devices).
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 7
Validity of this Manual
This manual is valid for:
VMEbus-Cards: VME-PROF-S Version 5.0 or higher
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 8
Table of Contents
Preface.....................................................................................................................................3
Contents ................................................................................................................................3
Printing Conventions..............................................................................................................4
Declaration of Conformity ......................................................................................................6
Validity of this Manual............................................................................................................7
Table of Contents ..................................................................................................................8
Tables..................................................................................................................................10
Illustrations and Diagrams....................................................................................................10
1. VME-PROF-S - Overview...................................................................................................11
1.1. General Information......................................................................................................11
1.2. Technical Specifications................................................................................................12
1.3. The VME-PROF-S Package .........................................................................................12
1.4. Order Codes.................................................................................................................13
1.5. Safety precautions........................................................................................................13
2. Hardware Installation and Configuration.............................................................................15
2.1. Hardware settings.........................................................................................................15
2.1.1. VMEbus slave address range (Slot Address)...........................................................15
2.2. Autorun Jumper J20......................................................................................................15
2.3. Final Installation............................................................................................................15
2.4. Software Setup .............................................................................................................16
2.5. How to Remove the Card..............................................................................................16
2.6. Shipping and Packaging ...............................................................................................16
3. Function Elements of the VME-PROF-S ............................................................................17
3.1. Status LED’s.................................................................................................................18
3.2. Interfaces......................................................................................................................18
3.2.1. PROFIBUS-Interface X2..........................................................................................18
3.2.1.1. PROFIBUS-Cable...............................................................................................19
3.2.1.2. Number of Stations.............................................................................................20
3.2.2. Terminal-Interface X1..............................................................................................21
3.3. The VMEbus Interface ..................................................................................................22
3.3.1. VMEbus Master .......................................................................................................22
3.3.2. VMEbus Slave .........................................................................................................22
3.3.3. VMEbus Interrupt-Handler .......................................................................................22
3.3.4. VMEbus Interrupter..................................................................................................22
3.3.5. VMEbus-Signals ......................................................................................................23
3.3.5.1. SYSFAIL.............................................................................................................23
3.3.5.2. SYSRESET........................................................................................................23
3.4. J2-Bus / Slot depending addressing..............................................................................23
4. System information ............................................................................................................24
4.1. Enabling of the VME-PROF-S......................................................................................24
4.2. Address-Map Standard-VME-range..............................................................................24
4.2.1. VME-PROF-S VMEbus Address-Map with DPS firmware.......................................25
5. Software.............................................................................................................................29
5.1. PROFIBUS-DP-Slave Software ....................................................................................29
5.1.1. Slave configuration..................................................................................................29
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 9
5.1.2. DP-RAM data interface............................................................................................30
5.1.2.1. Status- Variable..................................................................................................30
5.1.2.2. Sema-Variable within the input- and output buffer..............................................31
5.1.2.3. Data access without consistency........................................................................31
5.1.2.4. Consistency data access....................................................................................31
5.1.3. Demo program.........................................................................................................32
5.1.3.1. Ultra C (ANSI C).................................................................................................32
6. Service and Maintenance...................................................................................................37
6.1. Troubleshooting............................................................................................................37
6.1.1. General troubleshooting...........................................................................................37
6.1.2. VME-PROF-S troubleshooting.................................................................................38
7. Diagrams and Appendix Section ........................................................................................39
7.1. Summary of Abbreviations............................................................................................39
7.2. References ...................................................................................................................39
7.3. Pin Layout ST1 .............................................................................................................40
7.4. Jumper diagram............................................................................................................41
7.5. Component Mounting Diagram .....................................................................................42
7.6. Wiring Diagram.............................................................................................................43
7.7. Reader Comments........................................................................................................47
7.8. DMS Return Form.........................................................................................................49
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 10
Tables
Table 1: Pin-layout PROFIBUS X2..................................................................................18
Table 2: PROFIUS cable parameter................................................................................ 19
Table 3: Maximal bus length............................................................................................ 19
Table 4: Pin layout Terminal-interface X1........................................................................ 21
Table 5: Summary of VMEbus Functions........................................................................ 22
Table 6: VME-PROF-S VMEbus Address-Map with DPS firmware................................. 27
Table 7: DP Slave configuration parameters................................................................... 29
Table 8: Pin Layout ST1.................................................................................................. 40
Illustrations and Diagrams
Figure 1: Front View of the VME-PROF-S...................................................................... 17
Figure 2: Bus cable with termination................................................................................20
Figure 3: PROFIBUS-Termination...................................................................................20
Figure 4: Interface cable VME-PROF-S X1 - PC (VT100 Terminal) ...............................21
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 11
1. VME-PROF-S - Overview
•• PROFIBUS-DP-Slave Interface 12 Mbaud
•• SPC3 PROFIBUS Slave ASIC
•• VMEbus Slave Interface with 64 KB Dualport RAM
•• 512 KB Boot-Flash-EPROM with DPS Firmware
•• MC68331 CPU
1.1. General Information
The VME-PROF-S is a compete
independent PROFIBUS-DP-Slave
interface on an VMEbus board. The
interface is based on the SPC3-ASIC
which handles the layer 1 / 2 of the
PROFIBUS protocol (DIN 19245 / EN
50170) and the MC68331 processor.
64 kB dualport-RAM are used as data
interface to the VMEbus.
With the PROFIBUS-DP-Slave
firmware (DPS), the VME-PROF-S
builds a independent arbitrary
configurable DP-Slave interface. The
slave is configured through the dual-
port-RAM. The configuration can be
build with max. 32 configuration bytes
and can use up to 244 input bytes and
244 output bytes. The total amount of
input / output data can be 400 bytes.
Due to the arbitrary configuration the
Slave can fit the requirements of the
VMEbus system or the VME-PROF-S
can be used to simulate other Slaves.
PROFIBUS
RS232-Terminal
(for test and
configuration)
Status-LEDs
VMEbus
Flash-EPROM
for PROFIBUS Firmware
and configuration data
RS232
Interface
256 KB DRAM
Dualport-RAM 64kB
Adress
CPU
68331
PROFIBUS-
ASIC SPC3
potential separation
PROFIBUS
Interface
12 Mbit/s
VMEbus
Slave
Interface

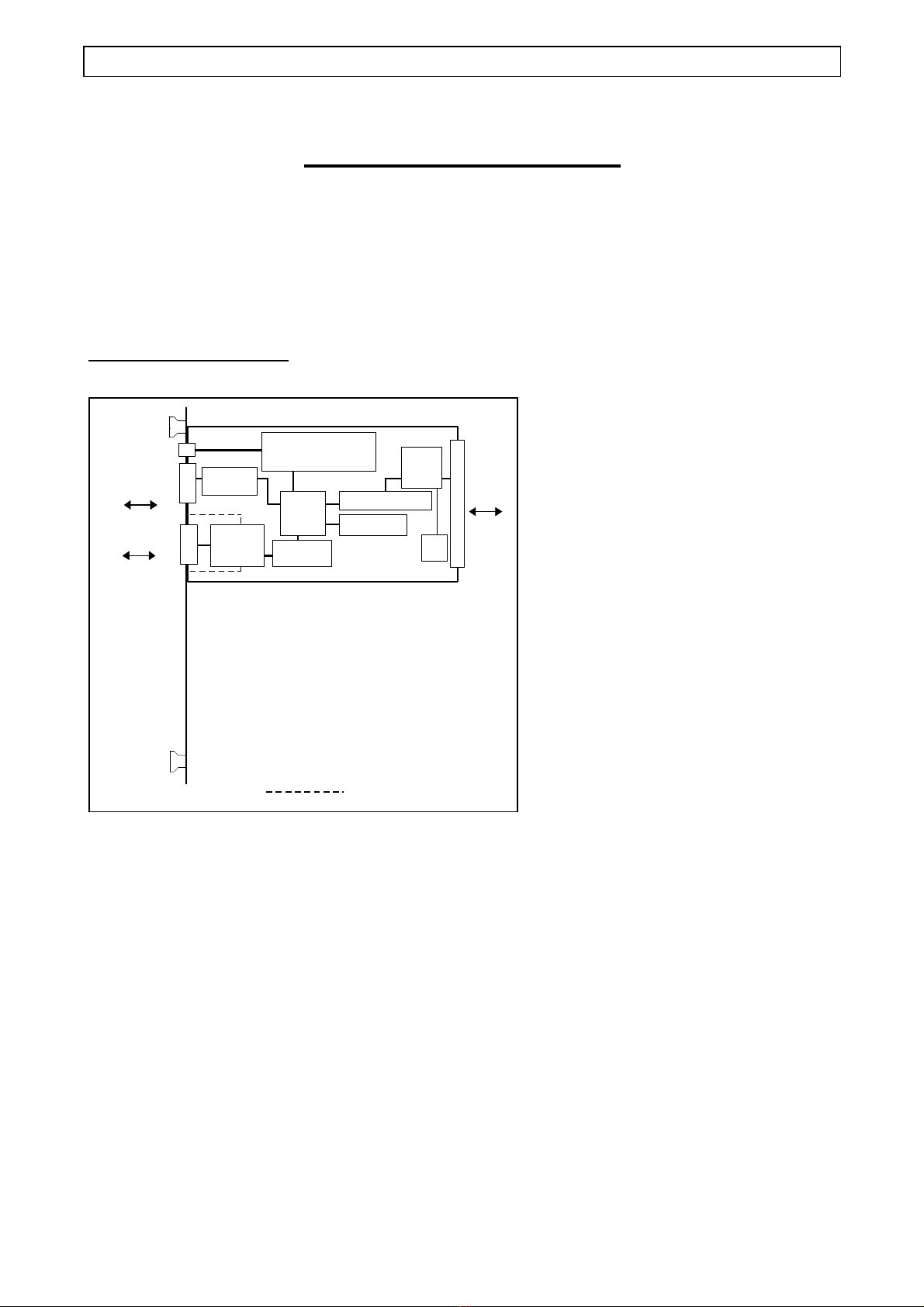

Figure 1: Block Diagram VME-PROF-S
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 12
1.2. Technical Specifications
VMEbus: A24, D16 Slave
Memory: 64KB Dualport-RAM
512 KB Boot-Flash-EPROM
Interface: 1 * RS485 PROFIBUS, galvanic separated,
12 Bit/sec with PROFIBU SPC3 -ASIC
1 * serial RS232
Processor: MC68331
Protocol: PROFIBUS DP-Slave (DIN 19245 / EN50170)
Status display 6 LED’s for board and PROFIBUS Status
Dimension: VME-PROF-S 6HE-4TE (3HE boart with 6HE frontplate)
VME-PROFS3 3HE-4TE (single euro format, 160x100mm)
Power: +5V: typ. 800 mA
+5V Standby not needed
+12V and -12V not needed
Temperature Operating: 0 ... +50 °C
Storage: -25 ... +70 °C
1.3. The VME-PROF-S Package
The VME-PROF-S package includes:
•the VME-PROF-S board (including DPS firmware stored in the Flash-EPROM)
•Disc (PC1.44 format) with ANSI-C demo programs and GSD-file.
•this technical Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 13
1.4. Order Codes
VME-PROF-S VMEbus 68331 CPU, PROFIBUS DP-Slave 12 Mbit/sec, RS232, 6HE
VME-PROFS3 VMEbus 68331 CPU, PROFIBUS DP-Slave 12 Mbit/sec, RS232, 3HE
Other PROFIBUS products:
IPE VMEbus with 68040 CPU, 64 MHz, 8 MB RAM, IEC-1491 and PROFIBUS
DP-Master interface 3 Mbit/sec, RS232, 20 mA, 2 Memorycards
PCI-40 PC ISA-Slotcard with 68040 CPU, 64 MHz, 8 MB RAM, IEC-1491 and
PROFIBUS DP-Master interface 3 Mbit/sec
PCP-DP PC ISA-Slotcard with PROFIBUS DP-Master interface 3 Mbit/sec
VME-PROFI VMEbus PROFIBUS Interface 6 HE, 3 Mbit/s incl. PROFIBUS-DP-Master
Software
VME-PROFI3 VMEbus PROFIBUS- Interface 3 HE, 500 kbit/s incl. PROFIBUS DP-Master
Software
PMC-PROFI PMC Mezzanine Module with PROFIBUS DP-Master interface, 3 Mbit/s incl.
PROFIBUS-DP-Master Software
PCU PROFIBUS Control Unit with graphic display 320*240 pixel, 68331 CPU, 512
kB RAM, 2 MB Flash, Ethernet-Controller, OS9-Extended, TCP/IP, DP-
Master Firmware
PST PROFIBUS DP Slave Terminal, display with 2 lines a 24 characters
Accessories:
PROFI-STV PROFIBUS Bus connector (9 pol. DSUB) with switchable terminating
resistors
PROF-KABEL PROFIBUS cable
1.5. Safety precautions
Caution
•The device may only be used in subracks that meet the requirements of the following
VMEbus standards: ANSI/IEEE STD1014-1987, IEC 821 and 297 [2]
•The device may only be switched on if installed properly.
•The device must be disconnected from the VCC power supply prior to connecting or
disconnecting hardware interfaces.
•Handle with care! The device must be protected from electrostatic discharge (see
EN 100015-1).
•This device uses, produces and may emit high-frequency signals. Operation of the
device may be disturbed by strong high-frequency signals. The device has been
designed by DMS for a high degree of electromagnetic compatibility, e.g. galvanic
separated front interfaces, multi-layer technology, etc. have been incorporated in the
design. Please make sure that the device is used in compliance with all applicable
regulations regarding electromagnetic compatibility (EMC). See „Declaration of
Conformity“ in the Preface chapter.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 15
2. Hardware Installation and Configuration
2.1. Hardware settings
Warning
The system must be switched off when changing hardware within or connected to the
system!
2.1.1. VMEbus slave address range (Slot Address)
The VME-PROF-S use 64 kByte within the VMEbus standard range. The base address can
be selected in 64 k steps within the 16 MB address space. The address setting is done with
the addressbits (A23 - A16) at S21 / S20 . A Jumper Diagram with the default settings can
be found in chapter 7.4.
Base address: $xy0000
³ÀÄ(A19-A16)
³Set by S20.
³Default: $F
ÀÄ(A23-A19)
Set by S21
Default: $8
Note:
For 6HE VMEbus-boards (like the previous VME-PROF-S Vers. 4.x) DMS use an optionally
slot depending addressing. For this address coding some address lines (for example A19 -
A16) are connected to the J2 connector. With a binary coded J2 backplane, the slot
depending addressing can be realized for this boards.
For the VME-PROFI-S Vers. 5.x this address coding is not possible, due to the 3HE
layout of the board. The address of the board is always set by S21 / S20. If S21 use the
default setting „8“, the setting of S20 correpndents to the „slot-number“.
The „slot-number“ are used by some example and utility programs and within some other
DMS manuals.
2.2. Autorun Jumper J20
J20 selects the start-mode of the VME-PROF-S.
Open: After power-on or SYSRESET, the board will remain in the Reset-state. The
PROFIBUS controller will not start. Both red Led’s (VMEbus and PROFIBUS) will be
on
Close: After power-on or SYSRESET, the board will be reset and then the PROFIBUS
controller will start.
2.3. Final Installation
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 16
After finishing the installation align and insert the VME-PROF-S card into the designated
slot and tighten it by fastening the two screws at the top and bottom of the cards front
panel. Safe and trouble free operation can only be ensured if the card is well aligned and
tightened.
2.4. Software Setup
The VME-PROF-S DP-Slave firmware (DPS) are stored in the Flash-EPROM. Therefore no
software must be loaded into the board. The configuration of the DP-Slave parameters are
done through the VMEbus. This configuration are described in chapter 5.1.1.
2.5. How to Remove the Card
Prior to removing the card all connectors at the card's front panel need to be disconnected.
Remove the two screws at the bottom and the top of the front panel. Pressing the upper
card handle towards the upper end of the card and the lower handle respectively towards
the bottom will loosen the card. Now you can remove the card from the subrack.
2.6. Shipping and Packaging
Packing needs to be done with greatest care. The card needs to be protected from
electrostatic discharge. If possible use the original packaging.
A 'DMS Return Form' (see Appendix) must be included with all returns to DMS.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 17
3. Function Elements of the VME-PROF-S
Figure 1: Front View of the VME-PROF-S
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 18
3.1. Status LED’s
5 LED’s will deliver information on the VME-PROF-S's operating state. The meaning of the
1. LED row is independent of the loaded firmware:
1. LED-row (VMEbus state)
green (Aactive) VMEbus access to the VME-PROF-S
yellow(S)reserved
red (FFail) the VME-PROF-S is in RESET (disabled), only the
Monitor program is running. The VMEbus-SYSFAIL is
generated by the VME-PROF-S
2. LED-row (PROFIBUS state) with PROFIBUS-DP-Slave firmware
green (R RxData) the VME-PROF-S receives data from the PROFIBUS
yellow(T TxData) the VME-PROF-S sending data to the PROFIBUS
red (CCom-Fail) Off: The VME-PROF-S is configurated by the DP-
Master and transfers data
On: the VME-PROF-S is in hold or not/wrong
configurated by a DP-Master, no data transfer
3.2. Interfaces
3.2.1. PROFIBUS-Interface X2
The PROFIBUS an be accessed via a 9-pin connector X2 located at the front panel. The
interface has separated potentials and a pin-layout as specified in the DIN 19245.
Connector X2 I/O - Signal
Pin 1 n.c.
Pin 2 n.c.
Pin 3 Data B (RxD/TxD-P)
Pin 4 CNTR (Repeater control signal TTL)
Pin 5 GND
Pin 6 Termination-Power
Pin 7 n.c.
Pin 8 Data A (RxD/TxD-N)
Pin 9 n.c.
Connector case shield
Table 1: Pin-layout PROFIBUS X2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

VME-PROF-S Technical Manual
DMS Dorsch Mikrosystem GmbH - 24972 Steinbergkirche Tel. [phone]
942.1316.54 19
3.2.1.1. PROFIBUS-Cable
The PROFIBUS standard DIN 19245 Part1 and Part3 permits two types of bus cable
(Cable A and Cable B).
Parameter Cable A
PROFIBUS-DP
DIN 19245 Part 3 Chap. 6.2
Cable B
DIN19245 Part 1 / 4.91
Chap. 3.1.2.3
type of cable Two-conductor shielded
twisted pair cable Two-conductor shielded twisted pair cable
Impedance 135 ... 165 Ω
(3 ... 20 MHz) 100 ... 130 Ω (f > 100kHz)
Capacity < 30 pF/m < 60 pF/m
Loop resistance < 110 Ω/km -
Diameter > 0,64 mm > 0,53 mm
> 0,34 mm² > 0,22 mm²
Table 2: PROFIUS cable parameter
The maximal bus length depends on the type of cable and the baud rate (see table).
Baud rate kBit/s 9,6 -
93.75 187,5 500 1500 3000 - 12000
Cable A, max. distance
in m (without repeater) 1200 1000 400 200 100
Cable B, max. distance
in m (without repeater) 1200 600 200 -- --
Table 3: Maximal bus length
The maximal bus length can be extended until approx. 10 km with repeaters. The max.
number of repeaters that can be used in a network depends on the type of the repeater
and is between 3 and 10.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
