DotStone HDSP0007M1 User manual

USER MANUAL
2 Port HDMI Splitter
With EDID Setting & ARC & Audio Extractor
Model No：HDSP0007M1
Enjoy the vivid world!
REMARK
Manufacturer does not make any commitment to update the information contained herein.

Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual
for future reference.
The products are designed to make your A/V device use more convenient, comfortable, productive
and cost-efficient.
The 2 Port HDMI Audio Extractor can allow two HD Display/TV connected to one HDMI Source and
also can extract audio signals from the HDMI source. You can take your original HDMI audio signal
and convert it to digital optical / Coaxial or analog audio output. This product supports Dolby digital
AC-3, DTS, LPCM and other digital audio format output. It is one perfect audio extractor for your DVD,
Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.
Our devices offer solutions for noise, space and security concerns, data center control, information
distribution, conference room presentation, school and corporate training environments.
INTRODUCTION
FEATURES：
1X HDMI input and 2X HDMI output，can sync separation HDMI audio signal. Supports 1x SPDIF
optical and 1x SPDIF coaxial digital audio outputs, and 1x 3.5mm analog audio output
HDMI supports Full HD,3D and 4K2K video
Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
SupportARC audio output
Supports 16 built-in EDID mode, can enhance the signal format match between different devices
LED indication: when source or sink is working, LED relative to is light.
24bit /192KHz DAC
No loss of quality
Installs in minutes
DC5V power adapter

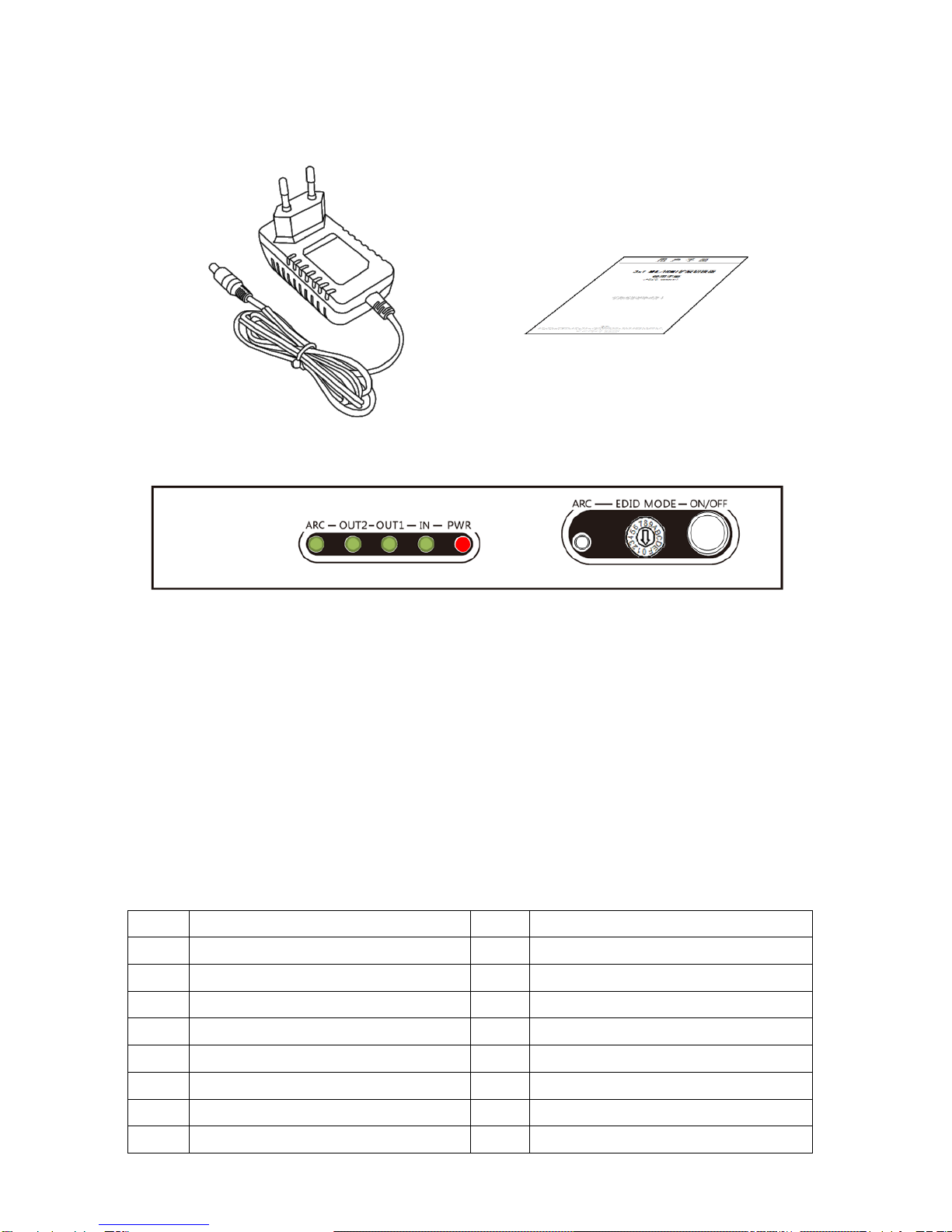

PACKAGE CONTENTS:
1. AC power adapter 1pcs
2. User manual 1pcs
FEATURES OF THE INTERFACE:
FIG.1.0 Front Panel View
LED-ARC: ARC status indicator
LED On: ARC turn on, then output TV audio by optical and coax ports.
LED off: ARC turn off, then output HDMI extracted audio by optical and coax ports.
LED-OUT2: HDMI Output2 status indicator
LED-OUT1: HDMI Output1 status indicator
LED-IN: HDMI Input status indicator
LED-PWR：POWER ON/OFF indicator
KEY-ARC: ARC Turn on/off key
Note: TV must supportARC, this button will take effect. IfARC turn on, then ARC LED light.
EDID MODE: Built-in EDID mode selection switch
No.
EDID information description
No.
EDID information description
0
Copy output1
8
1080P / HD audio, up to 7.1 channel
1
Copy output2
9
1080P 3D / 2channel
2
Auto / Pass mode
A
1080P 3D / 5.1 channel
3
4K / 2 channel
B
1080P 3D/HD audio, up to 7.1 channel
4
4K / 5.1 channel
C
1080I / 2channel
5
4K / HD audio, up to 7.1 channel
D
1080I / 5.1 channel
6
1080P / 2 channel
E
1080I / HD audio, up to 7.1 channel
7
1080P / 5.1 channel
F
720P / 2channel

ON/OFF: Power ON/OFF switch
FIG.1.1 Rear Panel View
DC5V: 5V DC in jack
Input: HDMI input port
Output1: HDMI output port1(supportARC)
Output2: HDMI output port2
Optical: SPDIF Optical/Toslink output
Coax: SPDIF coaxial output
AUX: Stereo analog audio output
EDID Mode Set Tips:
1. EDID Setting function working for Sources and Sink End special match,
Each side must support the choice EDID .
2. EDID Auto By Pass. Make sure your Source Device video and audio output mode with Auto
Status.
3. SPDIF 5.1 function need Source Device DOLBY/DTS to Bitstream/Raw Output.
4. After setting EDID , display will restart with new EDID mode.
5. Note: Some Speical Source Device need restart for new EDID effect.

OPERATIONG AND CONNECTION:
1.Connect one HDMI cable from a DVD/Blu-ray player into the HDMI input port of splitter.
2.Connect one HDMI cable from TV/Monitor into the HDMI output port of splitter.
3.If you need a digital audio, connect one optical fiber or coaxial cable from digital power amplifier into
the optical / coax output port of splitter.
4.If you need an analog audio, connect one 3.5mm audio cable from analog power amplifier/TV into
the AUX jack of splitter.
Note: Only when the audio format is LPCM, the AUX will have sound output. So it is proposed that
change the EDID mode in 2CH mode. In addition, theAUX no output in ARC ON mode.
5.Connect 5V power supply to the extractor and inserted into the power socket.
FIG.1.2 CONNECTION DIAGRAM
Power amplifier
HDSP0007M1
3.5mm audio cable
DVD/BD/STB
Support ARC
TV/Monitor
Optical fiber
HDMI cable
HDMI cable
Coaxial cable
HDMI cable
TV/Monitor

SPECIFICATIONS: HDSP0007M1
HDMI resolution …………………………..............up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz
Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit
HDMI Audio Format………………..DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital audio format…………………………………………Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth………………………………………………………….……………………...300MHz
HDMI Max baud rate…………………….………………….………………….……………………….9Gbps
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
DAC sample frequency range………………………………………………………………….32～192 KHz
DAC Bit rate range………………………………………………………………………………….16～24 Bit
Analog output level(1kHz@0dB)...............................................................................................2V RMS
HDMI input cable distance…………………………………………≤15m AWG26 HDMI standard cable
HDMI output cable distance…………………≤15m（1080P）/8m(4K) AWG26 HDMI standard cable
Max working current …………………………………………………………….……….…….….….600mA
Power adapter format Input ……......….….…….…….…….…. AC 100V～240V 50HZ/60Hz, DC5V/1A
Operating Temperature range ……..…………….……………………………………………. -10 to +55℃
Storage Temperature range……………………………………………………………………. -20 to +60℃
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….…………………………...139x64x22 (mm)
Weight …….…………………………….………………………………………….……………………. 215g

Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive,
and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Pls turn the power off when the machines not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
FAQ:
Before power on, pls check the connection line carefully. And make sure that all interfaces are
normally connected. The common trouble shooting way shows below:
No.
Problem Description
Solutions
1
Non-Power-Connec
ted
1. Check if the power adaptor head is truly and correctly inserted the
power socket.
2. Check the power if it is in on status.
2
No Sound/
Abnormal sound
1. Confirm the wires are intact and reliable connection.
2. Confirm the input audio format is supported formats.
3. Check the signal source audio output settings are reasonable
(recommend set to auto)
4. Confirm the EDID mode switch setting.
5. Confirm the extractor / power amplifier / TV set volume and mute.
3
No Picture /
Abnormal Picture
1. Pls to make sure that the TV / amplifier is on and has been
connected with the machine.
2. Check the signal source output resolution, may be set too high.
3. Confirm the EDID mode switch setting.
4. Check the cable quality.
