DPVIDEO D200P User manual

DVD/VCD/CD/MP3/DIVX/MPEG-4
XO1525
MOD
SD CARD
USB
D200P
User’s Manual

9.1 Rear Panel Connections:
BEFORE USING:
To ensure the safety of the products during transportation,
The internal mechanism was fixed by screws. Please
remove the fixing screws when you first use the product.
In case of possible damage to the components of the
product, the length of the fixing screws should be less
than 5mm when installing mounting brackets.
CONTENTS
1.
Remote Control Description ……..………………………1
2.
Front Panel Description … …..… … … … … … … … … … 4
3.
Display Screen Descriptions … …..… … … … … …… … 4
4.
Rear Panel Description ……..……….………………………5
5.
Basic Operations ……..………….………….……………5-14
5.1 Turn On / Off the DVD player …..…..…………………5
5.2 Select Item Through Menu ………..…………………6
5.3 Fwd / Reverse …..…….…………………………………6
5.4 Select Track …..……….…………………………………6
5.5 Select Subtitle Language ……………………………… 6
5.6 Select Audio Channel ……………….…………………7
5.7 OSD ……..……………………………..…………………7
5.8 System Setup Menu … …..… … … …. … … … … … … 7
5.9 USB / SD Operation ………..……………..……………14
6.
Specifications … …..… … … … … … … … … … … … … … 15
7.
Troubleshooting … …..… … … … … … … … … … … … … 15
8.
Accessories … …..… … … … … … … … … … … … … … … 18
9.
Appendix: Connections……..……………………….. 18-19
19

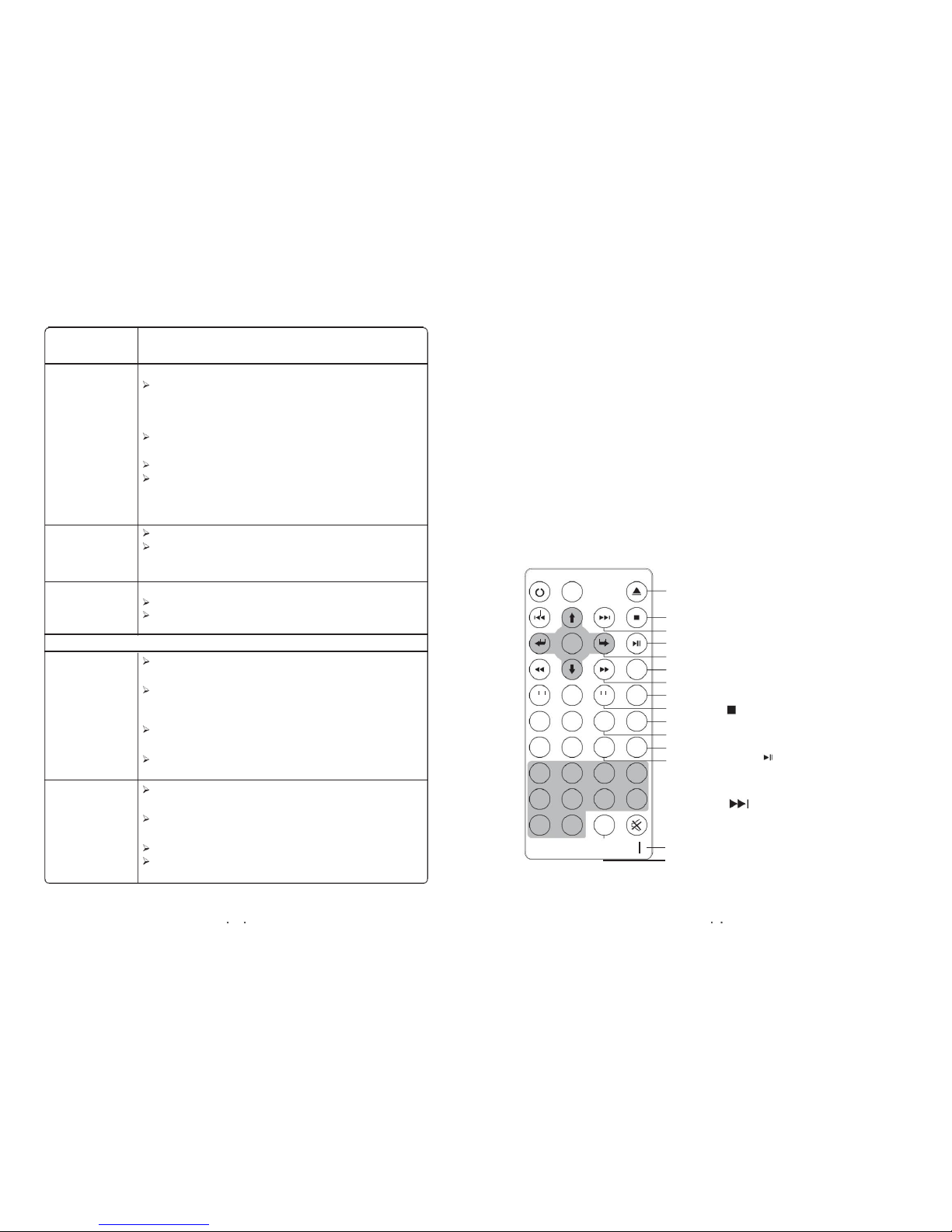

1. Remote Control Description Problem Action
(1) Power
Power On or Shut Down the machine.
(2) Mode
Press this button to select DVD,
AV In, USB, or SD mode
(3)
While playing, push this button to skip
to previous chapter or track.
(4)
Up Direction Buttons: When the screen
displays the menu of DVD Disc or
System Menu, the player is
1
2
3
4
5
6
7
8
9
10
11
12
13
14
MODE
ENTER
MENU
SLOW
REPEAT
STEP
ZOOM
SETUP
SUBTITLE
LANGUAGE
VOL +
P/N
L/R
OSD
VOL -
1
2
3
4
The player fails
to play from the
beginning.
Stop playing
automatically
Happens because the play mode is in the Program,
Random, Repeat, or Repeat A - B mode. Press these
relative functions again to restore the play mode. (Please
refer to the Advanced Operations Chapter.)
While the DVD Title/Chapter or DVD Setup menu is
displayed on the TV screen directly, or while playing Video
CD that includes PBC function, the Setup Menu is
displayed on the TV screen. Press Play.
Some discs have recorded the automatic pause signal in
the original recording. The unit will stop playing
automatically at the segment where the signal is recorded.
in waiting state; you can push these
buttons to move cursor, then select
the desired item.
(5)
Left Direction Buttons: When the
15
5
6
7
8
9
0
10+
If the remedies indicated above cannot solve the problem you encounter, consult
your local dealer for service.
8. Accessories
Note: Please confirm the accessories below when you purchase this unit.
₃ Remote Control 1Pc
screen displays the menu of DVD Disc or System Menu, the player is in
waiting state; you can push these buttons to move cursor, then select the
desired item.
(6) ENTER
Press this button to execute the entered number or the selected item.
(7)
Reverse to search the disc.
(8)
Down Direction Buttons: When the screen displays the menu of DVD Disc
or System Menu, the player is in waiting state; you can push these buttons
to move cursor, then select the desired item.
(9) Slow
Slowly play.
₃ Extra Infrared Remote Sensor 1Pc
₃ Power Connector 1Pc
₃ User Manual 1Pc
₃ Audio/Video Connecting Cable 1Pc
₃ Mounting Bracket 1Pc
₃ Mounting Screw some
Optional accessories: DIN bracket 1 Pc
118

Problem
Action
to return to the normal playback speed mode.
When the unit is in System Setting Menu / Program
Menu , press System Setting / PRG Play to exit the
System Menu /Program Menu. Or you can press Play
to return to the normal playback mode.
If the unit is in the mute mode, please press Mute again
to enable the normal sound play.
Turn on the unit's digital output if it is off.
If the sound track 2 of the SVCD is not recorded, no
sound will be output when the track 2 is selected. Open
up the Console Menu, and select track 1 for playback in
the audio selection.
The disc is dusty and needs to be cleaned.
Noise
The noise comes from other interfaces except for
DIGITAL OUT OPTICAL or COAXIAL interface if the
played CD is DTS standard.
No stereo sound
(10) REPEAT
Repeat the selected chapter or title.
(11) Setup
Please refer to the chapter about machine setup.
(12) Subtitle
Switch DVD subtitle channel.
(13) P/N
Switch to PAL, NTSC, or AUTO system.
(14) L/R
Switch VCD audio channel.
(15) NUMBER BUTTONS:
[0], [1]… [9] number buttons are used to enter number, e.g.
number of track, DVD chapter number, time data, etc.
effect when
Check if the digital output is turned on.
playing video CD
Press Stereo to select stereo sound.
or CD
Operations
Remove the obstacle between the DVD player and the
remote control.
The remote control is positioned too far from the DVD
The remote
video player. Operate the remote control within the
control does not
operating distance.
work properly.
Point the remote control at the remote sensor of the
DVD video player.
If the batteries in the remote control are exhausted,
please replace batteries with new ones.
No disc is inserted. (No disc symbol appears on the
screen). Please insert the intended disc.
Disc playback
The disc is placed upside down. Place the disc with the
failure
MODE
ENTER
MENU
SLOW
REPEAT
STEP
ZOOM
SETUP
SUBTITLE
LANGUAGE
VOL +
P/N
L/R
OSD
VOL -
1
2
3
4
5
6
7
8
16
17
18
19
20
21
22
23
24
25
26
27
28
(16) Eject
Press this button, and the disc will
be unloaded from the player. Press
it again, and the disc will be
loaded.
(17)
While playing, press this button
once to pause playing, and then
press to resume playing. But
.
if you press it twice, the playing will
be stopped completely.
(18)
playback side down.
The disc is dusty. Please clean the disc.
There could be humidity in the unit. Please turn on the
power and stay for 30 minutes without running the disc.
While playing, push this button to
9
0
10+
29
skip to next chapter or track.
30
17 2

(19)
Play or Pause current playing.
(20)
Right Direction Buttons: When the screen display the menu of DVD
Disc or System Menu, the player is in waiting state; you can push
these buttons to move cursor, then select the desired item.
Problem
POWER
The power supply
is disconnected.
Action
Please check if the AC power cord has been connected
correctly.
(21) MENU
While playing DVD, push this button to display the option menu
included in the disc.
(22)
Search forward on the disc.
(23) ZOOM
Press this key to zoom the pictures by several multiples.
(24) STEP
Single-step play.
(25) VOL+
Volume Up.
(26) LANGUAGE
Multiple languages selectable.
(27) VOL-
No picture
Picture distortion
Picture doesn’t
fit TV screen
Replace the breakage video cable before you turn on the
player.
Re-check that the player has been properly connected to
TV set.
Connect the video cable securely into the appropriate
jacks and ensure that the equipment is connected firmly.
Ensure that the TV set is turned on.
Make sure that the appropriate video input mode is
selected on the TV, so that the video image can be
displayed on the screen properly.
The disc is dusty and needs to be cleaned.
It is normal for some distortion to occur when the
Progressive Scan Mode of DISPLAY Setup is selected,
even if the TV set is compatible with the progressive scan
mode (525p). Therefore, please change the Scan Mode to
Interlaced Scan.
The images may not fill up the whole TV screen even after
the Picture Mode of the Audio Menu is set. This is because
the DVD images are fixed in width.
Volume Down.
(28) OSD
Display the machine status, such as playing time, track
information, etc.
(29) MUTE
Switch On/Off the audio output.
(30) 10+
When you need choose songs with number over 10, press one
SOUND
Check for the proper connections of the unit with the TV
set and amplifier.
When the amplifier is connected, check if the amplifier
power has been turned on and if the cable has been
inserted into the appropriate jack.
No sound
Replace the audio cable with a new one if the cable is
damaged.
If the unit has been played in Slow or Pause mode, press
Play to return to the normal playback mode.
If the unit is played in X8, X16, X 32 modes, press Play
316

player will auto search the directories saved MP3 / JPEG files. Also we
can use USB/SD button on remote control to switch between USB
and disc.
Note: The USB/SD port function is valid for flash memory USB/SD
devices. (Supported formats: MP3, WMA, MPEG-4)
6.Specifications
Power Supply
DC 12V
V
General
Power Consumption
10 Watt.
Net Weight
1.2kg
Dimensions
L160 x W160 x H50 mm
Operating Temperature
20
80
Range
1 2 c m C D / C D - R / C D R W
Disc Type
12cm DVD/DVD-R/DVD+RW
12cm CPRM
Disc
C D - A u d i o / H D C D / M P 3 / W M A
Playable
VCD SVCD Kodak Picture CD
DVD DIVX MPEG/CPRM
Video Output
Composite Video
1.0 Vp-p (75 ohm load)
2 channel
Analog Audio
Dolby AC-3 or DTS downmix
2 Vrms (@1KHz)
Audio
S/N Ratio
85 dB
Dynamic
7. Troubleshooting
Before requesting services for this DVD player, please check the items
below for a possible cause of the problem you are encountering. Some
simple checks or minor adjustments on your part may eliminate the problem
and restore proper operation.
time, then press the next digits . When you need choose songs with number
over 20, press this button two times, then press the next digits, for example
"13," press this key ,then press "3."

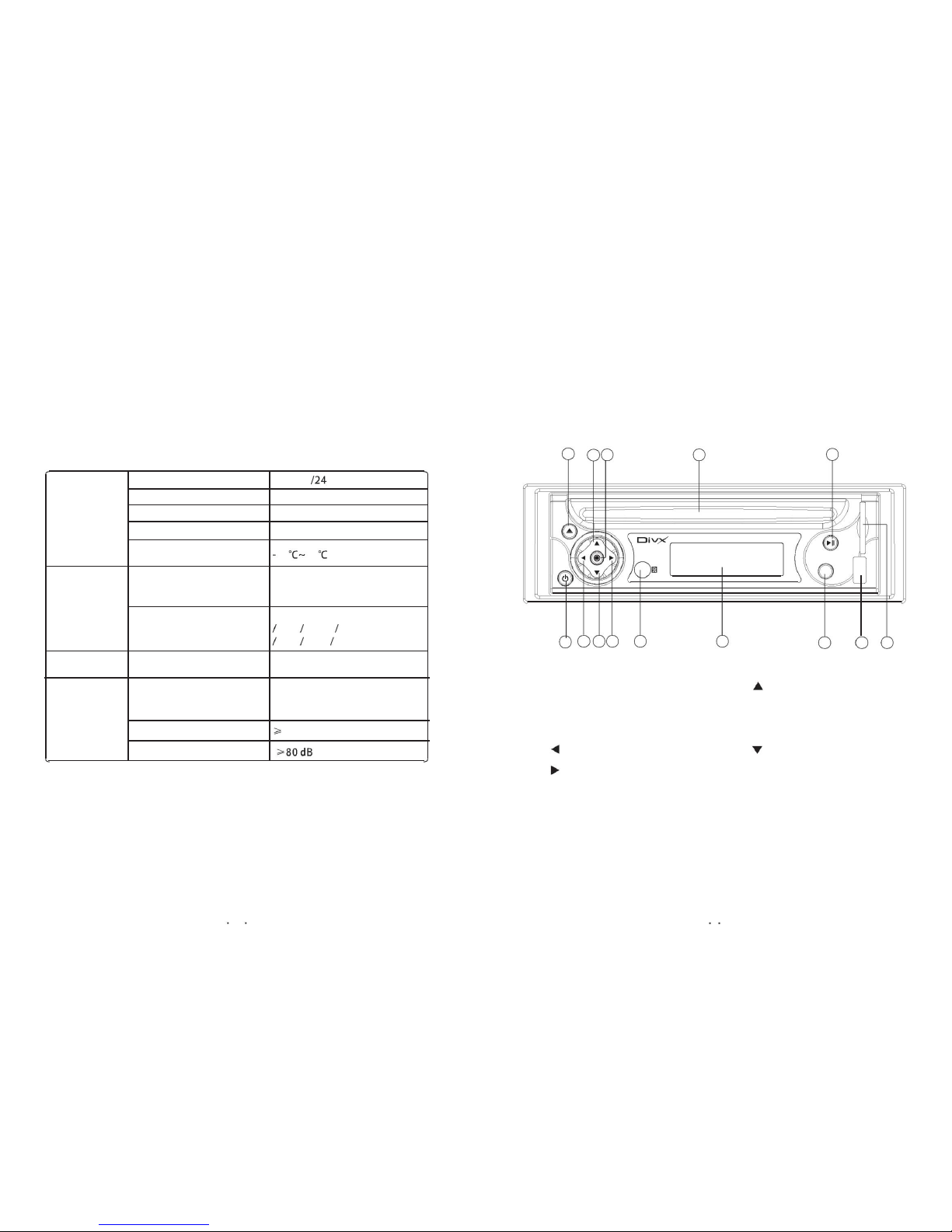

2. Front Panel Description
1
2
3
4
5
C A R D
S D
HDCD/MP3/MP4/WMA/DVD PLAYER
V
I
D
E
O
MOD
USB
7 8 9
10
11
12
14
13
6
1.
Eject Button
2.
Up Button (VOL+)
3.
Enter Button
4. Disc Entrance
5.
Play/ Pause Button
6. Power On/Off Button
7.
Left Button (Previous Button)
8.
Down Button (VOL-)
9.
Right Button (Next Button )
10. IR Sensor
11. VFD Display
12. Mode Switch Button
13. USB Port
14. SD Card Slot
15 4

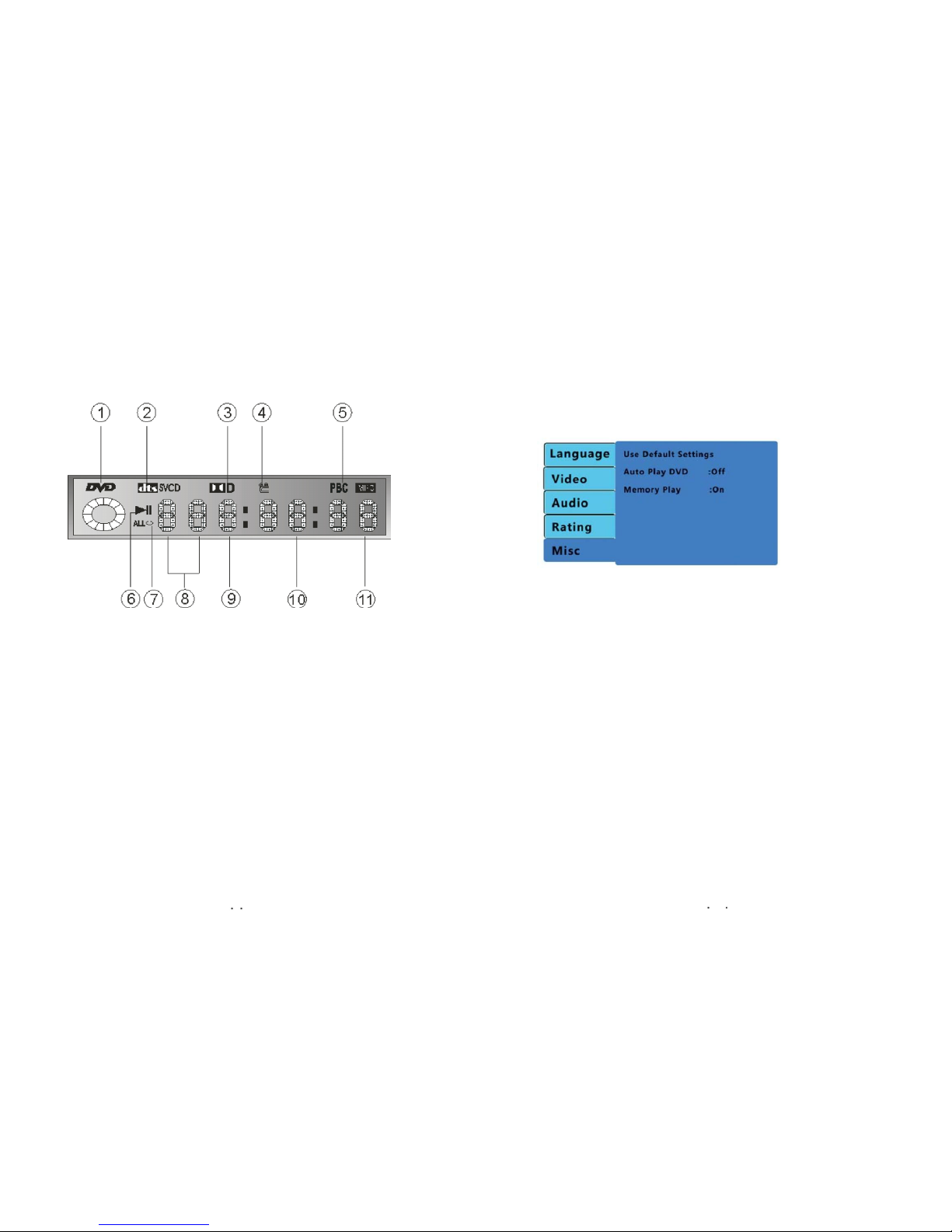

3.
Display Screen Descriptions
1. DISC SYMBOL 7. REPEAT SYMBOL
2.DTS SYMBOL 8. CHAPTER OR TITLE SELECT
3.DOLBY SYMBOL 9. HOUR DISPLAY
4.RECORD SYMBOL 10. MINUTE DISPLAY
5. PBC ON/OFF SYMBOL 11. SECOND DISPLAY
6. PLAY/PAUSE SYMBOL
4. Rear Panel Description
control the types of DVDs that your family watches. There
are two rating options: NO ADULT and KID SAFE. Select
the VIEW ALL option to cancel the rating limit. The default
setting is VIEW ALL.
Miscellaneous Settings:
Press up/down/ Left / Right direction button to select an item, then press
ENTER.
Use Default Settings：
Choose this option to resume all the Setup options to default settings.
Auto Play DVD：
It can skip Title Menu and play DVD’s contents directly.
Memory Play：
The user may choose to save power when playing DVDs and not use this
option. This is to remember last place played on disc.
5.9 USB/SD Operation (optional function)
When no disc, insert the USB storage device into the USB / SD slot, the
514

Press Up/Down/ Left /Right direction button to select an item, then press
ENTER.
Set Password:
The password option is locked, and you cannot set the ratings limit or
change the password. In order for the Ratings feature to work, the password
mode must be turned on. If you want to set the ratings limit, you will need to
enter the default password, which is 8888, then press Enter to confirm. To
change the password, you will be prompted for the old password, then be
prompted for a new. Enter a 4- digit number (this is your password).
Note: Sometimes, the password is four-digit number; the default is 8888.
The Rating feature is a rating limit system, like movie ratings. It works with
DVD discs that have been assigned a rating. This helps you
AV OUT
AUDIO
VIDEO
DC12 / 24V
GND
L
1
DC12/24V
REMOTE
R
2
(Blue)
(black)
(black)
STB
ANT
AMP
GN D
F M
5. Basic Operations
5.1 Turn On/Off the Player:
1). Press Power button on remote control or on the front panel of player.
2). To turn off, press Power button for about 2 seconds; unit will power off.
3). To play, put a disc into the disc entrance, with label side up.
4). The player will slot in the disc automatically and begin to read it. It can
identify different disc formats and display them on the TV screen. If
Directory or Menu picture display in the screen, you can press the
Direction buttons, and buttons on the remote control
to move to desired title and press ENTER button to select it. Also you
can directly press number buttons to select track.
13 6

5.2 Select Item Through Menu:
If the DVD disc has its own menu, you can display the menu by pressing
MENU button, then you can select a popular item to play according to
following procedures:
1). Press MENU –
The screen displays menu picture, the content to be selected varies with
different discs.
2)
. Press the directory buttons
，， or
to select the desired item.
3)
. Press ENTER to confirm the selected item.
5.3 Fwd/Reverse:
When you press FWD/REV under the Play mode, the unit will start to
advance or reverse tracks. You can play discs at various speeds. With each
consecutive press of FWD/REV, the playback speed changes. There are four
speed levels for DVD discs in FWD/REV: X2, X4, X6, and X8. There are four
speed levels for disc types other than DVDs: X2, X4, X8, and X16. Press
PLAY to resume the normal playback.
5.4 Select a Track:
There are more than one operational procedures available.
A. Press :
or
to skip to the next or the previous track and play.
B. For those discs with track numbers, directly press number buttons to enter
the number of desired track. If the screen displays “Φ” there may be three
possible reasons: (1) the track in the disc is not numbered; (2) the number
entered is beyond the scope; (3) the disc has no number select function.
C. Select among the song track list (such Mp3, Menu list, etc.).
Audio Settings:
Press Up/Down/ Left /Right direction button to select an item, then press
ENTER.
Digital Output Settings:
User can adjust S/PDIF terminal audio output by choosing number output
set, to make it work harmoniously with other equipment (for example,
receiver and sound box.
Off = Turn off digital audio output.
PCM = connect S/PDIF optic fiber output to receiver which
support s PCM S/PDIF
Rating Settings:
712

View Mode:
The user can choose from four display modes.
Fill: picture stretched across whole screen.
Original: the picture’s original size.
Auto Fit:the picture automatically adapts to the screen.
Pan Scan: picture stretched to fill whole screen from up and down or left and
right.
TV System:
According to the Color System of the TV, you can choose the TV System.
AUTO: Choose this settings if your DVD player is connected to a multi-system
TV.
NTSC: Choose this settings if your DVD player is connected to a NTSC TV.
PAL: Choose this settings if your DVD player is connected to a PAL TV. The
default setting is NTSC.
5.5 Select Subtitle Language:
For DVD discs, you can Press SUBTITLE to switch the subtitle language. Keep
pressing it, and the screen will display available languages alternatively.
5.6 Select Audio Channel:
For DVD discs, you can press LANGUAGE to switch the audio channel. And
for other discs, press Left /Right button to switch channel.
5.7 OSD:
Press OSD button, and TV screen will display current playing time and state,
i.e. playing time, remaining time, chapter/track information. If you press OSD
each time, the screen will show a time, alternatively.

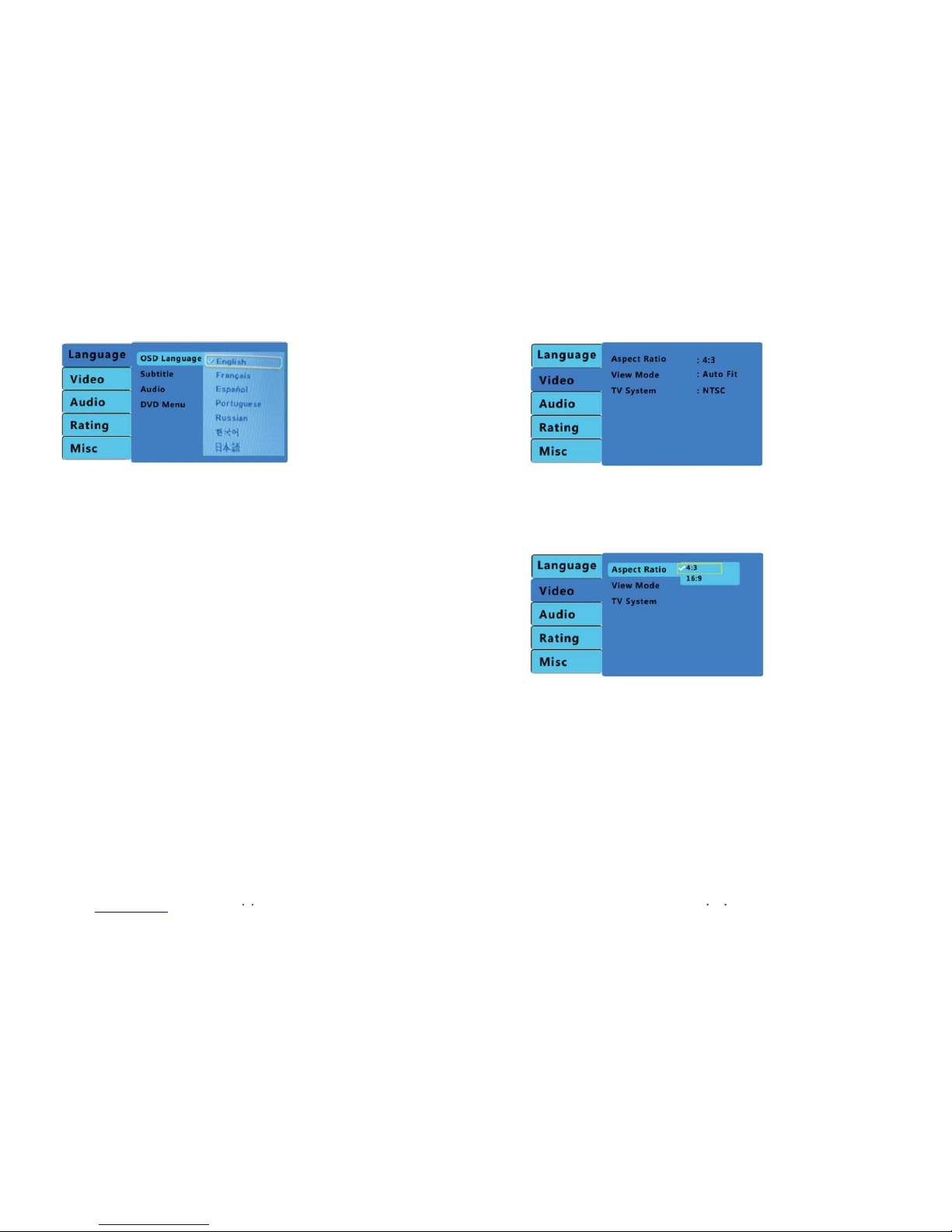

5.8 System Setup Menu:
You can press the Setup key on the remote control to bring up the System
Setup Menu when the unit is in the STOP/PLAYBACK mode.
Language Set:
Press Up/Down/ Left /Right direction button to select an item, then press
ENTER.
11 8

OSD Language:
OSD menu setting allows users to choose language for OSD menu and
Information Display set option.
Subtitle Settings:
User can set Subtitle language (DVD disc) option.
Note: Some discs can use subtitle displays different from Menu settings.
Audio Settings:
User can set dub language with Dub Language setting (DVD disc) option.
Note: Some DVD disc dub languages will be different from set dub language.
DVD Menu:
User can set DVD menu language to select items.
Note: Some DVD menus use a different language display.
Video Settings:
Press Up/Down/ Left /Right direction button to select an item, then press
ENTER.
Aspect Ratio:
16:9 (Wide-Screen): Choose this setting if your DVD player is
connected to a wide-screen TV. If you choose this setting and you don't
have a wide screen TV, the images on the screen may appear distorted due
to vertical compression.
4:3 LB (Letter Box): Choose this setting if your DVD player is connected
to a normal-ratio TV. The movies will appear in their original aspect ratio
(height-to-width ratio. The movie might appear with black bars at the top and
bottom of the screen.
910
