Read and understand this manual and all instructions before operating the DR SNOW BLOWER.
`
DR®SNOW BLOWER
SAFETY & OPERATING INSTRUCTIONS
Serial No.
Order No.
DR Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Fax: [phone]
Website: www.DRpower.com
Models:
PRO-24
PRO-28
PRO XL-30
PRO MAX-34

2DR® SNOW BLOWER
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
Table of Contents
Chapter 1: General Safety Rules............................................................................................................................................................ 3
Chapter 2: Setting Up the DR SNOW BLOWER................................................................................................................................... 7
Chapter 3: Operating the DR SNOW BLOWER ................................................................................................................................... 14
Chapter 4: Maintaining the DR SNOW BLOWER ................................................................................................................................ 18
Chapter 5: Troubleshooting .................................................................................................................................................................. 28
Chapter 6: Parts Lists and Schematic Diagrams.................................................................................................................................. 30
Conventions used in this manual
Serial Number and Order Number
A Serial Number is used to identify your machine and is located on the Serial
Number Label on your machine (Figure 1). An Order Number is used to check
and maintain your order history and is located on your packing slip. For your
convenience and ready reference, enter the Serial Number and Order Number
in the space provided on the front cover of this manual.
Additional Information and Potential Changes
DR Power Equipment reserves the right to discontinue, change, and improve its
products at any time without notice or obligation to the purchaser. The
descriptions and specifications contained in this manual were in effect at
printing. Equipment described within this manual may be optional. Some
illustrations may not be applicable to your machine.
California Proposition 65
Serial Number
Labe
l
Figure 1
This information is important in the proper use of your machine. Failure to follow this instruction could result in damage to
your machine or property.
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.

CONTACT US AT www.DRpower.com 3
Read this safety & operating Instructions manual before you use the DR SNOW BLOWER. Become familiar with the operation
and service recommendations to ensure the best performance from your machine. If you have any questions or need assistance,
please contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) and one of our Technical Support
Representatives will be happy to help you.
Chapter 1: General Safety Rules
Labels
Your DR SNOW BLOWER carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the
Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on
your SNOW BLOWER as you set up and before you operate the unit. Replace damaged or missing safety and information labels
immediately.
#1000003682
#10000036714
#1000003684
#42373 #42375
#42374

4DR® SNOW BLOWER
This is a high-powered machine, with moving parts operating with high energy. You must operate the machine safely. Unsafe
operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions
when using this machine:
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and
themselves.
Always wear protective goggles or safety glasses with side shields while using the SNOW BLOWER to protect your eyes from
possible thrown debris.
Avoid wearing loose clothing or jewelry, which can catch on moving parts.
We recommend wearing gloves while using the SNOW BLOWER. Be sure your gloves fit properly and do not have loose cuffs
or drawstrings.
Wear shoes with non-slip treads when using your SNOW BLOWER. If you have safety shoes, we recommend wearing them.
Wear long pants while operating the SNOW BLOWER.
Use ear protectors or ear plugs rated for at least 20 dba to protect your hearing.
Keep bystanders at least 75 feet away from your work area at all times. Stop the engine when another person or pet
approaches.
Never overlook the hazards of electricity. Always follow these precautions:
Never open the Control Box cover. Never attempt any electrical repairs yourself. If in doubt, consult a qualified electrician,
visit our website at www.DRpower.com or contact DR Power Equipment for toll-free support at: 1-800-dr-owner (376-9637) for
help or information.
Never use an extension cord that is not rated for outdoor use.
Never connect the Cord to the Snow Blower if there is an electrical hazard present.
Never connect the Cord to the Snow Blower in wet conditions.
Never connect the Cord to the Snow Blower with a damaged extension cord.
Always grasp the electrical cord plug when unplugging the cord from the outlet; never pull the plug out by the cord. Make
sure your fingers do not touch the metal prongs when plugging or unplugging.
Never Start the Snow Blower unless the electrical cord is plugged into a properly grounded outlet, which supplies 110-120V
power, and is protected by a 15-amp circuit breaker.
Never tamper with safety devices. Check their proper operation regularly.
When using an extension cord, keep the connection between the Control Box and the extension cord well away from any
water.
Protecting Yourself and Those Around You
Safety for Children and Pets
Safety with Extension Cords
Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the
machine and the snow blowing activity.
Never assume that children will remain where you last saw them. Always follow these
precautions:
Keep children and pets at least 75 feet from the working area and ensure they are under the watchful care of a responsible
adult.
Be alert and turn the machine off if children or pets enter the work area.
Never allow children to operate the SNOW BLOWER.

CONTACT US AT www.DRpower.com 5
Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and cause a fire or
explosion. Never overlook the hazards of gasoline. Always follow these precautions:
Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine contains carbon
monoxide, which is an odorless, tasteless, and deadly poisonous gas.
Store all fuel and oil in containers specifically designed and approved for this purpose and keep away from heat and open
flame, and out of the reach of children.
Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use.
Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely. Don't handle gasoline if you or
anyone nearby is smoking, or if you're near anything that could cause it to ignite or explode. Reinstall the fuel tank Cap and
fuel container cap securely.
If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill and avoid creating
any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly
dispose of the waste.
Allow the engine to cool completely before storing in any enclosure. Never store a machine that has gas in the tank, or a fuel
container, near an open flame or spark such as a water heater, space heater, clothes dryer or furnace.
Never make adjustments or repairs with the engine running. Shut down the engine, disconnect the spark plug wire, keeping it
away from the spark plug to prevent accidental starting, wait 5 minutes before making adjustments or repairs.
Never tamper with the engine’s governor setting. The governor controls the maximum safe operation speed and protects the
engine. Over-speeding the engine is dangerous and will cause damage to the engine and to the other moving parts of the
machine. If required, see your authorized dealer for engine governor adjustments.
Keep combustible substances away from the engine when it is hot.
Never cover the machine while the muffler is still hot.
Do not operate the engine with the air cleaner or the carburetor air intake cover removed. Removal of such parts could create
a fire hazard. Do not use flammable solutions to clean the air filter.
The muffler and engine become very hot and can cause a severe burn; do not touch.
Never use an extension cord longer than 25 feet and smaller than 12 awg in diameter, or longer than 50 feet and smaller than
10 awg in diameter; the cord will produce a voltage drop that will prevent the starter from supplying full power and may cause
damage to the Starter or Control Box. Use of a smaller diameter (larger awg number) extension cord could result in melting o
f
the insulation or even create a fire.
Always keep the electrical cord and/or extension cord away from excessive heat, oil, and sharp objects.
Safety with Extension Cords (continued)
Safety with Gasoline - Powered Machines
General Safety
Operating this SNOW BLOWER safely is necessary to prevent or minimize the risk of death or serious injury. Unsafe operation
can create a number of hazards for you. Always take the following precautions when operating this SNOW BLOWER:
Your SNOW BLOWER is a powerful tool, not a plaything. Exercise extreme caution at all times. The machine is designed to
blow snow. Do not use it for any other purpose.
Know how to stop the SNOW BLOWER quickly; see “stopping the engine” in chapter 3.
Wear winter tread boots designed for snow and ice traction to avoid slipping or falling.
See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by DR
Power Equipment.
Never use the machine without ensuring that all guards and shields are in place.

6DR® SNOW BLOWER
General Safety (continued
A Note to All Users
Under California law, and the laws of some other states, you are not permitted to operate an internal combustion engine using
hydrocarbon fuels without an engine spark arrester. This also applies to operation on US Forest Lands. All DR®SNOW
BLOWERS shipped to California, New Mexico and Washington State are provided with spark arresters. Failure of the owner or
operator to maintain this equipment in compliance with state regulations is a misdemeanor under California law and may be in
violation of other state and/or federal regulations. Contact your State Park Association or the appropriate state organization for
specific information in your area.
No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must
apply common sense and operate this DR SNOW BLOWER in a safe manner. Contact us at www.DRpower.com or call 1-800-DR-
OWNER (376-9637) for assistance.
Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the SNOW BLOWER. This
includes all shields and guards. Modifications to your machine could cause personal injuries and property damage and will
void your warranty.
Allow only one person to operate the SNOW BLOWER at any time.
If the machine should start making an unusual noise or vibration, shut down the engine, disconnect the spark plug wire,
keeping it away from the spark plug to prevent accidental starting, wait 5 minutes, then inspect for damage. Vibration is
generally a warning of trouble. Check for damaged parts and clean, repair, and/or replace as necessary.
Never tamper with safety devices. Check their proper operation regularly.
Before performing any maintenance or inspection procedure on the SNOW BLOWER, stop the engine, remove the Safety Key,
and wait five minutes to allow all parts to cool.
Never allow people who are unfamiliar with these instructions to use the SNOW BLOWER. Allow only responsible individuals
who are familiar with these rules of safe operation to use your machine.
Never overload or attempt to use the SNOW BLOWER beyond the manufacturer’s recommendation. Personal injury or
damage to the machine could result.
While using the SNOW BLOWER, don't hurry or take things for granted. When in doubt about the equipment or your
surroundings, stop the machine and take the time to look things over.
Never operate the machine when under the influence of alcohol, drugs, or medication.
Stay alert for hidden hazards or traffic.
Keep all nuts and bolts tight and keep the equipment in good operating condition.

CONTACT US AT www.DRpower.com 7
Oil Drain
Power
“ON”
Safety Key
Figure 2
Gas Fill
Oil Fill/Dipstick
Electric Start
Plug
Starter
Pull Cor
d
A
djustable
Skid Shoe
A
uge
r
Chute
Height
Control
A
uger
Control
Leve
r
Shift
Lever
Chute
Rotation
Knob
Drive
Control
Leve
r
Light
Switch
Grip
Heater
Switch
Muffler
Heated
Grips
LED
Headlight
Pneumatic
Tires
Primer
Bulb
Chute
A
ssembly
Belt Cover
Shovel
Shear
Bolts
Power
“ON”
Safety Key
Primer
Bulb Starter
Pull Cor
d
Chapter 2: Setting Up the DR SNOW BLOWER
It may be helpful to familiarize yourself with the controls and features of your DR SNOW BLOWER as shown in Figure 2 before
beginning these procedures. If you have any questions at all, please feel free to contact us at www.DRpower.com.

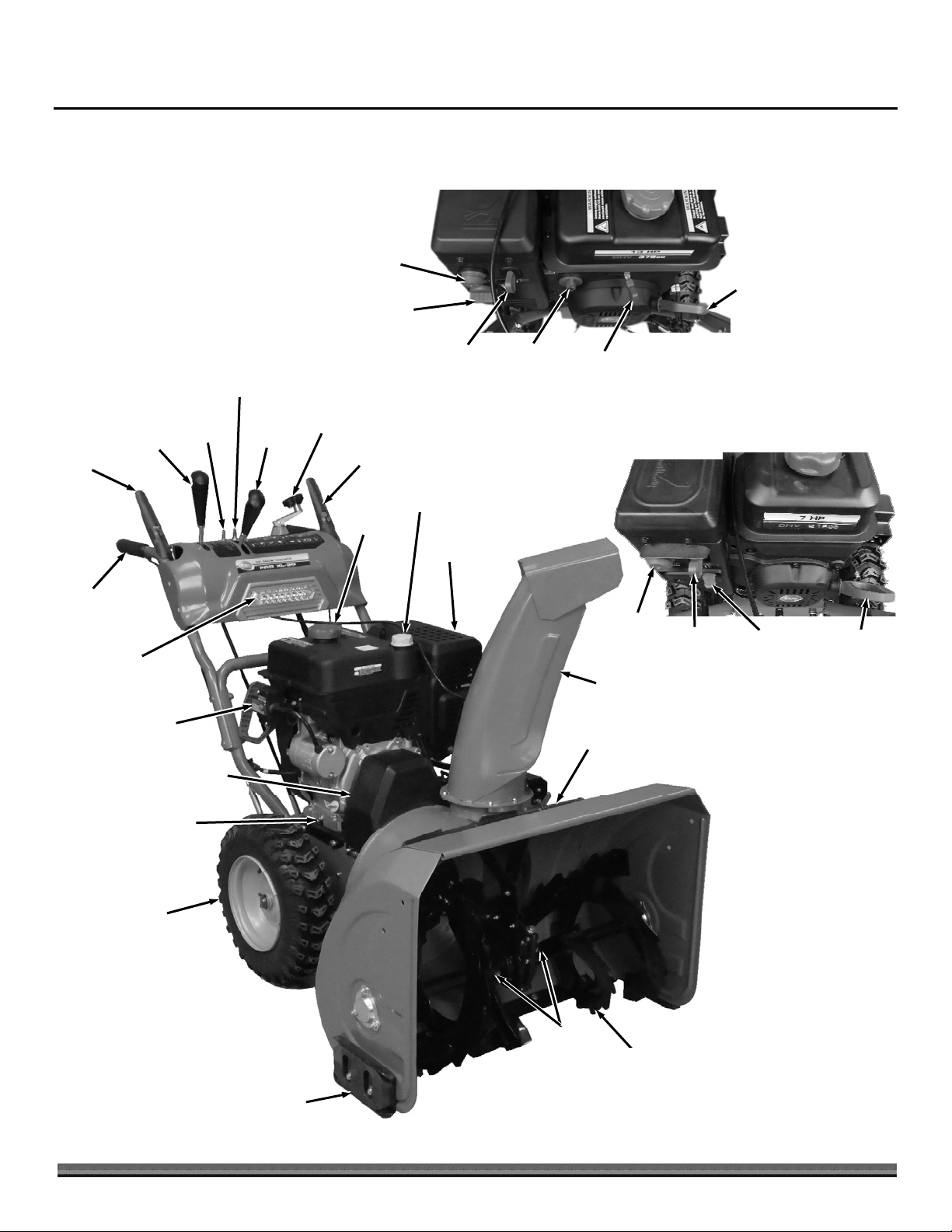

DR SNOW BLOWER Controls and Features
Choke
Contro
l
Fuel
Shut-off Throttle
Leve
r
Engine Controls
(PRO-28*, PRO-XL 30, and PRO-MAX 34)
*PRO-28 Choke Control same as PRO-24
Choke
Contro
l
Engine Controls
(PRO-24*)

8DR® SNOW BLOWER
Specifications
Model PRO-24 PRO-28 PRO XL-30 PRO MAX-34
Clearing Width - Inch (mm) 24 (609) 28 (711) 30 (764) 34 (889)
Intake Height - Inch (mm) 20 (508) 21 (540) 21 (540) 21 (540)
Throwing Distance – Ft (m) ≤36ft (11m) ≤36ft (11m) ≤49ft (15m) ≤49ft (15m)
Starting System 110V Electric with Recoil Back-up
Transmission Type Friction Disc
Speeds 6 Forward, 2 Reverse
Wheel Size 15x4.80-7 15x4.80-7 16x4.80-8 16x4.80-8
Chute Rotation Hand crank, 190° Turning Radius
Ice Chopping Auger Yes
Differential System Auto-Turn
One Handed Operation Yes
Heated Grips Yes
Headlight LED
Operator Controls Shift Lever, Drive Control, Auger Control, Chute Controls, Headlight Switch, Heater Switch
Machine Dimensions – Inch
(cm)
57x24x42
(145x61x107)
57x28x42
(144x72x107)
57x30x43
(146x77x110)
58x34x43
(147x87x110)
Machine Weight - Pound (Kg) 192 (87) 227 (103) 258 (117) 278 (126)

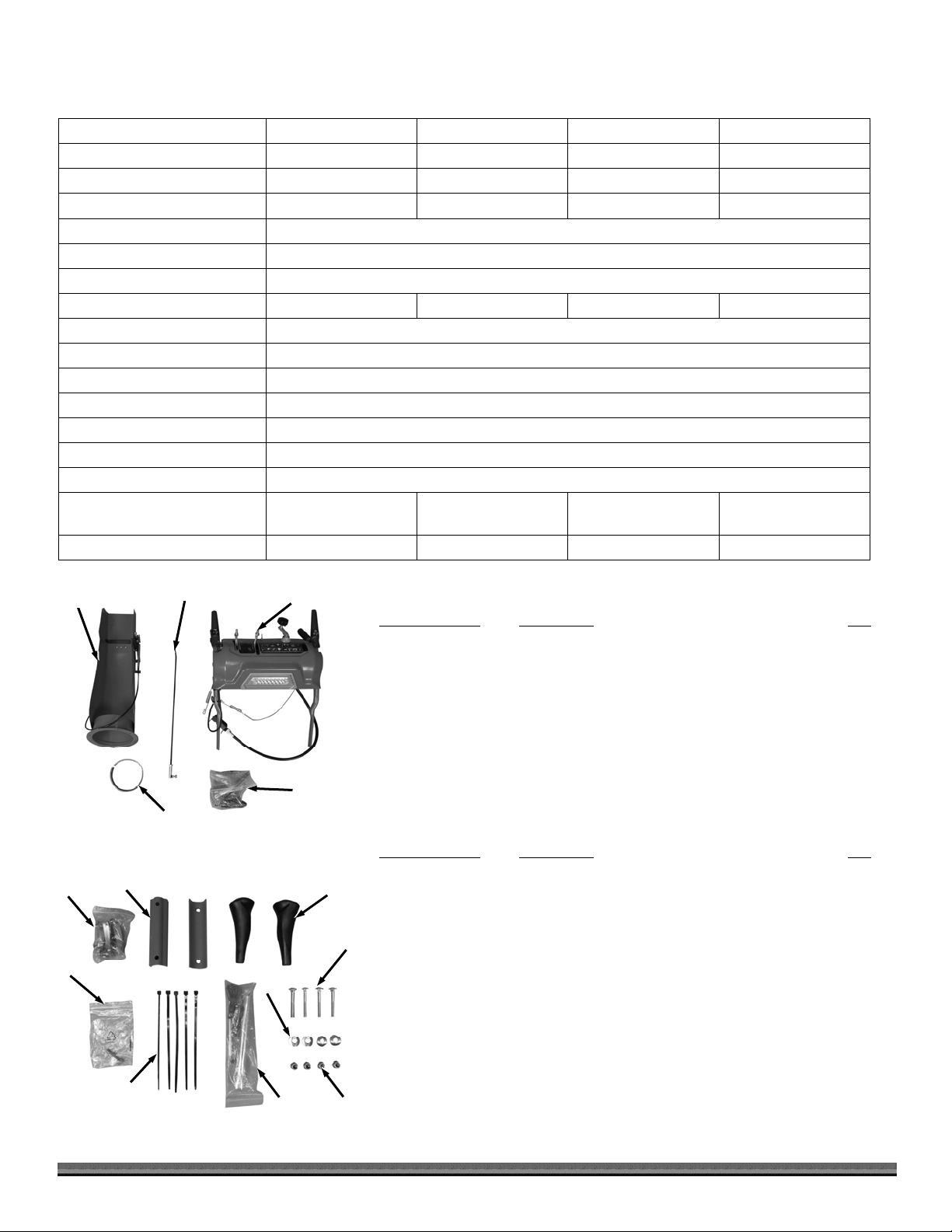

Components Supplied (Figure 3):
Item# Part # Description Qty
1............. N/A............Discharge Chute Assembly.........................................1
2............. N/A............Shifter Rod Assembly..................................................1
3............. N/A............Handlebar Assembly...................................................1
4............. N/A............Parts Bag .....................................................................1
5............. 40335.........Washer, Chute.............................................................1
Compare the contents with the “Components Supplied” list above. If you have
any questions, please contact us at www.DRpower.com or call 1-800-DR-
OWNER (376-9637) for assistance.
Large Parts Bag (Figure 4):
Item# Part # Description Qty
1............. N/A............Chute Retainer Bag .....................................................1
2............. 40088.........Plate, Adapter..............................................................2
3............. 40105......... Handle, Shifter ............................................................2
4............. 40310.........Bolt, M8x55 .................................................................4
5............. 40333.........Washer, 8mm ID X 22mm OD X 2mm ......................4
6............. 40278.........Nut, Jam, M8...............................................................4
7............. N/A............Key, Shear Bolt and Spark Plug Tool Bag...................1
8............. 11214......... Cable Tie, 7-1/2" L.......................................................5
9............. N/A............Chute Worm Gear Hardware and Shear Bolts ...........1
Compare the contents with the “Large Parts Bag” list above. If you have any
questions, please contact us at www.DRpower.com or call 1-800-DR-OWNER
(376-9637) for assistance.
1
Figure 3
2 3
4
5
Figure 4
1
2
3
4
5
6
7
8
9

CONTACT US AT www.DRpower.com 9
Smaller Parts Bags (Figure 5):
Item# Part # Description Qty
1 ......... 40290.............. Bolt, M6x16 ............................................................. 2
2 ......... 40347.............. Washer, Spring, 6mm............................................. 2
3 ......... 40345.............. Washer, Flat, 6mm ................................................. 2
4 ......... 40424.............. Key, Off Switch........................................................ 2
5 ......... 42532.............. Tool, Spark Plug...................................................... 1
6* ....... 40296.............. Bolt, Shear, Impeller, M6x35 (Pro-24).................... 2
40297.............. Bolt, Shear, Impeller, M6x40 (All except Pro-24)... 2
7* ....... 40313.............. Nut, Jam M6 ........................................................... 2
8* ....... 40321.............. Bolt, Shear, Auger (All except Pro-24).................... 2
9* ....... 40278.............. Nut, Jam, M8 (All except Pro-24) ........................... 2
10* ..... 40311.............. Bolt, Shear, Auger (Pro-24) .................................... 2
11* ..... 40317.............. Pin, Cotter, Auger Drive (Pro-24) ........................... 2
12 ....... 40098.............. Block, Chute ............................................................ 3
13 ....... 40325.............. Screw, M6 X 16 ....................................................... 6
14 ....... 40347.............. Washer, Spring, 6mm............................................. 6
*Spare Shear Hardware (not needed for assembly)
Compare the contents with the “Smaller Parts Bags” list above. If you have any
questions please contact us at www.DRpower.com or call 1-800-DR-OWNER
(376-9637) for assistance.
Drift Cutter Parts (Figure 6):
Item# Part # Description Qty
1 .............40350 .........Drift Cutter.................................................................. 2
2 .............40303 .........Bolt, M8x20................................................................. 4
3 .............40351 .........Nut, Wing, M8, Plastic ............................................... 4
Compare the contents with the “Drift Cutter parts” list above. If you have any
questions, please contact us at www.DRpower.com or call 1-800-DR-OWNER
(376-9637) for assistance.
Assembly Instructions
Tools Needed:
13mm Wrench
6mm Wrench
8mm Wrench
11mm Wrench
14mm Wrench
17mm Wrench
Wire Cutters
Eye Protection
1. Have a helper hold the upper Handlebar Assembly in position on the lower
Handlebar (Figure 7).
2. Place the Adapter Plates between the upper and lower Handlebar
Assemblies and secure with The M8 X 55 Bolts, 8 X 22 X 2 Washers and M8
Jam Nuts using a 13mm Wrench.
Note: Ensure that the Bolt Heads are on the outside of the Handlebar and the
square portion of the Bolts go fully into the squares in the handlebar.
Figure 5
1, 2, 3
4
5
12
6
13, 14
7
8
9 11
10
Handlebar
A
ssembly
Figure 7
A
rmrest
Pa
d
Carriage
Bolt
J
am Nut
Washer
Figure 6
1
2
3

10 DR® SNOW BLOWER
3. Remove the Cotter Pin from the Auger Control Lever and remove the Cable
end from the Lever (Figure 8).
4. Attach the Spring Hook of the Auger Control Cable into the Tension
Connector at the right side of the machine (Figure 9).
5. Reinstall the Cable end to the Lever and secure with the Cotter Pin (Figure
8).
6. Remove the Cotter Pin from the Drive Control Lever and remove the Cable
from the Lever Pin (Figure 10).
7. Attach the Spring Hook of the Drive Control Cable into the Pulley Wire at
the left side of the machine (Figure 11).
Note: Ensure that the Cable is routed on the correct side of the Grip Heater Wire as
you perform the next step.
8. Reinstall the Cable end to the Lever Pin and secure with the Cotter Pin
(Figure 10).
9. Check the Jam Nuts on the Auger Control Cable and Drive Control Cable to
ensure they are tight (Figure 12). Tighten as needed using a 6mm Wrench
to hold the Cable and an 8mm Wrench to tighten the Nut.
10. Remove the Pin and install the upper end of the Shift Connector Bar (Figure
13).
Pin
Figure 13
Shifter
Connector
Bar
J
am Nut
Figure 12
Drive Control
Lever
Figure 10
Cotter
Pin
Cable
Spring Hook
Figure 11
Pulley
Wire
Spring
Hoo
k
Figure 9
Tension
Connecto
r
A
uger Control
Leve
r
Figure 8
Cotter
Pin
Cable

CONTACT US AT www.DRpower.com 11

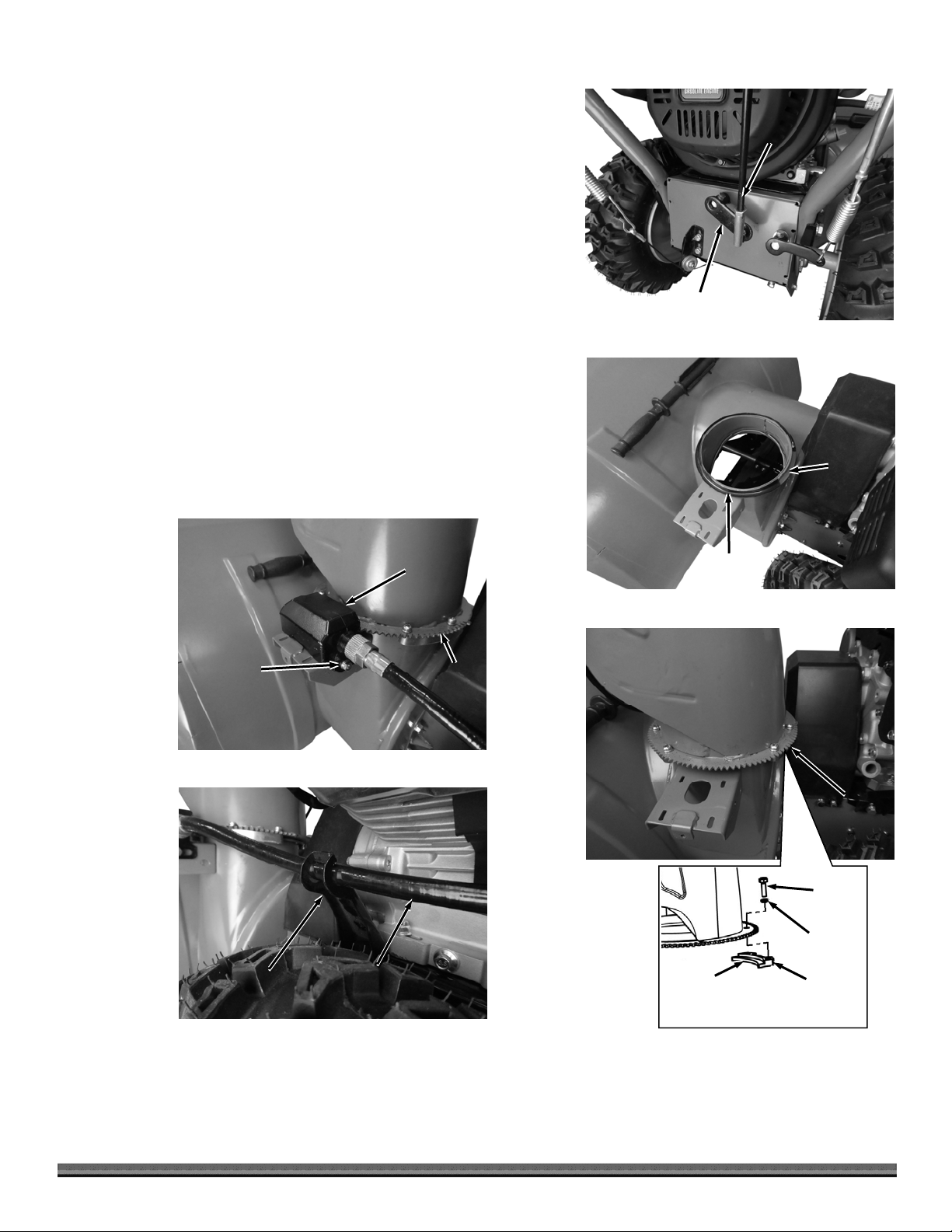

11. Remove the Locknut from the lower Gimbal end of the Shift Connector Bar
and insert the threads through the Shift Connector at the center of the
machine (Figure 14).
12. Secure the Gimbal with the Locknut using a 11mm Wrench on the Gimbal
and a 13mm Wrench on the Locknut.
13. Ensure the Gimbal’s upper Jam Nut is tight using a 14mm Wrench.
14. Install the Chute Washer onto the Auger Housing Flange (Figure 15).
15. Place the Chute Assembly onto the Housing Flange and secure with the
three Fixed Blocks, six M6 X 16 Screws and six 6mm Spring Washers using
a Philips Head Screwdriver (Figure 16).
Note: Ensure that the Fixed Block Tabs are facing down and go underneath the
Housing Flange.
16. Position the Discharge Chute Rotation Bracket and hold it against the
Chute Gear as you secure it with the two Screws, Lock Washers, and Flat
Washers using a 10mm Wrench (Figure 17).
17. Place the Rotation Bracket Cable into the Connecting Plate (Figure 18).
Connecting
Plate
Figure 18
Chute
Rotation
Cable
Rotation
Bracket
Figure 17
Bolt with
Spring
Washer and
Flat Washer
Chute
Teeth
Figure 16
Fixed Block Tab
Goes under
Housing Flange
Fixed
Block
Spring
Washer
Screw
Chute
A
ssembly
Fixed Block
Housing
A
ssembly
Chute
Washe
r
Figure 15
A
uger
Housing
Flange
Shift Connector
Figure 14
Shift
Connector
Bar

12 DR® SNOW BLOWER

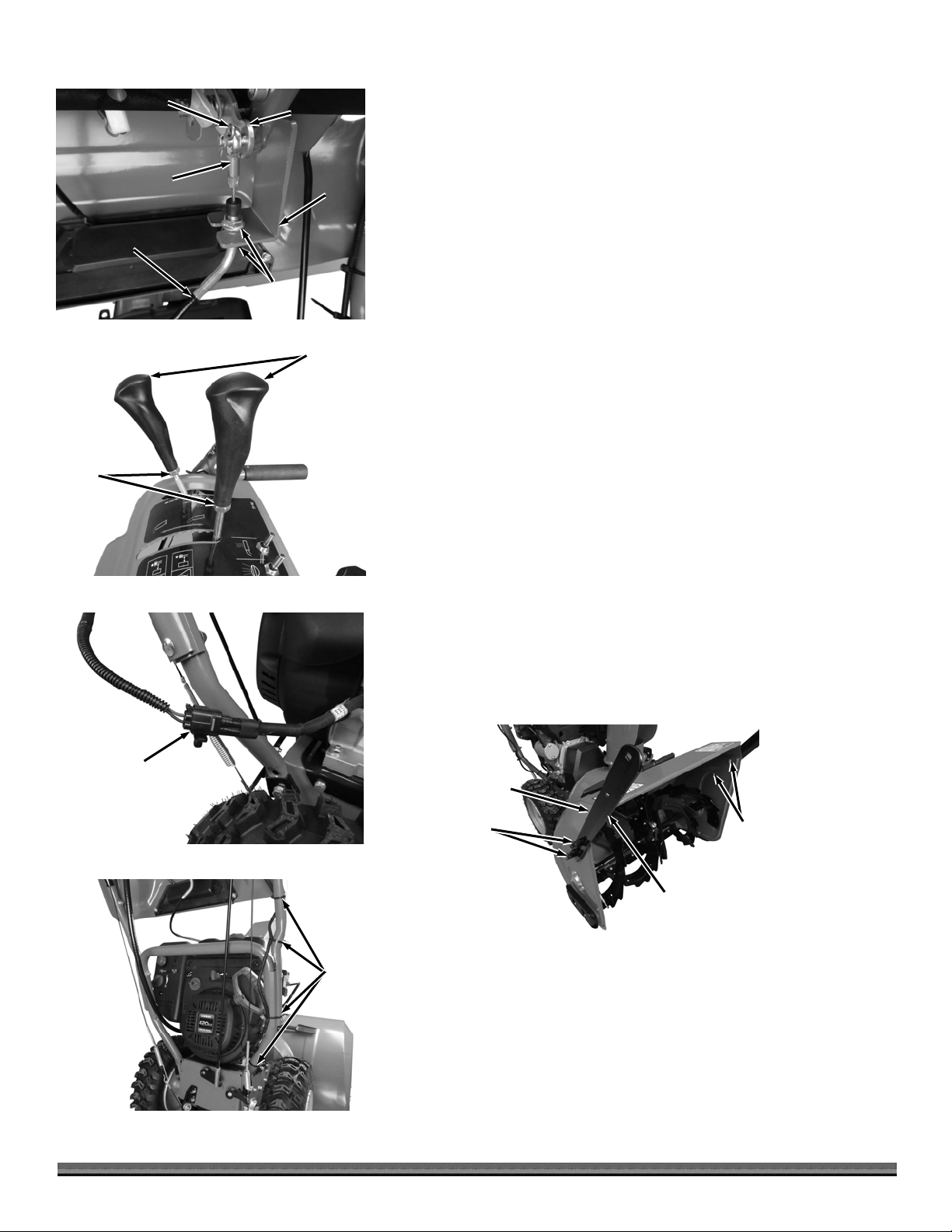

18. Install the Eyelet end of the Deflector Cable onto the Deflector Lever and
secure with the Pin (Figure 19).
19. Loosen the top Jam Nut, slide the threaded portion of the Cable into the
Bracket and tighten the two Jam Nuts against the Bracket using two 13mm
Wrenches.
20. Screw the Handles onto the Shift and Deflector Levers and tighten the Jam
Nuts using a 17mm Wrench (Figure 20).
21. Use Wire Cutters to cut the Cable Tie that is securing the Heated Grip
Connector and insert the Connector into the Harness Plug (Figure 21).
22. Install Cable Ties to secure the Wire Harness to the Handlebar, making
sure that the Cables are not on top of the Handlebar where they can
interfere with the Starter Pull Cord (Figure 22). Wear eye protection as you
cut the excess ends of the Cable Ties using Wire Cutters.
Installing the Drift Cutters
1. Position the Drift Cutters and secure each one with two Carriage Bolts and
Plastic Nuts (Figure 23).
Note: Ensure that the Drift Cutter bent edges are positioned as shown for proper
operation.
Drift
Cutte
r
Figure 23
Wing
Nut
s
Bolts
Bent Edge Pointing
Forward and Outward
Figure 22
Cable
Ties
Grip Heater
Connector
Figure 21
Handles
Figure 20
J
am
Nut
s
Deflector
Cable
Figure 19
Deflector
Lever
Pin
Eyelet
J
am
Nuts
Bracket

CONTACT US AT www.DRpower.com 13
Check the Tire Pressure
Tools Needed:
Tire Pressure Gauge
Air Compressor

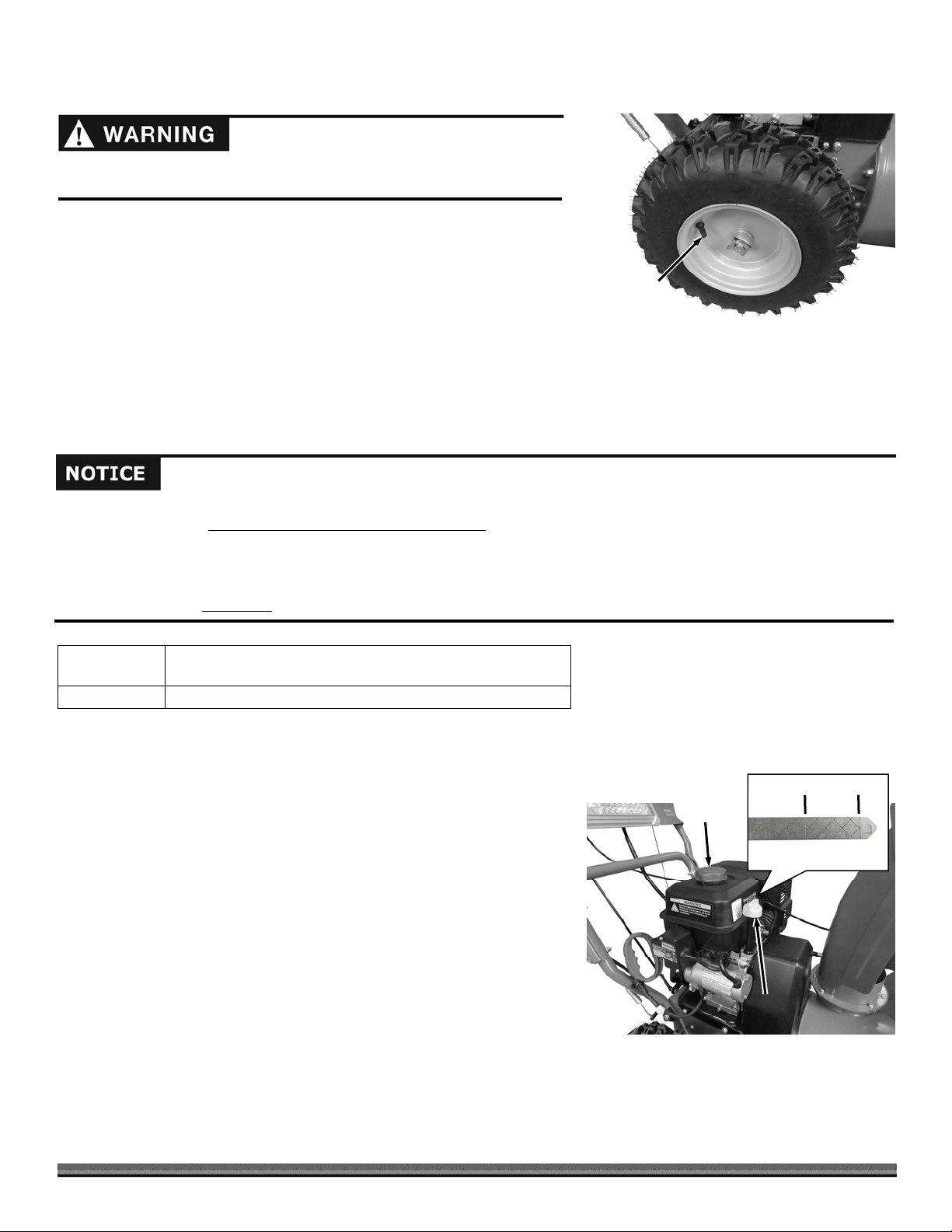

1. Remove the Valve Stem Protective Cap (Figure 24) and check the tire
pressure with a Tire Pressure Gauge.
2. Compare the tire pressure reading with the manufacturer's recommended
tire pressure stamped on the side of the tire.
3. If the pressure is too low, add air through the Valve Stem with an air hose.
4. Replace the Valve Stem Protective Cap when finished.
Adding Oil and Gasoline
Engine Oil 5W-30 or 0W-30: -13°F (-25°C) or higher
0W-30: -13°F (-25°C) or lower
Fuel Unleaded gasoline
Note: Use only the recommended high detergent engine oil. Other types of oil could cause problems operating your machine. Please refer
to your Engine Owner’s Manual for detailed oil information.
1. Position the machine so the Frame and Engine are level. Remove the Oil
Fill/Dipstick (Figure 25) and clean the end of it with a rag.
2. Machines are shipped with no oil. Initially add 3/4 of the oil recommended
by the Engine Manufacturer (see oil quantities in your Engine User
Manual). Wait one minute for the oil to settle.
3. Insert the Dipstick without screwing it in and check the oil level. Clean the
Dipstick with the rag after checking.
4. Continue adding a few ounces of oil at a time, rechecking the Dipstick until
the oil reaches the fill mark. Be careful not to overfill.
5. When full, replace the Dipstick and screw all the way down.
6. Remove the Gas Fill Cap and fill the Gas Tank with fresh, unleaded gas
(with a minimum of 85 Octane) to approximately 1" to 1-1/2" below the top
of the fill neck to allow for fuel expansion (Figure 25). Be careful not to
overfill and ensure you reinstall the Gas Fill Cap before starting the engine.
See your Engine Owner’s Manual for more detailed information.
Note: To refill the gas tank, turn the engine OFF and let the engine cool at least five minutes before removing the gas fill cap.
Figure 25
Oil
Fill/Dipstick
Gas Fill
A
d
d
Full
Valve Stem
Protective Cap
Figure 24
Do not over inflate the tires. Inflate to the manufacturers recommended
pressure found on the tires.
You must add oil before starting the engine. This machine is shipped without oil. Traces of oil may be in the reservoir from
factory testing, but you must add oil before starting the engine. Fill the reservoir slowly, checking the level frequently to avoid
overfilling.
To get an accurate reading when checking the oil level:
- The Engine must be level.
- The dipstick should not be screwed down to ensure an accurate oil level reading.

14 DR® SNOW BLOWER
Chapter 3: Operating the DR SNOW BLOWER
It may be helpful to better familiarize yourself with the features of your SNOW
BLOWER by reviewing Figure 2 in Chapter 2 before beginning the steps outlined
in this chapter.

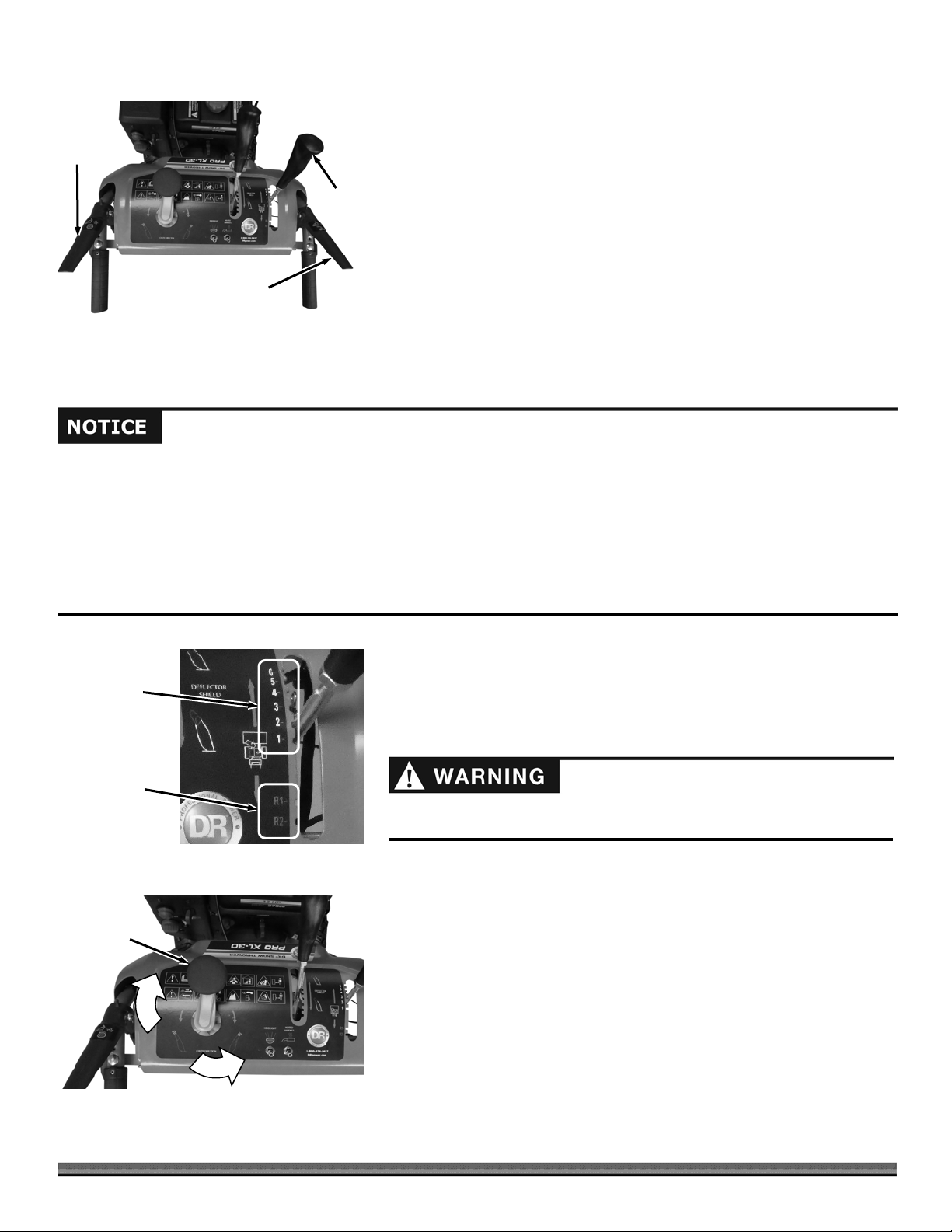

Starting the PRO-24 Engine (Manual Start)
1. Insert the Key into the Key Slot (Figure 26).
2. Move the Choke Control Lever to the left “choke” position (leave in the
right “Run” position if the engine is already warm).
3. Push and release the Primer Bulb 3 times.
4. Slowly pull the Starter Cord until you feel resistance, then pull quickly
(Figure 27). The Cord will recoil back into position when released.
5. As the engine warms up, slowly adjust the Choke to the right. Wait until the
engine runs smoothly before each Choke adjustment.
6. When the Engine is warmed up and running smoothly, ensure that the
Choke is fully in the right “Run” position.
Starting the PRO-24 Engine (Electric Start)
1. Insert the Key into the Key Slot (Figure 26).
2. Move the Choke Control Lever to the left “choke” position (leave in the
right “Run” position if the engine is already warm).
3. Connect the required Heavy-Duty extension cord into the Snow Blower
Control Box (Figure 28) and plug the Extension cord into a 120V outlet.
4. Push the Starter Button on the Snow Thrower Control Box until the engine
starts and then release the Button.
NOTICE: Do not push the Starter Button more than 10 times at intervals of 5
seconds on/ 5 seconds off. If the Engine will not start, see the Troubleshooting
section in Chapter 5 of this manual.
5. As the engine warms up, slowly adjust the Choke to the right. Wait until the
engine runs smoothly before each Choke adjustment.
6. When the Engine is warmed up and running smoothly, ensure that the
Choke is fully in the right “Run” position.
Starter
Control
Box
Figure 28
Starter
Button
Starter
Cord
Figure 27
Key
Figure 26
Choke
Primer
Bulb
Read and understand all warnings listed in “Chapter 2” before operating this
SNOW BLOWER.
Read and understand the warnings listed in Chapter 2 “Safety with Extension
Cords” before connecting the Extension Cord.

CONTACT US AT www.DRpower.com 15
Starting the PRO-28, PRO-XL 30, and PRO-MAX 34 Engines
(Manual Start)
1. Insert the Key into the Key Slot (Figure 29).
2. Make sure the Fuel Shutoff is turned counterclockwise to the open position.
3. PRO-28 - Move the Choke Control Lever to the left “choke” position (leave
in the right “Run” position if the engine is already warm).
4. PRO-XL 30 and PRO-Max 34 - Turn the Choke Control Lever
counterclockwise to the choke position (leave in the clockwise run position
if the engine is already warm).
5. Push and release the Primer Bulb 3 times.
6. Slowly pull the Starter Cord until you feel resistance, then pull quickly
(Figure 30). The Cord will recoil back into position when released.
7. As the engine warms up, slowly adjust the Choke clockwise. Wait until the
engine runs smoothly before each Choke adjustment.
8. When the Engine is warmed up and running smoothly, ensure that the
Choke is fully in the clockwise position and the Throttle Lever is fully to the
right.
Starting the PRO-28, PRO-XL 30, and PRO-MAX 34 Engines
(Electric Start)
1. Insert the Key into the Key Slot (Figure 29).
2. Make sure the Fuel Shutoff is turned counterclockwise to the open position.
3. PRO-28 - Move the Choke Control Lever to the left “choke” position (leave
in the right “Run” position if the engine is already warm).
4. PRO-XL 30 and PRO-Max 34 - Turn the Choke Control Lever
counterclockwise to the choke position (leave in the clockwise run position
if the engine is already warm).
5. Connect the required Heavy-Duty extension cord into the Snow Blower
Control Box (Figure 31) and plug the Extension cord into a 120V outlet.
6. Push the Starter Button on the Snow Thrower Control Box until the engine starts and then release the Button.
NOTICE: Do not push the Starter Button more than 10 times at intervals of 5 seconds on/ 5 seconds off. If the Engine will not start, see
the Troubleshooting section in Chapter 5 of this manual.
7. As the engine warms up, slowly adjust the Choke clockwise. Wait until the engine runs smoothly before each Choke
adjustment.
8. When the Engine is warmed up and running smoothly, ensure that the Choke is fully in the clockwise position and the
Throttle Lever is fully to the right.
Stopping the Engine
1. Pull the Key out of the Key Slot to stop the Engine (Figure 29).
Starter
Control
Box
Figure 31
Starter
Button
Starter
Cord
Figure 30
Key
Figure 29
Fuel
Shutoff
Throttle
Leve
r
Choke
Primer
Bulb
Read and understand the warnings listed in Chapter 2 “Safety with starting
machines using an Extension Cord” before connecting an Extension Cord.

16 DR® SNOW BLOWER
Operating the DR Snow Blower
1. Start the engine as described on the previous page.
2. After the engine has warmed up, set the Throttle to maximum speed.
3. Move the Shift Lever to the desired gear (see “Selecting Gears” in the next
section.
4. Make sure the Snow Blower Auger is clear of snow before engaging the
Auger Control Lever (Figure 32).
5. To start the Snow Blower Auger, push the Auger Control Lever down to the
Handle.
6. Gently squeeze the Drive Control Lever to engage the Wheels.
7. Upon completion of your work, allow the Auger to operate for a minute or
two to remove buildup and prevent icing.
8. Release the Drive and Auger Levers and pull out the Key to turn off the
engine.
Selecting Gears
The Snow Blower has six forward gears (Figure 33) that are labeled 1
(slowest) to 6 (fastest).
There are two reverse gears that are labeled R1 (slowest) to R2 (fastest).
Changing the Discharge Chute Rotation
The Discharge Chute Rotation can be set to any position within a 190 degrees
radius for ease of snow removal.
1. Rotate the Chute Rotation Knob until the desired angle is achieved (Figure
34). Rotate clockwise to rotate the Chute to the right. Rotate
counterclockwise to rotate the Chute to the left.
Figure 32
A
uger
Control
Leve
r
Shift
Lever
Drive
Control
Leve
r
If the Auger strikes a foreign object or if your machine should start making an unusual noise or vibration, immediately release
the Levers, stop the engine and wait for all moving parts to come to a complete stop. Inspect for any damage and repair or
replace any damaged parts before restarting and operating the machine.
Never use DR Blower as a snowplow. Do not push the snow; let the snow thrower work its way through the snow.
If the ground speed of the machine is too fast, release the Drive Control Lever and shift to a slower speed to prevent the
discharge chute from becoming overloaded and clogged.
In deeper snow you can raise the Snow Thrower by pushing down on the handlebars to remove some of the top layer of snow
first, or take a half-width pass. A second or third pass will remove the remaining snow much easier.
Always ensure the Drive Control Lever is released before shifting gears to
prevent damage to the machine and possible injury to the operator.
Figure 33
Six Forward
Gears
Two Reverse
Gears
Chute
Rotation
Contro
l
Figure 34
Rotate
Right
Rotate Left

CONTACT US AT www.DRpower.com 17
Changing the Chute Height
The angle of the top portion of the Chute can be adjusted up or down to change
the distance that the snow is being thrown.
1. Move the Chute Height Control forward to lower the Chute Deflector for
Blowing the snow shorter distances (Figure 35).
2. Move the Chute Height Control back to raise the Chute Deflector for longer
distances.
Operating the Grip Warmers
1. Move the Switch to the forward (ON) position to turn on the heat to the
Grips (Figure 36).
2. Move the Switch to the rear (OFF) position to stop heat to the Grips.
Operating the LED Headlight.
1. Move the Switch to the forward (ON) position to turn the Headlight on
(Figure 36).
2. Move the Switch to the rear (OFF) position to turn the Headlight off.
Using the Drift Cutters
Drift Cutters will cut through snow that is taller than the top surface of the
Auger Housing. This will keep the snow at the sides separated better and
provide a more consistent cut path in deeper snow.
Adjusting the Skid Shoes
The Skid Shoes can be adjusted to work best with the surface you are working
with. For smooth pavement without defects, the Skid Shoes can be set to the
lowest position. If the surface is a gravel consistency, you should raise the Skid
Shoes to a height that allows the most snow to be removed without disturbing
the gravel surface.
1. Loosen the two Jam Nuts using a 1/2" Wrench (Figure 37).
2. Position the Skid Shoes to the desired height and tighten Jam Nuts.
Note: Both Skid Shoes should be set at the same height.
Clearing out a Clog in the Auger and Discharge Chute
1. Use the Shovel that is secured to the top of the Auger Housing when
clearing snow from the Discharge Chute or Auger Housing (Figure 38).
2. Start the machine to clean out remaining material and repeat cleaning
process as needed until snow discharges freely.
Shovel
Figure 38
Skid Shoe
Plate
Figure 37
Skid Shoe
Insert
Nuts
Heated Handles
Switch
Figure 36
Headlight
Switch
On
Off
Chute
Height
Contro
l
Figure 35
Down
Up
Before clearing out a clog, stop the engine, remove the Safety Key, and wait
five minutes to allow all parts to cool.

18 DR® SNOW BLOWER
Oil Drain
Plug
Figure 39
The Frame and Engine must be level to get an accurate reading when
adjusting the oil level.
Chapter 4: Maintaining the DR SNOW BLOWER
Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the
engine manufacturer's owner's manual for maintenance procedures. Service intervals listed in the checklist below supersede
those listed in the engine manufacturer's owner's manual.
Regular Maintenance Checklist
PROCEDURE BEFORE
EACH USE
EVERY 5
HOURS
EVERY 25
HOURS
EVERY 50
HOURS
Check Engine Oil Level (add as needed) 
Check General Equipment Condition 
Check Auger and Impeller (If they are excessively worn or damaged) 
Check Auger Shear Bolts (replace as needed) 
Clean Engine Exterior & Cooling Fins 
Check condition of belts (replace as needed) 
Lubricate Chute Gear Flange 
Lubricate Traction Drive Chain 
Clean Air Filter 
Lubricate Cables (SAE 30 Oil) 
Change Engine Oil 1st time 5
hours

Replace Spark Plug 
Replace Air Filter 
Removing and Replacing the Engine Oil
Tools and Supplies Needed:
10mm Wrench (PRO-24, PRO-28 and PRO-XL 30)
12mm Wrench (PRO-MAX 34)
Rags and approved Container (for waste oil)
Small Funnel
Engine Oil (see your Engine Manual for Oil specifications)
1. Position the machine so the Frame and Engine are level and place a Waste
Oil Container under the Oil Drain Plug (Figure 39).
2. Remove the Oil Drain Plug with a 10mm Wrench (PRO-24, PRO-28 and
PRO-XL 30) or 12mm Wrench (PRO-MAX 34) to drain the Oil into the
Container.
3. Replace the Oil Drain Plug when all Oil has drained.
Before performing any maintenance procedure or inspection, stop the engine, remove the Safety Key, and wait five minutes to
allow all parts to cool.

CONTACT US AT www.DRpower.com 19
4. Remove the Oil Fill/Dipstick and initially add 3/4 of oil (type of oil
recommended by the Engine Manufacturer) into the Oil Fill and wait one
minute for the oil to settle (Figure 40).
5. Insert the Dipstick without screwing all the way in and then remove to
check the level.
6. Continue adding a few ounces of oil at a time, rechecking the Dipstick until
the oil reaches the fill mark. Be careful not to overfill.
Checking and Replacing the Auger Shear Pins
Check the condition of the Shear Pins by removing them from the Auger Shafts.
If the Shear Pins are worn excessively or if they are broken or missing from the
Auger Shaft. They must be replaced.
Tools and Supplies needed:
Two 13mm Wrenches (PRO-28, PRO-XL 30, and PRO-MAX 34)
Safety Glasses
Small punch
Hammer
Shear Pin (PRO-24)
Cotter Pin (PRO-24)
Shear Bolt (PRO-28, PRO-XL 30, and PRO-MAX 34)
Jam Nut (PRO-28, PRO-XL 30, and PRO-MAX 34)
Checking
1. Remove the Shear Bolt and Locknut using two 13mm Wrenches (Figure
41).
2. If the Shear Pins are not worn excessively or damaged, they can be
reinstalled.
3. If the Shear Pins are worn excessively or damaged, replace as described in
the following steps.
Replacing
1. If you cannot see the Shear Bolt hole, you will need to turn the Auger until
the holes in the Auger and Auger Shaft line up.
2. If the Shear Bolt ends are sheared off, you will need to use the Punch to
push the remainder of the Bolt out.
3. Once the holes are aligned and the holes are clear, the new Shear Bolts and
Cotter Pins can be installed.
Figure 40
Oil
Fill/Dipstick
Gas Fill
A
d
d
Full
Fill the Oil reservoir slowly, checking the level frequently to avoid
overfilling.
To get an accurate reading when checking the oil level:
- The Engine must be level.
- The dipstick should not be screwed down to ensure an accurate oil
level reading.
Shear Bolts
and Locknuts
Figure 41
A
uge
r
A
uge
r

20 DR® SNOW BLOWER
Replacing the Auger Belt (PRO 24 Model)
The Pro 24 Model uses one Belt to drive the Auger.
Tools and Supplies needed:
10mm Wrench
13mm Wrench
Pliers
One new DR Belt (Part number 40099)
1. Remove the two Bolts and rectangular Washers from the Belt Cover using a
10mm Wrench and remove the Belt Cover (Figure 42).
2. Remove the two Bolts, Lock Washers and Flat Washers that secure the Belt
Guide to the Engine using a 13mm Wrench and remove the Belt Guide
(Figure 43).
3. Remove the two Bolts that secure the Transmission Cover using a 10mm
Wrench and Remove the Transmission Cover (Figure 44). This will allow
you to guide the Belt off the Auger Pulley from underneath.
4. Roll the Auger Belt off the front of the Auger Drive Pulley (Figure 45).
5. Remove the Brake Spring from bottom left side of the Frame so the Brake
Pad will come away from the Auger pulley, making room for Belt removal
(Figure 46).
6. Remove the Belt from the Auger Pulley underneath and pull the Belt up past
the rear side of the Pulley to remove it.
7. Position the new Belt down to the rear side of the Auger Pulley and install
the Belt onto the Pulley from underneath making sure the Belt is fully into
the Pulley groove.
Note: Ensure that the Belt is completely into the bottom of the Auger Pulley with
the Brake Pad out of the way.
8. Install the Belt onto the Drive Pulley.
9. Reconnect the Brake Spring to the Frame.
10. Install the Transmission Cover.
11. Install the Belt Guide and Belt Cover.
Transmission
Cove
r
Figure 44
Bolt
Bolt
Belt
Guide
Figure 43
Bolt, Lock
Washer, and
Flat Washe
r
Belt
Cover
Figure 42
Bolt and
Rectangular
Washer
A
uger
Belt
Figure 45
A
uger Drive
Pulley
Brake
Spring
Figure 46
