Dragon Wholesaling Shock 4 User manual

Wireless Game Controller Manual
Here’s the new Dragon Shock 4 Bluetooth Wireless Controller in its 5th Edition,
design for PlayStation 4 console. This controller is compatible with PlayStation
4 Bluetooth Wireless specifications, corresponding to 4 analog axis, 2 analog
keys and 16 digitals buttons, RGB LED ,4 atomic buttons and 3D with LED
underneath, Big and Small Vibration, 6-axis Motion Sensor, Headset jack port,
Wireless pairing function. Compatible with the new DualShock 4 wireless
controller (CUH-ZCT 2 series).
SAFETY INSTRUCTIONS
Please do not store the product in a humid or high-temperature place
Don't knock, beat, drub, pierce or try to decompose the gamepad to avoid
unnecessary damage to the gamepad.
Built-in battery, please do NOT throw this product in the trash
Do not charge the controller near fire or other heat source
Non-professionals should not disassemble this product, otherwise it is not
be eligible to after-sales warranty service
If the controller cannot turn on, please fully charge it

PRODUCT FEATURE
Compatible with all button functions, NO touch function, motor
corresponding functions, With sensor function .
Includes RGB LED function,3 blue LEDs and 4 atomic buttons under the
left and right joysticks correspond to LED of different colors.
Includes 16 buttons function input keys.
Built-in twin motors, High precision 3D rocker.
Sensitive button response, easy to use.
Support PlayStation 3 console.(By micro–USB cable).
Support Bluetooth wireless(Bluetooth 5.0).
Support USB wired pairing (USB 1.1 or USB 2.0, micro USB B).

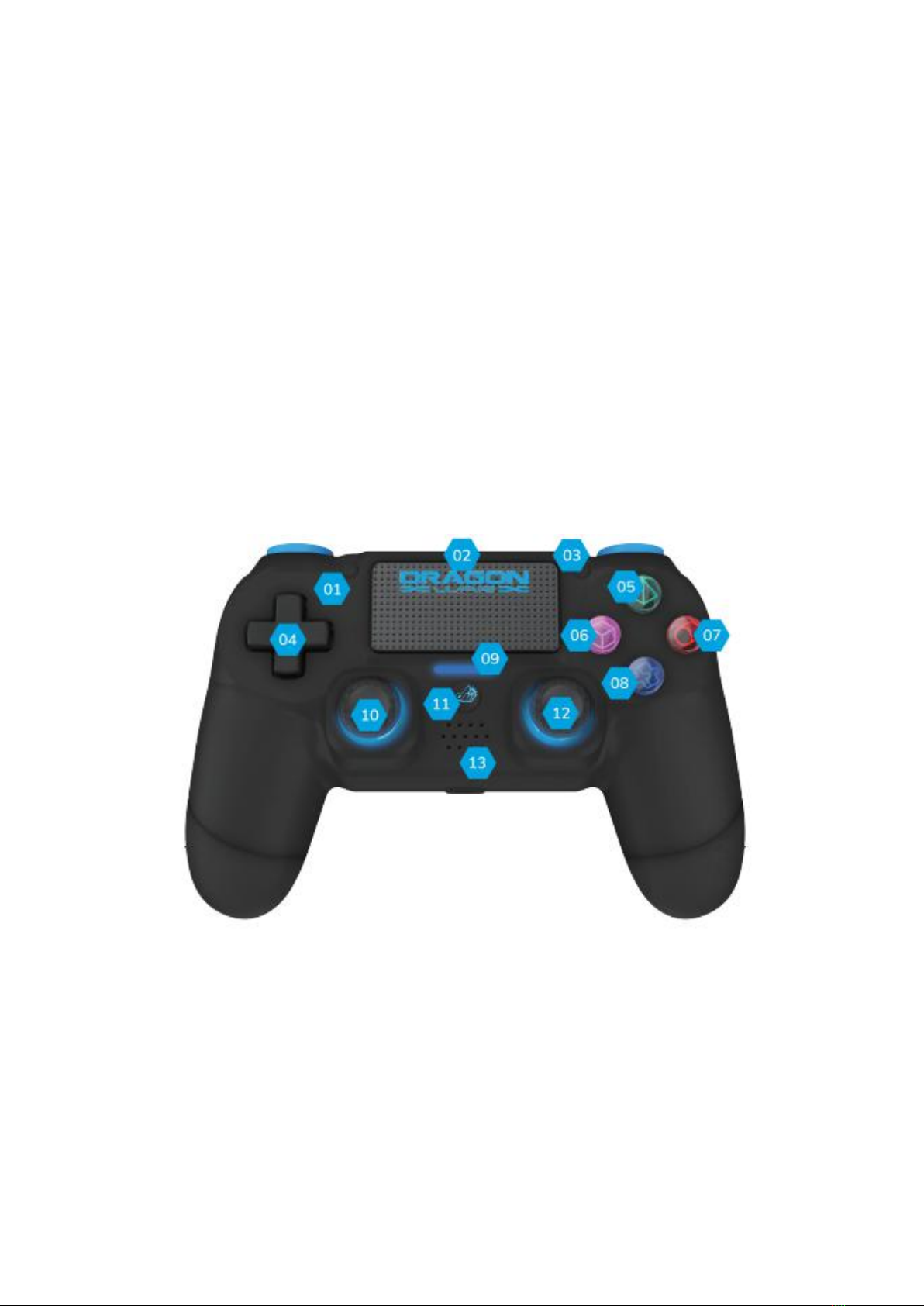

01 SHARE Button 10 Left analog joystick/L3 button with blue
02 Touch pad button-NO touch function backlight-Press down on the stick to use
03 Option button it as the L3 button
04 Directional buttons 11 PS button
05 Triangle Button with green backlight 12 Right analog joystick/R3 button with
06 Square Button with pink backlight blue backlight-Press down on the stick
07 Circle Button with red backlight to use it as the R3 button
08 Cross Button with blue backlight 13 Speaker
09 RGB LED

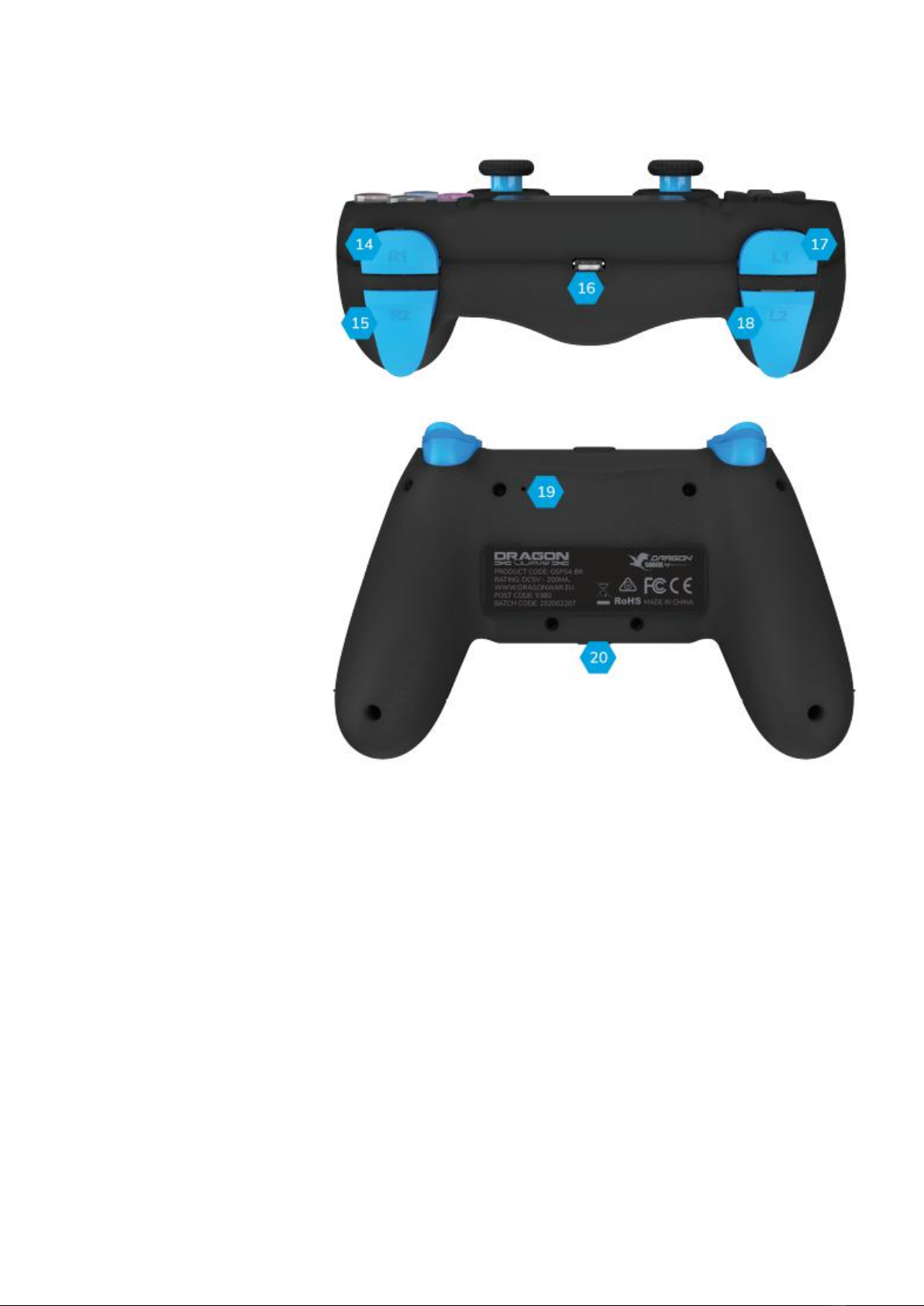

14 R1 button
15 R2 trigger
16 USB pprt
17 L1 button
18 L2 trigger
19 RESET button
20 Headset jack port

PAIRING PROCESS
1 Connect the Dragon Shock 4 controller to the PlayStation 4 console with
the micro–USB cable provided.
2 After pairing is complete, please press the PS button to activate wireless
connection.
3 Dragon Shock 4 controllers can be paired to a PlayStation 4 at the same
time. PlayStation 4 can recognize up to 32 different paired controllers. Press
the PS button to take the console out of its Sleep Mode

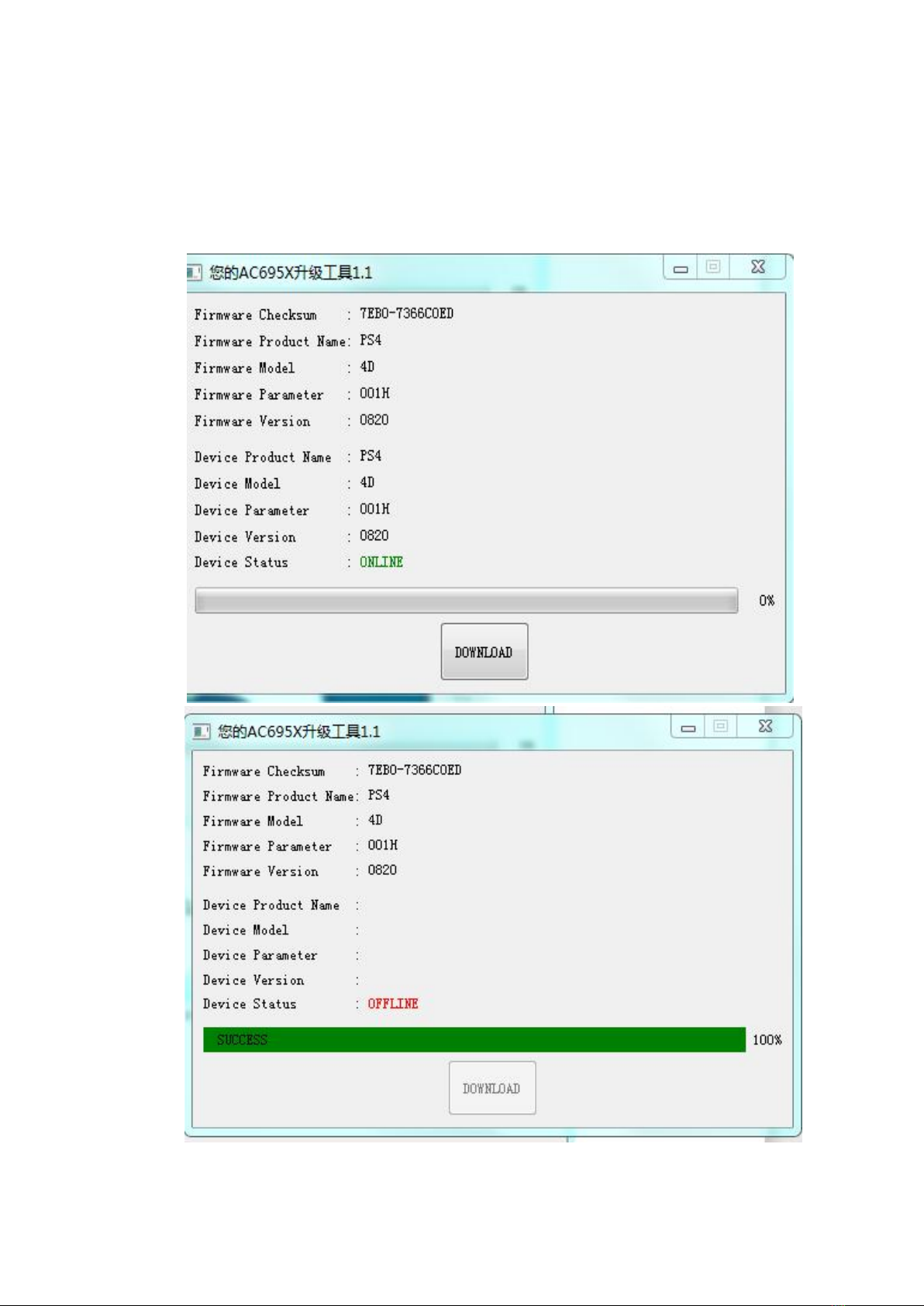

UPDATE FOR THE GAMEPAD
1. Open the firmware update, as indicated below.
Note: The following upgrade tools may differ with the picture, but the
operation method stays the same.

2. When the Dragon Shock 4 is in standby mode, long press the SHARE
and Cross buttons and connect the gamepad to the computer with the
micro-USB cable provided. The controller driver will enter in update
mode. Then select DOWNLOAD to launch the update.
Refer to the second image below to see if the update was successful.

FUNCTIONS (Sorted regarding product plan )
Number
Name
Function
1
SHARE Button
SHARE functions (printscreen, recording video, …)
2
Touch pad
button
action button - activates an in-game command (depending
on the game settings)
3
OPTION
Button
OPTION button / in-game pause button
4
Directional
buttons
8-position directional action button - activates in-game
commands (depending on game's settings)
5
Triangle Button
action button - activates an in-game command (depending
on game's settings)
6
Square Button
action button - activates an in-game command (depending
on game's settings)
7
Circle Button
action button - activates an in-game command (depending
on game's settings)
8
Cross Button
action button - activates an in-game command (depending
on game's settings)
9
Touch pad light
bar
Power indicator / in-game light bar status indicator
(depending on game's settings)
10
Left analog
joystick / L3
button
Directionnal joystick / action button - activates an in-game
command when pressed down (depending on game's
settings)
11
PS Button
Controller power button / exit console sleep mode / back to
console's main menu
12
Right analog
joystick / R3
button
Directionnal joystick / action button - activates an in-game
command when pressed down(depending on game's
settings)
14
R1 button
action button - activates an in-game command (depending
on game's settings)
15
R2 trigger
button
action button - activates an in-game command (depending
on game's settings)
17
L1 button
action button - activates an in-game command (depending
on game's settings)
18
L2 trigger
button
action button - activates an in-game command (depending
on game's settings)
19
RESET button
allows to reset the controller

SPECIAL FEATURES
PS button: display the console’s main screen (when PlayStation 4 console
power is on), allow to exit console’s sleep mode and to switch between
applications during launch; press long PS button allows to enter settings
menu
SHARE button: open the SHARE menu to select options available as
printscreen, recording a in-game video, etc.
OPTION button: opens in-game options/main menu or pause the game
(depending on game’s settings)
This product does not support PS VITA TV.
RGB DISPLAY
Colorful RGB LED: To display the player’s status, press the PS button and
the light bar will turn on the light of the corresponding player as: Player one:
Blue / Player two: Red / Player three: Green / Player four: pink
A. During pairing, the light bar will flash in white and, after connection, will
light in solid blue
B. During charging mode with the controller off, the light bar will illuminate
orange in slow pulses.
C. During charging mode with the controller on, the light bar will illuminate
solid blue.

ELECTRIC ALIMENTATION INFORMATION
1 Operating voltage: DC3.6v -- 4.2V
2 Operating current without vibration: less than 100mA
3 Operating time in constant use: about 4 hours
4 Standby current: less than 10mA
5 Charging voltage/current: about DC5V / 200mA
6 Bluetooth transmission distance:≦8m
7 Battery capacity: 500mAh
8 Standby time: for about 30 days when fully charge
9 Low power 3.5V, entering standby
10 The light bar will turn off when the battery is fully charged with 4.15-4.22V

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
