EZ Fold
®
TF-20 Basketball Backstop—Ceiling-Suspended,
Forward-Folding, Front-Braced
Copyright © 2011 Draper Inc. Form EZ-TF-20_Sub11 Printed in U.S.A.
PROJECT:
ARCHITECT:
CONTRACTOR:
SUPPLIER:
DATE: REVISED:
Draper offers a 25-year limited warranty on the EZ Fold basketball
backstop structure. No other basketball backstop manufacturer offers
you this protection. For a copy of the EZ Fold backstop warranty in its
entirety, contact Draper, Inc.
®
by

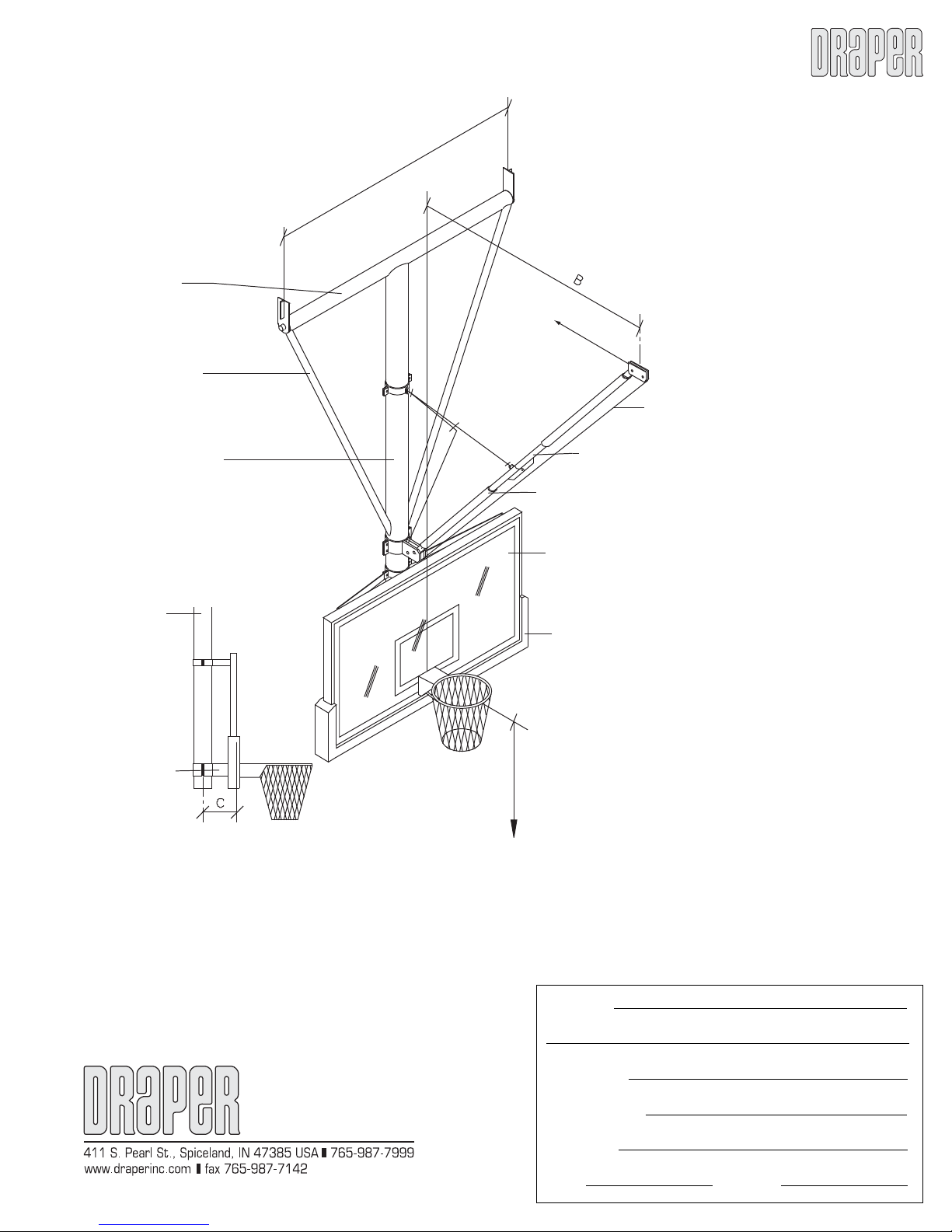

Side View/Goal Brace Detail
"Goal Brace" feature attaches directly
behind goal mounting plate and directly to
main stem of backstop, which eliminates
strain on backboards.
Direct Mount
goal brace
Main stem
10'0" to
finished floor
Shown with
Rectangular
Glass Bank
(72" x 42")
Padding
Top-of-T
4" OD 11 ga. tubing
Side Brace
2¼" OD 14 ga. tubing
Main Stem
6" OD 11 ga. tubing
¼" Aircraft cable (7000#)
2½" OD 13 ga. tubing
Jackknife (adjustable)
2¼" OD 14 ga. tubing
1. Superstructure supplied for existing
conditions.
2. Contact Draper for Dimensions A & B.
A
CLto CLhangers
To Winch
Face of bank to CLof stem
Bank No. & Type Dim. C Dim C
w/o Ht. Adj w Ht. Adj
503152 72" x 48" Rect. Glass 11
1
/ 4 " 11
15
/ 16 "
503136 72" x 42" Rect. Glass 11
1
/ 4 " 11
15
/ 16 "
503151 72" x 48" Rect. Wood 11
1
/ 8 " 11
3
/ 16 "
503140 72" x 42" Rect. Wood 10
9
/ 16 " 11
1
/ 4 "
503153 72" x 48" Rect. Fiberglass 10
1
/ 2 " 11
3
/ 16 "
503144 72" x 42" Rect. Fiberglass 10
1
/ 2 " 11
3
/ 16 "
503154 72" x 48" Rectangular Steel 10
1
/ 2 " 11
3
/ 16 "
503167 72" x 42" Rectangular Steel 10
1
/ 2 " 11
3
/ 16 "
5031500 Fan Glass 11" 11
13
/ 16 "
503148 Fan Fiberglass 10
1
/ 2 " 11
3
/ 16 "
503143 Fan Aluminum 10
3
/ 16 " 10
7
/ 8 "

page 2 of 2
Specifications—EZ Fold TF-20
Ceiling-Suspended, Forward-Folding Backstop (Under 28'-4")
Product Description
Basketball backstop shall be the EZ FOLD TF-20, ceiling-suspended, forward-
folding as manufactured by Draper, Inc. of Spiceland, IN and shall be installed
at locations shown on customer approval plan.
Backstops shall be a welded together main frame constructed from steel
mechanical tubing to form a rigid tetrahedral “T” design of back-to-back right
triangles.The main stem (center strut) shall be 6" OD 11-gauge steel tubing, the
top of the “T” shall be 4" OD 11-gauge steel tubing, and the side braces shall be
2¼" OD 14-gauge steel tubing. Side braces shall join stem no higher than 4'-6"
above goal. The main stem shall be of sufficient length to allow plus or minus 6"
height adjustment of either fan or rectangular banks.
The folding front brace shall be jackknife type, fully adjustable, self-locking in
the down position and constructed of 2½" OD 13-gauge (outer) steel tubing and
2¼" OD 14-gauge (inner) steel tubing.
The backstop shall be supported from 4" OD 11-gauge steel mechanical tubing
(as shown on plans) anchored to roof structure by means of heavy steel support
hangers. Superstructure tubes shall be reinforced with bridging and/or bracing
when truss centers exceed 8'-0".
Pivot or hinge joint (pin height) for folding shall not exceed 15" from roof structure
except when required by architect for coordination with other trades.
The main backstop frame shall pivot on 1¼" minimum solid steel shaft secured
in a milled bearing hole in ½" minimum steel plate hangers to insure accurate
positioning of bank.
The bank shall be attached to the 6" OD main stem by heavy-duty bank hang-
ers. Hangers shall be constructed of 2¼" OD 14-gauge steel tubing and ¼" x
2" flat steel plate with slotted holes for lateral adjustment. All glass banks shall
have one upper bank hanger and include a goal brace which attaches directly
to the goal mounting plate and directly to the 6" main stem of the backstop to
eliminate any strain on the bank and help prevent glass breakage. This direct
mount feature shall conform to NCAA recommendation No. 5-F (dated Mar. 82)
which states that the design of the unit shall transfer the load on the goal directly
to the backboard support so as to minimize stress to the glass backboard.
Backstop is raised or lowered by a ¼" (6.35 mm) aircraft cable, certified minimum
break strength of 7,000 pounds (3178 kg), operating over aluminum alloy sheaves
with bronze oilite bearings that do not require lubrication.
Backstop shall have a black or white powder coat finish. Other colors optionally
available: contact Draper for details.
Operation: Backstop shall be operated by 503085 motorized winch or 503086
manually operated winch. For complete specifications, see separate sheets.
EZ Fold
®
TF-20 Basketball Backstop—Ceiling-Suspended,
Forward-Folding, Front-Braced
Options
Backstop can be provided with any of several different styles of backboards,
goals and padding. Specify types desired. See separate sheets.
Accessories
Smart Gym Control System. For group control of Basketball Backstops with
Electric Winches, Electric Divider Curtains, Electric Height Adjusters and other
Auxiliary Devices. For complete specifications, see separate sheet.
503060 EZ Power Wireless Remote Control. For remote control operation of
electric winch. For complete specifications, see separate sheet.
503029 Posilok™—Safety belt to automatically lock basketball backstop in
position due to a sudden surge of speed created by a possible malfunction of
the hoisting apparatus. For complete specifications, see separate sheet.
503049—Portable Operator—To operate manual winch with heavy-duty electric
drill. For complete specifications, see separate sheet.
Height Adjusters (see separate sheets):
503093— For motorized 8'-10' Height Adjustment of rectangular bank.
503097— For motorized 8'-10' Height Adjustment of fan bank.
503095— For motorized 8'-10' Height Adjustment of rectangular bank with
wireless remote control.
503098— For motorized 8'-10' Height Adjustment of fan bank with wireless
remote control.
503096— For motorized 8'-10' Height Adjustment of rectangular bank with EZ
Stick Power Wand.
503099— For motorized 8'-10' Height Adjustment of fan bank with EZ Stick
Power Wand.
503092— For manual 8'-10' height adjustment of rectangular backboards.
503094— For manual 8'-10' height adjustment of fan backboards.
503003—Portable Height Adjuster Operator—Speed controlled battery
powered operator for manual height adjusters. For complete specifications,
see separate sheet.
Downloadable 3-part specifications
are available at www.draperinc.com.
www.draperinc.com (765) 987-799
9
LEED® Submittal Information
Credit Measure
MRc4 – Recycled Content Post Consumer Average 51.21% Post Industrial 0%
MRc5 – Regional Materials Raw materials are commodity items from multiple
sources so extraction point cannot be determined.
Final Manufacturing/Assembly in Spiceland, IN
47385.
