DRAX TBU9000 User manual

Be sure to read the manual before using the product in order to use safely and
correctly. Please keep user manual at a place to be available easily.

USER’S MANUAL Exercise Bike Series
TBR9000
TBU9000
V1.2E
EU

1. GETTING STARTED
2. INSTALLATION
3. HOW TO USE
- HOW TO ADJUST THE SADDLE
- DISPLAY AND CONSOLE OPERATION PANEL
- CONTROL PANEL
- BASIC START-UP
- HOW TO USE THE PROGRAM MODE
4. THE WORKOUTS
- WORKOUT DESCRIPTIONS
- PRESET MODE
- HEARTRATE CONTROL MODE
5. SPECIFICATION
6. MAINTENANCE
7. LIMITED WARRANTY
2
3
6
6
7
8
9
10
14
14
15
16
17
18
20
CONTENTS

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
1 GETTING STARTED
SAFETY INSTRUCTIONS _
Please read and fully understand this user manual prior to using this machine. Please keep this manual
in a safe and handy place for future reference.
Failure to adhere to the following could potentially void your warranty.
Always disconnect power supply when servicing/cleaning or during extended periods of non-
operation of this exercise equipment.
Do not attempt to disassemble this exercise equipment.
Only authorized service providers may service this equipment.
Do not operate this exercise equipment if damaged or if any abnormal noises are heard.
Please Contact DRAX INC. Customer Support Center for assistance.
•
The owner of exercise equipment must inform all users of the safety instructions and correct
operating procedure for this exercise equipment.
• Always operate the exercise equipment in accordance with the supplied instructions.
• Always ensure that this exercise equipment is installed on flat level ground prior to operation.
• Always ensure that this exercise equipment installed in a low humidity and low dust environment.
• Do not operate this exercise equipment prior to proper installation.
(Please refer to installation instructions)
• Always ensure that children and pets are kept off this exercise equipment.
• The maximum user weight supported by the exercise equipment is 150kg.(330lbs)
• Never allow more than one person on this exercise equipment at any one time.
• Always wear appropriate clothing and footwear when using this exercise equipment.
Do not wear baggy loose clothes.
• Always ensure that the machines power cord is neatly wrapped up and protected from being
walked on, pinched or damaged in anyway.
A damaged power cord has the potential to cause an electrical shock or fire.
• Do not remove the plug by pulling on the cord and do not handle the plug with wet hands.
This could result in electric shock, fire or damage to the cord and equipment.
• Do not allow uncontained food or drink on or near this exercise equipment.
• Regularly inspect this exercise equipment to ensure safe operation.
Warning
Caution
2
BECYCLE

3
① Display
④ Console Column
⑦ Foot
⑩ Saddle Lever
② book hanger Supported
⑤ Console
⑧ Pedal
⑪ Operation Panel
③ Touch type Heartrate
⑥ Cup Holder
⑨ Saddle
2 INSTALLATION
PRECAUTIONS _
(1) Always ensure that this exercise equipment is installed on flat level ground and feet are leveled
and locked into place prior to operation.
(2) Always only use the grounding type power cord that is supplied with the exercise equipment.
UpRight Bike
PART NAME _

4
① Display
④ Console Column
⑦ Foot
⑩ Saddle Lever
② book hanger Supported
⑤ Console
⑧ Pedal
⑪ Operation Panel
③ Touch type Heartrate
⑥ Cup Holder
⑨ Saddle
Recumbent Bike
BECYCLE

HOW TO ASSEMBLE/INSTALL _
(1) Make sure whether “components as shown below” are delivered or not.
(2) If some of components are not delivered, Contact DRAX INC. Customer Support Center.
(3) To make a installation, deliver components into a flat place. For delivery, 1 or 2 Persons lift the Exercise
Bike-rear side. You can conveniently deliver it by pushing Exercise Bike due to front roller.
※ Caution: The Exercise Bike must be installed in the environment where it is low humidity and
low dust area.
(4) Make a connection of Cables among “Bike Body ASSY” and “Console and Handle ASSY”.
CHECK OPERATION _
(1) After plugging , check that the screen power is ON.
(2) Press the pedal on the bike to see if it rotates normally .
(3) If it rotates normally, press all the switches on the control panel to check whether it operates normally.
(4) If abnormal vibration or noise occurs on the product, please contact the DRAX Service Center.
5

6
3 HOW TO USE
HOW TO ADJUST THE SADDLE _
(1) UPRIGHT BIKE
To check the proper position, if you need to adjust the seat, mount on the bikes seat.
Pull up the seat adjustment lever as shown in figure.
Adjust the seat post up or down into the desired position.
(2) RECUMBENT BIKE
To adjust the seat, pull up the seat adjustment lever and slide the seat guide to the desired position.
Release the lever and slide the seat guide back and forth slightly until it locks into position.
(3)HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, first pull the end of the straps off the tabs on the pedals.
Adjust the straps to the desired positions, and the press the straps back onto the tabs.
① Saddle ② Saddle Lever ③ Pedal ④ Pedal Strap
For effective exercise, the saddle should be in the proper position or height, As you pedal.
there should be a slight bend in your knees when the pepals are in the lowest position.
Up Right Bike Pedal strap Recumbent Bike
BECYCLE

7
DISPLAY AND CONSOLE OPERATION PANEL _
① Pace/Distance Change
④ Program
⑦ TIME
⑩ Undo Initialization
② RPM/Speed Change
⑤ Pause
⑧ LEVEL
③ Dotmatrix 16 x 8
⑥ TIME Control
⑨ LEVEL Control

8
CONTROL PANEL _
① START/STOP Button
When you start exercise or finish exercise, push this button.
② Level Adjust Button
This button is used to adjust the intensity of exercise.
[∧ : High intensity, ∨ : Low intensity]
① START/STOP Button ② Level Adjust Button
Control Panel Control Panel
BECYCLE

9
BASIC START-UP _
Quick Start
1. Turn on the console.
when you begin to pedal, the console will automatically be turned on and
“select workout or QUICK START will appear on the display.
2. Press the QUICK START key.
3. Begin exercising and adjust the resistance level.
As you exercise, adjust the resistance of the exercise bike as desire
by pressing the UP(+) and DOWN(-) or numeric keys.
4. Measure your heart rate if desired.
To use the handgrip heart rate sensor, Place your hands on the metal contacts.
Your palms must be on the upper contacts and your fingers must be thuching the lower contacts,
Avoid moving your hands. When your heart rate is detected, H/R ♥ will blink for a moment and then
your heart rate will be shown.
5. To end your workout, stop pedalling on the bike.
You can also press the PAUSE/STOP key. In either case, the displays on the console freeze, allowing
you to review your workout statistics.
If the pedals are not moved, the console will automatically be tumed off to conserve the battery.
To dismount, step off the highest pedal first.
PAUSING WORKOUTS
To pause a workout, press the PAUSE key, which brigns the resistance level
down near zero.
To continue a paused workout, press the PAUSE key again or the ENTER key.
Note that the user must continue pedaling during a pause in order to retain the
current workout information.
If the user stops pedaling, the workout automatically ends, and the information is lost.

10
BECYCLE
HOW TO USE THE PROGRAM MODE _
Weight Loss Mode
1. Select weight Loss Mode.
The message LED will Display TIME GOAL when the Press the weight Loss key.
2. Use the arrow key to set the desired time, distance and Calories,
3-1. Selecting the TIME GAOL.
When prompted by the MESSAGE CENTER to EX TIME 15MIN, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER.
3-2. SELECTING the Distance Goal.
When prompted by the MESSAGE CENTER to EX DIST 1.0KM, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER.
3-3. Selecting the calories goal.
When prompted by the MESSAGE CENTER to EX CALS 100 CAL, use the ARROW EKYS to
increase or decrease the displayed time to the desired value, and press ENTER.
4. Set User’s weight.
When prompted by the MESSAGE CENTER to WEIGHT 67KG, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER.
5. Start the Workout.
Weight Loss

11
Heart Rate Control Program
FAT BURN : Fat burn mode is a heart rate controlled program for effective weight loss and many be
adjusted to the resistance level until your heart rate during workout corresponds to the
target heart rate. For maximum fat burn, set the target heart rate up to 60%~70% level of
your max H/R.
CARDIO : Cardio mode is a heart rate controlled program to strengthen your cardiovascular system
effectively and may be adjusted to the resistance level untill your heart rate during workout
corresponds to target heart rate.
Two workout mode options on the feature alternate ways to vary workouts.
1. Select Heart Rate Mode.
The message LED will Display CARDIO when the Press Heart Rate key.
2. When prompted to select a workout, use the ARROW keys to scroll through the workout
program names as they appear in the MESSAGE CENTER.
When the desired program(CARDIO/FAT BURN) appears, press ENTER.
3. Set workout Time.
When prompted by the MESSAGE CENTER to EX TIME 15MIN, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER. (Max. : 90Min)
4. Set User’s Weight.
When prompted by the MESSAGE CENTER to WEIGHT 67KG, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER. (Max. : 180KG)
5. Set User’s Age.
When prompted by the MESSAGE CENTER to AGE 30 YEAR, use the ARROW KEYS to increase
or decrease the displayed time to the desired value, and press ENTER. (Max. : 99Years)
6. Set Maximum Resistance Level.
When prompted by the MESSAGE CENTER to MAX LEVEL 5, use the ARROW KEYS to increase
or decrease the displayed time to the desired value, and press ENTER.
Heart Rate

12
BECYCLE
Interval Training
1. Select Interval Model.
2. The message LED will Display INTERVAL 1 when the Press INTERVAL key.
When prompted by the MESSAGE CENTRER to 3 Graphic, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER.
3. When prompted by the MESSAGE CENTER to WEIGHT 67KG, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER. (Max. : 180KG)
4. Select Hill Mode.
Hill
1. Select Hill Mode.

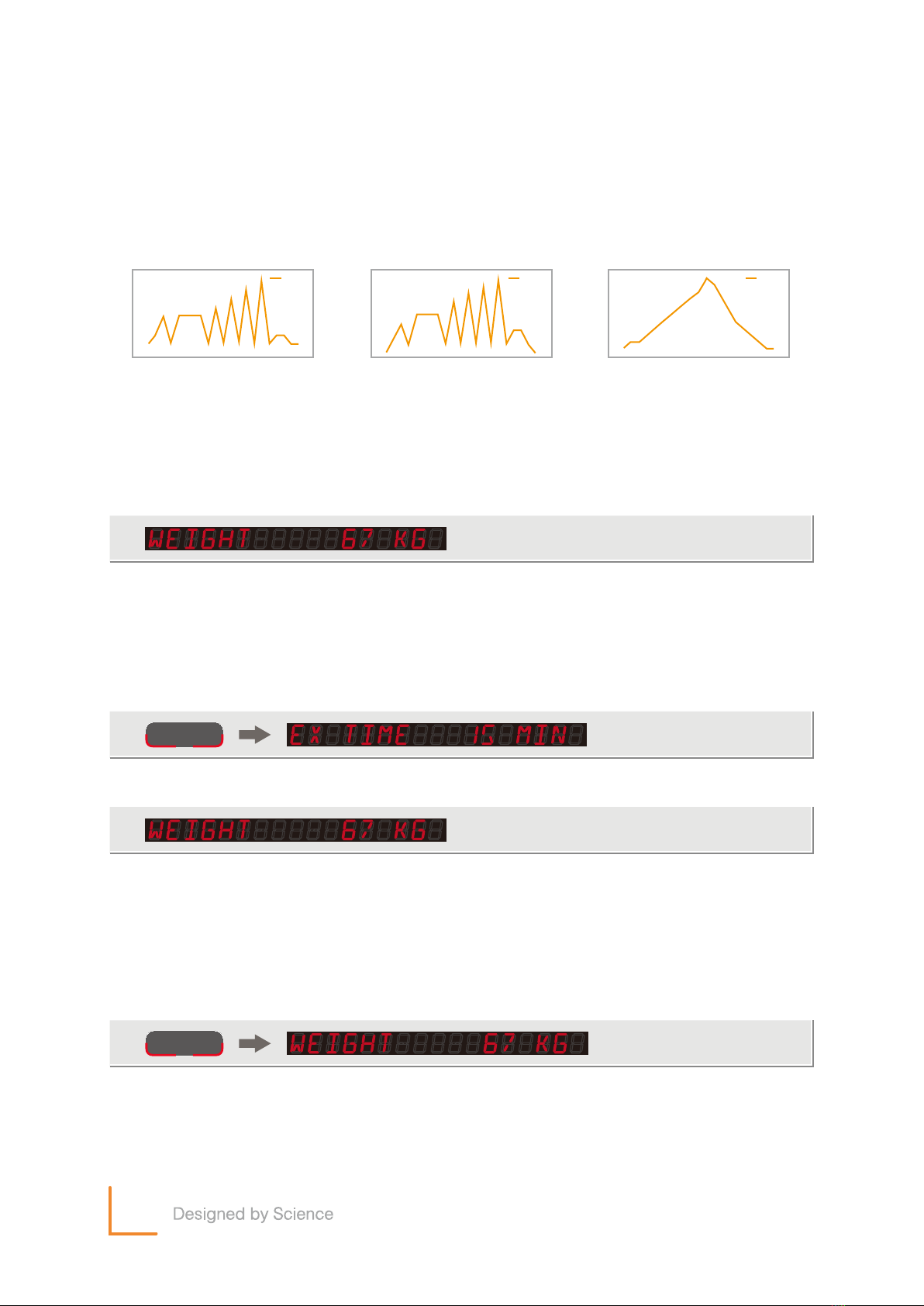

<Interval 1, 20min> <Interval 2, 30min> <Interval 3, 30min>
7. Set Target Heart rate.
When prompted by the MESSAGE CENTER to TARGET HR 96 BPM, use the ARROW KEYS
to increase or decrease the displayed time to the desired value, and press ENTER.
(*Target Heart Rate(THR) is a percentage of the theoretical maximum. For example, a 40-year-old
user’s THR for the CARDIO workout is 144. This workout targets 80 percent of the maximum,
so the equation would be(220-40)*. 80=144.)
8. Start the Workout.
Interval
Level Level Level

13
2. The message LED will Display HILL 1 when the Press HILL Key.
When prompted to select a workout, use the ARROW keys to scroll through the workout program
Graph as they appear in the MESSAGE CENTER. When the desired program appears,
press ENTER.
3. When prompted by the MESSAGE CENTER to WEIGHT 67KG, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER. (Max. : 180KG)
4. Start the Workout.
Fitness Test
1. Select FIT TEST Mode.
The message LED will Display EX TIME 15 MIN when the Press FIT TEST key.
2. When prompted by the MESSAGE CENTER to WEIGHT 67KG, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER. (Max. : 180KG)
3. Start the Workout.
Manual
1. Select Manual Mode.
When prompted by the MESSAGE CENTER to WEIGHT 67KG, use the ARROW KEYS to
increase or decrease the displayed time to the desired value, and press ENTER. (Max. : 180KG)
2. Start the Workout.
<Hill 1, 20min> <Hill 2, 30min> <Hill 3, 30min>
Speed
{km/h}
Speed
{km/h}
Speed
{km/h}
Manual
Fit Test

14
BECYCLE
4 THE WORKOUTS
WORKOUT DESCRIPTIONS _
Quick START
QUICK START is the fastest way to begin exercising, and it bypasses the steps of selecting a specific
workout program. The intensity level for the workout is set automatically and remains the same unless
manually changed. To change the level, press the UP or DOWN ARROW keys to enter a higher or lower
level number. If the METS display is enabled, the MESSAGE CENTER dispalys ENTER WEIGHT, which is
required to calculate this value. Using the ARROW KEYS, increase or decrease the displayed weight to
the correct value.
DISPLAY
To Change The MESSAGE CENTER displays a workout in which the intensity level During exercise.

15
PRESET MODE _
1. Press the PROGRAM key.
The message LED will Display Program Mode when the Press
Program key When prompted to select a workout, use the
ARROW keys to scroll through the workout program As they
appear in the MESSAGE CENTER. When the desired program
appears, press Start.
2. Select desired program.
Use the ARROW keys to scroll through the workout program as they appear in the
MESSAGE CENTER.
When the desired program appears, press Start.
3. Use the ARROW KEYS to increase or decrease the displayed time to the desired value,
and press START.
4. Use the ARROW KEYS to increase or decrease the displayed KG to the desired value,
and press START.
5. Use the ARROW KEYS to increase or decrease the displayed level to the desired value,
and press START.
6. Start the Workout.
Program Mode
1. Preset Mode
2. Heartrate Control Mode
<INTERVAL 1> <INTERVAL 2>
<INCREASING 1> <INCREASING 2>
<PYRAMID 1> <PYRAMID 2>

16
BECYCLE
HEARTRATE CONTROL MODE _
1. Press the PROGRAM key.
The message LED will Display Program Mode when the Press Program key.
When prompted to select a workout, use the ARROW keys to scroll through the workout program
as they appear in the MESSAGE CENTER. When the desired program appears, press Start.
2. For Fitness, Crosscountry, Mountain and Body Saping : Select desired Course.
3. Use the ARROW KEYS to increase or decrease the displayed time to the desired value,
and press START.
4. Use the ARROW KEYS to increase or decrease the displayed KG to the desired value,
and press START.
5. Use the ARROW KEYS to increase or derease the displayed level to the desired value,
and press START.
6. Start the Workout.
Program Mode
1. Preset Mode
2. Heartrate Control Mode
Heartrate Control Mode
1. Fitness
2. Crosscountry
3. Mountain
4. Body Shaping

17
5 SPECIFICATION
BECYCLE _
Specification
Power
Product
Driving system
Control method
Intensity Level
Product size
Product W.T.
Max. allowable W.T.
Saddle type
Saddle
Display
Exercise Program
Heart-Rate
Durability
Usability
Monitor
Options
TBR9000
(Recumbent Bike)
-
V-belt application
Premises generator system
25 steps
1680 x 590 x 1705 mm
(66.1” x 23.2” x 67.1”) L x W x H
60 kg (132 lbs)
150 kg (330 lbs)
Mold-Type Saddle
Sliding rack structure
Dot matrix LED
4FND
Calorie, Heart-Rate,
Time, RPM,
exercise intensity level
16 Kind Workout Program
Intelligent Heart-Rate System
Painting: corrosion-resistant
coating(black)
High strength steel materials
Double auto-tension system
Wheel for easy delivery,
horizontal positioning
control Supported
Cup holder,
mobile storage box,
book hanger Supported
Self generation of electricity
(12V 5A Power for 15.6” display)
Polar Heart Rate Receiver
TBU9000
(Upright Bike)
-
V-belt application
Premises generator system
25 steps
1191 x 639 x 1834mm
(46.9” x 25.2” x 72.2”) L x W x H
50 kg (110 lbs)
150 kg (330 lbs)
Mold-Type Saddle
Lever Pull structure
Dot matrix LED
4FND
Calorie, Heart-Rate,
Time, RPM,
exercise intensity level
16 Kind Workout Program
Intelligent Heart-Rate System
Painting: corrosion-resistant
coating(black)
High strength steel materials
Double auto-tension system
Wheel for easy delivery,
horizontal positioning
control Supported
Cup holder,
mobile storage box,
book hanger Supported
Self generation of electricity
(12V 5A Power for 15.6” display)
Polar Heart Rate Receiver
TBU9000L
(Upright Bike)
24” LED HDTV
V-belt application
Premises generator system
25 steps
1191 x 639 x 1834mm
(46.9” x 25.2” x 72.2”) L x W x H
50 kg (110 lbs)
150 kg (330 lbs)
Mold-Type Saddle
Lever Pull structure
Dot matrix LED
4FND
Calorie, Heart-Rate,
Time, RPM,
exercise intensity level
16 Kind Workout Program
Intelligent Heart-Rate System
Painting: corrosion-resistant
coating(black)
High strength steel materials
Double auto-tension system
Wheel for easy delivery,
horizontal positioning
control Supported
Cup holder,
mobile storage box,
book hanger Supported
Self generation of electricity
(12V 5A Power for 15.6” display)
Polar Heart Rate Receiver
TBR9000L
(Recumbent Bike)
V-belt application
Premises generator system
25 steps
1680 x 590 x 1705 mm
(66.1” x 23.2” x 67.1”) L x W x H
60 kg (132 lbs)
150 kg (330 lbs)
Mold-Type Saddle
Sliding rack structure
Dot matrix LED
4FND
Calorie, Heart-Rate,
Time, RPM,
exercise intensity level
16 Kind Workout Program
Intelligent Heart-Rate System
Painting: corrosion-resistant
coating(black)
High strength steel materials
Double auto-tension system
Wheel for easy delivery,
horizontal positioning
control Supported
Cup holder,
mobile storage box,
book hanger Supported
Self generation of electricity
(12V 5A Power for 15.6” display)
24” LED HDTV
Polar Heart Rate Receiver

6 MAINTENANCE
TROUBLE SHOOTING _
• Machine has no power
- Check the power supply by plugging another device into the power point.
- Check the power switch on the machine.
- Check the power cord is connected properly at both ends.
- Remove the power cord from the power supply and inspect it for damage.
- If the problem continues contact DRAX INC. Customer Support Center.
MAINTENANCE _
• Cleaning the unit
- Spray a clean cloth with a mild cleaning agent, such as a water and dish soap solution and wipe
the unit with the damp cloth.
- Do not spray cleaning solution directly on the unit. Direct spraying could cause damage to electronics
and may void warranty.
- Do not use harsh cleaning products that contain ammonia or acids.
- Keep the area around the unit clean and free from dust.
• Inspect the unit
- Visually inspect the unit for and damage or loose bolts.
• Test the unit
- Test all of the units functions and adjustments and listen for any abnormal noises.
• Prevention for defect of heart rate (pulse) detector
If the heart rate (pulse) is irregular or abnormal, then do the following.
- Use the sensor so that it can be touched by the hand.
- Clean the exterior of the sensor by using a moist cloth.
- If necessary, dry your hands so that your hands do not slip.
- Apply a constant pressure to the sensor.
• Rubbing or scraping sound coming from the machine
- Check for any foreign objects that might be lodged underneath the machine.
- Check the pedal (foot plate) for foreign objects.
• Heart rate contact pulse plates not responding
- Ensure that the heart rate contact pulse plates are clean.
- Ensure good contact with the palm of both hands.
Always only use the grounding type power cord that is supplied with
the exercise equipment.
Please Contact DRAX INC. Customer Support Center for assistance.
Notice
Notice
Always disconnect power supply when servicing/cleaning or during
extended periods of non-operation of this exercise equipment.
Do not attempt to disassemble this exercise equipment.
Only use authorized service providers to service this equipment.
Do not operate this exercise equipment if damaged or if any abnormal noises are heard.
Please Contact DRAX INC. Customer Support Center for assistance.
18
BECYCLE

19
* Use horizontal indicator to check.
• Product Management Schedule
Please follow the below schedule for maintenance.
Component
Frame
Display
Switch
Cup holder
Weekly
Clean
Clean
Clean
Clean
Clean
Clean
Clean
Pedal(Foot plate)
Plastic Cover
Accessory Cover
*Inspect
Monthly
Common
Inspect
Inspect
Twice a Year
Inspect
Inspect
Inspect
Inspect
Inspect
Inspect
Yearly
Machine horizontal
Bolts / Nuts
Please use a soft, light cloth when you clean the exterior of product.
R ather than cleaning the product directly, clean it by using a vacuum
cleaner after using a cloth.
Notice
