Dreamotion Frameset Series User manual

Owner’s Manual
FRAMESET SERIES
Building 2,No.19 Xintao Road,Xinchang County,Zhejiang Province,China.
E-mail:[email protected] www.dreamotion.com
ZHEJIANG DREAMOTION TECHNOLOGY CO.,LTD
Rev 1.0 06/2020
Serial No:
All Rights Reserved.
better sleep through motion
better sleep through motion

Parts List ............................................02
Installation Guide................................03
Remote Control Guide........................10
APP Control Guide..............................11
CONTENTS
Safety & Warranty Warning....................01
Troubleshooting..................................15
better sleep through motion
better sleep through motion
01
ATTENTION!
Important safety instructions. Please read these instructions thoroughly before using this product.
RADIO FREQUENCY: 2.4 GHz
FCC COMPLIANCE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
To comply with the FCC RF exposure requirements, no change to the antenna or the device is permitted. Any change to
the antenna or the device could result in the device exceeding the RF exposure requirement and void user’s right to
operate the device.
When using an electrical furnishing, basic precautions should always
be followed, including the following:
Read all instructions before using (this furnishing).
DANGER
– To reduce the risk of electric shock
1. Always unplug this furnishing from the electrical outlet before
cleaning or servicing
WARNING
– To reduce the risk of burns, fire, electric shock, or
injury to persons:
1. Unplug from outlet before putting on or taking off parts.
2. Close supervision is necessary when this furnishing is used by,
or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these
instructions. Do not use attachments not recommended by the
manufacturer.
4. Never operate this furnishing if it has a damaged cord or plug,
if it is not working properly, if it has been dropped or damaged, or
dropped into water. Return the furnishing to a service center for
examination and repair.
5. Keep the cord away from heated surfaces.
6. Do not use bed outdoors.
7. Do not use bed near explosives.
8. Using bed with oxygen administering equipment other than the
nasal masked type creates a possible fire hazard.
9. Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
10. To disconnect, turn all controls to the off position, then remove
plug from outlet.
11. Use caution when having liquids in or around the bed to ensure
no spilling occurs. In case of spillage, stand in a dry, clean area of
the floor and unplug the bed immediately. Clean up spill and allow
the
area around bed to dry thoroughly before using the electric controls
again. Do not eat or drink hot liquids while operating the bed.
12. Do not allow any person or pet under the bed at any time.
13. During bed operation, make sure body is positioned within
t he confines of the bed. Do not place extremities over the sides
of the bed when operating bed functions.
14. Only for household and similar location use.
PRODUCT RATING:
• The motors are not designed to operate continuously for more
than [2] minutes in an [20] minute time period or approximately
10% duty cycle. Attempting to circumvent or exceed this rating
will shorten the life expectancy of the foundation and may void
the warranty.
OPERATING INFORMATION:
• After power foundation assembly is completed, operate
remote control to ensure proper functions.
• Keep moving parts free of obstruction during bed
operation (including sheets, clothing, tubing, wiring, and
products using electric power cords).
• Distribute body weight evenly over bed surface. Do not
place entire weight on head or foot sections of the bed,
during repositioning and entering or exiting bed.
HOSPITAL DISCLAIMER:
• It is NOT designed for hospital use and is NOT designed to meet
hospital standards.
15. Never operate the furnishing with the air openings blocked. Keep
the air openings free of lint, hair, and the like.
16. Never drop or insert any object into any opening.
SAVE THESE INSTRUCTIONS
WARRANTY WARNINGS:
• Any opening or tampering with the control box, motors, or hand
controls (with the exception of the battery compartment if
equipped) will result in a void of the warranty.
WEIGHT LIMITS:
• Weight Restrictions: The recommended weight limits on our
adjustable beds is 700 pounds.The bed will structurally support
this weight, provided it is evenly distributed across the foundation.
The power foundation is not designed to support or lift this
amount in the head or foot sections alone. Exceeding this weight
restriction could damage the bed and/or cause injury and will
void the warranty.
IMPORTANT SAFETY INSTRUCTIONS

02 03

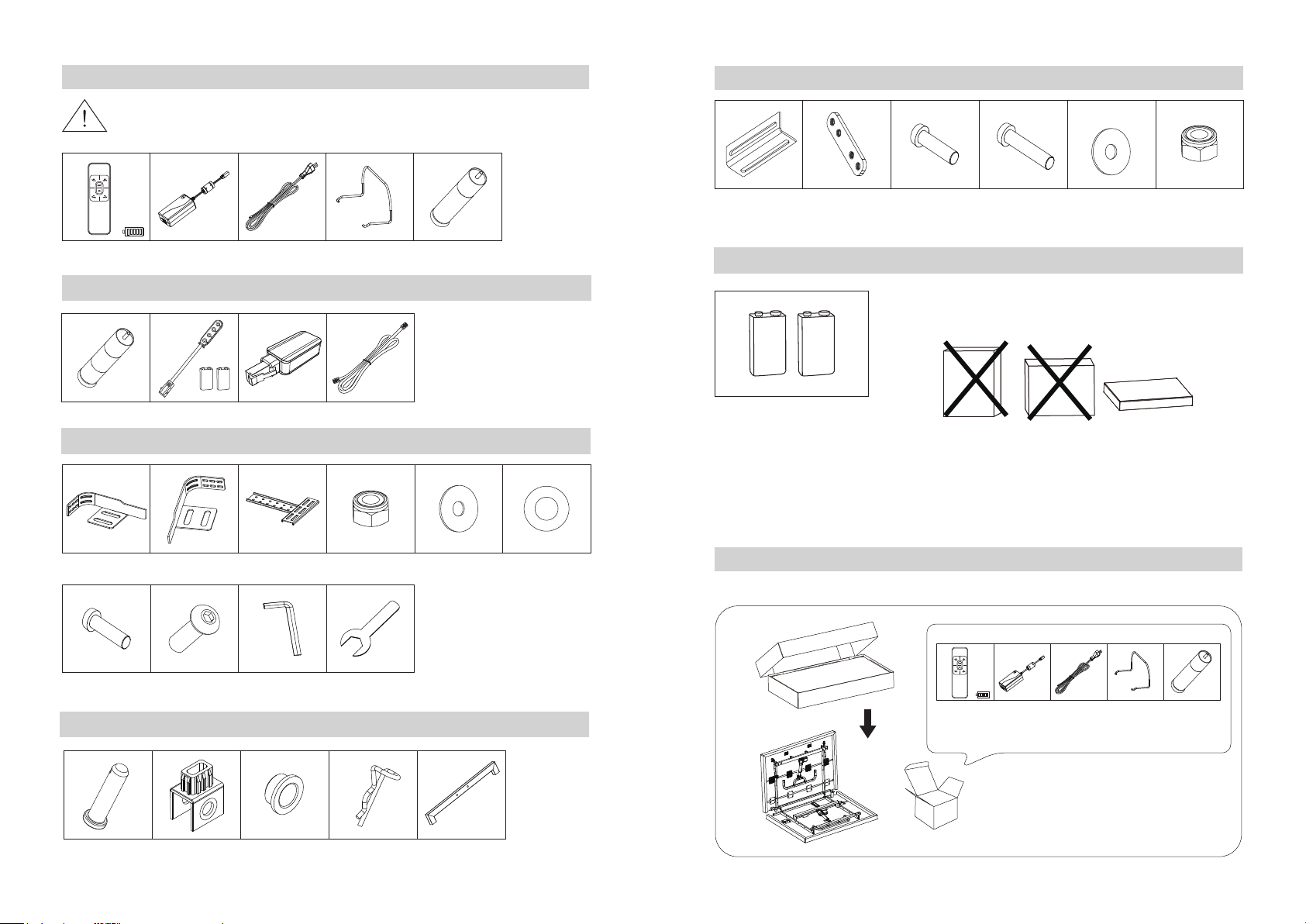

All electronics and components that need to be installed are placed in boxes under the foundation or
attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for.
Standard Parts List
Wireless Remote
3xBattery
x1
Power Supply
（29V 2.0A）
x1
AC Power Cord
x1
Adjustable Legs
x6
Mattress Retainer Bar
x1
Optional Accessories (universal parts)
Optional Accessories (headboard bracket)
Not Included
3"+6"
x1
9V 9V
Battery Lock Wire
（Not included ）
x4
Assy Tube
x8
Fixed Seat
x16
Bushing
x8
Hinge Pin
T-channel AssyHeadboard Brackets
Mount(L)
Headboard Brackets
Mount(R)
Socket Screw Wrench
(6#)
x1
x1 x1
M8 Lock Nuts
x4 x2x2
Washer
(d8.5D17t1.2)
Washer
(d10D30t2)
Hex Head Bolt
(M8×20)
Hex Socket Button Head
Screws(M10×25)
x12
x8 x2
Bluetooth
x1
Sync Cord
( single bed only)
x1
Simple Open End
Wrench S13
x1
Adjustable Legs
x6
3x3"
NOTE: To avoid damage to the foundation,always open the
carton while the foundation is in the flat position.
9V 9V
power supply with battery backup box
x4
R-clip
Optional Accessories (zero clearance)
Two people are required to set up the foundation.

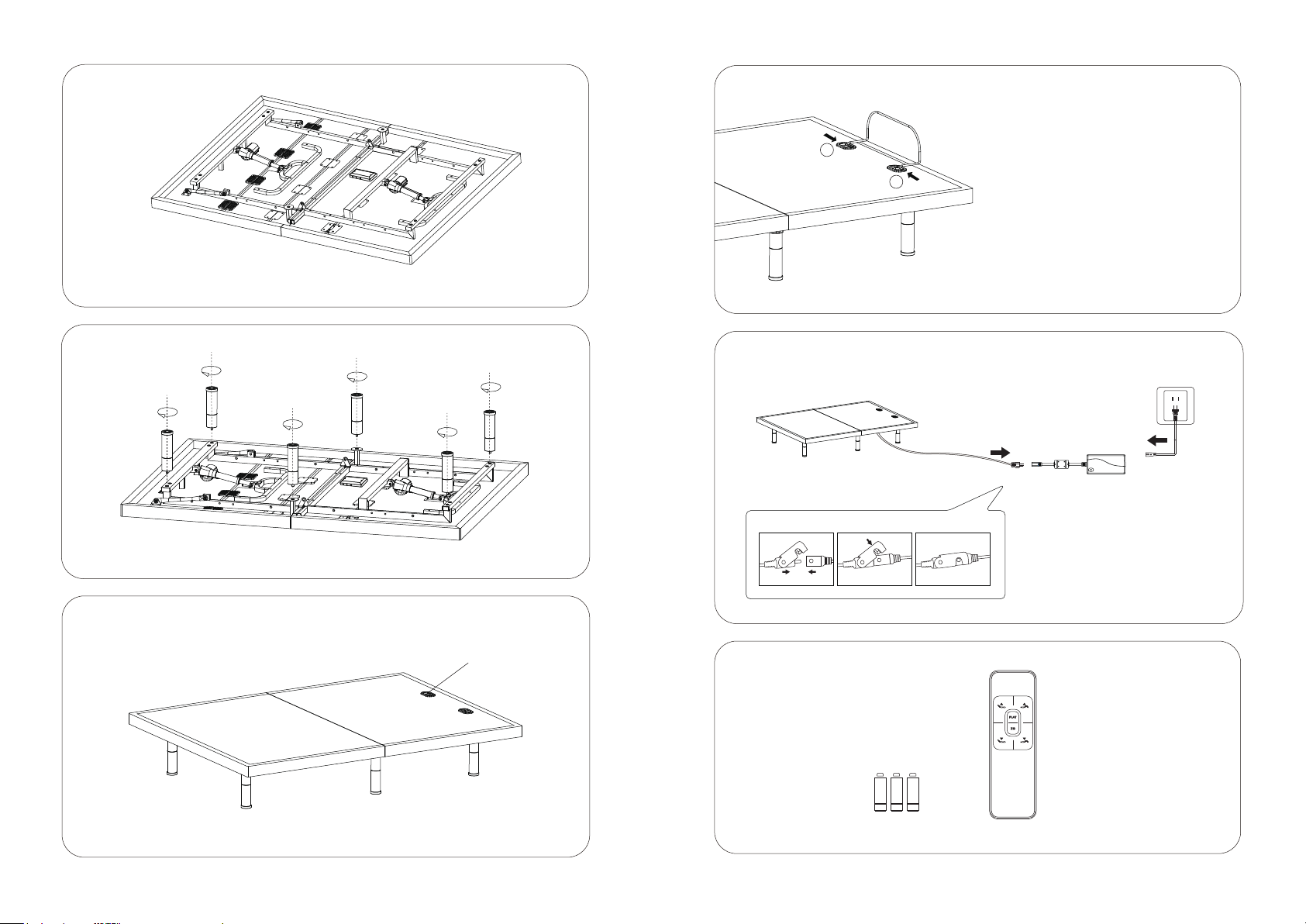

1.
Installation Guide
Open the box, take out all the packing components.
Wireless Remote
3xBattery
x1
Power Supply
(29V 2.0A)
x1
AC Power Cord
x1
Adjustable Legs
x6
Mattress Retainer Bar
x1
3"+6"
L-Plate Tie Plate
x4 x4
Optional Accessories (stabilizer bracket)
x8 x4
M8 Lock Nuts
x4x16
Hex Head Bolt
(M8×30)
Hex Head Bolt
(M8×35)
Washer
(d8.5D17t1.2)

04 05
3.
4.
Carefully rotate the f oundation over so it is resting on its legs.
Install legs and tighten by hand.
Mattress Retainer Block
AC Power Cord
DC Power Cord
Power Supply
AC Power Source
Connect the DC power cord to the power supply, uncoil the AC power cord
and then connect it to the AC power source .
Connect the connectors as illustrated.
DONE!
+
Insert batteries into the wireless remote.
6.
7.
5.
Slide the left side of the mattress retainer
bar into the bracket. Pull the retainer bar to
the opposite bracket and secure the right side.
2
1
2.
Remove the foundation from the box. Make sure the floor is clean. Flat the foundation.

06 07
2.
1.
Install the assembled headboard brackets
with washer(d10D30t2) and hex socket
button head screws(M10×25) onto the
end of head frame.
1.
M8 Lock Nuts
x2
Hex Head Bolt
(M8×20)
x2
Install headboard brackets with socket screw wrench and simple open end wrench.
Assemble the zero clearance accessories as the picture shows.
Headboard Brackets
Mount
x1
T-channel Assy
x1 x4
Washer
(d8.5D17t1.2)
Assy Tube
x1
R-clip
x1
Hinge Pin
x1
Fixed Seat
x1 x2
Bushing
2.
Assemble the zero clearance accessories as the picture shows.
Installation Guide (headboard bracket)
Installation Guide (zero clearance)
Assemble the L-Plate as show in the figure.
Repeat the step on the opposite side.
Installation Guide(stabilizer bracket)
1.
L-Plate M8 Lock Nuts
x1 x1x2
x1
Assemble theTie Plate as show in the figure,
properly adjust the position and tighten it.
Repeat the step on the opposite side.
2.
Tie Plate Hex Head Bolt
(M8×30)
Washer
(d8.5D17t1.2)
x2 x2
x1
fig.1-1 fig.1-2
Hex Head Bolt
(M8×35)
Washer
(d8.5D17t1.2)
fig.2-1 fig.2-2

08 09
Synchronizing Two Foundations
If simultaneous operation of two foundations is desired, use the sync cord to connect the electronics of both
foundations together.
(single bed only)
Sync Cord
Wireless Remote
Head
Motor Foot
Motor
Power USB LED
APP Sync
JCB35H7A1
Head
Motor Foot
Motor
Power USB LED
APP Sync
JCB35H7A1
Attention: (1) If to control two foundations separately, either toggle the switch on one battery box without removing
the sync cord from both foundations, or use two wireless remotes with removing the sync cord from
both foundations. (2) The quadded cable is in master control when synchronizing. (3) The interval must
more than 4s between plug in and plug out the sync cord.
STEP 1：Unplug foundations from the power source.
STEP 2：Connect the male ends of the sync cord to the female sync plugs of the control boxes (Refer to
illustration above).
STEP 3：
Plug foundations back into the power source.
STEP 4：Open the battery box and toggle the switch to “P” position first, then press any other button except
for “FLAT”, next press and hold “FLAT” until you hear a beep sound of each buzzer on the control
box, which means the two foundations can be synchronized with one remote.
STEP 5：Open the battery box and toggle the switch to "A" or "B" position, you can control the two foundations
separately without removing the sync cord.
Leg Configuration Table（Optional）
Support legs may be needed on some slat/platform foundation, refer to the leg configuration table for height
adjustment.
Add Additional Leg Supports For Slat/Platform Foundation.
3” 6” 9” 3 " 6 "
9 "
Remote Pairing
1. Unplug the foundation from the power source then power it on,defaulting to remote pairing within 30s.
2. Next press and hold at the same time.
3. You will hear a beep sound of the buzzer and the backlit light of the wireless remote flashes two times, which
means the pairing is successful.
The original remote that comes in the box is already paired to the foundation. No further action is required.In
the event that the remote is not paired with the foundation, follow the steps below.
Head
Motor Foot Motor
Power USB LED
APP Sync
JCB35H7A1
Electronics Quick Reference Guide
Wireless Remote
Power Supply
USB Charger
Bluetooth
Foot Motor
Head Motor
Under-Bed Lighting
Head
Motor Foot
Motor
Power USB LED
APP Sync
JCB35H7A1
Y-cable
DC Power Cord
Quadded CableTriplex Cable

10 11
Battery Lock Wire Installation Guide（Optional Accessories）
Dream Motion APP（Optional）
The Dream Motion APP is applied to control the foundation, available to both IOS and Android users.
IOS
Android
Open the APP store, search the keyword "Dream Motion" to download the application. Dream Motion
Open the Google Play to search the keyword "Dream Motion" and download the application. Dream Motion
When disconnect the power supply,the battery lock wire and two batteries with 9V 2A can be used together to
flat the foundation.
1. 2.
9V 9V
DC power cord
9V 9V
Head
Motor Foot
Motor
Power USB LED
APP Sync
JCB35H7A1
Flat
Foot lifting
Foot lowering
Head lifting
Head lowering
Zero Gravity

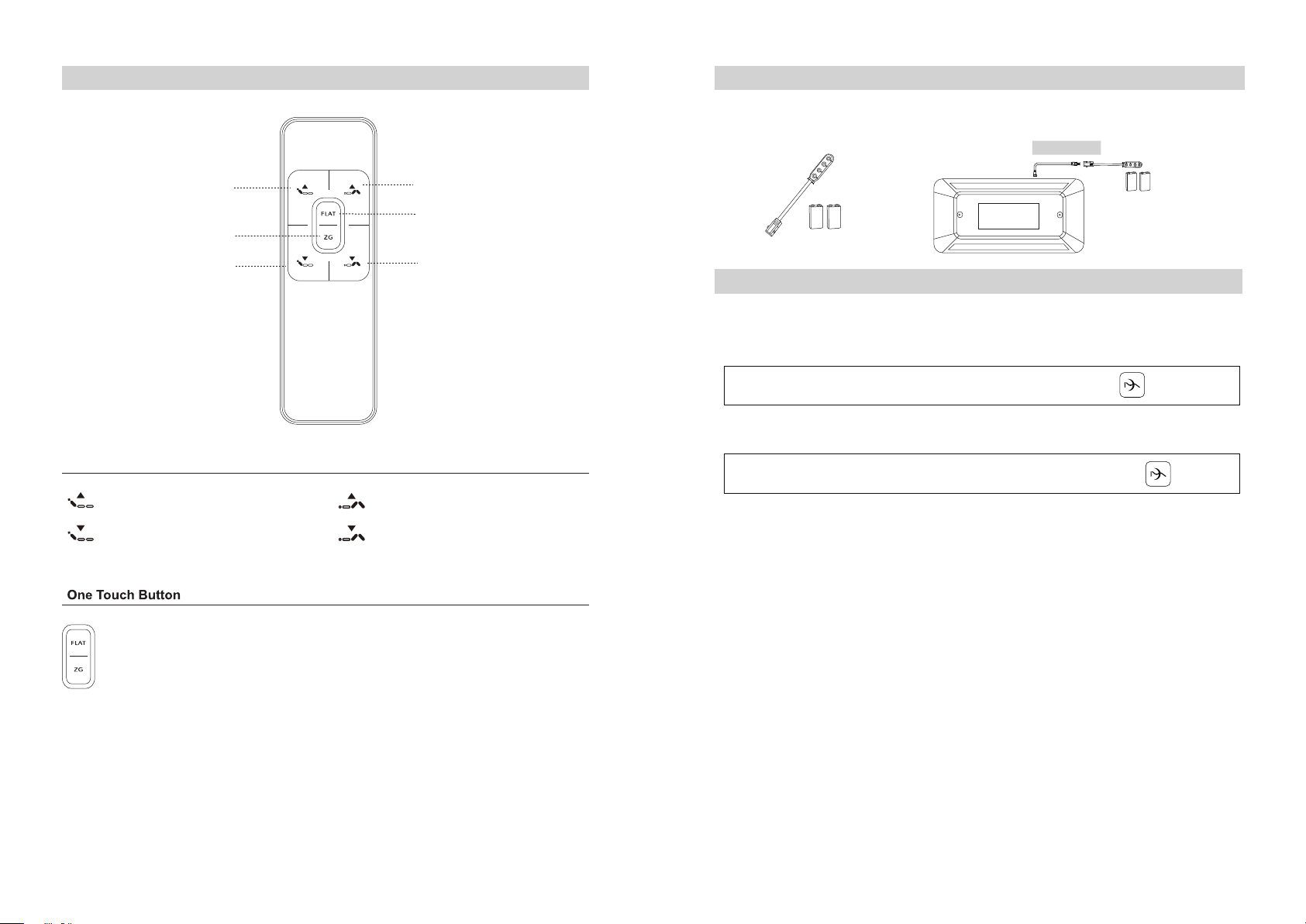

Remote Control Guide
HEAD UP/DOWN BUTTONS
Press and hold to lift or lower the HEAD section
FOOT UP/DOWN BUTTONS
Press and hold to lift or lower the FOOT section
Press to adjust the foundation to the programmed reclined position for optimum weight distribution.
Press to adjust the foundation to the flat position.
Adjustment

12 13
Control
Bed 1
POSITION
ZG
MEMORY 1 MEMORY 2
FLAT ANTI
SNORE
Control Alarm Settings
Control
Choose the part you want to adjust. Press and hold to your desired position.
Press "ZG" button to adjust the foundation to the programmed reclined position
for optimum weight distribution.
Press "FLAT" to adjust the foundation to the flat position.
Press "ANTI SNORE" to adjust the foundation to the pre-programmed anti-snore
position that keeps you getting a restful night.
1.Adjust the foundation to your desired position.
2.Press and hold "MEMORY 1" or "MEMORY 2" to save the current position.
Alarm
Press " " to set bedtime.
Press to turn off the alarm function.
Press "Wake-up position" to choose the position that wakes you up.
Press "Repeat" to choose its workdays.
Press "Bedtime reminder" to choose the time that you want the APP messages
to you for sleeping.
Bedtime Wake
Wake-up position
Repeat
Bedtime reminder
Turn off
8 HR 0 MIN of sleep in total
ZG
None
15 min
23:00 07:00
Control SettingsAlarm
Bedtime Press " " to set wake-up time.
Wake
Turn off
Select Device
Search to find your device.
Bed List
Back
Bed 1
Bed 2
Bed 3
Bed 4
Scan to find your device.
Scan QR code to connect with your
bed
Backward Flashlight
Choose your functions.
Please answer the following questions.
How many motors does your bed have?
Does your bed have massage?
Does your bed have under-bed lighting?
Next
2 3 4
Yes No
Yes No
Check your functions and
go on.
Please answer the following questions.
How many motors does your bed have?
Does your bed have massage?
Does your bed have under-bed lighting?
Next
2 3 4
Yes No
Yes No
Device pairing
Connect bed
Scan QR code
Search
Number of motors 2
No
No
Massage
Under-bed lighting
Choose your bed type.
Standard type
Top split type
Next
Please choose the bed type.
Check your bed type and
go on.
Standard type
Top split type
Next
Please choose the bed type.

14
Setting
Tap " Switch bed" to switch the device.
Tap "Name your bed" to change device name.
Tap "Instruction" to get operation guidance.
Version 1.0.0
Settings
Bed 1
Switch bed
Name your bed
Instruction
Offline
Control SettingsAlarm
• Make sure the remote control is paired with the foundation
• Check that the power cord is plugged into a working and grounded
electrical outlet. Unplug the power cord from the outlet. After 30
seconds, plug it back in. Press any button on the remote control
and hold until light on the wireless remote illuminates.
• Make sure the wireless remote is paired with the
foundation .
• Check that the power cord is plugged into a working and grounded
electrical outlet. Unplug the power cord from the outlet. After 30
seconds, plug it back in. Press any button on the wireless remote
and hold until light on the wireless remote illuminates.
• Check that the surge protection device or electrical outlet is not
defective. Test the outlet by plugging in another working appliance.
• Your
foundation may be obstructed preventing smooth operation.
Remove obstructions from around and under the bed.
• Check that the head section is not too close to the wall.
• If a headboard is installed, check that it is not too close to the
edge of the mattress. Make sure there is enough distance between
the headboard bracket and the mattress.
• Check the batteries in the wireless remote. Replace with new
batteries, if necessary.
• Make sure that you are following the duty cycle of the motors.
Do not operate for more than two minutes over a 20-minute period
or approximately 10% duty cycle.
• Press the lift buttons firmly and accurately.
• Wireless remote control may be experiencing common radio
frequency interference from other radio transmitting devices. Wait
several seconds and then try pressing the lift buttons again.
• This is normal. The lift motors click when they are engaged. No
action is required.
• Power off and wait 1 minute and then power on and pairing again.
• Open the battery box and toggle the switch to "A" or "B" position, then
press "Memory 1", next press and hold "Flat" until hearing a beep sound
of each buzzer on the control box.
The adjustable foundation does not
respond when the remote is used.
Remote control led illuminates and
appears to be normal.
No features or function of the
foundation activates.
Head or foot lifts elevate
foundation
but does not return to flat position.
Head or foot lift function has minor
interference during operation.
A clicking noise is heard under the
foundation when raising or lowering
the sections.
Excessive massage motor noise.
Two foundations can't synchronoze.
• If the foundation is located on hard surface flooring, place carpet pieces
or rubber pieces (not included) under each leg.
• Using the wireless remote control, elevate the head, foot or neck
section a short distance to realign the lift/lower mechanisms with the
foundation support platform.
• Verify that your
foundation is not positioned against a wall, nightstand,
or other object that may cause the vibration or noise.
• If the
foundation is installed over a foundation frame, verify that the
massage motors are not causing the
foundation frame (or foundation
frame components) to vibrate.
• Verify that the headboard attachment hardware is properly tightened
(if used).
Troubleshooting
In the event the adjustable foundation fails to operate, investigate the symptoms and possible solutions below.
15
