DreamScreen Classic User manual

1
User Manual
&

2
Before using DreamScreen, review the “For Your Safety” section of this manual. Conrm
you have all the parts of the DreamScreen. Follow the instructions and diagrams for an easy
installation to enhance your TV.
DreamScreen Products All available in &
Classic
Mega
Xtreme
DIY
FLEX
TV Sizes 35-45 inches TV Sizes 65-80 inchesTV Sizes 45-65 inches
Use your own LEDs

3
Video
Responsive LED backlighting responds to
the colors on your TV or computer screen.
Imagine all of your favorite TV, Movies & Video
Games bigger, brighter and easier on your
eyes. Smart TV lighting at 60 fps creates the
ultimate immersive home theater experience.
Music
Watch DreamScreen’s LED lights dance to
your favorite beats and create a visual musical
experience. Choose from 4 Audio Visualizers
and advanced music color settings. Connect
through HDMI or an Audio Jack to get the
party started.
Ambient
Choose a vibrant array of colors in Ambient
Mode or enjoy the dynamic Ambient Scenes
like tranquil “Ocean” or “Fireside”. Advanced
Settings to customize your DreamScreen
experience.
Smart TV Backlighting in 3 Modes!
Total Control via WiFi!Add Surround Lighting with DreamScreen SideKick

4
Table of Contents
Parts of DreamScreen (for HD, 4K and DIY)
Important Information
DreamScreen HUB (HD & 4K)
Installing Classic, Mega & Xtreme
Installing FLEX LEDs
Installing Your LEDs with DreamScreen DIY
DreamScreen Connections
Download the App and Connect to WiFi
Adding DreamScreen to WiFi network
Naming and Grouping DreamScreens
Using the DreamScreen App
Setting the size in DreamScreen App
Video Settings
Music Settings
Advanced Settings
Troubleshooting/Setup Help
For Your Safety
Regulatory Notices
5
6
7
8
10
12
14
15
16
18
19
20
21
22
23
24
25
26

5
Power Supply
For all models
LED Reel &
FLEX Connector
Only for FLEX
HDMI Cord
For all Models
Parts of a DreamScreen HD | 4K | DIY | LEDs
DreamScreen Hub
For all Models
LED Lights
Only for
Classic, Mega & Xtreme
DIY Connector
Only for DIY
Pg
12
Pg
8 Pg
10
*USA power supply pictured.
World wide power supplies oered.
FLEX only DIY only

6
(Classic, Mega
and Xtreme option
shown here)

7
DreamScreen HUB (HD & 4K)
Power SupplyLED Out 2
HDMI Out to TV
LED Out 1
3.5mm
Audio Jack
Mode
HDMI Source
Power Detect HDMI-In 1 HDMI-In 2 HDMI-In 3
Video
Music
Ambient
Sleep
Indicator LED
Connect all of your favorite devices
and label them in the DreamScreen App

8
Installing Classic, Mega & Xtreme
Classic
Mega
Xtreme
Mega Xtreme
Total of 12 LED Strips
4 LED Strips
TV Sizes 32-45 inches
2 LED Strips
4
6
8
2
3
4
12
18
24
32"-45"
45"-65"
65"-80"
TV
Size
Horizontal
LED Strips
Vertical LED
Strips
Total
LED Strips
The Classic, Mega and Xtreme sizes are
designed for a range of TV sizes.
Use this page as a visual guide to check if
your DreamScreen size is correct.
8 LED Strips
TV Sizes 65-80 inches
4 LED Strips
Total of 24 LED Strips
6 LED Strips
TV Sizes 45-65 inches
Total of 18 LED Strips
3 LED Strips
For more assistance and instructional videos
visit www.dreamscreentv.com/setup
Classic

9
1 2
3

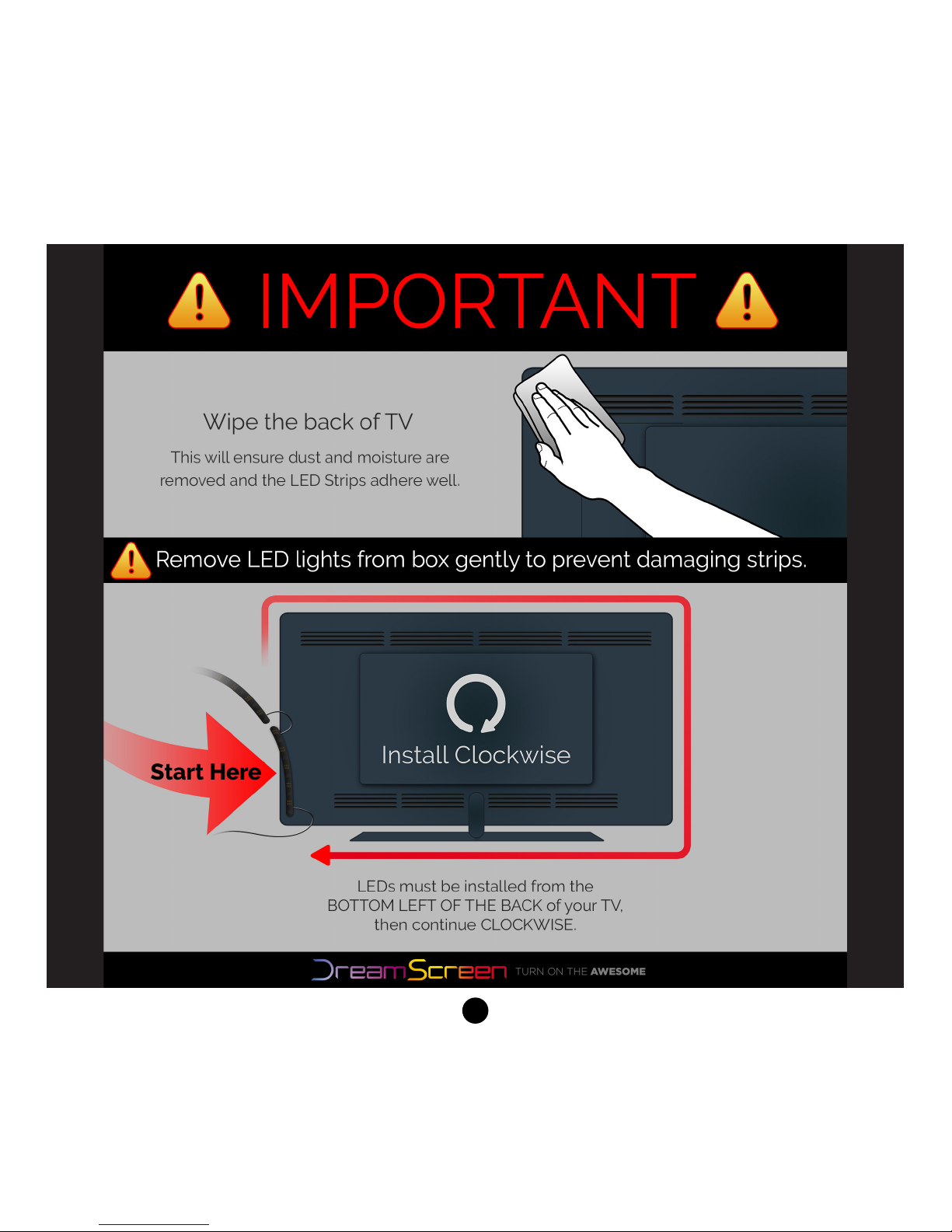

Peel adhesive cover from LED strip.
Start at the BOTTOM LEFT of the BACK of your TV.
Apply CLOCKWISE.
*Before install, wipe TV of dust and debris.
Adhere LEDs along the edge of your
TV. The adhesives are designed to be
forgiving during install, so adjust as
necessary. *Mega size shown here.
Installing Classic, Mega & Xtreme For more assistance and instructional videos
visit www.dreamscreentv.com/setup

10
Peel adhesive cover from LED strip.
Installing FLEX LEDs
Start adhering the LEDs at any corner.
Apply and press LEDs into position.
The adhesives are designed to be forgiving during
install. So adjust as necessary.
After selecting starting corner,
adhere in clockwise or anti-clockwise direction.

11
At the start of
the LED Strips.
Installing FLEX LEDs
When arriving at a corner,
fold the strip at a 90° angle as shown here.
Insert the cut end into the
Flex Connector.
Fold the wings of the Flex
Connector.
Press the wing until it snaps
shut

12
Peel adhesive cover from LED strip.
Installing Your LEDs with DreamScreen DIY
Start adhering the LEDs at any corner.
After selecting starting corner,
adhere in clockwise or anti-clockwise direction.
Apply and press LEDs into position.
The adhesives are designed to be forgiving during
install. So adjust as necessary.

13
When arriving at a corner,
fold the strip at a 90° angle as shown here.
Place each wire from the LED strip into the
corresponding slot in the DIY connector and use a
screwdriver to secure the wires in place.
The connections are 5V, DOUT (Signal) and GND.
Installing Your LEDs with DreamScreen DIY

14
DreamScreen Connections
LED 2 - Extra LED input
for FLEX or DIY
Power Supply
HDMI to TV LED 1 - Input
HDMI 3
HDMI 2
HDMI 1

15
Download the App and Connect to WiFi
Enjoy full control of your DreamScreen via
WiFi on the Android and iOS app.
Download now by searching
DreamScreen TV in the Apple or Google
Play Store.

16
Adding DreamScreen to WiFi network Android Users
Install and Plug in devices
then select Add New
Devices to Network.
Select Devices and Press
Continue
Select network in dropdown
Enter your
WiFi Password
The app will now connect to each device and add them to the network. This process can take a few
minutes depending on the number of devices. You may see the lights blink during this process.

17
Adding DreamScreen to WiFi Network iOS Users
Plug in all your devices
and press here to add to
network.
Select the devices that you
want added to network and
press continue.
Select network in
dropdown
Enter password and
press continue.
The app will now connect to each device and add them to the network. This process can take a
few minutes based on number of devices. You may see the lights blink during this process.
Connecting in
iOS settings

18
Naming and Grouping DreamScreens
Swipe to Right /
Press Menu
to view Groups &
Devices
User-dened
Groups
Add new Device
Unlock to edit
Naming and
Grouping
Group Title
Devices in Group
Edit Naming and Grouping

19
Using the DreamScreen App
Brightness Control
Select HDMI Source
Will change color when active.
Music from Audio Jack Music from HDMI
Settings
Name of DreamScreen
Device selected
Select Video, Music or
Ambient Mode

20
Setting the Size in DreamScreen App
Select Size in Dropdown
FLEX and DIY only
Horizontal Count
Vertical Count
Unlock to Edit
Select allocation
of LED 1 and LED2
184 LEDs on single output
starting top left of screen
92 LEDs on each output
30 LEDs overlapping on top
Guides for Classic, Mega
& Xtreme/App Install
FLEX & DIY
Examples
Pick a Starting Point
Set Horizontal/Vertical
LED Count
