drew & jonathan SCOTT LIVING HDSLFP48L-3A User manual

THANK YOU
We appreciate the trust and confidence you have placed in Scott Living by Drew & Jonathan through the purchase of this
electric fireplace/heater. We strive to continually create quality products designed to enhance your home. Visit us online to
see our full line of products available for your home improvement needs.
Thank you for choosing Scott Living by Drew & Jonathan!
Model #HDSLFP48L-3A
#HDSLFP48L-3B
OMSID #320663234
#320643186
ASSEMBLY INSTRUCTIONS
CESTONI 48in INFRARED MEDIA ELECTRIC FIREPLACE
Questions, problems, missing parts? Before returning to the store,
call Customer Service
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to p[email protected]om

Table of Contents
Table of Contents ..................................................................... 2
Safety Information .................................................................... 2
Maximum Recommended Weight Loads ........................ 2
Warranty ..................................................................................... 2
Pre-Assembly ............................................................................ 2
Planning Assembly ................................................................ 2
Tools required ......................................................................... 2
Hardware Included ................................................................. 3
Package Contents .................................................................. 4
Assembly .................................................................................... 5
Care and Maintenance .......................................................... 22
Caring for Wood Furniture................................................. 22
Cleaning the Fireplace Trim .............................................. 22
Safety Information
Please read and understand these instructions before
assembling and using this console. Save these
instructions for future reference.

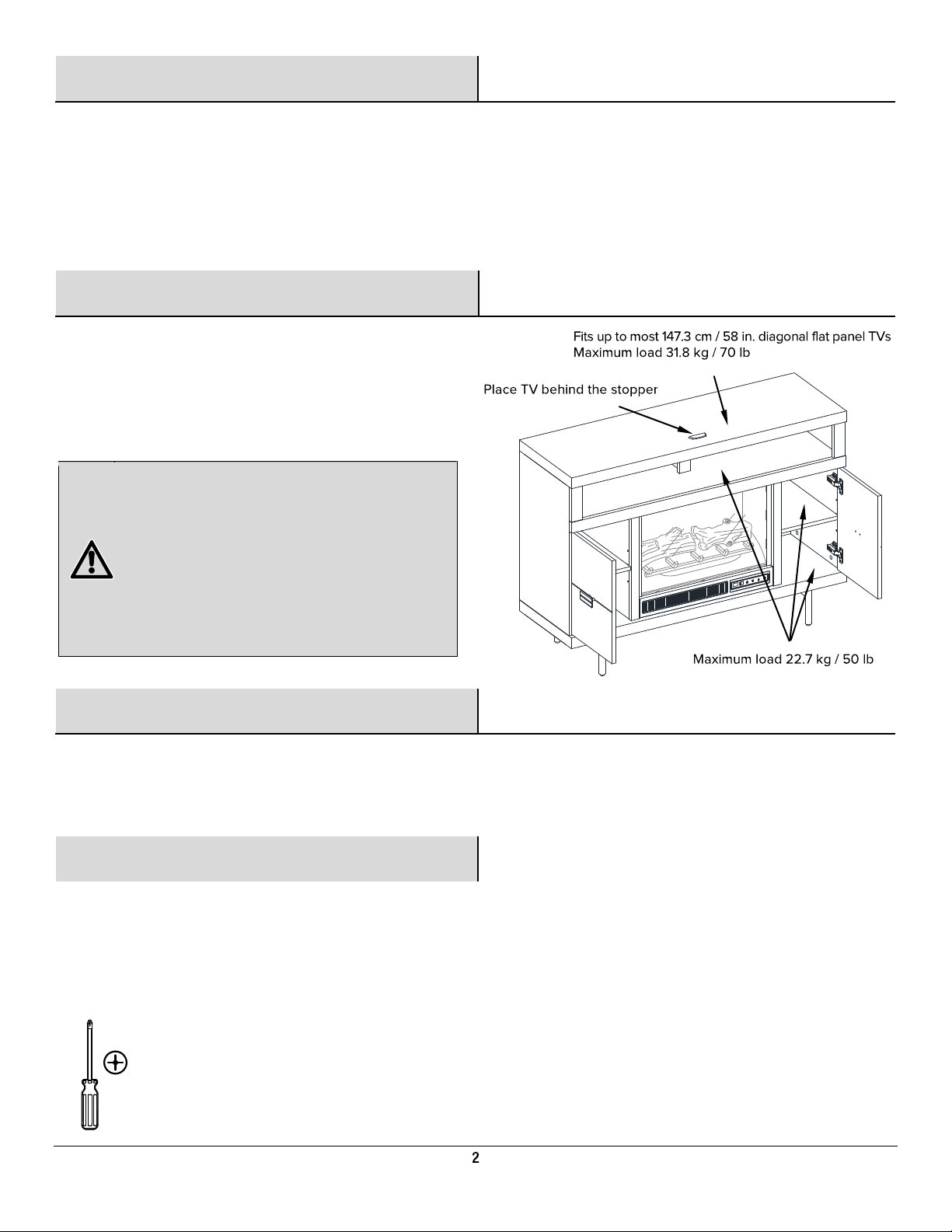

MAXIMUM RECOMMENDED WEIGHT
LOADS
WARNING: This unit is not intended for use with CRT TVs.
Use only with flat panel TVs and audio/video equipment
meeting recommended size and weight limits. Never use
with larger/heavier than recommended flat panel TVs or
equipment. To avoid instability, place flat panel TV in the
centre of the unit; the base of the television must be
able to rest on the supporting surface of the unit
without over-hanging the edges. Improperly positioned
flat panel TVs, or flat panel TVs or other equipment that
exceed recommended size and weight limits could fall off
or break the unit, causing possible serious injury.
Warranty
We are confident that you will be delighted with this purchase. Should this product be defective in workmanship or
materials, or fail under normal use, we will repair or replace it for a period of up to one (1) year from date of purchase.
This warranty gives you specific rights and you may also have other rights which vary from state to state.
Contact the Customer Service Team at 1-866-942-5362 or visit www.whalenfurniture.com.
Pre-Assembly
PLANNING ASSEMBLY
Compare all parts with the Hardware Included and Package Contents list. If any part appears missing or damaged, do not
assemble this product and contact the Customer Service Team at 1-866-942-5362.
TOOLS REQUIRED
Phillips
screwdriver
(not provided)

Pre-Assembly (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity Part Description Quantity
AA Insert screw 10+1 extra OO Nickel screw for hinge 24+1 extra
BB Pan head screw 8+1 extra PP Short flat head screw 4+1 extra
CC Wood dowel 32+1 extra QQ Metal bracket 2
DD Cam lock 34+1 extra RR Short bolt 4+1 extra
EE Cam bolt 34+1 extra SS Long bolt 4+1 extra
FF Long flat head screw 4+1 extra TT Lock washer 8+1 extra
GG Washer head screw 32+1 extra UU Flat washer 8+1 extra
HH Paper sticker 34+1 extra VV Acrylic stopper 1
II Rubber bumper 4+1 extra WW Glue 1
JJ Shelf Support 8+1 extra XX Touch-up pen
(Not include for HDSLFP48L-3B) 1
KK L-shaped bracket 2
LL Handle 2 YY Hex Wrench 1
MM Handle bolt 4 ZZ Tipping restraint hardware kit 2
NN Hinge 4
EE
LL MM
AA
NN OO
GG
PP QQ
BB CC DD FF
RR
HH
SS TT
KK
UU
II
VV
WW
XX
YY
ZZ
JJ

Pre-Assembly (continued)
PACKAGE CONTENTS
Part Description Quantity Part Description Quantity
A Heater 1 P Media shelf 1
B Left upright arm 1 Q Bottom panel 1
C Right upright arm 1 R Upper partition panel 1
D Connector strap 1 S Upper partition molding 1
E Ember bed 1 T Upper side molding 2
F Left log 1 U Middle trim 2
G Right log 1 V Upper back panel 1
H Firebox wall panel 1 W Side back panel 2
I Firebox glass 1 X Firebox holder 1
J Remote control with battery 1 Y Adjustable shelf 2
K Left side panel 1 Z Middle crossbar 1
L Left partition panel 1 A1 Bottom stretcher 1
M Right side panel 1 B1 Side leg 2
N Right partition panel 1 C1 Left door 1
O Top panel 1 D1 Right door 1
J
ABDE F G
C
HI
O
P
Q
KLMN
A1 B1
C1 D1
W
V
U
T
S
R
XY
Z

Assembly
1
Preparing
top and bottom panels assembly
NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all
bolts. This will make the assembly easier.
□ Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor
or the empty carton to avoid any scratches.
□ Securely screw the cam bolts (EE) into the designated small holes on the bottom panel (Q) and side panels (K and M)
using a Phillips screwdriver.
2
Preparing media shelf and middle trims assembly
□ Securely screw the cam bolts (EE) into the designated small holes on the media shelf (P), middle crossbar (Z) and middle
trims (U) using a Phillips screwdriver.
EE
Q
K
M
EE
P
Z
U U

Assembly (continued)
3
Gluing wood dowels
□ Glue the wood dowels (CC) into the designated holes on the vertical panels (K, L, M and N) and media shelf (P). It is
very important to use a small amount of glue on both ends of dowels and wipe away the excess glue immediately.
NOTE: Refer to the dowel guide drawings in this step for further clarification on how to properly glue in the wooden dowels.
Apply this method whenever instructed to install wood dowels.
4 Attaching middle crossbar
□ Align and attach the middle crossbar (Z) to the media shelf (P) using four cam locks (DD).
NOTE: Refer to the cam lock assembling guide drawings in this step for further clarification on how to properly install cam
locks. Apply this method whenever instructed to install cam locks.
K
CC
CC
CC
CC
CC CC
CC
CC CC
CC
CC
L
MN
P
GLUE
XX
FINAL
The dowel assembling guide
The
top edges are flush
.
The cam lock assembling guide
DD
Z
P

Assembly (continued)
5
Attaching middle trims
□ Align and attach the middle trims (U) to the partition panels (L and N) respectively by engaging two cam locks (DD)
per trim.
6 Attaching partition panels
□ Align and attach the partition panels (L and N) to the media shelf (P) by engaging four cam locks (DD).
DD
N
L
P
L/N
DDDD
LN
U U
The cam locks face inward.
The crossbar and middle trims
line up with each other.
The outer edges are flush.
The outer edges are flush.

Assembly (continued)
7 Attaching side panels
□ Orient and attach the side panels (K and M) to the media shelf (P) by engaging four cam locks (DD).
8
Attaching bottom panel
□ Using the wood dowels as a guide, align and attach the previous assembly to the bottom panel (Q). Fasten the side
panels (K and M) into place by engaging four cam locks (DD).
DD
K/M
P
M
K
The hinge mounting holes face
inward and are located at front
side.
DD
Q
K/M
M
L
Q
K
N

Assembly (continued)
9 Fastening bottom panel
□ Insert four long flat head screws (FF) through the bottom panel (Q) and securely screw into both partition panels (L
and N) using a Phillips screwdriver.
10
Preparing top section assembly
□ Ask for assistance to lift the assembly unit upright.
□ Securely screw the cam bolts (EE) into the designated small holes on the media shelf (P), top panel (O) and upper
moldings (S and T) using a Phillips screwdriver.
FF
FF
FF
FF
Q
L
N
EE
P
O
S
TT

Assembly (continued)
11 Attaching upper partition molding
□ Glue three wood dowels (CC) into the inner holes on the upper partition panel (R).
□ Orient and attach the upper partition molding (S) to the upper partition panel (R) by engaging two cam locks (DD).
12 Attaching upper partition panel
□ Align and attach the upper partition panel (R) to the media shelf (P) by engaging two cam locks (DD).
P
R
DD
The molding is located at front side.
CC
CC CC
S
R
R
DD

Assembly (continued)
13
Attaching upper side moldings
□ Align and attach the upper side moldings (T) to the side panels (K and M) by engaging four cam locks (DD).
14
Attaching top panel
□ Ask for assistance to place the top panel (O) onto the previous assembly properly and fasten it in place with six cam
locks (DD).
M
K
T
T
DD
T
K/M
The moldings face inward.
M
K
R
O
DD

Assembly (continued)
15
Fastening middle crossbar
□ Ask for assistance to flip around the previous assembly at its front edges.
□ With the pilot holes as a guide, fasten the middle crossbar (Z) to the side panels (K and M) by attaching two metal
brackets (QQ) at the joints, using two short flat head screws (PP) per bracket.
16
Attaching back panels
□ Now, go back and securely tighten all the cam locks and screws. Make sure all the parts are tight and there are no
gaps between the parts. This will help keep the unit square.
□ Pick up the upper back panel (V) and align the pre-drilled holes against the upper long edge with the pilot holes on the
back of the top panel (O). Attach it in place using the provided washer head screws (GG).
□ Using the pilot holes as a guide, align and attach the side back panels (W) to the mantel with the provided washer head
screws (GG).
NOTE: We recommend attaching back panel with the screws at the corners first.
W
V
W
GG
The ventilation holes are
located at the bottom.
K
M
Z
Z
Z
PP
PP
QQ
K/M

Assembly (continued)
17
Attaching bottom stretcher
□ Attach the bottom stretcher (A1) between the side legs (B1) with four short bolts (RR) and four washers (TT and UU).
18 Installing base
□ Align and attach the assembled side legs (B1) to the bottom panel (Q) and fasten them in place with four long bolts
(SS) and four washers (TT and UU).
A1
B1
B1
RR
TT
UU
A1
B1
Q
B1
SS
TT
UU
B1

Assembly (continued)
19
Installing door hinges and handles
□ Extend two door hinges (NN) and rest the hinge cups onto the cutouts of each door (C1 and D1). Secure the door
hinges (NN) in place by using two nickel screws (OO) in each.
□ Attach one handle (LL) to the front side of each door (C1 and D1) with two handle bolts (MM).
20
Attaching door panels
□ Ask for assistance to lift the assembled unit upright and position it near the final location.
□ Pick up the left door (C1) and fasten the hinge bases onto the left side panel (K) with eight nickel screws (OO), using
the pilot holes as a guide.
□ Repeat the same process with the right door (D1).
□ Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the screws for a good
fit. Refer to the hinge sticker on door for adjustment.
NN
OO
K/M
C1/D1
M
K
D1
C1
C1/D1
OO
OO
NN
MM
LL

Assembly (continued)
21 Installing adjustable shelves
□ Open the doors and insert four shelf supports (JJ) into the holes at the desired height inside each side compartment.
Make sure you place the four shelf supports at the same level to make the shelf level.
□ Tilt and rest the adjustable shelves (Y) onto the shelf supports (JJ).
22
Affixing paper stickers and bumpers
□ Stick the paper stickers (HH) onto the cam locks and screws.
□ Stick the rubber bumpers (II) on the outer corners of doors where the partition panels (L and N) are in contact with.
Y
Y
JJ
Y
JJ
M
K
D1
II II
C1/D1
C1
HH HH

Assembly (continued)
23
Attaching upright arms
□ See figure A: Fasten upper 2 screws (AA) through the upright arm (C) into the heater (A) until tight.
□ See figure B: Fasten lower 2 screws (AA) into the upright arm (C) until tight.
□ Fully tighten all 4 screws (AA) one final time.
□ Repeat the same process with upright arm (B).
WARNING: Do not lift or transport the heater by using the upright arms.
IMPORTANT NOTE: Use hand screwdriver, not power driver to assemble fireplace insert. See BILT for video
instructions.
24
Attaching logs to ember bed
Install left log (F) into left hole of ember bed (E) by inserting front edge of base of the log into front notches of ember
bed hole.
Then tilt the log back to insert the rear edge of the log base into rear notches of ember bed hole (press down log
firmly to lock into position).
□ Repeat the above process for the right log (G).
IMPORTANT: Carefully follow the 2 steps below for inserting each log.
G
EE
12
E
A
C
B
C
AA
A
AA
C
A
AA
Figure A
Figure B

Assembly (continued)
25
Positioning ember bed
□ Set the ember bed (E) onto the heater (A) as shown.
□ Push ember bed forward against the front flange of heater.
□ Position the USB cable as shown below.
26
Attaching wall panel
□ Fold the wall panel (H) as shown. Then position yourself at back side of heater (A).
□ Hold wall panel (H) at the angle shown below and insert lower back edge into metal slots on back of heater (A).
□ Tilt wall panel (H) forward until bottom corner inserts into lower U-channels on both upright arms (B and C).
□ Continue to tilt wall panel (H) forward until the top corner inserts into upper U-channels on both upright arms (B and
C).
C
B
H
H
A
A
E
E
A
USB cable
U-channels

Assembly (continued)
27
Connecting ember bed cable to heater
□ Fully plug the USB connector of the ember bed (E) into the back port of heater (A).
28
Inserting the glass
□ Slide the glass (I) into the inner U-channels on both upright arms (B and C) until the glass sits onto the heater (A). If
needed, push top of upright arms in or out to accommodate glass. Make sure the top of the glass (I) is flush with the
top of both upright arms (B and C).
The warning labels on
glass should face outward.
E
A
A
A
I
I
B
C

Assembly (continued)
29
Positioning connector strap
□ Position top connector strap (D) over the glass (I) and upright arms (B and C). Follow orientation shown below.
30
Attaching connector strap
□ Fasten connector strap (D) to both upright arms (B and C) using two screws (AA) as show below. Holes must be in line
for screw to pass through.
The bevel edge faces inside the unit.
D
I
H
C
B
D
H
D
AA H
D
H
C
B

Assembly (continued)
31
Installing fireplace insert
□ Lift the fireplace insert carefully into the back of the assembled mantel and centre it in the opening.
□ Using the pilot holes as a guide, fasten two L-shaped brackets (KK) onto the firebox holder (X) with four pan head
screws (BB), Make sure that the right-angle side is flush with the short edge of firebox holder (X).
□ Using the pilot holes as a guide, fasten the firebox holder (X) between the partition panels (L and N) with four pan head
screws (BB).
32
Installing acrylic stopper
□ Remove the paper backing of acrylic stopper (VV), then properly align the acrylic stopper into the cutout on the
acrylic stopper template on the front of the top panel (O). Press down on the acrylic stopper to help adhesion.
□ At the back of top panel (O), grip the heads of plastic tacks with pliers, with twisting motion pull tacks loose to remove
the acrylic stopper template.
NOTE: To prevent your TV from tipping, you must install the acrylic TV stopper if you place a flat panel television on
the top panel. Otherwise, skip to next step.
Q
H
L
X
N
KK
XBB
X
BB
KK
X
L/N
O O
V V
O
V V
