drew & jonathan SCOTT LIVING HDSLFP54W-4A User manual

THANK YOU
We appreciate the trust and confidence you have placed in Scott Living by Drew & Jonathan through the purchase of this
electric fireplace/heater. We strive to continually create quality products designed to enhance your home. Visit us online to
see our full line of products available for your home improvement needs.
Thank you for choosing Scott Living by Drew & Jonathan!
ASSEMBLY INSTRUCTIONS
Rosalie 54in. Infrared Media Electric Fireplace
Questions, problems, missing parts? Before returning to the store,
call Customer Service
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
OR
OMSID # 320643191
# 320643180
Model # HDSLFP54W-4A
# HDSLFP54W-4B

Table of Contents
Table of Contents
Safety Information
Maximum Recommended Weight Loads
Warranty
Pre-Assembly
Planning Assembly
Tools Required
Hardware Included
Package Contents
Assembly
Care and Maintenance
Caring for Wood Furniture
Cleaning the Fireplace Trim
Safety Information
Please read and understand these instructions before
assembling and using this console. Save these
instructions for future reference.

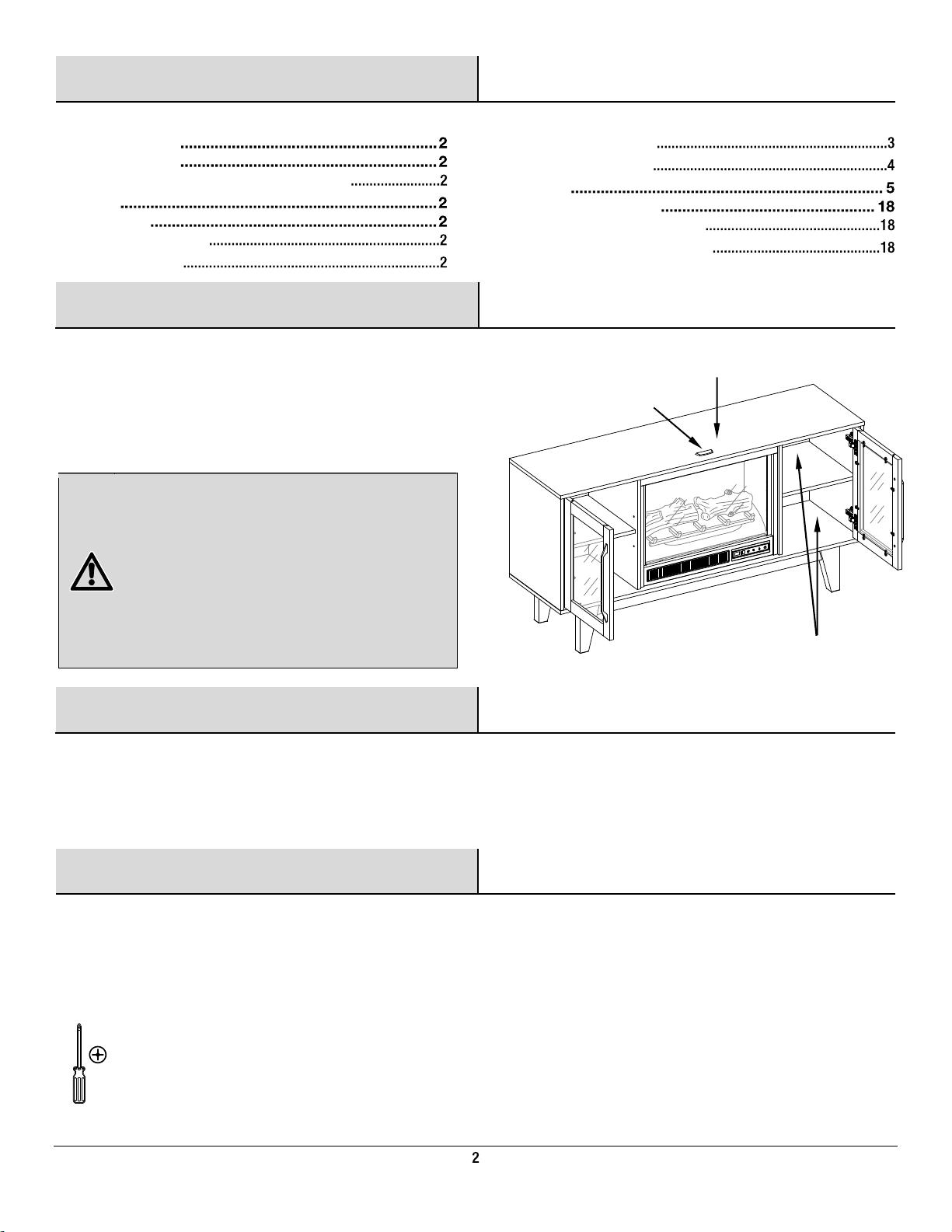

MAXIMUM RECOMMENDED WEIGHT
LOADS
WARNING: This unit is not intended for use with CRT TVs.
Use only with flat panel TVs and audio/video equipment
meeting recommended size and weight limits. Never use
with larger/heavier than recommended flat panel TVs or
equipment. To avoid instability, place flat panel TV in the
centre of the unit; the base of the television must be
able to rest on the supporting surface of the unit
without over-hanging the edges. Improperly positioned
flat panel TVs, or flat panel TVs or other equipment that
exceed recommended size and weight limits could fall off
or break the unit, causing possible serious injury.
Warranty
We are confident that you will be delighted with this purchase. Should this product be defective in workmanship or
materials, or fail under normal use, we will repair or replace it for a period of up to one (1) year from date of purchase.
This warranty gives you specific rights and you may also have other rights which vary from state to state.
Contact the Customer Service Team at 1-866-942-5362 or visit www.whalenfurniture.com.
Pre-Assembly
PLANNING ASSEMBLY
Compare all parts with the Hardware Included and Package Contents list. If any part appears missing or damaged, do not
assemble this product and contact the Customer Service Team at 1-866-942-5362.
TOOLS REQUIRED
Phillips
screwdriver
(not provided)
Maximum load 22.7 kg / 50 lb
P
lace
TV
behind
the
stopper
Fits up to most 165.1 cm / 65 in. diagonal flat-panel TVs
Maximum load 36.3 kg / 80 lb

Pre-Assembly (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity Part Description Quantity
AA Insert screw 10+1 extra LL Handle 2
BB Wood dowel 17+1 extra MM Handle bolt 4
CC Cam lock 12+1 extra NN Shelf support 8+1 extra
DD Cam bolt 12+1 extra OO L-shaped bracket 2
EE Washer head screw 26+1 extra PP Pan head screw 8+1 extra
FF Long flat head screw 8+1 extra QQ Acrylic stopper 1
GG Bolt 8+1 extra RR Paper cover 12+1 extra
HH Lock washer 8+1 extra SS Hex wrench 1
II Flat washer 8+1 extra TT Glue 1
JJ Hinge 4 UU Touch-up pen 1
KK Nickel screw for hinge 24+1 extra VV Tipping restraint hardware kit 2

Pre-Assembly (continued)
PACKAGE CONTENTS
Part Description Quantity Part Description Quantity
A Heater 1 N Right front / left back leg 2
B Left upright arm 1 O Left side panel 1
C Right upright arm 1 P Left partition panel 1
D Connector strap 1 Q Right partition panel 1
E Ember bed 1 R Right side panel 1
F Left log 1 S Left door 1
G Right log 1 T Right door 1
H Firebox wall panel 1 U Wood door insert 2
I Firebox glass 1 V Back panel 2
J Remote control with battery 1 W Top front stretcher 1
K Top panel 1 X Firebox holder 1
L Bottom panel 1 Y Adjustable shelf 2
M Left front / right back leg 2
J
M
NOPQR
WXY

Assembly
1 Preparing top and partition panels assembly
NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all
bolts. This will make the assembly easier.
□ Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor
or the empty carton to avoid any scratches.
□ Securely screw the cam bolts (DD) into the designated small holes on the top panel (K) and partition panels (P and
Q) using a Phillips screwdriver.
2 Gluing wood dowels
□ Glue the wood dowels (BB) into the designated holes on the panels (O, P, Q and R) and top front stretcher (W) as
shown. It is very important to use a small amount of glue on both ends of dowels and wipe away the excess glue
immediately.
NOTE: Refer to the dowel guide drawings in this step for further clarification on how to properly glue in the wooden
dowels. Apply this method whenever instructed to install wood dowels.
GLUE
XX
FINAL
The dowel
assembling
DD
K
P
Q
PQ
OR
BB
BB BB
BB
BB
W
BB
BB

Assembly (continued)
3 Attaching legs
□ Attach the legs (M and N) to the bottom corners of the bottom panel (L) with two bolts (GG), two lock washers (HH)
and two flat washers (II) per leg.
4 Attaching top front stretcher
□ Orient and attach the top front stretcher (W) between the partition panels (P and Q) and fasten it into place by
engaging two cam locks (CC).
NOTE: Refer to the cam lock assembling guide drawings in this step for further clarification on how to properly install
cam locks. Apply this method whenever instructed to install cam locks.
CC
W
P/Q
P
Q
W
The cam lock assembling guide
The cam locks
face inward
The wood dowel is
located at upside
SS
N
M
GG
HH
II
L
M/N
N
M
L

Assembly (continued)
5
Attaching top panel
□ Using the wood dowels as a guide, align and attach the top panel (K) to the previous assembly by engaging four
cam locks (CC).
6
Attaching side panels
□ Orient and attach two side panels (O and R) to the top panel (K) by engaging four cam locks (CC) as shown.
CC
K
O/R
O
K
R
CC
KP/Q
P
Q
K
The hinge mounting holes
face inward and are located
at front side

Assembly (continued)

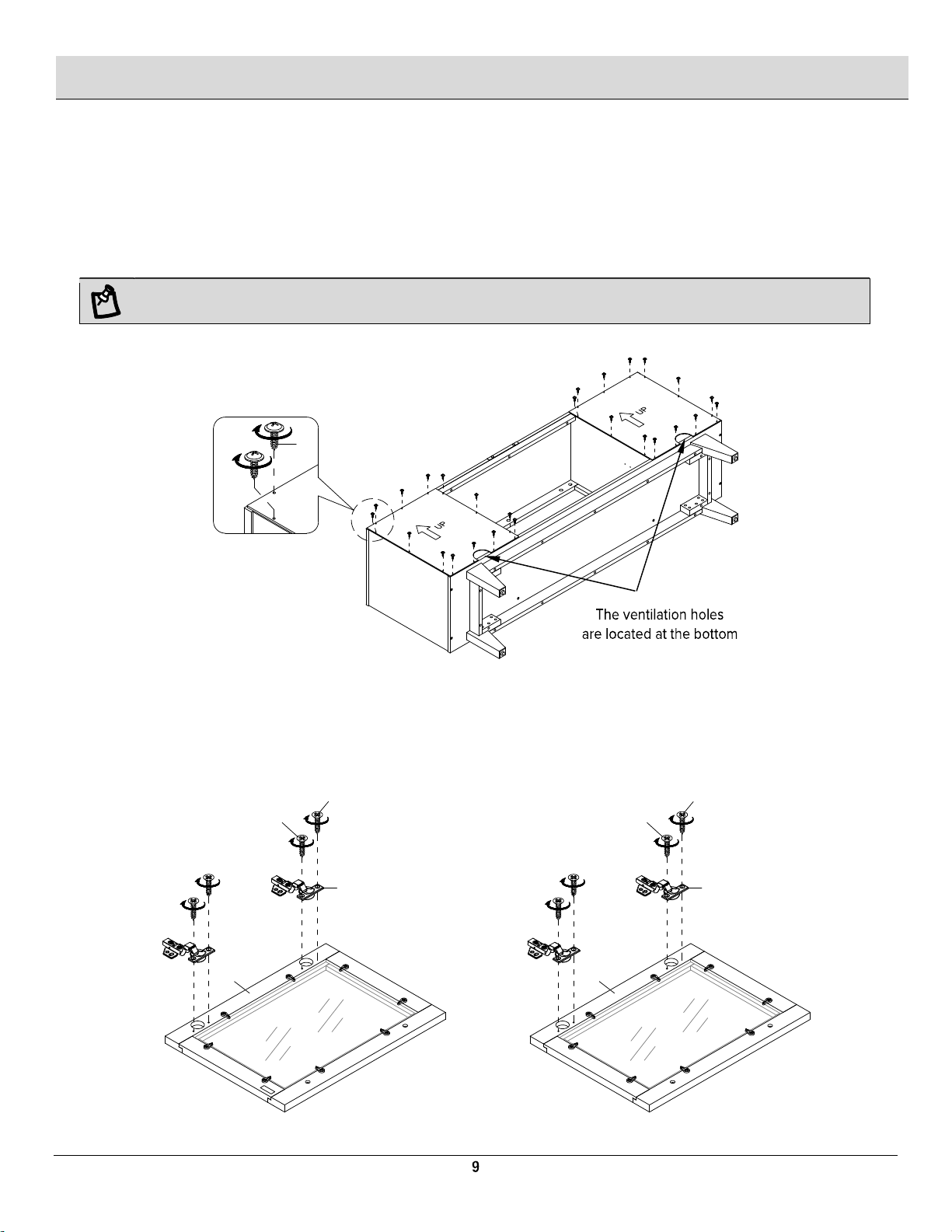

7 Assembling base
□ Using the wood dowels as a guide, firmly press the previous assembly to the bottom panel (L) and fasten them into
place with eight long flat head screws (FF).
8
Fastening top front stretcher
□ Ask for assistance to flip the previous assembly around at its front edge.
□ Attach the top front stretcher (W) to the top panel (K) into place by engaging two cam locks (CC).
CC
W
W
FF
O
P
Q
R
L

Assembly (continued)
9
Attaching back panels
□ Now, go back and securely tighten all the cam locks and screws. Make sure all the parts are tight and there are no
gaps between the parts. This will help keep the unit square.
□ Pick up one back panel (V) and align the pre-drilled holes against the upper long edge with the pilot holes on the
back of top panel (K). Fasten it in place with the provided washer head screws (EE).
□ Repeat the same process with the other back panel (V).
NOTE: We recommend attaching back panel with the screws at the corners first.
10
Installing door hinges

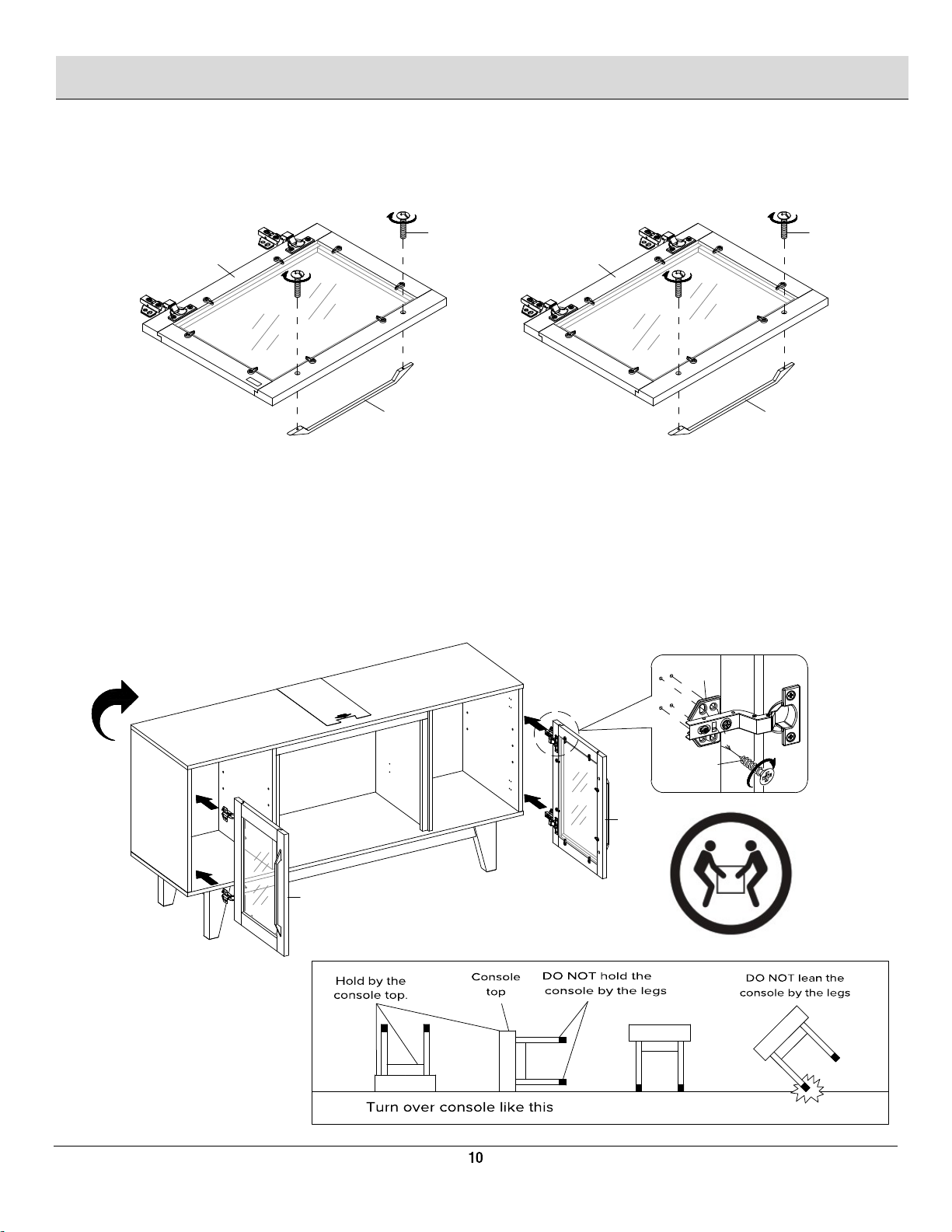

□ Extend two door hinges (JJ) and rest the hinge cups onto the cutouts of each door (S and T). Secure the door
hinges (JJ) in place by using two screws (KK) in each.
EE
V
V
S
KK
KK
JJ
T
KK
KK
JJ

Assembly (continued)
11 Installing door handles
□ Attach one handle (LL) to the front side of each door (S and T) with two handle bolts (MM).
12 Attaching door panels
□ Ask for assistance to lift the assembled unit upright and position it near the final location.
□ Pick up left door (S) and fasten the hinge bases onto the left side panel (O) with four screws (KK) in each, using the
pilot holes as a guide.
□ Repeat the same process with the right door (T).
□ Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the screws for a
good fit. Refer to the hinge sticker on door for adjustment.
KK
JJ
S
T
O
R
S
LL
MM
T
LL
MM

Assembly (continued)
13
Attaching adjustable shelves
□ Open the doors and insert four shelf supports (NN) in the holes at the desired height inside each side compartment.
Make sure you place the four shelf supports at the same level to make the shelf level.
□ Tilt and rest the adjustable shelves (Y) onto the shelf supports (NN).
14 Affixing paper covers
□ Stick the paper covers (RR) onto the visible cam locks to conceal the cams.
Y
NN
Y
Y
O
R
P
Q
RR
T
S
O
R
P
Q

Assembly (continued)
15
Attaching upright arms

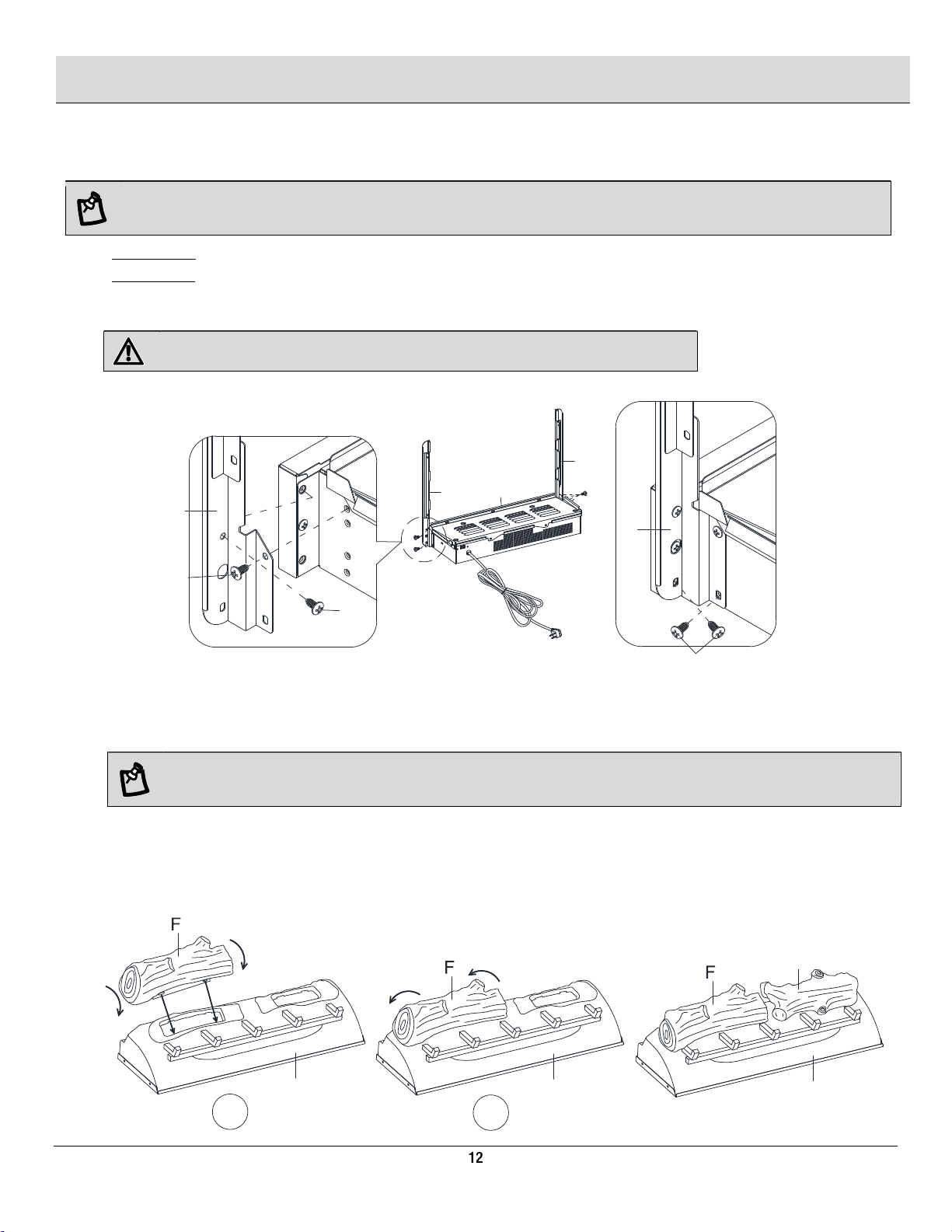

□ See figure A: Fasten upper 2 screws (AA) through the upright arm (C) into the heater (A) until tight.
□ See figure B: Fasten lower 2 screws (AA) into the upright arm (C) until tight.
□ Fully tighten all 4 screws (AA) one final time.
□ Repeat the same process with upright arm (B).
WARNING: Do not lift or transport the heater by using the upright arms.
IMPORTANT NOTE: Use hand screwdriver, not power driver to assemble fireplace insert. See BILT for video instructions.
16
Attaching logs to ember bed
1. Install left log (F) into left hole of ember bed (E) by inserting front edge of base of the log into front notches of
ember bed hole.
2. Then tilt the log back to insert the rear edge of the log base into rear notches of ember bed hole (press down log
firmly to lock into position).
□ Repeat the above process for the right log (G).
IMPORTANT: Carefully follow the 2 steps below for inserting each log.
G
EE
12E
A
C
B
C
AA
A
AA
C
A
AA
Figure A
Figure B

Assembly (continued)
17

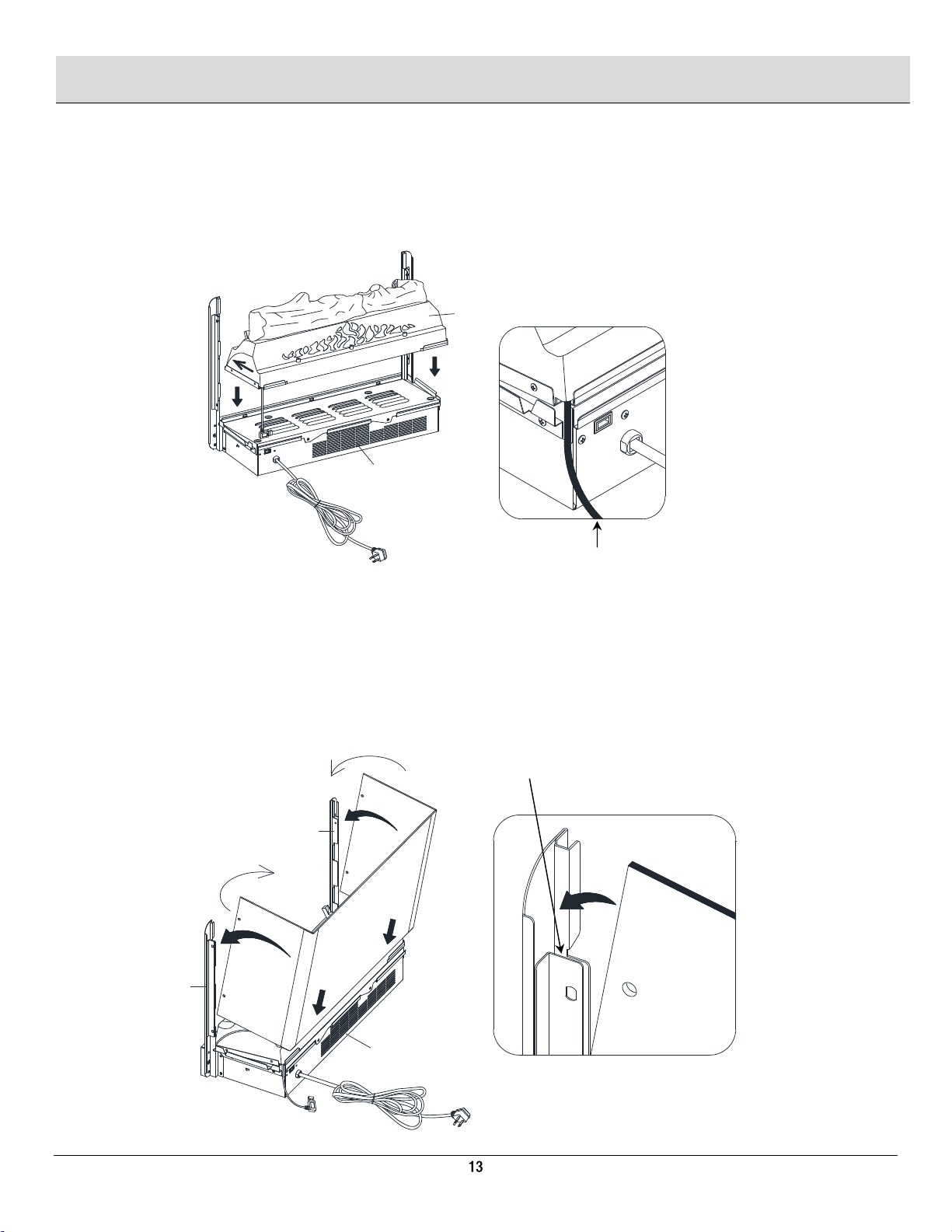

Positioning ember bed
□ Set the ember bed (E) onto the heater (A) as shown.
□ Push ember bed forward against the front flange of heater.
□ Position the USB cable as shown below.
18
Attaching wall panel
□ Fold the wall panel (H) as shown. Then position yourself at back side of heater (A).
□ Hold wall panel (H) at the angle shown below and insert lower back edge into metal slots on back of heater (A).
□ Tilt wall panel (H) forward until bottom corner inserts into lower U-channels on both upright arms (B and C).
□ Continue to tilt wall panel (H) forward until the top corner inserts into upper U-channels on both upright arms (B and
C).
USB cable
U-channels
A
E
E
A
C
B
H
H
A

Assembly (continued)
19
Connecting ember bed cable to heater
□ Fully plug the USB connector of the ember bed (E) into the back port of heater (A).
20
Inserting the glass
□ Slide the glass (I) into the inner U-channels on both upright arms (B and C) until the glass sits onto the heater (A).
If needed, push top of upright arms in or out to accommodate glass. Make sure the top of the glass (I) is flush with
the top of both upright arms (B and C).
The warning labels on glass
should face outward
E
A
A
A
I
I
B
C

Assembly (continued)
21
Positioning connector strap
□ Position top connector strap (D) over the glass (I) and upright arms (B and C). Follow orientation shown below.
22
Attaching connector strap
□ Fasten connector strap (D) to both upright arms (B and C) using two screws (AA) as show below. Holes must be in
line for screw to pass through.
D
I
H
C
B
D
H
D
AA H
D
H
C
B
The bevel edge faces inside the unit.

Assembly (continued)
23
Installing the fireplace insert

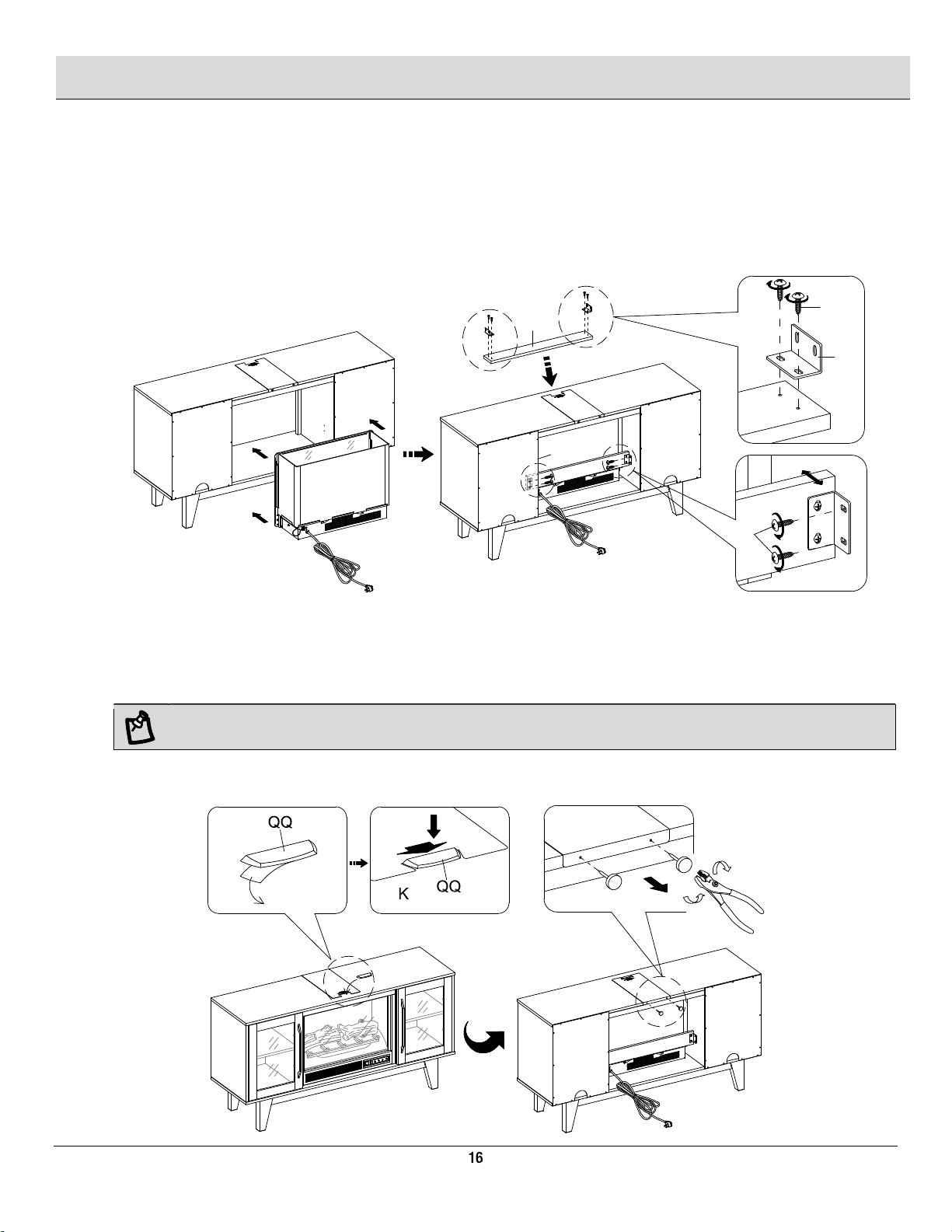

□ Lift the fireplace insert carefully into the back of the assembled mantel and centre it in the opening.
□ Use the pilot holes as a guide, fasten two L-shaped brackets (OO) onto the firebox holder (X) with four pan head
screws (PP). Make sure that the right-angle side of metal bracket is flush with the short edge of firebox holder (X).
□ Use the pilot holes as a guide, fasten firebox holder (X) between the partition panels (P and Q) with four pan head
screws (PP).
24
Installing acrylic stopper
□ Remove the paper backing of acrylic stopper (QQ), then properly align the acrylic stopper into the cutout on the
acrylic stopper template on the front of the top panel (K). Press down on the acrylic stopper to help adhesion.
□ At the back of top panel (K), grip the heads of plastic tacks with pliers, with twisting motion pull tacks loose to
remove the acrylic stopper template.
NOTE: To prevent your TV from tipping, you must install the acrylic TV stopper if you place a flat panel television on
the top panel. Otherwise, skip to next step.
L
X
PP
X
X
PP
OO
P/Q
X
Q
P
K
K

Assembly (continued)
25
Interchanging door insert panels
□ To change door panels, loosen the screws on the inside of the door and rotate the clips to remove the panel. Replace
with the desired panel, then rotate clips to secure the panel within the door frame and tighten screws.
NOTE: The glass door panels are pre-attached when shipping. You can keep as is or interchange as the desired
configuration.
26
Installing the tipping restraint hardware
WARNING: Young children can be seriously injured by tipping furniture. You must install the tipping restraint hardware
with the unit to prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended only
as a deterrent, they are not a substitute for proper adult supervision. The tipping restraints are not earthquake restraints. If
you wish to add the extra security of earthquake restraints, they must be purchased and installed separately.
□ With assistance, position the assembled fireplace at the desired location against a wall. If necessary, adjust the
pre-attached floor levelers by hand to correct tilting and level the doors, until the unit is level.
□ Follow the instructions printed on the plastic bag containing the tipping restraint hardware to attach the tip-over
restraints to the unit and the wall.
□ Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace insert to control
your fireplace.
Wooden stud
Wall
Short screw
Wall
Metal bracket
Long screw
Floor leveler
Glass door panel Wood door panel
S/T
U
The moldings face outward
Nylon strap

Care and Maintenance
A touch-up pen has been provided to minimize the small nicks or scratches that may occur during assembly or shipping.
To clean and care for your furniture:
□ Use a soft, clean cloth that will not scratch the surface when dusting.
□ Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.
□ Using solvents of any kind on your furniture may damage the finish.
□ Never use water to clean your furniture as it may cause damage to the finish.
□ Always use coasters under beverage glasses and flowerpots.
□ Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
□ Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
□ In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
□ Check bolts/screws periodically and tighten them if necessary.
CARING FOR WOOD FURNITURE
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity changes can
cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from direct sunlight as sun
may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful tips will
enhance your furniture as it ages.
CLEANING THE FIREPLACE TRIM
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth.
DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products
can be obtained at supermarkets or hardware stores.
WARNING
Unit must be placed on a level surface or leveled with included hardware (when applicable).
Do not sit or stand on or allow children to climb, sit or stand on the assembled product.
For safety reasons, it is imperative that this unit be mounted to the wall or floor.
Unit can tip over causing severe injury or death.
Never open more than one drawer at a time.
Do not exceed the recommended weight limits.
Before cutting, drilling or hammering into any wall or floor surface, verify the location of
electrical, plumbing and gas lines. Cutting may cause serious injury.

Questions, problems, missing parts? Before returning to the store,
call Customer Service
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to p[email protected]om
Retain this manual for future use.
We’re not happy unless you’re happy, so we offer a
30
-
day Love It Guarantee
.
If for any
reason you don’t love your Scott Living product, you can return it to your place of purchase
within 30 days of the date on your receipt for a full refund — no questions asked.
RETURN POLICY FOR CUSTOM ITEMS VARY. PLEASE CHECK WITH YOUR RETAILER FOR
DETAILS.
