1. INTRODUCTION
Thank you for choosing our Built-In Electric Heater. To use this cap properly and to avoid any
potential risk, read these instructions before using it.
Keep these instructions in a place where they can be found easily. If you are not sure of any of
the information contained in these instructions, please contact our customer service center.
The manufacturer is not liable for damages to persons or property caused by improper
installation or misuse of your kitchen.
The manufacturer reserves the right to make modifications that it considers necessary or
useful, also in the interests of the user, without jeopardizing the main functional and safety
features. The cap is designed for a domestic and non-commercial environment.
2. SAFETY WARNINGS
Your safety is important to us.
Please read this information before using your electric hob.
INSTALLATION ELECTRICAL SHOCK HAZARD
• Disconnect the artifact from the mains electricity supply before carrying out any work or
maintenance.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only beamed by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death
CUT HAZARD
• Take care – panel edges are sharp.
• Failure to use caution could result in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions carefully before installing or using this artifact.
• No combustible material or products should be placed on this artifact at any time.
• Please make this information available to the person responsible for installing the artifact
as it could reduce your installation costs.
• In order to avoid a hazard, this artifact must be installed according to these instructions
for installation.

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
3
• This artifact is to be properly installed and earthed only by a suitably qualified person.
• This artifact should be connected to a circuit which incorporates an isolating switch providing
full disconnection from the mains power supply.
• Failure to install the artifact correctly could invalidate any warranty or liability claims.
• When the hob is working, never touch the bottom of the hob, or you may get un expectable
electric shock. To avoid accidental touching or children playing, make sure the wooden insert
is fixed well enough to keep from finger
• Do not leave any objects such as knives, forks, spoons and lids should not be placed on the
hob surface since they can get hot.
• This artifact can bemused by children aged from8 years and above adpersons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the artifact in a safe way and understand the
hazards involved. Children shall not play with them and user maintenance shall not beamed by
children without supervision.
Thank you for purchasing our product. We hope you enjoy using the many features and
benefits it provides. Before using this product please study this entire Instruction Manual
carefully. Keep this manual in a safe place for future reference. Ensure that other people using
the product are familiar with these instructions as well.
UNPACKING
Remove all packaging from the unit.
Retain the packaging.
If you dispose of it please do so
According to local regulations.
The following items are included:
PRODUCT OVERVIEW

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
4

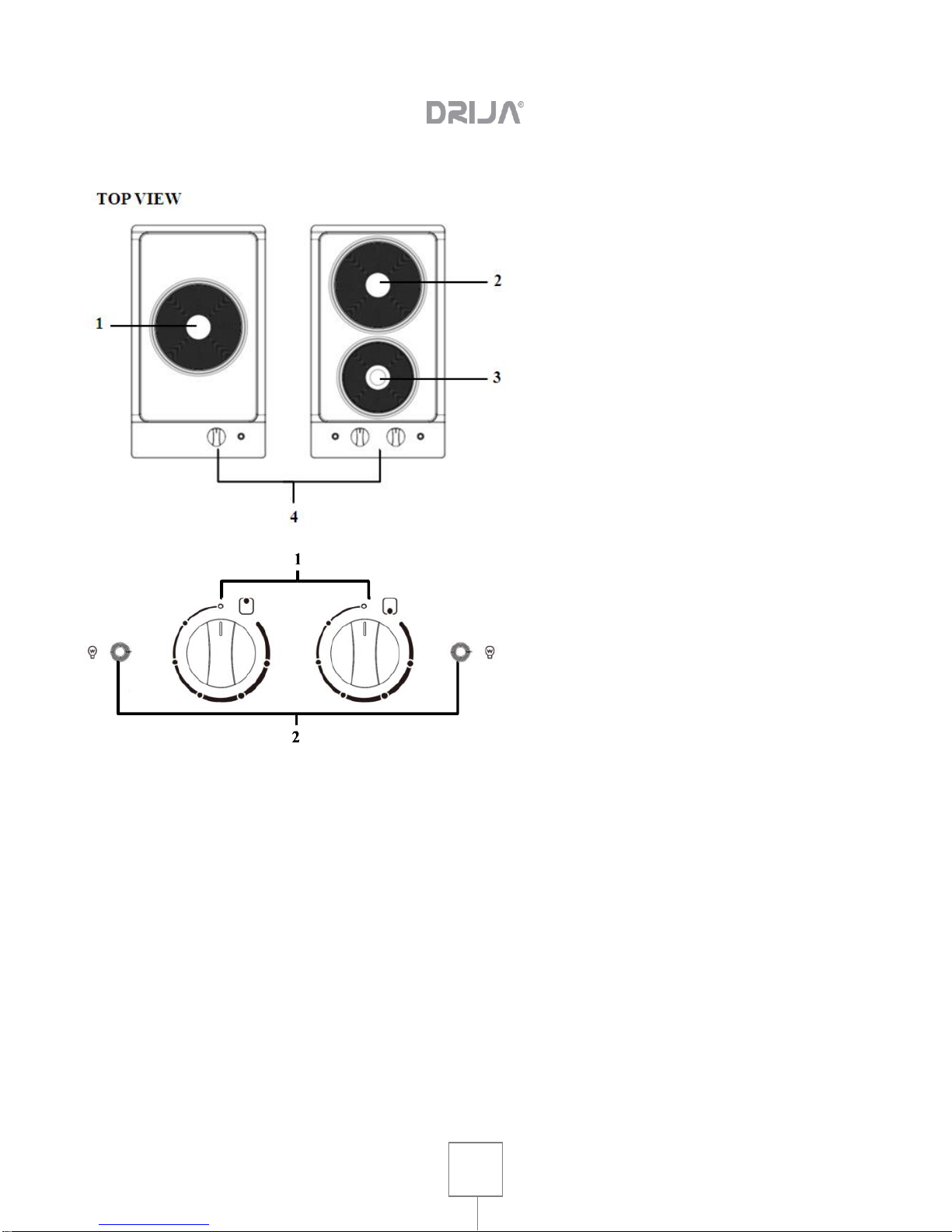

1. Max. 2000W zone
2. Max. 2000W zone
3. Max. 1500W zone
4. Control Pane
1. Power Regulating Controls
2. Power Indicator Light

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
5
3. OPERATION OF PRODUCT
CHOOSING THE RIGHT COOKWARE

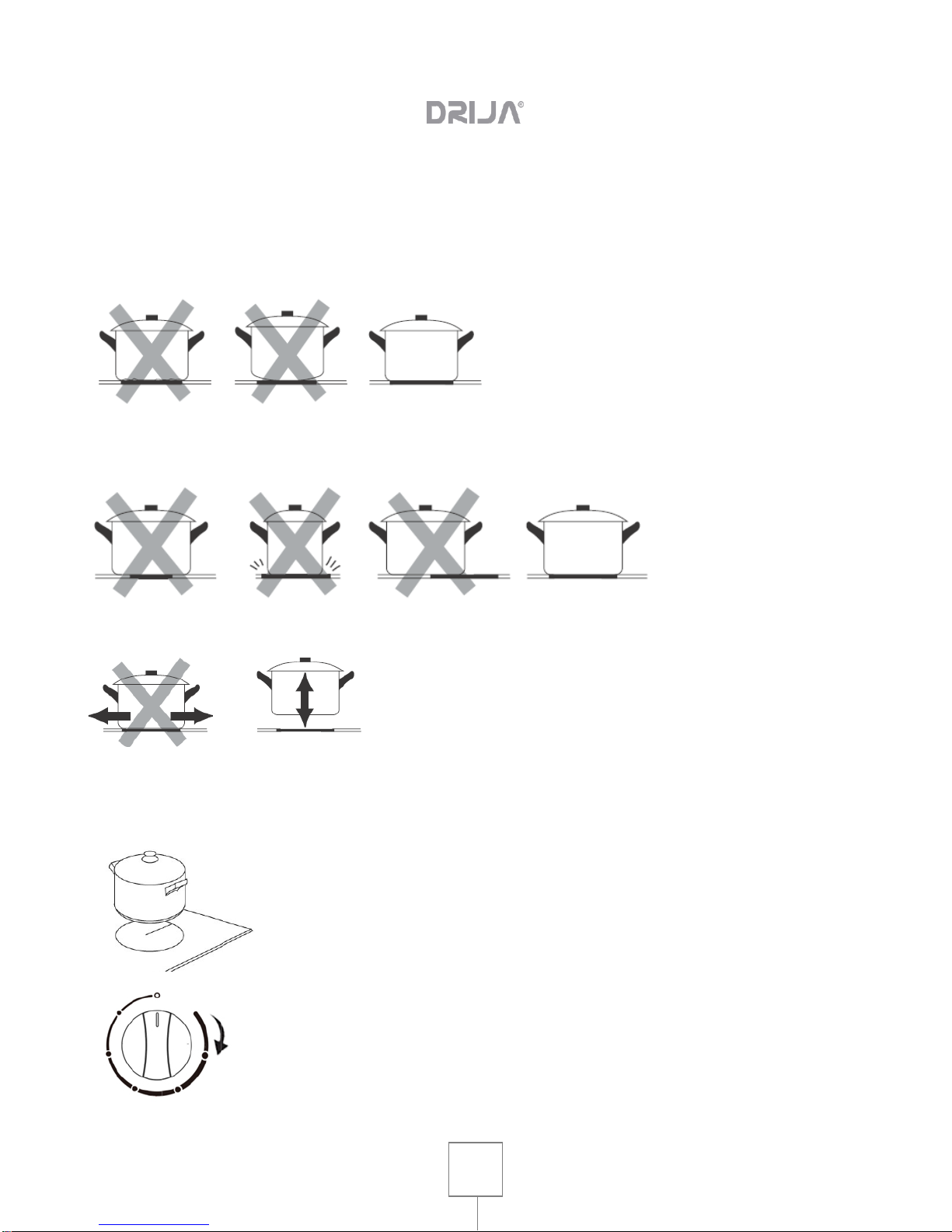

Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size
as the cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob –do not slide.
USING YOUR ELECTRIC HOB
To Start Cooking
1. Place a suitable pan on the cooking zone wish to use. Make
sure the bottom of the pan and the surface of the cooking zone are
clean and dry.
2. Adjust the power regulating control to the desired level turn the
control.
Clockwise Direction - From higher heat setting to lower heat setting
Anticlockwise Direction - From lower heat setting to higher heat setting

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
6
4. CLEANING AND MAINTENANCE
The settings below are guidelines only. The exact setting will depend on several factors,
including your cookware and the amount you are cooking.
Experiment with the electric hob to find the settings that best suit you.
What?
How?
Important!
Everyday soiling on surface
( fingerprints, marks, stains left by
food onion-sugary spillover son the
surface )
1. Switch the power to the electric
hob off.
2. Apply an electric hob cleaner
while the hob is still warm (but not
hot!)
3. Rinse and wipe dry with clean
cloth or paper towel.
• When the power to the electric
hob is switched off, there will be no
‘hot surface ‘indication but the
cooking zone may still be hot! Take
extreme care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
surface. Always read the label to
check if you’re cleaner or scourers
suitable.
• Never leave cleaning residue on
the electric hob: the electric hob:
the Surface may become stained.
Spillovers on the power regulating
controls
1. Switch the power to the electric
hob off.
2. Soak up the spill.
3. Wipe the power regulating
control area with a clean damp
sponge or cloth.
4. Wipe the area completely dry
with a paper towel.
• Make sure you wipe the power
regulating control area dry before
turning the electric hob back on.

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
7
HINTS AND TIPS
Problem
Possible Causes
What To Do
The electric hob cannot be turned
on.
No power.
Make sure the electric hob is
connected tithe power supply and
that it is switched on.
Check whether there is power
outage in your home or area.
If you’ve checked everything and
the problem persists, call a qualified
technician.
The surface is being scratched.
Rough-edged cookware.
Unsuitable abrasive scourer or
cleaning products being used.
Use cookware with flat and smooth
bases. See ’Choosing the Right
Cookware’, See ‘Care and
Cleaning’.
The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers and damages to
the hob.
5. INSTALLATION
PREPARING THE WORKTOP
Cut out the work surface following the dimensions shown in the drawing below.
For the purpose of installation and use, a minimum distance of 10cm space must be left
around the cut out. Ensure the thickness of the work surface is at least 20mm. Use a heat
resistant work surface material to avoid deformation caused by heat from the hob. Minimum
distance between hob and cupboard should be at least 76cm.

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
8
ENSURING ADEQUATE VENTILATION
Make sure the electric hob is well ventilated and that air inlet and outlet are not blocked. In
order to avoid accidental touch with the overheating bottom of the hob, or getting
unrespectable electric shock during working, it is necessary to put a wooden insert, fixed by
screws, at a minimum distance of 70mm from the bottom of the hob. Follow the requirements
below.
There are ventilation holes around outside of the hob. YOU MUST ensure these
holes are not blocked by the worktop when you put the hob into position.
Be aware that the glue that joins the laminated plastic to the furniture has to resist to
temperature not below 150℃, to avoid the unstuck of the paneling.
The rear wall, adjacent and surrounding surfaces must therefore be able to withstand a
temperature of 90℃.

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
9
6. FASTENING THE FIXING BRACKETS
The unit should be placed on a stable, smooth surface (use the packaging).

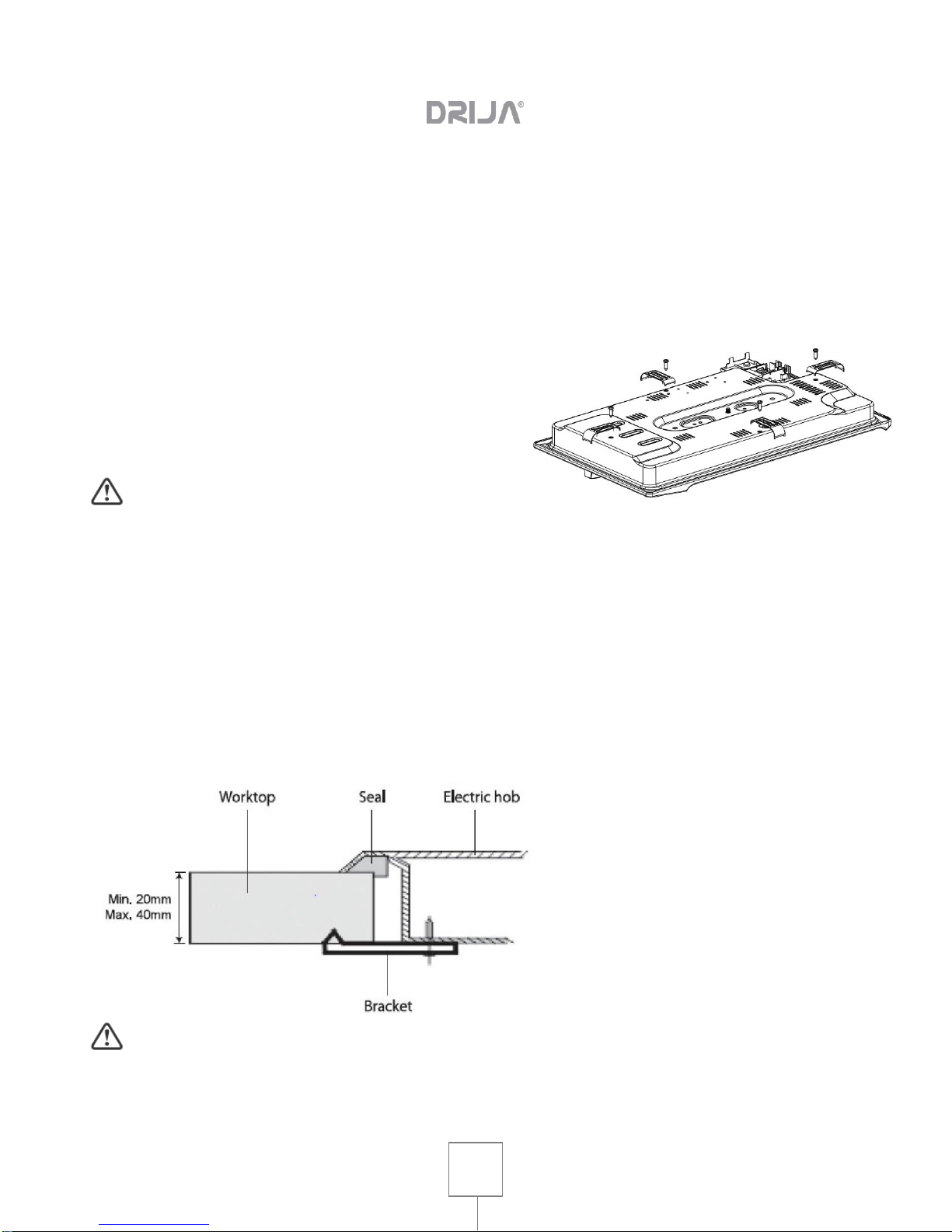

1. Turn the hob upside down and fasten the brackets to the appropriate holes.
DO NOT tighten the screws at this stage.
2. Apply sealing strips around the edge of hob.
• The hob must be installed by qualified personnel or technicians.
• Do not mount above cooling equipment, dishwashers and rotary dryers.
• Surfaces around the hob should be able to withstand heat generated by hob.
• Never use a steam cleaner to clean the hob.
• Do not use a silicon sealant to seal the artifact against the aperture. This will make it
difficult to remove hob from the aperture, particularly if servicing is required.
3. Insert the hob into the cut out and position it correctly.
4. Tighten the screws to secure the hob to the worktop.
Do not over-tighten the hob clamps as distortion of the hob may occur.

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
10

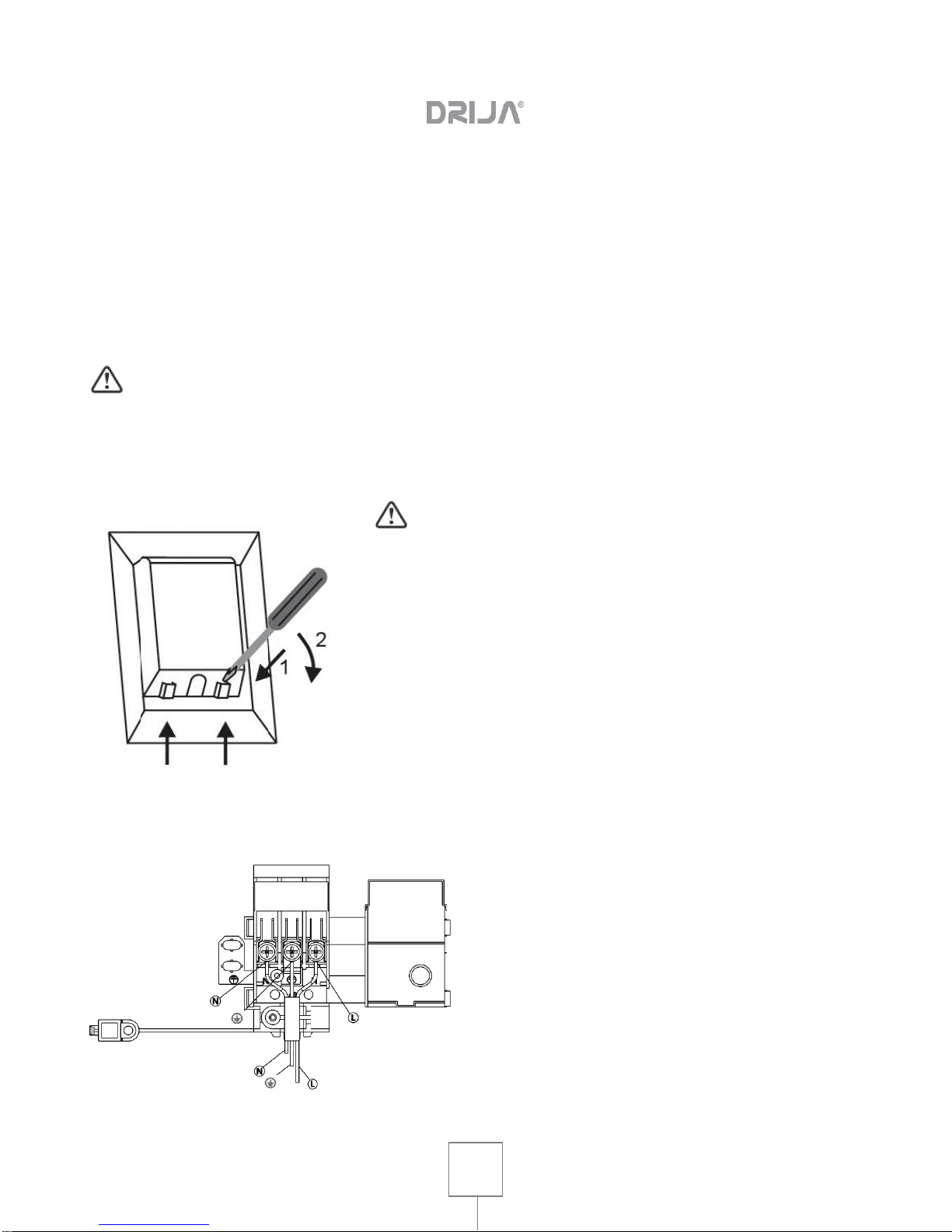

7. ELECTRICAL CONNECTION
Fitting Guide lines
The electric hob is manufacture to work with single-phase alternating current (220V-
240V/50Hz)
The connection diagram is also on the cover of the connection box.
All electrical work should be carried out by a suitably qualified and authorized
electrician. No alterations or willful changes in the electricity supply should be carried
out.
The connection cable must be secured in the strain –relief clamp
The electricity supply for the electric hob must
have an isolation switch which enables the power to be
cut off in case of an emergency and for maintenance.
The distance between the working contacts of the
isolation switch must be at least 3mm.
Before connecting the electric hob to the mains power
supply it is important to read the information on the
data plate and the connection diagram.
Connecting the hob to the mains power supply
Voltage of heating elements 220V –240V
3X1.5 mm2
This artifact must be earthed
For this connection a power lead of wire type
H05RR-F should be used.

User Manual
ELECTRIC STOVE BUILT-IN | BARI 30
11
Wiring Instructions
The earth wire colored Green / Yellow must be connected to the Earth terminal market
The Live wire colored Brown must be connected to the live terminal market L.
The neutral wire colored Blue must be connected to the live terminal market N.
Before performing any service on the electrical part of the artifact, it must
absolutely be disconnected from electrical network.
ELIMINATION: No
Remove This Product
As municipality
Waste.
Collection of
Separate waste
For special treatment is
necessary.
This stove is labeled in accordance with the European Directive
2012/19 / EU for Waste Electrical and Electronic Equipment
(WEEE). Ensuring that this stove is properly removed will help
prevent any possible harm to the environment and human
health, which could otherwise be caused if it were disposed of in
the
Wrong Way.
The symbol on the product indicates that it cannot be treated as
a normal residue. It should be taken to a collection point for the
recycling of electrical and electronic products.
This stove requires the special disposal of waste. For more
information on treatment, recovery and recycling of this product,
contact your local council, your household waste disposal
service or the store where you purchased it.
For more detailed information on the treatment, recovery and
recycling of this product, please contact your local city office, the
household waste disposal service or the shop where you
purchased the product.
