DSPPA DSP9102 User manual

DSP9102 Network Fire Collector
Guangzhou DSPPA audio Technology Co., Ltd
Zip code：510150
Tel：[phone]
website：www.dsppatech.com
address：NO.1 XIAHELU, JIANGGAO TOWN, BAIYUN
DISTRICT, GUANGZHOU, CHINA
www.dsppa.com
User’s Manual
The information might change without prior notice to users
Guangzhou DSPPA audio Technology Co., Ltd

● Be sure to use a separate, three-wire power outlet with ground wire.
● If there is crushing, knotting or damaging to the power cord such as damage
to the power cord, contact the dealer immediately. After replacing the power
cord, the system should be powered off, which can cause electric shock and
even fire.
● When servicing or cleaning the surface of the host, the power plug must be
unplugged.
● When pulling the power plug, do not pull the power cord directly to prevent
the break, and prevent electric shock; don’t place the flammable and explosive
items near the host to prevent explosion and fire.
● The host should be placed horizontally; don’t make it not tilt, invert, vertical-
placed.
● The host should be placed in a dry and ventilated environment,. It needs to
retain more than 5cm space in order to facilitate heat dissipation. Do not cover
the host and do not press things heavy on the host.
● It is strictly forbidden to open the host.
● If you don’t use it for a long time or it’s rainstorm, please turn off the host
power and unplug the host power plug.
Safety Precautions
The lightning triangular symbol indicates the risk of electric shock.
The exclamation point triangle symbol indicates important operational
or maintenance instructions.
Please note the following symbols：
Warn! To reduce the risk of electric shock or equipment damage, please follow
the requirements below：

Directory
1
1
1
2
3
3
4
5
5
6
Introduction
P roduct Overview
Features
Product Information
Connection and installation
System Diagram
Connection example
Installation
Specification
Packing list

The network fire collector is for collection of occasion’s monitoring, smoke
detection and emergency handling areas. When an alarm signal is received,
the network fire collector sends the signal to the server for forced insertion
of the emergency broadcast state. It’s performance is sustainable, stable,
efficient and reliable.
4. Network port
5（32 way）. Alarm signal interface
6. Power interface（~220V/50Hz）
Preface
Features
Front panel
Rear panel
Product Description
Thank you for choosing our products. All products have been rigorously tested
before leaving the factory, which abide by the quality of commitment. This
product is widely used in schools, gymnasiums, square venues, parks, parking
lots, railway stations, airports, villas, shopping malls and other places It is the
ideal choice for public broadcasting. In order to facilitate your installation,
please read this manual before installation.

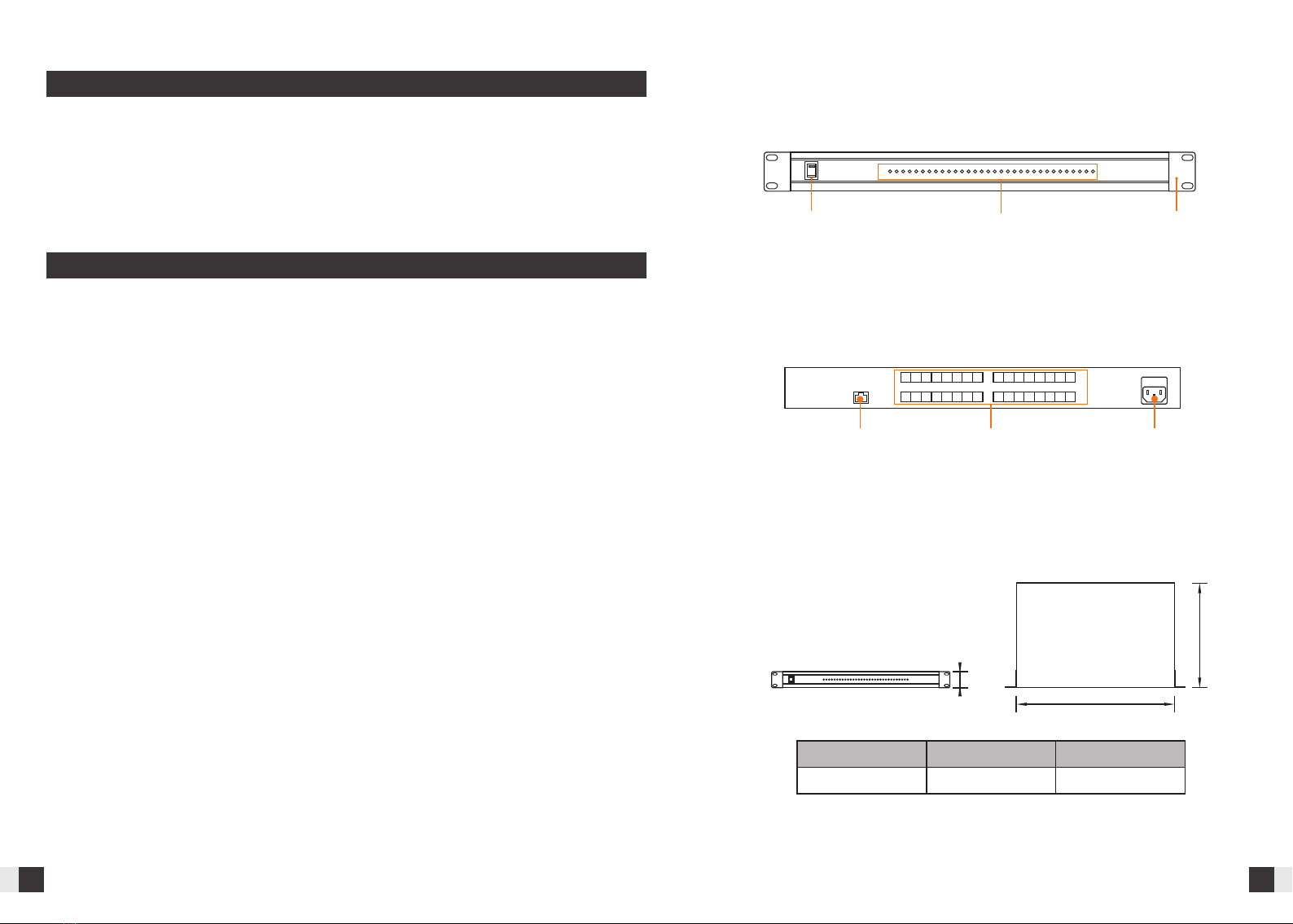

1. Power switch (with indicator)
2. Warning indicator
3. Installation kit
（Unit：mm）
High
44
Width
Depth
430 213
2
1
● Support 32 fire alarm signal access, support short circuit and 12V-24V signal.
● 32-way independent control, support adjacent zone alarm.
● The forced activation area may be limited to the accident zone and may be extended
to several adjacent zones, which are pre-programmed by the networked host.
● You can customize the alarm to play the sound through the management software.
● The same system can have multiple devices connected to the network; control area
can be extended.
● 10 / 100M adaptive, support DHCP / static IP, support LAN and WAN.
● 32-way signal indicator on the panel shows the working status.
● 1U size, space-saving and lighter-weight; anodized aluminum alloy panel, good-
looking and durable
3
6
5
4
1www.dsppa.com 2
Guangzhou DSPPA Audio Co., Ltd
Product Panel Description
High Width Depth

Instructions
signal input：The network fire detector rear panel can access 32 partitions; the
input signal can be 5V-24V positive polarity signal or short circuit signal (input
current less than 3mA). The positive signal is valid when the input logic setting
switch is set to HIGH; the short circuit signal is valid when the set switch is set to
LOW.
Total output：As long as there is an alarm signal input (any one or more), the
device on the rear panel of the three-core jack OR GATE will be activated and
output short-circuit signal.
Extended：The same system supports the device to have multiple connections
to the network to achieve control of regional expansion.
4
Guangzhou DSPPA Audio Co., Ltd
3www.dsppa.com
LAN
Fire alarm signal

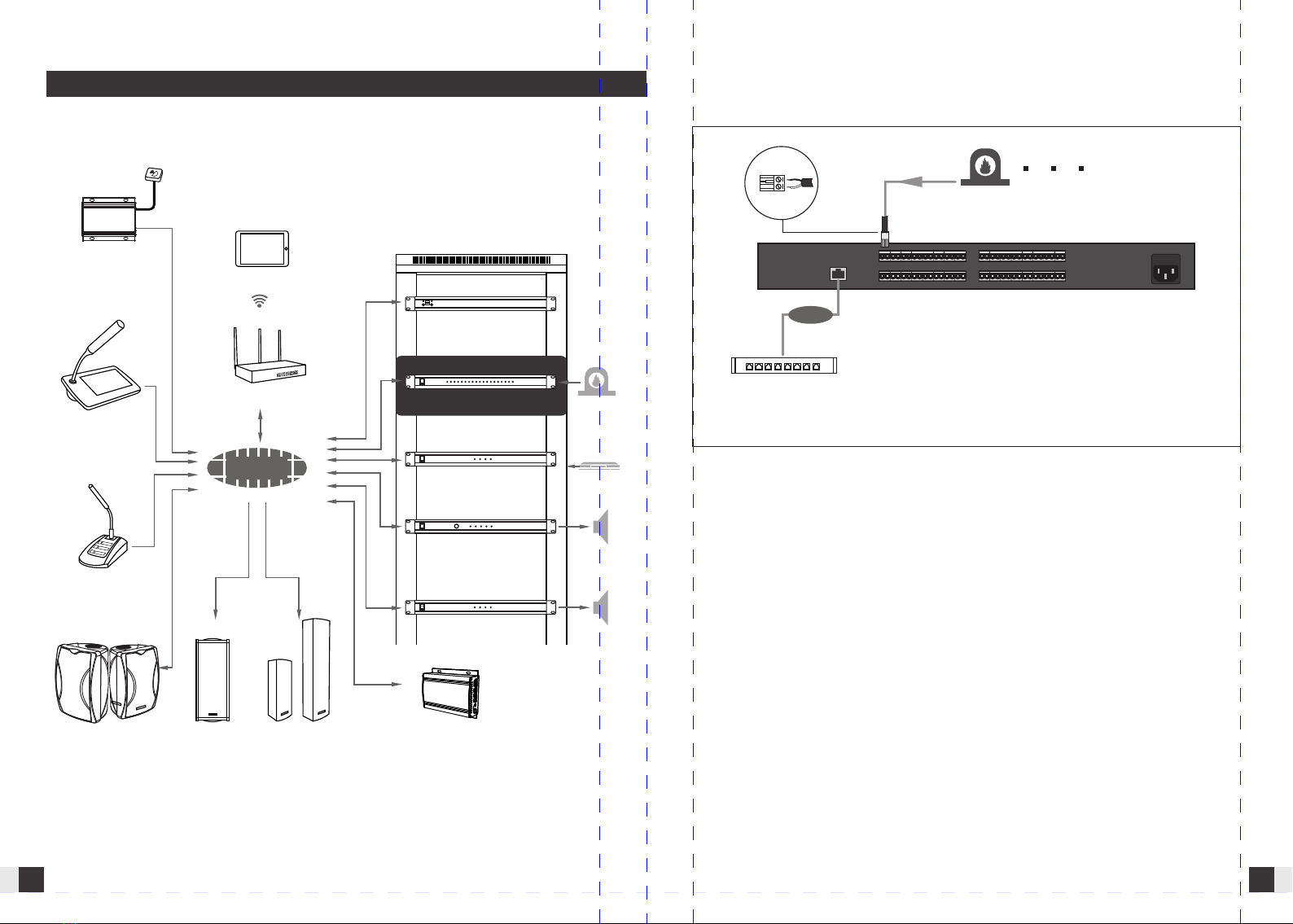

Connection Demonstration
Network switch
LAN
+
-
LAN
Wireless Router
GPS+Beidou time counter
Server (with NS
management software)
iPad Wireless control
1 2 3 4
Network Fire Collector
Network decoding player
(Wall-mounted)
Intelligent paging station
Simple paging platform
Network wall speaker IP interior
column
Waterproof
Column speaker
Network Audio Collector
Internet radio digital
amplifier (can be
equipped with multiple
units）
1 2 3 4
Network decoder player
(can be equipped with
multiple units)
Rack
Connection and installation
System Diagram

Packing list
Component Quantity
1
1
1
Specification
Item
Channels
Way of display
Support agreement
Activate neighbor
Trigger signal level
Protection
Input mode
Power input
Network
（high×Width×Depth） Size
Product Weight
Specification
32
LED
TCP/IP、UDP、ICMP、IGMP（ ）Multicast
Multiple, programmable
5V-24V
AC fuse×1
、12V~24VShort circuit
~220V/50Hz
RJ45（10/100M）
44×430×213mm
2.3kg
5www.dsppa.com

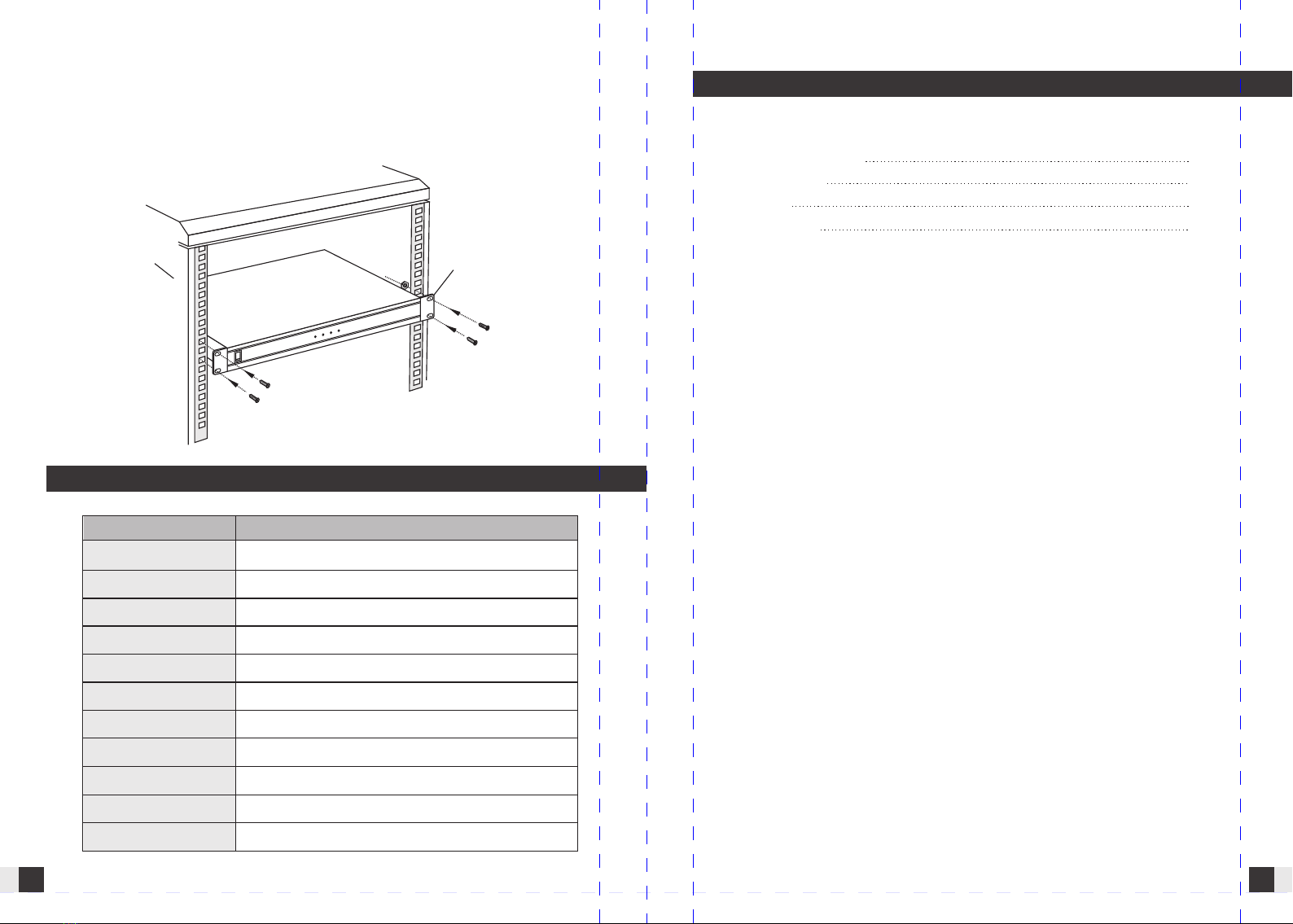

Push the product parallel to the cabinet, so that the mounting holes on both sides
of the product are aligned with the mounting holes on both sides of the cabinet
and fixed with screws. (As shown below)
Instillation
Rack
1234
Install the kit
6
Guangzhou DSPPA Audio Co., Ltd
2
Network fire collectors
Install the control
Power cable
Product Manual
