DTS DTS-6D User manual

i
R
DTS
IGITAL HEATER YSTEMS
DSM
igital ound for the ovies
INSTALLATION AND OPERATION MANUAL
35MM
DTS-6D
Digital Theater Systems
5171 Clareton Drive
Agoura Hills, CA 91301 USA
Phone - 818.706.3525 / 800.959.4109
Fax - 818.706.1868
DTS SA, England
Telephone: [phone]
Fax: [phone]
October 16, 1998

i
EMI NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Canadian Department of Communications compliance statement:
This equipment does not exceed Class A limits per radio noise emissions for digital apparatus set out in the
Radio Interference Regulation of the Canadian Department of Communications. Operation in a residential
area may cause unacceptable interference to radio and TV reception requiring the owner or operator to
take whatever steps are necessary to correct the interference.
Avis de conformite aux normes du ministere des Communications du Canada:
Cet equipment ne depasse pas les limites de Classe A D'emission de bruits radioelectriques pour les
appareils numeriques telles que perscrites par le Reglement sur le brouillage radioelectrique etabli par le
ministere des Communications du Canada. L'exploitation faite en milieu residentiel peut entrainer le
brouillage des receptions radio et television, ce qui olbigerait le proprietaire ou l'operateur a prendre les
dispositions necessaires pour en eliminer les causes.
PATENTS
The DTS system has been granted the following patents:
U.S. Patent Nos. 5155510, 5386255, 5450146, 5751398
Australia Patent Nos. 652965, 661614
Europe Patent Nos. 0551424, 0615631, 0473677, 0632922
Japan Patent Nos. 2033555, 2708961
India Patent No. 181427
Russia Patent No. 2088962
Korea Patent No. 153028
France Patent Nos. 8906807, 9114963
March 9, 1999

ii
WARRANTY INFORMATION
Equipment manufactured by Digital Theater Systems, L.P. is warranted against defects in materials and
workmanship for one year from date of purchase. There are no other express or implied warranties.
Digital Theater Systems, L.P. obligation is restricted to repair and replacement of defective parts. Under
no circumstances will Digital Theater Systems, L.P. be liable for any other damage, either direct or
consequential.
All requests for repairs or information should include the unit serial number to ensure rapid service.
RETURNS
For warranty, repair, exchange or replacement parts, please call DTS at [phone] or USA toll free
1-800-959-4109 for a Return Authorization number before sending any item back to us. At the time of the
call, DTS will require that you provide the serial number of any DTS-6D unit(s) or reader head(s) to be
returned before warranty replacement units will be sent. All return packaging should be clearly marked
with the Return Authorization number on the outside of the package. DTS FAX: [phone].
Please send all returns to:
Digital Theater Systems
5171 Clareton Drive
Agoura Hills, California 91301 USA
PROMOTIONAL MATERIALS
Promotional materials are available from DTS. These items include:
* DTS marquee signs (see order form at the back of this manual)
* DTS one sheets
* DTS logo films, available in scope and flat
* DTS buttons and pins
* DTS T-shirts
* DTS Letterman’s Jackets
* DTS Denim Jackets
* DTS Hats
* DTS Sweatshirts
* DTS Tweekers Call DTS Customer Service or visit our web site for price and ordering informaion.
DTS NEWSLETTERS
The DTS Newsletter is published quarterly. If you would like to be added to the mailing list,
contact DTS Customer Service. The newsletter is also posted on our web site at:
http://www.dtsonline.com

iii
FACTORY WARRANTY INFORMATION
The following is a list of information necessary for every location where the DTS-6D system is installed.
THEATER NAME/CIRCUIT: _________________________________________
THEATER LOCATION: _________________________________________
SCREEN NUMBER: _________________________________________
THEATER CONTACT/TELE #: _________________________________________
LOCAL TECH/TELE #: _________________________________________
TIMECODE READER S#: _________________________________________
DTS-6D SERIAL NUMBER: _________________________________________
PROJECTOR TYPE: _________________________________________
SOUND PROCESSOR: _________________________________________
SOUND AMPLIFIER: _________________________________________
SPEAKER SYSTEM: _________________________________________
Screen (model): _________________________________________________
Surrounds (model): _________________________________________________
Split: Mono: __________________
Subwoofer: Is it self-powered?
Subwoofer Amp (model): _________________________________________________
Are the Left Extra and Right Extra being used for Subwoofer?_____________________
DTS requires the above information to provide proper and timely technical support. Fill page out and send
to DTS (address and FAX number below), attention Customer Service.
***IMPORTANT***
Failure to return this information sheet within 30 days to DTS WILL VOID your warranty.
Digital Theater Systems
5171 Clareton Drive
Agoura Hills, California 91301 USA
Telephone:[phone] or [phone]
FAX:[phone]

iv
RACK-MOUNTED INSTALLATIONS
If this product is installed in a closed or multi-unit rack assembly, the following items must be considered.
1. The ambient temperature within the rack may be greater than room ambient temperature. The
maximum temperature for the equipment in this environment is 50°C. Consideration should be
given to the maximum rated ambient.
2. Installation should be such that the amount of air flow required for safe operation is not
compromised, and that a hazardous condition is not achieved due to uneven loading.
3. Check nameplate ratings to assure there is no overloading of supply circuits that could have an
effect on overcurrent protection and supply wiring.
4. Reliable grounding of this equipment should be maintained. Particular attention should be given to
supply connections when connecting to power strips, rather than direct connections to the branch
circuit.
5. A quality surge / spike suppresser power strip is recommended to protect the DTS-6D processor.
SYSTEM CONSIDERATIONS
A DTS digital playback system can place enormous demands on the amplifiers and speakers in your
theater. Some of the factors that can effect the power requirements are speaker efficiency, room size, and
room acoustics. The following is a guideline of minimum power requirements:
Each
Screen Surround
Theater Size Channels Channel Subwoofer
Small 200 WPC 200 WPC 400 W
Medium 300 WPC 300 WPC 600 W
Large 400 - 500 WPC 400 - 500 WPC +800 W
DTS-6D SYSTEM SPECIFICATIONS
General Six channel configuration: Left, Center, Right, Left Surround, Right Surround,
and Sub bass. Digital output available for DSP cinema processors. Holds three
CD-ROM discs capable of up to five hours play time. Automatic fallback to A-
TYPE, SR, MONO, or NON-SYNC. Provides for picture and sound simultaneous
change-over on two projector systems. Voltage output to reader uses self
resetting circuit breakers instead of fuses.
Frequency Response L, C, R:20 Hz to 20 kHz, LS, RS: 80 Hz to 20 kHz, Sub:20 Hz to 80 Hz
Dynamic Range: 96 dB, all channels
Size: 5 1/4” high, 19” long rack mount, 15 1/2” deep

v
TABLE OF CONTENTS PAGE
I INTRODUCTION ....................................................................................... 1
II UNPACKING .............................................................................................. 2
III INSTALLATION PROCEDURE ................................................................ 3
Timecode Reader Installation ....................................................................... 3
DTS-6D Processor Installation .................................................................... 4
Programming the DTS-6D ............................................................................................ 4
IV CHECKOUT AND ADJUSTMENT PROCEDURE ................................ 9
Setting SPL .................................................................................................... 9
DTS Subwoofer in the Surrounds? ............................................................................... 9
Automatic Default Test ................................................................................. 10
Timecode Reader Adjustment (sync) ............................................................ 12
Fail-safe Check ............................................................................................... 12
V OPERATION .................................................................................................. 14
Movie Discs .................................................................................................... 14
Trailer Discs .................................................................................................... 14
Operating Caddy-less CD-ROM Drives .......................................................... 14
Show time Operation .................................................................................... 16
Change-over Operation .................................................................................. 17
Moving the DTS System ............................................................................... 17
How the DTS-6D Affects other Cinema Processors .................................... 18
VII TROUBLESHOOTING ................................................................................ 19
Inside the DTS-6D ........................................................................................ 19
External Cable Assemblies .......................................................................... 23
External Break-out Boards ........................................................................... 23
Troubleshooting Tips .................................................................................... 27
DTS Technical Support ................................................................................ 28
VIII INSTALLATION DIAGRAMS .................................................................. 29
Timecode Read Head Brackets ..................................................................... 29
Bracket Mounting Diagrams ......................................................................... 30 - 32
Wiring Diagrams ........................................................................................... 33 - 47
Other Helpful Documents ............................................................................. 49 - 66
DTS Timecode Track Specification ............................................................................. 50
DTS Empirical Test Disc ............................................................................................. 51
DTS-6D System Parts List ........................................................................................... 52
Adding the Auxiliary Roller to the Timecode Reader Head ........................................ 53
Dual Projector Theaters ................................................................................................ 54
DTS Marquee Sign Order Form ................................................................................... 55
Logic and Audio board schematics ............................................................................... 56 - 64
Studio Application: D725, Dual input interface board, European studios ................... 65 - 66
Digital Theater Systems *31336 Via Colinas *Suite 101
Westlake Village, California 91362 USA
Telephone: [phone] *FAX [phone]

1
I. INTRODUCTION
The DTS digital sound process for motion pictures is designed for the digital sound release of motion pictures in
6-track theaters. It is a dual system in that the digital audio data is recorded on CD-ROM discs. A special DTS
timecode is printed on the motion picture print along with a conventional stereo optical soundtrack. The
timecode is used by the DTS system to synchronize the sound and picture. The timecode lies between the
picture and optical sound track, and is printed onto the release print from the soundtrack negative. There is a
single inventory of prints.
The DTS-6D system provides left, center, right, split surrounds (or mono surround) and subwoof channels. The
system allows for play times up to 5 hours. They are completely automatic and fail-safe in operation requiring no
action by the projectionist. The systems automatically start and stop, and track film breaks and change-overs.
The digital audio data is sampled at 44.1K samples per second. APTX100 digital audio data compression (4:1)
is used. Transfer into the process can be made from conventionally mixed analog or digital sound masters.
How Does The DTS-6D System Work?
Using DTS timecode printed on the motion picture film, the DTS-6D system (with matching movie discs loaded)
reads the timecode and plays the correct sound for each frame of film projected. The projectionist inserts the
movie disc(s) into the DTS-6D and threads the film though the DTS timecode reader head. Once the film is
started, the DTS system checks a keyed serial number in the timecode and on the movie disc(s) to assure the
correct sound is being played with the movie being shown. Films released in the DTS digital sound format also
contain a traditional analog (optical) sound track (SR, A-TYPE, or MONO) which serves as a back-up sound
source. If a problem occurs in the DTS digital system, the DTS-6D switches out of digital and pulses the cinema
processor to the proper analog sound format. And at the end of the show, the DTS-6D switches the cinema
processor to the NON-SYNC format.

2
II. UNPACKING
The packaging is designed to handle normal shipping and handling. Upon receipt of shipment, check for signs of
damage before opening and report all damage to the carrier. All shipments made from DTS are customer
responsibility once they leave our premises.
Before installation is begun it is suggested that a complete inventory be taken to minimize problems or questions
during installation. Additionally, save all packing material until installation is complete in the unlikely event that
a component(s) requires return to the factory. Use the packing slip that came with your unit to verify received
inventory.
The following is a sample packing list for a single projector (platter) system:
• DTS-6D processor and power cord
• Timecode Reader Head, 35mm, P/N D600
• Reader Head Mounting Bracket
• Timecode Reader Head Interconnect Cable, P/N D435*
• Analog Output Cable, P/N 2503-0014-00** (same part as logic cable)
• Digital Output Cable, P/N D713***
• Logic breakout board (as it applies to your cinema processor)
CP45 uses P/N D716
CP55 uses P/N D565
CP65 uses P/N D564
CP50/CP100/CP200 use one P/N D567 board and one P/N D711 cable
CP500 uses one P/N D715
UltraStereo uses P/N D571
• Audio breakout board (as it applies to your cinema processor)
CP45/CP65 use P/N D574
CP55 uses P/N D572
CP50/CP100/CP200 use two P/N D712 cables (with the D567 board, mentioned above)
CP500 uses the audio output cable only (does not use an audio breakout card)
UltraStereo uses P/N D575
SMART MOD Vprocessors use P/N D714 interface cable (no DTS boards).
SMART MOD VI processors use P/N D706 interface cable (no DTS boards)
• Automation (logic) cable, P/N 2503-0014-00 (same part as analog output cable)
• Installation Hardware
• Manual
• DTS trailer (logo) films, two scope and two flat
NOTES:
*Timecode cable for two projector (change-over) systems should change to a “Y” cable, P/N D435.. Plus, an additional reader
head, mounting bracket, and hardware should be included, and the DTS-6D should be programmed for change-over operation (see
Section 3.2 for DTS-6D programming details).
**Analog output cable, P/N 2503-0014-00, is used with cinema processors capable of discrete multi-channel input: Dolby, Kintek,
Pana-Stereo, RGM, Smart, and UltraStereo JS Series.
***Digital output cable, P/N D713 is available for digital signal processors, models UltraStereo DSP-60S and Cinema Acoustics
CA-CP600.
If any of the items on your packing list cannot be found, contact DTS with the P/N and description of the missing item(s).
Refer to “RETURNS,” page ii, when sending any product back to DTS.

3
III. INSTALLATION PROCEDURE
The DTS-6D system consist of two major components: The DTS Timecode Reader Head and the DTS-6D
processor (player). The following is a generic procedure intended to supplement the processor installation wiring
diagrams for specific manufacturer's sound systems. Look for these diagrams in Section VIII.
3.1 Timecode Reader Head Installation
•The Timecode Reader Head is designed to be mounted onto most projectors with a single mounting
bracket.
•Position the appropriate DTS mounting bracket on the same bolt pattern as the reel arm and bolt securely
in place (see “bracket mounting diagrams,” in Section VIII).
•Install the Timecode Reader Head onto the DTS mounting bracket and bolt into place with supplied
hardware.
•Reinstall the reel arm on the top bolt pattern of the DTS mounting bracket.
•Using some film, align the film path from the reel arm through the DTS reader mounted on a bracket and
to the projector.
•The DTS timecode reader MUST have a straight film path (no angles or twists) and at least a small
amount of tension. The auxiliary flanged roller on the timecode reader head is used to avoid film “walk
out” and helps to stabilize the film. Additional guide rollers may be added to ensure proper film tension -
most critical on platter systems.
•Connect the 9-pin timecode cable and route to the sound processor rack for interconnect with the DTS-
6D processor.
•Two projector (change-over) theaters
Be sure to place each reader head at the same place on the projectors. The offset value must be the
same for the movie to play in sync at both projectors.

4
3.2 DTS-6D Processor Installation
DTS has configured your DTS-6D processor to interface to the cinema processor as indicated on the packing
list. A DTS-6D labeled “generic” will be set for platter (single projector) operation. If the DTS-6D
processor you are about to install did not come from the factory then you will must check an internal
programming jumper.
** Be sure the rear panel AC voltage switch is properly set for your mains AC supply
rating **
Remove the top cover. See Figure 1.
Programming for Two Projector (change-over) Operation
Locate the timecode board D422 (the card with the 9-pin D-connector on the rear panel and LED's on the
front). Near top center of the board there is a 7-position header called “W1”. A shunt is required vertically
over position “0” (farthest right position) if you are installing for change-over operation.
Programming for One Projector (platter) Operation
Locate the timecode board D422 (the card with the 9-pin D-connector on the rear panel and LED's on the
front). Near top center of the board there is a 7-position header called “W1”. No shunt is required for
platter operation. However, a shunt is supplied with each DTS-6D and this shunt should be in the “holding”
position:Placed horizontally across the top row.
Programming Special Functions
The D422 board contains “W1” (7-position header) that can be used for special applications. Unless specified
otherwise, all factory DTS-6D units are programmed for standard theatrical operation -- which means none
of the special functions, listed below, are used.
If a special function is required, use the table below to program the DTS-6D. To enable any of these
applications, place a shunt vertically across the position needed to perform the operation required.
“W1” Position Special Function
0 Change-over (two timecode sources) enable
1SMPTE timecode enable
2 Don’t read user bits (used w/#1 enabled)
2 Nonsync program enable (when #1 not used)
4 Serial output of timecode
After the DTS-6D is programmed, reinstall top cover.

5

6

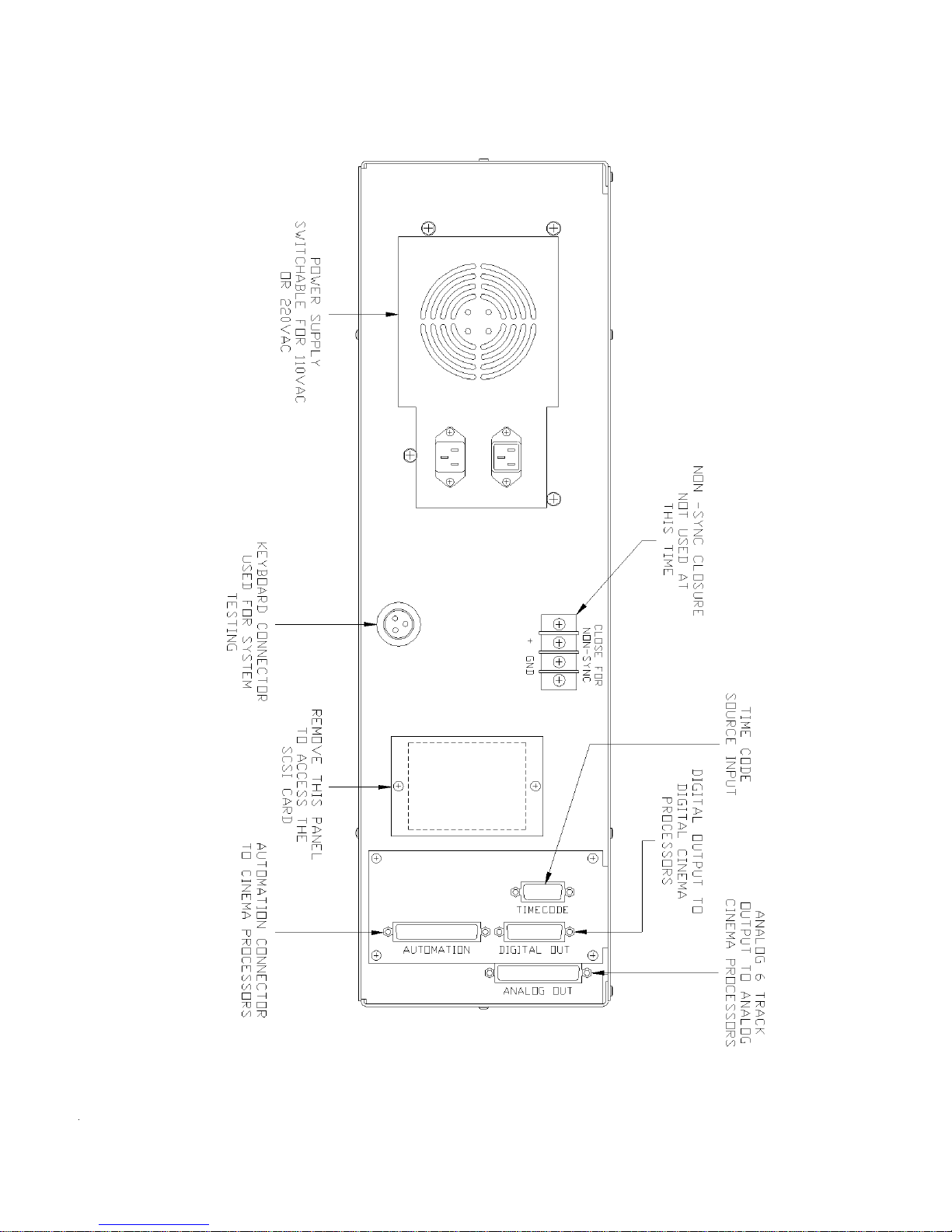

The DTS-6D Processor (player)
•The DTS-6D processor is designed to be integrated into your existing theater sound system without
affecting normal theater operation. All interconnects are standalone. No cuts or jumpers are necessary
on most systems.
•DTS-6D processor requires 5 1/4" tall by 17" deep of 19" wide rack space for proper mounting. Select a
space in the sound rack not more than three feet from the existing cinema processor to be interconnected.
Bolt the DTS processor into the rack. Be sure to observe ventilation requirements specified in the
beginning of this book.
•Check that the DTS-6D front panel power switch is in the OFF position. Check that the rear panel AC
voltage switch is properly set for your main AC supply rating.
•Connect the power cable to the DTS-6D processor. (NOTE: The DTS-6D processor is a computer
based system and as such can be susceptible to power line surges. A quality surge/spike suppresser made
for computers is recommended.
•Connect the 9-pin cable (P/N D435) from the timecode reader head to the back of the DTS-6D
processor.
•Refer to wiring drawings in Section VIII that relates to your specific installation. Connect the analog and
logic cables/cards to your cinema sound processor. If installing to a SMART cinema processor, contact
SMART directly:Telephone (800) 45-SMART. DTS does offer SMART interface cables, for MODV use
D714 and MODVI use D706.
•You may connect the DTS-6D into sound racks that contain digital sound systems from Dolby and Sony.
See Section VIII “Wiring Diagrams” for installation details.
•The DTS-6D uses caddy-less CD-ROM drives. “Caddy-less” means the drive will not accept a CD-ROM
disc in a caddy or case. Instead, you must remove the disc from its case and place it on the CD tray. See
Section V “Caddy-less CD-ROM Drives” for details.
•The DTS-6D has three CD-ROM drives. Drives “A” and “B” should be used for DTS movie discs and
Drive “C” should be used for DTS trailer discs. You may, however, play movie discs in any of the three
drives.

7

8

9
IV. CHECKOUT AND ADJUSTMENT PROCEDURE
A SPL meter and the DTS technician’s kit (not included with the DTS system) are required to complete the
checkout and adjustment procedure. The DTS technician’s kit consists of:
* 6-track SETUP Disc, DS1 Used to adjust DTS-6D levels, check automatic default switching, and verify operation of the drives.
* “Buzz and Bill Show” Disc Used to test the DTS system. Must be dated Feb. 1, 1999 and have SMPTE RP200 standard.
* Demo Film Used with the “Buzz and Bill Show” disc.
* Empirical Test Disc Used to test the theater’s sound system. Must be dated June 7, 1997.
* DTS trimpot tweeker
* DTS T-shirt
4.1 Setting SPL (Sound Pressure Level)
The theater sound processor’s B-chain must be checked and adjusted before the DTS system is installed. Any
changes to the B-chain will effect the output levels on the DTS system.
Introduction
The output levels are factory preset at 250mV rms. This nominal level will insure that speakers will not be
overdriven during the setup procedure. If the DTS-6D processor you are about to install has come from another
installation, be sure to turn down the level trimpots (counter-clockwise) before proceeding to guard against
accidental overdriving of speakers. During the setup procedure, the output levels should be adjusted for correct
SPL levels in the theater.
Subwoofer
The DTS subwoofer output level ranges from 20Hz to 80Hz, up to 27dB above reference (85dB). You must
observe your subwoofer’s specifications to avoid damage to the speaker. If a subwoofer is driven below its
cutoff frequency, its driver(s) may become unloaded. When unloaded, the voice coil can travel outside of the
magnet’s gap, thus overheating or causing mechanical damage to the speaker. A high pass filter should be
installed on those speakers with high cutoff frequencies. Contact your speaker manufacturer for more
information.
• DTS Subwoofer in the Surrounds?
The DTS subwoofer signal is derived by filtering out the surround signals from 80Hz and below. That signal is
put on its own “subwoofer” output on DTS player. You may verify this while EQ-ing a theater. Insert the
DTS Setup disc into the player and play the subwoofer pink noise off the disc. Turn off the subwoofer speaker
and look at the pattern on the RTA. You’ll see a dramatic roll-off at 80Hz. It is normal to hear DTS
subwoofer pink noise, above 80Hz, in the surrounds.

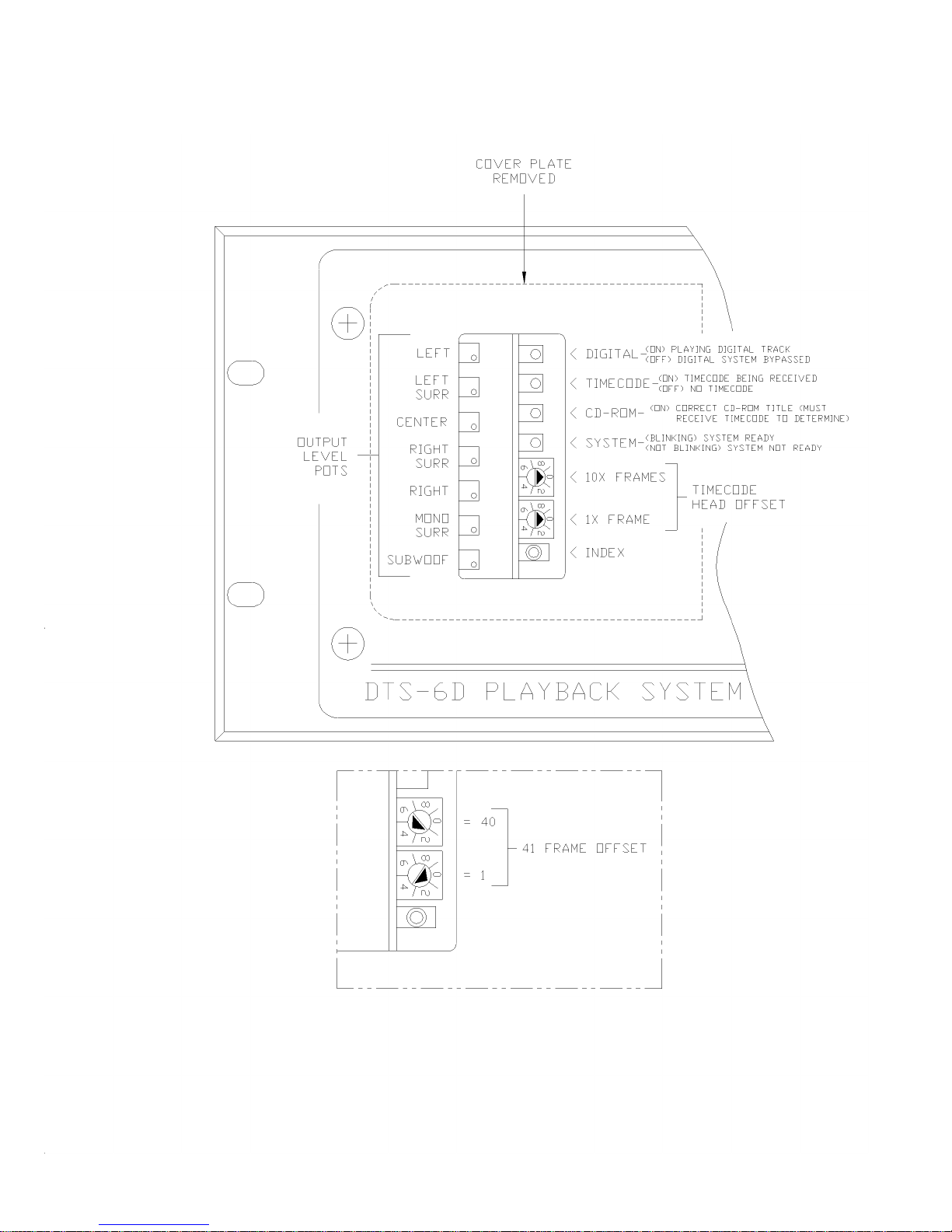

Setting DTS-6D Levels (see Figure 4)
Turn power on and load the SETUP DISC -- use RevC or DS1 to set levels.After a delay of about 40 seconds,
the SYSTEM light will blink. Then the DIGITAL light and the CD-ROM light will illuminate and the cinema
processor will change to digital format. Tone should be heard in the theater.
Open the screen curtains. Go into the theater to make SPL readings in the rear third and just off-center of the
room. Do not simply point the sound pressure level meter out of the port hole window. This will not give
you accurate SPL readings. See the next page for SPL settings.

10
• Adjust the DTS-6D levels
Use the DTS 6-CHANNEL SETUP DISC, REV. DS1. This disc contains the following signals:
Set the DTS-6D for these output levels: SPL
• left channel PINK noise 1:00 85dB
• Left surround PINK noise high passed at 80Hz 1:00 82dB
• Center channel PINK noise 1:00 85dB
• Right surround PINK noise high passed at 80Hz 1:00 82dB
• Right channel PINK noise 1:00 85dB
• Sub Bass channel PINK noise low passed w\DTS filter 1:00 91dB
• PINK noise: Left, Center, Right, Left Surr., Right Surr. 0:04 each
NOTE: SPL readings should be measured unweighted, or C weighted -- slow
February 9, 1999
Remove the black cover by unscrewing the two black Philips screws from the front panel. With ALL power
amplifiers turned on, master fader set to reference position “7” and speakers unmuted, adjust the appropriate
trimpots (see Figure 4) on the DTS-6D processor to achieve the specified SPL noted above.
MONO SURROUND
For those theaters with mono surround only, wait for either the left -or- the right surround PINK noise when
adjusting the MONO SURR trimpot for 82dB SPL in the theater..
Index Switch
A small black momentary push button switch located below the TIMECODE HEAD OFFSET switches (Figure 3). It
is commonly called the “index switch”. This button can be used to increment to the next track being played.
This feature works on the DTS 6-TRACK SET UP discs Rev. C and Rev. DS1 only. On shows of serial number
1009 and higher, the momentary button also bypasses the DTS-6D processor to allow checking of the optical
bypass function.
• Test The Automatic Default Functions
The default programming is now part of the programming on DTS movie discs. Movie discs made after June96
will automatically default to the optical format present on the film. Automatic default is available for MONO, A-
TYPE, or SR format. Also, cinema processors will be pulsed to the NON-SYNC format at the end of a feature
film played in DTS digital sound.
Testing this feature works only with the DTS 6-TRACK SET-UP Rev. DS1 disc. Load the SET-UP disc in the DTS-
6D and stand next to the unit when performing this test. To start, allow the right channel’s pink noise to play in
the theater. Eject the disc by pushing the open/close button on the drive. The cinema processor should pulse to
the mono format. Repeat procedure for the remaining formats as listed:
Pink noise channel Default Format
Left A-type
Surround Non-sync
Center SR
Right Mono

11

12
4.2 Timecode Reader Adjustment. See Figure 5.
•Eject the SETUP DISC and insert the DTS 6-TRACK DEMONSTRATION D-1 disc. Thread the DEMO REEL
through the projector and the DTS reader head.
•The DEMO REEL has a specially printed leader for setting the timecode head offset. Start with the offset
measurement start mark, “00”, at the timecode head’s red LED (inside the lens). Read the number at the
projector’s optical sound head and set the DTS processor TIMECODE HEAD OFFSET switches to this
offset number. The offset number must be between “15” and “70”. If the offset is not within these
parameters, relocate the reader head(s) on the projector(s) until a valid number is achieved.
•If no DEMO REEL is available, delay can be calculated by counting the number of picture frames from the
DTS reader head red LED (lens) to the projector’s picture (“film”) aperture. Multiply the result by 1.25
and subtract one. Set the TIMECODE HEAD OFFSET switches to this number. EXAMPLE:27 frames X
1.25 = 33.75 - 1 = 32.75 offset. Round this number off to the next whole number. So, “33” would be
the offset number.
REMEMBER: When using the counting frame method, frames are counted from the timecode reader lens to
the picture aperture. And, when using the numbered film strip method, thread projector with the “00” at the
timecode reader lens and read the number at the optical sound head (solar cell).
IMPORTANT: Make the same size film loops inside the projector when measuring the offset as when
running a movie. Failure to do so will result in improper sync when the movie runs in DTS digital sound.
•Run the DEMO REEL. The green light on the Timecode Reader Head should light when timecode is
read. The light should be bright and steady.
•Listen test. Go into the theater. Watch and listen to the demo film. Verify the sound sync to picture is
correct. Check the front and back of the theater. If any delay is seen adjust the TIMECODE HEAD OFFSET
switches as necessary to obtain proper sync.
Listen through the entire reel to be sure that no distortion or breakup occurs. If running a change-over
theater, play the demo film a second time through the other projector.
•Check the fail-safe operation.
While the film is running in digital, slip a business card into the timecode reader head, (between the film
and the lens as to block out the timecode from being read) for at least six seconds, while the show is
running. The cinema processor should switch back to the optical format.
There should not be a dramatic level difference between optical and digital sound (in a quiet scene). If
there is, recheck the “B” chain and the DTS-6D level settings.
Remove the business card and verify the cinema processor switches back to digital format within six
seconds.

13

14
V. OPERATION
• Verify DTS Movie Discs
DTS movie discs are issued to theaters from the film’s studio distribution company. Make sure your discs
match the movie (e.g. “Jurassic Park” film with “Jurassic Park” movie discs). If the film and discs don't
match the digital sound track will not play.
Movies running over 90 minutes will have two movie discs: One labeled 6-track A and another labeled 6-
track B. These discs can be inserted into the A & B drives in any order.
Only one movie disc is needed for movies running at/under 90 minutes. These movie discs will be labeled
“one disc only”. You may place the single disc into either the A or B drive.
Any trailers added to DTS movie disc(s) will be listed on the front of the movie disc(s)
Load only ONE movie title disc (or disc set) into the DTS-6D. Never load two or more movie titles into
one DTS-6D. If running a double feature, change movie discs (to second feature) and cycle power on the
DTS-6D.
• DTS Trailer Discs
DTS trailer discs are issued to theaters from DTS. DTS trailer discs should reside in the C drive until a
new trailer disc is received. Trailer titles contained on the disc are listed on the disc. If you have a DTS
encoded trailer not listed, then your trailer will not play in DTS digital sound, but it will play in analog. To
verify you have the latest trailer disc, contact DTS Customer Service.
• Why Three CD-ROM Drives?
Three CD-ROM drives expand the digital play time to 5 hours. Generally, DTS movie discs should be
loaded into drives A and B, and the DTS trailer disc should be loaded into the C drive. Movie discs should
reside in the A drive and/or B drive until the matching DTS formatted feature film is removed.
• Caddy-less CD-ROM Drives (see Figure 6)
This DTS-6D unit uses caddy-less CD-ROM drives. “Caddy-less” means the drive will not accept a CD-
ROM disc in a caddy. Instead, you must remove the disc from its case and place it on the CD tray.
To load a movie disc, open the drive’s CD tray. Power on the DTS-6D unit. Press the open/close button on
the drive to slide out the CD tray. Remove any disc left in the tray. Remove the movie disc from the CD
caddy (see diagram below) and place it on the tray. The disc must lay printed side up and flat in the tray.
To slide the tray back into the drive, press the open/close button or gently push the drawer in. While the
DTS-6D is playing in digital, do not press the drive’s buttons as it will cause an interruption in sound and
reset the DTS system.
Use only DTS discs. Music CDs will not work in the DTS-6D unit.
