Dual XDM6400 Operating instructions

XDM6400
INSTALLATION/OWNER'S MANUAL
AM/FM/CD/MP3/WMAlU5B/3.5mm/Bluetooth® Ready Receiver with Detachable Face
diOse
OIGITAL AUDIO
•• PI~
_.
Windows
1M Media'"
AUX
Front Panellnpui
Bluetooth
REA DY

[II XDM6400 INSTALLATION
Preparation
PLease read entire manuaL before instaLLation.
Before You Start
•Disconnect negative battery terminal. Consult aquaLified technician for instructions.
•Avoid installing the unit where it would
be subject to high temperatures. such as from
direct sunlight.
or where it would be subject to dust. dirt or excessive vibration.
Getting Started
•Remove
trim ring from unit.
•Remove 2transit screws
Located
on top of the unit.
•Insert the supplied keys into the
sLots as shown. and sLide the unit
out of the mounting sleeve.
•Install mounting
sLeeve into
opening. bending tabs
to secure.
•Connect
wiring harness and
antenna. Consult aqualified
.technician
if you are unsure.
•Certain vehicles may require an
installation kit and/or wiring
harness adapter
(soLd separateLy).
•Test for correct operation and slide
KEYS
into mounting sleeve to secure.
•Snap
trim ring into place.
MOUNTING SLEEVE
MOUNTING STRAP
HEX BOLT
HEX NUT
~-- PLAIN WASHER
TYPICAL FRONT-LOAD DIN MOUNTING METHOD
2

XDM6400 INSTALLATION •
Wiring Diagram
Antenna Connector
BLACK a-pin Female Mini-DIN
BTM60 Connection (sold separately)
GRAY I Rear Preamp Output
Connect to amplifier input.
BLUE I Remote Tum-On
Connect to amplifier or power
antenna. Insulate
wire if not used.
BLACK I Ground
Connect to vehicle
chassis ground.
REDI Accessory ~
Connect to existing ignition
circuit
or switched 12 volt source.
Right Front
Gray/Black (-)
Gray (+)
Left Front
White/Black (-)
White(+)
0-
YELLOW I Memory
Connect to battery
circuit
or constant 12 volt source.
Right Rear
Violet/Black (-)
Violet (+)
Left Rear
Green/Black (-)
Green (+)
FUSE
When replacing the fuse.
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The
XDM6400 uses one
10 amp ATM fuse located
beside the wiring connector.
3

.. XDM6400 OPERATION
Control Locations - Receiver
CD
Release @Preset 6/Folder Up
CD
Eject @Preset 5/Folder Down
CD
Mode/Search @Preset 4
CD
Volume/Audio/Setup @Preset 3/lntro
CD
TunelTrack Up
@Preset 2/Random
CD
Talk/Redial @Preset l/Repeat
(j) EQ/Key 9®Auto Store/Preset Scan/Enter/Key #
CD
Key 0@ Ba nd/Play/Pause/Key *
CD
USB Port (Covered) @Display
@Auxiliary Input @Mute/End Call
@Tuner Scan/Key 8@TunelTrack Down
@Key 7@Power
The XDM6400 allows playback of your favorite MP3 and WMA files recorded on CD-R and
CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while
maintaining near-CD sound quality.
An internal SRAM buffer provides ESP (Electronic
Skip Protection) to virtually eliminate skipping and allows alphanumeric or direct track
search -even while asong is currently playing!
Function keys
7. 8. 9and 0apply to Bluetooth and MP3/WMA operation only.
4

XDM6400 OPERATION g'
,---,----------
General Operation
Faceplate Removal
Semi-Permanent
Faceplate Installation
Power OnlOff
Mode
Auxiliary Input
Volume
Programmable
Tum-On Volume
Mute
Preset
EQ Curves
Reset
Display
Press RELEASE and pull away from the left side to remove.
To re-install. insert right side of faceplate first then push
left side to secure.
Remove
trim ring and install supplied #1 x7/32" Phillips
head screw through left side of mounting frame into faceplate.
Press
POWER or any other button (except eject) to turn the
unit on. Inserting adisc
will turn the unit on automatically.
Press
POWER to turn the unit off.
Press
MODE to select between AM/FM. CD player. auxiliary
input.
USB and Bluetooth (optional). Modes of operation are
indicated in the display.
NOTE: CD and Bluetooth modes will not appear unless a CD
is inserted or BTM60 (Bluetooth module -sold separately) is
attached.
Insert 3.5
mm plug to connect your portable audio device.
Adjust volume using rotary encoder (00-46).
Press and hold
POWER for 3seconds to program currently
selected volume level. "P-VOL" and the current volume level
will momentarily appear in the display.
Press
MUTE to silence the audio. "MUTE" will flash in the
display. Press
MUTE again to cancel.
Press
EQ to select between POP. JAZZ. CLASSIC. BEAT.
ROCK and OFF (default) equalization curves. Any adjustment
to the Bass
or Treble settings automatically cancels the
current
EQ curve (if one is selected).
Press to
RESET the unit upon initial installation or if
abnormal operation occurs.
The reset button is located
behind the faceplate.
Press DISP to select between clock and different types of
information. such as radio frequency.
CD track/elapsed time.
or MP3/WMAlUSB song information.
5

•• XDM6400 OPERATION
General Operation
Set the Clock !With the unit on. press and hold DISP until the clock begins to
Iflash. then release. Press TUNE .......... to adjust the hours and
ITUNE ~~ to adjust the minutes. Press DISP momentarily to
Isave the selected time.
I
12124-hour Clock! The clock will display 12-hour AM/PM time in USA frequency
Ispacing mode (PM 10:00). In European frequency spacing
Imode. the clock will display 24-hour time (22:00).
I
Setup Menu IPress and hold the rotary encoder for more than 3seconds to
I
!access the setup menu. Press the rotary encoder momentarily
I to select between the menu functions and rotate the rotary
encoder left/right to adjust or activate the desired function.
Setup Menu
~~!'N~U;i~~~iU 17'*~QP~~~H#; Df~;r~;::~'~~~i:.~i:·:j~p:~~1,rf~~~~~1~:~j;~~';;f~~rf::t~~
Loudness Curve lOUD OFF
Disables the loudness function.
lOUD
ON
Enables the loudness function. Activating this feature
will enhance the bass and treble frequencies when
listening to music at low volumes.
Tuner Frequency
FREQ USA Programs the unit to USA tuner spacing.
Spacing (200kHz for
FM and 10kHz for AM)
FREQ EUR Programs the unit to European tuner spacing.
(50kHz for
FM and 9kHz for AM)
Clock Display ClK OFF
Programs the unit to not display the clock when the
power is off.
ClKON Programs the unit to display the clock when the power
is off.
Auxiliary Input AUXON Enables the front panel 3.5mm auxiliary input.
AUX OFF Disables the auxiliary input.
Beep
BEEP OFF Disables the confirmation beep.
Confirmation
BEEP ON Enables the confirmation beep.
LocaVDistance lOC
OFF Activates distance tuning.
Tuning
lOCON
Activates local tuning for strong station reception only.
Power on
MSG OFF Disables power on message.
Message
MSG ON Enables power on message to be displayed.
Demonstration
DEMO ON Enables the "BT READY"
message.
Mode
DEMO OFF Disables the demonstration mode.
6

XDM6400 OPERATION ..
General Operation
Audio Press rotary encoder momentarily to select between
Volume (default). Bass. Treble. Balance. &Fader.
rVOLUME ~BASS~TREBLE""BALANCE""FADERJ
Bass Press rotary encoder until BAS appears then rotate encoder
left/right to adjust ( -6 minimum /+6 maximum).
Treble Press rotary encoder until
TRE appears then rotate encoder
left/right to adjust (-6
minimum /+6 maximum).
Balance Press rotary encoder until BAL appears then rotate encoder
left/right to adjust (BAL L12-BAL
OO-BAL R 12).
BAL 00 represents equal balance
Fader Press rotary encoder until
FAD appears then rotate encoder
left/right to adjust (FAD F12-FAD DO-FAD R 12).
FAD 00 represents equal fader
Source Audio Memory Individual Bass and Treble settings are retained in memory
for
AM. FM. CD. AUX. USB and Bluetooth modes. This allows
you to save the Bass and Treble settings separately for each
mode.
Note:
Any adjustment to the Bass
or Treble settings automatically
cancels the current EQ curve (if one is selected).
7

•• XDM6400 OPERATION

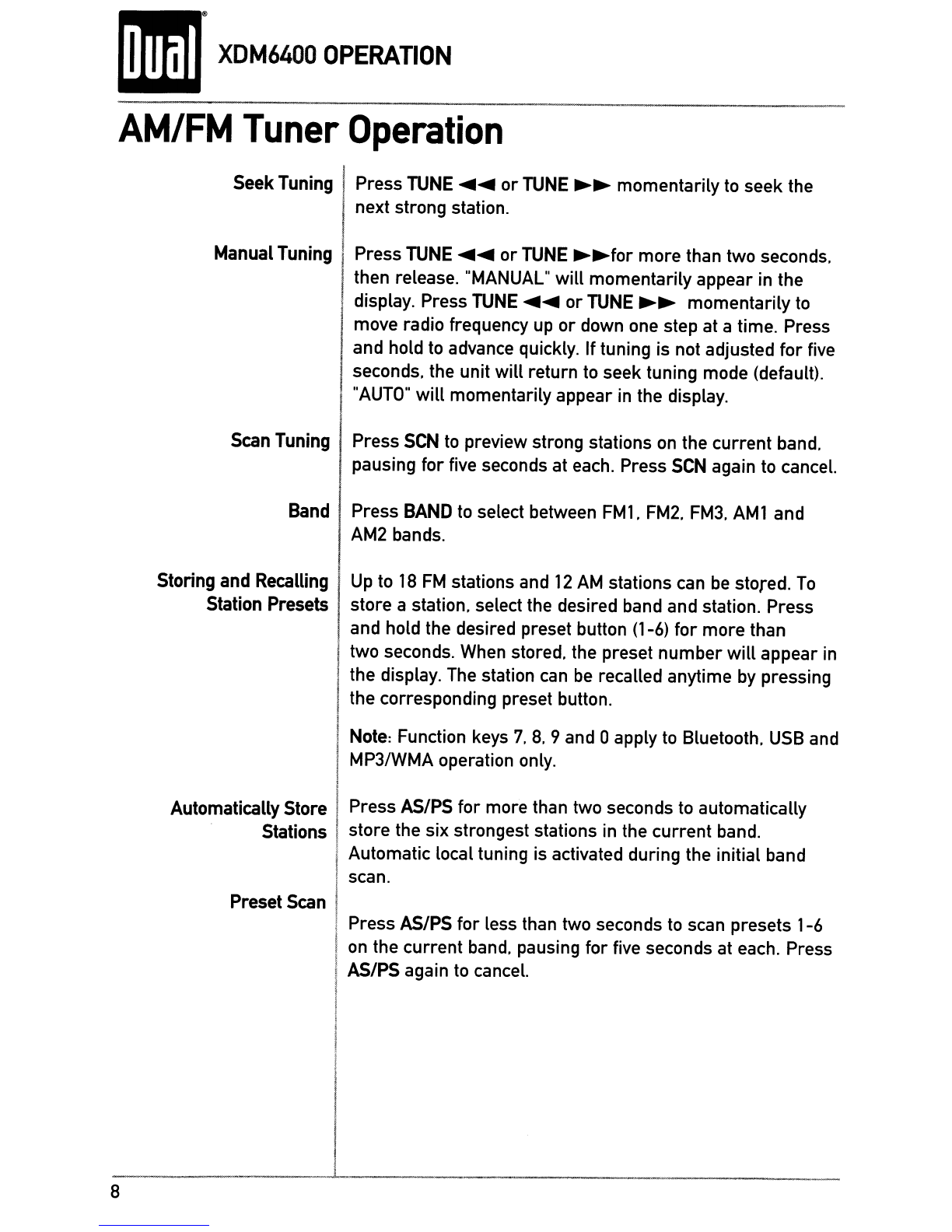

AM/FM Tuner Operation
Seek Tuning
Manual Tuning
Scan Tuning
Band
Storing and Recalling
Station Presets
Press
TUNE ~~ or TUNE ~~ momentarily to seek the
next strong station.
Press TUNE
~~ or TUNE ~~for more than two seconds.
then release. "MANUAL"
will momentarily appear in the
display. Press
TUNE ~~ or TUNE ~~ momentarily to
move radio frequency up or down one step at atime. Press
and hold
to advance quickly. If tuning is not adjusted for five
seconds. the unit
will return to seek tuning mode (default).
"AUTO" will momentarily appear in the display.
Press
SCN to preview strong stations on the current band.
pausing for five seconds at each. Press
SCN again to cancel.
Press BAND
to select between FM1. FM2. FM3. AM1 and
AM2 bands.
Up to 18 FM stations and 12 AM stations can be stored. To
store astation. select the desired band and station. Press
and hold the desired preset button (1-6) for more than
two seconds. When stored. the preset number
will appear in
the display. The station can be recalled anytime by pressing
the corresponding preset button.
Note: Function keys
7. 8. 9and 0apply to Bluetooth. USB and
MP3/WMA operation only.
AutomaticaLLy Store Press AS/PS for more than two seconds
to automatically
Stations store the six strongest stations in the current band.
Automatic local tuning is activated during the initial band
scan.
Preset Scan IPress AS/PS for less than two seconds to scan presets 1-6
'Ion the current band. pausing for five seconds at each. Press
AS/PS again
to cancel.
8

XDM6400 OPERATION ..
CD Player Operation
Insert co With the label facing up. insert astandard size CD into the
CD slot. The CD will automatically begin playback.
Eject
CD Press EJECT to eject the CD. The unit will change to
previous mode of operation (tuner.
AUX. USB or Bluetooth).
If the disc is not removed within
10 seconds. the unit will
reload the disc. The unit does not have to be turned on to
eject
CD.
Track Select Press TRACK ~~ to skip to the beginning of the next
track. Press
TRACK ~~ to return to the beginning of the
current track. Pressing
TRACK ~~ again skips to the
beginning of the previous track.
Fast Forward and Reverse Press and hold
TRACK ~~ or TRACK ~~ to fast forward
or reverse atrack.
Pause Press
~/II to temporarily stop CD playback.
Press
~/II again to resume playback.
Scan Press INT to play the first
10 seconds of each track.
Press INT again to cancel.
Repeat Press
RPT to continuously repeat selected track.
Press
RPT again to cancel.
Random Press
ROM to play all tracks in random order. Press ROM
again to cancel. Random mode is retained in memory
when selecting between tuner.
CD. AUX. USB and Bluetooth
modes and when the unit is turned on/off.
Some CD-Rs and CD-RWs may
be incompatible with this
CO-R1CO-RW Compatibility unit. depending on media type and recording method. In
addition. the following CDs may be incompatible with this
unit:
CDs exposed to extreme temperatures or direct sunlight
for extended periods of time.
CDs recorded in which a
recording session failed
or are-recording was attempted
and.
or encrypted or copy-protected CDs which do not
conform
to the audio CD-DA red book recording standard.
9

.. XDM6400 OPERATION
CD Player Operation - MP3/WMA Files
Playing an MPJ/WMA Disc When an MP3/WMA encoded disc is first inserted.
"READING" will appear in the display. Depending on the
number of files and folders. this may take several seconds.
Displaying Information Press
DISP to select between track number/elapsed time
(default), clock. track name. directory name. title. artist and
album.
"NO 103 TAG" will be displayed if the MP3 file contains no
103 tag information.
"UNKNOWN" wilt
be displayed if the WMA file contains no
WMA tag information.
"Roor will be displayed if the directory name of aroot
folder is not labeled.
Title Icon
[!] This icon will illuminate when the song title is displayed.
Artist Icon
~ This icon will illuminate when the artist name is displayed.
Album Icon
~ This icon will illuminate when the album name is displayed.
Folder
Icon" This icon will illuminate when the folder name is displayed.
Character Support Maximum character display information
•Track name -
32 character maximum
•Directory name -
23 character maximum
•*50ng title -
30 character maximum
•*Artist name -
30 character maximum
•*Album name -
30 character maximum
*50ng title. Artist Name. and Album name.
will only be
displayed if included with the MP3/WMA file.
When referring
to MP3/WMA playback. the following terms
are synonymous:
•File name and track name
•Folder name and directory name
10

XDM6400 OPERATION ..
CD Player Operation - MP3/WMA Files
Refer to the following button function table when selecting. searching or
navigating MP3IWMA files and folders:
Button
SEARCH
Preset #1
Preset #2
Preset #3
Preset #4
Preset #5
Preset #6
Key #7
Key #8
Key #9
Key #0
Rotary Encoder (push)
Rotary Encoder (rotate)
MUTE
Direct Select. Search and
Navigate Modes
Direct File Select
Step 1
Step 2
Function
Direct Select. Search and Navigate Modes
Enter/Confirm
A. B. C. 1
D. E. F. 2
G. H. I. 3
J. K. L. 4
M. N. O. 5
P. Q. R. 6
S.T.U.7
V. W.X.8
Y. Z. /.9
-. _. +. 0
Character Shift
Character Select
(A. B. C - 8. 9. 0)
Character Backspace
Press
SEARCH for more than 3seconds. to select between
the following modes:
•Direct File Select
•Alphanumeric File
or Folder Search
•File
or Folder Navigate
Press
SEARCH for more than 3seconds. then release.
"MP3
T*" or "WMA T*" will flash in the display. Use the
buttons in the above table
(3 keystroke maximum input).
or the rotary encoder to enter the desired file number.
Press
[~) to confirm the selected file number or wait for
the input cycle to time out (approximately 5seconds).
If the file is not available.
"NO FILE" will be displayed
momentarily and the current file
will continue to play.
11

.. XDM6400 OPERATION
CD Player Operation - MP3/WMA Files
12
Alphanumeric File
or FolderSearch
Step 1
Step 2
Step 3
Step 4
Step 5
File/Folder Navigate
Step 1
Step 2
Step 3
I
Step 4
·FolderAccess
(Up one level)
Press
SEARCH for more than 3seconds. then release.
Press
SEARCH again. an "*" will flash in the display.
Use the buttons in the table on page 12 (32 character
maximum input)
or the rotary encoder to enter the desired
alphanumeric search characters. Press
MUTE to advance
one character to the right.
Press (
... ) to initiate the selected alphanumeric search.
Turn the rotary encoder
to preview the search results.
If the search returns afolder.
the" icon will illuminate.
Press (
... )to select the desired file or folder. If afolder is
selected. ",,"
will be displayed. Turn the rotary encoder to
the right to begin searching files in the folder.
Press (
... ) to select the desired file within the folder.
Note:
If the file is not available.
"NO FILE" will be displayed
momentarily and the current file
will continue to play.
Press
SEARCH for more than 3seconds. then release.
Press
SEARCH again two times to navigate files/folders
on the disc. The current folder name will scroll one time
followed
by available files and folders.
Turn the rotary encoder
to preview files/folders in the
current folder. If afolder is selected.
the,. icon will
illuminate.
Press (
... ) to select the desired file or folder. If afolder is
selected. "//"
will be displayed. Turn the rotary encoder to
the right to begin searching files in the folder.
Press (
... ) to select the desired file within the folder.
When navigating folders (and
"/ tis displayed). press MUTE
to access the previous level (up one level).
*Only available
on MP3/WMA discs recorded with more
than one folder.

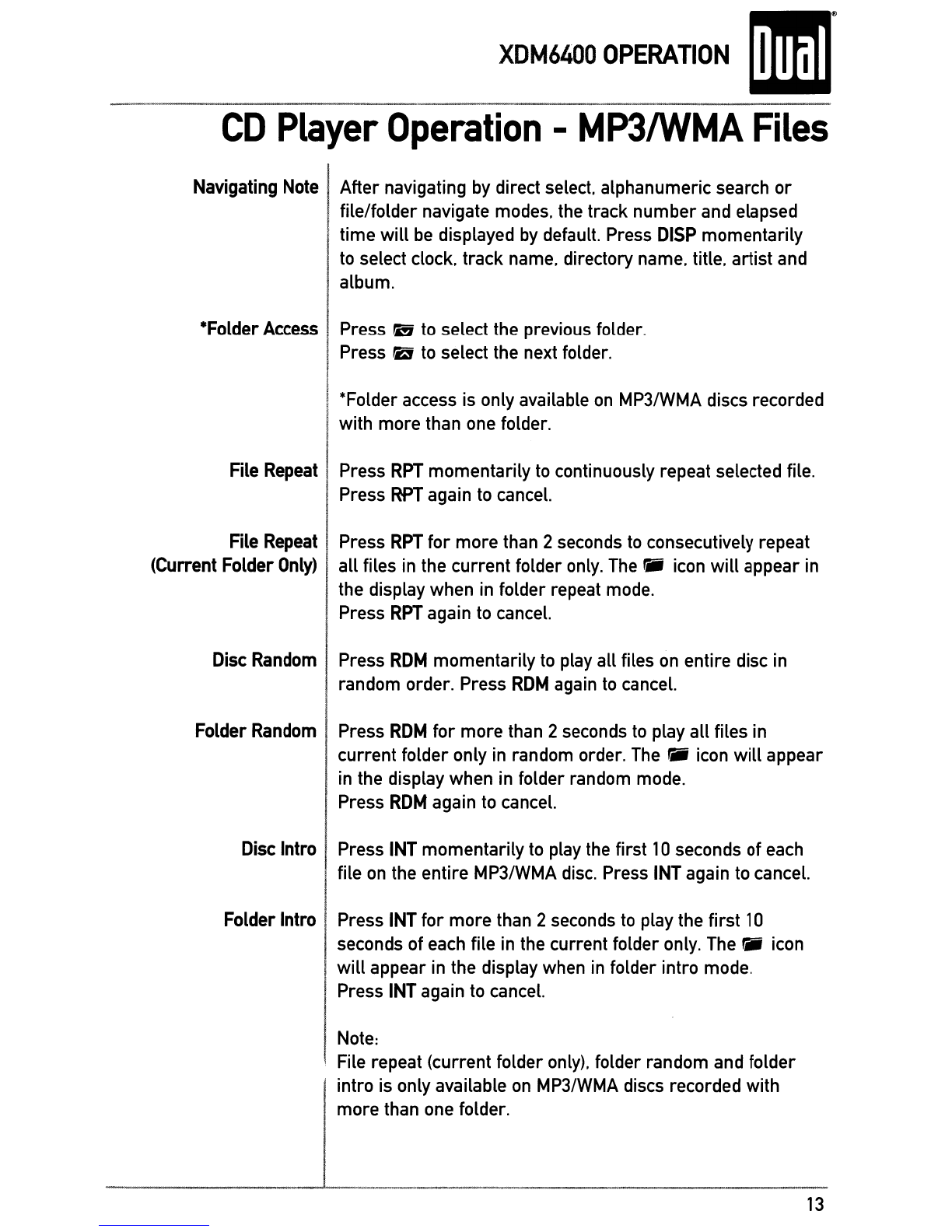

XDM6400 OPERATION ..
CD Player Operation - MP3/WMA Files
Navigating Note After navigating by direct select. alphanumeric search or
file/folder navigate modes. the track number and elapsed
time
will be displayed by default. Press OISP momentarily
to select clock. track name. directory name. title. artist and
album.
*FolderAccess Press 6 to select the previous folder.
Press &
to select the next folder.
*Folder access is only available
on MP3/WMA discs recorded
with more than one folder.
File Repeat Press RPT momentarily to continuously repeat selected file.
Press
RPT again to cancel.
File
Repeat Press RPT for more than 2seconds to consecutively repeat
(Current Folder
Only) all files in the current folder only. The 'iii icon will appear in
the display when in folder repeat mode.
Press
RPT again to cancel.
Disc Random Press
ROM momentarily to play all files on entire disc in
random order. Press
ROM again to cancel.
Folder Random Press
ROM for more than 2seconds to play all files in
current folder only in random order. The 'iii icon will appear
in the display when in folder random mode.
Press
ROM again to cancel.
Disc Intro Press INT momentarily
to play the first 10 seconds of each
file
on the entire MP3/WMA disc. Press INT again to cancel.
Folder Intro Press INT for more than 2seconds
to play the first 10
seconds of each file in the current folder only. The 'iii icon
will appear in the display when in folder intro mode.
Press INT again to cancel.
Note:
File repeat (current folder only). folder random and folder
intro is only available
on MP3/WMA discs recorded with
more than one folder.
13

•• XDM6400 OPERATION
CD Player Operation - MP3/WMA Files
Media Compatibility The foLLowing types of discs/fiLes are compatibLe:
• CD-ROM (ISO), CD-R. CD-RW
• CD-DA
• MP3 data
• WMA data
The foLLowing types of discs/files are not compatibLe:
• WMA fiLes that are protected by DRM (DigitaL Rights
Management).
•
WMA LossLess format
•Discs recorded with Track
At Once or packet writing
• M
P3 PRO format
•
MP3 pLayLists
• WAY format
14
Playback Order
CompatibLe Recording
Formats
MP3IWMA pLayback sequence is based on recorded order
of
fiLes and begins in the root folder of the disc. Any empty
foLders or foLders that do not include MP3/WMA files are
skipped. This unit may not
pLay fiLes in the order they were
recorded
in. Refer to your recording software's user's
manuaL for more information.
•
1509660 LeveL 1
•
1509660 LeveL 2
•
YeLLow Book MODE 1
•
YeLLow Book MODE 2 FORM 1
•Multi session
•Maximum
foLders and fiLes - 256
•Maximum folder leveLs - 8
•
MPEG-11212.5 Audio Layer-3
1509660 standards:
•Maximum nested
foLder depth is 8(including the root
foLder).
• VaLid characters for foLder/fiLe names are letters A-Z
(aLL caps), numbers 0-9, and "_" (underscore). Some
characters may
not be displayed correctly, depending on
the character type.
•This device can pLay back discs in Joliet. Romeo, and other
standards that conform
to 1509660. MP3IWMA written in the
formats other than the above may not pLay and/or their fiLe
names or foLder names may not be dispLayed properLy.

XDM6400 OPERATION .'
CD Player Operation - MP3/WMA Files
Additional MP3/WMA
Information
Sampling Frequency Rates
MP3
WMA
Transfer Bit rates
MP3
WMA
An internal buffer provides ESP (Electronic Skip Protection) to
virtually eliminate skipping.
When playing adisc recorded with regular audio files
(CO-OA or .WAV) and MP3IWMA files. the unit will play the
MP3/WMA files only.
Only
MP3 files with filename extension (.mp3) can be played.
Only
WMA files with filename extension (.wma) can be played.
Do not attempt to play discs which contain non-MP3/WMA
files with the MP3/WMA extension.
8kHz -48kHz
32kHz -48kHz
8kbps -320kbps constant
Variable bit rates
32kbps -192kbps constant
Variable bit rates
Note:
Some files may not play
or be displayed correctly.
depending
on sampling rates and bit rates.
MP3 Tag Display 103 tags Version 1.x
This model
will not display 103 Version 2.0 or greater tags.
Recommended Settings For best results. use the following settings when burning
an
MP3 disc:
128kbps
or higher constant bit rate
44.1 kHz or higher sampling frequency
For best results. use the following settings when burning a
WMA disc:
64kbps
or higher constant bit rate
32kHz
or higher sampling frequency
15

• XDM6400 OPERATION
USB Operation - MP3/WMA Files (Optional)
Connecting a USB Device
(sold separately)
Playing Music
Displaying Information
Play MP3/WMA files from most mass storage devices
by
connecting them to the XDM6400's USB port. To connect a
USB device. lift the protective cover to expose the USB port.
Line up the connectors. and insert the
USB device into the
port. The USB icon will appear in the display.
When a
USB device is first connected. press MODE to
access USB mode. "READING" will appear momentarily in
the display. Depending
on the number of files and folders.
this may take several seconds. If
no valid MP3/WMA files
are detected. "NO FILE" will be displayed and the last mode
will be resumed.
Press DISP to select between elapsed time (default). track
number. clock. track name. directory name. title. artist and
album.
Title Icon
"NO TITLE" will be displayed if no song title information is
available.
"NO ARTIST" will be displayed if no artist information is
available.
"NO ALBUM" will be displayed if no album information is
available.
This icon
will illuminate when the song title is displayed.
Artist Icon
~ This icon will illuminate when the artist name is displayed.
Album Icon ~ This icon will illuminate when the album name is displayed.
Folder Icon
,. IThis icon will illuminate when the folder name is displayed.
Character Support Maximum character display information
•Track name -
32 character maximum
•Directory name -
32 character maximum
•*Song title - 32 character maximum
•*Artist name -
32 character maximum
•*Album name - 32 character maximum
*Song title. artist name and album name will only be
displayed if included with the MP3/WMA file.
16

XDM6400 OPERATION .'
USB Operation - MP3/WMA Files (Optional)
File Navigation Press SEARCH for more than three seconds. then release.
"T*" will appear in the display. Use the rotary encoder to
select the desired track number and pressI....) to confirm.
Oirect File
Seled Press SEARCH for more than three seconds. then release.
'T*"
will appear in the display. Use the number buttons (0-
9) or the rotary encoder to enter the desired file number.
Press I....)
to confirm or wait for the input cycle to time out
(approximately five seconds). Ifthe file is not available.
"NO
FILE" will be displayed momentarily and the current file will
continue to play.
*Folder Access Note:
When afile is accessed. the elapsed time will be
displayed. Press OISP momentarily to select track number.
clock. track name. directory name. title. artist or album.
Press
~ to select the previous folder.
Press D
to select the next folder.
*Folder access is only available
on USB devices with more
than
one folder.
Press
RPT momentarily to continuously repeat selected file.
Press
RPT again to cancel.
Press
RPT for more than two seconds to consecutively
repeat all files in the current folder only.
The /iii icon will
appear in the display. Press RPT again to cancel.
Random IPress
ROM for more than two seconds to play all files on
entire USB device in random order. Press ROM again to
cancel.
File Repeat I
File Repeat
(Current Folder Only)
Folder Random I
I
Press ROM momentarily to play all files in current folder
only in random order.
The" icon will appear in the display.
Press
ROM again to cancel.
17

.. XDM6400 OPERATION
USB Operation - MP3/WMA Files (Optional)
Intro Press INT momentarily to play the first 10 seconds of each
file on the entire USB device. Press INT again to cancel.
Folder Intro Press INT for more than two seconds to play the first
10
seconds of each file in the current folder only. The" icon
will appear in the display. Press INT again to cancel.
Note: File repeat (current folder only), folder random and
folder intro are only available
on USB devices with more
than one folder.
Track Select Press
TRACK ~~ to skip to the beginning of the next
track. Press
TRACK ........ to return to the beginning of the
current track. Pressing
TRACK........ again skips to the
beginning of the previous track.
Fast Forward and Reverse Press and hold
TRACK ~~ or TRACK........ to fast
forward
or reverse atrack.
Pause Press
~/II to temporarily stop USB playback.
Press ~/II again to resume playback.
Media Compatibility The following types of files are compatible:
• MP3 data
•WMA data
The following types of files are not compatible:
•WMA files that are protected
by DRM (Digital Rights
Management).
•WMA lossless format
•
MP3 PRO format
•
MP3 playlists
•
WAY format
Playback Order MP3/WMA playback sequence is based
on order the files
are copied to the
USB device and begins in the root folder.
Any empty folders
or folders that do not include MP31
WMA files are skipped. Depending on your software. the
playback order may vary.
18

XDM6400 OPERATION •
USB Operation - MP3/WMA Files (Optional)
Playback Capacity •Maximum number of files: 48896
•Maximum number of folders: 127 plus the root directory
•Maximum number of files in each folder and root:
382
•Maximum number of folder levels (sub folders): 8
(7 levels plus the root)
Note: If the number of files/folders exceeds the maximum
outlined above. the additional files/folders will be ignored.
Additional MP3/WMA
Information Only
MP3 files with filename extension (.mp3) can be played.
Only
WMA files with filename extension (.wma) can be played.
00 not attempt to play non-MP3/WMA files with the MP3/
WMA extension.
Sampling Frequency
Rates
MP3 8kHz -48kHz
WMA 32kHz -48kHz
Transfer Bit rates
MP3 8kbps -320kbps constant
Variable bit rates
WMA 32kbps -192kbps constant
Variable bit rates
Note:
Some files may not play
or be displayed correctly.
depending
on sampling rates and bit rates.
MP3 Tag Display 103 tags Version 1.x
This model will not display 103 Version 2.0 or greater tags.
Note: If
an invalid 103 tag version is detected. "NO SUPPORT"
will scroll on the display.
USB Charging Charge acell phone. portable MP3 player or other device
through the unit's
USB port.
Note: The unit does not need to
be in USB mode in order to
_________ I-I __ Charge: it can charge from any mode.
19

.. XDM6400 OPERATION
Bluetooth® Operation (Optional)
Overview
Connecting aBluetooth device requires first connecting the Dual BTM60 module (sold
separately). When connected to aDual Bluetooth Ready head unit. the
BTM60 supports
the
HFP (hands-free profile), A2DP (advanced audio distribution profile) and AVRCP (audio
video remote control profile).
Preparation
Before you can use amobile device with this head unit. it must be connected and
authenticated -commonly referred to
as "pairing" adevice. Please make sure that
Bluetooth is activated
on your mobile device before you begin the pairing process. Refer
to the owner's manual of your mobile device for more details.
Bluetooth Pairing
1) To pair aBluetooth enabled mobile phone to your head unit. press i on the head unit
or BTM60. or press MODE until "DUAL_BTM60" is displayed.
2) Press and hold i on the head unit or the BTM60 for 5seconds, until "PAIRING"
is displayed. the Bluetooth icon will flash every second. The head unit will begin to
broadcast asignal for
60 seconds.
3) Complete the pairing from the Bluetooth menu of your mobile device by searching for
new devices. Please refer to your mobile device instructions for further information
on
Bluetooth pairing and connections. The Bluetooth icon will illuminate solid.
The
BTM60 device name is -DUAL_BTM60.-
The password
for the DUAL BTM60 is 1234.
Connection Notes
-If ACNT is set to OFF. you must press ito connect after pairing.
-From Bluetooth standby mode, press MUTE to disconnect your mobile device from the
BTM60.
-From Bluetooth standby mode, press i to reconnect your mobile device to the BTM60.
-To connect adifferent mobile device, the currently connected mobile device must be
disconnected. If this device has been paired previously. you may reconnect using the
mobile device's Bluetooth menu.
or repeat the above pairing instructions.
General Notes
.-Due to the differences in Bluetooth technology, some mobile devices may be
incompatible or function improperly when used with the BTM60.
-The BTM60 will store the last eight (8) devices that have been paired in its memory. If
more than eight devices are paired. the head unit
will remove the oldest device from its
memory and that device
will have to be paired again.
20
