01. Introdution
DP-636X is a multi-functional signature pad (multi-pad) that can process credit card, can
also read RF credit card, and can read RF and barcode. It communicates with PC or
upper products through USB or TCP/IP basically.
02. Basic specification
CPU
32bit ARM9 RISC processor
Operating
frequency
Max 300MHz
Working Memory
DDR2 64MByte(internal)
Program Memory
Nand flash, 1Gbit
OS
LINUX
LCD
480*272 RGB (16.7M colors)
with 4.3inch touch panel
480*3(RGB)*272
Touch
Resistive Touch
Depressurized touch
screen
Video
AVI, MPEG4 support, Graphic Engine
embedded
Sound
Stereo Audio Codec and speaker(1W)
USB
USB 2.0 OTG(1), USB 2.0 Host(1)
2ch.
Serial Comm.
RS232 3ch with 5V
USB to Serial
3ch.
FTDI
LAN
10/100M Ethernet
SD Card Slot
Micro SD memory card
1Slot
IC CARD
ISO 7816 1/2/3/4, EMV L1,L2 certified
DE-300M2
RF
13.56MHz, ISO-14443 A/B, MIFARE,
NFC
PN5180
MSR
ISO Track 2,3
SAM
6 SAM slots supported
ISO-7816
LED
4 LEDs (Ready, Process, Complete,
Error)
Pen
Sign pen
POWER
External power adapter(Input voltage 5V)
DP-636X User Manual, Version: 1.0
www.duali.com 6

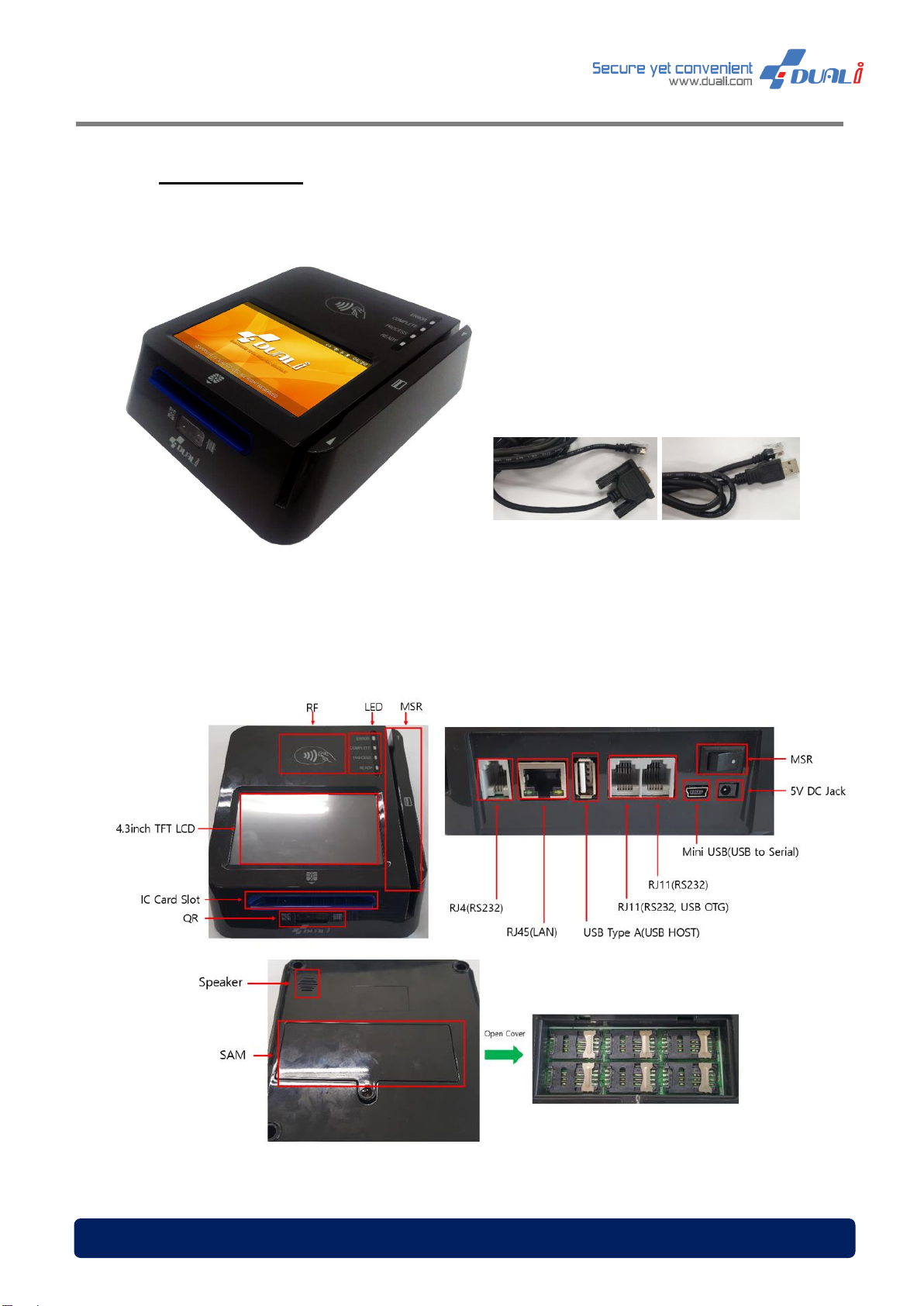

03. Components
-Basic components
Product Housing Cable (Providing a cable according to the
option)
-Explanation of each part
DP-636X User Manual, Version: 1.0
www.duali.com 7
04. Installation

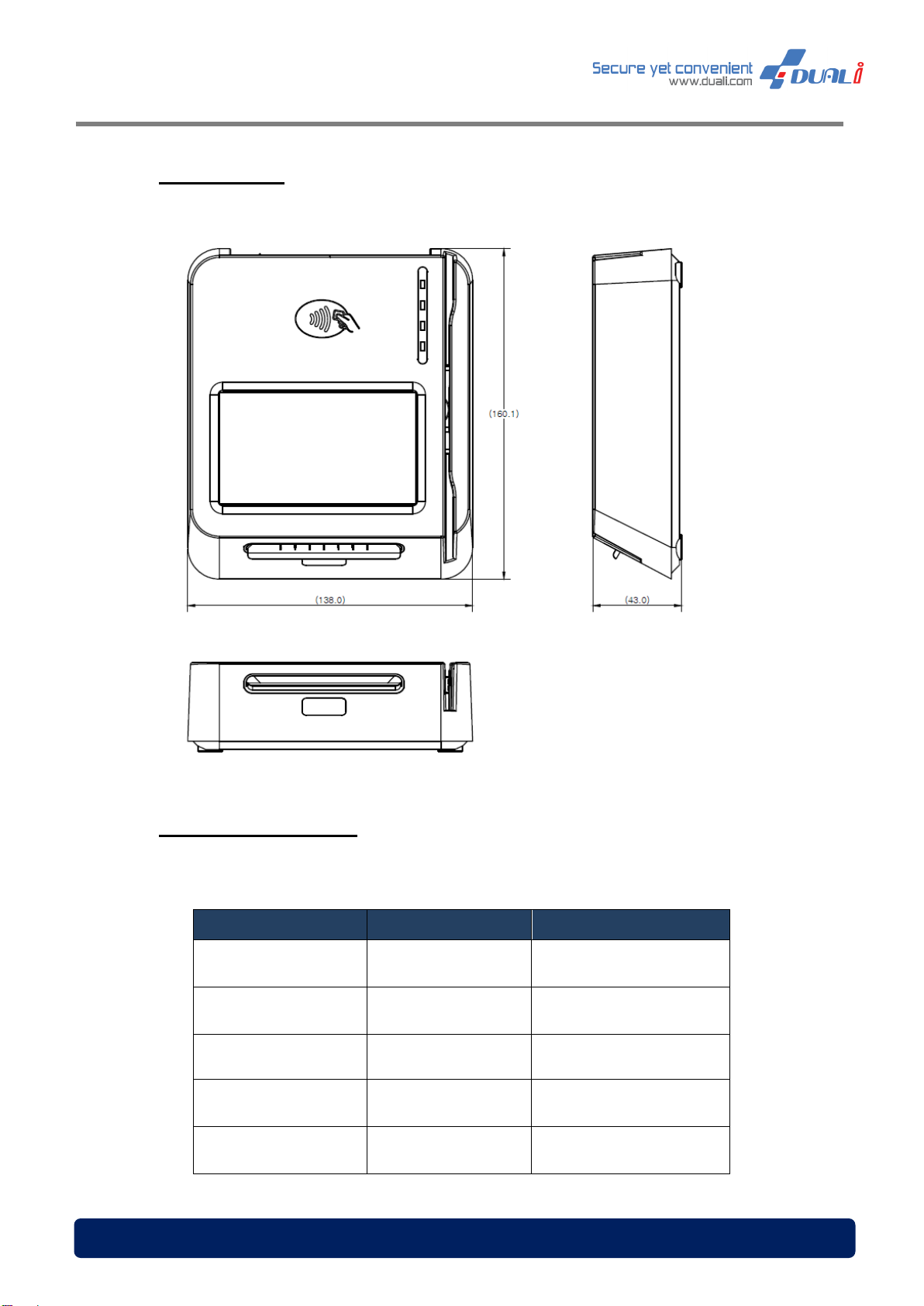

04.1 Dimension
05. Cable specification
05.1 MINI USB –USB to Serial
PIN NAME
COLOR
PIN NUMBER
USB 5.0V
RED
1
USB D-
GREEN
2
USB D+
WHITE
3
ID
BLACK
4
GND
BLACK
5
DP-636X User Manual, Version: 1.0
www.duali.com 8
05.2 USB A TYPE –USB HOST
05.3 RJ11(HA-127-6P6C) –UART * 2
PIN NAME
COLOR
PIN NUMBER
VDD 5.0V
RED
1
USB D-
GREEN
2
USB D+
WHITE
3
GND
BLACK
4
PIN NAME
COLOR
PIN NUMBER
PORT1
NC
1
TXD2_RS-232
GREEN
2
RXD2_RS-232
WHITE
3
VCC 5V
4
GND
BLACK
5
NC
6
PORT2
USB OTG DP
WHITE
7
TXD4_RS-232
8
RXD4_RS-232
9
VCC 5V
RED
10
GND
BLACK
11
USB OTG DM
GREEN
12
DP-636X User Manual, Version: 1.0
www.duali.com 9
05.4 RJ4(A4-616PB-4) –UART
05.5 RJ45 - LAN
PIN NAME
COLOR
PIN NUMBER
VCC 5V
RED
1
RXD8_RS-232
WHITE
2
TXD8_RS-232
GREEN
3
GND
BLACK
4
PIN NAME
COLOR
PIN NUMBER
RD+
WHITE/ORANGE
1
RD-
ORANGE
2
TD+
WHITE/GREEN
3
NC
BLUE
4
NC
WHITE/BLUE
5
TD-
GREEN
6
NC
WHITE/BROWN
7
NC
BROWN
8
DP-636X User Manual, Version: 1.0
www.duali.com 10
06. Certification
To be updated.
07. Warranty and repair service
Warranty and Repair service
- DUALi Inc. warrants to the original consumer or other end user that this product, DP-
636X, is free from defects in materials and workmanship for a period of 1 year from the
date of purchase.
※Note Warranty/non-warranty repair fees do not include shipping charges.
‣The damages(defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component against the provided manual.
- Fault by the unqualified user’s own intention of repairs.
- Adding certain functions or extension of system.
PRECAUTIONS
Do not drop the device.
Do not modify, repair, or disassemble.
Do not expose directly to water, alcohol, benzene, etc for cleaning.
Do not expose directly to flammables.
Do not place or keep the device near flammables.
Keep the device away from excessive humidity and dust.
Do not place heavy objects on the device.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
