SAFETY PRECAUTIONS
READ ALL THE
INSTRUCTIONS
CAREFULLY BEFORE
USING YOUR DUALIT
CAPSULE MACHINE.
KEEP THESE
INSTRUCTIONS SAFE
FOR FUTURE
REFERENCE.
Always follow these safety precautions
when using your capsule machine, for your
own safety and to avoid damaging the
machine.
• Do not use the appliance if it is
damaged in any way. At the first sign of
defects or unusual noises or smells, turn
off the appliance and unplug it. In such
cases contact an Authorised Service
Centre.
• Only use the appliance if the power
cord is intact. If the cord is damaged, it
should be replaced. Contact an
Authorised Service Centre to prevent
danger of electric shocks. Do not leave
the power cord near hot surfaces,
sharp edges or other sharp objects.
When disconnecting the appliance, pull
the plug, not the cord; otherwise it may
be damaged.
• Only connect the appliance to power
outlets complying with the
requirements of law. Make sure that
the power supply voltage matches the
rating shown on the data plate on the
bottom of the appliance.
• To avoid the risk of fire, set the
appliance on a flat, heat-resistant
surface. Only use and store the
appliance indoors.
• Do not let the power cord dangle!
Position the cord so there is no risk of
tripping.
• Do not allow the appliance to be used
by children or persons with impaired
mental, physical or sensory faculties or
insufficient experience and/or skills,
unless they are under the careful
supervision and guidance of a person
responsible for their safety. Children
must be kept under supervision to
prevent them from playing with the
appliance.
• Always close the lever. Never open the
lever while the appliance is operating.
Always use the appliance with the drip
tray and grill in place.
• The quantity of coffee dispensed can
be programmed up to a maximum of
250ml.
• Never place your hands inside the
capsule compartment. Danger of injury!
Never remove parts of the appliance.
Do not insert objects into the openings.
This could cause electric shocks! Any
operation that is not described in this
CONTENTS
Safety precautions
Intended use and disposal
now your capsule machine
First use & after draining
Warm & prime machine
Brewing coffee
Rinsing after beverages
Out of water during brewing cycle
Interupted brewing cycle
Adjusting cup height
Choosing the volume
Choosing the temperature
Saving energy
Daily maintenance
Descaling the machine
To cancel the descaling cycle
Draining the appliance
Troubleshooting
Guarantee
3
5
6
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
Unpack the box with care, keeping all the packaging materials until you are satisfied
everything is present and in working order. Once satisfied remove any tags from the
CAPSULE MACHINE and recycle the packaging appropriately.

54
made of to be recovered so as to
achieve significant savings of energy and
resources. The crossed-out wheelie bin
symbol applied on the product
highlights the need to dispose of
electric appliances separately. Improper
disposal of the product by the user
shall be subject to specific
administrative sanctions as provided for
under current regulations. The
packaging is made from recyclable
materials. Contact the relevant
authorities for information regarding
local legislation.
• The Caffitaly System plastic capsule
cups are recyclable. The foil cover is
not and should be removed from the
capsule cup and disposed of with
unsorted household waste. The used
coffee grounds can be composted.
• The appliance is made to brew coffee
and dispense hot water. It is intended
for domestic use and must be used in
accordance with these instructions. Use
only Caffitaly System capsules. Any
other use is to be considered improper.
Use of the appliance in any manner
other than as directed herein could
cause harm to persons and void the
guarantee. The manufacturer will not
be responsible for injury or damage
resulting from improper use of the
appliance.
• The appliance has been manufactured
using high quality materials that can be
reused or recycled. Dispose of the
appliance in a suitable waste collection
centre.
• When you decide to dispose of the
appliance, unplug it from the power
outlet. Then cut off the power cord as
close to the body of the appliance as
possible.
• Directions for correct disposal of the
product according to European
Directive 2002/96/EC. At the end of its
useful life, the product should not be
disposed of with unsorted household
waste. It should be taken to a suitable
selective waste collection centre set up
by the local authorities or returned to a
retailer who provides this service.
Separate collection of an electric
household appliance avoids a possible
negative impact on the environment
and health arising from improper
disposal and enables the materials it is
instruction manual should only be
performed by an Authorised Service
Centre.
• Clean the appliance carefully and
regularly. If it is not cleaned, the
build-up that forms may be hazardous
to your health. Unplug the appliance
and allow it to cool before cleaning.
• Descale the appliance regularly,
following the instructions provided. If
you do not, the appliance may be
damaged and may become harmful to
your health.
• Make sure the electrical elements, plug
and cord are dry. Never submerge the
appliance in water. Protect the
appliance from sprays and drips. Water
and electricity together constitute a risk
of electrocution
• If you do not expect to use the
appliance for a long period of time,
unplug it.
SAVE THESE
INSTRUCTIONS
In the interest of improving products, Dualit
Ltd. reserves the right to change the
product specification without prior notice.
INTENDED USE AND DISPOSAL

7
NOW YOUR CAPSULE MACHINE
CAPSULE
COMPARTMENT
LEVER
DISPENSING SPOUT
USED CAPSULE
DRAWER
DRIP TRAY
POWER ON/OFF
SWITCH
WATER TAN
WATER TAN DOOR
INDICATOR LIGHT
(RED)
FILTER COFFEE BUTTON
• Low pressure (3.5 Bar)
• 110ml
6
DESCALING
INDICATOR LIGHT
(ORANGE)
LONG ESPRESSO
BUTTON
• High pressure (15 Bar)
• 60ml
(Temperature selector page 16)
ESPRESSO BUTTON
• High pressure (15 Bar)
• 35ml
CONTROLS

9
60
SEC
8

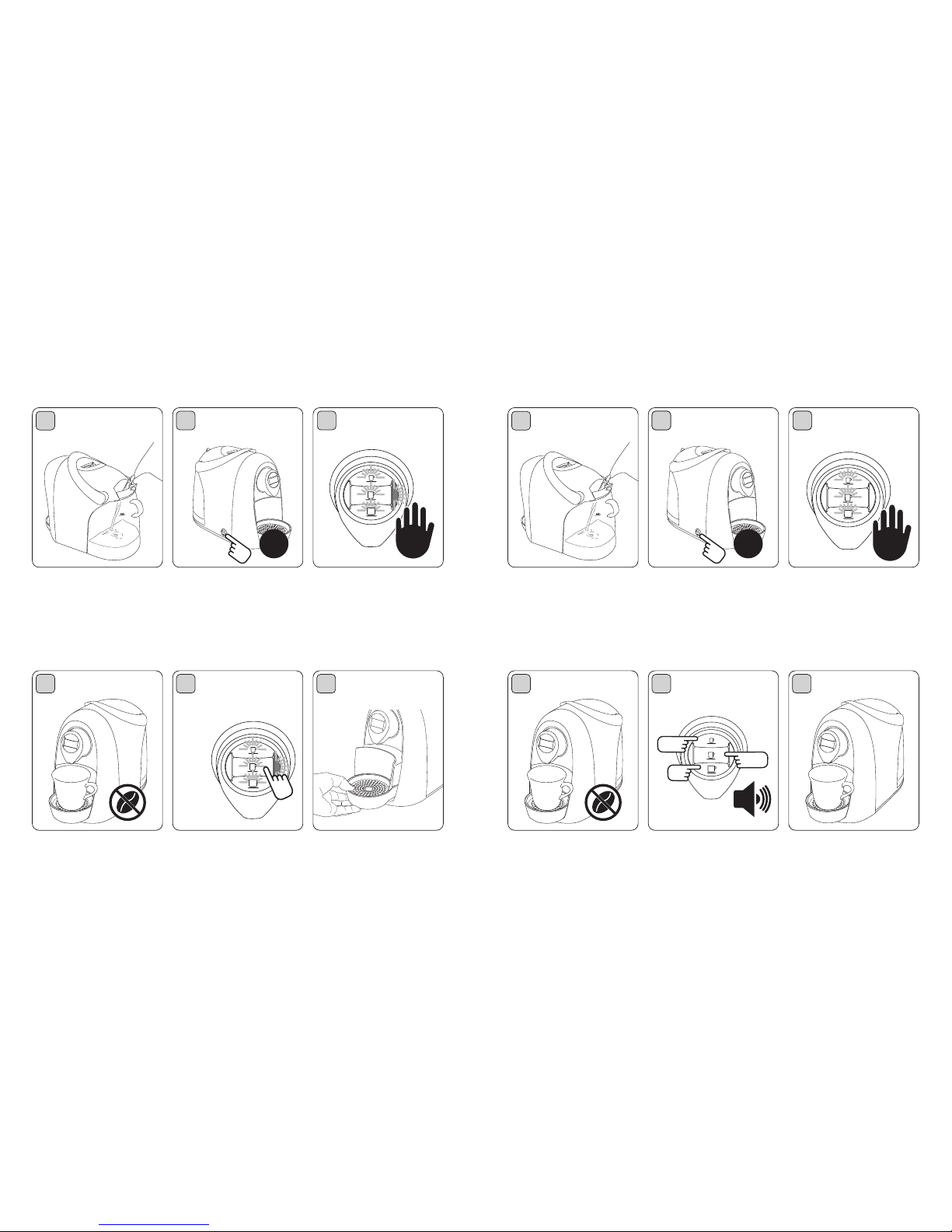

FIRST USE & AFTER DRAINING
Fill the water tank with fresh,
still water.
Plug in the appliance and
turn it on.
The buttons and indicator
light will blink simultaneously.
Wait 60 seconds.
123
FILL WATER TAN TURN ON WAIT 60 SECONDS
4PLACE CUP
Place a cup under the
dispensing spout.
Ensure NO capsule is
inserted in the capsule
compartment.
60
SEC
60ml
35ml
110ml
I
O
5RINSE MACHINE
Press the Long espresso
button to prime. All the
buttons and the indicator
light will blink.
60
SEC
60ml
35ml
110ml
I
O
6EMPTY DRIP TRAY
At the end of this operation,
empty out the water from
the drip tray.
WARM AND PRIME MACHINE
The cup must be the correct temperature before the first use. N.B. failure to do this will
effect the temperature of the coffee.
Fill water tank with water,
do not go above the max
mark. Filtered water will
reduce the build up of
limescale.
60
SEC
60ml
35ml
110ml
I
O
Plug in the appliance and
turn it on.
The buttons will blink
simultaneously. Wait 60
seconds.
1FILL WATER TAN
60
SEC
I
O
Espresso
Small cup
Mug
4PLACE CUP
Place a cup under the
dispensing spout.
Ensure NO capsule is
inserted in the capsule
compartment.
60
SEC
I
O
Espresso
Small cup
Mug
60
SEC
I
O
Espresso
Small cup
Mug
5WARM CUP
Press the desired coffee
button once. The selected
coffee button will blink. The
appliance will stop dispensing
on reaching the programmed
quantity and emit a beep.
60
SEC
I
O
Espresso
Small cup
Mug
6READY
Discard the water from the
pre-warmed cup or mug, dry
and place back under the
dispensing spout. Your
machine is ready.
TURN ON WAIT 60 SECONDS
23
60
SEC
60ml
35ml
110ml
I
O
x2
Espresso
60
SEC
60ml
35ml
110ml
I
O

10
BREWING COFFEE
See individual capsule boxes for information on how to prepare beverage varieties.
Raise the lever to open the
capsule compartment.
Espresso
Long espresso
Insert the capsule, pressing it
gently into place.
Close the lever firmly.
1RAISE THE LEVER
60
SEC
I
O
Espresso
Small cup
Mug
4PLACE CUP
Place a prewarmed cup
under the coffee dispensing
spout.
Espresso
Long espresso
Espresso
Long espresso
Espresso
Long espresso
5DISPENSE COFFEE
Press the desired coffee
button once. The selected
coffee button will blink. The
appliance will stop dispensing
on reaching the programmed
quantity and emit a beep.
Espresso
Long espresso
6EJECT USED
CAPSULE
Raise the lever to eject the
used capsule into the
drawer. Close the lever.
INSERT CAPSULE CLOSE THE LEVER
23
x2
Espresso
11

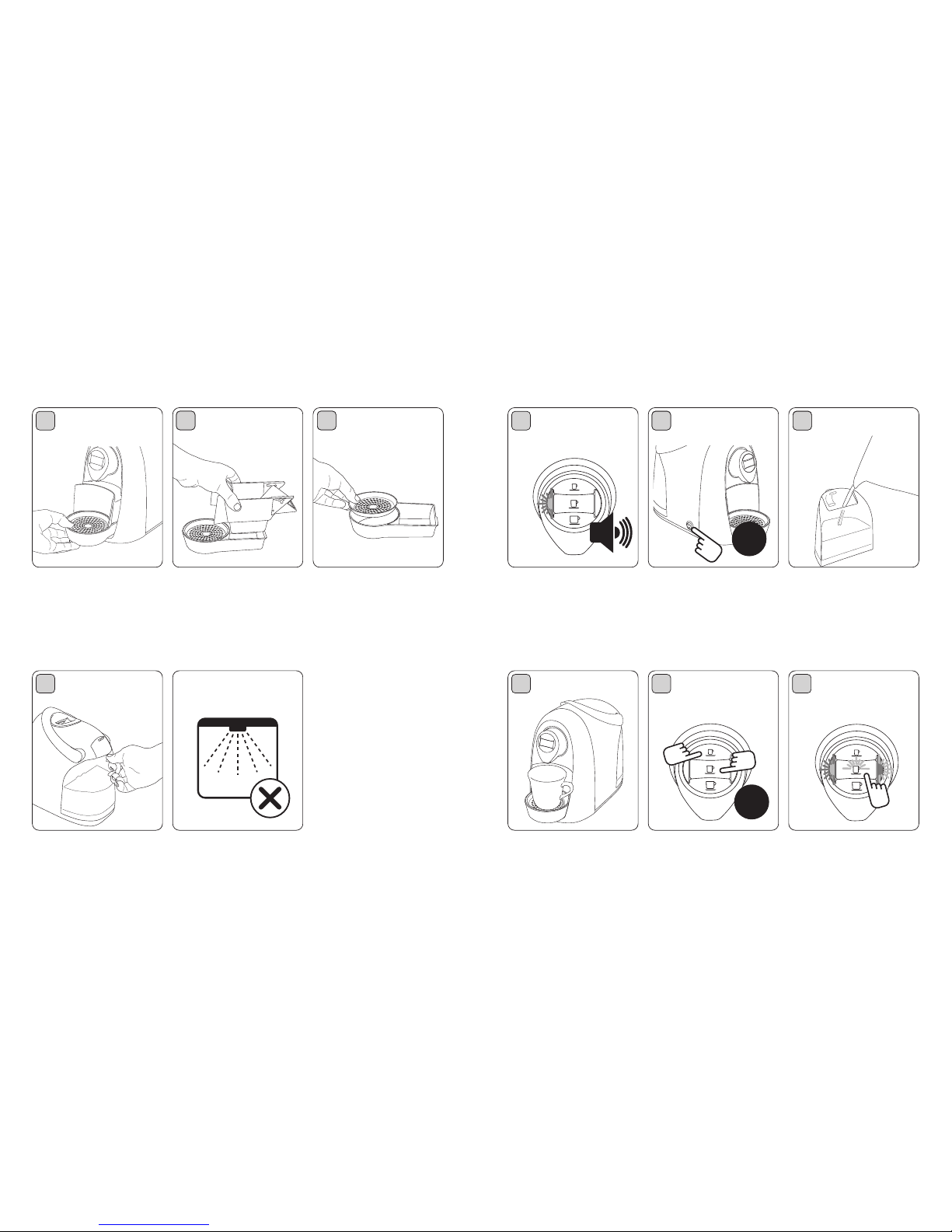

RINSING AFTER BEVERAGES
Traces of the drink just dispensed may remain inside the machine. When switching from one
drink to another or after the last use of the day rinse the machine.
Place a cup under the
dispensing spout.
Ensure NO capsule is
inserted in the capsule
compartment.
60
SEC
I
O
Espresso
Small cup
Mug
Press the Long espresso
button. Repeat 2-3 times,
emptying the cup when
required.
At the end of this operation,
empty out the water and
capsules from the drip tray.
1PLACE CUP
60
SEC
60ml
35ml
110ml
I
O
23
RINSE MACHINE EMPTY DRIP TRAY


13
Espresso
Long espresso
Espresso
Long espresso
If the lever is raised while a
beverage is being
dispensed...
Espresso
Long espresso
... the indicator light will blink
and an intermittent beep will
be emitted. The appliance
will immediately stop
dispensing.
Close the lever.
123
LEVER IS RAISED STOP DISPENSING CLOSE LEVER
x3
1RESET ALARM
Press a button to reset the
alarm.
Espresso
Long espresso
2BREW A NEW CUP
Press the button
corresponding to the desired
type of coffee to brew a
new cup.
INTERUPTED BREWING CYCLE
12
60
SEC
60ml
35ml
110ml
I
O
x3
The indicator light will blink
and the appliance will emit 3
beeps; the water tank is
empty.
x3
Fill the tank with fresh, still
water.
Press the same button as
before; the appliance will
resume dispensing.
123
WHEN THE WATER
RUNS OUT
FILL THE TAN RESUME
DISPENSING
OUT OF WATER DURING
BREWING CYCLE

15
CHOOSING THE VOLUME
The quantities of coffee dispensed is preprogrammed . The volume can be changed
according to your personal taste and the size of the cups.
Insert the capsule, pressing it
gently into place (see
page10).
Espresso
Long espresso
Place a cup under the coffee
dispensing spout depending
on the type of coffee you
wish to programme.
Press and hold the desired
coffee button.
1INSERT CAPSULE
60ml
35ml
110ml
x3
4RELEASE BUTTON
On reaching the desired
amount of coffee in a cup,
release the button. The
appliance will emit 3 beeps.
Now the button is
reprogrammed.
60
SEC
I
O
Espresso
Small cup
Mug
Espresso
Long espresso
60ml
35ml
110ml
x3
5FACTORY
STANDARD
VOLUMES
The factory standard
volumes are: espresso 35ml,
long espresso 60ml and filter
coffee 110ml.
PLACE CUP PRESS BUTTON
AND HOLD
23
14
60
SEC
I
O
Espresso
Small cup
Mug
ADJUSTING THE CUP HEIGHT
The appliance can be
adjusted for the use of mugs
or espresso cups.
The appliance is initially set
for the use of large cups.
In order to use espresso
cups, you must lift and turn
the grill on top of the drip
tray.
123
ADJUSTABLE CUP
HEIGHT
LARGE CUPS TURN OVER GRILL
4ESPRESSO CUPS
In this way you can obtain
the best results when using
small espresso cups.

17
SAVING ENERGY
The machine features a function which automatically reduces energy consumption by around 98%
after one hour has elapsed from last use.
The machine will
automatically reduce
consumption one hour after
the last. The buttons will
blink intermitently.
60
SEC
To restore normal operating
conditions, press any button
or raise the lever.
The appliance will warm up.
Wait 60 seconds.
1ACTIVATE
60
SEC
4READY
When the appliance is ready
the buttons will be
illuminated WHITE.
60
SEC
60
SEC
23
DEACTIVATE WAIT 60 SECONDS
16
CHOOSING THE TEMPERATURE
The temperature of coffee dispensed can be preprogrammed according to personal taste.
Switch the machine off and
lift the lever.
Espresso
Long espresso
Press and hold down the
buttons simultaneously and
press the power on/off switch.
Ensure both buttons are firmly
pressed. The indicator light will
will be illuminated and one
beep will be emitted.
Press the temperature
selector button until you
reach the temperature
required. The machine will
emit a beep.
1LIFT THE LEVER
5
Switch off and on to activate
the changes.
I
O
x1 x1
Standard temperature +1oc
+2oc+3oc
I
O
x1 x1
Standard temperature +1oc
+2oc+3oc
PRESS BUTTON
AND HOLD
CHANGE
TEMPERATURE
23
60
SEC
60ml
35ml
110ml
I
O
N.B. The button illuminated denotes coffee temperature
setting. To scroll through options press the long espresso
button (see image 3 above).
I
O
x1 x1
Standard temperature +1oc
+2oc+3oc
4ACTIVATE
CHANGES

19

18
DESCALING THE MACHINE
The machine features a programme that monitors how much water is used to dispense beverages.
This provides the user with indications as to when the machine needs to be descaled.
When the descaling indicator
light blinks and the appliance
emits 3 beeps, it is advisable
to carry out a descaling
cycle.
I
O
x1
x3
50
MIN
Turn the machine off. Prepare the descaling
solution following the
manufacturer’s directions and
pour 1 litre of solution into
the tank.
DESCALING
WARNING
60
SEC
I
O
Espresso
Small cup
Mug
4PLACE CONTAINER
Place a container (at least
250ml) under the coffee
dispensing spout. It is
recommended to use a
700ml container.
1L
x1
I
O
x1
x3
50
MIN
5ACTIVATE
DESCALING
Press and hold down the
buttons simultaneously and
press the power on/off switch.
Ensure both buttons are firmly
pressed. Two people may be
required to do this.
I
O
x1
x3
50
MIN
61ST PHASE
DESCALING CYCLE
The Long espresso button, the
descaling indicator light and the
indicator light blink alternately.
Press the button to start the
descaling cycle.
2TURN OFF PREPARE SOLUTION
1
DAILY MAINTENANCE
BEFORE CLEANING, MA E SURE THE MACHINE IS SWITCHED OFF, UNPLUGGED
AND ALLOWED TO COOL. Do not wash any of the plastic accessories in a dishwasher.
Remove the drip tray and
used capsule drawer.
60
SEC
60ml
35ml
110ml
I
O
Lift the capsule drawer,
empty and rinse it out.
Remove the grill. Empty the
drip tray and rinse it out with
fresh water.
1REMOVE DRIP TRAY
4EMPTY WATER
TAN
Remove the water tank.
Empty and rinse out the
tank.
EMPTY CAPSULE
DRAWER
EMPTY DRIP TRAY
23
60
SEC
60
SEC
No parts are dishwasher
safe. After each use clean all
parts with a damp cloth.
3
60
SEC
60ml
35ml
110ml
I
O
ATTENTION!

2120
When the machine has purged
approx 1 litre, the Long
espresso button, the descaling
indicator light and the indicator
light blink alternately. The
machine will emit a beep.
I
O
x1
x3
50
MIN
Carefully rinse out the water
tank and fill it with fresh
drinking water.
Press the button to quit the
cycle and prime machine.
13 END OF 2ND PHASE
1L
x1
I
O
x1
x3
50
MIN
60
SEC
18 EXITING
DESCALING CYCLE
14 15
RINSE OUT WATER
TAN
END CYCLE
The machine doses a small
amount of the descaling
solution and then pauses to
allow solution to work. There
are 5 dose / pause cycles.
Approx. 1 every 10 minutes.
I
O
x1
x3
50
MIN
If the container fills up, empty
it out.
When the 1st phase of the
descaling cycle is over, the
Long espresso button, the
descaling indicator light and
the indicator light blink
alternately.
7DESCALING CYCLE
1L
x1
10 RINSE OUT WATER
TAN
Carefully rinse out the water
tank and fill it with fresh
drinking water
60
SEC
I
O
Espresso
Small cup
Mug
I
O
x1
x3
50
MIN
EMPTY CONTAINER END OF 1ST PHASE
89
I
O
x1
x3
50
MIN
11 2ND PHASE -
RINSE CYCLE
The Long espresso button, the
descaling indiactor light and
the indicator light blink
alternately. Press the button to
start the rinse cycle.
60
SEC
I
O
Espresso
Small cup
Mug
12 EMPTY CONTAINER
N.B. you will need to empty
the container during this cycle.
To pause, lift lever or press a
button. To resume close lever
and press the long espresso
button.
The cycle can be cancelled and reset. Hold down the espresso
and filter coffee button for 3 seconds. This will cancel the
descale cycle.
N.B. Ensure both buttons are firmly pressed. Two people may
be required to do this.
TO CANCEL THE
DESCALING CYCLE

2322
What do I do if no coffee is brewed?
• The water is empty, the indicator light
is on red
• Fill the tank with fresh water
• Make sure the tank is correctly
positioned. You should see bubbles in
the water rising to the top
• Press the desired coffee button
• The appliance will resume brewing
What if the coffee is not hot enough?
• Preheat the cup (see page 9)
• The cup may be cold or there may be
a build up of scale in the machine
• Descale the machine
What if the lever cannot be lowered?
• The used capsule drawer may be full or
there may be a capsule stuck inside the
machine
• Empty out the used capsule drawer
• Remove the used capsule
TROUBLESHOOTING
What do I do if I can’t access, drain or
descale feature?
• Press down in the centre of the button
• Ensure you feel the button engage
• See active button zones highlighted
DRAINING THE APPLIANCE
When the appliance is not used for a long time or it is only used once a week, it is necessary to
drain the water. It is best to use fresh water for each use.
Turn the machine off. Remove and empty the water
tank.
Press and hold down the
buttons simultaneously and
press the power on/off switch.
Ensure both buttons are firmly
pressed. Two people may be
required to do this.
TURN OFF
30
SEC x1
I
O
4WAIT 30 SECONDS
The indicator light will blink.
Wait 30 seconds
DRAINAGE CYCLE
The machine will carry out a
drainage cycle. At the end the
indicator light blinks and the
appliance emits a beep.
6TURN OFF
Turn the machine off. The
next time you turn it on you
will have to carry out a new
start-up procedure
(see page 8).
2EMPTY WATER
TAN
60
SEC
60ml
35ml
110ml
I
O
1
30
SEC x1
I
O
5
I
O
30
SEC x1
I
O
TURN ON
3

24
This Guarantee covers both parts and
labour. Carriage is not included.
Your Guarantee period is as follows:
• 1 years on parts
This Guarantee provides benefits which are
additional to, and do not affect, your
statutory rights. This Guarantee does not
cover the cost of returning the product to
the dealer from whom it was purchased or
to Dualit. This guarantee applies only to
products sold and located in mainland
Great Britain. It does not cover liability in
respect of or replacement of plugs, cables
or fuses and also does not cover defects
due to:
• Failure to use or maintain product in
accordance with Dualit's instructions
• The product being connected to an
unsuitable electricity supply
• Accidental damage to or abuse or
misuse of the product
• The product has not been modified
except by Dualit or approved agent
• Dismantling of or interference with the
product
• Theft or attempted theft of the
product
Before returning any product under this
Guarantee, please check that:
• You have followed the product
instructions correctly
• Your mains electricity supply is
functional
• The defect is not due to a blown fuse
If you wish to claim under this Guarantee
you should:
• Send the product, postage or carriage
paid, to the dealer from whom it was
purchased or to Dualit direct
• Ensure that the product is clean and
packed carefully (preferably in its
original carton)
• Enclose details of your name, address
and telephone number and when and
where the product was purchased,
together with proof of purchase (e.g. a
till receipt)
• Give exact details of the nature of the
defect
This Guarantee does not cover any other
claims whatsoever, including, without
limitation, any liability for incidental, indirect
or consequential damage, nor does it cover
any claims for conversion or modification or
for the costs of repair carried out by any
third party without the prior consent of
Dualit. If replacement parts are fitted to the
product this will not extend the period of
the Guarantee.
For further advise contact the Dualit
customer helpline on [phone]
(09:00 to 17:00 Monday to Friday).
Alternatively, email Dualit at
[email protected] or visit www.dualit.com.
GUARANTEE
This appliance is of excellent quality and construction. However, if any defects in materials
or workmanship do appear during the relevant Guarantee period we will, at our discretion,
either repair or replace the defective parts free of charge, subject to the terms and
conditions of our Guarantee shown below.


Dualit Limited County Oak Way Crawley West Sussex RH11 7ST
Telephone: [phone] Facsimile: [phone]
Email: [e-mail] Web: www.dualit.com GB0710
