Dukane ImagePro P42 User manual

Color Plasma Display
Model P42
Read the instructions inside carefully.
Keep this user manual for future reference.
Serial No. ______________________
The serial number is located on the rear of the monitor.
USER'S MANUAL
P42 with optional stand.
All manuals and user guides at all-guides.com
all-guides.com

All manuals and user guides at all-guides.com

ENGLISH
I
SAFETY GUIDELINES
This monitor is designed to be safe to use. However, due to high voltage of about 400 V,
fire or serious injury may occur unless you use this monitor in the proper way.
Please follow the instructions shown below in order to avoid injury.
Keep the safety guideline
Do not use the monitor if it fails
If you find something unusual ,
If smoke comes out,
If there is a strange smell,
If water enters the case,
If you drop the monitor or damage the
cabinet,
(1) Turn off the monitor
(2) Disconnect the power plug from
the mains
(3) Request repair
Warning and Caution are indicated in this guide and monitor itself.
Fire or electric shock may cause death or serious injury unless
you follow the instruction.
Electric shock or other accidents may cause serious injury or
damage of your properties.
WARNING
CAUTION
Fire or electric shock may cause death or serious injury unless
you follow the instruction below.
WARNING
• If something smells strange or smoke comes from the monitor:
Turn off the monitor and disconnect the power plug from the mains immediately.
Contact service center after confirming that the smoking has stopped.
If you continue to operate the monitor with such abnormal condition, it may cause fire or you
may receive an electric shock.
• Do not drop water or a foreign substance on to the monitor.
If you drop water or a foreign substance on to the monitor, it may cause fire or an electric
shock.
If it happens turn off the monitor and disconnect the power plug from the mains and ask
service center for instruction.
• Do not put the monitor on an unstable place.
If you put the monitor on an uneven or unstable place, it may fall down and you may be
injured.
Put the monitor on a flat surface strong enough to take the weight.
00u14121U01.9.1911:58AMページI
All manuals and user guides at all-guides.com

ENGLISH
II
SAFETY GUIDELINES(continued)
• Do not apply shock to the monitor.
• Do not use monitor if glass is broken or damaged.
If there is no picture appearance, broken glass , smoking or something smells after applying
shock to the monitor, turn off the monitor and disconnect the power plug from the mains
immediately. Then, call the service center.
If you continue to operate the monitor with such abnormal conditions, it may cause fire or
you may receive an electric shock.
• Do not disassemble or modify the monitor.
There is high voltage portion inside of the monitor. Disassembling or modification of the
monitor may cause fire or electric shock.
• Do not use the monitor in wet environment.
If you use the monitor in a wet place such as bath or shower room, it may cause fire or
electric shock. Using the monitor beside a window when snowing or raining or by a seaside
are not recommended.
• Do not damage or modify the power cord.
If you put something heavy on the power cord or pull, squeeze, heat the cord, it may be
damaged and it may cause fire or electric shock.
If the power cord is damaged, call service center.
Fire or electric shock may cause death or serious injury unless
you follow the instruction.
WARNING
• The enclosed power cord must be used!
Failure to do so may cause electric shock hazard or fire hazard.
In U A/Canada, use a UL LISTED/CSA LABELLED or CERTIFIED power cord set
meeting the following specifications :
Rating: min. 125V, 10A , Length: max. 3.0m , Type: SVT or SJT
Plug type: NEMA 5-15P figure, Parallel blade, Grounding type
In Europe or 200V area, a proper European standard approved power cord is to be used
with this monitor.
For a rated current up to 6 A, a type not lighter than H05VV-F 3G 0.75 mm2or H05VVH2-F
3G 0.75 mm2must be used.
• Use only the correct voltage power outlet with safety ground
connection!
100 - 120 V for USA, Canada, etc.
200 - 240 V for Europe, etc.
(This monitor will automatically adjust to the input voltage 100 - 120 / 200 - 240V.)
• Be careful of power cord connection!
Before inserting the plug of the power cord into a socket of the correct voltage, check that the
connection portion of the power cord is clean (with no dust). Then, insert the plug of power
cord into the socket firmly, otherwise it may cause electric shock or fire hazard.
• Do not touch the power plug when lightning is close to you.
You may receive an electric shock.
00u14121U01.9.1911:58AMページII
All manuals and user guides at all-guides.com

ENGLISH
III
• Do not touch the power plug with wet hands.
You may receive an electric shock.
• Do not obstruct a ventilation hole.
If you obstruct a ventilation hole during the operation of the monitor or just after switching
off the power, it may cause a fire or electric shock due to heating up the monitor.
• Do not put the monitor screen side up.
• Do not put the monitor on a shelf or in a cabinet without adequate ventilation of 4 inches
top, sides, bottom and rear.
• Do not put the monitor on a carpet or mattress.
• Do not cover the monitor with a cloth.
Electric shock or other accidents may cause serious injury or
damage to your property.
CAUTION
• Disconnect the power plug from the mains when you move the
monitor.
Moveing the monitor without disconnecting the power plug from the mains may damage the
cord and cause a fire or electric shock. You are advised to move the monitor with two
persons.
Handle with care when you move the monitor, particularly take care of glass screen.
• When you disconnect the power plug.
You have to grasp the power plug itself, do not pull the power cord.
If you pull the power cord, you may damage it and it may cause a fire or an electric shock.
Do not touch the power plug just after disconnecting it from the mains or you may receive
electric shock.
• Disconnect the power plug from the mains when you don't use the
monitor for a long time.
This is for your safety.
• Do not put the monitor in atmosphere with soot, steam, high humidity,
and dust.
It may cause a fire or electric shock.
• Do not put the monitor in high temperature atmosphere.
Do not put the monitor in the place exposed to the direct rays of the sun for a long period of
time. Heat may cause a fire, transformation, or melting of the monitor.
• Do not put things on the monitor.
Do not put things on the monitor or give some shock to the monitor.
The monitor may fall down or drop from a desk. And it may cause injury.
00u14121U01.9.1911:58AMページIII
All manuals and user guides at all-guides.com

ENGLISH
IV
SAFETY GUIDELINES(continued)
• Do not coil or wind the power cord.
This may cause excessive heat resulting in a fire.
• Caution for 200 - 240V operation only
This equipment relies on the protective devices in the building installation for short - circuit
and over - current protection. Refer to the following table for the suitable number and
location of the protective devices which should be provided in the building installation.
INFORMATIVE EXAMPLES OF PROTECTIVE DEVICES IN SINGLE - PHASE
EQUIPMENT OR SUB - ASSEMBLIES
Verify that the protective devices in the building installation meets the conditions
in the table prior to installing the equipment.
• Remove the power cord for complete isolation!
For complete isolation from the mains, remove the power cord from the monitor or from the
wall socket.
Protection
against
Minimum number
of fuses or circuit
- breaker poles Location
Case A: Equipment to be connected to
POWER SYSTEMS with earthed neutral
reliably identified, except for Case C
below.
Earth faults 1Phase conductor
Overcurrent 1Either of the two
conductors
Case B: Equipment to be connected to
any supply, including IT POWER
SYSTEMS and supplies with reversible
plugs, except for Case C below.
Earth faults 2Both conductors
Overcurrent 1Either of the two
conductors
Case C: Equipment to be connected to 3
- wire power systems with earthed
neutral reliably identified.
Earth faults 2Each phase
conductor
Overcurrent 2Each phase
conductor
You may have serious injury or your property may be damaged
unless you follow the instruction below.
CAUTION
00u14121U01.9.1911:58AMページIV
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
V
PRECAUTION
• Installation environment
Do not obstruct a ventilation hole.
Do not put the monitor on carpet or blanket, or near a curtain which has a possibility of
obstructing a ventilation hole of the monitor.
Do not put the monitor in the following places.
• Hot places such as near heater, place exposed to the direct rays of the sun.
• A place where the temperature is widely changing.
• Places with soot, dust or high humidity.
• Poor air ventilation place.
• Place near fire.
• A wet place such as bathroom, or shower room.
• Place where you can trip over it.
• Always vibrating or strongly vibrating places.
• Distorted or unstable places.
• How to view the monitor.
If you use the monitor in too dark a room, your eyes may become tired.
Please use it in a reasonably bright room.
Avoid direct rays of the sun to the screen in order to prevent eye fatigue.
Your eyes will get fatigued after viewing the monitor for long period of time.
Relax your eyes by viewing away from the monitor from time to time.
Please watch the monitor in downward direction.
• Note on image retention
The plasma monitor illuminates phosphor to display images. The phosphor has a finite
illumination life. After extended periods of illumination, the brightness of the phosphor
would be degraded to such extent that still images would image retention that part of the
screen as grayed-out images.
Tips to prevent such image retention are:
- Do not display images having sharp brightness differences or high-contrast images, such as
monochrome characters and graphic patterns, for long.
- Do not leave stationary images appearing for long, but try to refresh them at appropriate
intervals of time, or try to move them using screen saver function.
- Turn down the contrast and brightness controls.
• How to clean the monitor.
Before cleaning the monitor, turn off the monitor and disconnect the power plug from the
mains.
When cleaning the monitor, do not spray directly the screen or cabinet with cleaner.
Use a clean, dust free, dry and soft cloth. If it is not enough, then use a cloth with non-
alcoholic or non-ammonia detergent.
Do not rub the surface of the screen with ball-point-pen or screw-driver etc.
00u14121U01.9.1911:58AMページV
All manuals and user guides at all-guides.com

ENGLISH
VI
SAFETY GUIDELINES(continued)
• Prevention of an obstacle to Radio receivers
This monitor has been designed pursuant to the FCC class B Rules (see page VII). This is to
prevent a problem to Radio receivers.
- Keep the monitor away from Radio.
- Adjust Radio antennas in order for the monitor not to receive interference.
- The antenna cable of Radio should be kept away from the monitor.
- Use a coaxial cable for antenna.
You can check if this monitor influences Radio receivers by turning off all other equipment
other than the monitor.
If you find a problem receiving Radio when using the monitor, check the instructions
mentioned above.
• Precautions for the monitor
- Use the attached signal-cable when you connect the monitor with PC equipment.
Do not use other signal-cables.
- Confirm the connector is fixed tightly when the signal cable is connected.
Also confirm the screws on the connector are tightened.
- Plug the power cord of the monitor into a different socket from that for other equipment,
such as Radio etc..
- Use a plug with ground terminal and make sure that it connects to the ground.
• Precaution during transportation
Please pay attention when you transport this monitor because it is heavy.
Furthermore, use the original carton box and its packaging materials when the monitor is
transported.
Failure to transport the monitor in any carton except the original carton may result in damage
to the monitor.
Save the original carton box and all packing material.
00u14121U01.9.1911:58AMページVI
All manuals and user guides at all-guides.com

ENGLISH
VII
• FCC (Federal Communications Commission) STATEMENT WARNING
WARNING : This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a paricular installation. If this
equipment does cause harmful inerference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receive is
connected.
- Consult the dealer or an experienced radio / TV technician for help.
Instructions to Users : This equipment complies with the requirements of FCC (Federal
Communication Commission) regulations, provided that following conditions are met.
Video inputs : The input signal amplitude must not exceed the specified level.
CAUTION : Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Declaration of Conformity
According to 47CFR, Part 2 and 15 for
Class B Personal Computers and
Peripherals; and / or
CPU Boards and Power Supplies used
with Class B Personal Computers:
We: Hitachi America, Ltd. Computer Division
Located at: 2000 Sierra Point Parkway, Brisbane,CA 94005-1835, U.S.A.
Telephone: 1-800-HITACHI
Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2
and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the
representative unit tested and found to be compliant with the standards. Records maintained
continue to reflect the equipment being produced can be expected to be within the variation
accepted, due to quantity production and testing on a statistical basis as required by 47CFR §
2.909. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation. The above named party is responsible for
ensuring that the equipment complies with the standards of 47CFR § §1 5.101 to 15.109.
Trade name: Plasma Display Monitor
Model Number: CMP4121HDU
00u14121U01.9.1911:58AMページVII
All manuals and user guides at all-guides.com

00u14121U01.9.1911:58AMページXXXVI
All manuals and user guides at all-guides.com

ENGLISH
1
CONTENTS
Notes about This Manual
• The information in this manual is subject to change without notice.
• While meticulous care has been taken in the preparation of this manual, you are requested
to notify your dealer or us should you have any comments, views or questions about our
product.
• Fully understand the prerequisites to using the product, such as hardware and software
specifications and constraints, in using the product. We are not held liable for damages
caused by improper handling of the product.
• eproduction of this manual in whole or in part without our prior written permission is
prohibited.
• The product names mentioned in this manual may be trademarks or registered trademarks
of their respective owners.
SAFETY GUIDELINES ................................................................ I
CONTENTS ................................................................................ 1
FEATURES ................................................................................ 2
STANDARD ACCESSORIES ...................................................... 2
INSTALLATION INSTRUCTIONS .............................................. 3
Installation...................................................................................................... 3
Anti-tumble measures .................................................................................... 3
Component Names ........................................................................................ 4
Installation and Cabling ................................................................................ 6
Handling the emote Controller .................................................................... 8
OPERATING INSTRUCTIONS .................................................. 9
Turning Power On and Off ............................................................................ 9
Input Selection ............................................................................................ 10
Volume Adjustment .................................................................................... 10
Sound Mute .................................................................................................. 10
Contrast Adjustment .................................................................................... 11
Size Selection .............................................................................................. 11
Input Signal Status Display.......................................................................... 11
On-Screen Display System .......................................................................... 12
OTHER FEATURES .................................................................. 20
Automatic store .......................................................................................... 20
eset (Settings Initialization) ...................................................................... 21
Signal Check .............................................................................................. 21
Power Save Mode ...................................................................................... 22
Sound Mode ................................................................................................ 22
TROUBLESHOOTING .............................................................. 23
Symptoms That Seemingly Appear to be Failures ...................................... 23
Actions to Correct Abnormal Displays ...................................................... 25
PRODUCT SPECIFICATIONS .................................................. 27
Signal Input ................................................................................................ 28
ecommended Signal List .......................................................................... 29
00u24121UE01.9.1911:49AMページ1
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
2
FEATURES
■This product is complete with the display monitor, plus the accessories shown
below.
•If any of these accessories is missing, please contact your dealer.
User manual
(this book) Power cable
USER MANUAL
BEDIENUNGSANLEITUNG
READTHE INSTRUCTIONS INSIDECAREFULLY.
KEEPTHIS USER MANUAL FOR FUTURE REFERENCE.
Forfuture reference, record the serial number of your monitor.
SERIALNO.
Theserial number is located on the rear of the monitor.
Thismonitor is ENERGY STAR ®compliant when used with a
computerequipped with VESA DPMS.
TheENERGY STAR ®emblem does not represent EPA endorsement
ofany product or service.
Asan ENERGY STAR ®Partner, Hitachi,Ltd. has determined that this product meets the ENERGY
STAR®guidelines for energy efficiency.
RGB/
VIDEOMENUSELECT SUB-POWERVOLUME
▽△
ColorPlasma Display Monitor
CMP4121HDU
Signal cable, mini-D-
sub 15-pin
Remote-control
transmitter
SIZE
RGB2
VOLUME+
VOLUME-MUTE
MENU RECALL
RGB1VIDEO2VIDEO1
Size AA
batteries x 2
•ead the user manual (this book) and keep them in a safe place for handy reference.
•etain the packing materials for use in future shipping or relocation.
STANDARD ACCESSORIES
The following features are provided by the color Plasma Display Monitor.
Large-screen, high-definition plasma display panel
The 42-inch color plasma display panel, with a resolution of 1024 (H) x 1024(V) pixels, creates
a high-definition, large-screen (aspect ratio : 16:9) and low-profile flat display. Free from
electromagnetic interferences from geomagnetic sources and ambient power lines, the panel
produces high-quality display images free from color misconvergence and display distortion.
Multimedia input support
The monitor is provided with a mini-D-Sub connector and a BNC connector for GB input,
and a Composite/S-video-connector and a COMPONENT connector for video input. A
composite video output connector is also available for loop-through. Speaker output terminal is
also provided. Simultaneous connection to multiple devices, ranging from computers to video
equipment, is possible.
Multiscan converter and Flexible Control LSI
The multiscan converter provides a broad multiscan range of signals, from video signals (15
kHz) to PC analog video signals. Video input is subjected to signal processing by a dedicated
LSI to offer better video quality.
Easy-to-use remote controller and on screen display system
The remote controller included eases the work of setting display controls. Further, the on-
screen display system, displays the status of signal reception and display control settings in an
easy-to-view fashion.
Power saving system
The International ENE GY STA ® power saver feature saves power consumption
automatically when input signals are not available. When connected to a VESA DPMS-
compliant PC, the monitor cuts its power consumption while it is idle.
00u24121UE01.9.1911:50AMページ2
All manuals and user guides at all-guides.com

ENGLISH
3
INSTALLATION INSTRUCTIONS
■No stand is provided with this product. When installing the monitor, use the
optional Desk-top Stand (651-61 or 651-62), Wall Mount Unit (horizontal-mount)
The Desk-top Stand has been used for the illustrations in this manual.
Installation
•Use one of the special mount units to install this product. A mount of insufficient
strength or inadequate design can cause overturning or dropping and result in fire,
electrical shock or injury. Please note that our company assumes absolutely no
responsibility for personal injuries or property damage caused by use of other
mount units or improper installation.
•
Installation of the wall mount unit and ceiling mount unit can be dangerous, so do not
attempt this work yourself. Ask your dealer to provide the name of a qualified installer.
•In order to prevent an internal temperature increase, maintain a space of 10cm (4
inches : For a desktop set-up) or more between the sides and other objects such as
walls, etc., so that the ventilation holes are not blocked.*
WARNING
CAUTIONS
Cord
or
chain
Clamp
10cm (4 inches) or more*
Two places
Wood screw
Securing to a wall or pillar
1)Using a commercially available cord, chain and clamp, secure the set to a firm wall or
pillar.
Securing desktop
1)Using wood screws (two), fasten the set to the clamping screw holes on the rear of the
stand as shown.
2)Using commercially available wood screws, secure the set firmly in position.
Anti-tumble measures
•Have this unit mounted in a stable place. Take measures to prevent it from
tumbling down to avoid possible physical injury.
CAUTIONS
00u24121UE01.9.1911:50AMページ3
INSTALLATION INSTRUCTIONS
495-38.
All manuals and user guides at all-guides.com

ENGLISH
4
INSTALLATION INSTRUCTIONS (continued)
Front
Cabinet
(front frame)
Main power switch
Panel
Indicating lamp
Remote-control
receiver 8
Control panel
VOLUME button
MENU button
INPUT SELECT button
SELECT button
■Adjustment buttons
are located on the
bottom.
■The inner side of the
cover is provided
with indications to
distinguish the
adjustment buttons.
SUB-POWER
button
Component Names
9
10
12
12
10
9
9
▼▲
■The main power switch is located at
the back, on the lower surface.
The stand is an Optional
00u24121UE01.9.1911:50AMページ4
All manuals and user guides at all-guides.com

ENGLISH
5
External device connection terminals
Rear
AUDIO IN
R
L/MONO
AUDIO IN COMPONENT COMPOSITE S
VIDEO 2 VIDEO 1
RPR/CRPB/CBYIN INOUT
L/MONO
Video input terminals RGB input terminals
AUDIO IN
VHBGR
RGB 1
RGB2
D-SUB IN RS232C
External speaker
terminals 7
76
Remote controller
SIZE
RGB 2
VOLUME+
VOLUME-MUTE
MENU RECALL
RGB 1VIDEO 2VIDEO 1
SIZE button
POWER ON/OFF button
MUTE button
MENU button
VOLUME button
SELECT button
9
10
12
10
12
11
External
speaker
terminals
7
RECALL button
11
RGB/VIDEO button 10
POWER OFF button
9
POWER ON button
9
Handgrips
Caution when moving the
main unit
• As this product is heavy, whenever
it is moved, two people are
required to transport it safely.
• Whenever the unit is moved it
should be lifted forwards using the
two handgrips at the back, and the
unit should then be held at the base
on both sides for stability.
Handgrips
Handgrips
00u24121UE01.9.1911:50AMページ5
All manuals and user guides at all-guides.com

ENGLISH
6
INSTALLATION INSTRUCTIONS (continued)
Connecting to a PC
■Read SAFETY GUIDELINES ( to ) carefully to ensure max mum safety
before proceed ng to these steps:
1) Make sure that the d splay s gnals produced by your PC meet the spec f cat ons of th s
product.
• For the spec f cat ons of th s product, see Product Spec f cat ons ( to ).
2) Choose an appropr ate s te and nstall the product on a level table where the stand s
secure.
• Install the mon tor to have ready access to a power socket ava lable.
3) Make sure that your PC’s power sw tch s off.
4) Interconnect the s gnal nput term nal (RGB1) on the mon tor rear panel and the d splay
s gnal output term nal of the PC to each other us ng the s gnal cable ncluded.
• Opt onal cables are needed to connect to the RGB2 nput and aud o nput term nals.
• If the s gnal cable ncluded does not match your PC, consult your dealer after read ng the
sect on “S gnal Input”.
5) Insert one end of the power cable ncluded nto the rear-panel power cable connector and
the other end nto a power socket.
6) Turn on the mon tor, then the PC to make sure that a d splay mage appears on the mon tor
screen.
• For nstruct ons on turn ng on the mon tor and adjust ng ts d splay mages, see
“Operat ng Instruct ons” ( to ).
Installation and Cabling
IVII
27 29
919
Monitor rear panel
Power
cable
Power cable
connector
To signal
input
terminals
To audio input terminals
To signal
input
terminals
To signal
output
terminal
To signal
output
terminal
To audio
output
terminal
Speaker (R) Speaker (L)
AUDIO IN
VHBGR
RGB 1
RGB 2
D-SUB IN
3.5mm
Stereo
mini jack
Cord Clamper
PC
When connecting a
computer audio input to
the unit (using a 3.5mm
stereo mini jack), the
cord must pass through
the cord clamp toward
the bottom of the back of
the main unit. If it does not,
there is a possibility of
insufficient suppression of
electromagnetic radiation.
28
00u24121UE01.9.219:59AM ページ6
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
7
Connecting to Video Equipment
(such as a Laser Disc player, a DVD player, a DSS,or a Video Camera)
■Read SAFETY GU DEL NES ( to ) carefully to ensure maximum safety
before proceeding to these steps:
1) Choose an appropriate site and install the product on a level table where the stand is
secure.
• nstall the monitor to have ready access to a power socket available.
2) Make sure that the video equipment’s power switch is off.
3) nterconnect the signal input terminal on the monitor rear panel and the video equipment’s
signal output terminal to each other using an commercially available video cable.
4) nsert one end of the power cable included into the rear-panel power cable connector and
the other end into a power socket.
5) Turn on the monitor, then the video equipment’s to make sure that a display image
appears on the monitor screen.
• For instructions on turning on the monitor and adjusting its display images, see
“Operating nstructions” ( to ).
IVII
919
Use if the
video
equipment
has an
S video
input terminal
To S video output
terminals
To S video input
terminals
To audio/video
output terminals
To audio output
terminals
To component
output terminals
To component
input terminals
To audio/
video input
terminals
To audio input
terminals
Video equipment
(such as a video disc player,
a DVD player, and a video camera)
Monitor rear panel
External Monitor
Power
cable
Power cable
connector
Red(R)
AUDIO IN
R
L/MONO
AUDIO IN COMPONENT COMPOSITE S
VIDEO 2 VIDEO 1
RP
R
/C
R
P
B
/C
B
YIN INOUT
L/MONO
Speaker (R) Speaker (L)
White(L)
Red(R)
White(L)
Red(R)
White(L)
Red(R)
White(L)
Yellow(V)
Yellow(V)
COMPOSITE S
VIDEO 1
IN INOUT
To component
input terminals
To component
output terminals
•f video equipment with an S video output terminal is used, cabling by the S video cable is
recommended to provide finer video quality. ( f an S video input terminal and a video input
terminal connect to the monitor at the same time, S video input would govern.)
•f video equipment is equipped with component video output (Y, PB, PRor Y, CB, CR), please
connect to the corresponding color (Y, PB, PR) input jack on the component input of the
monitor.
•f the V DEO1 OUT terminal is connected to an external monitor with a 75 Ohm terminal, it
is possible to view the same image as on the main unit. f an external monitor is not being
used, the cable must be removed from the V DEO OUT terminal. The image will appear
white as saturation level is reached.
NOTE : Y to Y, PB-CBto PB, PR-CRto PR.
00u24121UE01.9.20 1:41PMページ7
All manuals and user guides at all-guides.com

ENGLISH
8
INSTALLATION INSTRUCTIONS (continued)
Loading Batteries
1) Open the battery cover.
• Slide the battery cover towards the arrow mark while
pressing it.
2) Load batteries.
• Load two Size AA batteries included observing the
correct polarities.
3) Close the battery cover.
• Slide back the battery cover towards the arrow mark.
Handling the Remote Controller
• Use the remote controller within about 5 m from front of the
unit’s remote-control sensor and within 30 degrees on both
sides.
With in 30
degrees
With in 30
degrees
About 5m
About 3m
About 3m
SIZE
RGB2
VOLUME+
VOLUME-MUTE
MENU RECALL
RGB1VIDEO 2
VIDEO1
Handling the Remote Controller
•Do not use new and old batteries together. The batteries could
explode or leak, resulting in fires, physical injury, or stains.
•When loading batteries, observe their correct polarities as marked on
the product. If loaded in the wrong direction, the batteries could
explode or leak, resulting in fires, physical injury, or stains.
TIPS
•Do not drop or impact the remote controller.
•Do not splash the remote controller with water or put it on a wet
object to avoid possible failures.
•Before leaving the remote controller out of use for an extended
period of time, remove the batteries from it.
•If the remote controller begins to lack responsiveness, replace the
batteries.
•Strong light such as direct sunlight impinging on the photoreceptor
of the remote control can cause operational failure. Position this unit
to avoid direct contact with such light.
CAUTIONS
00u24121UE01.9.1911:50AMページ8
All manuals and user guides at all-guides.com

ENGLISH
9
OPERATING INSTRUCTIONS
•When the indicating lamp blinks in green or the message
“POWE SAVE” or “OUT OF F EQUENCY” appears on
the screen, there is something unusual about the status of
reception. See “Symptoms That Seemingly Appear to be
Failures.”
Main power
switch
Main unit Remote
controller
SUB POWER
Turning Power On and Off
Indicating lamp Power status Operating
Off Off When the main power switch is set to
OFF.
Lights red Off
(standby)
When the main power switch ( ) is ON,
and the button on the
remote control or the SUB POWER button
on the underside of the front of the frame
is OFF.
Lights or blinks
green On
When the main power switch ( ) is ON,
and the button on the remote control or
the SUB POWER button on the underside
of the front of the frame is ON.
23
TIPS
• Avoid repeatedly turning the monitor on and off at short time
intervals. Failures might result from such operation.
• Turn off the main power switch ( ) before leaving the monitor out
of use for an extended period of time.
• If a power failure occurs while the main unit is running, it would be
powered on upon recovery from the failure. Turn off the unit main
power switch before leaving the main unit.
■To turn the monitor power ON, press the main power switch ( ) on the monitor
main unit to ON, and then press the SUB POWE button or the or button on
the remote control.
■To turn the monitor power OFF, press the SUB POWE button or the or
button on the remote control, and then press the main power switch ( ) on the
monitor main unit to OFF.
•During normal use, the main power switch ( ) is set in the ON position, and the monitor
can then be turned ON/OFF using the SUB POWE button or the button on the
remote control.
00u24121UE01.9.1911:50AMページ9
All manuals and user guides at all-guides.com

■The input is switched by pressing the GB1, GB2, VIDEO1 or VIDEO2 button
on the remote control. Pressing the INPUT SELECT button on the monitor main
unit switches the input in the order of
GB1 →GB2 →VIDEO1 →
VIDEO2 →GB1.
• When the same signal is input to GB1 and
GB2, the phase may in some cases shift
slightly but this is not a malfunction. In such
case, readjust the PHASE of the one being
used.
■While the on-screen display system, ( ) is not on display, press the remote
controller VOLUME button or (or the main unit VOLUME button ▲or
▼to adjust the sound volume.
• The adjustment status will be displayed as
guidance while you press these buttons.
•While the guidance is on display, press
or ▲to turn up the volume.
•While the guidance is on display, press
or ▼to turn down the volume.
• You can also adjust the sound volume setting
via the on-screen display system .
• The sound volume adjustment mode will exit
when no keys are entered for 5 seconds. (The adjustment status guidance will disappear
automatically.)
VOLUME-
VOLUME+
VOLUME-
VOLUME+
ENGLISH
10
OPERATING INSTRUCTIONS (continued)
Main unit
Remote
controller
VOLUME+
VOLUME-
VOLUME
RGB1 (D-sub input)
When using INPUT SELECT
RGB2 (BNC input)
VIDEO1 (
composite or S input
)
VIDEO2 (
COMPONENT input
)
Input Selection
Remote
controller
Main unit
RGB 2RGB 1VIDEO 2VIDEO 1
INPUT SELECT
Volume Adjustment
12
14
VOLUME : 30
Sound volume setting
Adjustment status guidance
■Press the remote controller MUTE button to mute the sound temporarily.
• When you press the button, [MUTE] (pink) and the
status of volume setting will be displayed in a
guidance image.
• While the sound is muted, press the button
to turn down the volume.
• While the sound is muted, press the button
to cancel the mute.
• You can also adjust the sound volume setting of the
mute via the on-screen display system .
■
Press the remote controller MUTE button once again and the mute will be canceled and
the guidance will change to VOLUME (blue), enabling the volume to be heard.
• When MUTE is used, the guide display will continue for 5 sec. and then turn off.
VOLUME+
VOLUME-
Sound Mute
Remote
controller
MUTE
MUTE : 30
Sound volume setting
(The display will turn to pink.)
14
00u24121UE01.9.1911:50AMページ10
All manuals and user guides at all-guides.com

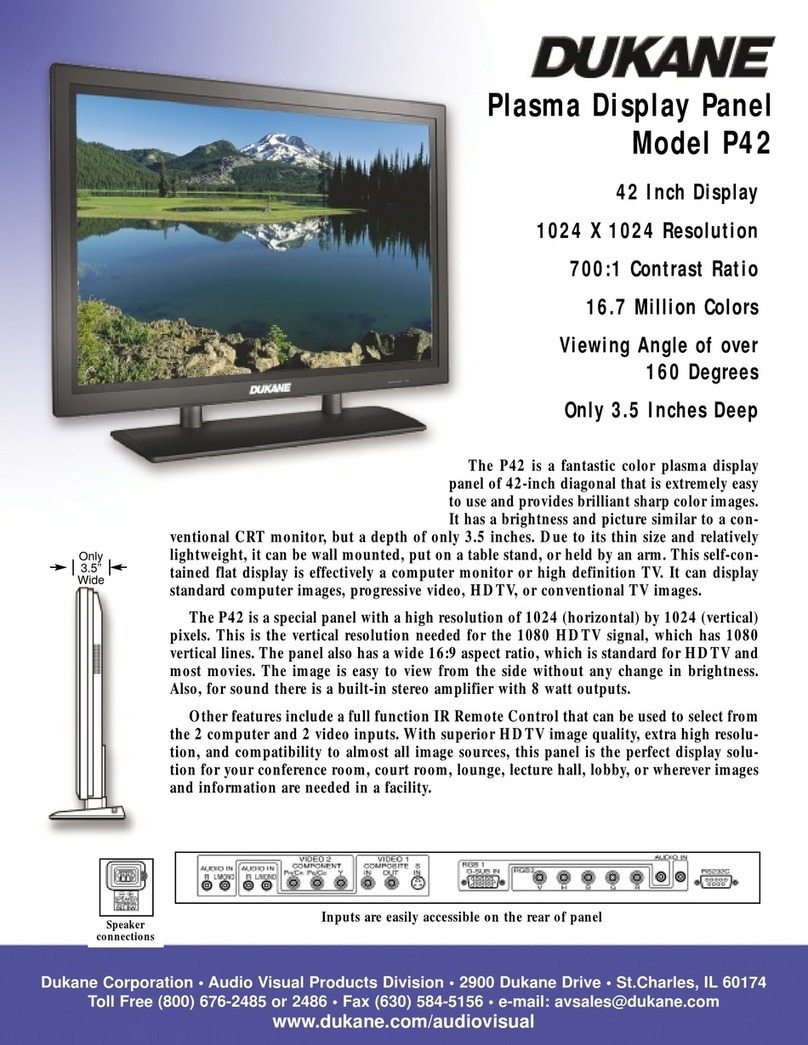

Other manuals for ImagePro P42
2
Table of contents
Other Dukane Monitor manuals

Dukane

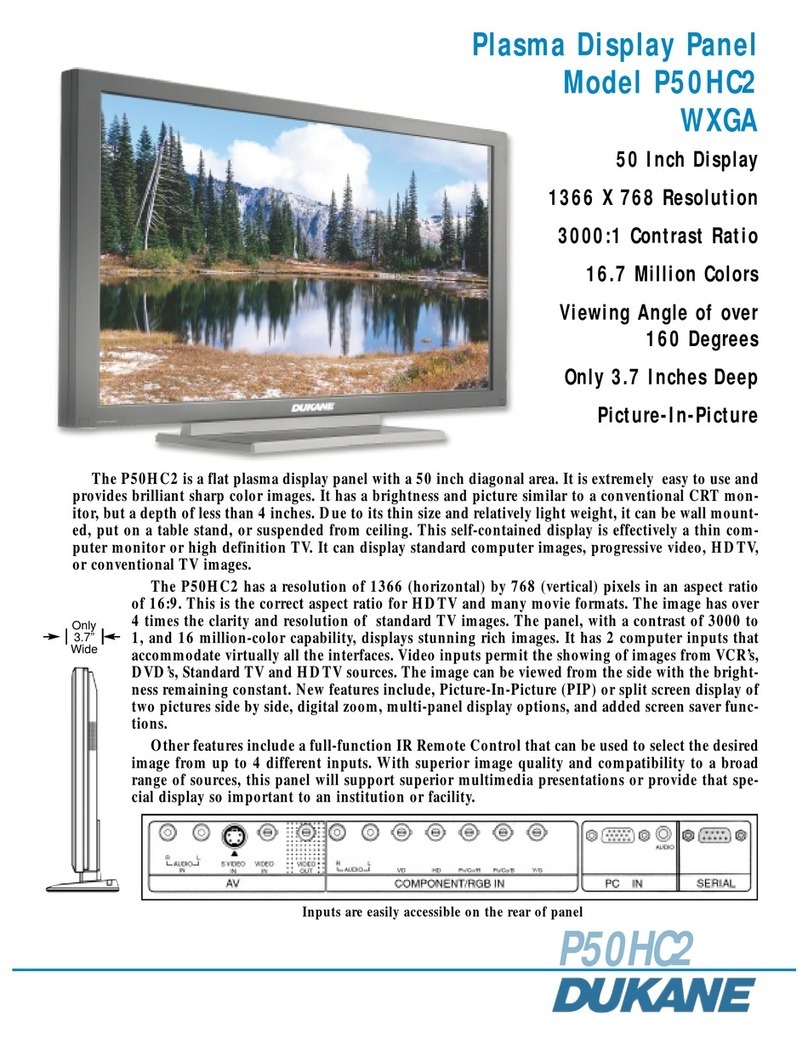

Dukane P50HC2 User manual

Dukane

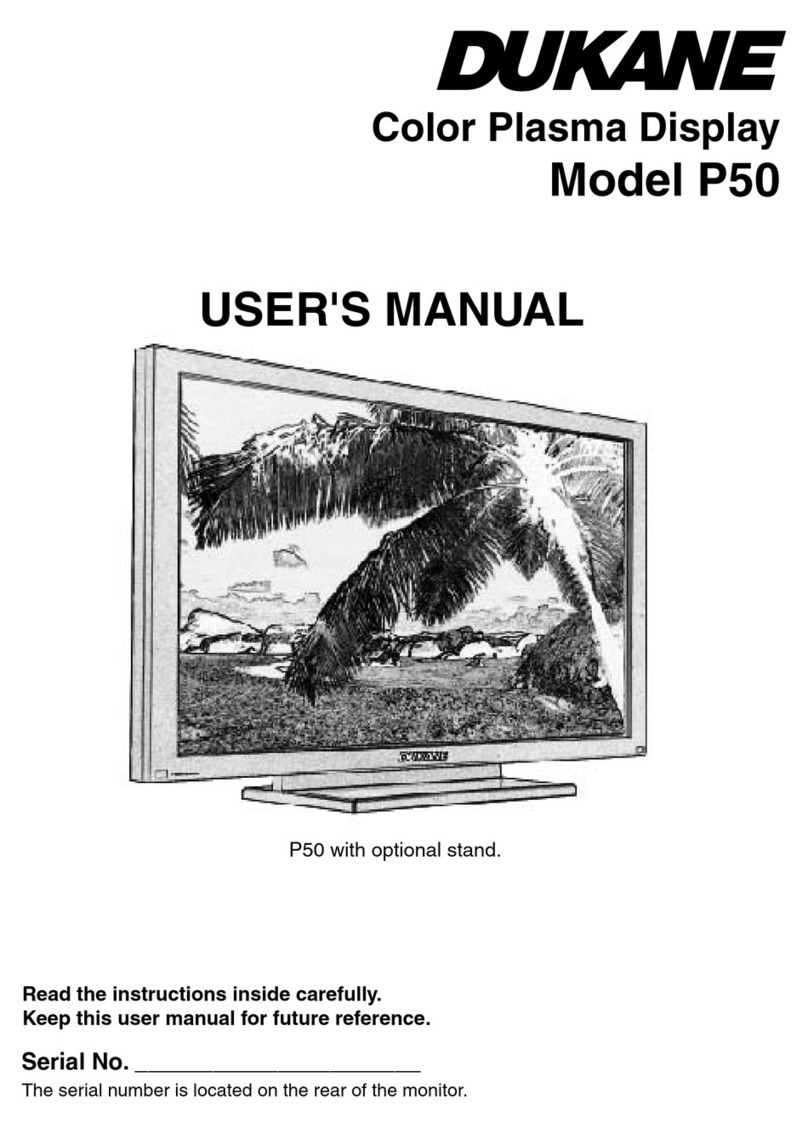

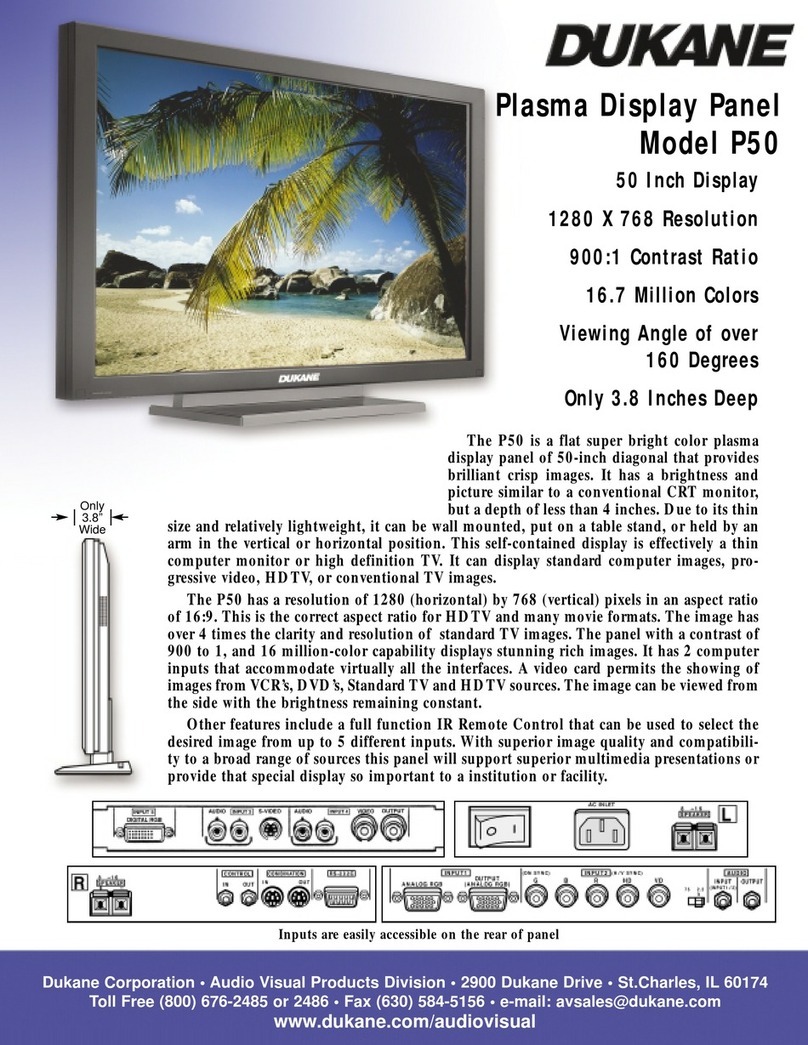

Dukane P50 User manual

Dukane
Dukane P50 User manual

Dukane

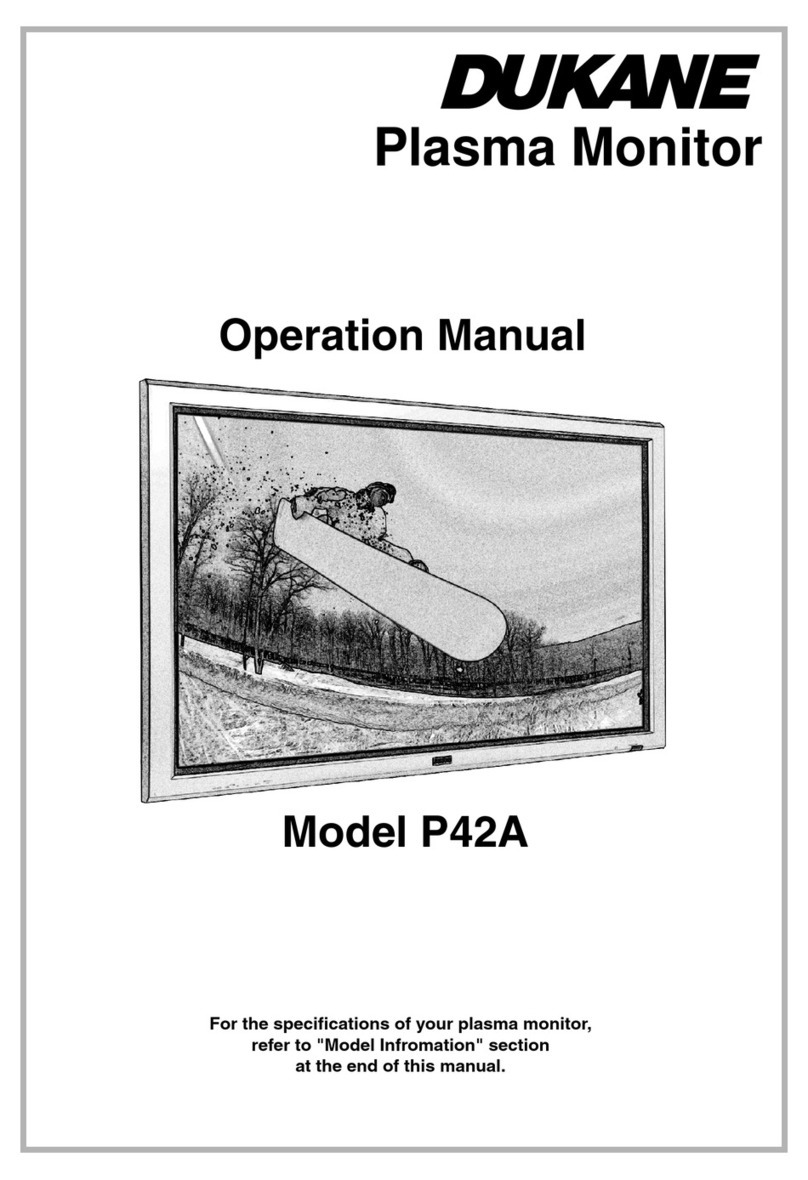

Dukane P42A User manual

Dukane
Dukane P50A User manual

Dukane
Dukane P42A2 User manual

Dukane
Dukane P61A User manual

Dukane
Dukane P42HC User manual

Dukane
Dukane ImagePro P42 User manual

Dukane
Dukane ImagePro 8947 User manual
