Dunavox DX-68 COMBO User manual

GB
THERMOELECTRIC
COMBO COOLER
Model: DX-68 COMBO
Operation Manual

1
Index
1. General Safety Precautions…………..............................2
2. Technical Data………………………..............................3
3. Illustrated Structure……………………...........................4
4. Electric Principle Diagram…………………………........4
5. Operation …………………………………………..........5
6. Particular Precautions………………………………........6
7. Maintenance………………………………………..........7
8. Troubleshooting…………………………………….........8

2
1.GENERAL SAFETY PRECAUTIONS
● After removing the wine cooler from the package, make sure it is in good
condition. In case of doubt, do not use it and contact your own dealer or an
authorized service center.
● Plastic bags, nails, etc. Should be kept out of the reach,read the operation manual
carefully and check that the rating data on the rating nameplate corresponds to
your power supply.
● Do not place the cooler on floor heated area!
● This wine cooler can only be used in the use of which it was designed. The
manufacturer will not respond for any damage due to improper use or repairs
made by unqualified personnel.
● Before cleaning the cooler, make sure it is unplugged. Never clean the unit with
an acid preparation, medical, dilution, gasoline, oil or any other kind of chemical
substance that could damage the wine cooler.
● Repair should only be made by authorized service centers:
www.autosonik.com , consumer electronic division, menu issue: assistance.
● Caution
1. To reduce the risk of fire, when the fuse of the power board is broken, replace
only with same type fuse by authorize d service centers.
2. Free standing installation only
3. Do not use extension cords.
4. Danger: Risk of child entrapment. Before throwing away your old refrigerator,
you must note: a) Take off the door, b) Leave the shelves in place, so that
children may not easily climb inside.

3
2 .TECHNICAL DATA
Type DX-68 COMBO
Volume (liter) 68L
Material Case Iron
Door Glass
Unit Dimension
(W×H×D)(mm) 450*730*525
Packaging Dimension
(W×H×D)(mm) 500*760*575
Net Weight (Kg) 18
Gross Weight (Kg) 21
Power Consumption
(KW·h/24h) 1.5
Inside Temperature Control 8-18 (upper room)
6—12 (lower room)
Rated Voltage 220-240VAC
Rated Frequency 50Hz
Input power 130W

4

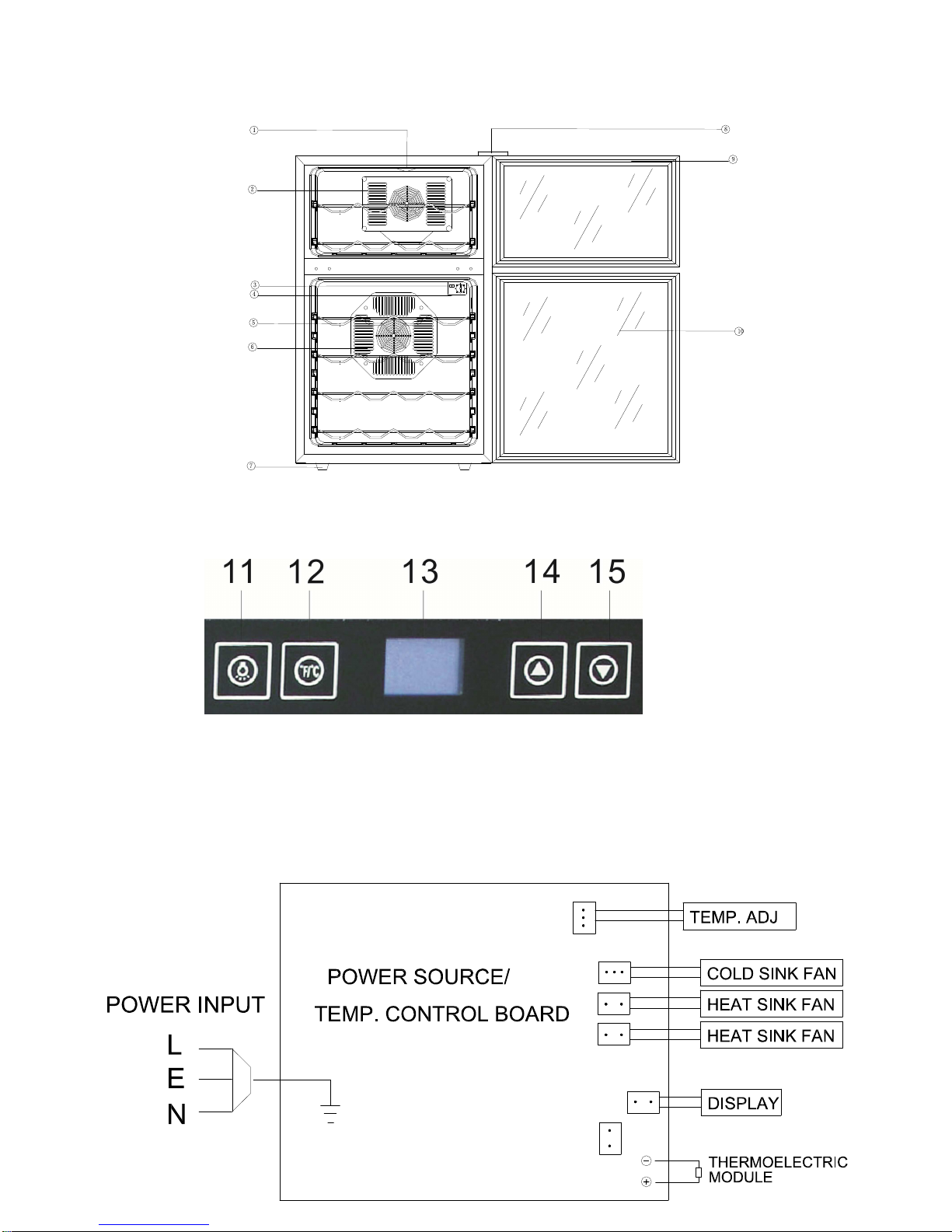

3.ILLUSTRATED STRUCTURE
1.Light 2. Fan Mask 3. Light Switch 4. Light/lower room temp control 5.Shelf
6.Fan Mask 7. Foot 8.Ream cover 9 .Magnetic Seal 10. Door
11. Light button 12. C/F button 13. LCD display
14.set temp up button 15. set temp down button
4. ELECTRIC PRINCIPLE DIAGRAM

5
5. OPERATION OF REFRIGERATOR
● This wine cellar was designed for temp double control, in two totally
independent areas.
● The refrigerator inside temperature depends on the room temperature. The
refrigerator makes sure values from 9℃—18℃(±1°C) for upper zone and
6℃—12℃for lower zone, when, as an example, the cellar was placed in a
room with an ideal temperature of 25℃.
● By the first turn on, without putting any bottle inside the refrigerator, the product
can be cooled to 15° after 1.5 hours and after 2~2.5 hours more will reach to the
temperature programmed by the manufacturer.
● Turning the combo cooler on, the cooling system activates automatically.
● When the power is connected, cooling system starts to work.
● The temp you want for upper compartment can be set by touching sensor buttons
“ ” and “ ” with your finger. When the inside temperature higher than the
set point Cooling system will be working normally. When the inside temperature
is lower than the set point, the cooling system stop working then it starts
automatically again when temperature rises above the set point. At this point, the
refrigerator starts an automatic condition allowing a constant control of
temperature and energetic save, as a matter of fact during this phase, cooling
system stops while cold distribution (fans) turns more slowly and promote a
bigger energetic save.
● The Light can be turned OFF or ON by touching . If you forget to turn it off,
this will be automatically turned off after 10 minutes.
● The lower room temperature is controlled by the thermostat (pic. 4).
● The first time you turn the unit on, set the temperature control to “Max”. The

6
range of the temperature control is from position “Min” to “Max”. After 2
hours with empty cellar, adjust the temperature control to the setting that best
suites your needs. To set in the middle should be appropriate for home or office
wine cooler use.
6. PARTICULAR PRECAUTIONS
● In order to function at its potential, this wine cooler need to be placed on flat
floor, with 2cm spaces at each side and 10cm at the backside, favoring this way a
correct air tide.
● Use the adjustable feet to place the cellar fully horizontal.
● Avoid direct sunshine and carry high temperature.
● Avoid putting cooked food inside the cellar, if it is still hot.
● Avoid mixing uncooked food with cooked food.
● Avoid, as much as possible, putting bottles or any object in front of the fans, they
would block the cold air tide and as a result, temperatures would not be even
inside the cellar.
● Do not place heavy articles on the top of the cellar.
7. MAINTENANCE
● Shut off power supply before cleaning cabinet.
● Take out wines and shelves, and then clean the cabinet with soda water first and
with clean water last.
● Do not use soap or detergent for the cabinet.
● Clean the cellar regularly.

7
8. TROUBLESHOOTING
Symptoms Possible cause Solutions
No cooling
Plug not put in
Low voltage
Fuse broken
Put in the plug
Ensure normal voltage
Change fuse
Not cold enough
temperature
inside
The refrigerator is placed too
near heat source;
Bad ventilation;
Fans don’t work;
The door is not closed tightly or
opened too frequently or for too
long time;
Keep the refrigerator away from sunshine or
other heat source;
Place the refrigerator in the area with good
ventilation and keep things away from the
fans;
Check whether the plug is connected or
change the fan;
Close the door tightly and don’t open the
door too frequently or for too long time.
Peculiar smell
inside
refrigerator
Check whether there is any sour
inside Wrap the source or take it out
Inside light flash
Set temperature higher than inner
temperature;
The automatic defrost function
start to work
Adjust the adjustor
Normal function. No repair needed
Frost on the cold
sink。
Too much humidity or too low
temperature inside the case
 Output the plug, stop the power, and defrost by
hand, Connect power again when the ice
thaws
