Dune 4WD AN2230SP User manual

Turn the control knob to the OFF position.
HOW TO INSTALL A GAS CARTRIDGE
Each burner requires an individual cartridge to operate. The left hand burner operates from a
instructions for future reference. ONLY USE IN WELL-VENTILATED AREAS
PORTABLE BUTANE COMBI STOVE
OPERATING INSTRUCTIONS
AGA
approval
No:
Australian Gas Association
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or
death. DO NOT modify this appliance.
WARNING: Accessible parts may be very hot. Keep young children away at all times.
Do not move the appliance during use.
Important. Read these instructions for use carefully.
Familiarise yourself with the appliance before connecting it to it’s gas cartridge. Keep these
1.
Make sure that the cartridge lever is in the
UNLOCK position. If the gas knob is in the
ON position the cartridge cannot be put
into position.
2. Open the cartridge cover and insert the
gas cartridge.
Make sure that the cartridge slot fits into
the cartridge lever guide on the valve
inside the stove.
(Caution: Use only approved butane gas
cartridge UL147B or EN417)
OPERATING INSTRUCTIONS
cartridge situated in the left hand cartridge bay and the right hand burner operates from a cartridge
situated in the right hand cartridge bay. The following instructions are written for an individual side as
this can be used independently. The operator is to ensure that the instructions are correctly applied
to each side of the appliance.
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
Plate
Valve & Cartridge Guide
Cartridge Cover
Reference Window
Control Knob
Cartridge Lever
Drip Pan
Safety Reset Lever
AN2230SP
WARNING: FOR OUTDOOR USE ONLY 8630
HIGH
LOW

If the stove is used in a hot area such as outdoors in
direct sunlight or incorrectly the cartridge will become
hot and the pressure inside the cartridge will increase.
If the pressure approaches a dangerous level the
safety device will activate by ejecting the cartridge.
If the ejection mechanism fails, this stove features
a secondary safety shut o° which can be reset by
pushing the lever. if either of these safety devices
activate, your method of use is causing the cartridge
to overheat. Be responsible and only use this stove
safely, as described in these instructions.
It may be necessary to open the control knob to release the
pressure before another canister can be installed into the stove.
void carrying cartridge in the boot of a car or any unventilated enclosure.
WARNING!!
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N

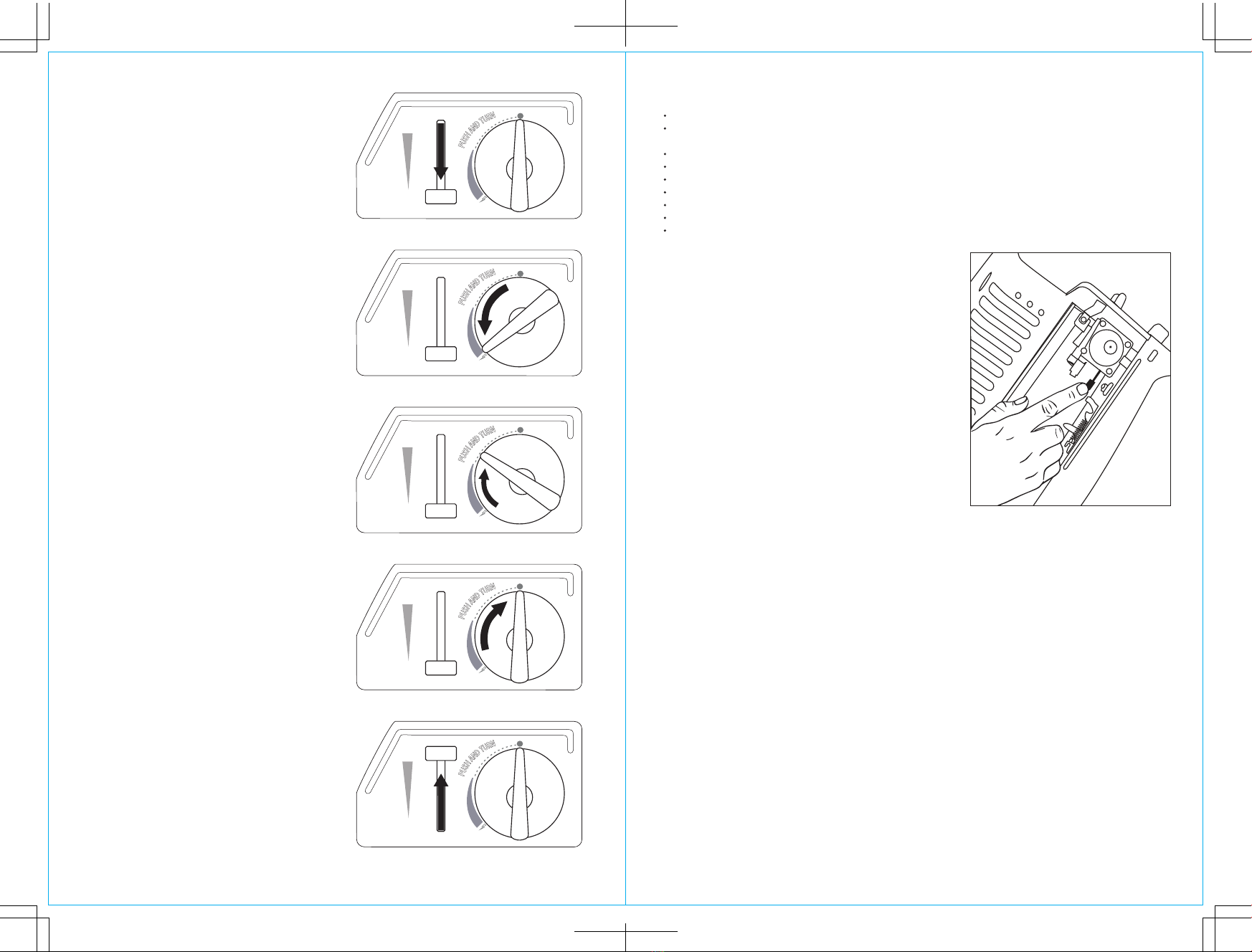

IGNITION:
1. Push the control knob in and turn the control
knob towards the IGNITION position until a
click is heard from the piezo ignitor.
2. If ignition fails, turn the control knob back to
the OFF position and repeat.
3. When you are ready to use the stove, push
the cartridge lever down to the FUEL-LOCK
position. If a hissing sound or gas smell
is evident, check that cartridge is fitted
correctly. Repeat step 2 to stop the gas
leakage. If lever is hard to push down, do
not force it. Check that the cartridge is fitted
correctly and the control is in the
OFF position.
HEAT CONTROL:
The control knob can be turned to adjust the
flame output. Adjust it to the suitable position
for cooking.
EXTINGUISHING:
1. Turn the control knob to the OFF position.
Confirm that the flame is completely
extinguished.
2. Raise the cartridge lever to the UNLOCK
position, and take out the gas cartridge when
the stove is not in use.
Do not store cartridge in stove during transportation or storage.
Avoid boil overs and spillage.
During use parts may become very hot. Keep young children away.
Allow to cool before moving or handling.
Do not use as a space heater.
Do not use for any purpose other than cooking.
Do not operate stove in the carry case.
Caution: Never obstruct the air openings or vents on this appliance.
Replace the nozzle cap back onto the cartridge to protect nozzle and avoid
accidental gas leakage if nozzle is bumped or depressed.
STOVE:
1. Check the seals between the appliance and the gas cartridge are in place and in good condition
.egdirtracsagehtgnitcennocerofeb
2. Do not use this appliance if it has damaged or worn seals
3. Do not use this appliance if it is leaking, damaged or does not operate properly.
4. Do not try to detect leaks using a flame.
5. This appliance must only be serviced by an authorised person.
6. Do not modify this appliance
HOW TO RESET THE
SAFETY SHUT OFF
PRECAUTIONS
GAS CARTRIDGE:
1. This appliance shall only be used with a butane cartridge certified to UL147B or EN417
IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CARTRIDGES.
2. The cartridge should be placed away from flammable products or direct sunlight.
Never keep cartridge in places where the temperature is over 50°C.
3. Do not subject the cartridge to impact or rough handling.
4. Cartridges must be stored outdoors in a well ventilated location out of reach of children.
5. Do not puncture or incinerate empty cartridge.
6. A
7. Gas cartridges shall be changed in a well ventilated location, preferably outside, away from
people and any sources of ignition such as naked flames, electric heaters/equipment.
8. To check if gas cartridge contains gas, disconnect from the stove, then hold upright and
shake from side to side. If you can feel or hear liquid movement, it contains gas
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW

ABNORMAL OPERTION
USE:
1. Do not use for any purpose other than cooking.
Incorrect use may result in overheating, incomplete
combustion and/or a risk of fire or explosion.
2. DO NOT USE THIS STOVE TO LIGHT briquettes
or heat beads.
3. In the event of a gas leak (smell of gas) immediately
cartridge lever to the unlock position to isolate the
gas supply.
4. Do not move the appliance during operation.
5. The maximum sized vessel (pot or pan) to be used on the
stove is 26.5cm diameter. Unless your model includes a
specific cooking plate or cooking pot/pan
. .esutsrfiehterofebnapdnaetalpgnikoocehthsa
2. The hotplate and pan reaches cooking temperature
very quickly. To prevent damage to your cooking
plate, do not preheat the plate or pan for an
excessive period.
3. Take care when cooking to avoid scratching the
cooking surfaces with utensils.
4. Prevent fat fires. Never allow the fat/grease channel
to overflow.
5.
and allow the hotplate and pan to cool down before
packing away. Do not splash the hotplate suddenly
with water while hot, this may cause the hotplate to
warp.
6. To fix a warped hotplate, place it back on the stove
with both burners on high for 30 seconds before the
plate is allowed to cool. It may return back to the
original shape.
7. After each use, clean food residue from the cooking
plate with a non-scratch type sponge to prevent
corrosive damage to the cooking surface.
Cooking with the non-stick hotplate and
deep dish cooking pan
1. W
OVERSIZE
400mm
400mm
1200mm
PRECAUTIONS:
1. Make sure that the gas cartridge is released before cleaning.
2. Never remove safety devices or gas components.
CLEANING:
1.
When necessary, use a kitchen cleanser and
then finish with a dry cloth.
2. Pan support and drip pan: After washing,
wipe with a dry cloth.
3. Burner: Clean the burner top and the burner
ports with a hard brush making sure that
all food particles are removed from the
burner ports.
MAINTENANCE
Refer to the trouble shooting section of this manual for possible solutions.
If the stove does not operate properly DO NOT use the appliance.
PLACEMENT:
1. Do not use the stove in very windy conditions.
2. Do not place or use this appliance on any hot surface.
3. Do not use the stove under overhanging shelves etc.
4. Do not use close to combustible materials such as
curtains. No combustible materials should be within
400mm from any side of the stove and 1200mm above.
5. Use stove in the shade or in cool places.
Avoid using in direct sunlight.
6. Only operate this appliance on a flat horizontal
surface and ensure the aeration opening below
the stove is clear and unobstructed.
7. CARBON MONOXIDE HAZARD-
USING THIS APPLIANCE IN AN ENCLOSED SPACE MAY CAUSE
DEATH. DO NOT USE IN CARAVANS, TENTS, MARINE CRAFT, CARS,
MOBILE HOMES OR SIMILAR LOCATIONS.
Abnormal operation can be identified by:
Frequent activation of pressure safety device
Jamming of cartridge lock lever
Irregular burner flame which is yellow or unstable
Black sooting of cooking utensils

AGA Approved No.
TROUBLE SHOOTING
CAUSE
No ignition No burning Unstable ame
Uneven ame
Slow burning Gas smell Flame extinguishes during use
SOLUTION
Lack of fuel Renew cartridge
Spark point dirty Carefully remove dirt
Dirty burner Clean the burner
Imperfect cartridge
alignment
Realign cartridge
Use of unsuitable fuel Replace with cartridge
containing correct fuel
Internal gas pressure
too high
Cool down gas cartridge
Functioning of safety
stop mechanism
Check and reset
mechanism
Improper setting of
spark point
Set spark point to 2mm
away from burner
PROBLEM
be used until it has been inspected and repaired by a suitably qualified person.
SPECIFICATIONS
Model No.
Ignition Method Piezo-Electric
Dimensions 678mm (W) x 285mm (D) x 128mm (H)
Weight 3.3kg
Safety Device
Fuel Consumption Hob = 165g/h Pot = 125g/h Total = 290g/h
Gas Type Butane (2 Cartridges)
Injector Size Hob = 0.60mm Pot = 0.52mm
AN2230SP
1. Canister ejection 2. Gas shut o
8630 G
MADE IN CHINA
DUNE® is a registered trademark of Anaconda
Group Pty Ltd (ABN: 53 955 173 782)
Ph: 1300 558 990
12 MONTH WARRANTY
This product is guaranteed to be free from defects in workmanship & materials for a period of 12 months from date of
purchase.
The product will be replaced or refunded for a major failure. The product will be repaired or replaced at our discretion
should the product fail to be of an acceptable quality and failure is not a major failure.
Warranty will not apply if the product (a) is damaged through misuse (including failure to maintain), neglect, accident or
ordinary wear & tear (including rust, corrosion & normal fading, weathering, staining, discolouration, scratching or
chipping); (b) is damaged through exposure to heat; (c) is used commercially; (d) has not been used or installed in
accordance with any applicable instruction; or (e) has been modied, repaired or tampered with by the purchaser or an
unauthorised service person.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
To claim under this warranty, take this product to any Anaconda store where you purchased it. You will need your receipt
or other proof of purchase. Additional information may be requested of you to process your claim. Should you not be able
to provide proof of purchase with a receipt; a bank or credit card statement, and identication showing your name,
address and signature may be required to process your claim.
Any expense relating to the return of the product to the store will be at the cost of the customer. For online purchases,
please contact us to arrange where and how to return the product. To obtain compensation, you would need to provide
documentary evidence of the loss or damage suered, and documentary evidence that such loss or damage was a
reasonably foreseeable consequence of a failure. Such evidence may include photographs, statutory declarations, receipts,
reports (e.g. from your doctor), depending on the loss or damage.
The benets given by this warranty are in addition to other rights and remedies under the Australian Consumer Law in
relation to the goods and services to which this warranty relates.
This warranty is provided by Anaconda Group Pty Ltd
(ABN 53 955 173 782). www.anaconda.com.au
Level Six, 111 Cecil Street , South
Melbourne VIC 3205
Ph: 1300 558 990
