DOUBLE BURNER BUTANE STOVE
WITH HOTPLATE
OPERATING INSTRUCTIONS
WARNING: FOR OUTDOOR USE ONLY
Australian Gas Association
•Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or
death. DO NOT modify this appliance.
•WARNING: Accessible parts may be very hot. Keep young children away at all times.
•Do not move the appliance during use.
•Important. Read these instructions for use carefully.
•Familiarise yourself with the appliance before connecting it to it’s gas cartridge. Keep these
instructions for future reference. ONLY USE IN WELL-VENTILATED AREAS
DOUBLE BURNER BUTANE STOVE WITH HOTPLATE AN2240SP-2016-10-07-V3
AN2240SP
AN2240SP-2016-10-07-V3
AGA
approval
No: 8630

DOUBLE BURNER BUTANE STOVE WITH HOTPLATE
HOW TO INSTALL A GAS CARTRIDGE
1. Turn the control knob to the OFF position.
Make sure that the cartridge lever is in the
UNLOCK position. If the gas knob is in the
ON position the cartridge cannot be put
into position.
2. Open the cartridge cover and insert the
gas cartridge.
Make sure that the cartridge slot fits into
the cartridge lever guide on the valve
inside the stove.
(Caution: Use only approved butane gas
cartridge UL147B or EN417)
OPERATING INSTRUCTIONS
Each burner requires an individual cartridge to operate. The left hand burner operates from a
cartridge situated in the left hand cartridge bay and the right hand burner operates from a cartridge
situated in the right hand cartridge bay. The following instructions are written for an individual side as
this can be used independently. The operator is to ensure that the instructions are correctly applied
to each side of the appliance.
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
AN2240SP-2016-10-07-V3
Plate
Valve & Cartridge Guide
Cartridge Cover
Reference Window
Control Knob
Cartridge Lever
Drip Pan
Fat/Grease Channel
Safety Reset Lever

UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
IGNITION:
1. Push the control knob in and turn the control
knob towards the IGNITION position until a
click is heard from the piezo ignitor.
2. If ignition fails, turn the control knob back to
the OFF position and repeat.
3. When you are ready to use the stove, push
the cartridge lever down to the FUEL-LOCK
position. If a hissing sound or gas smell
is evident, check that cartridge is fitted
correctly. Repeat step 2 to stop the gas
leakage. If lever is hard to push down, do
not force it. Check that the cartridge is fitted
correctly and the control is in the
OFF position.
HEAT CONTROL:
The control knob can be turned to adjust the
flame output. Adjust it to the suitable position
for cooking.
EXTINGUISHING:
1. Turn the control knob to the OFF position.
Confirm that the flame is completely
extinguished.
2. Raise the cartridge lever to the UNLOCK
position, and take out the gas cartridge when
the stove is not in use.
DOUBLE BURNER BUTANE STOVE WITH HOTPLATE AN2240SP-2016-10-07-V3

DOUBLE BURNER BUTANE STOVE WITH HOTPLATE
WARNING!!
• Do not store cartridge in stove during transportation or storage.
• Replace the nozzle cap back onto the cartridge to protect nozzle and avoid
accidental gas leakage if nozzle is bumped or depressed.
• Avoid boil overs and spillage.
• During use parts may become very hot. Keep young children away.
• Allow to cool before moving or handling.
• Do not use as a space heater.
• Do not use for any purpose other than cooking.
• Do not operate stove in the carry case.
• Caution: Never obstruct the air openings or vents on this appliance.
STOVE:
1. Check the seals between the appliance and the gas cartridge are in place and in good condition
before connecting the gas cartridge.
2. Do not use this appliance if it has damaged or worn seals.
3. Do not use this appliance if it is leaking, damaged or does not operate properly.
4. Do not try to detect leaks using a flame.
5. This appliance must only be serviced by an authorised person.
6. Do not modify this appliance.

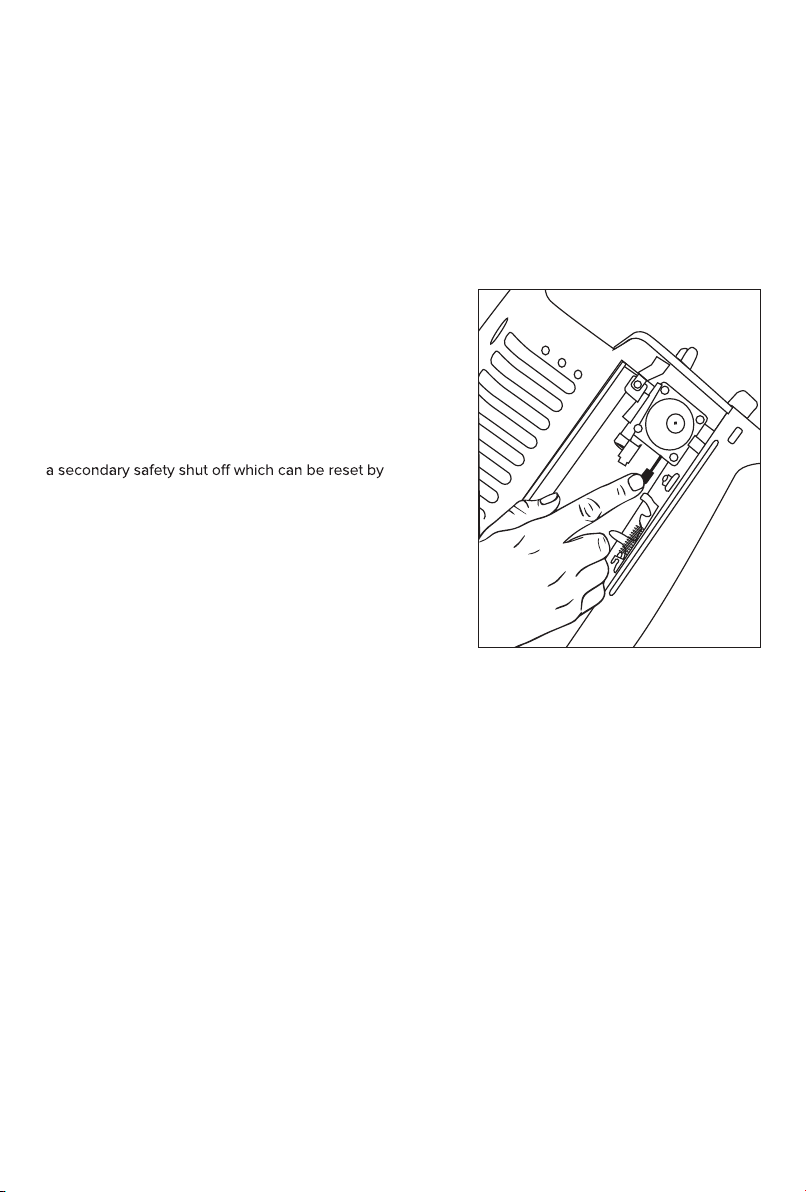

HOW TO RESET THE
SAFETY SHUT OFF
If the stove is used in a hot area such as outdoors in
direct sunlight or incorrectly the cartridge will become
hot and the pressure inside the cartridge will increase.
If the pressure approaches a dangerous level the
safety device will activate by ejecting the cartridge.
If the ejection mechanism fails, this stove features
pushing the lever. If either of these safety devices
activate, your method of use is causing the cartridge
to overheat. Be responsible and only use this stove
safely, as described in these instructions.
PRECAUTIONS
GAS CARTRIDGE:
1. This appliance shall only be used with a butane cartridge certified to UL147B or EN417
IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CARTRIDGES.
2. The cartridge should be placed away from flammable products or direct sunlight.
Never keep cartridge in places where the temperature is over 50˚C.
3. Do not subject the cartridge to impact or rough handling.
4. Cartridges must be stored outdoors in a well ventilated location out of reach of children.
5. Do not puncture or incinerate empty cartridge.
6. Avoid carrying cartridge in the boot of a car or any unventilated enclosure.
7. Gas cartridges shall be changed in a well ventilated location, preferably outside, away from
people and any sources of ignition such as naked flames, electric heaters/equipment.
8. To check if gas cartridge contains gas, disconnect from the stove, then hold upright and
shake from side to side. If you can feel or hear liquid movement, it contains gas
It may be necessary to open the control knob to release the
pressure before another canister can be installed into the stove.
AN2240SP-2016-10-07-V3

UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
OVERSIZE
USE:
1. Do not use for any purpose other than cooking.
Incorrect use may result in overheating, incomplete
combustion and/or a risk of fire or explosion.
2. DO NOT USE THIS STOVE TO LIGHT briquettes
or heat beads.
3. In the event of a gas leak (smell of gas) immediately
cartridge lever to the unlock position to isolate the
gas supply.
4. Do not move the appliance during operation.
5. When the cooking plate is removed, the maximum
sized vessel (pot or pan) to be used on this stove is
26.5cm diameter.
Cooking on the Non-stick plate
1. Wash the cooking plate before the first use.
2. The hotplate reaches cooking temperature very
quickly. To prevent damage to your cooking plate,
do not preheat the plate for an excessive period.
3. Take care when cooking to avoid scratching the
cooking surface with utensils.
4. Prevent fat fires. Never allow the fat/grease channel
to overflow.
5.
and allow the hotplate to cool down before packing
away. Do not splash the hotplate suddenly with water
while hot, this may cause the hotplate to warp.
6. To fix a warped hotplate, place it back on the stove
with both burners on high for 30 seconds before the
plate is allowed to cool. It may return back to the
original shape.
7. After each use, clean food residue from the cooking
plate with a non-scratch type sponge to prevent
corrosive damage to the cooking surface.
DOUBLE BURNER BUTANE STOVE WITH HOTPLATE AN2240SP-2016-10-07-V3

DOUBLE BURNER BUTANE STOVE WITH HOTPLATE
400mm
400mm
1200mm
PRECAUTIONS:
1. Make sure that the gas cartridge is released before cleaning.
2. Never remove safety devices or gas components.
CLEANING:
1.
When necessary, use a kitchen cleanser and
then finish with a dry cloth.
2. Pan support and drip pan: After washing,
wipe with a dry cloth.
3. Burner: Clean the burner top and the burner
ports with a hard brush making sure that
all food particles are removed from the
burner ports.
MAINTENANCE
Refer to the trouble shooting section of this manual for possible solutions.
If the stove does not operate properly DO NOT use the appliance.

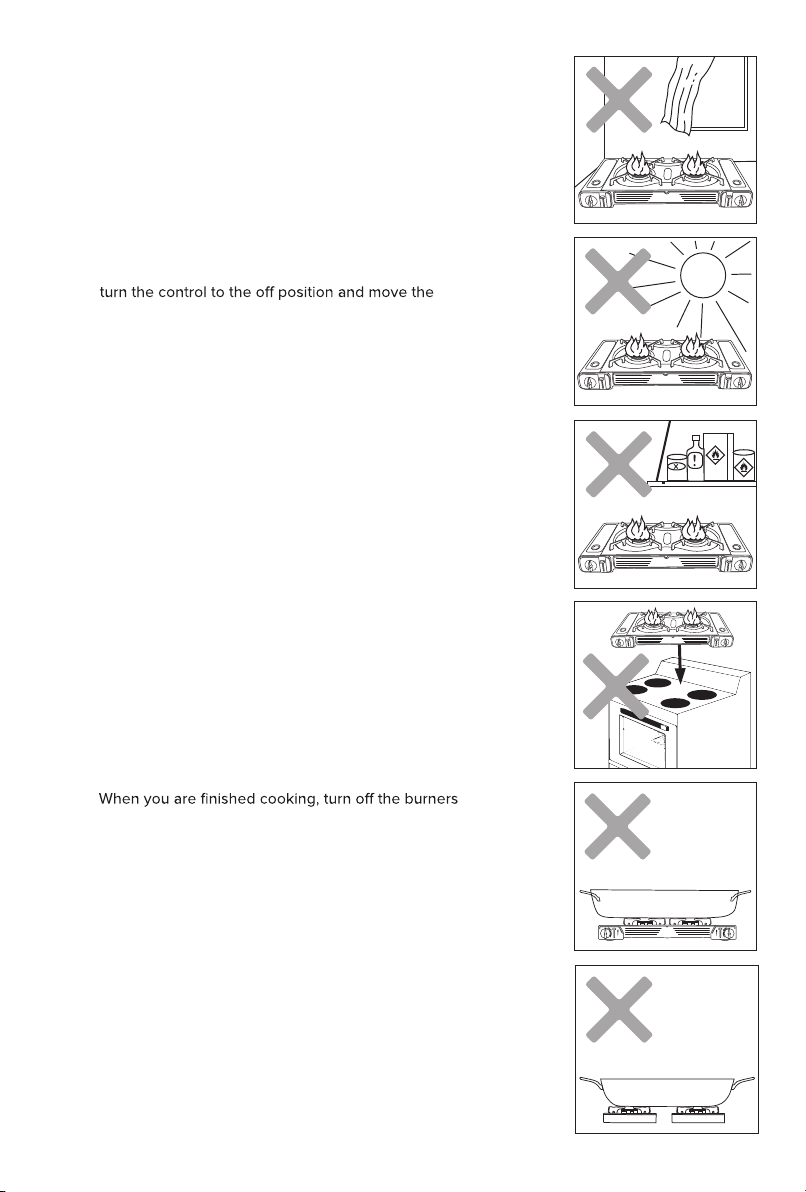

PLACEMENT:
1. Do not use the stove in very windy conditions.
2. Do not place or use this appliance on any hot surface.
3. Do not use the stove under overhanging shelves etc.
4. Do not use close to combustible materials such as
curtains. No combustible materials should be within
400mm from any side of the stove and 1200mm above.
5. Use stove in the shade or in cool places.
Avoid using in direct sunlight.
6. Only operate this appliance on a flat horizontal
surface and ensure the aeration opening below
the stove is clear and unobstructed.
7. CARBON MONOXIDE HAZARD -
USING THIS APPLIANCE IN AN ENCLOSED SPACE MAY CAUSE
DEATH. DO NOT USE IN CARAVANS, TENTS, MARINE CRAFT, CARS,
MOBILE HOMES OR SIMILAR LOCATIONS.
ABNORMAL OPERATION
Abnormal operation can be identified by:
• Frequent activation of pressure safety device
• Jambing of cartridge lock lever
• Irregular burner flame which is yellow or unstable
• Black sooting of cooking utensils
AN2240SP-2016-10-07-V3

TROUBLE SHOOTING
CAUSE
No ignition No burning Unstable flame Uneven flame Slow burning Gas smell Flame extinguishes during use
SOLUTION
Lack of fuel Renew cartridge
Spark point dirty Carefully remove dirt
Dirty burner Clean the burner
Imperfect cartridge
alignment
Realign cartridge
Use of unsuitable fuel Replace with cartridge
containing correct fuel
Internal gas pressure
too high
Cool down gas cartridge
Functioning of safety
stop mechanism
Check and reset
mechanism
Improper setting of
spark point
Set spark point to 2mm
away from burner
PROBLEM
be used until it has been inspected and repaired by a suitably qualified person.
SPECIFICATIONS
DOUBLE BURNER BUTANE STOVE WITH HOTPLATE AN2240SP-2016-10-07-V3
Model No. AN2240SP
Ignition Method Piezo-Electric
Dimensions 678mm (W) x 285mm (D) x 128mm (H)
Weight 3.3kg
Safety Device
Fuel Consumption 165g/h (nominal per burner)
Gas Type Butane (2 Cartridges)
Injector Size 0.6mm
AGA Approved No. 8630

DOUBLE BURNER BUTANE STOVE WITH HOTPLATE
12 MONTH WARRANTY
This product is guaranteed to be free from defects in workmanship & materials for a period of 12 months from
date of purchase.
The product will be replaced or refunded for a major failure. The product will be repaired or replaced at our
discretion should the product fail to be of an acceptable quality and failure is not a major failure.
Warranty will not apply if the product (a) is damaged through misuse (including failure to maintain),
neglect, accident or ordinary wear & tear (including rust, corrosion & normal fading, weathering, staining,
discolouration, scratching or chipping); (b) is damaged through exposure to heat; (c) is used commercially;
(d) has not been used or installed in accordance with any applicable instruction; or (e) has been modified,
repaired or tampered with by the purchaser or an unauthorised service person.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
To claim under this warranty, take this product to any Anaconda store where you purchased it. You will need
your receipt or other proof of purchase. Additional information may be requested of you to process your
claim. Should you not be able to provide proof of purchase with a receipt; a bank or credit card statement,
and identification showing your name, address and signature may be required to process your claim.
Any expense relating to the return of the product to the store will be at the cost of the customer. For online
purchases, please contact us to arrange where and how to return the product.
and documentary evidence that such loss or damage was a reasonably foreseeable consequence of a failure.
Such evidence may include photographs, statutory declarations, receipts, reports (e.g. from your doctor),
depending on the loss or damage.
The benefits given by this warranty are in addition to other rights and remedies under the Australian
Consumer Law in relation to the goods and services to which this warranty relates.
Warranty excludes consumable
replacement/serviceable parts.
This warranty is provided by
Anaconda Group Pty Ltd (ABN 53 955 173 782).
Level Six
111 Cecil Street
South Melbourne VIC 3205
www.anaconda.com.au
Ph: 1300 558 990
AN2240SP-2016-10-07-V3
