Dunster House HANGOVER APEX G4-1824HAB User manual

V3
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF
Customer Service:
[e-mail]
www.dunsterhouse.co.uk
HANGOVER APEX BAR 1.8m x 2.4m
(6ft x 8ft)
G4-1824HAB
Unique Shed Reference Number
INSTALLATION MANUAL
Please read this installation manual carefully before
proceeding with the construction of your shed
Important!
All dimensions are approximate and subject to the limitations of the materials used and the methods of manufacture

G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Queries Procedure
Page 2
Important Information
Please retain all documentation with regards to your purchase.
In the unlikely event that you need to contact us, please do so in writing to:
Email: [e-mail]
Post: FAO Customer Services, Dunster House Ltd, Factory 1, Caxton Road, Bedford, MK41 0LF, England.
Our Customer Service department is open 9:00 a.m. to 5:00 p.m. Monday to Friday. Please include your Sales Order (SO)
number or post code in any correspondence with Customer Service so we can locate your order.
The Nature of Timber
The timber provided for this product is a soft wood which has been kiln dried and is pressure treated for protection
against rot and insect infestation.
Timber is a natural product and inherent properties can include knots, knot holes, imperfections, cracks and warping.
Due to the inherent properties of timber we make no guarantees that the timber you receive for your product will be
free from these natural properties. We will not replace any components for any of the following reasons:
•Timber that contains knots where they do not influence the structural stability of the product
•Cosmetics appearances - colour variations
•Timber that has shakes, cracks, gaps or sap which do not influence the structural strength of the product
•Timber that has been covered or buried underground
•Twisted timber that can be installed
•Queries arising from a neglectful manner during assembly or as a result of incorrect assembly
•Queries due to modifications by the owner causing the timber to deform
Any valid queries will be satisfied by the exchange or replacement of the defective parts only on a supply only basis.
Any valid queries will be satisfied by the exchange or replacement of the defective parts only.
Assembly Preparation
This product has been designed for self-assembly and recommend that assembly is carried out by two DIY competent
people. It is important that the assembly instructions are followed carefully and we recommend that the assembly
instructions are read through in their entirety prior to assembly to allow you to familiarise yourself first.
We recommend ensuring that the product is assembled in an appropriate location and on an appropriate base for
the product. It is imperative that the product is installed square, level and plumb.
To assemble your product we recommend that you have the following:
•Stepladder
•Drill
•3mm and 6mm drill bit
•Spirit level
•Tape measure
•Screwdriver
•Gloves - if you wish for extra protection when handling pressure treated timber
•Clear exterior use sealant and caulking gun
All screw holes need to be pre-drilled using a 3mm drill bit (not provided) to avoid timber splitting.
Pressure treated products do not need to be treated immediately or have a timber preservative applied.
Pressure treatment does not mean that the timbers are waterproof, so you may wish to apply a water repellent.

G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Shed Maintenance
Page 3
Although the specialist in-house design and manufacturing teams at Dunster House ensure that all the sheds we sell
are built to last, performing regular maintenance will help prolong the life of your shed and protect your investment.
Here at Dunster House, we recommend that systematic checks are carried out on your wooden shed at least once
a year. Here is a list of the key areas to focus on when performing maintenance.
Base
The timber of a shed that sits on an uneven base will deteriorate, twist and eventually break. If your shed is showing
any of these signs, it is vitally important that you rebuild your shed on an adequate base, to prevent any further
damage.
If laid correctly, a flat, level, resilient base offers the necessary protection against damp and moisture found
in the ground.
Protecting your shed against damp and moisture
Damp and moisture are the two things that are going to do the most damage to your shed; so going the extra mile,
beyond just making sure that your wooden shed is treated, can really help to protect your investment.
Water repellent treatment
How you customize and decorate your product is up to you, however we would recommend that you use
an appropriate water repellent treatment. This really helps minimize the amount of moisture that the timber can
absorb, therefore minimizing the risk of any major movement.
(Please note: water repellent treatment is not the same as pressure treatment, which protects against rot
and insect infestation, and which we guarantee for 10 Years!)
Maintaining your shed's environment
Ensuring that your wooden shed is in the best possible position within your garden can go a long way to protecting
it against damp and moisture. Water which consistently drips from leaves and branches can cause serious damage,
as can a branch that comes into immediate contact with a felt roof. Therefore measures should be taken to regularly
cut back any overhanging trees which may be in close proximity to your shed.
Wooden shed drainage
Ideally, if possible, your wooden shed should be placed at the highest point of your garden as this will aid drainage
naturally. Guttering can also be fitted to redirect water away from your shed, representing an excellent investment
for prolonging the life of your wooden shed.

G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Pack Contents
Page 4
2x ST-PT35351180.00.75 - L = 1180mm
35
35
L
4x ST-PT3535540.30.60 - L = 540mm
2x ST-PT15251870 - L = 1870mm
2x ST-PT15252195 - L = 2195mm
4x ST-PT3535430 - L = 430mm
3x ST-PT3535260 - L =260mm
2x ST-PT35352400 - L =2400mm
7x ST-PT35351100 - L = 1100mm
1180 35
35
570
540 35
35
75.0°
3x ST-PT-PAR35701500 - L = 1500mm
60.0°
2x Z.115.B
30.0°
60.0°
2x ST-PT3535570.00.60 - L = 570mm
35
35
19120
96
12.0°
115
1x ST-PT2023800 - L = 800mm
81°
81°
800
35
70
1500
R2 [R.08 in]
1x ST-PT15451580 - L = 1580mm
15
45
1580
35
35
38°
260
3x ST-PT3535260.A - L = 260mm
15
25
L
1x ST-PT15501775.Z - L - 1775mm
1x ST-PT15501855.Z - L - 1855mm
L15
50

G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Pack Contents
Page 5
4x ST-PT3535270.30 - L = 270mm
3x ST-3535720.60 - L = 720mm
2x ST-35351075.75.75 - L = 1075mm
35
35
270
60°
720 35
35
60.0°
35
35
3x ST-PT3535260.38.52 - L = 260mm
1x ST-PT-PAR35701500.A - L = 1500mm
1075
1x ST-PT1582141.30 - L = 141mm
1x ST-PT15121333.30 - L = 333mm
1x ST-PT1582141.30.B - L = 141mm
1x ST-PT15121333.30.B - L = 333mm
75.0°
75.0°
1x ST-PT15121465.120.Z - L = 465mm 1x ST-PT15121465.120.Z.B - L = 465mm
1500 35
70
R2 [R.08 in]
35
35
260
38°52°
141
15
82
333 15
121
465 15
121
141
82
15
333
15
121
15
121
465
35

G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Pack Contents
Page 6
2x - G3 - PANEL AH - 1150x1905
1x G3- SPLIT FRONT PANEL TOP
1x 2300x1009- SPLIT FRONT PANEL BOTTOM
2x HATCH WINDOW
1x SIDE PANEL RH
1x DOOR FRAME
1x SIDE PANEL LH
1x WPC 2400X100X10.C
1x WPC 2400X100X10.B
2400
75.0°
423
2300
2300
1009
1150
1905
1x G3- GARDEN BAR - SPLIT FRONT WINDOW
PANEL
2300
830
10 2400
60.0°
10
745
765
424
1080
1080
1800
1770
760
320
1800
1x SIDE PANEL
424
1080
1x DOOR SIDE PANEL
1770
700
1x DOOR

FIXINGS
PART NUMBERITEM QTY
TURN BUTTON2
SELF-ADHESIVE METALLIC FLASHING STRIP (3.75M)
1
HEXAGON SCREW 25mm+SADDLE WASHER+CAP24
HASP & STAPLE1
DOOR HINGE3
C HANDLE4
SCREW 70 mm18
SCREW 60 mm134
SCREW 35 mm70
SCREW 20 mm
28
PIN NAIL 30 mm77
Shoot Bolt
4
Hex Nut
6
Metric Plain Washers
6
Coach Bolt6
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Pack Contents
Page 7
2400
600
1x WPC 2400X600X10.Z
1x 2400X1200X10.Z
1x MFP Floor - 2300x1100x10 2300
1100
2400
1200

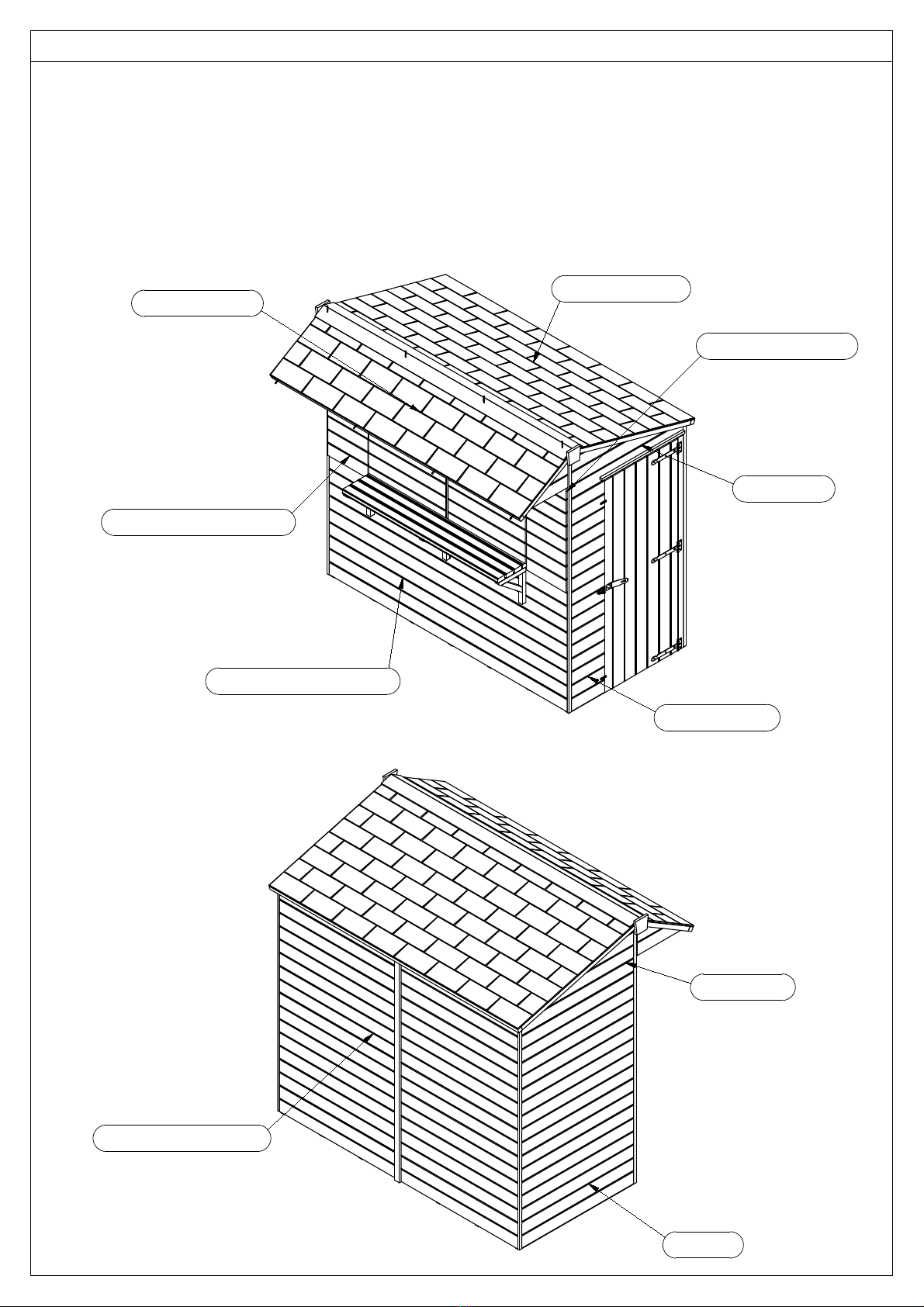

G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Panel Layout
Page 8
FRONT
WPC 2400x600x10.Z
WPC 2400x1200x10.Z
DOOR SIDE PANEL
SPLIT FRONT PANEL BOTTOM
BACK
G3 - PANEL AH - 1150x1905
SPLIT FRONT WINDOW PANEL
SPLIT FRONT PANEL TOP
SIDE PANEL
SIDE PANEL LH
SIDE PANEL RH
NOTE:
The layout of your doors can be changed by installing the relevant Panels on the opposite side of your Hangover Bar.

** Pre-drill parts before fixing screws **

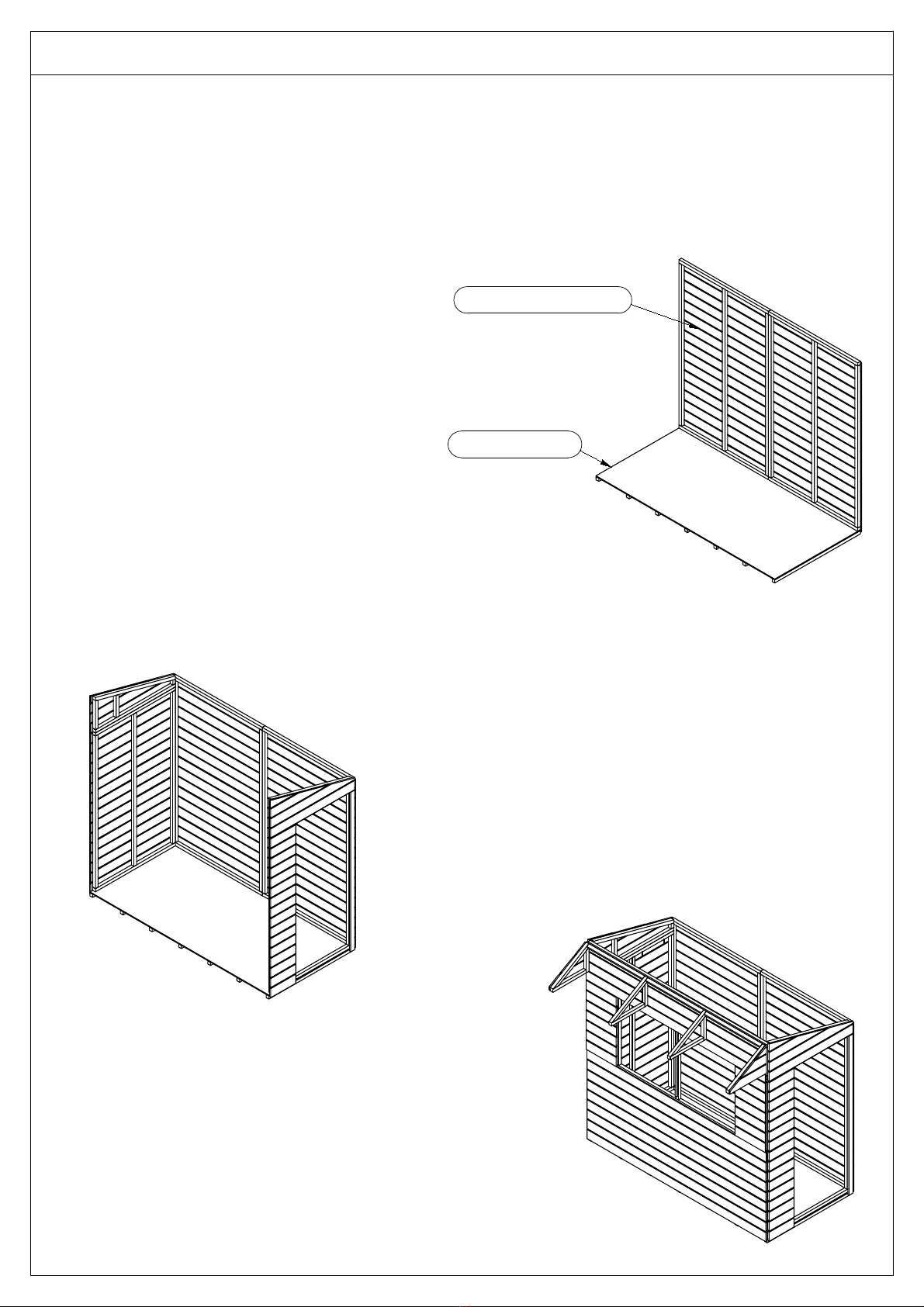

STEP 1: FLOOR
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 9
•Ensure the base is level.
•Space 7x ST-PT35351100 at the specified distance as shown in the the diagram below.
•Secure the MFP to the bearers using 32x 35mm Screws spacing them out equally.
Items:
1x G2 - MFP - 2300x1100x10
7x ST-PT35351100
32x 35mm Screws
G2-MFP -2300x110x10
2300
1100
35Typ. 355 340 340 340 340 340
SCREW 35 mmMFP - 2300x1100x10ST-PT35351100

** Pre-drill parts before fixing screws **
STEP 2: PANELS
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 10
Items:
2x G3 - PANEL AH - 1150x1905
1x SPLIT FRONT PANEL BOTTOM
1x SPLIT FRONT WINDOW PANEL
1x SPLIT FRONT PANEL TOP
36x 60mm SCREWS
1x DOOR FRAME
1x APEX PANEL RH
1x DOOR SIDE PANEL
1x APEX PANEL LH
1x SIDE PANEL
2x ST-PT15501775.Z
20x 30mm PIN NAILS
NOTE:
The layout of your doors can be changed by installing
the relevant Panels on the opposite side of your
Hangover Bar.
Principle of connecting panels
•Line up the panels so that the top and bottom of
each panel are flush with one another.
•Use 8x equally spaced 60mm screws to secure the
Front and Back Panel.
G3 - PANEL AH - 1150x1905
SPLIT FRONT PANEL BOTTOM
SPLIT FRONT WINDOW PANEL
BACK PANEL:
FRONT PANEL:
SPLIT FRONT PANEL TOP
SIDE PANEL
G4 -DOOR SIDE PANEL
G4 - DOOR FRAME
APEX PANEL RH
APEX PANEL LH
SIDE:
•Ensuring the top of the frames are flush with one another, use 4x
60mm Screws to fix the DOOR FRAME to the DOOR Side Panels.
•Use 4x 60mm Screws to fix Apex Panel RH to the previously assembled
structure.
•Use 10x 30mm Pin Nails to fix ST-PT15501775.Z to the front of the
door frame. Make sure it is flush to the bottom and side of the Side
Panel - Note: The Back View is shown on the images referenced.
PLEASE NOTE: The panels displayed are for a right sided door. To
change the door to the other side, switch from Panel RH to LH
SIDE WITHOUT DOOR:
•Line up the panels so that the top and bottom of each panel are flush with
one another.
•Use 4x equally spaced 60mm screws to secure APEX PANEL LH to the SIDE
PANEL.
PLEASE NOTE: The panels displayed are for a right sided door. To
change the door to the other side, switch from Panel LH to RH
SCREW 60mm
SCREW 60 mm
ST-PT15501775.Z

** Pre-drill parts before fixing screws **

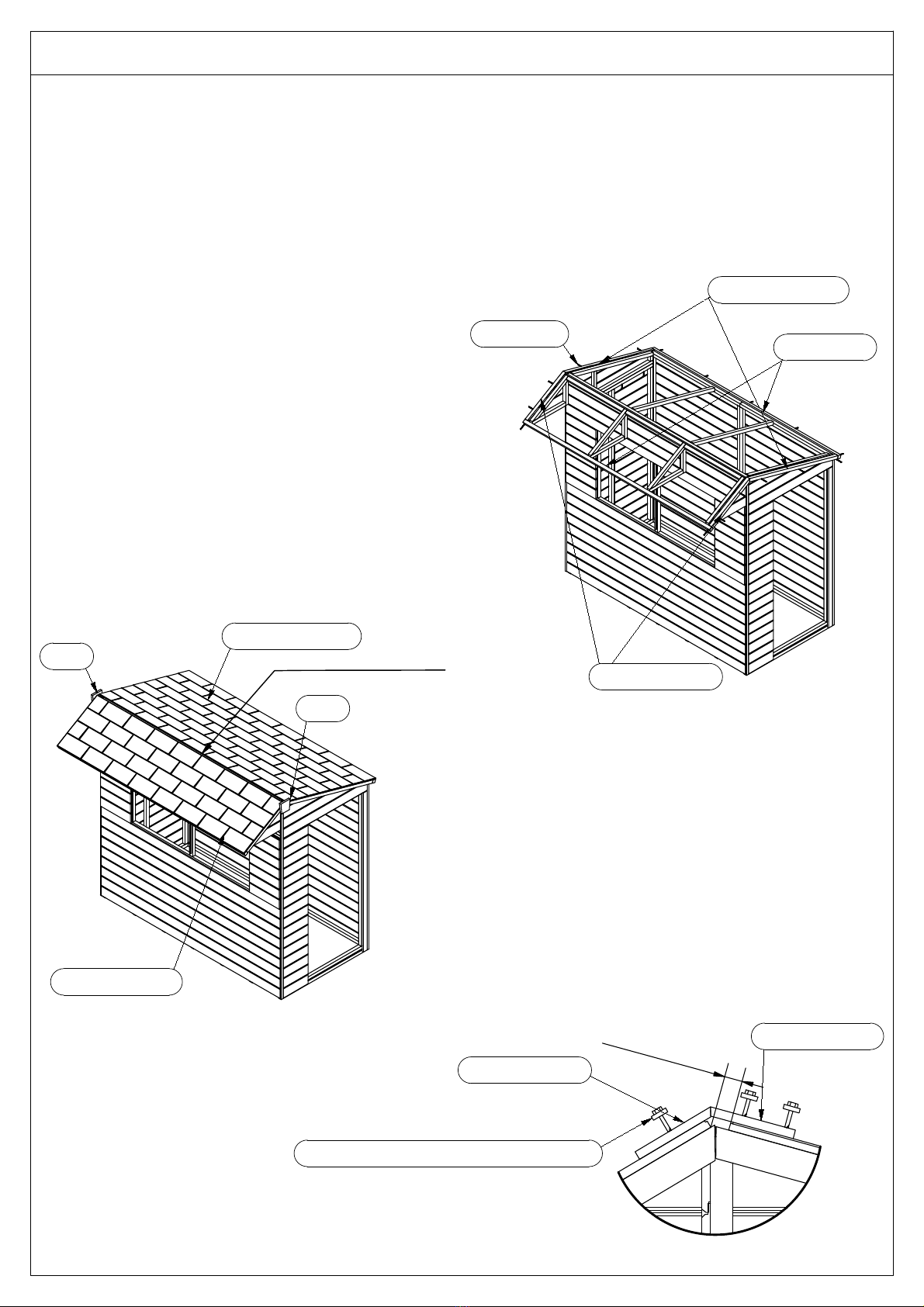

STEP 3: ROOF SUPPORT
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 11
•To build the Roof Support Brackets, begin by fixing ST-PT3535430 to ST-PT3535270.30
•Using 1x 60mm Screw.
•Nail 14x 30mm Nails to the shiplaps to the side of the end brackets as shown in
the image to the right.
•Ensure ST-PT15121465.120.Z is flush to the previously assembled Roof Support
Bracket.
•Repeat the previous steps for the other side of the shed.
•Fix ST-PT3535540.30.60 to the previously assembly structure, use 2x
60mm Screw.
•Repeat 3x for the remainder of the Roof Support Brackets.
1x ST-PT15121465.120.Z.B
1x ST-PT15121333.30.B
1x ST-PT1582141.30.B
12x 60mm Screws
8x 70mm Screws
28x 30mm Nails
Items:
1x SPLIT FRONT PANEL TOP
4x ST-PT3535430
4X ST-PT3535270.30
4X ST-PT3535540.30.60
1X ST-PT15121465.120.Z
1x ST-PT15121333.30
1x ST-PT1582141.30.A
PIN NAIL 30 mm
ST-PT15121465.120.Z
ST-PT15121333.30
ST-PT1582141.30
SCREW 70 mm •Fix the Roof Support Brackets through the Split Front Panel
Top.
•use 2x 70mm Screws per bracket.
SPLIT FRONT PANEL TOP
Front View
ST-PT3535430
ST-PT3535270.30
ST-PT3535540.30.60
Flush
ST-PT15121465.120.Z

** Pre-drill parts before fixing screws **

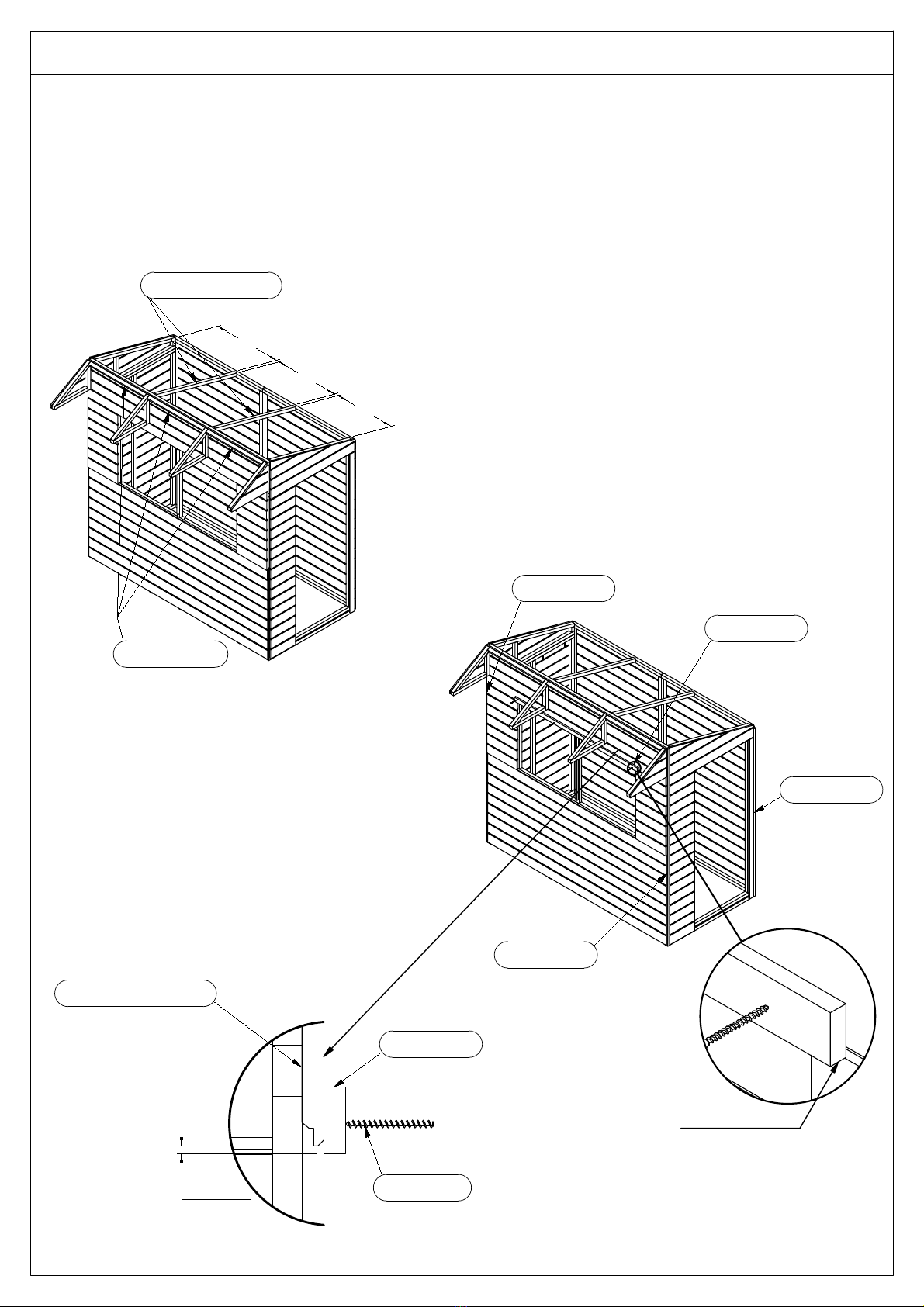

STEP 4: SIDE
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 12
Items:
1x Floor - 1100x2300
1x Side Panel
1x Side Panel Without Door
1x Front Panel
1x Panel AH - 1150x1905
44x 60mm Screws
Back Panel:
•Begin by fixing Panel AH - 2300x1905 to the floor assembly as
shown in the right hand picture.
•Use 8x 60mm Screws to fasten panel to floor board.
Side Panels:
•Fix both Side Panels & Side Panel With Door to the
assembled structure.
•Use 4x 60mm Screws to fasten each Side panel to floor
board.
•Use an additional 10x 60mm Screws to fasten Side
Panels to Panel AH - 2300x1905
Front Panels:
•Finish off the side assembly by fixing the Front
Panel as illustrated.
•Use 8x 60mm Screws to fasten to floor board.
•Use an additional 10x 60mm Screws to fasten
Front Panel to Side Panels.
G3 - PANEL AH - 1150x1905
MFP - 2300x1100x10
NOTE:
The layout of your doors can be changed by installing the
relevant Panels on the opposite side of your Hangover Bar.

** Pre-drill parts before fixing screws **
STEP 5: ROOF SUPPORT AND TRIM
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 13
Roof Beams:
•Fix 2x ST-PT35351075.75.75 as shown in the image to the left.
•Use 2x 70mm Screws (1x for the front and 1x for the rear.)
Roof Front Support:
•Fix 3x ST-PT3535720.60 between each Roof Support Bracket.
•Use 2x 70mm Screws for each.
1x ST-PT15451580
10x 70mm Screws
4x 60mm Screws
40x 30mm Nails
Items:
2x ST-PT35351075.75.75
3x ST-PT3535720.60
2x ST-PT15252195
2x ST-PT15251860
7
2
0
ST-PT3535720.60
ST-PT35351075.75.75
ST-PT15251870
Corner Trim:
•Position 2x ST-PT15252195 and 2x ST-PT15251860
(timber trims) in each corner of the shed, as shown in the
diagram right.
•Make sure that the end of trim is flush with the bottom wall
shiplap.
•Fix each corner trim into both panels, use 10x 30mm nails
per each corner trim.
ST-PT15252195
ST-PT15451580
5mm Gap SCREW 60 mm
ST-PT15451580
SPLIT FRONT PANEL TOP
Front Panel Strip:
•Fix ST-PT15451580 to the front panel, leaving the
same overhang on each side of the window panel.
Use 4x 60mm Screws
•Leave a 5mm Gap between the bottom of
ST-PT15451580 and the split front panel top.
Equal Overhang
7
5
56
8
5
NOTE:
The layout of your doors can be changed by installing the relevant
Panels on the opposite side of your Hangover Bar.
ST-PT15252195

** Pre-drill parts before fixing screws **
STEP 6: ROOF
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 14
Items:
1x WPC 2400x1200x10.Z
1x WPC 2400x600x10.Z
1x WPC 2400x100x10.B
1x WPC 2400x100x10.C
2x ST-PT3535570.00.60
2x ST-PT35351180.00.75
2x ST-PT35352400
2x Z.115.B
NOTE:
The layout of your doors can be changed by installing the relevant
Panels on the opposite side of your Hangover Bar.
Eaves Edging:
•Fix the eaves edging batten - 2x ST-PT3535570.00.60, 2x
ST-PT35351180.00.75 & 2x ST-PT35352400 to your
shed as shown in the diagram.
•Use 19x 60mm Screws ensuring they are evenly spread.
Roof:
•Fix 1x WPC 2400x1200x10.Z onto the top of your shed to seal
the roof assembly.
•Using 8x 25mm HEXAGON SCREW 25mm+SADDLE+CAP
•Ensuring that the edges are flush with the eaves edging.
•Fix 1x WPC 2400x600x10.Z on to the smaller side of the shed.
•Using 8x 25mm HEXAGON SCREW 25mm+SADDLE+CAP.
•Ensuring that the edges are flush with the eaves edging.
•Ensure the roof is fixed onto the previously assembled support.
•Apply Self-adhesive metallic flashing strip where the 2 WPC
panels meet, use the Primer provided and follow the instruction on
the tin. Ensure the strip covers both WPC panels evenly. Refer to
the diagram on the left.
24x HEXAGON SCREW 25mm+SADDLE+CAP
19x 60mm Screws
4x 35mm Screw
1x SELF-ADHESIVE METALLIC FLASHING STRIP
(3.75M) ST-PT35351180.00.75
ST-PT3535570.00.60
ST-PT35352400
SCREW 60 mm
WPC 2400X100x10.C
WPC 2400x100x10.B
HEXAGON SCREW 25mm+SADDLE WASHER+CAP
Roof Trim
•Fix 1x WPC 2400x100x10.C and 1x WPC
2400X100X10.B (trim) as shown in the image
to the left.
•Using 8x 25mm HEXAGON SCREW
25mm+SADDLE+CAP.
WPC 2400x600x10.Z
WPC 2400x1200x10.Z
Self-AdhesiveMetallicStrip
Z.115.B
Z.115.B
20
ApproxGap
Finials:
•Position 2x Z.115.B (Finials) as shown in the diagram above.
•To fix each finial, use 2x 35mm Screws.

** Pre-drill parts before fixing screws **
Step 7: BAR
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 15
Items:
3x ST-PT3535260
3x ST-PT3535260.A
3x ST-PT3535260.38.52
1x ST-PT-PAR35701500.A
NOTE:
The layout of your doors can be changed by installing the relevant Panels
on the opposite side of your Hangover Bar.
•Begin by placing 1x ST-PT3535260, 1x ST-PT3535260.A and 1x
ST-PT3535260.38.52 together in the same formation as shown in
the image to the left.
•Once completed, fix 3x 60mm Screws into the areas displayed.
•Repeat this step 2 times.
•Fix the Support Bracket to the Bottom Front Panel using 2x 70mm Screws as shown in the images below.
•Repeat this step 3 times
Bar Top:
•Fix 1x ST-PT-PAR35701500.A ensuring the notch clips onto the
Front Panel. Refer to the image below
•Use 3x 60mm Screws.
•Continue assembling the bar by fixing 3x ST-PT-PAR35701500 to
the initially fixed component.
•Ensuring they are equally spaced.
•Use 6x 60mm Screws
ST-PT-PAR35701500
3x ST-PT-PAR35701500
18x 60mm Screw
6x 70mm Screw
ST-PT3535260.38.52
ST-PT3535260.A
ST-PT3535260
15 15
698 698
SCREW 60 mm
ST-PT-PAR35701500.A
Notch
Front Panel
Equally Spaced.
Equally Spaced.
ST-PT-PAR35701500.A

** Pre-drill parts before fixing screws **
Step 8: HATCH
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 16
Items:
2x Hatch Window
4x C Handle
4x SHOOT BOLT & LOCK
28x 20mm Screws
Handles:
•Fix Handle to the Hatch Window.
•Use 4x 20mm Screws.
•The handles should be positioned approximately in the middle of the
Hatch Window.
Refer to the image below.
•Repeat 3 times.
•Hook the Garden Hatch Window, ensuring the hooked end is at the top.
Refer to the diagram.
•Leave a 5mm gap on each side.
Back view to inside
(Panel AH has been removed for illustration
purposes only.)
SHOOT BOLT
260
SCREW 20 mm
Hook
HATCH WINDOW
C HANDLE
Shoot Bolts:
•Fix 1x SHOOT BOLT & LOCK to the frame of the Hatch and
ST-PT-PAR35701500 as shown in the diagram Left.
•Using 3x 20 mm Screws.
•Repeat this step 3 times
5 Gap
SCREW 20 mm
SPLIT FRONT PANEL BOTTOM ST-PT-PAR35701500.A
NOTE:
The layout of your doors can be changed by installing the relevant Panels on the opposite side of your Hangover Bar.
FLUSH
Hook hatch
into the top
of the window
Pull hatch in
towards the bar

** Pre-drill parts before fixing screws **
STEP 9: DOOR
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 17
Items:
1x Single Door
2x Turn Button
1x Hasp & Staple
3x Door Hinge
27x 35mm Screws
6x Metric Plain Washers
6x Hex Nut
6x Coach Bolt
Flush
Door:
•Position the door in the frame.
•Ensuring there is a 5mm gap on each side of the door.
•The bottom edge of the door should be flush with the bottom
shiplap.
•See image on the right for reference.
Hinge Assembly:
•Fix the hinges onto Side Panel
making sure you fix onto the door
rail. Use 6x 35mm Screws for each
hinge
•Use the images for reference.
Hasp & Staple.
•Position the hasp & staple.
•Ensuring that you fix the hasp & staple
in line with the middle rail of the door.
•Use the image on the left for reference.
•Use 7x 35mm Screws.
Fix the turn buttons.
•Use the image on the left for reference.
•Use 2x 35mm Screws.
1610
860
145
30
20
840
1660
Flush
35mm SCREW
Bolt + Washer + Nut
Washer
Nut
Bolt
Hinge
35mm SCREW
35mm SCREW
Bolt + Washer + Nut
Hinge
Gap approx. 5mm
35mm SCREW
Turn button
Hasp
35mm SCREW
35mm SCREW
Staple
NOTE:
The layout of your doors can be changed by installing the relevant
Panels on the opposite side of your Hangover Bar.

** Pre-drill parts before fixing screws **
STEP 10: PANEL JOINT RIM & DRIPTRAY
G4 - 1824HAB HANGOVER APEX BAR 1.8m x 2.4m - Assembly Steps
Page 18
CONGRATULATIONS ON YOUR NEW HANGOVER BAR!!
ST-PT15501855.Z
SCREW 35 mm
NOTE:
The layout of your doors can be changed by installing
the relevant Panels on the opposite side of your
Hangover Bar.
•Fix 1x ST-PT15501855.Z over the joint ensuring
the distance between the joint and edge of the trim
is the same.
•Use 8x 35mm Screw.
Items:
10x 35mm Screws
1x ST-PT15501855.Z
1x ST-PT2023800 (Driptray)
Drip tray
35mm SCREW
Shiplap
Front panel frame
Side View
Front View
•Position the drip tray to the correct position as shown in the diagram
below. Keep same overhang of drip tray on each side of the door.
•Fix the drip tray into the front wall frame (represented by dashed
lines) by using 2x 35mm screws.
Principle of drip tray installation
Drip tray
35mm SCREW
Approx. 60mm
