Duoback Korea Duorest 2.0 Series User manual

duorest2.0.indb 2 2013-10-21  2:19:35

03
  
duorest2.0.indb 3 2013-10-21  2:19:36

02
Contents
02
 Contents
03
 SafetyInstructions
05
 HowtoAssemble(D2-100/D2-150)
07
 HowtoAdjust
12
 Guidetipsforbackrestwidth/heightcontrol(Male / Female)
14
 TroubleShootingGuide
17
 LIMITEDWARRANTY
For warranty claim, you shall
refer to Barcode Number underneath
the mechanism body.
RL 2008110000200003
TIP!
duorest2.0.indb 2 2013-10-21  2:19:36

03
SafetyInstructions
Donotliftyourlegsonahighsurfacewhensitting
ontheproduct
•
In the case that the product slips/falls, there’s possible
danger of serious injury and even death
Donotleantoofarontheproduct
•
It poses a risk of injury if the product falls
Donotuseexcessiveforceonthearmrest.
•
There is a risk of injury
Donotcrawlundertheproduct
•
There is a risk of damage if the product falls
Whenusingtheproduct,sitcorrectlymaintaining
normalposition
•
When leaning on the backrest, seat pan, or the armrest,
there is risk of injury
Whensomeoneissittingdown,donotspinorpush
•
There is a risk of damage
Donotputyourhandintheproduct’sassembling
andoperatingareas.
•
Your hand can get caught causing damage
Makesureinfants,children,andpetsdonotbiteor
suckontheproduct.
•
There is a risk of suffocation due to small, loose parts
Teachthechildhowtousetheproductproperly
andcheckuponthem
Safety Instructions
•
This product is a one-person chair that can be used
indoors (in the office and home).
•
It should not be used outdoors.
•
Tighten the bolts and handle bolts of the product once
every month.
•
When cleaning the product, use a vacuum cleaner or
wipe it with soft fabric
Thisisimportantinformationfortheuser’ssafety
andforpreventionofpropertydamage.Please
readcarefullytousetheproductcorrectly.
If directions are not followed, it can cause
death or serious injury.
If directions are not followed there could
be personal injury or property damage.
Usetheproductforitspurpose
•
Going to sleep on the product or using it to exercise can
cause serious injury including death when the product
falls over
Donotleanorstandupontheproduct
•
There could be serious injury when the product falls
over or rotates.
duorest2.0.indb 3 2013-10-21  2:19:36

04
•
The product itself and/or several connecting handle
bolts may be damaged or broken
Donotplaceorstoretheproductonaslope
•
When the product falls, the product and the floor may
be damaged due to impact
Donotusetheproductwhereitiswetorpolluted
•
If the product slips, it could cause injury or contaminate
the product
Donotplacetheproductnearahumidifier
•
When using a humidifier, the calcareous components
dissolved in the water may cause dust matter to
accumulate on the product.
Useafloormatwhenusingtheproductonsurfaces
thatcanbeeasilydamaged
•
The floor may become contaminated or damaged
Constantlyremovethedirtcompliedonthecaster
•
If the dirt is accumulated over time, it may become the
source of damage
Whencleaningastainedfabric,donottryto
disassembletheproductorwashitoutwithwater
•
It may alter the shape and cause the product to
malfunction in use
•
If the fabric is partly contaminated, rub with mild
detergent and use after it completely dries.
Donotusethefootresttogetonthechair.
•
It may cause damage and injury if the product falls over.
•
There is a risk of injury
Nomorethantwopeopleshouldsitontheseatpan
•
It may cause damage to the product and serious injury
Becarefulnottopinchyourtoesonthecaster
•
There could be damage to the toes caugh
Donotuseasharptoolsuchasaknifewhen
assemblingtheproduct
•
There is a risk of personal injury and product damage
Donotusefireontheproductorplaceitnearheat
suchasdirectsunlight
•
There is a risk of fire igniting
Donotthroworpushtheproductwithforce
•
It may hurt others and cause damage to product
Assembletheproductfollowinginstructionsonthe
manual
•
If the product is broken by not following the instruction
manual, the product cannot be fixed free of charge
under the warranty
Usegloveswhenassembling
•
Handling with bare hands may risk injury
Donotuseexcessiveforcewhenassembling
duorest2.0.indb 4 2013-10-21  2:19:37

05
HowtoAssemble(D2-100/D2-150)
1
Insert cylinder into central hole under seat.
2
Set the chair upright after inserting the
center groove of the base into the cylinder.
How to Assemble
(D2-100/D2-150)
PartsDescription
Seat Body x 1 Base with
Castors x 1
Headrest x 1
(D2-100)
Allen Wrench x 1
Bolt x 2
(D2-100)
Cylinder x 1 User Manual x 1
* The above illustrations may be different from actual parts.
* Headrest, allen wrench and bolts are not provided with D2-100.
Dimension&Material
500mm
1109/1169mm
919/979mm
488mm
Material
Body Frame: Steel, Aluminum, Plastic and etc.
Cushion : PU foam
Upholstery : Polyester and/or Polyester-
based elastomer
duorest2.0.indb 5 2013-10-21  2:19:38

06
4
Insert bolts into two holes on the bottom of
headrest and use the longer part of allen
wrench to tighten(1). Using the shorter part
of the wrench, tighten the bolts to make sure
they don’t come loose(2).(D2-100)
1
2
5
The assembly is finished.
Be careful not to scratch the product when
turning allen wrench on the bottom of
headrest.
3
Connect the headrest to the backrest (D2-
100)
duorest2.0.indb 6 2013-10-21  2:19:39

07
HowtoAdjust

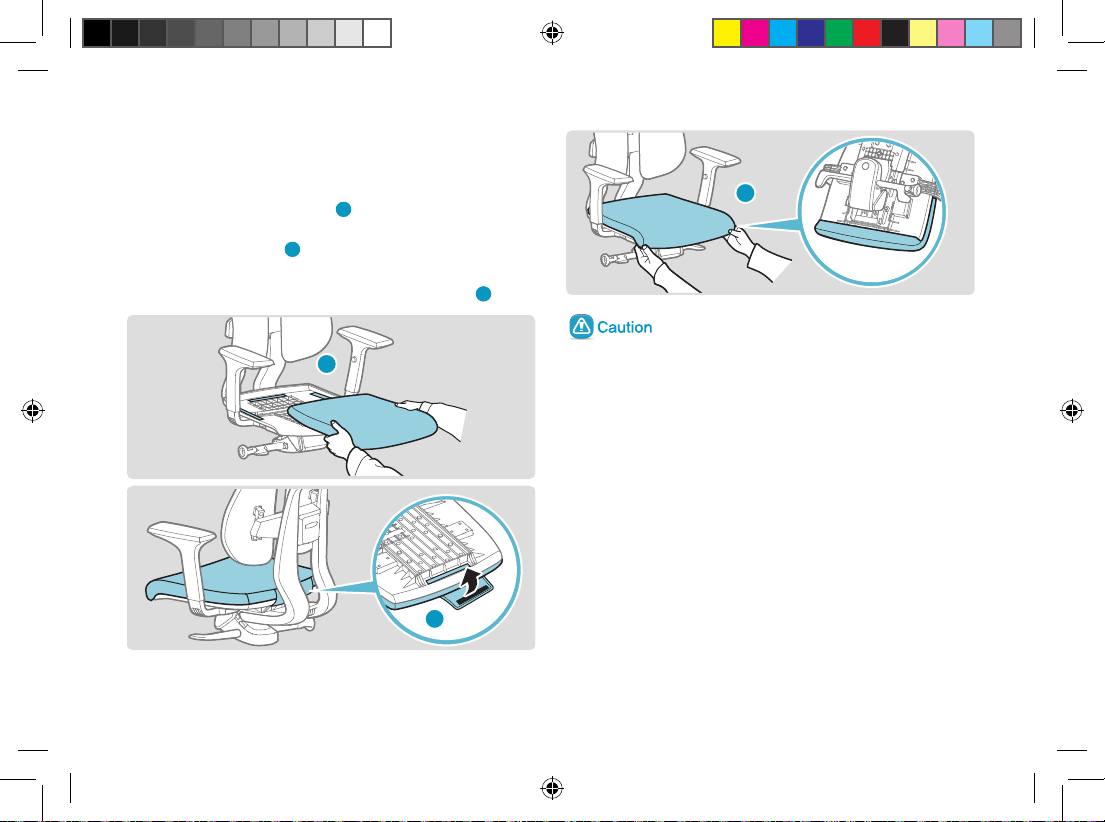

SeatDepth
1
2
1
■Slideleveronrightsideofchair
•
To move forward: While pulling slide lever(1),
pull seatpan(2).
•
To move backward: While pulling slide lever(1),
push seatpan(2).
How to Adjust
SeatHeight
2
1
■Leveronrightsideofchair
•
To raise: Lift lever up(1) while removing your
weight from chair(2).
•
To lower: Lift lever up(1) while seated(2).
duorest2.0.indb 7 2013-10-21  2:19:40

08

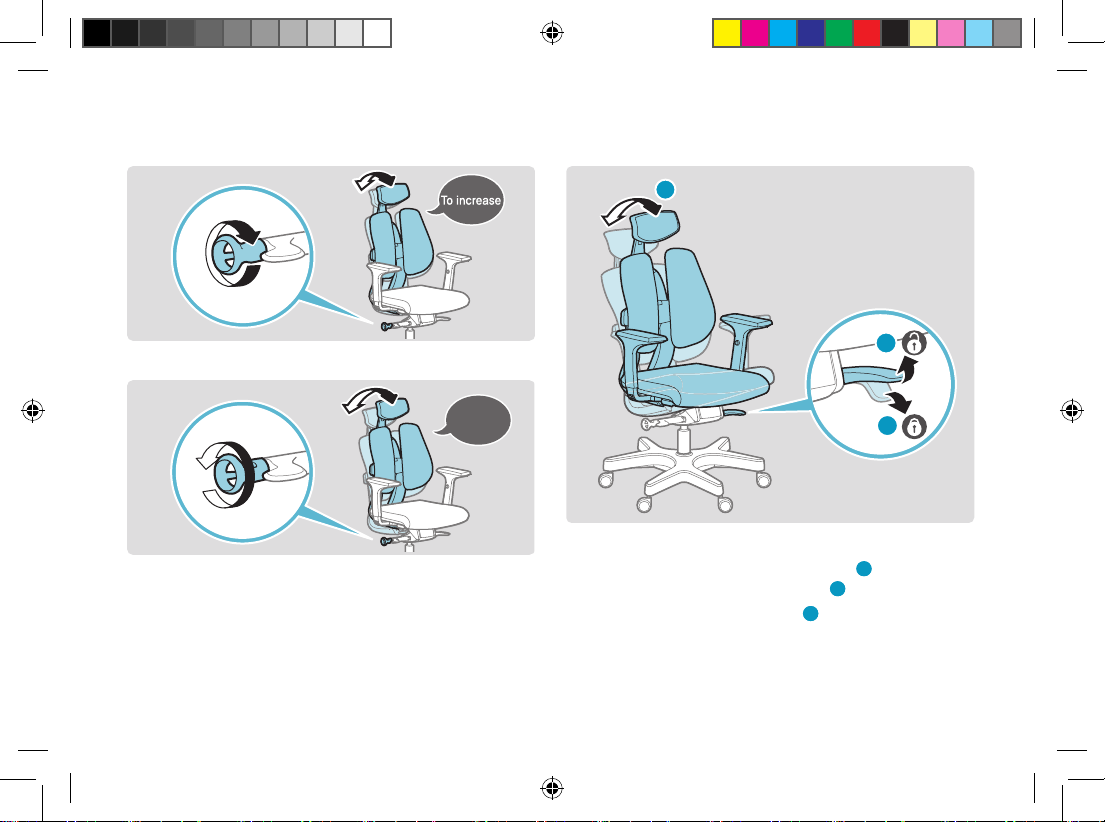

TiltLock
1
3
2
■Leveronleftsideofchair
•
To lock: Lift the lever while sitting(1) and recline
as far as you like (1~3 stages)(2). Push the lever
down until you hear a click(3).
•
To unlock: Lift the lever while leaning back in the
chair. Then, the lock will be released and the
chair will return to the original position.
TiltTension
To decrease
■Controlknobonrightsideofchair
•
To increase tension: Turn knob clockwise.
•
To decrease tension: Turn knob counter-
clockwise.
duorest2.0.indb 8 2013-10-21  2:19:42

09
HowtoAdjust
BackrestHeight
6
5
2
1
•
Open the control box cover on the rear of the
backrest(1).
•
Loosen the locking lever by turning it to the
left(2).
•
Push both sides of the backrest height control
buttons, while holding the backrest frame by left
hand(3). Then, raise or lower the backrest to the
desired position(4).
•
Tighten the locking lever by turning it to the
right(5).
•
Close the control box(6).
You are recommended to tighten the locking
lever when it is loosened.
duorest2.0.indb 9 2013-10-21  2:19:44

10
•
Tighten the locking lever by turning it to the
right(5).
•
Close the control box(6).
You are recommended to tighten locking lever
when it is loosened.
BackrestWidth
2
6
5
1
•
Open the control box cover on the rear of the
backrest(1).
•
Loosen the locking lever by turning it to the left(2)
•
Turning the backrest width control dial(3)
counterclockwise narrows the backrest and
turning it clockwise widens the backrest.
•
Place the width at the desired position(4).
duorest2.0.indb 10 2013-10-21  2:19:46

11
HowtoAdjust
ArmrestHeight/Width
2
1
•
Push the button(1) inside the armrest support to
move the armrest to the desired height(2).
•
The width becomes wider as the height increases
and narrower as the height decreases.
HeadrestAngle/Height
•
Push up the button in front of headrest
support(1) and adjust to the desired height(2).
•
The curved structure brings the headrest forward
as the height increases and draws it back as the
height decreases.
•
Adjust the headrest to desired angle.
Be careful not to get your fingers caught when
adjusting the headrest frame.
duorest2.0.indb 11 2013-10-21  2:19:46

12
Guide tips for backrest width / height control
(Male / Female)
1.Male
Height Recommended adjustment (Male)
Gradation indicator for backrest width control Gradation indicator for backrest height control
up to 160 cm
(up to 63 inches)
Direction to
2 o’clock 2nd stage
161~168 cm
(63.1~66.1 inches)
Direction to
1 o’clock 2nd stage
169~176 cm
(66.2~69.3 inches)
Direction to
12 o’clock 3rd stage
177~184 cm
(69.4~72.4 inches)
Direction to
10 o’clock 4th stage
over 185 cm
(over 72.5 inches)
Direction to
8 o’clock 5th stage
* According to the gradation indicator for backrest width control, backrest width narrow or widens.
* According to the gradation indicator for backrest height control, you can set the proper height fit for your
body size.
* This guide is only for usual reference because the shape of individual users body varies.
duorest2.0.indb 12 2013-10-21  2:19:48

13
Guidetipsforbackrestwidth/heightcontrol(Male/Female)
2.Female
Height Recommended adjustment (Female)
Gradation indicator for backrest width control Gradation indicator for backrest height control
up to 150 cm
(up to 59 inches)
Direction to
3 o’clock 1st stage
150~154 cm
(60~60.6 inches)
Direction to
2 o’clock 2nd stage
155~160 cm
(60.7~62.9 inches)
Direction to
1 o’clock 2nd stage
161~169 cm
(63~66.5 inches)
Direction to
12 o’clock 3rd stage
over 170 cm
(over 66.6 inches)
Direction to
11 o’clock 4th stage
* According to the gradation indicator for backrest width control, backrest width narrow or widens.
* According to the gradation indicator for backrest height control, you can set the proper height fit for your
body size.
* This guide is only for usual reference because the shape of individual users body varies.
duorest2.0.indb 13 2013-10-21  2:19:49

14
Tiltlockingwon’twork.
•
Youmaynothavepusheddowntheleveruntil
youhearaclick.
•
Afterliftingleverupfully(1),pushbackrestto
desiredposition(2)andfinallypushdownthe
leveruntilyouhearaclick(3).
•
Tiltlockworkswhenthelevergoesfullydown.
Trouble Shooting Guide
If chair malfunctions, you may be able to solve
such problem with the following suggestions.
For more help, you are advised to contact the local
store where you purchased the chair.
Seatheightadjustmentwon’twork
•
Youmaynothaveliftedtheleverupallthe
way.
•
Toincreaseseatheight,tryliftingleverupall
theway(1)whileremovingyourweightfrom
chair(2).
•
Todecreaseseatheight,liftleverupallthe
way(1)whileseated(2).
2
1
duorest2.0.indb 14 2013-10-21  2:19:50

15
TroubleShootingGuide
Contaminatedfabricneeds
cleaning.
•
Genuine leather or PU leather: Apply a mild,
nonabrasive soap solution with a clean, wet
sponge. Rinse well and let it air dry.
•
General fabric: clean dirty surface with a soft
cloth soaked in mild detergent and warm water.
Rinse thoroughly and dry with a soft cloth.
Do not wash or disassemble contaminated
seat or backrest for cleaning stains or spots.
It may result in permanent damage to the
material.
Backrest/seatpandoesnotreturn
toitsoriginalposition
•
Youmaynothavereleasedtiltlockingmode
properly.
•
Whilepushinguptheleveronleftsideof
chair(1),pressyourbackagainstthebackrest
andreleaseit(2).
•
Backrest/seatpanreturntoitsoriginal
positionwhentiltlockingmodeisproperly
released.
2
1
duorest2.0.indb 15 2013-10-21  2:19:51

16
3
Property to diminish the contamination of
upholstery may be lessened, depending on
the frequency of use and washing.
Replacingseatupholstery
•
After taking off seat pan, cover seat cushion with
new upholstery and attach it to Velcro straps on
both sides of seat plate(1). And then, attach the
tail of seat upholstery to Velcro strap under the
rear of seat plate(2).
•
Pull front part of upholstery forward and fix it to
Velcro strap under the front of seat plate(3).
1
2
duorest2.0.indb 16 2013-10-21  2:19:52

17
LIMITEDWARRANTY
LIMITED WARRANTY
1
All DUOREST products comply with the highest
standard of quality assurance and inspection
programs. DUOREST products are fabricated
using more than 100 pieces of parts which have
undergone stringent superiority tests.
2
This limited warranty is valid for ONE to
THREE YEARS under an applicable warranty
classification (from the date of purchase) against
all possible manufacturing defects arising from
materials and workmanship.
3
This warranty becomes invalid should the
serial number(bar code) be removed or
altered. All repairs and service work under
the warranty must be performed only by
DUOREST’s authorized agent. Such service
shall be provided during normal business hours.
Customers are advised to contact DUOREST’s
authorized agent for further details.
4
The warranty does not cover damage caused by
misuse or neglect, accidents, abrasions, normal
wear and tear or any manner of tempering, self
modification, abuse or Act of God.
5
If identical materials or models are not available
at the time of repair or replacement , DUOREST’s
authorized agent reserves all rights to substitute
parts or models of equal quality or value.
6
THISLIMITEDWARRANTYISTHESOLE
REMEDYFORPRODUCTDEFECTANDNO
OTHEREXPRESSORIMPLIEDWARRANTY
ISPROVIDED,INCLUDINGBUTNOT
LIMITEDTOANYIMPLIEDWARRANTIES
OFMERCHANTABILITYORFITNESSFORA
PARTICULARPURPOSE.WESHALLNOTBE
LIABLEFORCONSEQUENTIALORINCIDENTAL
DAMAGESARISINGFROMANYPRODUCT
DEFECT.
WARRANTYCLASSIFICATION
Warranty
period Parts Classification
1 Year Appearance Physical defectives
2 Years Adjustment
Malfunction of adjustable
function (height, width,
swiveling, tilting and
locking)
3 Years Body and
Frame
Metallic frames and injection
molded parts
duorest2.0.indb 17 2013-10-21  2:19:53
