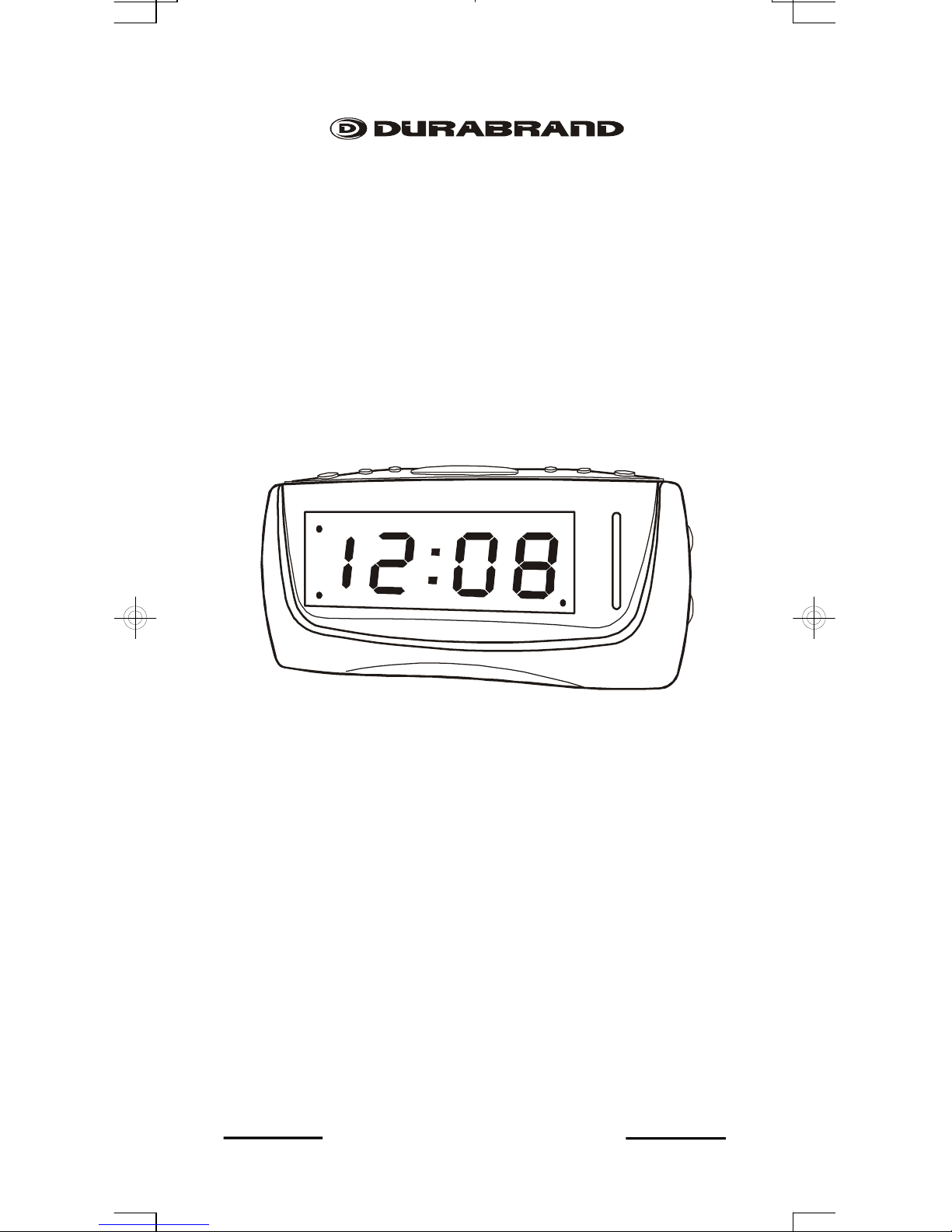

Durabrand CR-777 User manual

JUMBO DISPLAY
DUAL ALARM CLOCK RADIO
MODELCR-777
OPERATING INSTRUCTIONS
DUALALARMS-PERFECTFOR WEEKDAYS
&WEEKENDS
EASYTOREADJUMBO CLOCK DISPLAY
WAKE UPTORADIOOR ALARM
AM/FMRADIORECEIVER
ELECTRONICDIGITALCLOCK
PM&DUALALARMINDICATORS
SNOOZE FUNCTION (FOREXTRA 7MINUTES SLEEP)
SLEEPTORADIO (WITHAUTOMATICSHUTOFF)
BATTERYBACK-UP (9VBATTERY, NOTINCLUDED)
PLEASE READCAREFULLYBEFOREUSE
IB-CR777(NL)-WM-E-020504
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM1

IB-CR777(NL)-WM-E-020504
1
1.Readtheseinstructions.
2.Keep theseinstructions.
3.Heedallwarnings.
4.Followall instructions.
5.Donotusethisapparatusnear water.
6.Cleanonlywithdrycloth.
7.Donotblockanyventilationopenings,installinaccordance with
themanufacturer sinstructions.
8.Donot install nearanyheat sourcessuchasradiators,heat
registers,stoves,or other apparatus (includingamplifiers)that
produce heat.
9.Donot defeat the safetypurposeof the polarized or grounding-
typeplug.Apolarizedplughastwobladeswith onewiderthan the
other.Agroundingtype plug hastwobladesand a
thirdgroundingprong.Thewidebladeorthethirdprongareprovided
foryour safety.Ifthe providedplug doesnotfit into your outlet, consult
anelectricianfor replacementofthe obsoleteoutlet.
10.Protectthepowercordfrombeing walkedonorpinchedparticularly
at plugs,conveniencereceptacles,andthe pointwhere they exit
fromthe apparatus.
11.Onlyuse attachments/accessoriesspecified bythe manufacturer.
12.Unplug thisapparatusduring lightening stormsor when unused
forlong periodsof time.
13.Referall servicingto qualified service personnel. Servicing is
required when theapparatushasbeen damagedin anyway,such
as power-supply cord or plugisdamaged,liquidhasbeenspilled
orobjects have fallenintotheapparatus, theapparatushasbeen
exposed torainor moisture,doesnotoperatenormallyorhasbeen
dropped.
14.Thisappliance shallnot beexposed to drippingorsplashing water
and that noobjectfilled with liquid suchasvasesshall be placed
ontheapparatus.
WARNING
Thelightningflashwith
arrowheadsymbol,
withinan equilateral
triangle, is intended to
alerttheusertothe
presence of uninsulated
“dangerousvoltage”
withintheproduct s
enclosure that may be of
sufficientmagnitudeto
constitute arisk of electric
shocktopersons.
TOPREVENT FIREORSHOCKHAZARD,DONOTUSE THE PLUGWITH AN
EXTENSIONCORD,RECEPTACLEOROTHEROUTLETUNLESSTHEBLADES
CANBE FULLYINSERTED TOPREVENTBLADEEXPOSURE. TOPREVENT
FIREORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINOR
MOISTURE.
WARNING: TOREDUCE
THE RISK OFELECTRIC
SHOCK,DONOT
REMOVE COVER(OR
BACK).NOUSER
SERVICEABLEPARTS
INSIDE.REFER
SERVICINGTO
QUALIFIEDSERVICE
PERSONNEL.
Theexclamationpoint
withinanequilateral
triangleisintendedto
alertthe user tothe
presenceofimportant
operatingand
maintenance(servicing)
instructionsinthe
literatureaccompanying
theappliance.
IMPORTANTSAFETYINSTRUCTIONS
WARNING
RISKOFELECTRICSHOCK
DONOTOPEN
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM2

IB-CR777(NL)-WM-E-020504
ADDITIONALSAFETYINSTRUCTIONS
1. PowerSources -Theapplianceshouldbeconnectedtoapower
supplyonlyof thetypedescribedinthe operatinginstructions or
asmarked on the appliance.
2. Wall orCeilingMounting -The appliance shouldnotbe mounted
toawallorceiling.
3. ObjectandLiquid Entry -Careshouldbetakenso thatobjects
donotfallandliquidsarenotspilledintotheenclosurethrough
openings.
4. Servicing -The usershouldnot attempt to servicetheappliance
beyond that describedin theoperating instructions.All other
servicingshouldbereferredtoqualifiedservice personnel.
5.Donot connectFM antennawireto anyoutdoorantenna.
2
LOCATION OFCONTROLS
TOPVIEW
FRONT VIEW
TUNING
CONTROL
VOLUME
CONTROL
DIAL SCALE
DIMMER
SWITCH
CLOCKDISPLAY
ALARM2INDICATOR
ALARM1
INDICATOR
PMINDICATOR
ALARM SET
SWITCH
(1, 2or1+2)
SLEEP
BUTTON
ALARM
BUTTON
FUNCTIONSWITCH
(BUZZ/AUTO/OFF/ON) BAND
SWITCH
SNOOZE
BUTTON
FORWARD
BUTTON
REVERSE
BUTTON
TIMESET
BUTTON
ALARM/SLEEP
OFFBUTTON
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM3

LOCATION OFCONTROLS
BACKVIEW
3
OPERATINGINSTRUCTIONS
PoweringUp
Plug the ACpower cordinto a120V,60Hzelectrical outlet. The clock
displaywill lightupandflashindicatingthepowerison.
NOTE: Thiscord ispolarized.Thismeansthe cord willonlyfitone
wayintothesocketorwalloutlet.Ifitdoes notfit,donotforce
it, justreverseit and tryagain.
BATTERYBACK-UP
If the ACcord isdisconnected or ifthere isashorttime power failure,
this electronicclock and timerare designed tocontinueoperating
internally(withoutshowing the timein the display)ifa9voltbattery(not
included)isinstalled.
Theradiowill workfine withoutthisbackupbattery.
NOTE: Youmay checktheconditionofthebatteryeveryfewmonths
bydisconnectingtheACcordandconnectingitagain2or3
minuteslater.Thepresettimeswillshow.Ifthetimeflashes, it
indicatesthe batteryisdeador not connected properly.
Setting theClock
1.Pressand hold theTIMEset button togetherwith the FORWARD
button until the displayshows the desired hour.
2.Press and hold the TIME set buttontogetherwiththeREVERSEbutton
until thedisplayshowsthedesired minutes.
NOTE: Whenthe PM indicator isoff, the time isAM.
FMANTENNAWIRE ACPOWERCORD
BATTERY
COMPARTMENT
(9V,forbackup)
(unwindforbestreception)
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM4

IB-CR777(NL)-WM-E-020504
4
GETTINGBETTERRADIO RECEPTION:
ForbestAM reception, rotate the radio asmall amount or position it
nearthewindow.
Forbest FMreception,unwrapand fullyextendthe FMantennawire.
WARNING: Donot connect the FMantennatoan outdoorantenna.
Playing theRadio
1. Slide the FUNCTION switchto ON position.
2.Slidethe BAND switch toeitherAMorFM.
3.TurntheTUNINGcontroltoyourdesiredstation.
4. Adjustthe VOLUMEcontrol to yourfavorite listeninglevel.
5.SlidetheFUNCTIONswitch toOFF positiontoshutofftheradio.
Waking up to Radio(Alarm)
1.Setthealarmtimeas previouslyinstructedandslidetheALARM
SETbuttontoALARM 1,ALARM2orALARM 1+2.
2.Selectyour desired AM or FM broadcastbyfollowing the procedure
ofPlayingtheRadio.
3.Makesurethe VOLUME controlisset loudenough towake youup.
4.Slide the FUNCTIONswitchtoAUTOpositionandtheALARM1,
or ALARM 2or both indicators willlight up(depending on what you
selectonstep 1).
NOTE: Yoursetisnowreadytoturnonautomaticallyatyour
selectedalarmtime(s).
5.Whenalarm sounds,to get 7minutesof extra sleep, pressthe
SNOOZEbutton.
6.Toshutoffthealarm,pressALARM/SLEEPOFFbutton.
OPERATINGINSTRUCTIONS
Setting theAlarmTimes
Thissethasdual alarms.YoumaysetALARM1towakeyouat acertain
time,orALARM2towakeyouatadifferenttime,or ALARM1+2-both
alarmswill sound at thetimesyouset.
Thisfeature isuseful forahusband &wife waking up at different times
orasinglepersonwholikestowakeup atdifferenttimesduringweek
days or weekends.
TosetALARM1,slidetheALARMSETswitchtoposition 1.
5.ReleasetheALARMbutton, the clock displaywill showthe normal
timeof day.Pressthealarmbutton to display thealarmtime.
TosetALARM2,slidetheALARMSETswitchtoposition 2.
1.UsetheALARM buttontocheckthealarmtime.
2.Pressandhold the ALARMbutton togetherwiththeFORWARD button
until the displayshows the desired alarm hourtime.
3.Press and hold the ALARMbutton togetherwith the REVERSE button
untilthe displayshows the correctalarmminutes.
4.Make sure thePMlampisoffifyou wanttheclocktowakeyouinthe
morning.
NOTE 1:Againcheck the PM indicator.If youwant the radioto
wakeyou inthe morning, the lampabovetoPM should
beoffon alarmtime (whenpressingALARMbutton).Tochange
PM toAM time,advancetime 12 hours.
NOTE2: TowaketoALARM1time, slide ALARMSETswitchto position 1.
TowaketoALARM2time, slide ALARMSETswitchto position 2.
Towake tobothtimes,slide ALARM SETswitchto position1+2.
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM5

IB-CR777(NL)-WM-E-020504
OPERATINGINSTRUCTIONS
SnoozeControl
When thissethas waken you up and youwish tosleep afewminutes
more,simplypresstheSNOOZEbutton.Theradioorbuzzerwillgooff
for7minutesandthen come on again. Thisisrepeated in arow.
AlarmOff
1.Press ALARM/SLEEP OFF button. Thiswill shut the alarmforthat
day only.Next daythesetwillwakeyou againat the sametime.
2.Slide theFUNCTION switchtoOFF positionandthealarmfunction
is off until youre-adjustthe FUNCTIONswitchtoAUTOor BUZZ.
Waking up to Buzzer (Alarm)
1.Set thealarmtimeas previouslyinstructedandslidetheALARM
SETbuttontoALARM 1,ALARM2orALARM 1+2.
2.Slidethe FUNCTIONswitchtoBUZZpositionand theALARM 1,
or ALARM 2or both indicators willlight up(depending on what you
selectonstep 1).
3.Thebuzzeralarmisnowsettoturnonautomaticallyatthe
selectedalarmtime(s).
4.Whenbuzzer sounds,to get 7minutesof extra sleep, pressthe
SNOOZE button.
5.Toshutoffthealarm,pressALARM/SLEEPOFFbutton.
SleepControl
TheSLEEP controlwillallowthe radiotoplay59minutesbeforethe
radioturns itselfoff.
1.Slide the FUNCTION switchto BUZZ orAUTOposition.
2.PresstheSLEEPbutton, thedisplaywillshow59minutes
and the radio will startto play.
3.Pressthe SLEEP button downtogether with theFORWARDor
REVERSEbuttonuntil thedisplayshowsyourdesiredamount of
time youwanttheradio to play beforeshuttingitselfoff.
4.Releasebothbuttons.Theradio willplayforthetime youselected
andshut itselfoff.
5.Toturntheradiooffbefore theplayingtimehasexpired,simplypress
the ALARM/SLEEP OFF button.
NOTE: Thesleepfunctionwillnotaffectthewake-upoperation ofthe
clockiftheFUNCTIONswitchisin AUTOor BUZZ position.
Inthemorning,theradio or buzzerwill wakeyou up ifFUNCTION
switchisin the AUTOor BUZZposition.
5
Display Dimmer
Theclock displayhas2settings:HIGH and LOW. Slidetheswitch to
adjustthe brightness of the display.
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM6

IB-CR777(NL)-WM-E-020504
TROUBLESHOOTING (HelpfulHints)
SHOULDYOURSETEXHIBITAPROBLEM,CHECKTHE
FOLLOWINGBEFORESEEKINGSERVICE.
FM isdistorted
andweak.
Noiseor weak
soundonAM
broadcast.
Radiono
sound.
Theclockis
flashing.
Clock isdead.
FM antenna wire
isnotextended.
Station nottuned in
properly.
Weakbroadcast
station.
Signal isblocked.
External
interference.
FUNCTION switchis
in the OFFposition.
VOLUMEcontrolset
to minimumposition.
Theclockisnotset.
Apower failurehas
occurred.
Theset sACcordis
notconnected.
ExtendFMantenna
wire.
Tunetodesired
station carefully.
Turn toastronger
station.
Rotate the set to receive
better signal.
Turn the radio forbetter
AMreceptionor bring set
near awindow.
SlidetheFUNCTION
switch to ON position.
RotateVOLUMEcontrol
fordesired sound.
Settheclockandalarm
time.
Resetthe clock alarmtime
and time ofthe day.
Connectset sACcord
and makesureoutlethas
power.
LENOXX reservesthe rightto makedesign andspecification changes
forproductimprovement.
SYMPTOM CAUSE SOLUTION
Alarmdoesnot
come on inthe
morning.
AM orPM notset
correctly.Isalarm
timeset inAM range
(PM Lamp off)?
Advance theclock12
hours.
FUNCTIONswitchis
inOFF position.
Arethe ALARM
INDICATORS off?
Set the FUNCTION
switchtoAUTOorBUZZ
position.
PROTECTYOUR FINEFURNITURE!
WE RECOMMENDACLOTHOR OTHERPROTECTIVE
MATERIALBEPLACEDUNDERTHESETWHENPLACINGIT
ON SURFACEWITHANATURALOR LACQUERFINISH.
6
ALARMSETswitchis
not in the proper
position.
Recheckthe ALARM1&
ALARM2times, andmake
surethe proper ALARM
indicatoristurn on.
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM7

IB-CR777(NL)-WM-E-020504
SPECIFICATIONS
Powersource:AC120V,60Hz,8W
DC9Vbatteryforbackuptime memory
(optional,alkalinebatteryisrecommended)
Dimensions:9"(Length)
41/4"(High)
23/4"(Depth)
Frequency range: FM88-108MHz
AM 530 -1700kHz
©2003 LENOXX ELECTRONICS CORP.
2GERMAK DRIVE
CARTERET,N.J.07008
MADE &PRINTED IN CHINA
LIMITED WARRANTY
We warrant thisproductto be free from defects in material
and workmanshipunder normal useforaperiod of 90days
afterpurchaseand wewill repair itfree of chargeor replace
itatnocharge,shoulditbecome defectiveunder this
warranty,providingyou submit proof of purchase(salesslip)
withthe set.
During the initial 90dayperiod after original purchase,wewill
serviceorexchange, at no charge,theset that isreturnedto
LENOXX ELECTRONICSCORP.After the initial 90dayperiod
expires,and foraperiodof12monthsfrom originalpurchase, we
will repair the unit covering anypart(s)that need to bereplaced at
nocharge, butwillcharge forthecost oflabor,returnpostagepaid
byLENOXX.
Thiswarranty does not applyto anyproductswhichhave been
subjectto misuse,neglector accident. Thiswarrantydoes
not cover broken cordsorcabinet. UNDERNO
CIRCUMSTANCESWILLLENOXX ELECTRONICSCORP.BE
LIABLE FOR ANYINCIDENTALOR CONSEQUENTIAL
DAMAGES. Some statesdo not allowthe exclusion or
limitationofincidentalorconsequential damages, so the
abovelimitationsor exclusionsmaynot applyto you.
Thiswarranty gives you specificlegalrights, andyou mayalso
haveother rightswhichvary from stateto state. Thefollowing
chargesapplyto repairsbeyond thewarrantyperiod: $5.00.Be
sure topack carefullyand return postagepaidinsured togetherwith
your money order(personal checkswillnotbeaccepted)andsales
receiptto :
LENOXX ELECTRONICSCORP.
2GERMAKDRIVE,CARTERETN.J. 07008
Forcustomerservice
Dial1-800-315-5885
(MONDAY-THURSDAY9:00AM-5:00 PM,FRIDAY9:00AM-1:00 PMEST)
orVisit OurWebsite: http://www.lenoxx.com
7
IB-CR777(NL)-WM-E-020504.p653/9/2004, 6:42 PM8
