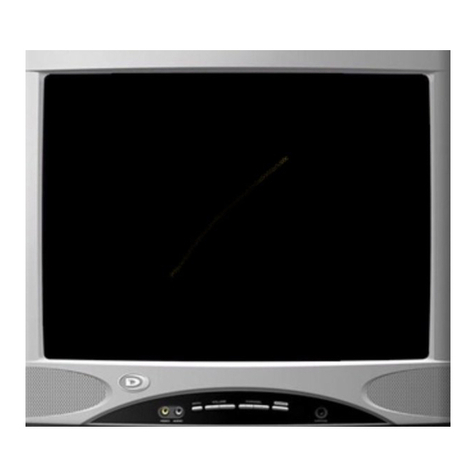

Durabrand BH2004D User manual

14
1
27 BH2004D

1
EnglishEnglish
Before Operation
Warning and cautions..............................................................................2
Installation................................................................................................4
................................................................................4
Preparation of the remote control............................................................4
MENU functions
Video set up............................................................................................5
Audio set up............................................................................................5
Timer set up............................................................................................6
Function
Channel
Calendar
..........................................................................11
Antenna Connection
Troubleshooting guide
set up......................................................................................6
set up......................................................................................7
.................................................................................................9
V-CHIP set up........................................................................................9
Others
Warranty ............................................................................................... 12
Specifications ........................................................................................13

English
2
EnglishEnglish
IMPORTANT SAFETY INSTRUCTIONS

35
3
EnglishEnglish
20) Read theseinstructions.
21) Keep theseinstructions.
22) Heed all warnings.
23) Follow allinstructions.
24) Do notuse this apparatus nearwater.
25) Clean only witha dry cloth.
26) Do notblock any ventilation openings.Install in accordance withthe manufacturer's instructions.
27) Do notinstall near any hearsources such as radiators,heat registers, stoves, orother apparatus
(including amplifiers) that produceheat.
28) Do notdefeat the safety purposesof the polarized orgrounding type plug.A polarized plug hastwo
blades with one widerthan the other. A grounding typeplug has twoblades and a third grounding prong.
The wide blade orthe third prong isprovided for your safety. When theprovided plug does notfit into your
outlet, consult an electricianfor replacement of theobsolete outlet.
29) Protect thepower cord from beingwalked on or pinched particularly at plugs,convenience
receptacles, and the pointwhere they exit fromthe apparatus.
30) Only usethe attachments/accessories specified bythe manufacturer.
31) Unplug this apparatusduring lightning storms orwhen unused for longperiods of time.
32) Refer allservicing to qualified servicepersonnel. Servicing is requiredwhen the apparatus has
been damaged in anyway, suchas power supply cordor plug is damaged, liquid has beenspilled or
objects have fallen intothe apparatus, the apparatushas been exposed torain or moisture, doesnot
operate normally, or has beendropped.

English
4
EnglishEnglish
MENU
VOLUME
CHANNEL
POWER
EARPHONE
VIDEO
AUDIO
1 2 3 4 5 7 9 10 116 8
Earphone
POWER Indicator
POWER:power on/off
Front
For Future Reference Please
SAVE THESE INSTRUCTIONS
Model number Serial number Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
Remote Control Functions
1. : Power on/off
2. MENU: Access/Exit Main M
3. CH+/-: Select next higher or lower channel
4. VOL+/-: Increase or decrease sound
5. CHANNEL NUMBER BUTTON: Direct channel
tuning (TV channel 02-69, CATV channel 01-125.)
6. RECALL: Return to previous channel
7. -/--: Digital Selector
8. TV/AV: TV/AV selection
9. CCD CCD selection
10. MUTE: Press key to Activate/deactivate Mute Function
11. P.STD: Picture Preference Select Button
12. DISPLAY: Display receiving channel
13.EXIT Exit TV Menu
1. : Power on/off
2. MENU: Access/Exit Main M
3. CH+/-: Select next higher or lower channel
4. VOL+/-: Increase or decrease sound
5. CHANNEL NUMBER BUTTON: Direct channel
tuning (TV channel 02-69, CATV channel 01-125.)
6. RECALL: Return to previous channel
7. -/--:
8. TV/AV: TV/AV selection
9. CCD CCD selection
10. MUTE: Press key to Activate/deactivate Mute Function
11. P.STD:
12. DISPLAY: Display receiving channel
13.EXIT
1
6
789
23
45
0
RECALL
TV/AV
RATING
MUTE
P.STD SLEEP
DISPLAY
MENU CH+
VOL- VOL+
CH-
1
6
789
23
45
0
RECALL
TV/AV
CCD
EXIT
MUTE
P.STD
DISPLAY
-/--
MENU CH+
VOL- VOL+
CH-
12
3
4
5
67
89
13
10
11 12

5
5
EnglishEnglish
Menu Functions
Video Set Up:
Pressing MENU button once willbring the Picture Set Up menu on the TV.
The following isshown on yourTV screen:
Follow the procedure below toadjust the
picture quality ofyour choice:
1.Press the CH(+) and CH(-)button to go
up and downthe menu.
2.Press the VOL(+) and VOL(-) button to
increase and decreasethe level toyour
preference for eachitem.
Adjustment of Picture Quality:
Toadjust the picturequality from thefactory preset readthe following:
Picture: By increasing the level. It will adjust white areas of picture and bydecreasing the level,
it will adjustblack areas ofpicture.
Brightness: By increasingthe level, itwill add morelight to darkparts of the picture and by
decreasing the level,itwill add moredark to lightparts of thepicture.
Color: By increasingthe level. Itwill adjust the low and thehigh level of the picture.
Sharpness: By increasingthe level, itwill show cleanerand clearer imagesand by decreasing
the level, itwill make picturesmoother.
Color Temp : Bypressing the VOL(+/-) buttons to select the three setting A)Neutral, B)Warm,C)Cool.
Hue: You can adjust the tint of the picture by going into picture set up menu. By decreasing the
level, it willgive red tintto skin colorand by increasingthe color itwill give greentint to
skin color.
Picture 70
Color 50
Sharpness 40
Hue 50
Color Temp. Neutral
Brightness 32
Video
Information to user:Thistelevision receiver is equipped with close caption decoder and
parental blocking technology as required by the FCC.
Audio Set Up:
By pressing MENUbutton ,and thenpressing VOL(-/+) button it will bring you toAudio
Set Up display. You will seethe following menuon your TVscreen:
Follow the procedure below toadjust the
sound quality:
Press VOL(+) button toincrease and VOL (-)
button to decreasethe level toyour preference.
Audio
Volume 45

6
EnglishEnglish
Timer Set Up:
By pressing MENUbutton ,and thenpressing VOL(-/+) button it will bring you toTimer
Set Up display. You will seethe following menuon your TVscreen:
Clock:
Time-On:
Ch. Select: Thisexclusive feature switchesyou to yourfavorite channel atthe
appropriate set time.Press VOL(+)and VOL(-) buttons to selectthe channel.
Time-Off :
Sleep Time: This feature allows you to turn off television in pre-selected minutes (180,
170,160, ........,10 and 0).
Remind time:
Ch. Switch: Thisfeature lets youstore your favoritechannel. Once youstore the
channel number inthis function, whenthe set timeis up, itwill switch over
to the set channel. This feature is used withthe Exchange feature.Press
VOL(+) or VOL(-) button to select thechannel.
Press CH( +/-) buttons toscroll to Clock,then press VOL (-/+) buttons to set
the hour after setting the hour press CH( +/-)buttons to goto minute modeand
set by usingVOL(+/-) buttons.
Press CH( +/-) buttons toscroll to Clock,then press VOL (-/+) buttons to
set the hour after setting the hour press CH( +/-) buttons to go to minutemode
and set byusing VOL(+/-) buttons.
Press CH( +/-) buttons toscroll to Clock,then press VOL (-/+) buttons to
set the hourafter setting thehour press CH( +/-) buttons to go to minute mode
and et by using VOL(+/-) buttons.
Press CH( +/-) buttons toscroll to Clock,then press VOL (-/+) buttons
to set the hour after setting the hour pressCH( +/-) buttonsto go tominute mode
and set byusing VOL(+/-) buttons.
Timer
Time-On 18:00
Ch. Select 1
Time-Off --:--
Sleep Time 0
Remind Time --:--
Ch. Switch 1
Clock 17:18
Follow the procedure below to select one of
the above options:
1.Press the CH(+) and CH(-) button to go up
and down themenu.
2.Press VOL(+) button orVOL (-) button to
select your preference.
Function Set Up:
By pressing theMENU button, andthen pressing VOL-/+ button will bring youto
Function Set Up menu. You will seethe following menuon your screen:
Setup
Language English
Background on
VNR on
Fade off
AVL off
C. Caption off
Demo Mode
Black Stretch on
1.Press the CH(+) and CH(-)button to go up
and down themenu.
2.Press the VOL(+) and VOL(-) button to
increase and decreasethe level toyour
preference for eachitem.
Follow the procedure below toselect one of
the above options:

Language: Use VOL(+/-) to select the OSDin either English,French orSpanish.
Background: Press the VOL (+/-) buttons to select between Background ON or Background
OFF. When the Background ON function is chosen, amoving"NO SIGNAL" signwill
be displayed ifthere is noinput signal tothe set.
Black Stretch: Press VOL (+/-) buttons to turn the Black Stretch feature on or off. When the
Black Stretch functionis on thescreen automatically increasesthe contrast range.
VNR: Press VOL (+/-) buttons to turn the VNR function on or off. VNR isa term forVideo
Noise Reduction, a built-in device on theset that reduces video noise interference
so the vieweris assured aclear picture.
C.Caption: Press VOL (+/-) buttons to select the Closed Caption options. Closed
Captioning helps thehearing impaired withthe broadcast program,as well ashelping
children learn howto read. A built in decoder displays the audio portion of aprogram
as text onthe screen whenthis option is selected.
OFF: When OFF is displayed on TV means C.Caption is turned off.
CC1: When Cc1displays on TV means C.Caption is turned on.
CC2 to CC4:For other modes of videorelated broadcast information.
T1: For program guide andother information displayedby broadcasters.
(This blocks a large portion of the picture on your screen).
T2 to T4:For other modes of informationdisplayed by broadcasters.
(This blocks alarge portion ofthe picture onyour screen).
Note: Select CC1for full translationof the primarylanguage such asEnglish in your
area. Select Cc2for secondary languagetranslation such asSpanish or anyother
language that maybe broadcast inyour area.
Fade: The FADE control allows for the picture tube to warm up and gently turn on,
which can help prolong the life of the picture tube.
Demo mode: Thiswill display themain functions ofthe TV set.
Automatic VolumeLevel control reduces the effectof large volume changes. For instance,
when advertisements comeon.
Channel set up:
By pressing MENUbutton ,and thenpressing VOL-/+ button it willbring you to
Channel Set Up.Youwill see the following display on TV screen.
Channel
Antenna TV
Skip off
Current Ch. 2
Fine
Auto Program
Channel System Auto
Follow the procedure below toselect above
options:
1.Press the CH(+) and CH(-)button to goup
and down themenu.
2.Press VOL(+) button or VOL (-) button to
select your preference.
Channel System: Press the VOL(-/+) buttons toselect the correct channel system.
In general, youcan set it as "AUTO" AUTO,NTSCand NTSC443 will
display in turn
Antenna: Press VOL (+) button or VOL(-) button toselect TV orCATV.
Skip :Press VOL(+) button or VOL(-) button to addor delete thechannel from the
stored memory.
Current Ch. :Press VOL(+) button to go up and VOL (-) buttonto go downto set the
channel position. Thedisplay will show the current playingchannel.
EnglishEnglish
7

Channel Coverage byAntenna:
Antenna Type Channel Range
VHF 2-13
UHF 14-69
CATV 1-125
Fine: If the picture and/orsound are poor, try usingthe FINE TUNE feature.
Do not usethis feature unlessreception is poor. Press VOL (+/-) to start theFine
Tune function.
Auto Program: Press VOL(+) button orVOL (-) button to autoprogram in channels.
This search automaticallyadds only theactive channels inyour area tothe TV's
memory. It deletes anychannels on which there is no broadcast or a poor signal.
Note: The AutoSearch function willscan the channelson the selectedantenna
input. If the TV is connected to cable, please select Cable underAntenna.
Calendar:
Your TV has beendesigned with acalendar. By pressing MENU button ,and then
pressing VOL-/+ button it willbring you toCalendar. You will see thefollowing
display on TVscreen.
Calendar
OCT
OCT
OCT
2001 11 14
Follow the procedure below toadjust the Calendar:
1. +/- buttonsPress the CH to select theyear
item, the monthitem or thedate item.
2. Press the VOL-/+buttons to change
calendar setup (1901.1.1-2099.12.31).
3. Press EXIT button toexit the calendarmode.
V-CHIP SetUP:
Press the MENU Button onyour remote controlto go toPassword menu, then input
the password (0000). It will bringParental Lock set up display on thescreen. You
will see thefollowing menu onyour screen:
Parental Lock
Parental Lock off
TV Rating
MPAA Rating
Lock Menu
Change Password
Passsword
Password ----
This function enablesyou to blockcertain TV channelsin accordance tothe V-CHIP
requirement established bythe FCC.
EnglishEnglish
8

Note: When Parental Lock "ON" is selected,you will see "B" instead of "U' .When
Parental lock"OFF" is selected,you will see"U" instead of" B".
Toset the V-CHIP function:
Select the TVRating option. You will see theTV Rating menu on yourTV screen:
1.Press CH(+/-) button to goup and down
the menu.
2. Press VOL(+/-) button to go into TV
Rating and Movie Rating menus.
3.Press MENU button to setthe Parent
lock ON andParent lockOFF.
When TV ratingis selected, youwill see
the following ratingtable on yourTV screen.
Rating FV
TV-Y
TR-Y7
TV-G
TV-PG
TV-14
TV-MA
D L S V
U U U U
U U U U
U U U
U
U
U
U
U
U
>
U
When Movie ratingis selected, youwill see thefollowing rating tableon your TVscreen.
MPAARating
G U
PG U
R U
NC-17 U
X U
PG-B U
Note: When Parental lock "ON"is selected, you will see "B"instead of "U".When
Parental lock"OFF" is selected,you will see"U" instead of "B".
PARENT LOCK OFF means the lock function is turned off . If the PARENT LOCK
is in "OFF"mode then V-CHIP function willnot be activeto accept the V-CHIP
signal.
PARENT LOCK ON meansthe lock functionis turned on.If the lock is in the"ON"
mode then V-CHIP function is activated to accept the V-CHIP signal.
Password
The "Default Password" preset by the manufacturer is "0000" . If you want to change
the preset passwordto your ownpassword, just chooseany four digitsthat can be
easily remembered andset. Once youset password fora particular channel,that
channel will beblocked. This channel can only be accessed with thepassword.
LOCK Menu
AV LOCK:When it is setON,you can not use the AV.
PROGRAM LOCK:When it is set ON,the current channel is locked,you can not see
the program ofthis channel.
EnglishEnglish
9

V-Chip Technology:
The "V-Chip Technology" allow youto use U.S. And Canada Movies and TV
PROGRAMS Guide ratingsto block certaintypes of TVprograms and movies.
Tounderstand clearly aboutTV programs ratingcodes, read thefollowing list:
U.S. TV Program Ratings
NR: Not Rated-this means that programs are not rated or rating does not apply.
TV-Y:For all children-thistype of rated programs are designedfor a veryyoung audience,
including children fromages 2-6.
TV-Y7:Directed for older children - thistype of ratedprograms may includecomedic violence
of mild physical, or may frighten children under theage of 7.
TV-G:General Audience-this typeof rated programs contains little orno violence, nostrong
language, and little or no sexual dialogue and situations.
TV-PG:ParentalGuidance Suggested-this typeof rated programsmay contain limitedviolence,
some suggestive sexualdialogue and situations,and rare language.
TV-14:Parents strongly cautioned-this type of rated programs may contain sexual content,
strong language andmore intense violence.
TV-MA:Mature audienceonly-this type of rated programs may contain sexual violence,
explicit sexual contentand profane language.
FV: This type ofrated programs contain Fantasy and cartoon violence.
Violence: This typeof rated programscontain violence.
S: This type of rated programs contain sex.
L: This type of rated programs contain offensive language.
D: This typeof rated programscontain dialogue withsexual content.
Tounderstand clearly aboutmovies rating codes,read the followinglist:
U.S. Movies Rating Chart
NR: This meansmovie is notrated yet. Itis pending governmentrating approval.
G:General Audience-this type of movie rating means all ages admitted to see the movie.
PG-13:Parents Strongly Cautioned - thistype of movierating means some material
may not beappropriate for childrenunder13.
R:Restricted- This type of movie rating means children under 17 of age requires to
be with parentor guardian.
NC-17:This type of movie rating meansno one 17and under admitted.
X:This type of movie rating means adults only.
Tounderstand clearly aboutCanadian programs ratingcodes, read thefollowing list:
Canadian English Rating Chart
E:Exempt - this type of rated programs contain news,sports, documentaries, talk
shows, music videos,and variety ofother programs.
C:This type of rated programs are intended for children under age 8.There is no
offensive language, nudityor sexual content.
C8+:This type ofrated programs generallyconsidered acceptable forchildren 8
years and over. There isno profanity, nudity orsexual content.
G: This type of rated programs generally suitable for all audiences.
PG: Parental Guidance Suggested -inthis type ofrated programs, somematerial
may not besuitable for children.
14+:In this typeof rated programs,some content maynot be suitable for viewers
under the age of 14.Parents are strongly cautioned not to havetheir children
view 14+ ratedprograms by pre-teens and early teens.
18:Adults Only-this type of rated programs are only for adult viewers only.
EnglishEnglish
10

11
EnglishEnglish

12
English
EnglishEnglish
Warranty Information

13
Espanol
~
19.9 X18.7 X17.819.9 X18.7 X17.8
22
EnglishEnglish
43
UHF: 14-69 CATV: 1-125
VHF: 2-13
Included :Accessories AA
lbs.
BH2004DBH2004D
