DURAVIT L-Cube LC 7380 User manual

4x4,5x50
4x 8
2x 50
78
B
120 120
220
70
2000
70
70
A
30 30
Mounting instructions
Instructions for use
We reserve the right to make technical improvements and design modifications to the products illustrated.
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Direct contact with water should be avoided, for example, when showering.
Distance from the sensor to the reflecting surfaces = > 75 mm.
A power supply of 110 V – 230 V must be available on site.
A
mm
B
mm
650 350
MAL_L-Cube_LC7380/23.01.4
L-Cube # LC 7380

Ø 8 mm
2x 8 2x 5,5x50
230 V
>75
2x 5,5x50
Ø 8 mm
2x 8
Best.-Nr. LC7380/23.01.4
MAL_L-Cube_LC7380/23.01.4
Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone [phone], Fax [phone], [e-mail], www.duravit.de
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
17 18 19 20

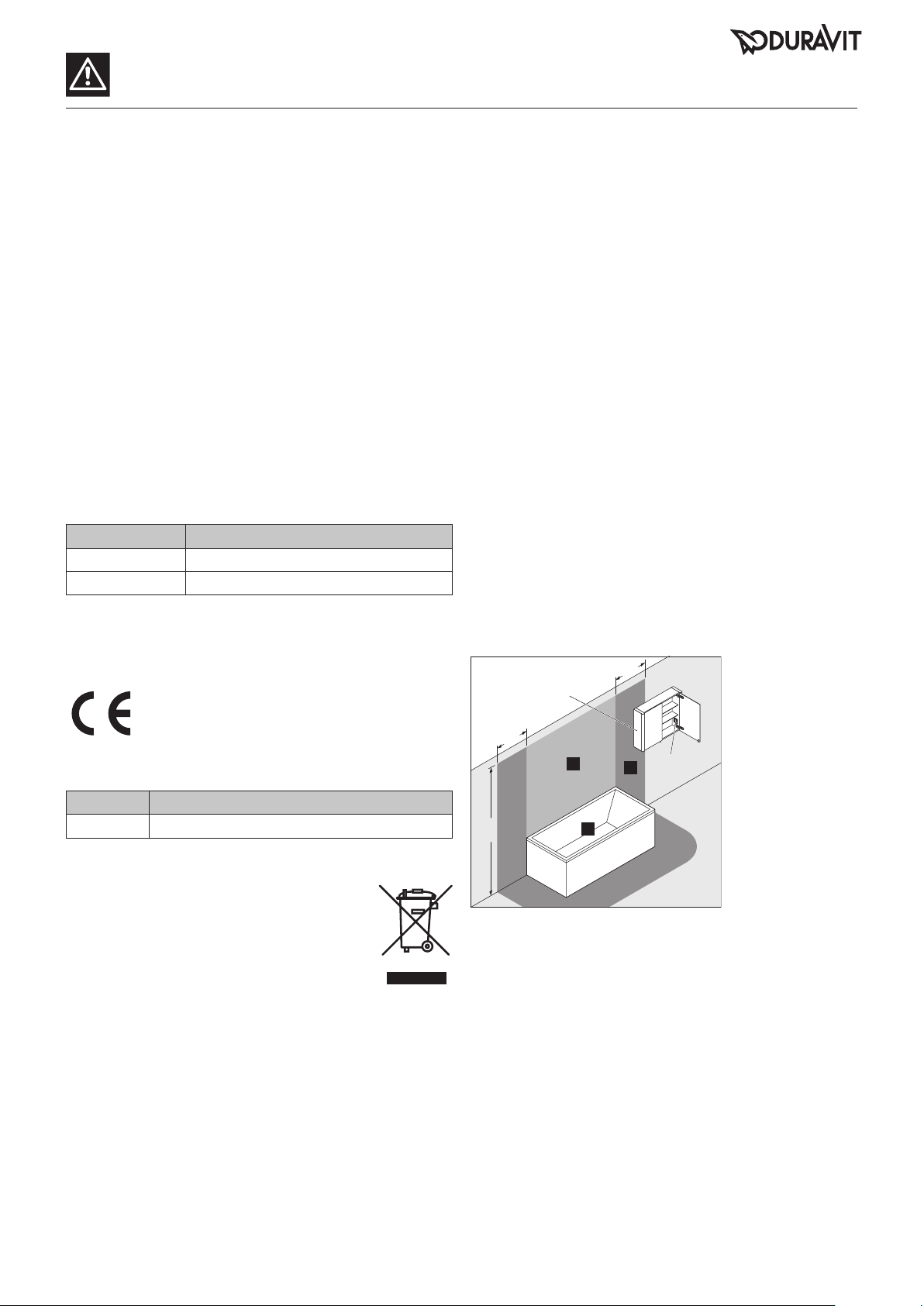

Mounting instructions for bathroom furniture with a power supply
Safety 2
Electrical installation 3

Intended use
The mounting instructions come as part of the Duravit
product and are aimed at people who carry out the
electrical installation for the product. You must read
through the mounting instructions carefully and they must
be available at all times.
Target readership and qualifications
The electrical installation may only be carried out by
qualified electricians.
Protection rating of Duravit products
The protection rating of Duravit products with a power
supply complies with the IP 44 standard as a minimum.
Protection class of wall lights
Protection class Connecting cable
I H05VV-F, 3x 1.5 mm2
II H03VV-F, 2x 0.75 mm2
Standards and directives
Duravit products comply with the CE marking
directives:
Icons and symbols
Symbol Meaning
> Action required
Disposal
• Do not dispose of the product in household
waste. Products with this symbol must be
disposed of in accordance with the WEEE
Directive through local collection points for
waste electrical equipment.
Safety instructions
Danger to life
Contact with electricity may lead to an electric shock.
>Carry out the electrical installation in accordance with
the national, European and international directives and
standards.
>Observe protection zones for wet rooms in accordance
with country-specific standards, local regulations and
low voltage guidelines.
>Connect the electrics using a ground fault circuit
interrupter (GFCI) in wet rooms or other specially
equipped rooms.
>Disconnect electrical components from the power supply
before the installation.
>Check that all components are de-energised.
>Prevent the power supply from being switched on
accidentally.
Penetration of foreign bodies and water
Foreign bodies or water in equipment lead to a short circuit
that may cause damage to the product.
>Observe the protection zones for Duravit products.
Protection zones
600 600
2250
0
12
A
B
AA mirror cabinet with an IP 44 rating may protrude into zone 2.
BA socket in a mirror cabinet must be mounted outside the zones.
Energy efficiency class
• This product contains an energy efficiency class D light
source.
2MAL_51240/22.04.5
Safety

Electrical installation for protection class I
Electrical connection Optional connection of an external button
LNLNL'
Electrical installation for protection class II
Electrical connection Optional connection of an external button
LNLNL'
LN
MAL_51240/22.04.5 3
Electrical installation

Order no. 51240/22.04.5 We reserve the right to make technical improvments and design modifications to the products illustrated.
Duravit aG
P.O. Box 240
Werderstr. 36
78132 Hornberg
Germany
Phone [phone]
Fax [phone]
[e-mail]
www.duravit.com

LED-Dimmfunktion
LED-Dimming function
Variateur déclairage LED
LED dimfunctie
Funzione dimmer per LED
Funcion regulacion de intensidad del LED
Função de regulação da intensidade da luz LED
LED-dæmpefunktion
LED-himmennystoiminto
LED-dimmefunksjon
LED-dimmfunktion
LEDi dimmerifunktsioon
Funkcja ściemniania diod LED
  
Funkce stmívání LED
Funkcia stlmenia LED diód
LED fényerősség szabályzó funkció
LED funkcija zatamnjenja
Funcie de reglare LED
Zatemnitvena funkcija LED
LED   
LED gaismas intensitātes regulēšanas funkcija
LED ryškumo reguliavimo funkcija
LED aydınlatma fonksyonu
LED 调光功能
LED 밝기 조절 기능
LED 弱光機能
LED

100%1-2 sec
LED
100% 10%>3 sec
LED
100%1-2 sec
LED
100% 10%
>3 sec
LED
1 2
Technische Verbesserungen und optische Veränderungen an den abgebildeten Produkten behalten wir uns vor.
We reserve the right to make technical improvements and enhance the appearance of the products shown.
Nous nous réservons le droit d’apporter des améliorations techniques et de modifier l’apparence visuelle des produits présentés.
Technische verbeteringen en optische wijzigingen ten opzichte van de afgebeelde producten voorbehouden.
Con riserva di apportare modifiche tecniche.
Nos reservamos el derecho de realizar modificaciones técnicas y de aspecto de los productos representados.
Reservamo-nos o direito a melhoramentos técnicos e a alterações ao nível visual dos produtos ilustrados.
Vi forbeholder os ret til tekniske forbedringer og ændringer af de viste produkter.
Pidätämme oikeuden kuvattujen tuotteiden teknisiin ja ulkonäköä koskeviin muutoksiin.
Vi forebeholder oss retten til tekniske forbedringer og optiske endringer av de avbildede produktene.
Vi förbehåller oss rätten till tekniska förbättringar och optiska ändringar hos de avbildade produkterna.
Me jätame endale esitatud toodetel tehniliste täiustuste ja optiliste muudatuste tegemise õiguse.
Zmiany techniczne ioptyczne prezentowanych produktów zastrzeżone.
            .
Vyhrazujeme si technická zlepšení a optické změny zobrazených výrobků.
Vyhradzujeme si právo na technické vylepšenia a vizuálne zmeny vyobrazených produktov.
Az ábrákon szereplő termékek műszaki fejlesztésének és a külső megjelenés változtatásának jogát fenntartjuk magunknak.
Zadržavamo pravo na tehnička poboljšanja i optičke promjene na prikazanim proizvodima.
Ne rezervăm dreptul la efectuarea îmbunătăirilor tehnice și a modificărilor optice la produsele din poze.
Pridržujemo si pravico do tehničnih izboljšav in optičnih sprememb na prikazanih proizvodih.
           .
Saglabājam tiesības veikt tehnisku pilnveidošanu un mainīt attēlos redzamo izstrādājumu vizuālo noformējumu.
Pasiliekame teisę daryti techninius patobulinimus ir keisti pavaizduotų gaminių išvaizdą.
Resmlerde gösterlen ürünlerde teknk yleştrme ve görünüm değşklkler yapma hakkımız saklıdır.
我们保留图示产品的技术改进和外观修改的权力。
사진에 제시된 제품에 기술적인 개선 및 디자인 변경이 있을 수 있습니다.
説明した製品に予告なく技術的あるいはデザイン的な変更を行うことがありますので、ご了承ください。
3 4
DURAVIT AG
P.O. Box 240
Werderstr. 36
78132 Hornberg
Germany
Phone [phone]
Fax [phone]
[e-mail]
www.duravit.com
Order no. 56816/19.02.4
